Arris Moxi User manual
©2011 ARRIS Group, Inc.
2 3Copyright ©2011 ARRIS Group, Inc. All rights reserved. Copyright ©2011 ARRIS Group, Inc. All rights reserved.i
Contents
Welcome
ARRIS Moxi Player Orientation........... 6
The Main Menu Layout ...................... 8
Horizontal Categories ........................ 9
Vertical Lists .................................... 10
Action Menus ...................................11
Mini TV............................................ 12
Using Your Remote ......................... 13
Shortcut Buttons.........................14
Menu Navigation........................ 15
Player Controls .......................... 16
Infrared Receiver.........................17
Subchannel Separator ................17
Full Screen TV
Flip Bar............................................ 19
Flip Bar - Layout ........................ 20
What’s On Next ................................21
See All Times ...................................21
Controlling Live TV........................... 22
Player Bar ....................................... 23
Automatic Conict Detection ............24
Screen Saver....................................24
TV Channels
TV Channels - Layout ...................... 26
TV Channels - Focus ........................27
Recording Icons .............................. 28
Preview Panel.................................. 29
Preview Panel - Layout .............. 30
Channels Action Menu .....................31
Action Menu Options....................... 32
Action Menu Options.................. 33
Recording Options......................34
Scheduled to Record ..................34
Currently Recording ................... 35
Conict Management ...................... 36
Space Management ........................ 36
Change Time Slot.............................37
Grid Guide....................................... 38
Recorded TV
Intro to Recorded TV ....................... 40
Recorded TV - Layout ......................41
Management................................... 42
Folder Options ........................... 43
Options ............................................44
Canceled and Deleted ......................44
Scheduled to Record .......................44
Series Options..................................44
Recording Defaults.......................... 45
Recording Options .......................... 45
Storage Info .................................... 46
External Hard Drive...........................47
Search
Intro to Search................................. 49
Find By Title .................................... 50
Find By Keyword..............................51
Find By Category............................. 52
ii
Search Options ............................... 53
On Demand
Intro to ARRIS On Demand ............. 55
VOD Library..................................... 56
VOD Options ................................... 56
PIN Entry......................................... 56
My Rentals .......................................57
Home Network
Setup .............................................. 59
DLNA Servers ............................ 59
Getting Started................................ 60
Playing Media...................................61
Supported Files ................................61
Adding to Favorites.......................... 62
Player Controls................................ 63
Photos
Intro to Photos ................................ 65
Flickr ............................................... 66
Adding Photos ........................... 66
Flickr Users.................................67
Open Sets.................................. 68
Slideshows...................................... 69
Slideshow Navigation ...................... 69
Slideshow .................................. 70
Slideshow Music ..............................71
Mosaic View.................................... 72
SuperTicker
SuperTicker......................................74
Lock a Topic or Item .................. 75
SuperTicker Displaying Weather. 76
Playing Games
Games ............................................ 79
Screen saver and Game Display...... 80
Settings
Parental Controls............................. 82
Parental Controls............................. 83
Working with your PIN......................84
VOD/PPV PIN...................................84
Locking and Unlocking Programs.... 85
Phone ............................................. 86
Skip................................................. 86
Local Network Status ...................... 86
Recording Space..............................87
SuperTicker..................................... 88
Closed Caption ............................... 88
TV Setup ......................................... 89
Sound Effects.................................. 89
Front Panel...................................... 89
Aspect Ratio.................................... 90
Recording Defaults...........................91
External Hard Drive...........................91
Audio Output....................................91
Grid Guide....................................... 92
Channel List .................................... 92
Tips ................................................. 92
4Copyright ©2011 ARRIS Group, Inc. All rights reserved.iii
Messages
Receiving Messages.........................94
New Message ..................................94
ARRIS Phone
Call Indicators.................................. 96
Call List ............................................97
Call Options..................................... 98
Filters
Intro to TV Filters ........................... 100
Movies on TV............................101
Favorites
Favorites .................................. 103
Internet Account Access
Online Scheduling ......................... 105
Online Management ...................... 106
Other Features ...............................107
ARRIS Moxi Gateway
Hardware
External Hard Drive ....................... 109
Reset Button ................................. 110
LED Display................................... 110
Wireless Network Conguration......111
Connecting Devices to Your Network
.......................................................111
Conguring Your Ethernet Connection
...................................................... 112
TCP/IP Conguration for Windows
2000 ............................................. 113
TCP/IP Conguration for Windows XP
.......................................................114
TCP/IP Conguration for Windows
Vista ...............................................117
TCP/IP Conguration for Windows 7
...................................................... 120
TCP/IP Conguration for MacOS X .124
5Copyright ©2011 ARRIS Group, Inc. All rights reserved.
Welcome
Congratulations on choosing ARRIS. Let’s get started with all
your system can do.
6 7Copyright ©2011 ARRIS Group, Inc. All rights reserved. Copyright ©2011 ARRIS Group, Inc. All rights reserved.
Messages
A place to receive mes-
sages about ARRIS
services and updates.
Phone
A list of recent phone
calls from your incoming
lines.
TV Music
A collection of TV music
channels to match your
taste and mood.
Sports
A lter that displays all
available sports content.
Kids
Access all children’s
programming in one
consolidated list.
News
A lter that displays all of
the 24 hour news chan-
nels and current news
programming.
Movies
A lter that displays all
available movies, includ-
ing live and recorded TV
as well as VOD.
HDTV
A lter that displays all
of the high-denition
content.
Favorites
A lter that lets you add
your favorite TV, video,
photo and music content
to one convenient place.
ARRIS Moxi Player Orientation
The ARRIS Moxi Player experience starts with pressing the MENU button on the re-
mote. You’ll then see the top level of the main menu, a horizontal band that runs
across the middle of the screen and gives access to all of the main menu options.
Channels
A vertical menu that lists
all available channels.
Recorded TV
A list of all of the pro-
grams you’ve recorded.
Search
Options to search for
programs by title, key-
word, or by category.
Photos
A category to browse
photos from Flickr® and
your computer in full HD
on your TV.
Home Network
An easy way to enjoy
media stored on your
computer from the com-
fort of your TV.
On Demand
Contains the VOD library
of all available titles.
SuperTicker
The SuperTicker lets you
stay on top of the latest
news, sports, scores and
stocks without missing
your show.
Games
A variety of classic
games like Blackjack and
Slotmachine.
Settings
A category that allows
you to customize your
ARRIS Moxi Player.
8 9Copyright ©2011 ARRIS Group, Inc. All rights reserved. Copyright ©2011 ARRIS Group, Inc. All rights reserved.
86
4
5
3
2
1 7
Horizontal Categories
Once you’ve pressed the MENU button to bring up the main menu, the top level
of choices will appear in a horizontal band; use the left and right arrow buttons to
browse through your choices. There are a couple of features to be aware of with
the horizontal categories:
1. Auto Expand
When you bring a horizontal card into focus, all of the choices in that category
will open up in a vertical list.
2. Navigation Fade Back
When a vertical list appears, the horizontal navigation fades. Simply pressing
the left or right arrow buttons will bring the horizontal menu right back.
The Main Menu Layout
1. TIME
With the current time, you’ll know
when your show begins.
2. CURRENT CHANNEL
Displays the channel that is playing
in Mini TV. If the program is record-
ed, an icon will display the current
status - i.e., play or pause.
3. MINI TV
Lets you keep watching your pro-
gram while you browse.
4. FOCUS
The current selection is in the focus
area of the menu. When cards are
in focus, they appear raised and
highlighted.
5. VERTICAL LIST
Contains all of the items in the cur-
rent horizontal category.
6. INFO PANEL
Depending on the item in focus,
this area either provides more infor-
mation about that item or a selec-
tion of choices for that item.
7. CARD
Items in vertical lists are called
cards.
8. CATEGORY
Items in the horizontal band are
called categories. When a category
is in focus, the name of the catego-
ry appears in the top of the focus
area.
10 11Copyright ©2011 ARRIS Group, Inc. All rights reserved. Copyright ©2011 ARRIS Group, Inc. All rights reserved.
Action Menus
When you press INFO with an item in focus, you’ll get a list of options for that item
in an action menu.
Use the up and down arrow buttons to scroll through your action menu options. Ac-
tion menus have a focus, just like the main menu. To select an option, bring it into
focus and press OK.
To close the action menu, either select close or press the left arrow button.

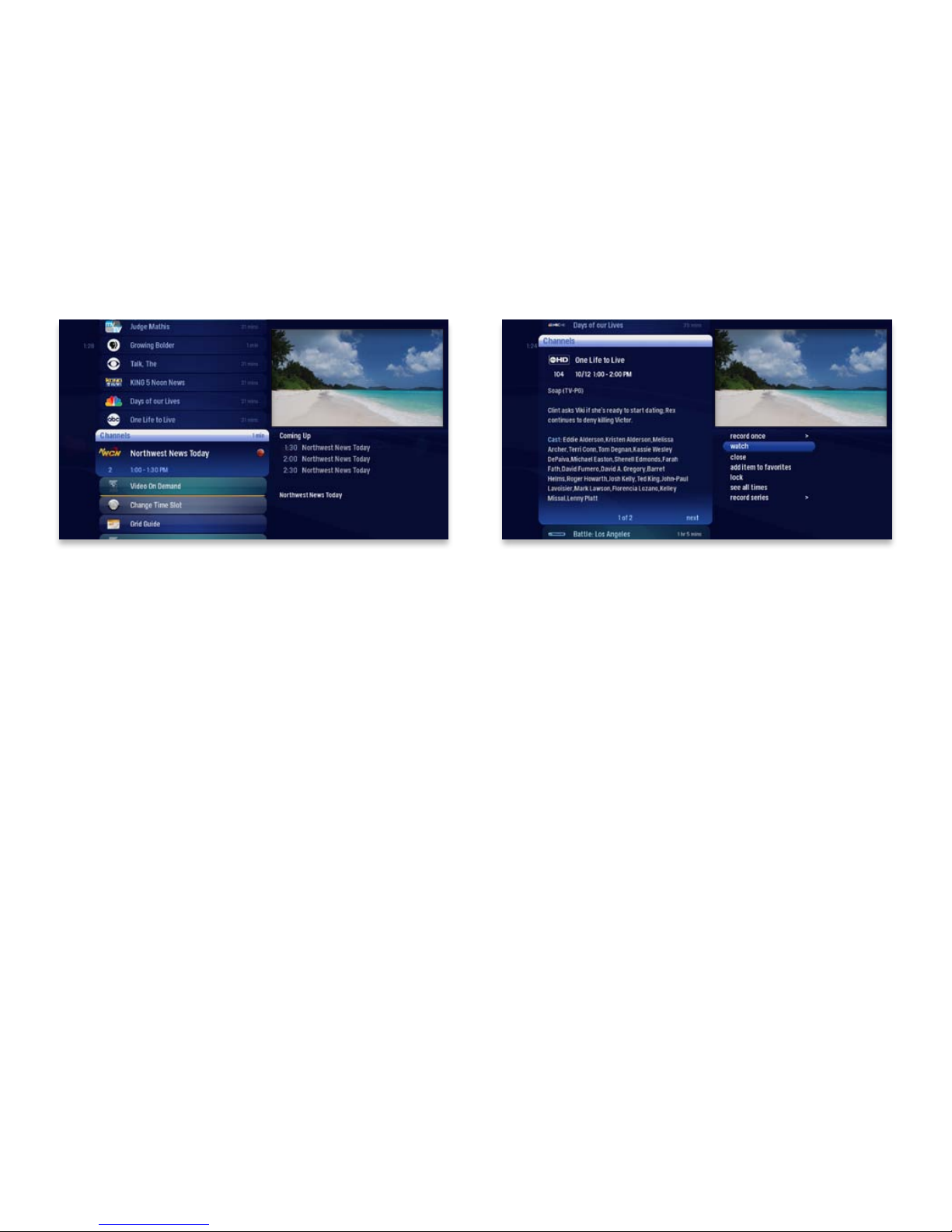

Vertical Lists
End of List Marker
A thin, colored line that denes the beginning and end of a vertical list.
Option Card
Some categories contain cards that allow you to take action on the entire vertical
list. Pressing OK on these option cards will reveal all of the actions available. Option
cards will differ in appearance from the rest of the cards in the list. In some areas of
the main menu, such as Find by Category, the option card will allow you to access a
deeper level of the menu.
Turbo Scroll
If you hold down an arrow button, you can increase your browsing speed. The icons
will help you quickly recognize media as it scrolls by.
12 13Copyright ©2011 ARRIS Group, Inc. All rights reserved. Copyright ©2011 ARRIS Group, Inc. All rights reserved.
0
clear enter
7 8 9
pqrs tuv wxyz
4
ghi
5
jkl
6
mno
12
abc
3
def
vol ch
last
mute
rec
pause
play
rew fwd
stop
skipreplay
menu
back next
OK
info zoom
ABCD
0
clear enter
7 8 9
pqrs tuv wxyz
4
ghi
5
jkl
6
mno
12
abc
3
def
vol ch
last
mute
rec
pause
play
rew fwd
stop
skipreplay
menu
back next
OK
info zoom
ABCD
MINI TV
Using Your Remote
Your remote will automatically allow you to control the menu.
Mini TV
The Mini TV lets you keep an eye on what you’re watching while you’re browsing
the menu. The Mini TV will show you what’s currently playing, whether it’s a pho-
tos slideshow, TV program or Jukebox album.
• To enjoy the media in the Mini TV full-screen, press ZOOM on your remote control.
• To watch Live TV regardless of what’s playing in the Mini TV, press LIVE TV.
14 15Copyright ©2011 ARRIS Group, Inc. All rights reserved. Copyright ©2011 ARRIS Group, Inc. All rights reserved.
back next
info zoom
OK
0
clear enter
7 8 9
pqrs tuv wxyz
4
ghi
5
jkl
6
mno
12
abc
3
def
ABCD
43
65
1
27
4
3
2
1
Menu Navigation
1. ARROWS
Moves the horizontal or vertical
bands one card backward or for-
ward. Holding them down activates
Turbo Mode and increases your
browsing speed.
2. OK
Begins playing the item in focus
or executes an option in an action
menu.
3. BACK
Takes a vertical list displaying TV
programming back to the previous
half hour. Also pages back through
an info note and backs out of a sec-
ond-level menu.
4. NEXT
Takes a vertical list displaying TV
programming forward to the next
half hour. Also pages forward
through an info note.
5. INFO
Brings up an action menu of op-
tions related to the item in focus
6. ZOOM
Alternates between full screen and
the main menu. Also turns the
SuperTicker on and o.
7. NUMBER KEYS
Entering numbers will take you di-
rectly to the corresponding channel.
Shortcut Buttons
1. DVR
Goes to the Recorded TV category.
2. VOD
Goes to the ARRIS Video On De-
mand category.
3. GRID
Activates the traditional Grid Guide
view of TV programming.
4. LIVE TV
Goes to full-screen, live TV, regard-
less of what’s currently in focus.
16 17Copyright ©2011 ARRIS Group, Inc. All rights reserved. Copyright ©2011 ARRIS Group, Inc. All rights reserved.
USB
Digital Audio Optical
YPbPr
Video L R
Input
Reset
IR
Blaster
Ethernet 10/100
Cable
Digital Audio Optical
OK
MENU
rec
pause
play
rew fwd
stop
skipreplay
menu
Infrared Receiver
9
87
65
4 3
2
1
Infrared Receiver
When a button on the remote is pressed, the infrared signal is sent to an IR receiver.
The receiver then sends commands to electronic components. For the remote to
send its signals to the system’s IR receiver, it must have a clear view of the front panel
(see the gure above).
Subchannel Separator
Many networks broadcast multiple digital subchannels. For example, some networks
broadcast four standard denition subchannels identied using a decimal point (such
as 09, 09.1, 09.2, and 09.3). When using the arrow buttons to navigate the electronic
program guide, these channels appear in order in the channels listing. To access
these subchannels directly using the remote buttons, use the “LAST” button (which
also has a dot) on the number pad to represent the decimal point.
For example, to go directly to channel 09.2, on the remote control number pad press
0, 9, LAST, and then 2.
Player Controls
Control your recorded or live program with the following buttons:
1. MENU
From wherever you are, MENU re-
turns you one step at a time toward
the top level of the main menu.
2. PLAY
Begins playing the TV show or me-
dia le in focus. Also allows you to
view the show at the point of fast-
forwarding or rewinding.
3. SKIP
Skips forward the number of sec-
onds that you predene in settings.
Also takes a vertical list of TV pro-
gramming forward in time 24 hours.
4. REPLAY
Rewinds seven seconds. Also
takes a vertical list of TV program-
ming back in time 24 hours.
5. REWIND
Press up to three times (for three
speeds) to rewind the show.
6. FAST-FORWARD
Press up to three times (for three
speeds) to fast-forward.
7. RECORD
Press RECORD while watching a
show or with a show in focus to re-
cord.
8. STOP
Exits out of a recorded show or
stops a recording in progress if
you’re watching that show full
screen.
9. PAUSE
Pauses the show you are watching.
18 19Copyright ©2011 ARRIS Group, Inc. All rights reserved. Copyright ©2011 ARRIS Group, Inc. All rights reserved.
Coming UpOn Now
Full Screen TV
With the mini guides available in full screen TV, the
ARRIS Moxi Player makes channel surng fun.

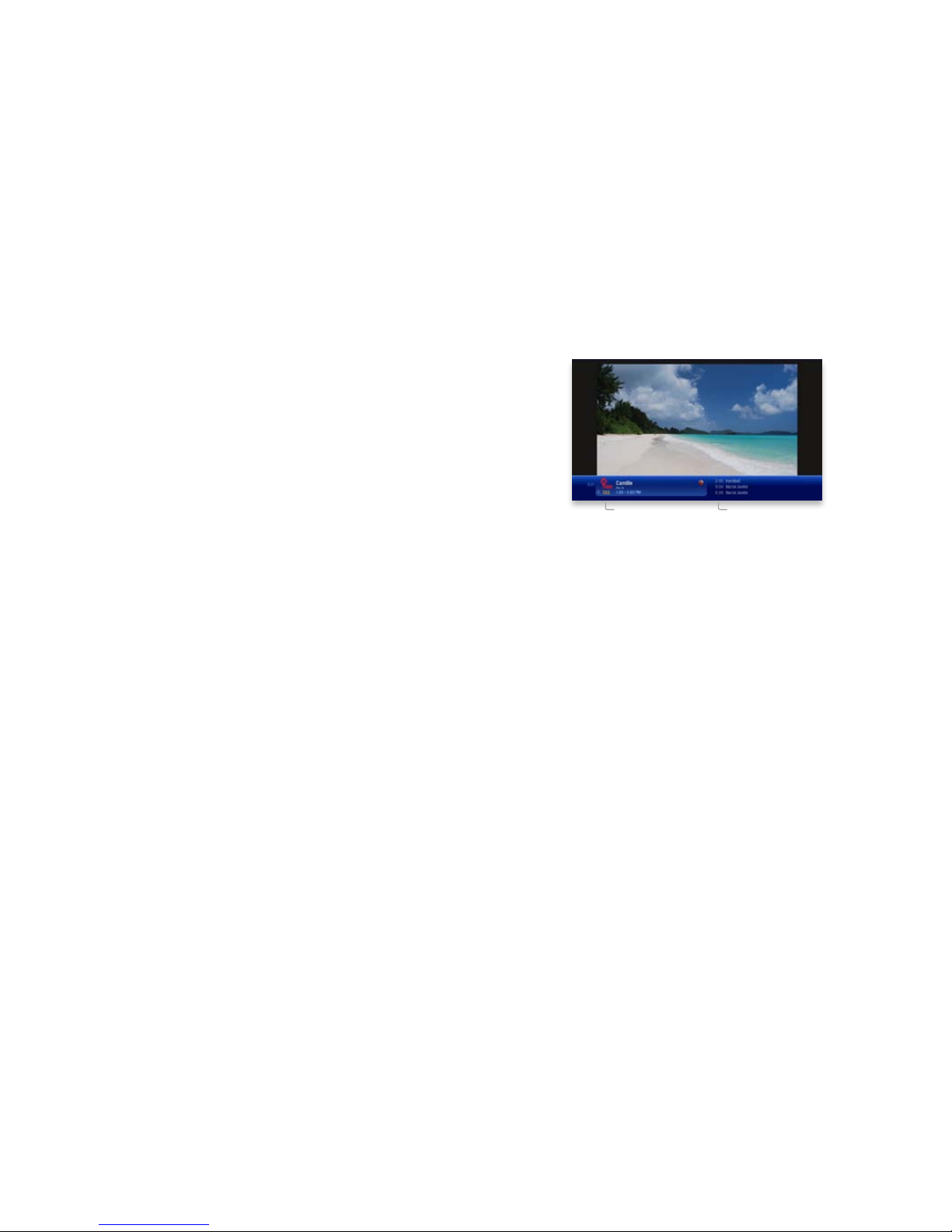

Flip Bar
When you’re watching full-screen TV, the Flip Bar is your mini menu. Pressing an
arrow or the OK button or changing the channel will bring up the Flip Bar, giving you
program information about what you’re watching, what’s on next, and what’s on
other channels.
The main panel of the Flip Bar gives you the program name, air time, and channel.
Use the up and down arrows to change the channel displayed in the Flip Bar without
leaving the program you’re watching.
On the right, you’ll see what’s coming up next for the channel displayed in the Flip Bar.
You can see further into the future by pressing the right arrow button to highlight that
panel and then using the up and down arrow buttons to scroll through programming.
Just like the main menu, pressing INFO will give you an action menu for the selected
show.
The Flip Bar will automatically disappear after ve seconds, but you can make it go
away by pressing CLEAR.
20 21Copyright ©2011 ARRIS Group, Inc. All rights reserved. Copyright ©2011 ARRIS Group, Inc. All rights reserved.
76
5
4
3
2
1
Flip Bar - Layout
If you press the INFO button with the Flip Bar visible, you’ll get more information
about the show displayed as well as options for that show.
1. GENRE
The type of show selected.
2. INFO PAGES
Press NEXT or BACK on your re-
mote to page through the show in-
formation.
3. CLOCK
The current time.
4. LOGO AND CHANNEL NUMBER
The logo and channel number of
the selected show.
5. PROGRAM SCHEDULE
The time the program begins and
ends.
6. COMING UP
Displays the next three shows com-
ing up on the selected channel.
7. ACTION NOTE
The list of options available for the
selected show.
What’s On Next
The Flip Bar also has the capability to display up to two weeks of upcoming programs
for each channel.
Press the right arrow to highlight the Coming Up Panel, and then the up and down
arrows will let you browse through programming.
See All Times
One of the options you’ll see in a show’s action menu is See All Times. Select it to
see a list of all of the times that the selected show airs. Select the Back card to return
to your original show listing.
PROGRAM INFO NOTES
Just like in the main menu, you can press the INFO button with the Flip Bar displayed
to bring up an action menu, which will give you more detailed information on the
selected show.
22 23Copyright ©2011 ARRIS Group, Inc. All rights reserved. Copyright ©2011 ARRIS Group, Inc. All rights reserved.
rec
pause
play
rew fwd
stop
skipreplay
back next
6
5
3 4
2
1
Controlling Live TV
• Press PAUSE to alternate between pausing and resuming the show you’re
watching.
• Press REWIND up to three times (for three speeds) to rewind the show.
• Press FORWARD up to three times (for three speeds) to fast-forward the show
up to the point of broadcast.
• Press PLAY to stop fast-forwarding or rewinding or resume from a pause.
• Press LIVE TV to view the point of broadcast for the last channel you watched.
• Press REPLAY to view the previous 7 seconds of the show.
• Press SKIP to skip forward in the show up to the moment of broadcast. You can
decide how many seconds to skip with this button in the Settings menu.
• Press PAUSE and then FORWARD once to activate slow motion.
• Pressing RECORD to record the entire contents of the temporary memory or
buffer for the show you are watching.
• Press PAUSE and then SKIP to advance forward one frame.
THE BUFFER
When you start watching a show, your ARRIS Moxi Player will start storing it in tem-
porary memory, called a buffer. The amount of temporary memory varies, but it is
never less than 30 minutes for standard denition or 10 minutes for HDTV.
Player Bar
Whenever you press one of the player control buttons, you’ll see the Player Bar,
which gives you status information about the program you’re currently watching.
You’ll see a version of the player bar no matter what type of media you’re enjoying,
whether it’s recorded or live TV, photos, or music.
1. CURRENT TIME
The current time or point in the cur-
rent program.
2. PROGRAM
The current live or recorded pro-
gram being played back.
3. SHOW START TIME
The start time of the recorded or
Live TV program.
4. STORED IN MEMORY
While watching live TV, this area
(the buer) displays the part of the
show recorded in temporary mem-
ory. While watching recorded TV, it
shows the entire contents of the
show available for viewing.
5. PLAYER BAR STATE
The current state of the program
controls, such as play, pause, re-
wind, and fast-forward.
6. SHOW END TIME
Displays the end time of the Live
TV program or the duration of a re-
corded TV program.
24 Copyright ©2011 ARRIS Group, Inc. All rights reserved.
AutomaticConictDetection
You may see a conict detection note while you’re watching full screen TV, which
indicates that you have more programs set to record than available tuners.
The conict detection note will allow you to decide which programs you would like to
cancel and which you would like to continue recording.
Screen Saver
If there has been no activity for more than 30 minutes while browsing the main menu,
the ARRIS Moxi Player will change to full screen TV with the last-watched channel
playing to help extend the life of your TV screen.
If live TV has been playing on the same channel for ve hours without any input from
the remote, the ARRIS screen saver will be displayed.
To return to the main menu, press the MENU button.
25Copyright ©2011 ARRIS Group, Inc. All rights reserved.
TV Channels
With all of the channels available these days, it’s tough to know
what all of your options are. The TV Channels category makes
it easy to nd what you want to watch.
26 27Copyright ©2011 ARRIS Group, Inc. All rights reserved. Copyright ©2011 ARRIS Group, Inc. All rights reserved.
7 6 5 4
321
7 6 5 4
321
87
65
4
3
2
1
TV Channels - Focus
Different areas of the card provide more information about the TV program in focus.
1. CATEGORY
The name of the category moved
into focus.
2. SHOW TITLE
The name of the program in focus.
3. SHOW LENGTH
The selected program’s duration.
4. RECORDING ICON
Displays an icon here if the select-
ed program is currently recording or
scheduled to record.
5. PROGRAM SCHEDULE
Displays the selected program’s air
time.
6. CHANNEL NUMBER
The selected program’s channel
number.
7. CHANNEL LOGO
Displays the channel logo for the
selected program.
TV Channels - Layout
1. TIME
With the current time, you’ll know
when your show begins.
2. CURRENT CHANNEL
Displays the channel that is playing
in Mini TV. If the program is record-
ed, an icon will display the current
status - i.e., play or pause.
3. MINI TV
Even when channel surng, Mini TV
always keeps you in the action.
4. FOCUS PROGRAM
Pressing INFO on this item brings
up an action menu.
5. AVAILABLE TV PROGRAMS
Displays all of the programs avail-
able in your TV lineup that are cur-
rently airing.
6. RECORDING ICON
Displays an icon if the show is re-
cording or scheduled to record.
7. INFORMATION PANEL
Displays program information about
the show in focus.
8. PROGRAM INFORMATION
Displays the next three upcoming
shows that will air on the channel
in focus.
28 29Copyright ©2011 ARRIS Group, Inc. All rights reserved. Copyright ©2011 ARRIS Group, Inc. All rights reserved.
Arrow right to view the Preview Panel
➡
Scheduled
to Record
Recording
Preview Panel
TV Channels, like all horizontal categories that contain TV programming, has a pre-
view panel that displays upcoming programs for the channel in focus. Press the right
arrow button to select the panel, and then use the up and down arrows to browse
through up to two weeks of programming for that channel.
For a shortcut back to the present time, press the MENU button.
If you see a show you would like to record, press the RECORD or the INFO button.
Recording Icons
Your ARRIS Moxi Player includes the following recording icons for DVR status at a
glance. The following icons appear on focus cards and vertical cards throughout the
main menu:
The show is recording right now.
The show is scheduled to be recorded.
The show is recorded and may be deleted when space is needed for newer
shows.
The show will not delete and can only be deleted manually.
30 31Copyright ©2011 ARRIS Group, Inc. All rights reserved. Copyright ©2011 ARRIS Group, Inc. All rights reserved.
765
4
3
2
1
65
4
3
2
1
Channels Action Menu
Pressing INFO with a show in focus brings up an action menu with all of the options
for that show.
1. CHANNEL LOGO
The logo for the program’s channel.
2. SHOW TITLE
The name of the program or item.
3. PROGRAM SCHEDULE
The time the program begins and
ends.
4. PROGRAM INFORMATION
Additional show information, such
as show title, repeat, cast and crew.
5. NOTE PAGES
Number of pages of program infor-
mation.
6. NEXT & BACK
Use the BACK and NEXT buttons to
page through the note.
7. OPTIONS
The list of options available for the
selected TV program.
Preview Panel - Layout
1. CHANNEL LOGO
The current channel.
2. PROGRAM LENGTH
The time the program begins and
ends.
3. TIMESLOT
Indicates the day and time that the
preview panel is currently display-
ing.
4. PROGRAM INFORMATION
Detailed show information, such as
title, rating, whether it’s a repeat,
cast and crew.
5. TIME
Displays the time corresponding to
each show.
6. SELECTED SHOW
The currently-selected show. Press-
ing info on the selected show brings
up an action menu with options.
32 33Copyright ©2011 ARRIS Group, Inc. All rights reserved. Copyright ©2011 ARRIS Group, Inc. All rights reserved.
Action Menu Options
If the show will air in the future, you’ll see:
• record once
• add to favorites
• lock
• see all times
• record series
If the show is currently recording, you’ll see:
• stop recording - Stops recording the current show, but does not delete the por-
tion already recorded.
• watch
• add to favorites
• see all times
• recording options - Gives you a list of elements to alter about the way the pro-
gram will record.
If the show is scheduled to record, you’ll see:
• recording options
• cancel recording - Removes the program from the recording lineup.
• add to favorites
• lock
• see all times
Action Menu Options
If the show you’re watching is currently airing, you’ll see the following op-
tions in the action menu:
• record once - Records only the currently-airing episode of the program, including
the portion in the live TV buffer.
• watch - plays the program in full-screen TV.
• add to favorites - Adds the channel to your Favorites category.
• lock - Activates Parental Controls for the selected channel.
• see all times - Presents a list of all of that program’s air dates/times.
• record series - Sets the entire series of that program to record. You’ll only see this
option if the show is part of a series.
34 35Copyright ©2011 ARRIS Group, Inc. All rights reserved. Copyright ©2011 ARRIS Group, Inc. All rights reserved.
Currently Recording
Recording options for a single episode currently recording:
• keep
• get series
• stop
Recording options for a series currently recording:
• keep
• series options
• stop
Series Options
• keep
• episode limit - Determines how many episodes will be stored automatically.
• accept - Determines whether you’ll accept rst-run only or repeat episodes.
• timeslots - Lets you record only epsiodes airing at a certain timeslot.
• priority - Sets the priority order of your series recordings.
• cancel series - Cancels the scheduled recordings.
• start
• stop
Recording Options
If you have record once or record series selected, you’ll see an arrow to the right that
allows you to access recording options. You can also access recording options from
the action menu of a show that’s currently recording or scheduled to record.
Scheduled to Record
Recording options for a single episode scheduled to record:
• keep - lets you decide when the show will be deleted.
• get series - sets the entire series to record.
• stop - allows you to set the recording to stop early or late.
• start - allows you to set the recording to start early or late.
Recording options for a series scheduled to record:
• keep
• series options - allows you to set recording preferences for the entire series.
• stop
• start
Other manuals for Moxi
1
Table of contents
Other Arris Media Player manuals
