DLC150E Function Module
SDI/SDTI 4 Channel Analog/Digital AES Audio Embed
and Optical Transmitter
Installation and Operations Manual

iv DLC150E Function Module Installation and Operations Manual

DLC150E Function Module Installation and Operations Manual v
COPYRIGHT
This manual is produced and copyrighted by Artel Video Systems Corporation. Any use or reproduction of the
contents of this manual without the prior written consent of Artel Video Systems Corporation is strictly
prohibited.
NOTICE
All title and copyrights to this document are owned by Artel Video Systems Corporation. No part of the
contents of this document may be reproduced or transmitted in any form or by any means without the written
permission of Artel Video Systems Corporation.
Artel Video Systems Corporation shall not be liable for errors contained herein. ArtelVideo Systems
Corporation shall not be liable for any damages whatsoever, including, without limitation, damages for loss of
business prots, business interruption, loss of business information, or other pecuniary loss arising out of the
use of this documentation even if Artel Video Systems Corporation has been made aware of the possibility of
such damages.
Information contained in this document is subject to change without notice. While every eort is made to
ensure that the information is accurate as of the publication date, users are reminded to update their use of
this document with documents published by Artel Video Systems Corporation subsequent to this date.
Updates may be available at www.artel.com or by contacting ArtelVideo Systems Corporation.
Third-party product information is for informational purposes only, and constitutes neither an endorsement
nor a recommendation. Artel Video Systems Corporation assumes no responsibility with regard to the
performance of the third-party products.
Copyright © 2016 by ArtelVideo Systems Corporation
ALL RIGHTS RESERVED
Printed in U.S.A.
Artel Video Systems Corporation
5B Lyberty Way
Westford, MA 01886
[phone]
www.artel.com

vi DLC150E Function Module Installation and Operations Manual
Revision history for the DLC150E Function Module Installation and Operations Manual.
Revision History
Revision Document Number Date Reason for Change
AAR200-008050-C00_K January, 2012 Initial release.
BAR200-008050-C00_L February, 2016 Updated Artel logo.
CAR200-008050-C00_M December, 2016 Updated images and copy.

DLC150E Function Module Installation and Operations Manual vii
Table of Contents
About This Manual
Audience........................................................................................................................................... ix
Related Documentation ................................................................................................................ ix
Symbols and Conventions.............................................................................................................. x
Artel Customer Service ................................................................................................................... x
DLC150E Function Module
Information About the DLC150E
DLC150E Laser Warnings
DLC150E Module Functional Description
Video Signal Paths ......................................................................................................................................3
Audio Signal Paths......................................................................................................................................4
Electrical Outputs .......................................................................................................................................4
Optical Inputs and Outputs.....................................................................................................................4
Overview of the DLC150E Module
Conguring the DLC150E Module
Conguring DIP Switch SW2...................................................................................................................7
Conguring DIP Switch SW4...................................................................................................................9
Conguring DIP Switch SW5................................................................................................................10
Understanding Conditional and Unconditional Audio Embedding .............................10
Understanding DIP Switch SW5 Conguration Options ...................................................10
Conguring Rotary Switch SW3.......................................................................................................... 12
Understanding 0dBFS ..................................................................................................................12
Understanding Rotary Switch SW3 Conguration Options.............................................13
Installing the DLC150E Module, SFP, and Audio Connector
Cabling the DLC150E Module
Cabling the Audio Connections.......................................................................................................... 15
Cabling the Electrical Video Connections .......................................................................................16
Cabling the Optical Video Connections...........................................................................................16
Monitoring the DLC150E Module Operation
Understanding the Status LEDs..........................................................................................................17
Using the Monitor Jack .......................................................................................................................... 20
Removing the SFP and DLC150E Module
Removing the SFP....................................................................................................................................20
Removing the DLC150E Module......................................................................................................... 21
Index

viii DLC150E Function Module Installation and Operations Manual

DLC150E Function Module Installation and Operations Manual ix
About This Manual
This manual provides instructions for installing, conguring, and operating the DLC150E function module.
Audience
This manual is intended for the following trained and qualied service personnel who are responsible for
installing and operating the DLC150E:
• System installer
• Hardware technician
• System operator
Related Documentation
The following documentation contains material related to the DLC150E function module:
Document Provides . . .
DLC150E Data Sheet Product operating and environmental specications, and regulatory
conformance information.
DLC150E Quick Start Product conguration information and descriptions of the front panel
status LED operations.
DigiLink Media Transport Platform Chassis
Data Sheet
Overview and installation instructions for the DigiLink media transport
platform chassis options, including the following:
• DL4360x chassis—Installation of this 12-slot chassis, power
supplies, switch module, and function modules.
• DL4300 chassis—Installation of this 12-slot chassis, power
supplies, and function modules.
• DL4000 chassis—Installation of this 4-slot chassis, power supplies,
and function modules.
DigiLink Media Transport Platform Chassis
Data Sheet
Overview of the DigiLink media transport platform.
DigiLink Manager Setup and Operations
Manual
Overview and operating instructions for the DL Manager element
management system.
Note: To obtain the latest versions of this guide and the documents listed in this section, go to www.
artel.com.

xDLC150E Function Module Installation and Operations Manual
Symbols and Conventions
This manual uses the following symbols and conventions:
Caution
A caution means that a specic action you take or fail to take could cause harm to the equipment or
to the data transmission.
Warning
A warning describes an action you take or fail to take that could result in death, serious physical injury, or
destruction of property.
Note: Important related information, reminders, and recommendations.
Italics—used for emphasis, for indicating the rst occurrence of a new term, and for book titles
1. Numbered list—where the order of the items is important
• Bulleted list—where the items are of equal importance and their order is unimportant
Artel Customer Service
You can reach Customer Service by e-mail at customer[email protected] or by telephone:
In the US call [phone], then select 1 for technical support.
Outside the US call [phone], then select 1 for technical support.
When requesting assistance, please be ready to provide the following information:
• Your name and telephone number
• Product model and serial number
• Brief description of the problem
• List of symptoms
• Steps you have already taken to try to resolve the problem
If the product is damaged
If any portion of the unit is damaged, forward an immediate request to the delivering carrier to perform an
inspection of the product and to prepare a damage report. Save the container and all packing materials until
the contents are veried.
Concurrently, report the nature and extent of the damage to Artel Customer Service so that action can be
initiated to either repair or replace the damaged items.
Do not return any items to Artel until you obtain instructions from Customer Service.
Report the problem or deciency to Customer Service along with the model number and serial number. Upon
receipt of this information, Artel will provide service instructions, or a Return Authorization Number and
shipping information.

DLC150E Function Module Installation and Operations Manual 1
Information About the DLC150E
DLC150E Function Module
SDI/SDTI 4 Channel Analog/Digital AES Audio Embed
and Optical Transmitter
Information About the DLC150E
Chassis Compatibility: DL4360x, DL4300, DL4000, or DL4100
This manual introduces the DLC150E function module (DLC150E), which is a exible audio embedder and
video transport module that can embed analog or AES audio into SDI and SDTI as well as transport all
standard 270Mb/s digital formats.
When operating in analog mode, the DLC150E can embed (per SMPTE 272M) two analog stereo pairs (one to
four analog signals) in SD-SDI (SMPTE 259M) or SDTI (SMPTE 305M). Features of the analog embedding
include:
• 20- or 24-bit sampling at 48kHz
• Switch-selectable 600Ohm balanced input impedance and high-impedance balanced input using
3-position terminal blocks
• 0dBFS (full scale volume at the edge of clipping) switch adjustable from +10dBm to +24dBm in 2dB
steps (into 600Ohms)
• Switch-selectable target group (0, 1, 2, or 3) within the SDI or SDTI
• Switch-selectable option to not embed if audio is present in the target group
When operating in digital mode, the DLC150E can embed (per SMPTE 272M) two AES-3 digital audio streams
(two stereo pairs) in SD-SDI (SMPTE 259M) or SDTI (SMPTE 305M). Features of the digital embedding include:
• 110Ohm balanced impedance AES-3 audio stream interface (3-position terminal block)
• Support for synchronous (48kHz) and asynchronous (32.0kHz, 44.1kHz, 48kHz) streams
• Switch-selectable target group (0, 1, 2, 3) within the SDI or SDTI
• Switch-selectable option to not embed if audio is present in the target group
Additional features of the DLC150E include:
• Transport of all 270Mb/s digital video signals including SD-SDI (SMPTE 259M), SDTI (SMPTE 305M),
DVB-ASI (no audio embedding)
• Automatic detection of signal types that can be embedded
• Jitter cleanup of SD-SDI and SDTI
• Cable equalization up to 300m (Belden 8281 or equivalent)
• EDH checking and generation for SD-SDI and SDTI

2DLC150E Function Module Installation and Operations Manual
DLC150E Function Module
• Standby Video Generator that allows audio to be delivered in an SDI grey eld when input video is
lost
• Selectable non-video keep-alive signal that maintains link operation while allowing downstream
equipment to detect loss of signal when input video is lost
The DLC150E can be cascaded using the backplane inputs and outputs for multi-group embedding.
The DLC150E uses industry standard 1310nm, 1550nm, and CWDM Small Form Factor Pluggable (SFP) optics.
You provision and monitor the DLC150E using onboard switches, status indicators, front panel monitor jack, or
Artel’s DL Manager, which is an element management system (for more information, see the
DL Manager Setup and Operations Manual).
DLC150E Laser Warnings
The SFP module used in the DLC150E has a transmitter that contains a Class 1 laser. You must adhere to the
standard safety practices for handling a Class 1 laser product, including the following warning.
Warning
Never stare directly into a ber optic connector.
Although the light used in most ber optic transmissions is not visible to the naked eye, potentially
harmful levels of radiation may be present at the optical output ports and unconnected transmit ber
ends.
Failure to observe this warning could result in personal injury.

DLC150E Function Module Installation and Operations Manual 3
DLC150E Module Functional Description
DLC150E Module Functional Description
This section provides a functional description of the DLC150E. Figure 1 shows the functional block diagram for
the DLC150E.
Figure 1. DLC150E Module Functional Block Diagram
This section contains the following topics:
• Video Signal Paths (page 3)
• Audio Signal Paths (page 4)
• Electrical Outputs (page 4)
• Optical Inputs and Outputs (page 4)
Video Signal Paths
The DLC150E accepts digital video signals from the following sources:
• 75Ohm BNC connector—Located on the rear panel of the module, this is the most commonly used
input.
• Another function module in the host chassis—Signals from other modules in the chassis can be
received through the backplane.
• Optical input—The optical input of the DLC150E.

4DLC150E Function Module Installation and Operations Manual
DLC150E Function Module
You select the digital video source using either the module switches or the management card software. When
no video is available on the selected input, the DLC150E enables the standby video generator, which you can
congure for one of the following signal types:
• Grey screen into which audio can be embedded
• 525 lines (NTSC)
• 625 lines (PAL)
• Non-video keepalive
Use the non-video keepalive signal to keep the optical link alive when an application requires that the standby
video generator not produce a detectable video signal.You cannot embed audio into the non-video keepalive
signal.This signal is detected by other host chassis modules, such as the DLC103A, so that they can signal that
a keepalive signal is intentionally being sent across the optical link. Whenever the DLC150E is transmitting the
grey screen or the non-video keepalive signal, the TX LED on the front panel illuminates amber.
When the DLC150E detects that the selected digital video signal is SDI or SDTI, it passes the signal through the
Embed and EDH logic. Otherwise, the DLC150E passes the digital video signal directly to the electrical-to-
optical circuits.
Audio Signal Paths
The DLC150E accepts audio signals through a quad three-pin terminal block consisting of 12 pins. This
terminal accepts up to four balanced audio signals inputs, each with a +, -, and ground. The DLC150E samples
each of the four analog audio signals and converts them to digital.The digitized signals are then paired and
encoded into an AES-3 stream that the DLC150E embeds into the digital video.
AES-3 digital audio is supplied to the DLC150E using only two of the four balanced inputs (channels A and C). If
the digital audio is asynchronous, the DLC150E matches its rate to the digital video stream and then embeds
the audio into the digital video.
Electrical Outputs
The DLC150E makes the electrical signal available through the backplane for possible use by other modules in
the host chassis.
The front-panel monitor jack is a mini 75Ohm SMB connector that allows you to monitor either the DLC150E
output or the selected digital video input.
Optical Inputs and Outputs
The optical interface is provided by a single SFP socket.The SFP modules use LC/PC connectors. Optical
performance is dependant the quality of your optical ber and ber interconnects, and on the selected SFP
module, which must be specically qualied by Artel to pass video signals. Consult Artel for available SFP
options.

DLC150E Function Module Installation and Operations Manual 5
Overview of the DLC150E Module
Overview of the DLC150E Module
This section provides an overview of the components that make up the DLC150E. Figure 2 provides a view of
the major components of the DLC150E.

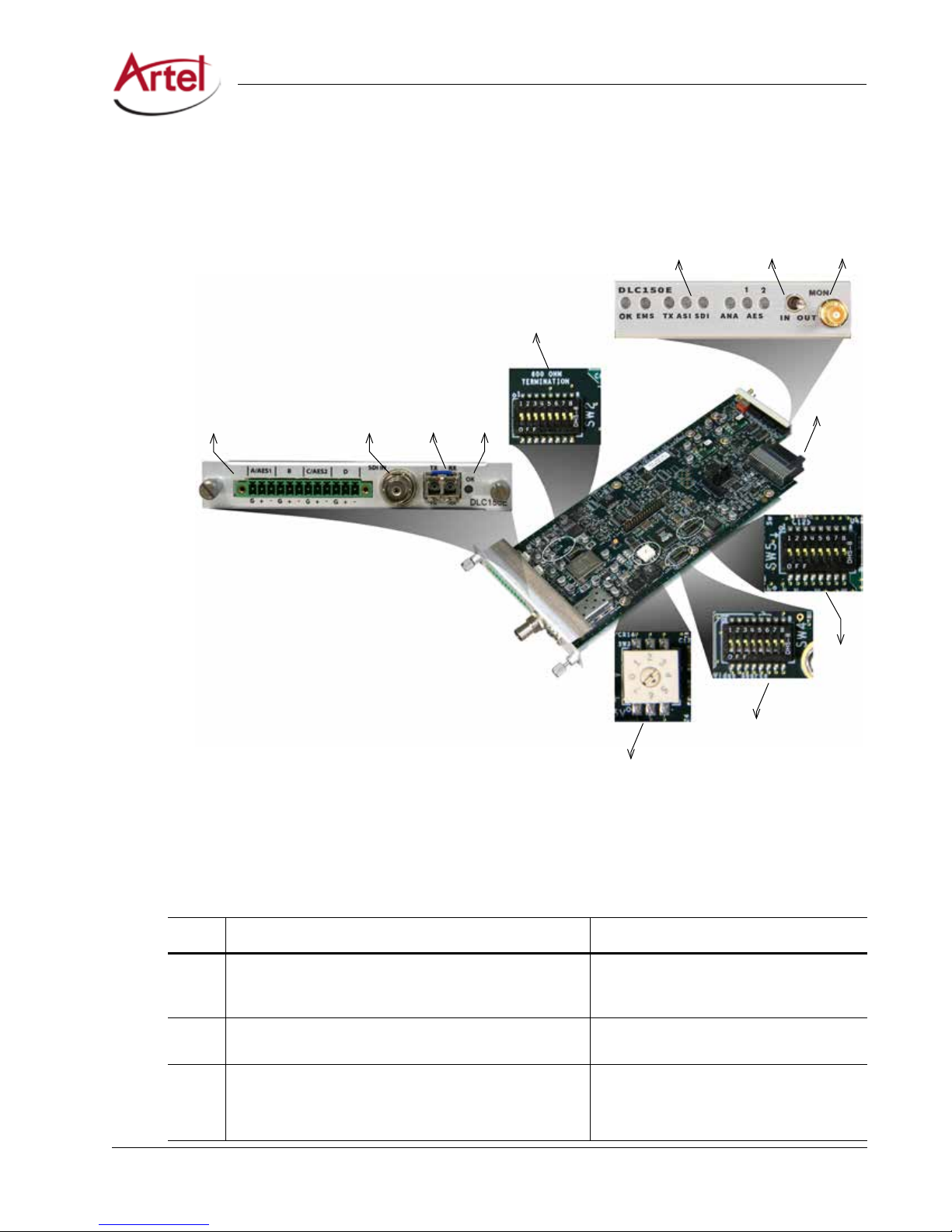

Figure 2. DLC150E Module Major Components
Table 1 describes the components called out in Figure 2.
Table 1. DLC150E Elements
Item DLC150E Element for details, see...
1Quad three-pin terminal block for audio input (audio
connector provided that enables screw-on cable
connections).
Cabling the Audio Connections (page
15)
2BNC connector for digital video input. Cabling the Electrical Video Connections
(page 16)
3SFP socket for the following optical connections:
• TX—Transmit
• RX—Receive
Cabling the Optical Video Connections
(page 16)
12
6
7
5
8
34
910 11
12

6DLC150E Function Module Installation and Operations Manual
DLC150E Function Module
Table 1. DLC150E Elements
Item DLC150E Element for details, see...
4Rear panel alarm indicator LED (OK). Understanding the Status LEDs (page
17)
5SW2—Termination DIP switch. Conguring DIP Switch SW2 (page 7)
6SW3—Analog audio rotary switch. Conguring Rotary Switch SW3 (page
12)
7SW5—Signal source DIP switch. Conguring DIP Switch SW4 (page 9)
8SW5—Module control DIP switch. Conguring DIP Switch SW5 (page 10)
9Front panel status LEDs:
• OK—Alarm indicator
• EMS—Element Management System indicator
• TX—Transmit signal indicator
• ASI—ASI signal status indicator
• SDI—SDI signal indicator
• ANA—Audio embedding mode indicator
• AES—AES signal indicators for inputs 1 (Channel A) and
2 (Channel B)
Understanding the Status LEDs (page
17)
10 Front panel Monitor Source Select switch:
• IN—SDI input signal before audio embedding
• OUT—SDI output signal after audio embedding
Using the Monitor Jack (page 20)
11 Front panel monitor mini 75 Ohm SMB output jack.
12 Backplane connector—Provides power to the module,
allows the module to share signals with other function
modules, and is used for alarm and management signals.
N/A
(Continued)

DLC150E Function Module Installation and Operations Manual 7
Conguring the DLC150E Module
Conguring the DLC150E Module
This section describes how to congure the operation of the DLC150E. You must congure the module while it
is out of the host chassis because the conguration switches are mounted to the top of the module PCB.
The following set of switches control the operating conguration of the DLC150E:
• DIP switch SW2—Controls the termination of the analog audio inputs.
• DIP switch SW4—Controls the signal source selection for the digital video, type of audio, and
destination group for the embedding.
• DIP switch SW5—Controls multiple module operating states, including conditional embedding,
non-video keepalive signal, line rate for the standby video pattern, digital audio rate converter
operation, optional alarm suppression for an uninstalled SFP, and EMS control mode
• Rotary switch SW3—Controls the peak analog audio level that can be handled without clipping.
See Figure 2 for switch locations.
Artel ships the DLC150E congured as follows:
• Analog audio mode set to 24 bits.
• Analog audio source with 600 Ohm termination
• +20dB peak audio level without clipping
• Asynchronous audio embed into destination group #1
• Digital video enabled through the BNC connector
• SDI grey eld enabled if no video is present at the NTSC rate
• Alarm enabled if no SFP is present
• EMS override enabled (DL Manager can change the DLC150E conguration)
Note: In addition to the conguration information contained in the section, the DLC150E has a switch
legend located on the bottom of the module that can be used to congure the switches.
This section contains the following topics:
• Conguring DIP Switch SW2 (page 7)
• Conguring DIP Switch SW4 (page 9)
• Conguring DIP Switch SW5 (page 10)
• Conguring Rotary Switch SW3 (page 12)
Conguring DIP Switch SW2
DIP Switch SW2 (see Figure 3) controls the termination of the analog audio inputs.

8DLC150E Function Module Installation and Operations Manual
DLC150E Function Module
Note: DIP switch SW2 aects analog audio signal termination only. When you provision the DLC150E
AES-3 audio, the termination is automatically set to 110Ohms.
Figure 3. DLC150E Conguration Switch SW2
Table 2 describes the DIP switch SW2 conguration options. The factory-set conguration settings are shown
in bold type.
Table 2. DIP Switch SW2 Settings
Function Selected Operation
Position
S1 S2 S3 S4 S5 S6 S7 S8
Channel D
termination
setting
High impedance input OFF
Terminated in 600 Ohms ON
Reserved N/A (must be ON) ON
Channel C
termination
setting
High impedance input OFF
Terminated in 600 Ohms ON
Reserved N/A (must be ON) ON
Channel B
termination
setting
High impedance input OFF
Terminated in 600 Ohms ON
Reserved N/A (must be ON) ON
Channel A
termination
setting
High impedance input OFF
Terminated in 600 Ohms ON
Reserved N/A (must be ON) ON

DLC150E Function Module Installation and Operations Manual 9
Conguring the DLC150E Module
Conguring DIP Switch SW4
Switch SW4 (see Figure 4) controls the signal source selection for the digital video, the type of audio, audio
sampling mode, and destination group for the embedding.
Figure 4. DLC150E Conguration Switch SW4
Table 3 describes the DIP switch SW4 conguration options. The factory-set conguration settings are shown
in bold type.
Table 3. DIP Switch SW4 Settings
Function Selected Operation
Position
S1 S2 S3 S4 S5 S6 S7 S8
Video Source Backplane 1 OFF OFF OFF
Backplane 2 ON OFF OFF
Backplane 3 OFF ON OFF
Backplane 4 ON ON OFF
Reserved OFF OFF ON
Reserved ON OFF ON
SFP Optical Receiver OFF ON ON
SDI BNC Input ON ON ON
Audio Source Analog ON
AES-3 Digital O
Analog Audio
Mode
24 bits ON
20 bits OFF
SMPTE-259
Destination
Group
Group 1 ON ON
Group 2 OFF ON
Group 3 ON OFF
Group 4 OFF OFF
Reserved N/A (must be ON) ON

10 DLC150E Function Module Installation and Operations Manual
DLC150E Function Module
Conguring DIP Switch SW5
Switch SW5 (see Figure 5) controls several module modes including conditional embedding, standby video
pattern or the non-video keep-alive signal, line rate for the standby video pattern, digital audio rate converter
operation, optional alarm suppression for an uninstalled SFP, and EMS control mode.
Figure 5. DLC150E Conguration Switch SW5
This section contains the following topics:
• Understanding Conditional and Unconditional Audio Embedding (page 10)
• Understanding DIP Switch SW5 Conguration Options (page 10)
Understanding Conditional and Unconditional Audio Embedding
If the incoming SDI has audio embedded in it already, the DLC150E provides the option of over-writing the
embedded audio. Switches S1 and S2 of DIP switch SW5 control this feature.
The default setting with S1 and S2 both set to ON selects conditional embedding. The DLC150E embeds audio
into the group selected by SW4 only if there is no audio already present in the group. If the SDI contains
embedded audio when it is applied to the DLC150E, it passes through for transmission unaltered. If there is no
embedded audio present, the DLC150E embeds the local audio as congured.
Setting S1 to ON and S2 to OFF selects unconditional embedding. The DLC150E always embeds audio into the
group selected by SW4 even if audio is already embedded in the group. If there is audio in the selected group,
it is over written. Audio in other groups are not aected.
When the audio applied to the DLC150E must always be embedded, then use unconditional embedding with
S1 set to ON and S2 set to OFF to insure that the program audio is not replaced by previously embedded
audio. However, when it is unknown if the incoming video might contain embedded audio or not, you can use
the conditional mode to allow the DLC150E to automatically embed or not embed depending on the video
content.
Understanding DIP Switch SW5 Conguration Options
Table 4 describes the DIP switch SW5 conguration options. The factory-set conguration settings are shown
in bold type.
