User’s Manual
ARTUS-703S
Safety precautions are intended to protect the user's safety and prevent
property damage. Please read the instructions before use and use them
correctly.

CST. CO., LTD.
1
Contents
Chapter 1. Warning and Caution
1.1 Warning
1.2 Caution
1.3 Information of Electro-Magnetic Compatibility (EMC)
Chapter 2. Product
2.1 Introduction of ARTUS-703S
2.2 Operation
2.3 Purpose of ARTUS-703S
2.4 Before reading the user manual
2.5 Safety Precaution
2.6 Caution
2.7 Damaged product during delivery
2.8 Product Configuration
2.9 Label
2.10 Component name
2.11 Product specifications
2.12 Setting
Chapter 3. Explanation of Terms and Symbols
3.1 Explanation of Terms
3.2 Explanation of Symbols
Chapter 4. Installation
4.1 For Flexion/Extension and Abduction/Adduction of Shoulder
4.2 For Flexion and Extension of Elbow
4.3 For Synchronized Abduction/Adduction/Rotation of Shoulder and Elbow
Chapter 5. Operation
5.1 How to adjust the device according to the exercise
5.2 How to use Hand Controller and set the exercise
Chapter 6. Maintenance and Troubleshooting
6.1 Storage Conditions
6.2 Treatment and Maintenance
6.3 Troubleshooting
Chapter 7. Warranty
Thank you for purchasing the Shoulder & Elbow CPM(ARTUS-703S).
Please refer to the manual in the box to view the components contained within the box
when opening the box.
Be sure to familiarize yourself with this manual before connecting and powering down
the parts, and keep the manuals handy for future use.
The illustrations in this manual may differ slightly from the originals.

CST. CO., LTD.
2
Chapter 1. Warning and Caution
Safety precautions are intended to be used safely and correctly to prevent accidents or risks,
so please ensure that you read and protect them carefully.
Cautions are divided into ‘warning ’ and ‘ caution ’, each meaning :
Warning : If there is a possibility of death or serious injury to the person in violation
of the instructions
Caution : Violation of damaged products or possible minor injury to the human body
when violating the instructions.
1.1 Warning
Please check the power during installation and using.
Violation of this range could cause electric shock and product would be damaged.
Please check the wiring of all terminals before turning on the power.
This could cause electric shock and malfunction.
Please do not use it with wet hands.
This could cause electric shock and malfunction.
Please do not change or extend the power cable arbitrarily.
This could cause fires and electric shock.
Please program the range of motion as prescribed by a physician.
This could cause deterioration in affected area and injury.
Please do not place the product near the fire.
This could cause fires.
If there are any unusual sounds, smells and smoke from the product, please turn off the
main power switch. This could cause a fires and failure.
Please make sure to be careful of water inside the product.
This could cause fires and failure.
Please do not dismantle, repair and remodel arbitrarily.
This could cause fires and electric shock
Please do not keep the product with combustible substance and inflammability gas.
This could cause a fires and failure.
Please do not use the product in gas spill area.
This could cause fires and explosion.
Please turn off the power switch during cleaning.
This could cause fires and electric shock.

CST. CO., LTD.
3
1.2 Caution
Please do not disconnect the power or communication cables during operating.
This could cause injury.
Elderly people and people with disabilities should use it under supervision of product
manager such as doctor or physical therapist.
This could cause injury.
Please do not install the product on unsafe place.
This could cause injury.
Please do not dismantle the product arbitrarily.
This could cause fires and failure.
Please do not allow any metallic foreign substance to enter the inside of the product.
This could cause fires and failure.
Please connect the earth terminal.
This could cause electric shock, malfunction and failure.
Please clean the product with soft cloth and do not use strong cleanser like solvent.
This cause fires and deformation.
Please do not tap with anything sharp or use excessive force to the screen when using
the hand controller. This could cause damage the screen or malfunction.
Please check the tightening a bolt before operating.
This could cause injury.
Please avoid sharp object when installing and opening the product.
This could cause product damage.
Please make sure that a part of body or clothing gets caught to device during operating.
This could cause injury.
Please do not use except for rehabilitation treatment purposes.
This could cause failure and injury.
When you disconnect the power plug or hand controller, please hold the plug and
do not hold the cable.
This could cause electric shock and product damage.
Please disconnect the power plug from the socket before moving.
This could cause electric shock and product damage.
Please do not exercise too much.
This could cause injury of joints.

CST. CO., LTD.
4
1.3 Information of Electro-Magnetic Compatibility (EMC)
Warning : Please note that emitted electromagnetic signals from the external environment
may affect the patient and also ARTUS-703S.
Warning : Do not use ARTUS-703S near high-power wireless equipment such as mobile
phone, this could cause malfunction.
Caution : ARTUS-703S is compliant with medical device regulations 93 / 42 / EEC and it is
designed to protect it from electromagnetic signals.
Caution : Portable and mobile frequency (RF) communication device may affect the
electronic medical devices.
Caution : Only the component we provide are recommended to use, other unspecified
devices may cause increasing emissions and immunocompromised status.
The RF of “ARTUS-703S” emissions are very low and are not likely to cause interference in
nearby electronic equipment.
The “ARTUS-703S” is suitable for use in all establishments other than domestic and those
directly connected to the public low voltage power supply network that supplies buildings
used for domestic purposes.
Mains (AC) power quality should be that of a typical commercial or hospital environments.
Floors should be wood, concrete or ceramic tile. If floor is covered with synthetic material,
the relative humidity should be at least 30% to avoid excessive static electricity.
Warning : The “ARTUS-703S” should not be situated adjacent to, or stacked with,
other electronic equipment. If the system must be in installed in close
proximity to other equipment, both the “ARTUS-703S” and the nearby
equipment should be observed to verify normal operating in that
configuration.
Caution : The “ARTUS-703S” has been designed to meet the standards of
IEC60601-1-2 for electromagnetic compatibility; however some
computer equipment unintentionally emits strong interfering RF signals.
Portable RF communication devices may also affect “ARTUS-703S”.
Warning : Use of accessories other than those specified, may result in increased
emissions, or decreased immunity of this system.

CST. CO., LTD.
5
Chapter 2. Product
2.1 Introduction of ARTUS-703S
Thank you for purchasing ARTUS-703S.
ARTUS-703S is a rehabilitative exercise equipment (Continuous Passive Motion Machine)
that recovers the lost function of Shoulder and Elbow joint quickly through the continuous
passive motion for patient who cannot exercise by themselves. It can also be adjusted angle
range of exercise, exercise time, the number of exercise, etc. And also it is available to set
5 steps exercising speed. Acceleration mode allows the exercise speed up to 2 steps faster
than previously programmed speed. It also provide a caster to move product easily.
Hand Controller(H/C) which is adopting 3.5 inch screen and touch is easy to operate and it
provides the information of progressing and programing exercise on screen.
2.2 Operation
If it is left untreated after the shoulder joint surgery, it may cause problems such as limited
range of motion and muscle contraction. And applying too much load to the shoulder joint
without rehabilitation may worsen the condition of the surgical area. So it is necessary to
exercise properly for the quick recovery of surgical area. ARTUS-703S is the rehabilitation
equipment to recover the function of shoulder joint quickly through continuous passive
movement.
Range of motion is different depending on the exercise mode and exercising ROM has to be
programmed according to the condition of patient.
Please exercise at a slow speed at first, and then do exercise higher speed and wider angle
after becoming familiar with the equipment. Exercise with a wide range of motion from the
beginning could cause secondary damage to the patient's surgical site.
<FIG 2.1 ARTUS-703S>

CST. CO., LTD.
6
2.3 Purpose of ARTUS-703S
ARTUS-703S is a rehabilitative exercise equipment that recovers the lost function of
joints quickly through continuous passive motion for patient who cannot exercise by
themselves at equipped such as hospitals.
The ARTUS-703S should be used in a properly equipped environment such as a
hospital and must be handled by trained professional who have the proper qualifications
like physical therapists or medical specialists.
2.4 Before reading the user manual
Please read the user’s manual before using ARTUS-703S.
The user’s manual is for buyer and user, it will help to use the product safely.
The user’s manual is for using the product to ensure safe and proper use.
The user’s manual could be revised any time at the manufacturer's discretion.
2.5 Safety Precaution
ARTUS-703S uses the power of AC110V ~ 240V, 50 / 60Hz.
Please check the power when using it inside.
The product should be used while the room is at room temperature.
Please be well-informed of the user manual before using.
2.6 Caution
Please use the product as prescribed and do not stab the hand controller with anything
sharp.
2.7 Damaged product during delivery
ARTUS-703S will be shipped securely in an outer box with inner packing.
After receiving the product, please check for damage or something abnormal on product.
If any damage or abnormality is found, contact the company that purchased the product.

CST. CO., LTD.
7

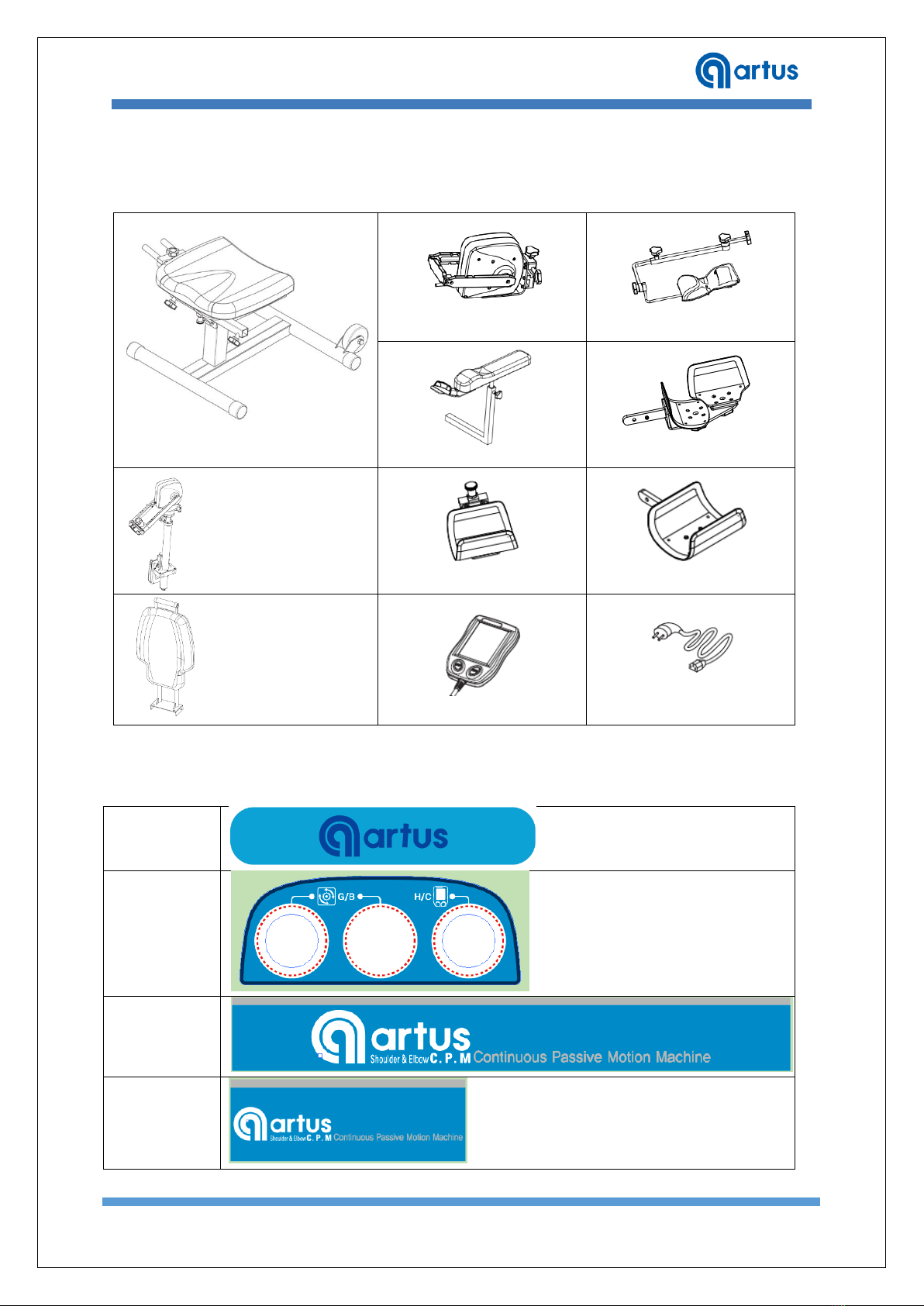

2.8 Product Configuration
Please check the product and accessories before installation.
Body
Elbow motor(M2)
Hand Splint
Arm rest
90°elbow splint
Shoulder motor(M1)
& Height Adjustment
Upper arm splint
Forearm splint
Chair Back
H/C
Power cable
2.9 Label
HC label
Control box
label
Base label-1
Base label-2

CST. CO., LTD.
8
2.9 Component name
Main device
1. Handle
2. Chair back
3. Arm rest
4. Holder of Hand Controller
5. Shoulder motor(M1)
6. Upper arm length adjusting screw
7. Upper arm splint
8. Hand holder
9. Fixture of Hand Splint
10. Screw to adjust the angle of Elbow
11. Screw to adjust the height of Shoulder
12. Screw to adjust the angle of M1
13. Fixture of arm rotator
14. Screw to adjust the width of Shoulder
on arm rotator
15. Emergency stop switch
16. Control box

CST. CO., LTD.
9

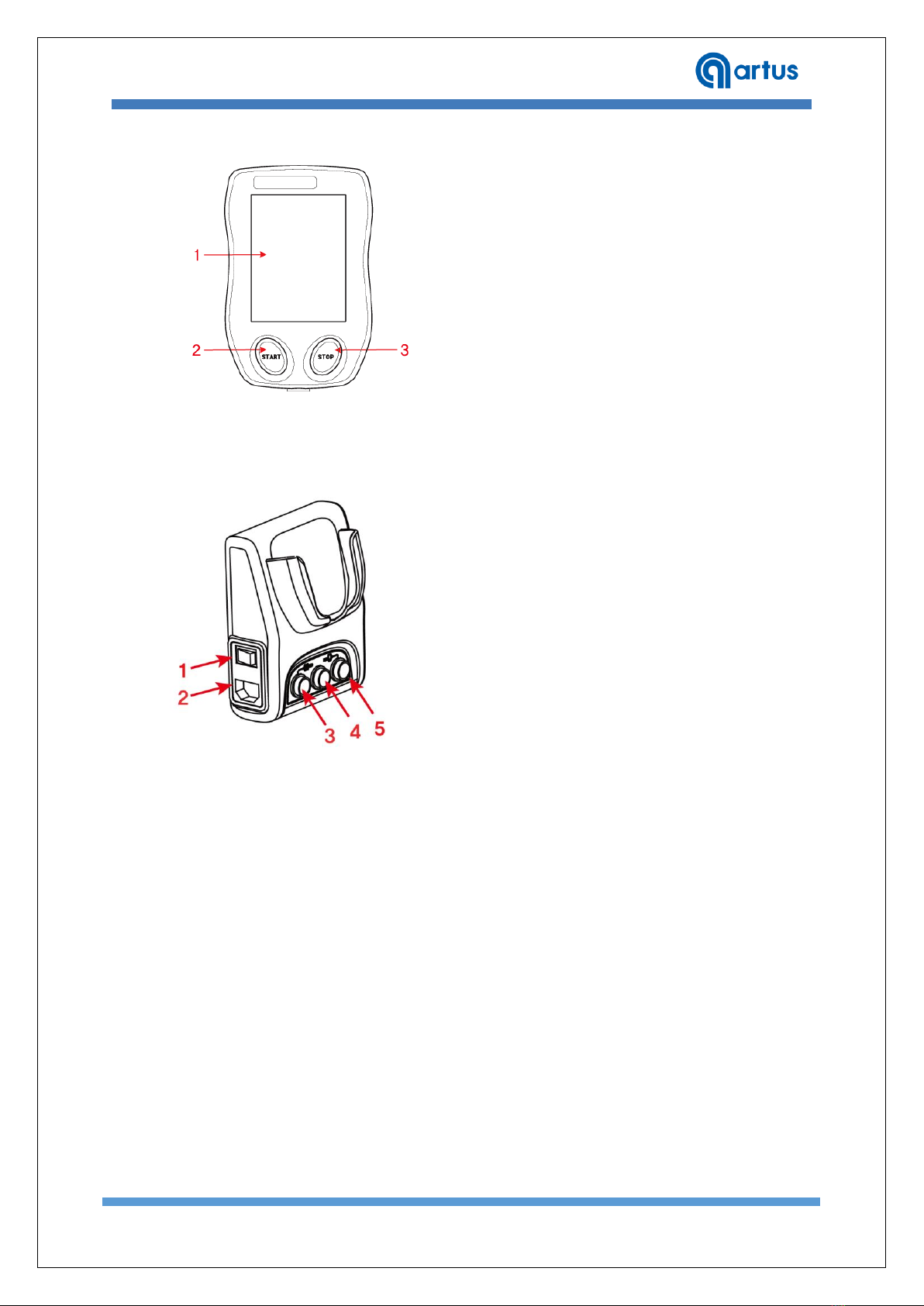

Hand Controller
1. Touch Screen
2. Start Button
3. Stop Button
Control box
1. Power Switch
2. Power inlet
3. Connector to M1 or M2
4. Connector to M1 or M2
5. Connector to Hand Controller

CST. CO., LTD.
10
2.11 Product specifications
Division
Contents
Type of Protection
Class I, Type B
Rated Power
AC 110V~240V, 50/60Hz
Power Consumption
45VA
Operating Temperature / Humidity
+10°C ~ +40°C / 80% or less
Storage Temperature
+10°C ~ +40°C
Atmospheric Pressure
700~1060 hPa
Size
706 X 647 X 835 (Width X Length X Height)
Weight
35 kg
2.12 Setting
Division
Flexion /
Extension
Abduction
/Adduction
Rotation
Elbow
motion
Synchronized
Abduction
/Adduction
Rotation
Lower limit
~
Upper limit
20°
~
180°
20°
~
160°
- 60°
~
90°
0°
~
150°
20°
~
160°
30°
~
90°
Speed
1~5 steps (M1 : 60°~200°/min, M2 : 75°~200°/min)
Pause
0~9 sec
Timer
1~99 min
Counter
1~99

CST. CO., LTD.
11
Chapter 3. Explanation of Terms and Symbols
3.1 Explanation of Terms
Term
Explanation
Upper limit
Limit angle of flexion and abduction of shoulder
Limit angle of flexion of elbow
Limit angle of inner rotation of Elbow
Lower limit
Limit angle of extension and adduction of shoulder
Limit angle of extension of elbow
Limit angle of outer rotation of Elbow
Upper pause
Pause time at Upper limit angle
Lower pause
Pause time at Lower limit angle
Bypass
The function of adjusting upper and lower limit angle during exercise
operating
Manual
The function to check manually the patient’s available exercising ROM
before exercise operating
Speed/Uni/Accel
Exercise speed level / Uniform speed / Accelerated speed
Timer
Time of Exercise
Counter
Number of Exercise
M1
The exercising motor for Shoulder
M2
The exercising motor for Elbow
3.2 Explanation of Symbols
Symbol
Explanation
Symbol
Explanation
Exercise mode of
Flexion/Extension
of shoulder
Synchronized exercise mode with
Abduction/Adduction of shoulder
and rotation of elbow
Exercise mode of
Abduction/Adduction
of shoulder
Increment / Decrement
Rotation
Of elbow
Switching between program mode
and exercise operating mode /
display of device operating status
Exercise mode of
Flexion/Extension of Elbow
Touch locked

CST. CO., LTD.
12
Chapter 4. Installation
Refer to 2.8 Product configuration

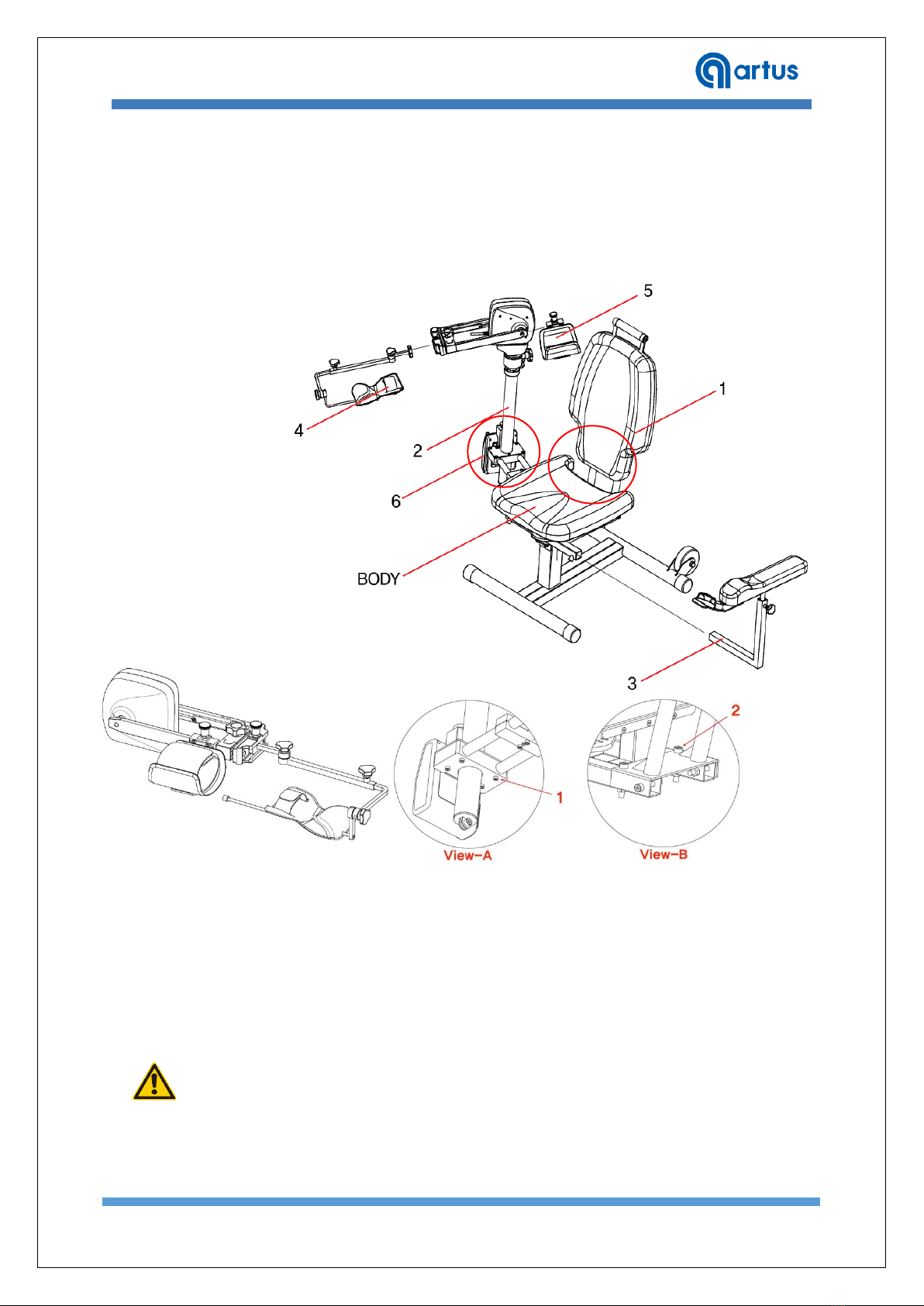

4.1 For Flexion/Extension and Abduction/Adduction of Shoulder
Mounting M1 & Hand holder
Step 1. Fix the chair back(1) to the Body.(See view-B)
Step 2. Fix the M1 & Height adjustment(2) to the Body.(See view-A)
Step 3. Mount the arm rest(3) to the side of Body.
Step 4. Mount the forearm splint(4) to the Shoulder moteor(M1).
Step 5. Mount the arm splint(6) to the side of Shoulder motor(M1).
Step 6. Connect the hand controller and motor cable to the controller box(6).
Warning : Tighten the fixing screw (knob) firmly to prevent the device from
separation during exercise.
A
B
(M5x15)
(M8x50)

CST. CO., LTD.
13

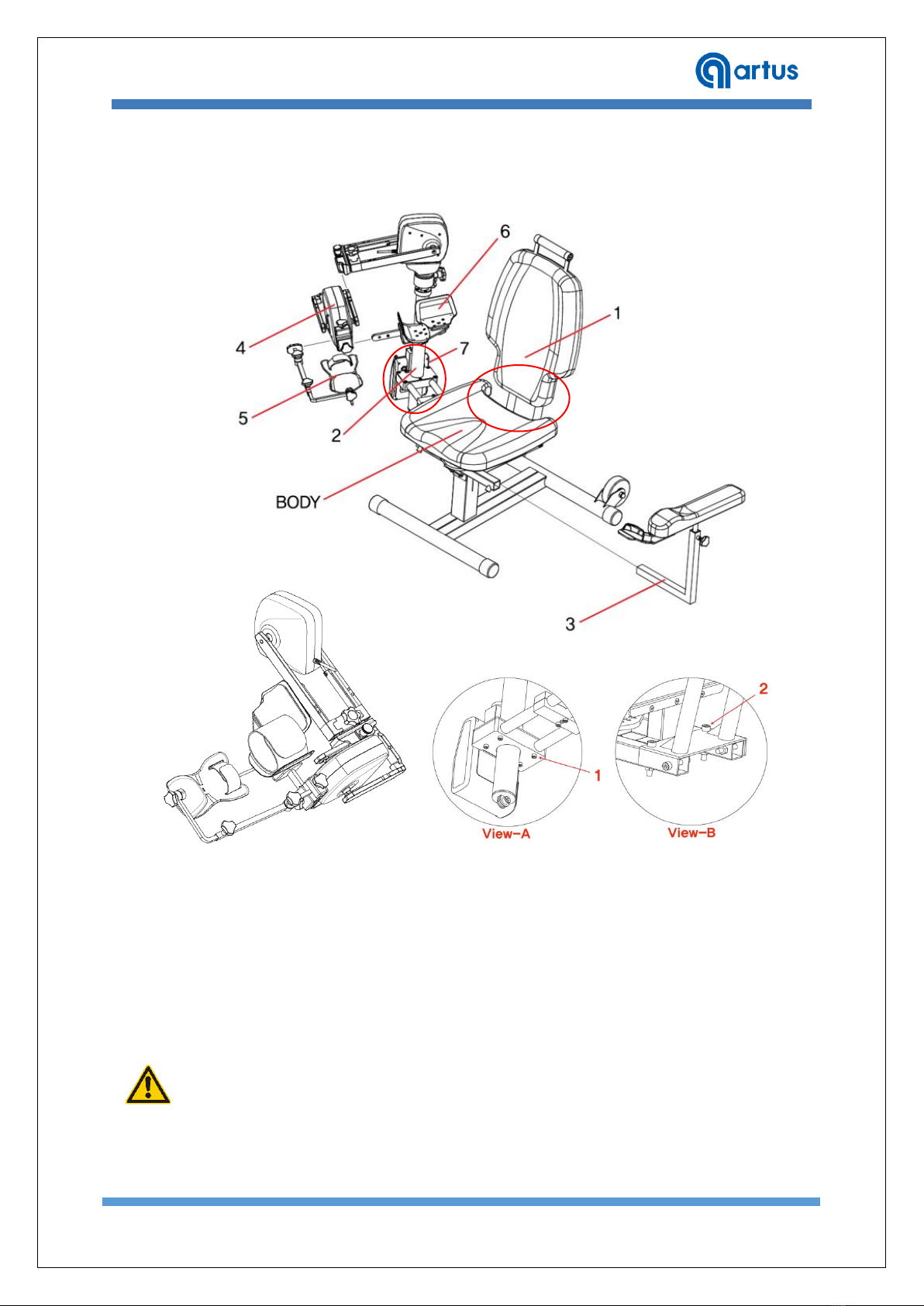

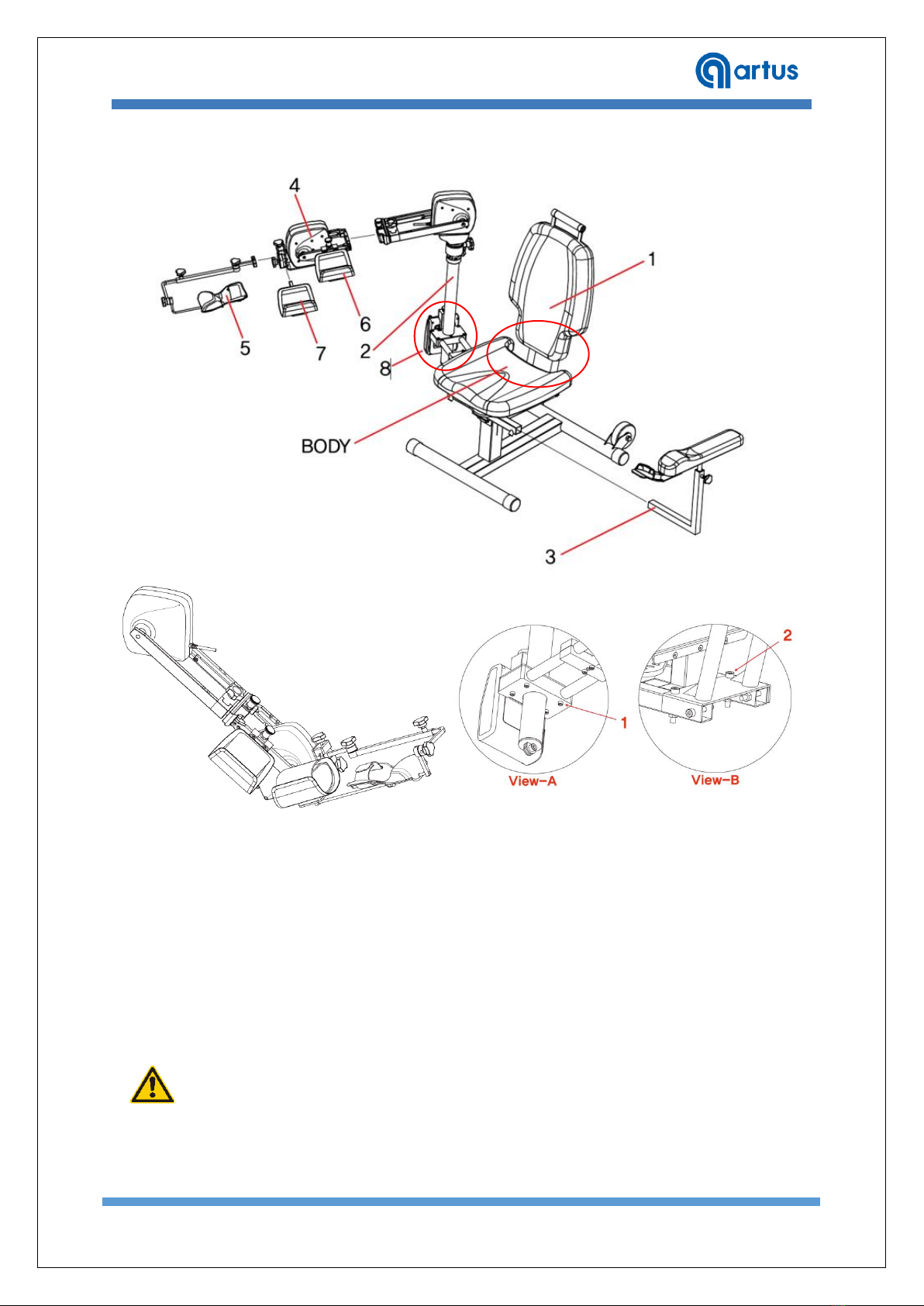

4.2 For Flexion and Extension of Elbow
Step 1. Fix the chair back(1) to the Body.(See view-B)
Step 2. Fix the M1 & Height adjustment(2) to the Body.(See view-A)
Step 3. Mount the arm rest(3) to the side of Body.
Step 4. Mount the Elbow motor(4) to the front of Shoulder motor(M1).
Step 5. Mount the foream splint(5) to Elbow motor(M2).
Step 6. Mount the arm splint(6) to the side of Elbow motor(M2)
Step 7. Mount the Forearm(7) ) to Elbow motor(M2).
Step 8. Connect the hand controller and motor cables to the controller box(8).
Step 9. Push the arm rotator to the back side.
Warning : Tighten the fixing screw (knob) firmly to prevent the device from
separation during exercise.
(M5x15)
(M8x50)
A
B

CST. CO., LTD.
14
4.3 For Synchronized Abduction/Adduction/Rotation
of Shoulder and Elbow
Step 1. Fix the chair back(1) to the Body.
Step 2. Fix the part of M1 & Height adjustment(2) to the Body.
Step 3. Mount the arm rest(3) to the side of Body.
Step 4. Mount the Elbow motor(4) to the Shoulder motor(M1) vertically.
Step 5. Mount the foream splint(5) to Elbow motor(M2).
Step 6. Mount the elbow splint(6) to Elbow motor(M2)..
Step 7. Connect the hand controller and motor cable to the controller box.
Warning : Tighten the fixing screw (knob) firmly to prevent the device from
separation during exercise.
A
B
(M5x15)
(M8x50)

CST. CO., LTD.
15
Chapter 5. Operation
Please review warning and caution in Chapter 1.
Please check the connection of the power switch (cord) and the hand controller.
Explanation of symbols in the control unit is covered in Chapter 3.
5.1 How to adjust the device according to the exercise
Warning : Tighten the fixing screw (knob) firmly to prevent the device from
separation during exercise

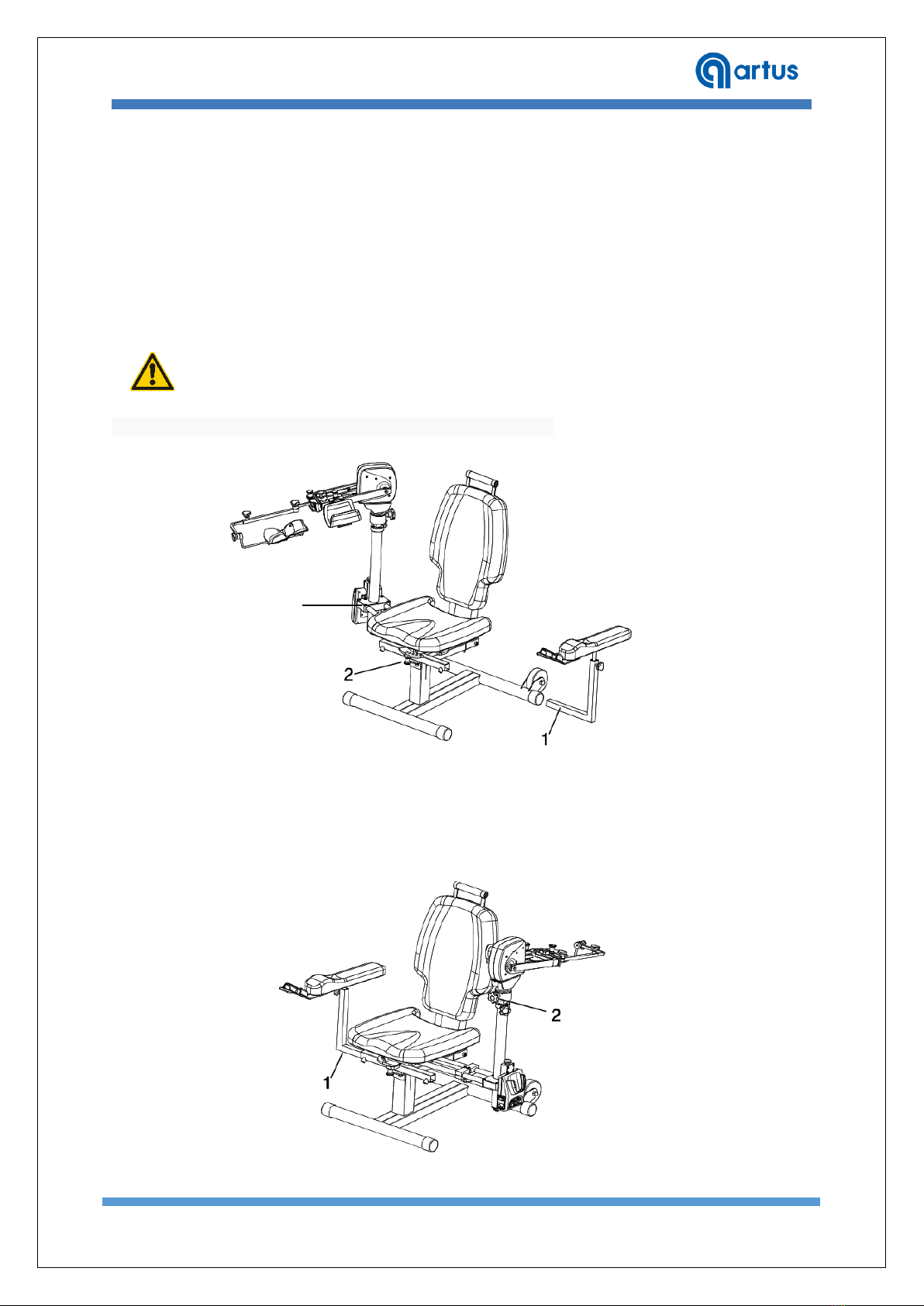

5.1.1 How to convert left and right arm(ex. right to left arm)
<Fig 5.1.1>
Step 1. After removing the armrest (1), pull out the fixture of arm rotator (2)
and rotate the arm rotator(3) counterclockwise.
Step 2. Stop the arm rotator at the proper position and release the fixture of arm
rotator (2) to fix it.(See Fig 5.1.2)
<Fig 5.1.2>
3

CST. CO., LTD.
16

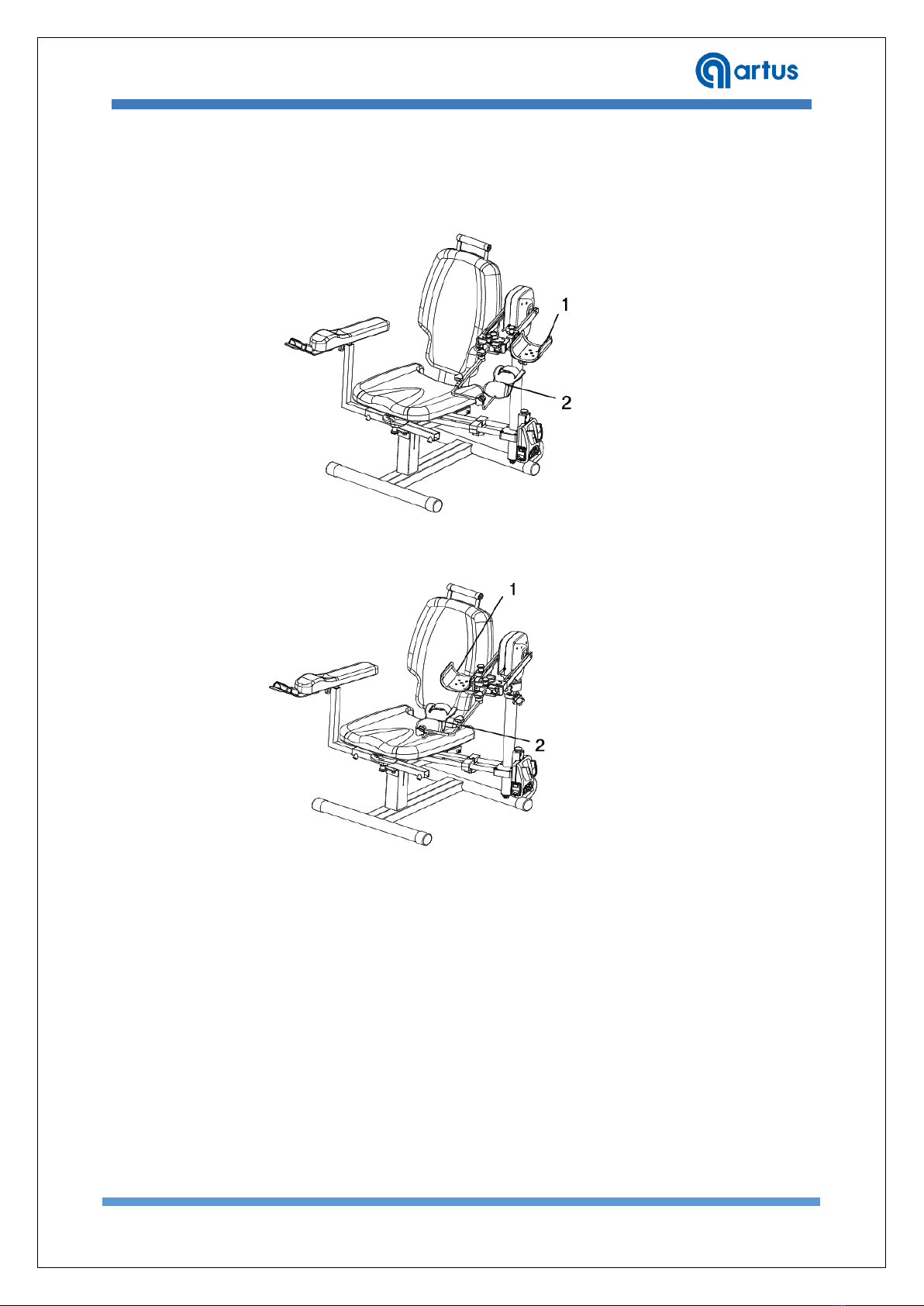

Step 3. Mount the armrest (1) to the right side of body.
Step 4. Loosen the M1 angle adjusting screw and rotate M1 that forearm splint is
facing forward. Tighten the screw firmly.(See Fig 5.1.3)
<Fig 5.1.3>
Step 5. Separate the upper arm splint (1) and hand holder (2).
<Fig 5.1.4>
Step 6. Mount upper arm splint (1) and hand holder (2) to the inside.

CST. CO., LTD.
17

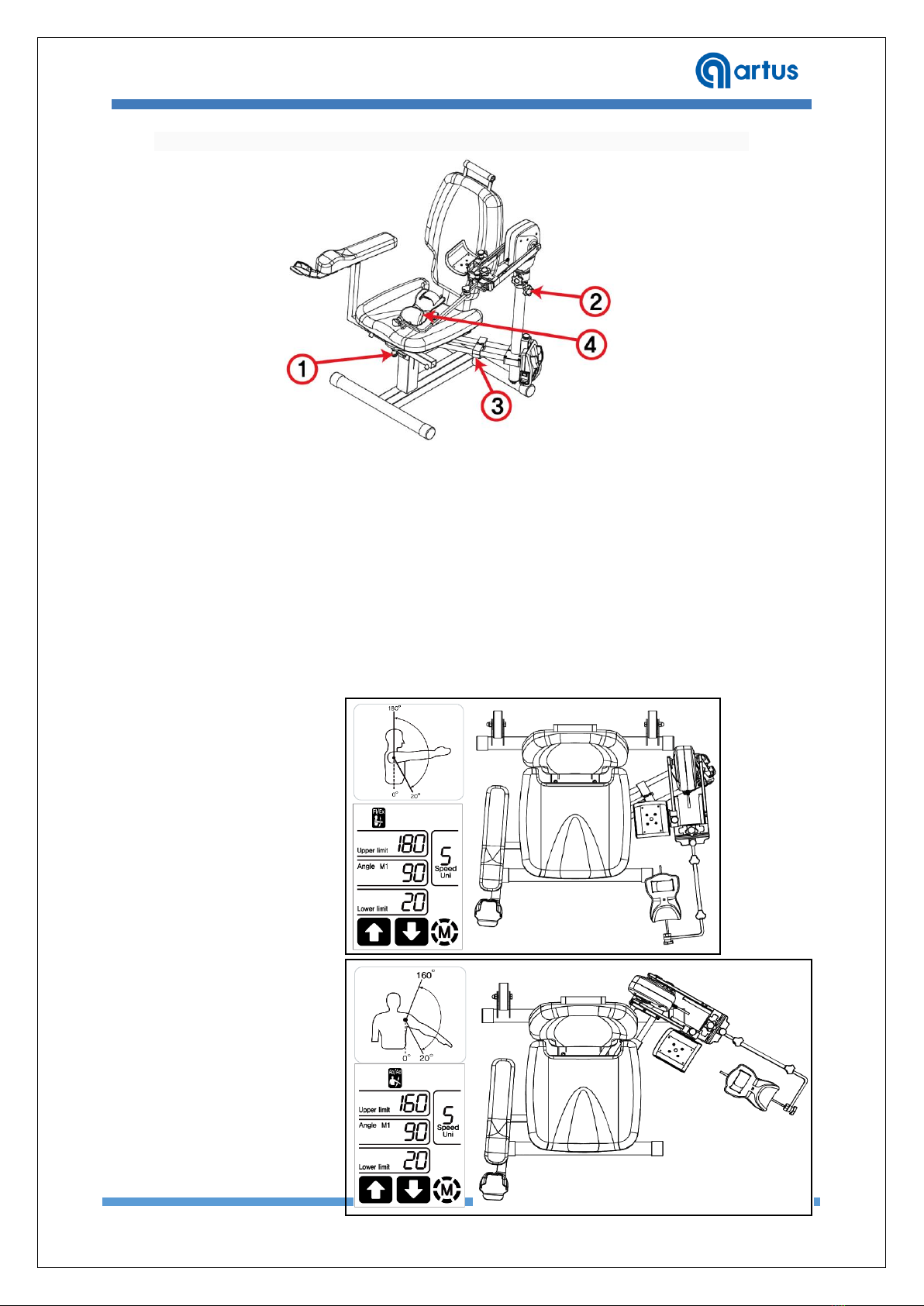

5.1.2 How to adjust device for Flexion/Extension and aduction/adduction of Shoulder
<Fig 5.1.5>
Step 1. A patient is sitting comfortably in the chair and has his back tightly
attached to the chair back.
Step 2. Pull out the fixture of arm rotator (1) and adjust the location of M1 to the
patient’s shoulder. And then release the fixture of arm rotator to fix it.
Step 3. Loosen the shoulder height adjusting screw (2), and adjust the height of
the axis of M1 to fit to the patient’s shoulder. And then tighten the screw to fix it.
Step 4. Loosen the shoulder width adjusting screw (3), and adjust the width of M1
to fit to the patient’s shoulder. And then tighten the screw to fix it.
Step 5. Adjust the length of hand holder (4).
Setting of Shoulder
Flexion / Extension
Setting of Shoulder

CST. CO., LTD.
18
Abduction / Adduction
5.1.3 How to adjust device for Flexion/Extension of Elbow
<Fig 5.1.6>
Step 1. A patient is sitting comfortably in the chair and has his back tightly
attached to the chair back.
Step 2. Pull out the fixture of arm rotator (1) and adjust the location of M1 to the
patient’s shoulder. And then release the fixture of arm rotator to fix it.
Step 3. Loosen the shoulder height adjusting screw (2), and adjust the height of
the axis of M1 to fit to the patient’s shoulder. And then tighten the screw
to fix it.
Step 4. Loosen the shoulder width adjusting screw (3), and adjust the width of
M1 to fit to the patient’s shoulder. And then tighten the screw to fix it.
Step 5. Use hand controller to adjust the angle of M1 to degree 45°or less.
Step 6. Adjust the length of hand holder (5).
Setting of Elbow
Flexion / Extension
Caution : Before changing to another exercise, set the angle of M2 to 0 °.

CST. CO., LTD.
19
5.1.4 How to adjust device for Rotation of Elbow
and Synchronized Abduction/Adduction/Rotation
<Fig 5.1.6>
Step 1. A patient is sitting comfortably in the chair and has his back tightly
attached to the chair back.
Step 2. Pull out the fixture of arm rotator (1) and adjust the location of M1 to the
patient’s shoulder. And then release the fixture of arm rotator to fix it.
Step 3. Loosen the shoulder height adjusting screw (2), and adjust the height of
the axis of M1 to fit to the patient’s shoulder. And then tighten the screw
to fix it.
Step 4. Loosen the shoulder width adjustment screw (3), and adjust the width of
M1 to fit to the patient’s shoulder. And then tighten the screw to fix it.
Step 5. Loosen the upper arm length adjusting screw (4), and adjust the length of
upper arm. And then tighten the screw to fix it.
Step 6. Adjust the length of hand holder (5).
Setting of Shoulder
Synchronized
Setting of Elbow
Rotation
