asecos V Series User manual

10 JAHRE GARANTIE*
* Bei jährlicher Beauftragung des
Premium Tarifs verlängert sich
die Garantie für Ihren V-LINE
Sicherheitsschrank auf bis zu 10 Jahre.
10 YEARS WARRANTY*
* Upon conclusion of an asecos
service and maintenance agreement
(PREMIUM tariff), you will get
a warranty extension for up to 10 years for
your V-LINE safety storage cabinet.
Weitere Informationen zu unseren Garantieleistungen finden Sie unter
www.asecos.com/service-leistungen
For detailed information about our warranties please visit
www.asecos.com/service-conditions
EP.V.31417_02 ·05/2020
BEDIENUNGSANLEITUNG
Sicherheitsschränke V-LINE
USER MANUAL
Safety storage cabinets V-LINE
GEBRUIKSAANWIJZING
BrandveiligheidsopslagkastenV-LINE
NOTICE D´UTILISATION
Amoires de sécurite d´aprés V-LINE
MANUAL DE INSTRUCCIONES
Armarios de seguridad V-LINE
ISTRUZIONI PER L´USO
Armadi di sicurezza V-LINE
INSTRUÇÕES DE SERVIÇO
Armários de segurança V-LINE
DE
EN
NL
FR
ES
IT
PT

V-MOVE-90
V90.196.045.VDAC:0012
V90.196.081.VDAC:0012
V90.196.045.VDAC:0013
V90.196.081.VDAC:0013

DE
EN
NL
FR
ES
IT
PT
1
IHRE PERSÖNLICHE DOKUMENTATION ZUM asecosSICHERHEITSSCHRANK
Sehr geehrte Kundin, sehr geehrter Kunde,
mit dem Kauf Ihres asecos-Sicherheitsschrankes haben Sie eine entscheidende Investition für
die Sicherheit in Ihrem Haus getätigt. Vor Ihnen steht ein innovatives Produkt aus hochwertigen
Materialien, das höchste Qualität garantiert.
Sicherheitsschränke aus dem Hause asecos verfügen über eine lückenlose Zulassungs-Dokumen-
tation. Wir archivieren Ihre Zulassungsdokumente jedes einzelnen Schrankes für Sie, bis Sie diese
im Bedarfsfall (z. B. einer Betriebsbegehung o. ä.) mit diesem Formular von uns anfordern.
Dazu einfach dieses Formular heraustrennen/kopieren und mit Ihrer Adresse und der Seriennum-
mer des Schrankes versehen per Fax zurück an uns.
Mit freundlichen Grüßen
asecos GmbH
YOUR PERSONAL DOCUMENTATION TO THE asecos SAFETY CABINET
Dear Customer,
you have made a decisive investment in safety for your company by purchasing this asecos safety
storage cabinet. You now own an innovative product made of top-quality materials guaranteeing
the highest quality standards.
asecos safety storage cabinets have complete authorisation documents. We archive the authori-
sation documents for every individual cabinet, keeping them ready for you should you ever need
them (e.g. for a works inspection or similar). Simply request them using this form.
Tear o or copy that page and return to us by fax with your address and serial number of the
cabinet on it.
Yours sincerely
asecos GmbH
Firma • company
Abteilung • department
Name • name
Straße • street
PLZ • postal code
Ort • city
Schrank • cabinet
Seriennummer(n) • serial number(s)
asecos GmbH
Abt. Kundendienst
Weiherfeldsiedlung 16–18
D-63584 Gründau
Fax: +49 60 51 – 92 20-10

4
OPERATING INSTRUCTIONS
Dear customer,
Thank you very much for purchasing a safety storage cabinet from our company, with which you have made
a decisive investment in the safety within your company. Our safety storage cabinets make the storage of
hazardous materials at the workplace safe and convenient for you.
Please read these operating instructions very carefully. Get to know the advantages and simple operability of
our safety storage cabinets in detail. This simplifies the daily handling of hazardous materials for you.
Many thanks.
Your asecos team
1. NOTES • GUIDELINES • GUARANTEE ............................................. 5
1.1. General safety notes ............................................ 5
1.2. Guarantee ..................................................... 5
1.3. Cabinet Details ................................................. 5
2. TRANSPORT ................................................................. 6
2.1. Tilting the cabinet .............................................6
2.2. Dismantling of the transport packaging ............................. 6
2.3. In-plant transport ............................................... 7
3. ERECTION • COMMISSIONING • FUNCTION ....................................... 7
3.1. Commissioning................................................. 7
3.2. Connection to the power supply................................... 7
3.3. Alignment Of The Cabinets ....................................... 7
3.4. locking of the cabinet ........................................... 8
3.5. Unlocking of the cabinet ......................................... 8
3.6. Automatic door closing system (TSA)............................... 9
3.7. disable the automatic door closing system .......................... 9
4. SAFETY FUNCTIONS ......................................................... 10
4.1. Closing the drawer during blackout ............................... 10
4.2. Automatic closing in the event of fire.............................. 10
4.3. Blocking the drawer while opening ............................... 10
4.4. Blocking the drawer while cosing ..................................11
5. SURCHARGE TOPMOUNTED CABINET ........................................ 12
5.1. Assembly of the attached cabinet................................. 12
6. INTERIOR FITTINGS .......................................................... 13
6.1. bottom Collecting Sump ........................................ 13
6.2. Shelves (Height-Adjustable) ..................................... 13
6.3. Shelf guard rail system.......................................... 13
7. STORAGE .................................................................. 14
8. EARTHING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
9. VENTILATION ............................................................... 15

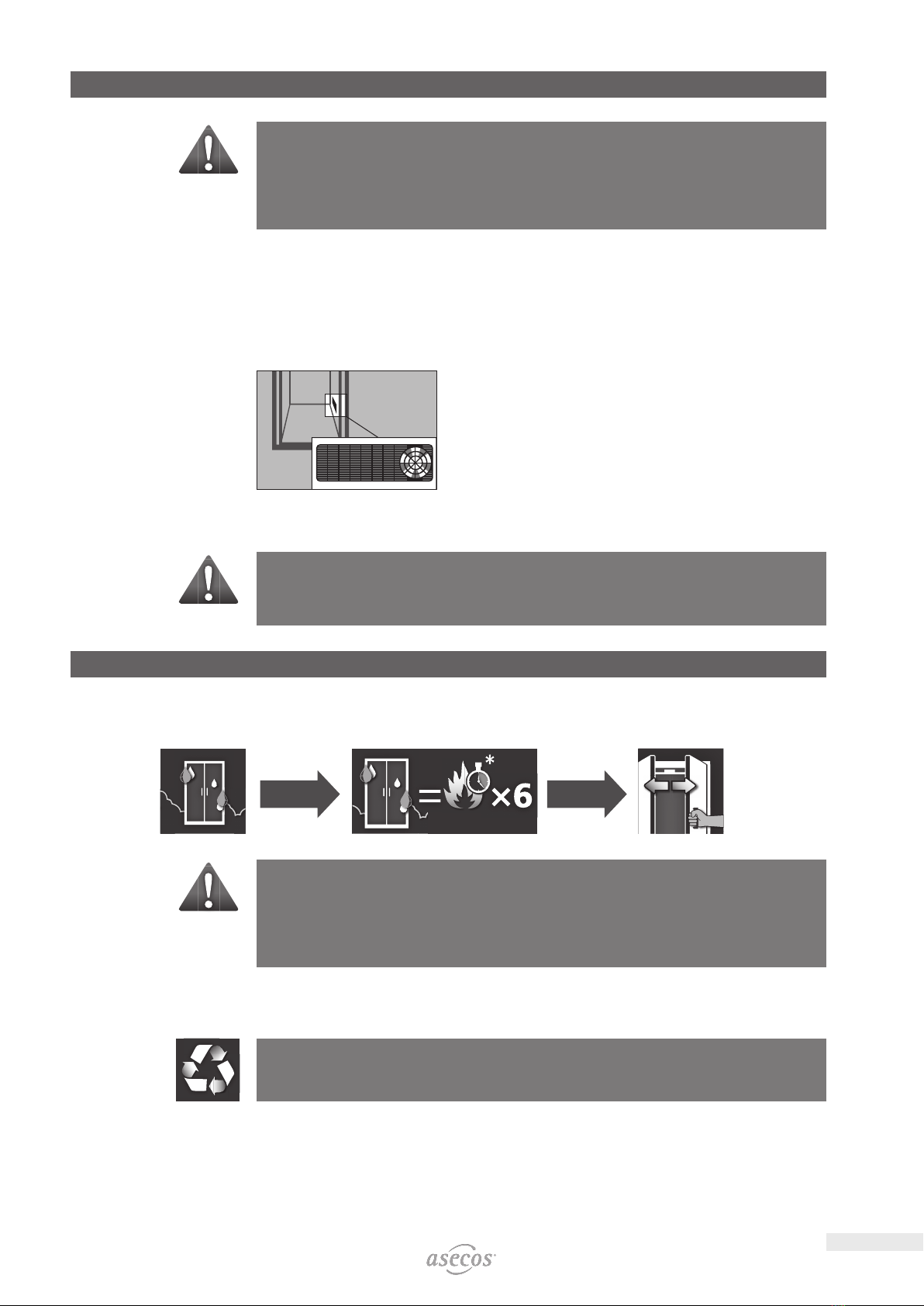

10. FIRE • DISPOSAL ............................................................ 15
10.1. Opening The Cabinet After The Fire ............................... 15
10.2. Disposal ..................................................... 15
11. S A F E T Y C H E C K S ............................................................. 16
11.1. In general .................................................... 16
11.2. Battery check ................................................. 16

5
1. NOTES • GUIDELINES • GUARANTEE
1.1. GENERAL SAFETY NOTES
• Observe applicable statutes and regulations, and the notes in these operating instructions, when handling
hazardous materials
• Work on the electrical system is to be carried out only with the power turned o and only byqualified electri-
cians – refer here to the regulations of the local electricity supply company.
• The on-site installation conditions are to be observed (e.g. bolting the cabinets to the building).
• The instructions of the supervisory engineering department must be followed.
• Observe accident prevention regulations and workplace ordinance
• Ensure that the necessary safety checks are only carried out by authorised sta using original spare parts
• Only use the cabinet after having been properly instructed; access is to be forbidden to unauthorised persons.
• The pivoting area of the doors is to be kept free at all times; doors/drawers are to be kept closed
• By assigning trained/authorised technical personnel you can prevent the malfunctions, damage and corrosion
damage that result from inappropriate transport.
• Observe the upper limits for stored quantities, loading etc.
• Containers with a volume larger than that of the bottom collecting sump may not be placed inside the cabi-
net; spilt hazardous materials are to be collected immediately and removed
• Vessels containing aggressive chemicals (acids/alkalis) are to be kept in special cabinets for acids and alkalis
or on shelves for acids and alkalis as well as in cabinets with metal-free interior equipmen.
• Before storing such materials, check that the cabinet’s surface is resistant to the chemicals.
• Before the initial commissioning, the safety storage cabinet is to be examined by the user for possible dam-
age.
Set-up requirements
0–35 °C 30–70 %
1.2. GUARANTEE
The guarantee for this product is agreed between you (the customer) and your dealer (the seller). As the
manufacturer, asecos guarantees the products listed in the operating instructions for a period of 24 months
from the date of delivery. All model safety equipment are subject to a compulsory annual inspection by spe-
cialised sta authorised by the manufacturer. Otherwise the customer’s guarantee claim against the manufac-
turer expires.
1.3. CABINET DETAILS
A complete overview of the models can be found at the start of the operating instructions.
Development: asecos GmbH Sicherheit und Umweltschutz, D-63584 Gründau.
Cabinet data: Logbook (included with the cabinet)
Technical drawing: Appenidix 1
Technical data: Table in Appendix 2
V-LINE
These models are tested, certified and marked according to requirements of BS EN 14470-1. They are intend-
ed for the storage of flammable liquids in work rooms in accordance with the valid national regulations.

6
2. TRANSPORT
CAUTION:
Transport the cabinet in an upright position on a pallet truck, tied and secured against slipping, until the
final place of installation is reached.The transport locks in the door joints may only be removed directly
at the place of installation! Inappropriate transport can lead to concealed damage to the fire protection
insulation!We can only guarantee the necessary quality if the cabinet is transported to the place of its use
by our specially trained sta.
CAUTION:
The cabinet must not be moved by pulling the opened drawer! Pulling or sliding may only be carried out in
the body housing!
2.1. TILTING THE CABINET
2.2. DISMANTLING OF THE TRANSPORT PACKAGING
2×
2
2×
3
4×
4
5a 5b 5c
5×
6

7
2.3. INPLANT TRANSPORT
CAUTION:
The cabinet must not be moved by pulling the opened drawer! Pulling or sliding may only be carried out in
the body housing!
M10
Steps for manoeuvring the cabinet:
• Open the drawer of the cabinet
• Connect the belts with steel angles or steel rings using a screw M10
• Screw the steel angles/rings into the threaded insert in the base of the
cabinet
• Move the cabinet carefully using the belts

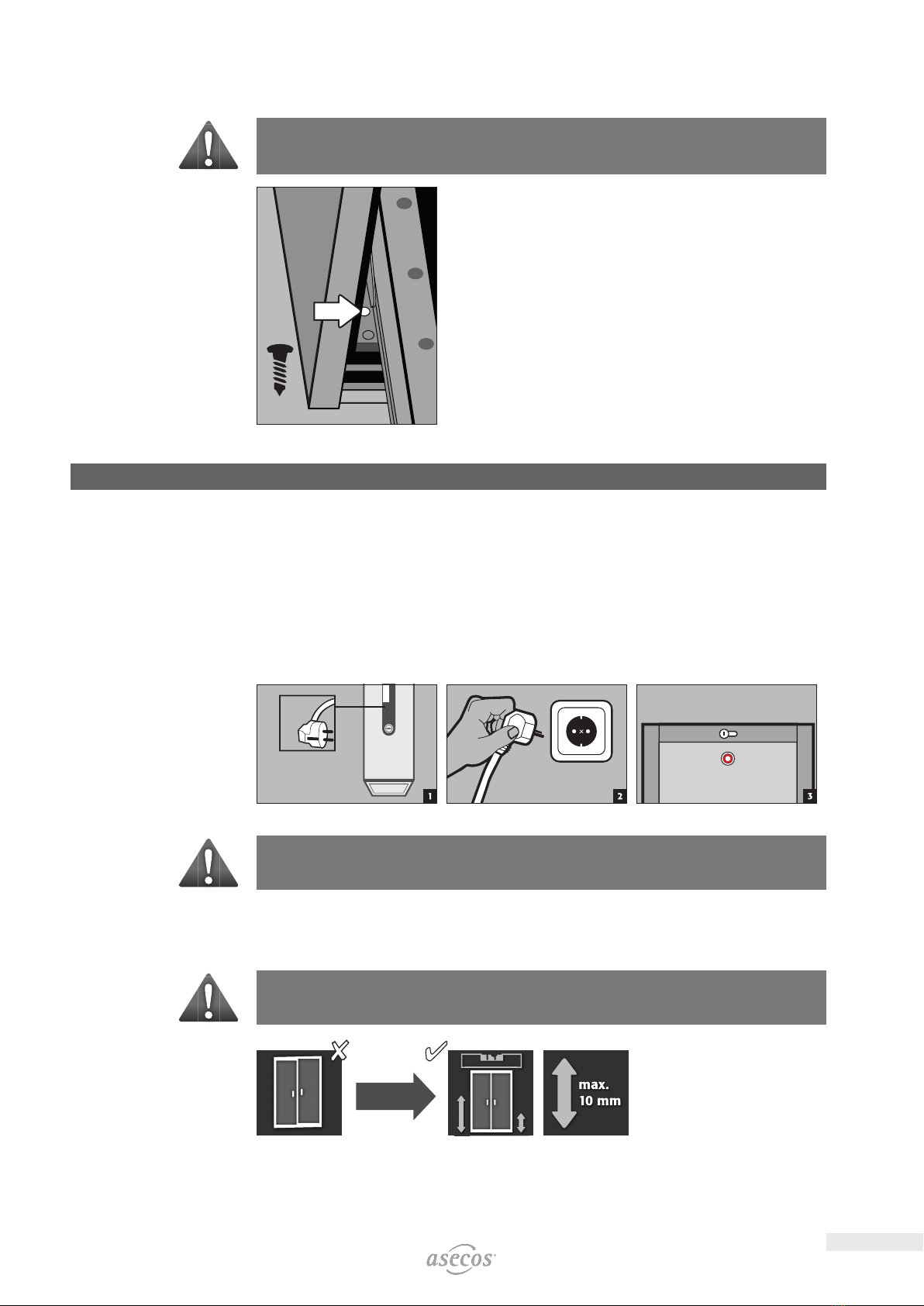

3. ERECTION • COMMISSIONING • FUNCTION
3.1. COMMISSIONING
• Before putting into operation for the first time, the user must carry out an examination of the safety storage
cabinet for possible damage, such as defective or loose sealing elements, correct alignment and perfect func-
tioning of the door elements.
Use the cabinet and accessories only if they are in an orderly condition.
3.2. CONNECTION TO THE POWER SUPPLY
CAUTION
The cabinet must be connected to the power supply at least 1 hour before storing items for the first time!
3.3. ALIGNMENT OF THE CABINETS
After disabling the automatic door closing (see 4.4) and opening the drawer, the cabinet can be aligned
using the integrated adjusting aids.

8
V90.196.045.VDAC
2× 2×
1
2
3
4
5
6
V90.196.081.VDAC
2× 3×
123
456
NOTES to figures 4 and 5
Only one vertical drawer can be opened at a time while the other one remains closed.
3.4. LOCKING OF THE CABINET
3.5. UNLOCKING OF THE CABINET

9

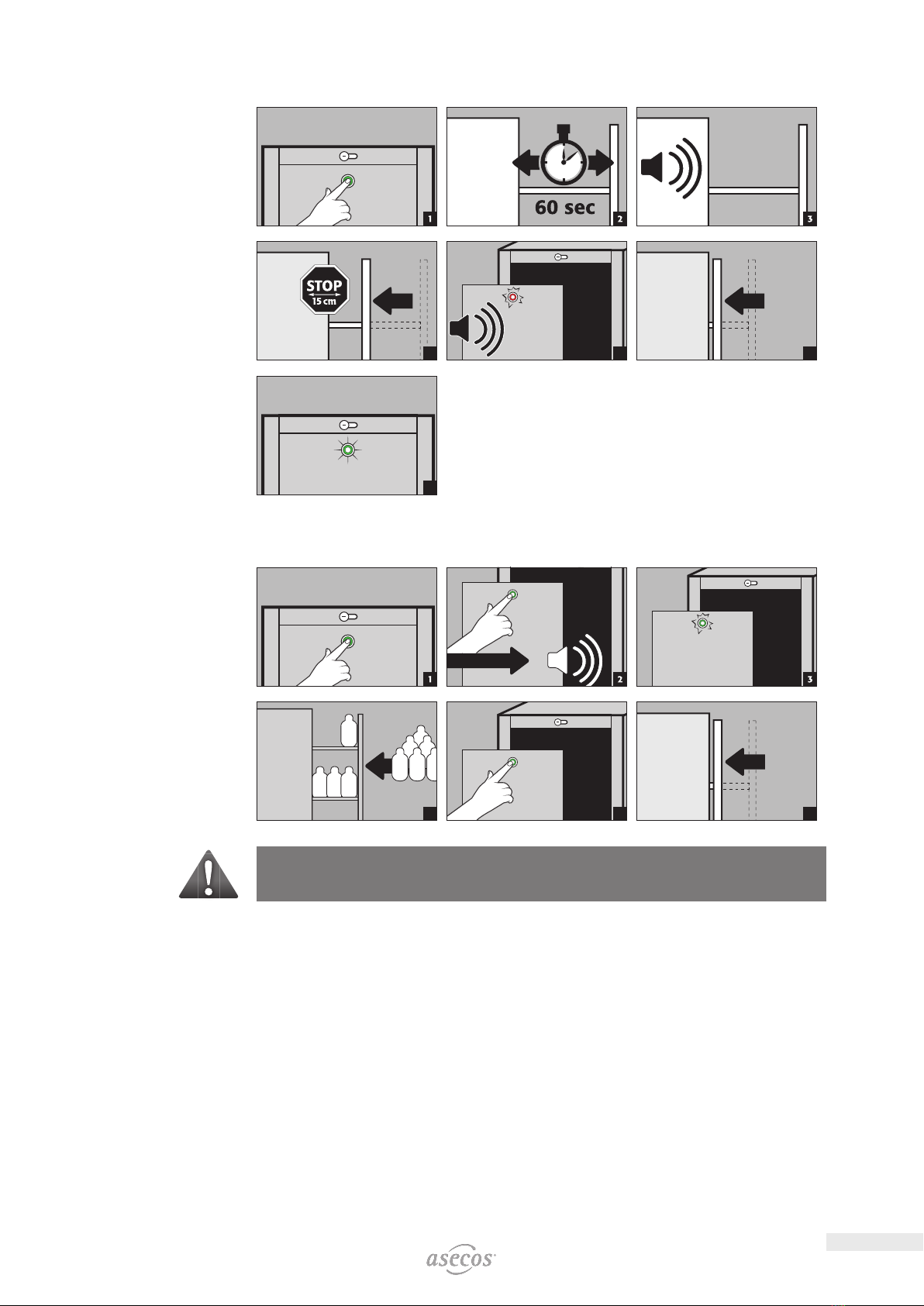

3.6. AUTOMATIC DOOR CLOSING SYSTEM TSA
4
5
6
7
3.7. DISABLE THE AUTOMATIC DOOR CLOSING SYSTEM
3
>3 sec
4
5
6
ATTENION:
In case of fire the automatic door closing is always ensured!

10
4. SAFETY FUNCTIONS

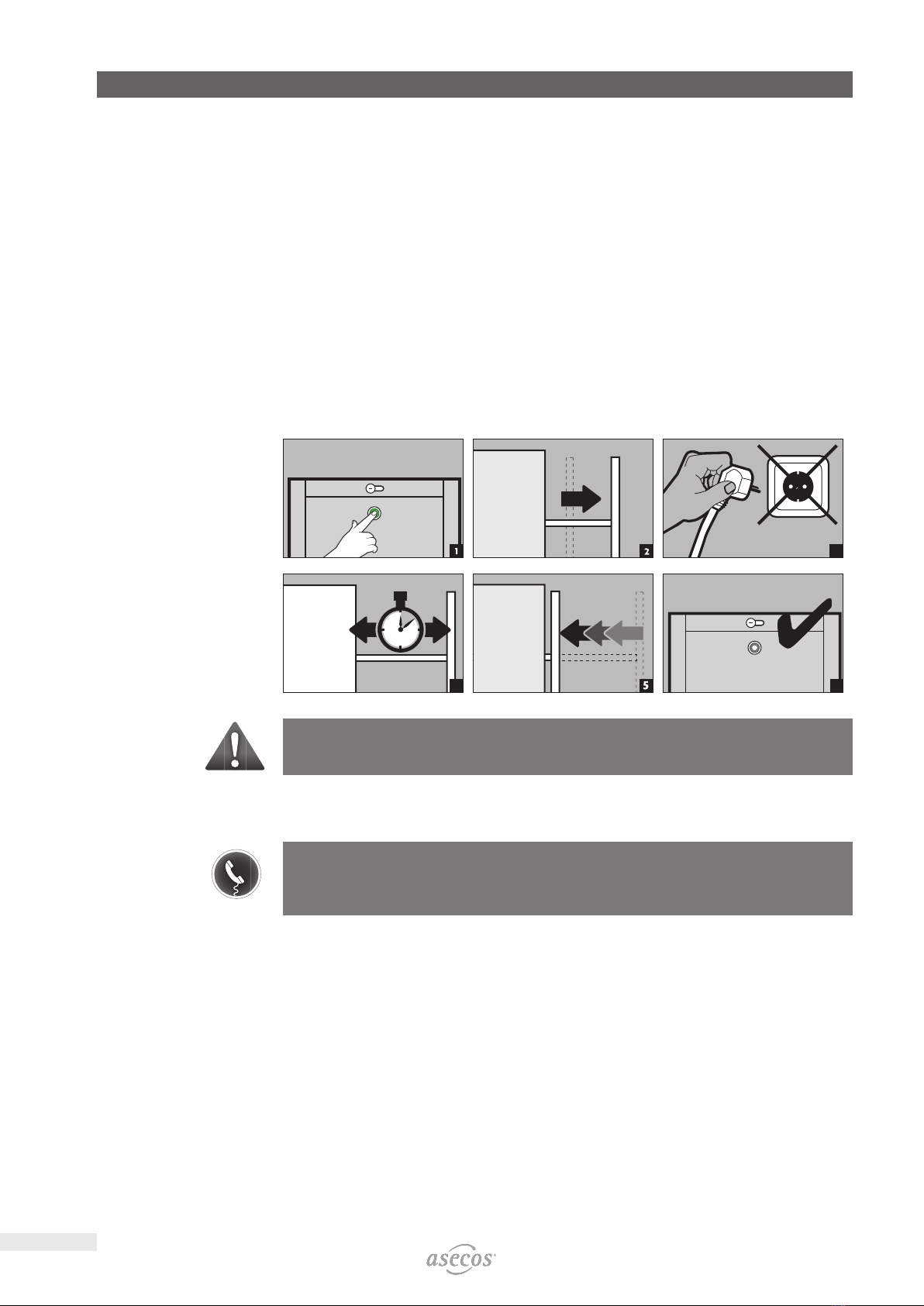

4.1. CLOSING THE DRAWER DURING BLACKOUT
CAUTION:
During a blackout the opened drawer will close automatically using an integrated battery. Please note, it only
has power for one closing routine.
15 sec
4
5
4.2. AUTOMATIC CLOSING IN THE EVENT OF FIRE
47 °C

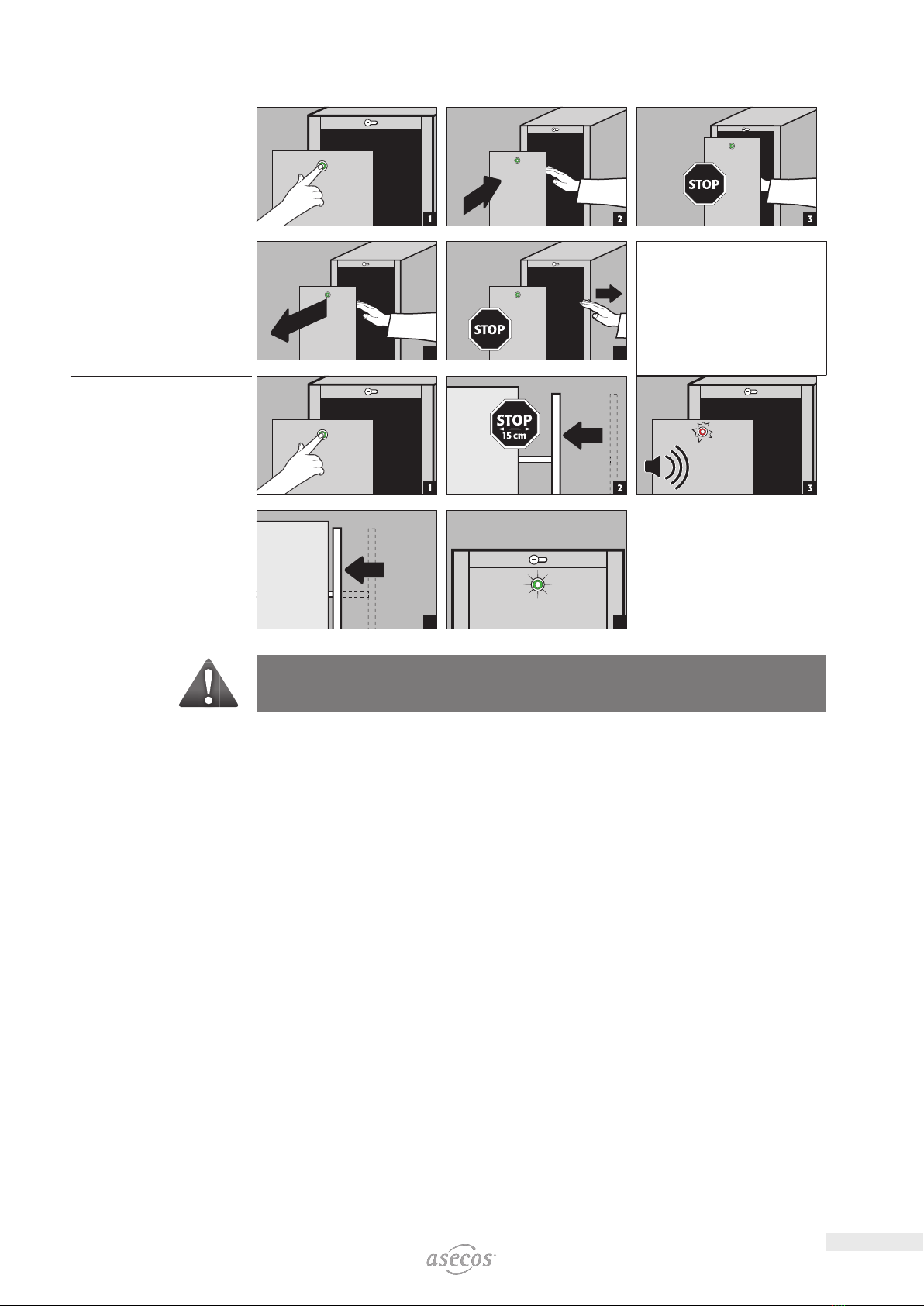

4.3. BLOCKING THE DRAWER WHILE OPENING
!
Release blockage
CAUTION
If no direct user intervention occurs after the blockage, the cabinet will give an acoustic and visual alarm
after 20 seconds. In that case, please remove the blockade and follow the previous steps!

11
4.4. BLOCKING THE DRAWER WHILE COSING
!
10 cm
4
5
Release blockage
4
5
CAUTION
If no direct user intervention occurs after the blockage, the cabinet will give an acoustic and visual alarm
after 20 seconds. In that case, please remove the blockade and follow the previous steps!

12
5. SURCHARGE TOPMOUNTED CABINET
The V-LINE safety storage cabinets can be loaded if the cabinet
was ordered with article HF.L.32864 (order no. 38275). These
cabinets are then structurally adjusted at the factory and
additionally marked on the outside as load-bearing.
A
A
C C
C
C
D
B
B
D D
head section rear
head section front
magnetic tape
fixation points for screw M6
CAUTION:
Only the fixation points [D] shown in the drawing
must be used!
Other fixation points or fixation types (e.g.
silicone) are not permitted!
• The magnetic tape mounted on the headboard serves as a support surface for the top cabinet and can be cut
to size if required.
CAUTION:
The magnetic tape may only be attached to the rear head section!
5.1. ASSEMBLY OF THE ATTACHED CABINET
340 mm
65 mm
1a
710 mm
65 mm
1b
b
a
b= 340 / 710 mm
a= Ø 7 mm
c= 65 mm
c
2
3
= M6
4
5

13
6. INTERIOR FITTINGS
6.1. BOTTOM COLLECTING SUMP
1
2
According to EN 14470-1: A spill containment sump must be
installed below the lowest storage level. The spill containment sump
must be able to hold a minimum volume of 10 % of all the containers
stored in the cabinet [1] or at least 110 % of the volume of the largest
single container [2] , whichever of these volumes is larger.
Use as a storage surface in case of cabinets with several storage levels:
8
4
CAUTION:
Use as a storage surface is possible only in conjunction with a perfo-
rated metal plate insert.
Leaks:
• Liquid in the sump is to be collected using suitable means.
123
6.2. SHELVES HEIGHTADJUSTABLE
6.3. SHELF GUARD RAIL SYSTEM
1
3
>3 sec
2
3
A
2×
4
4
B
2×
4
5
A2
B1
B2
A1
6
B1
7
≈8 cm
A1 8

14
910 11
A2
B2
12
To install the second safe guard rail
system on the opposite side, follow
the steps from point 6 again. Pay
attention to the correct use of the
required brackets.
7. STORAGE
• Vessels containing aggressive chemicals (acids and alkalis) are to be kept in special cabinets for acids and al-
kalis or on shelves for acids and alkalis as well as in safety storage cabinets with metal-free interior equipment.
• The storage of corrosive liquids can aect the function of the shut-o equipment for the air supply and
exhaust.
• Each container placed inside reduces the minimum containment volume in relation to the total stored quan-
tity.
Applicable for all models: Depending on the type class of the cabinet, observe therespective valid national
regulations!
8. EARTHING
• An earth connection may be necessary, depending on the customer-specific use of the safety storage cabinet.
The decision regarding this is taken on the basis of a risk analysis by the customer.
Earthing when decanting:
Connection to a potential equalisation system is compulsory in this case. Cabinets in which decanting can
be performed should additionally be equipped with an earth terminal in the interior (at a surcharge on
enquiry) which must be connected to the decanting containers. This is standard with cabinets from the
UB-LINE with drawers.
The spare parts required for the connection are not part of the scope of supply.

15
9. VENTILATION
CAUTION
The fire protection valves near the supply and extraction air connections are safety and
maintenance-relevant components.
In order to check the correct operation or to replace a defective element, please ensure that flexible
connecting hoses or sliding pieces are used to connect to an extraction system in order to ensure simple
dismounting and re-mounting of the extraction air connection.
• All models can be connected to a technical exhaust system via the exhaust connector. Please see the respec-
tively applicable national regulations for the specified air recirculation rate, maximum pressure losses and
exhaust air ducts.
• If installed on an exhaust system, a check must be carried out to ensure proper connection to the system (e.g.
using a smoke tube)
Ventilation wheel for technical ventilation
• The ventilation wheel serves as an indicator for correct ventilation.
If the wheel turns, the necessary 10-fold air recirculation rate is exceeded.
CAUTION:
In general these models can be operated without technical ventilation. The direct environment of
the cabinet can be an explosive zone in this case. If the cabinet is to be operated without an exhaust
connection, the user must attach a marking to it.
10. FIRE • DISPOSAL
10.1. OPENING THE CABINET AFTER THE FIRE
CAUTION:
Depending upon the duration of the fire an ignitable vapour/air mixture may have formed; therefore remove
all sources of ignition within a 10 metre radius of the cabinet before opening it.
- use only spark-free tools
- open the cabinets with extreme caution
10.2. DISPOSAL
The models can be disposed of once they have been dismantled and the materials sorted.
The models can be disposed of once they have been dismantled and the materials sorted.

16
11. SAFETY CHECKS
11.1. IN GENERAL
As safety equipment the cabinets have to be checked for safety at least once per year. The next checking date
can be taken from the check sticker on the outside of the door. This annual check can be carried out with the
necessary care, and for securing your warranty claims in the case of fire, only by an authorised asecos employ-
ee (refer also to our service brochure regarding this).
In addition, we recommend that you carry out a daily and monthly functional check:
Daily functional check
• applies to the spill containment sumps (collect and remove any leakages)
Monthly functional check
• perfect function of the drawers
• correct seating and condition of the fire protection seals
11.2. BATTERY CHECK
• Every six months after the maintenance check the battery should be checked by the user of the cabinet.
3
15 sec
4
6
ATTENTION
The rechargeable battery is considered a wearing part which has to be replaced every 3 years. If this is not
done in the course of an asecos service measure, this must be done by the customer.
In case of damage please contact your dealer in order to have the cabinet repaired using original spare parts.
The cabinets can be cleaned with a mild household cleaner and a soft cloth.
CONTACT:
In the case of defects or complaints about our products (within and also after the warranty period), and for
requesting safety checks or taking out a service contract, please contact our service hotline on: Tel: +44
1785 22 70-90 [e-mail]

17

18
1. TECHNICAL DATA
In general V90.196.045.VDAC V90.196.081.VDAC
Type 90 90
External dimensions W x D x H mm 449 x 860 x 1966 819 x 860 x 1966
Internal dimensions W x D x H mm 331 x 775 x 1750 701 x 775 x 1750
Weight without interior equip. kg 344 500
Distributed load kg/m² 580.00 512.00
Extraction air DN 75 75
Air change 10 times m³/h 5 9
Di. pressure (air change 10 times)Pa 5 5
Di. pressure (air change 10 times EK5/AK4)Pa 5 5
Power consump. in operation W 50 50
Power consump. in standby mode W 0,5 0,5
Max. current consumption A 0.5 0.5
Nominal voltage V 85-265 85-265
Frequency Hz 50/60 50/60
Characteristics of each vertical drawer
Maximum load vertical drawer kg 140 140
Max. shelf load (evenly distributed) kg 50.00 50.00
Capacity bottom collecting sump litres 12.50 12.50
Volume massimo del contenitore litres 11.36 11.36
Max. storage capacity litres 125.00 125.00
1.1. V90.196.045.VDAC:0012 / V90.196.045.VDAC:0013
1966
449 1448
Front view Side view Selectional view
Shelf guard rail system
Shelf
Bottom collecting sump
Perforated insert
Sump inliner (PP)
Anti-slip rubber mat
399,88
224,88
860
187,5
Exhaust air DN 75
Earthing link
Top view
Fresh air

19
1.2. V90.196.081.VDAC:0012 / V90.196.081.VDAC:0013
1966
819 1448
Front view Side view Selectional view
Shelf guard rail system
Sump inliner (PP)
Bottom collecting sump
Perforated insert
Shelf
Anti-slip rubber mat
399,88
230
860
(294,88)
Fresh air
Exhaust air DN 75
Earthing link
Top view

asecos GmbH
Abt. Kundendienst
Weiherfeldsiedlung 16-18
D-63584 Gründau
Fax: +49 60 51 – 92 20-10
www.asecos.com
Ihr Fachhändler:
Your partner:
Uw partner:
Votre partenaire :
Su distribuidor:
su richiesta:
