SICK WebChecker MLG-2 User manual

TECHNICAL INFORMATION
The MLG-2 as a replacement product for the
MLG-1 and XLG
Quick finder guide for new light grids

Described product
MLG-2
Manufacturer
SICK AG
Erwin-Sick-Str. 1
79183 Waldkirch
Germany
Legal information
This work is protected by copyright. Any rights derived from the copyright shall be
reserved for SICK AG. Reproduction of this document or parts of this document is only
permissible within the limits of the legal determination of Copyright Law. Any modifica‐
tion, abridgment or translation of this document is prohibited without the express writ‐
ten permission of SICK AG.
The trademarks stated in this document are the property of their respective owner.
© SICK AG. All rights reserved.
Original document
This document is an original document of SICK AG.
2T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 8020351.ZLW3/2017-05-03 | SICK
Subject to change without notice

Contents
1 How to find a new MLG-2 light grid as a replacement for your
MLG-1 or XLG..................................................................................... 4
1.1 Finding the right MLG-2 via the type code.............................................. 4
1.2 Finding a replacement for your XLG........................................................ 6
1.3 Type code and ordering information........................................................ 7
2 Advantages of the MLG-2 compared to the MLG-1...................... 8
3 Response times................................................................................. 9
4 Minimum detectable object (MDO) – Cross-beam function....... 10
5 Mounting............................................................................................. 11
5.1 Distance between lower edge of housing and first beam...................... 11
5.1.1 Application 1............................................................................ 12
5.1.2 Application 2............................................................................ 13
5.1.3 Application 3 (PROFIBUS or CANopen)................................... 14
5.1.4 Distance between lower edge of housing and first beam
for all applications................................................................... 15
5.2 Overview of brackets................................................................................ 15
5.2.1 Mounting the MLG-2 with the BEF-1SHABP004 mounting
kit.............................................................................................. 17
6 Electrical connection......................................................................... 19
6.1 Overview of accessories required............................................................ 19
6.2 Adapter cables.......................................................................................... 20
6.3 Connecting the “AFB” terminal box......................................................... 20
6.4 Connecting the M12 female connector.................................................. 22
7 Configuration..................................................................................... 24
7.1 Transferring the parameter settings from the MLG-1 to the MLG-2...... 24
7.2 Saving the MLG-1 parameter settings..................................................... 24
7.3 Setting the parameters for the MLG-2 in SOPAS ET............................... 24
7.3.1 MLGsetup and SOPAS ET user interfaces.............................. 26
7.3.2 “Installation” section............................................................... 26
7.3.3 “Configuration – Outputs” section.......................................... 27
7.3.4 “Configuration – Light beams” section.................................. 32
7.3.5 “Configuration – Inputs” section............................................ 33
7.3.6 “Configuration – Data interface” section............................... 35
8 IPG protective pipes.......................................................................... 36
9 List of tables....................................................................................... 38
CONTENTS
8020351.ZLW3/2017-05-03 | SICK T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 3
Subject to change without notice

1 How to find a new MLG-2 light grid as a replacement for your MLG-1 or
XLG
1.1 Finding the right MLG-2 via the type code
1 ▾ – 0140 ▾ F8 ▾ 1 ▾ 2 ▾
Beam separation
Detection height
Interface, Connection type
Working range
Configuration mode
MLG-2:
Beam separation
Version: Prime, Pro, ProNet
Detection height
Data interface
Options (always 1)
Working range
Software Default
MLG-1:
10 ▾ A ▾ – 0140 ▾ R ▾ 1 ▾ 05 ▾ 01 ▾
Figure 1: Comparison of the MLG-1 and MLG-2 type codes
Beam separation
Table 1: Beam separation
MLG-1 MLG-2
Beam separation
Example: MLG1-xxxxxxxx
Beam separation
Example: MLG10x-xxxxxxxxxx
1: 10 mm 10: 10 mm
2: 20 mm 20: 20 mm
3: 30 mm 30: 30 mm
4: 40 mm 40: 40 mm
5: 50 mm 50: 50 mm
7: 25 mm 25: 25 mm
Detection height
Table 2: Detection height
MLG-1 MLG-2
Detection height
Example: MLGx-0100xxxx
Detection height
Example: MLGxxx0100xxxxxx
0100: 100 mm
to
3140: 3,140 mm
0100: 100 mm
to
3140: 3,140 mm
1 HOW TO FIND A NEW MLG-2 LIGHT GRID AS A REPLACEMENT FOR YOUR MLG-1 OR XLG
4T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 8020351.ZLW3/2017-05-03 | SICK
Subject to change without notice

Interface, connection type → version and data interface
If the interface and connection type of your MLG-1 are not listed in the table below,
please contact your SICK AG sales office.
NOTICE
Additional accessories may be required if you want to use your existing connecting
cables with the MLG-2 (see "Overview of accessories required", page 19).
Table 3: Interface and connection type
MLG-1 MLG-2
Interface and connection
type
Description Data interface Result
Type code
MLGx-xxxxA8xx 2 x AO, 1 x PNP-Out,
1 x PNP-In
M12, 8-pin
B: 2 x analog + 2 x I/O MLGxxA-xxxxBxxxxx
MLGx-xxxxC8xx CANopen
M12, 8-pin
C: CANopen MLGxxN-xxxxCxxxxx
MLGx-xxxxE2xx 6 x NPN-Out, 2 x NPN-In
Terminal compartment
U: Prepared for terminal box 1) MLGxxN-xxxxUxxxxx 1)
MLGx-xxxxE5xx 1 x NPN-Out
M12, 5-pin
R: 2 x Q + 2 x I/O MLGxxA-xxxxRxxxxx
MLGx-xxxxE8xx 3 x NPN-Out, 1 x NPN-In
M12, 8-pin
R: 2 x Q + 2 x I/O MLGxxA-xxxxRxxxxx
MLGx-xxxxF2xx 6 x PNP-Out, 2 x PNP-In
Terminal compartment
U: Prepared for terminal box 1) MLGxxN-xxxxUxxxxx 1)
MLGx-xxxxF5xx 1 x PNP-Out
M12, 5-pin
R: 2 x Q + 2 x I/O MLGxxA-xxxxRxxxxx
MLGx-xxxxF8xx 3 x PNP-Out, 1 x PNP-In
M12, 8-pin
R: 2 x Q + 2 x I/O MLGxxA-xxxxRxxxxx
MLGx-xxxxI2xx 1 x RS-485, 4 x PNP-Out,
2 x PNP-In
Terminal compartment
U: Prepared for terminal box
1)
MLGxxN-xxxxUxxxxx 1)
MLGx-xxxxI8xx 1 x RS-485, 1 x PNP-Out,
1 x PNP-In
M12, 8-pin
I: RS-485 + 2 x I/O MLGxxA-xxxxIxxxxx
MLGx-xxxxN8xx 2 x AO, 1 x NPN-Out,
1 x NPN-In
M12, 8-pin
B: 2 x analog + 2 x I/O MLGxxA-xxxxBxxxxx
MLGx-xxxxP8xx PROFIBUS
M12, 8-pin
P: Prepared for PROFIBUS
replacement module 2)
MLGxxN-xxxxPxxx02
MLGx-xxxxT2xx 1 x RS-485, 4 x NPN-Out,
2 x NPN-In
Terminal compartment
U: Prepared for terminal box
1)
MLGxxN-xxxxUxxxxx 1)
MLGx-xxxxT8xx 1 x RS-485, 1 x NPN-Out,
1 x NPN-In
M12, 8-pin
I: RS-485 + 2 x I/O MLGxxA-xxxxIxxxxx
1) If you want to replace an MLG-1 that has a terminal compartment, you must order an additional item: the DOS-1205-G M12 female con‐
nector for the sender (part number: 6009719).
HOW TO FIND A NEW MLG-2 LIGHT GRID AS A REPLACEMENT FOR YOUR MLG-1 OR XLG 1
8020351.ZLW3/2017-05-03 | SICK T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 5
Subject to change without notice

Table 4: Operating range
MLG-1 MLG-2
Operating range
Example: MLGx-xxxxxx1x
Operating range
Example: MLGxxx-xxxxxx05xx
1: 5 m, ± 3.6° 05: 5 m, ± 3.6°
2: 8.5 m, ± 3.6° 08: 8.5 m, ± 3.6°
4: 5 m, ± 5° 05: 5 m, ± 3.6°
5: 8.5 m, ± 5° 08: 8.5 m, ± 3.6°
Configuration mode → “Software Default”
The choice of variant for “Software Default” depends on the following:
■MLG-1 configuration mode
■The version required, which is determined by the interface and connection type of
the MLG1 (siehe Tabelle 3, Seite 5)
Table 5: Configuration mode – “Software Default”
MLG-1 MLG-2
Configuration mode
Example: MLGx-
xxxxxxxx1
Connection type
Example: MLGx-
xxxxxx5xx
Version
Example: MLGxxA-
xxxxxxxxx
Software Default
Example: MLGxxx-
xxxxxxxx01
1: Standard 5: M12, 5-pin A: Pro 97
5: M12, 5-pin N: ProNet 01
8: M12, 5-pin A: Pro 99
2: Configuration inter‐
face
8: M12, 5-pin A: Pro 99
3: Triple cross beam 5: M12, 5-pin A: Pro 96
8: M12, 5-pin A: Pro 98
L: Triple cross beam,
output Q inverted
5: M12, 8-pin A: Pro 95
Special devices, customer-specific settings or no results at all
In the following cases, please contact your SICK AG sales office:
■Your MLG-1 is a special device: MLGx-xxxxxxxxSxx (example:
MLGx2-1180F822S01)
■Your MLG-1 has customer-specific settings: MLGx-xxxxxxxxKxx (example:
MLGx2-0580F812K01)
■Despite following the procedure described in this chapter, you are unable to find
an appropriate MLG-2 variant to replace your MLG-1 variant.
1.2 Finding a replacement for your XLG
Table 6: Replacement for XLG-1
XLG-1 MLG-2
Type Part number Description Result
Type code
XLG1-0590I812 1065368 Beam separation: 10 mm,
sensing range: 5 m, ± 1.8°
1 x RS-485, 1 x PNP-Out,
1 x PNP-In,
M12, 8-pin, configuration inter‐
face
MLG10A-0590I10801
1 HOW TO FIND A NEW MLG-2 LIGHT GRID AS A REPLACEMENT FOR YOUR MLG-1 OR XLG
6T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 8020351.ZLW3/2017-05-03 | SICK
Subject to change without notice

XLG-1 MLG-2
Type Part number Description Result
Type code
XLG2-1180I212 1048203 Beam separation 20 mm,
sensing range: 5 m, ± 1.8°
1 x RS-485, 4 x PNP-Out,
2 x PNP-In,
with terminal compartment, con‐
figuration interface
MLG20N-1180U10801
XLG3-1020F812 1046353 Beam separation: 30 mm,
sensing range: 5 m, ± 1.8°
3 x PNP-Out, 1 x PNP-In,
M12, 8-pin, configuration inter‐
face
MLG30A-1020R10801
XLG3-1470F812 1047926 Beam separation: 30 mm,
sensing range: 5 m, ± 1.8°
3 x PNP-Out, 1 x PNP-In,
M12, 8-pin, configuration inter‐
face
MLG30A-1470R10801
XLG5-1150T81 1064836 Beam separation: 50 mm,
sensing range: 5 m, ± 1.8°
1 x RS-485, 1 x PNP-Out,
1 x PNP-In,
M12, 8-pin, configuration inter‐
face
MLG50A-1150I10801
XLG5-1900I212 1048351 Beam separation: 50 mm,
sensing range: 5 m, , ± 1.8°
1 x RS-485, 4 x PNP-Out,
2 x PNP-In,
with terminal compartment, con‐
figuration interface
MLG50N-1900U10801
Special devices, customer-specific settings or no results at all
In the following cases, please contact your SICK AG sales office:
■Your XLG-1 is a special device: XLGx-xxxxxxxxSxx (example: XLG2-1020F412S04)
■Your XLG-1 has customer-specific settings: XLGx-xxxxxxxxKxxx (example:
XLG5-1900I212K001)
■Despite following the procedure described in this chapter, you are unable to find
an appropriate MLG-2 variant to replace your XLG variant.
1.3 Type code and ordering information
For a detailed illustration of the type code and for further ordering information, please
refer to the relevant product information.
■MLG-1 and XLG product information: 8014655
■MLG-2 product information: 8017053
HOW TO FIND A NEW MLG-2 LIGHT GRID AS A REPLACEMENT FOR YOUR MLG-1 OR XLG 1
8020351.ZLW3/2017-05-03 | SICK T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 7
Subject to change without notice

2 Advantages of the MLG-2 compared to the MLG-1
The MLG-2 offers the following advantages over the MLG-1:
■Able to detect smaller objects (high-resolution mode)
■Improved detection of transparent objects thanks to “Transparent mode”
■Improved ambient light immunity due to the smaller aperture angle
■Better able to adapt to the environment and the application thanks to a variety of
operating modes
■Shorter response times and minimum presence time
■Smaller minimum distances when mounting multiple light grids
■Flexible mounting of removable fieldbus module (no blind zone)
■Removable fieldbus modules that can be ordered separately
■Control panel for easy commissioning without a PC
■IO-Link interface V.1.1
■Easy configuration with the SOPAS configuration software via an Ethernet interface
■Configuration options for multiple applications (measuring tasks)
For additional information, see the relevant operating instructions.
2 ADVANTAGES OF THE MLG-2 COMPARED TO THE MLG-1
8T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 8020351.ZLW3/2017-05-03 | SICK
Subject to change without notice

3 Response times
As the MLG-2 offers shorter response times, you may have to adjust the PLC configura‐
tion. Alternatively, you can also set a digital output delay for the MLG-2. See the relevant
MLG-2 operating instructions.
0
5
10
15
20
25
30
35
40
6 50 100 150 200 250 300 350 400 450 500
Response time in ms
Number of beams
MLG-1 / XLG
MLG-2
Figure 2: Comparison of response times for MLG-1 / XLG and MLG-2 with parallel-beam function,
MLG-2 without high-speed scan
The response time depends on the beam function and on which basic function is
selected.
In the case of the cross-beam function, multiply the response time in the diagram by 2.
RESPONSE TIMES 3
8020351.ZLW3/2017-05-03 | SICK T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 9
Subject to change without notice

4 Minimum detectable object (MDO) – Cross-beam function
25 % 50 % 25 %
1 2 1

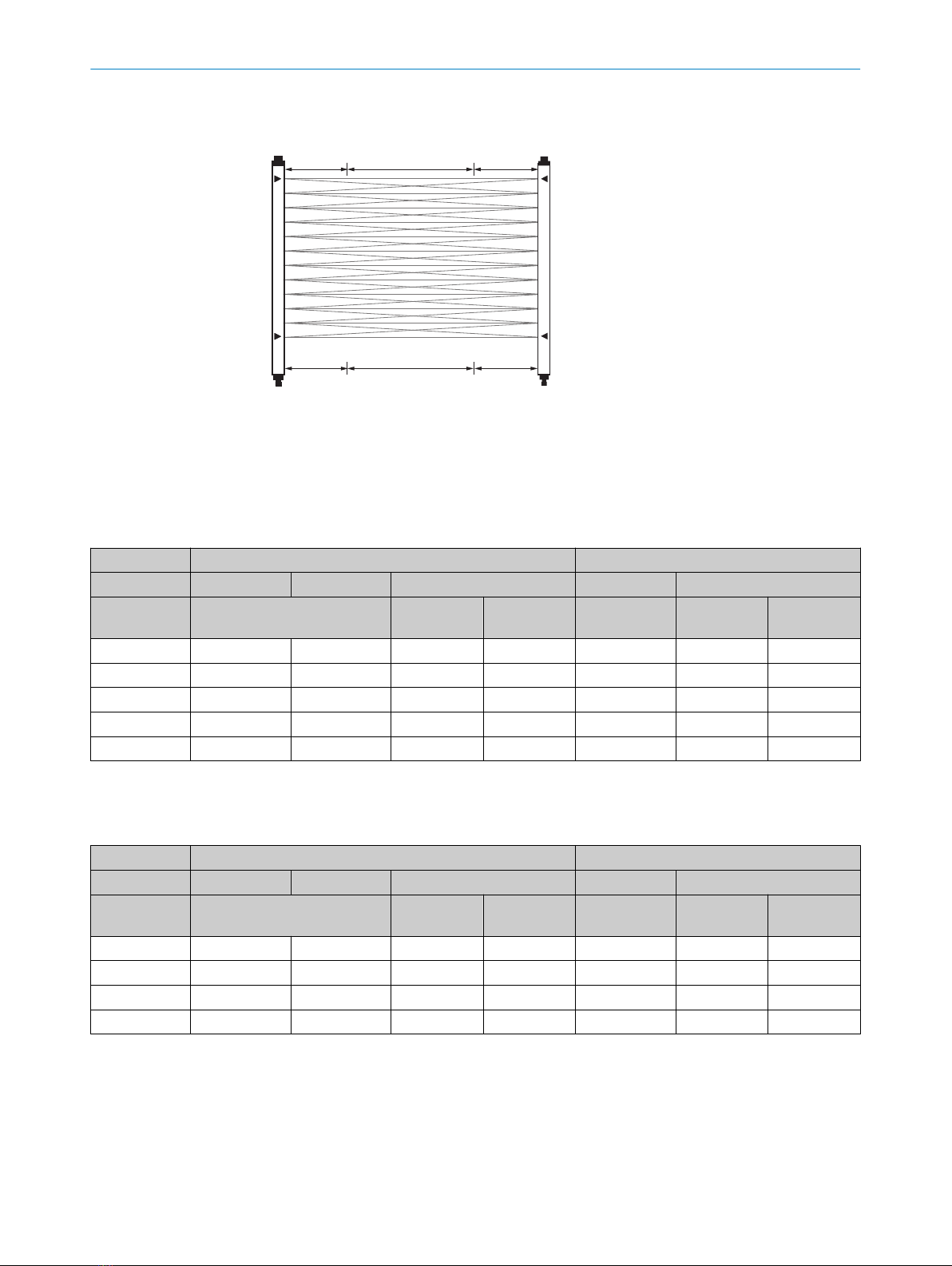

Figure 3: Cross-beam function
1Area A
2Area B
Operating range 5 m
Table 7: Cross-beam function, operating range 5 m – Minimum detectable object (stationary object) with standard measure‐
ment accuracy
MLG-1 MLG-2
± 3.6° ± 5° MDO ± 3.6° MDO
Beam separa‐
tion
Minimum distance In area A In area B Minimum dis‐
tance
In area A In area B
10 mm 350 mm 180 mm 15 mm > 10 mm 220 mm 14 mm 9 mm
20 mm 650 mm 320 mm 25 mm > 15 mm 440 mm 24 mm 14 mm
25 mm – 400 mm 30 mm > 18 mm 550 mm 29 mm 16.5 mm
30 mm 900 mm 470 mm 35 mm > 20 mm 660 mm 34 mm 19 mm
50 mm 1,500 mm 750 mm 55 mm > 30 mm 1,110 mm 54 mm 29 mm
Operating range 8.5 m
Table 8: Cross-beam function, operating range 8.5 m – Minimum detectable object (stationary object) with standard measure‐
ment accuracy
MLG-1 MLG-2
± 3.6° ± 5° MDO ± 3.6° MDO
Beam separa‐
tion
Minimum distance In area A In area B Minimum dis‐
tance
In area A In area B
10 mm 350 mm 180 mm 20 mm > 15 mm 240 mm 14 mm 9 mm
20 mm 650 mm 320 mm 30 mm > 20 mm 480 mm 24 mm 14 mm
30 mm 900 mm 470 mm 40 mm > 25 mm 720 mm 34 mm 19 mm
50 mm 1,500 mm 750 mm 60 mm > 35 mm 1,200 mm 54 mm 29 mm
4 MINIMUM DETECTABLE OBJECT (MDO) – CROSS-BEAM FUNCTION
10 T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 8020351.ZLW3/2017-05-03 | SICK
Subject to change without notice

5 Mounting
5.1 Distance between lower edge of housing and first beam
The distance between the lower edge of the housing and the first beam is not the same
on the MLG-2 as on the MLG-1.
There are three different applications, which are illustrated in chapters “Application 1”,
“Application 2”, and “Application 3”. The choice of application depends on which MLG-1
is being replaced and on the new MLG-2. The following table lists suitable MLG-2 var‐
iants as replacements for certain MLG-1 variants. For additional information, siehe
Tabelle 3, Seite 5.
bRemember to take account of the difference between the lower edge of the hous‐
ing and the first beam during planning and mounting.
■Application 1: see "Application 1", page 12
■Application 2: see "Application 2", page 13
■Application 3: see "Application 3 (PROFIBUS or CANopen)", page 14
Table 9: Applications – Replacement involving MLG-1 and MLG-2
MLG-1 MLG-2 MLG-1 and MLG-2
Type code
Interface and connection type
Type code
Version and data interface
Application – Comparison of
first beam in relation to lower
edge of housing
MLGx-xxxxA8xx MLGxxA-xxxxBxxxxx Application 1
MLGx-xxxxC8xx MLGxxN-xxxxCxxxxx Application 3
MLGx-xxxxE2xx MLGxxN-xxxxUxxxxx 1) Application 2
MLGx-xxxxE5xx MLGxxA-xxxxRxxxxx Application 1
MLGx-xxxxE8xx MLGxxA-xxxxRxxxxx Application 1
MLGx-xxxxF2xx MLGxxN-xxxxUxxxxx 1) Application 2
MLGx-xxxxF5xx MLGxxA-xxxxRxxxxx Application 1
MLGx-xxxxF8xx MLGxxA-xxxxRxxxxx Application 1
MLGx-xxxxI2xx MLGxxN-xxxxUxxxxx 1) Application 2
MLGx-xxxxI8xx MLGxxA-xxxxIxxxxx Application 3
MLGx-xxxxN8xx MLGxxA-xxxxBxxxxx Application 1
MLGx-xxxxP8xx MLGxxN-xxxxPxxx02 Application 3
MLGx-xxxxT2xx MLGxxN-xxxxUxxxxx Application 2
MLGx-xxxxT8xx MLGxxA-xxxxIxxxxx Application 1
1) Remember to order the following additional item: the DOS-1205-G M12 female connector for the sender
(part number: 6009719).
MOUNTING 5
8020351.ZLW3/2017-05-03 | SICK T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 11
Subject to change without notice

5.1.1 Application 1
MLG-1
1
A
MLG-1
2
3 4
MLG-2
1
2
M12; 5pin
M12; 4pin
M12; 8pin
A
MLG-2
3 4
273 (10.75)
34
(1.34)
16.1
(0.63)
15 (0.56)
34 (1.36)
9 (0.35)
25
(0.98)
29
(1.14)
21 (0.83)
15 (0.56)
34 (1.36)
192 (7.56)
216 (8.50)

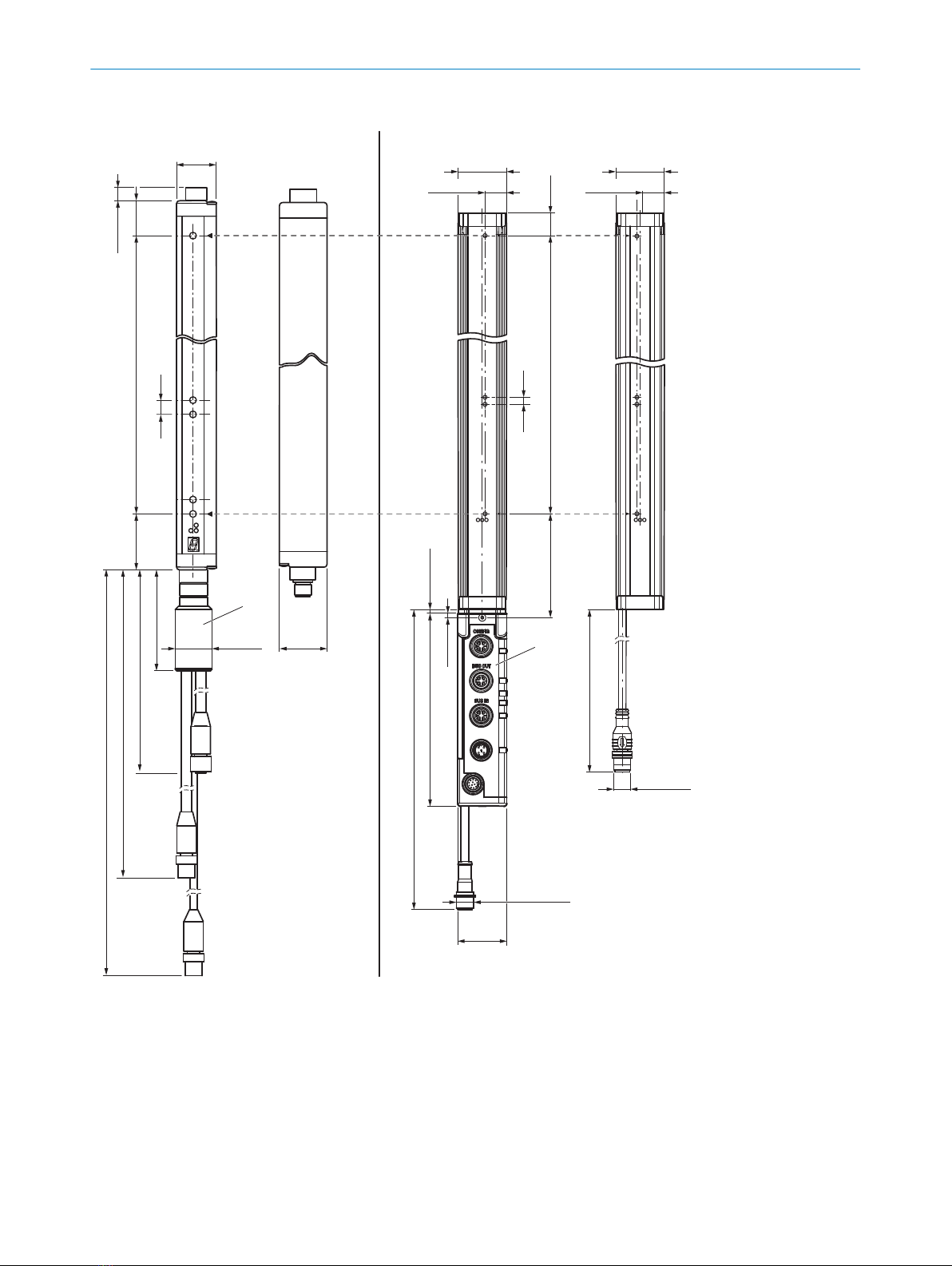

Figure 4: Application 1 – Comparison of distance between first beam and lower edge of housing on MLG-1 and MLG-2
1Detection height
2Beam separation
3Receiver
4Sender
ADistance between lower edge of housing and first beam (see table 10, page 15)
5 MOUNTING
12 T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 8020351.ZLW3/2017-05-03 | SICK
Subject to change without notice

5.1.2 Application 2
12
A
MLG-1
1
2
207 (8.15)
M12; 12pin
A
MLG-2
4 5 6
150 (5.91)
65 (2.56)
A
MLG-2
115 (4.53)
7
A
MLG-2
7
A
MLG-2
7
MLG-1 3 3 MLG-2
65 (2.56)
47 (1.85) 30
(1.18)
30
(1.18)
16.1
(0.63)
15 (0.56)
34 (1.36)
9 (0.35)
25
(0.98)
29
(1.14)
21 (0.83)

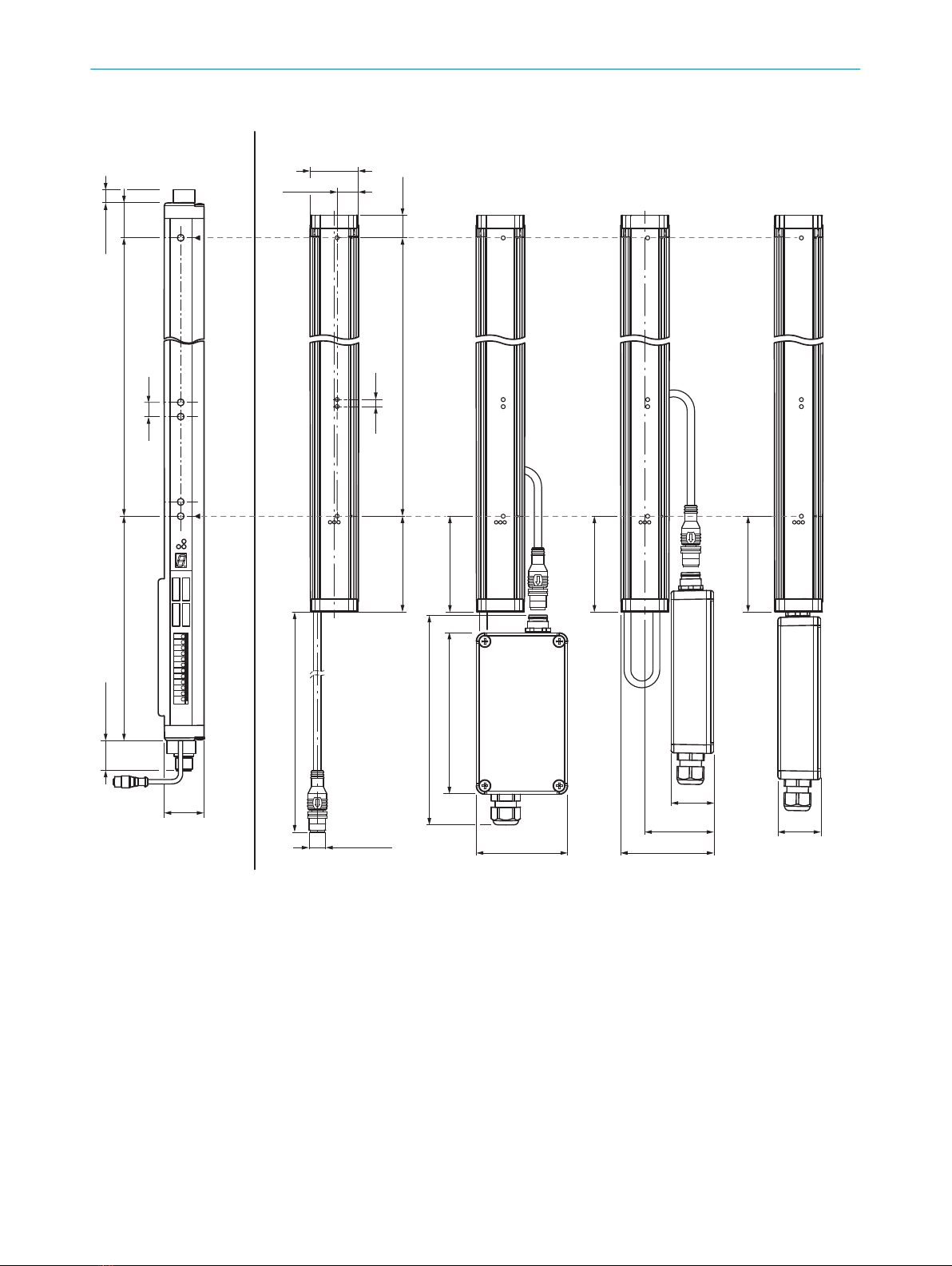

Figure 5: Application 2 – Comparison of distance between first beam and lower edge of housing on MLG-1 and MLG-2
1Detection height
2Beam separation
3Receiver
4“Flat” installation example
5“Slim” installation example
6“Compact” installation example
7“AFB” terminal box (for additional information, see "Connecting the “AFB” terminal box", page 20).
ADistance between lower edge of housing and first beam (see table 10, page 15)
MOUNTING 5
8020351.ZLW3/2017-05-03 | SICK T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 13
Subject to change without notice

5.1.3 Application 3 (PROFIBUS or CANopen)
M12; 12pin
1
A
MLG-1
2
1
2
M12; 5pin
A
MLG-2
4MLG-1
3 3 MLG-2 4
5
6
34
(1.34)
16.1
(0.63)
15 (0.56)
34 (1.36)
9 (0.35)
25
(0.98)
29
(1.14)
15 (0.56)
34 (1.36)
216 (8.50)
34
(1.34)
207 (8.15)
374 (14.72)
274 (10.79)
184 (7.24)
72 (2.83)
Ø 26.4
(Ø 1.04)
133 (5.24)
3(0.12)
2.5 (0.10)
Figure 6: Application 3 – Comparison of distance between first beam and lower edge of housing on MLG-1 and MLG-2
1Detection height
2Beam separation
3Receiver
4Sender
5Fieldbus module; the fieldbus module can be mounted separately
6CANopen adapter ADAPT-CAN-GE-MLG or PROFIBUS adapter ADAPT-PB-GE-MLG
ADistance between lower edge of housing and first beam (see table 11, page 15)
5 MOUNTING
14 T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 8020351.ZLW3/2017-05-03 | SICK
Subject to change without notice

5.1.4 Distance between lower edge of housing and first beam for all applications
Applications 1 and 3
Table 10: Applications 1 and 3 – Distance between first beam and lower edge of housing
Beam separation Dimension AMLG-1 Dimension AMLG-2
10 mm 40 mm 68.3 mm
20 mm 49 mm 1) 68.3 mm
59 mm 2) 78.3 mm
25 mm 64 mm 83.3 mm
30 mm 69 mm 88.3 mm
50 mm 89 mm 108.3 mm
1) With an even number of beams
2) With an uneven number of beams
Application 2
Table 11: Application 2 – Distance between first beam and lower edge of housing
Beam separation Dimension AMLG-1 Dimension AMLG-2
10 mm 160 mm 68.3 mm
20 mm 170 mm 1) 68.3 mm
180 mm 2) 78.3 mm
25 mm 175 mm 83.3 mm
30 mm 180 mm 88.3 mm
50 mm 200 mm 108.3 mm
1) With an even number of beams
2) With an uneven number of beams
5.2 Overview of brackets
Various brackets were available for mounting the MLG-1 light grid. In the case of the
brackets below, you can use the same mounting positions for the MLG-2 as for the
MLG-1 by relying on the BEF-1SHABP004 mounting kit.
Please note that the MLG-1 and MLG-2 differ in terms of where the first beam is
located in relation to the lower edge of the housing (see "Distance between lower edge
of housing and first beam", page 11).
MOUNTING 5
8020351.ZLW3/2017-05-03 | SICK T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 15
Subject to change without notice

Table 12: Replaceable MLG-1 and XLG-1 brackets
MLG-1 MLG-2
Designation Part number Description Designation Part number
Swivel mount
bracket
BEF-2SMKEAKU4
2019649 Mounting kit
BEF-1SHABP004
2071021
Side bracket
BEF-NUT-MLG
2023696
Alternatively, you can mount the MLG-2 using the following brackets:
■FlexFix bracket BEF-1SHABPKU4 (part number: 2066614)
■QuickFix bracket BEF-3SHABPKU2 (part number: 2066048)
In order to use this bracket, you must adapt the mounting position accordingly.
5 MOUNTING
16 T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 8020351.ZLW3/2017-05-03 | SICK
Subject to change without notice

5.2.1 Mounting the MLG-2 with the BEF-1SHABP004 mounting kit
2071021
C
A, B
1
2
5 6 7
C
A, B
A
B
3
1
2
4
103.5 (
4.07
)
7(0.28)
8
(
0.31
)
8.4 (
0.33
)
141 (
5.55
)
196 (
7.72
)
210 (
8.27
)
8.5
(
0.335
)
7(0.28)
141 (
5.55
)
30
(
1.18
)
Figure 7: Mounting kit (part number: 2071021) – Dimensions, layout, and scope of delivery
1Method C
2Method A or B
3Screw (8x)
4Washer (8x)
5FlexFix bracket (4x)
6Mounting plate (4x)
7Sliding nut (8x)
MOUNTING 5
8020351.ZLW3/2017-05-03 | SICK T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 17
Subject to change without notice

20710212019649
MLG-1 MLG-2
2019649
MLG-1
2071021
MLG-2

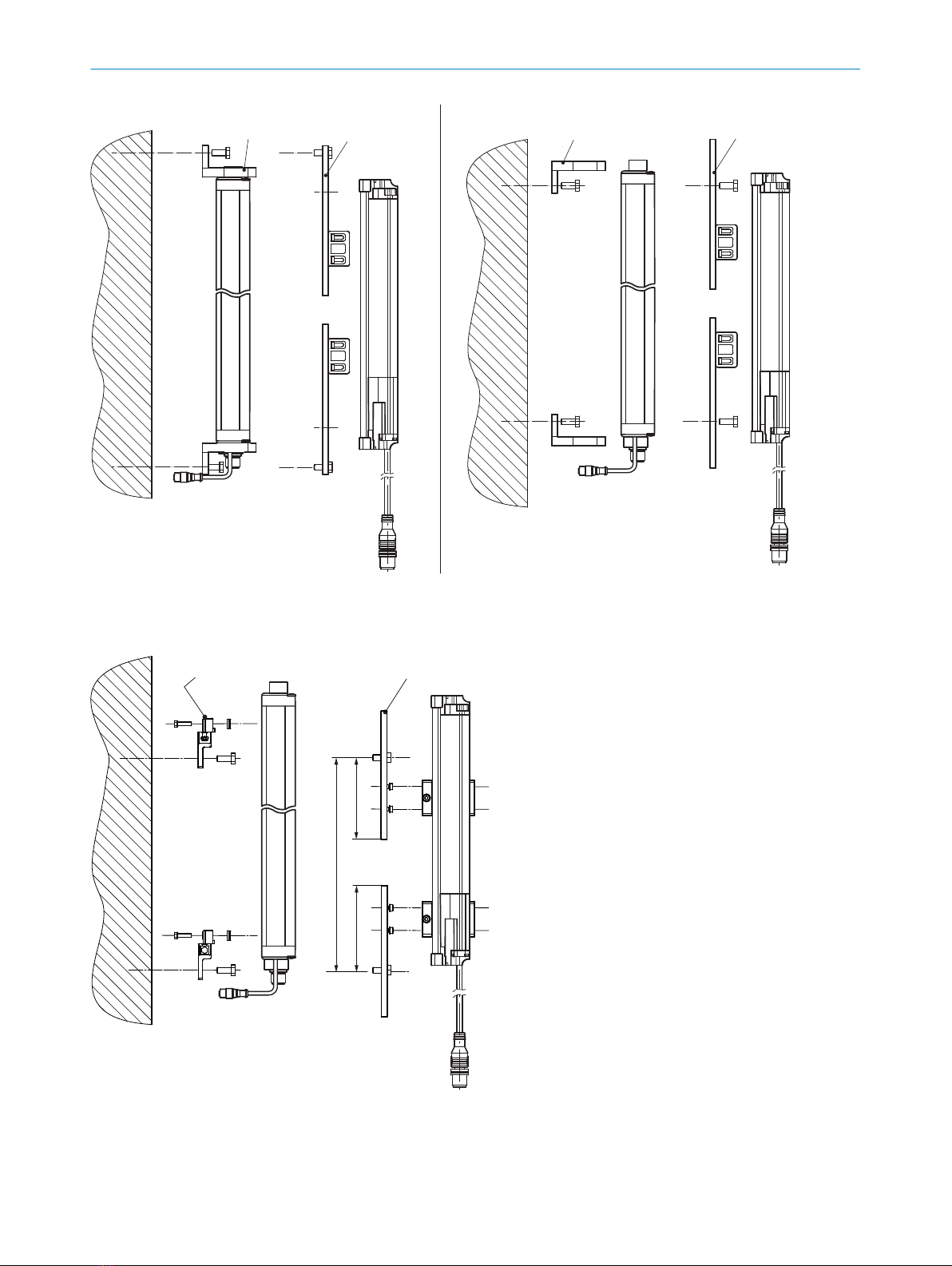

Figure 8: Mounting the MLG-2 with mounting kit BEF-1FSHABP004 – Methods A and B, replacement for side bracket
BEF-NUT-MLG
min. 282 (11.10)
(141 (5.55))
2071021
2023696
MLG-1 MLG-2
(141 (5.55))
Figure 9: Mounting the MLG-2 with mounting kit BEF-1FSHABP004 – Method C, replacement for swivel mount bracket
BEF-2SMKEAKU4
5 MOUNTING
18 T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 8020351.ZLW3/2017-05-03 | SICK
Subject to change without notice

6 Electrical connection
6.1 Overview of accessories required

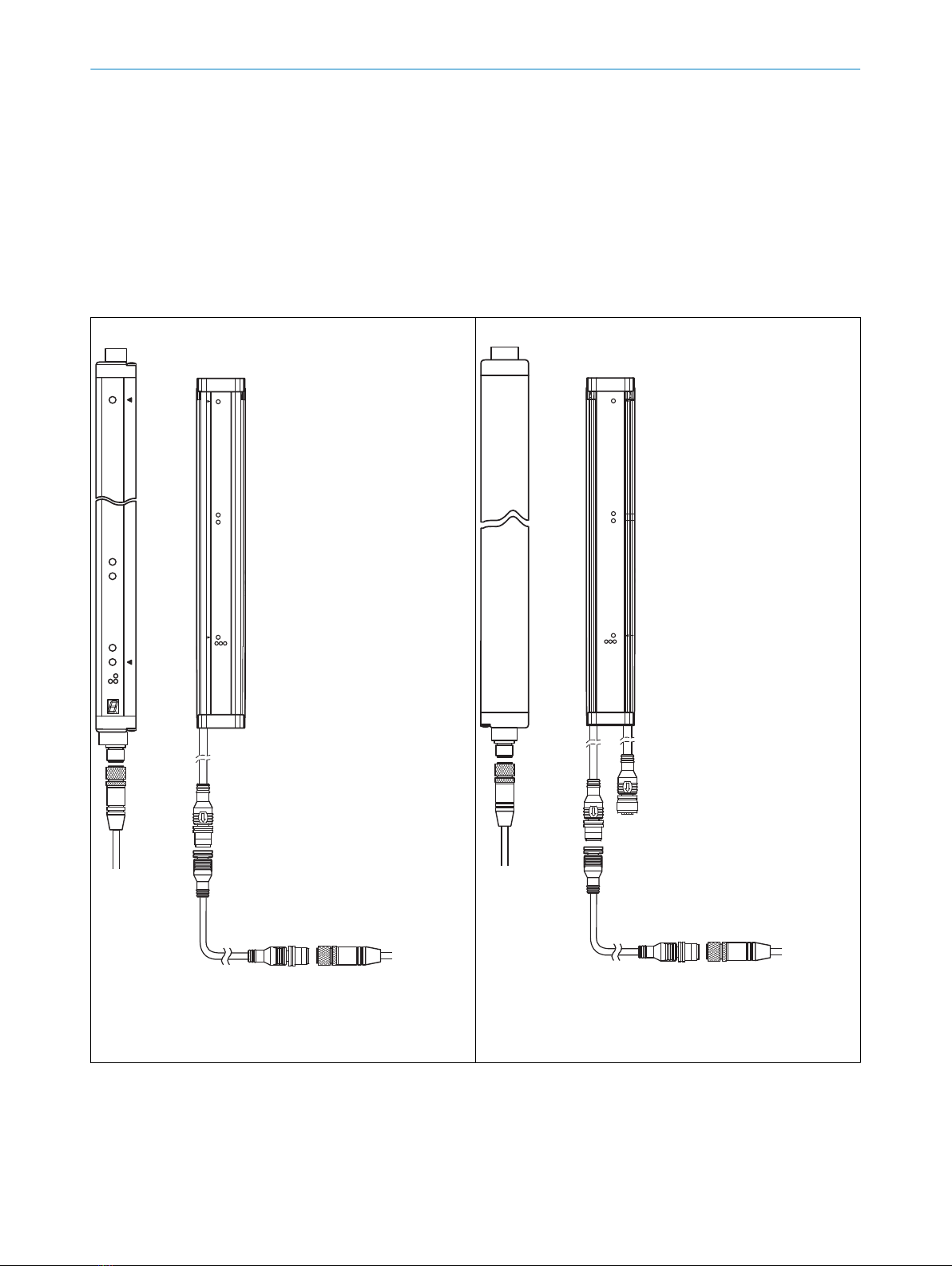

SICK offers some accessories in case you want to use your MLG-1 connecting cables
for the MLG-2.
Table 13: Accessories required
MLG-1 MLG-2 Accessories required for the MLG-2
Type code
Interface and connection
type
Type code
Version and data interface
Sender Receiver
MLGx-xxxxA8xx MLGxxA-xxxxBxxxxx Adapter cable
Part number: 6057015
Adapter cable
Part number: 6057014
MLGx-xxxxC8xx MLGxxN-xxxxCxxxxx No accessories required No accessories required
MLGx-xxxxE2xx (with terminal
compartment)
MLGxxN-xxxxUxxxxx M12 female connector, 5-pin,
A-coded DOS-1205-G
Part number: 6009719
“AFB” terminal box
Part number: 2082790
Included with delivery
MLGx-xxxxE5xx MLGxxA-xxxxRxxxxx No accessories required Adapter cable
Part number: 6057013
MLGx-xxxxE8xx MLGxxA-xxxxRxxxxx Adapter cable
Part number: 6057015
Adapter cable
Part number: 6057014
MLGx-xxxxF2xx (with terminal
compartment)
MLGxxN-xxxxUxxxxx M12 female connector, 5-pin,
A-coded DOS-1205-G
Part number: 6009719
“AFB” terminal box
Part number: 2082790
Included with delivery
MLGx-xxxxF5xx MLGxxA-xxxxRxxxxx No accessories required Adapter cable
Part number: 6057013
MLGx-xxxxF8xx MLGxxA-xxxxRxxxxx Adapter cable
Part number: 6057015
Adapter cable
Part number: 6057014
MLGx-xxxxI2xx (with terminal
compartment)
MLGxxN-xxxxUxxxxx M12 female connector, 5-pin,
A-coded DOS-1205-G
Part number: 6009719
“AFB” terminal box
Part number: 2082790
Included with delivery
MLGx-xxxxI8xx MLGxxA-xxxxIxxxxx Adapter cable
Part number: 6057015
Adapter cable
Part number: 6057014
MLGx-xxxxN8xx MLGxxA-xxxxBxxxxx Adapter cable
Part number: 6057015
Adapter cable
Part number: 6057014
MLGx-xxxxP8xx (PROFIBUS) MLGxxN-xxxxPxxx02 No accessories required PROFIBUS replacement mod‐
ule FBM-P22
Part number: 2092618
Included with delivery
MLGx-xxxxT2xx MLGxxN-xxxxUxxxxx M12 female connector, 5-pin,
A-coded DOS-1205-G
Part number: 6009719
“AFB” terminal box
Part number: 2082790
Included with delivery
MLGx-xxxxT8xx MLGxxA-xxxxIxxxxx Adapter cable
Part number: 6057015
Adapter cable
Part number: 6057014
Please note that the accessories are always required with the following variants:
■MLG-1 variants with a terminal compartment: accessory required = “AFB” terminal
box
■MLG-1 featuring PROFIBUS: accessory required = PROFIBUS replacement module
FBM-P22
ELECTRICAL CONNECTION 6
8020351.ZLW3/2017-05-03 | SICK T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 19
Subject to change without notice

6.2 Adapter cables
Various adapter cables are available to facilitate the replacement of certain MLG var‐
iants (see "Overview of accessories required", page 19).
To carry out the replacement process, proceed as follows:
1. Connect the adapter cable between the connecting cable of the MLG-1 sender
and the MLG-2 sender.
2. Connect the adapter cable between the connecting cable of the MLG-1 receiver
and the MLG-2 receiver.
1
MLG-1 MLG-2
21
Figure 10: Electrical connection with “sender” adapter cable
1Existing connecting cable for MLG-1 receiver
2Adapter cable for “MLG-1 receiver and MLG-2 receiver
connecting cable”
MLG-1 MLG-2
1
21
Figure 11: Electrical connection with “receiver” adapter cable
1Existing connecting cable for MLG-1 sender
2Adapter cable for “MLG-1 sender and MLG-2 sender
connecting cable”
6.3 Connecting the “AFB” terminal box
In order to replace the receiver for MLG variants that have a terminal compartment, you
must connect the “AFB” terminal box (part number 2082790) to the MLG-2 receiver
(see "Overview of accessories required", page 19 and see "Application 2", page 13).
6 ELECTRICAL CONNECTION
20 T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG 8020351.ZLW3/2017-05-03 | SICK
Subject to change without notice
