IMPORTANT, FAILURE TO CAREFULLY READ, UNDERSTAND AND FOLLOW EVERY PART
OF THIS DOCUMENT MAY RESULT IN PROPERTY DAMAGE, SERIOUS BODILY INJURY
OR DEATH
ASSEMBLYINSTRUCTIONS
Installer: Leave these instructionswith consumer.
Consumer: Keep these instructions for future reference.
SAFETY INFORM ATION
FOR USE WITH 20LB (9KG) PROPANE CYLINDER
WITH TYPE 1 CONNECTION OR FOR USE WITH
NATURAL GAS AFTER CONVERSION KIT IS
INSTALLED (MUST BE PROFESSIONALLY
INSTALLED) ALSO THE LP REGULATOR MUST BE
SUPPLIED BY THE MANUFACTURER.
!
DANGER
DANGER indicates an imminently hazardous situation
which. If not avoided. Will result in death or serious injury.
!DANGER
FOR YOUR SAFETY -if you smell gas;
1. Shut off gas to the
appliance.
2. Extinguish any open flame.
3. If odor continues. Keep away from the appliance
and immediately call you gas supplier or fire
department.
!WARNING
USE FACTORY APPROVED REPLACEMENT PARTS
AND ACCESSORIES ONLY. USE OF UNAPPROVED
PART OR ACCESSORIES CAN VOID THE WARRANTY
ON THIS PRODUCT AND RESULT IN AHAZARDOUS\
CONDITION. PLEASE CONTACT US FOR
INFORMATION REGARDING REPLACEMNT HOSES,
THERMOCOUPLES, ELECTRODES, IGNITION
MODULES, LAVA ROCKS, LOGS, FIRE ICE, ETC.
!
!DANGER
Failure to comply with the precautions and instructions
provided with this fire pit can result in death, serious
bodily injury and property loss or damage from
hazards of fire, explosion, burn, asphyxiation, and/or
carbon monoxide poisoning. Only persons who can
understand and follow the instructions should use or
service this fire pit.
!WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored
in the vicinity of this or any other appliance.
C S A Model P750-665

Page 3of 52
P750-665
SAFETY INFOR MATION
!WARNING
We cannot foresee every use which may be made of
our fire pit.
Check with your local fire safety authority if you have
questions about fire pit use.
Other standards govern the use of fuel gases and heat
producing products for specific uses. Your local
authorities can advise you about these.
If no local codes exist, follow National Fuel Gas Code,
ANSI Z223. 1. In Canada, installation must conform to
local codes. If no local codes exist, follow the current
National standards of CANADA CAN/CGA-B 149.2.
!DANGER
EXPLOSION-FIRE HAZARD
Keep solid combustibles, such as building materials,
paper of cardboard, a safe distance away from the
fire pit as recommended by the instructions.
Provide adequate clearances around air openings
into the combustion chamber.
Never use the fire pit in spaces which do or may
contain volatile or airborne combustibles, or products
such as gasoline, solvents, paint thinner, dust particles
or unknown chemicals.
During operation, this product can be a source of
ignition. Keep fire pit area clear and free from
combustible materials, gasoline, paint thinner, cleaning
solvents and other flammable vapors and liquids. DO
not use fire pit in areas with high dust content.
Minimum fire pit clearances from combustible
materials: two (2) feet from the sides &two (2)
feet from the rear, 6 feet from ceiling.
!
DANGER
CARBON MONOXIDE HAZARD
This fire pit is a combustion appliance. All combustion
appliances produce carbon monoxide (CO) during the
combustion process. This product is designed to produce
extremely minute, non-hazardous amounts of CO if used
and maintained in accordance with all warnings and
instructions. DO not block air flow into or out of the fire pit.
Carbon monoxide (CO) poisoning produces flu-like
symptoms, watery eyes, headaches, dizziness, fatigue
and possibly death. You can't see it and you can't
smell it. It’s an invisible killer. If these symptoms are
present during operation of this product get fresh air
immediately!
For outdoor use only.
Never use inside house, or other unventilated or
enclosed areas.
This fire pit consumes air (oxygen). Do not use in
unventilated or enclosed areas to avoid endangering
your life.
!DANGER
EXPLOSION - FIRE HAZARD
Never store propane near high heat, open flames,
pilot lights, direct sunlight, other ignition sources or
where temperatures exceed 120 degrees F (49°C).
Propane vapors are heavier than air and can
accumulate in low places. If you smell gas, leave the
area immediately.
Never install or remove propane cylinder while fire pit is
lighted, near flame, pilot lights, other ignition sources
o r while fire pit is hot to touch.
The fire pit is red hot during use and can ignite
flammables too close to the burner. Keep flammables
at least 2 feet from sides & 2 feet from rear, 6 feet
from ceiling. Keep gasoline and other flammable liquids
and vapors well away from fire pit.
Store the propane cylinder outdoors in a well- ventilated
space out of reach of children. Never store the propane
cylinder in an enclosed area (house, garage, etc.). If fire
pit is to be stored indoors, disconnect the propane
cylinder for outdoor storage and allow the fire pit to fully
cool down prior to move indoors.
!WARNING
WARNING indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
!WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
!WARNING: For Outdoor Use Only
!WARNING
Improper installation, adjustment alteration, service or
maintenance can cause property damage, injury or
death. Read the installation, operating and
maintenance instructions thoroughly before installing
or servicing this equipment.
!
!DANGER CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or home.

Page 4of 52
P750-665
TABLE OF CONTENTS
1. Important Safety Information............................................................5
2. Information about Propane ............................................................... 7
3. Specifications.........................................................................................7
4. Parts List.................................................................................................8
5. Hardware List..........................................................................................9

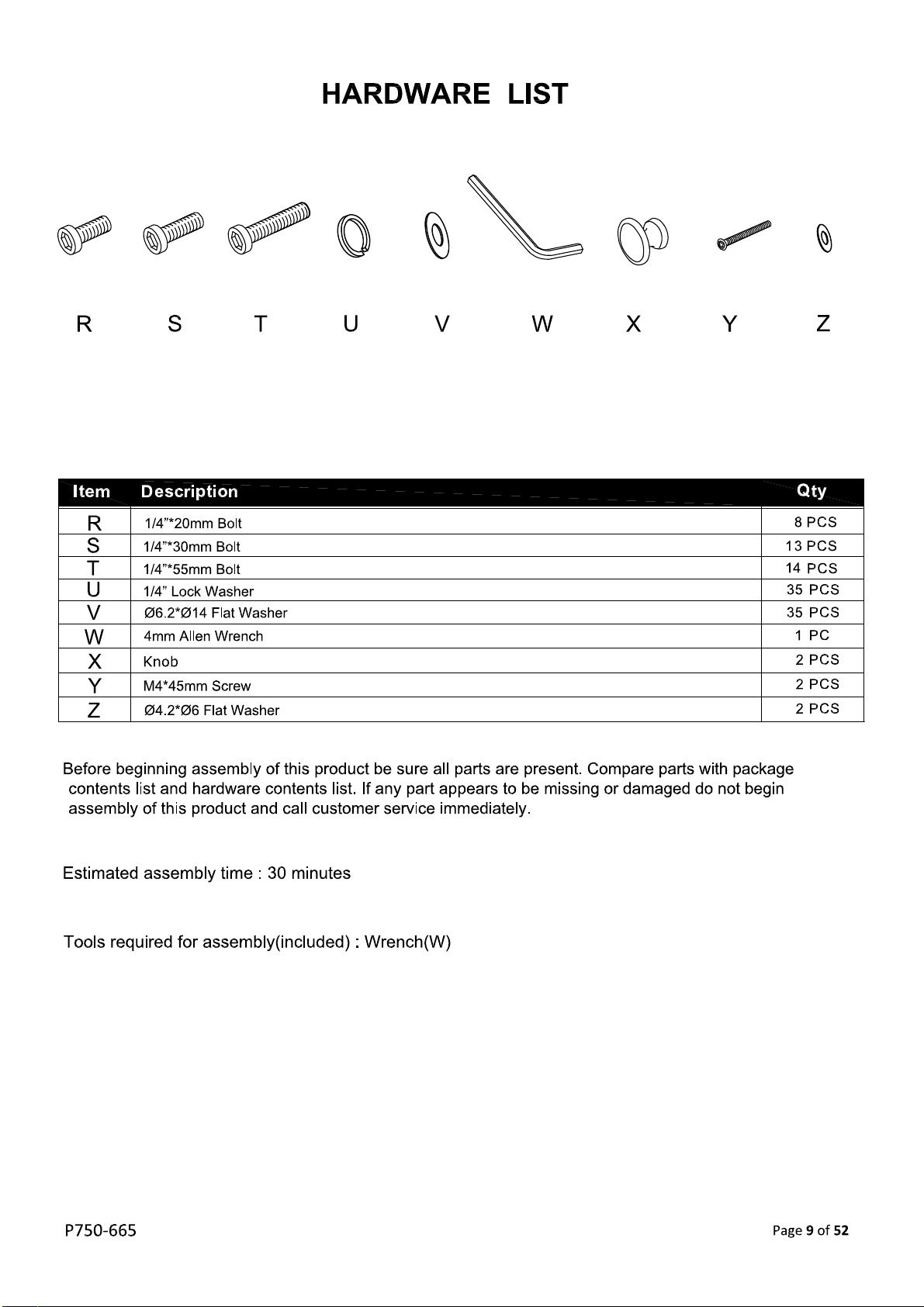

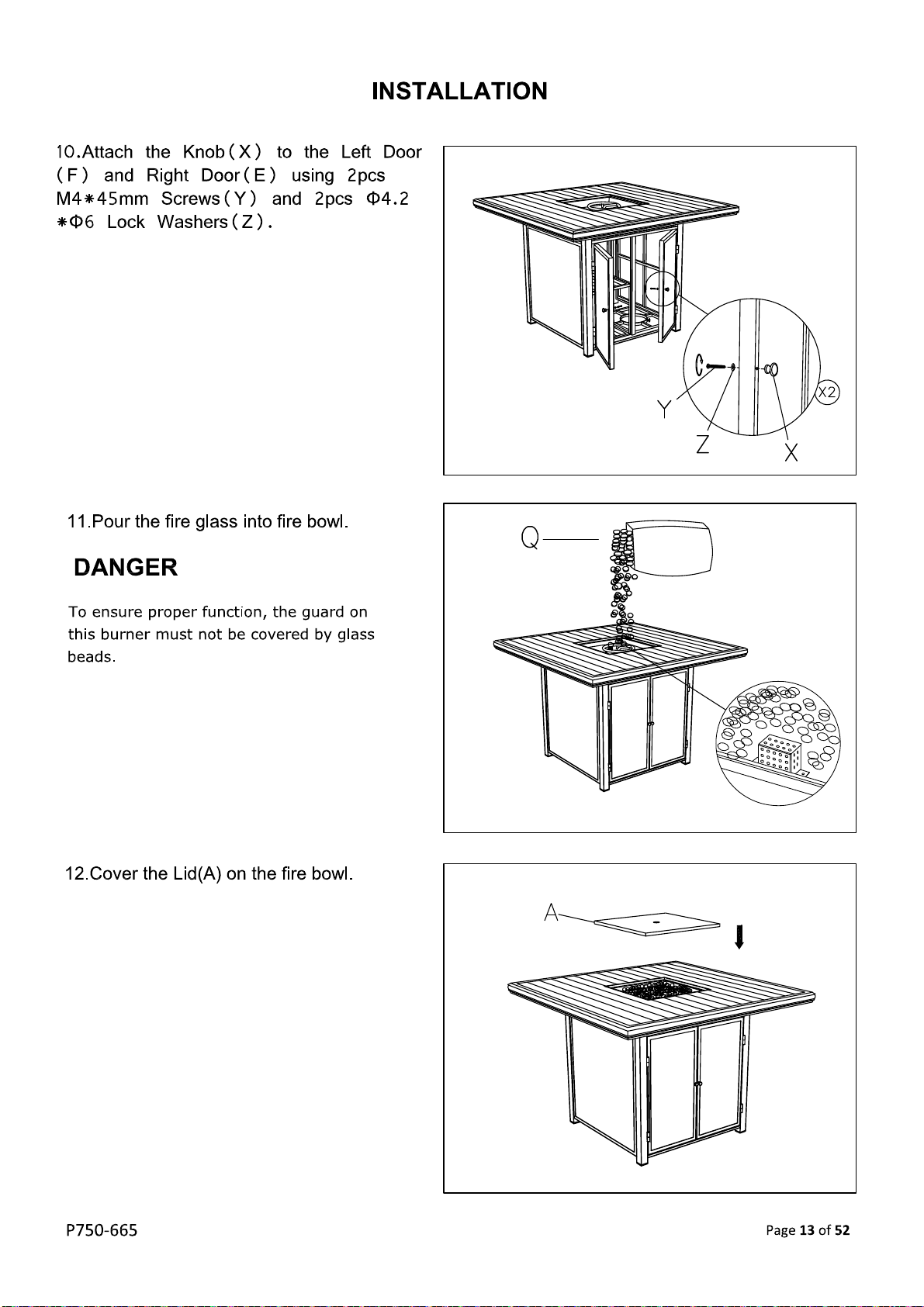

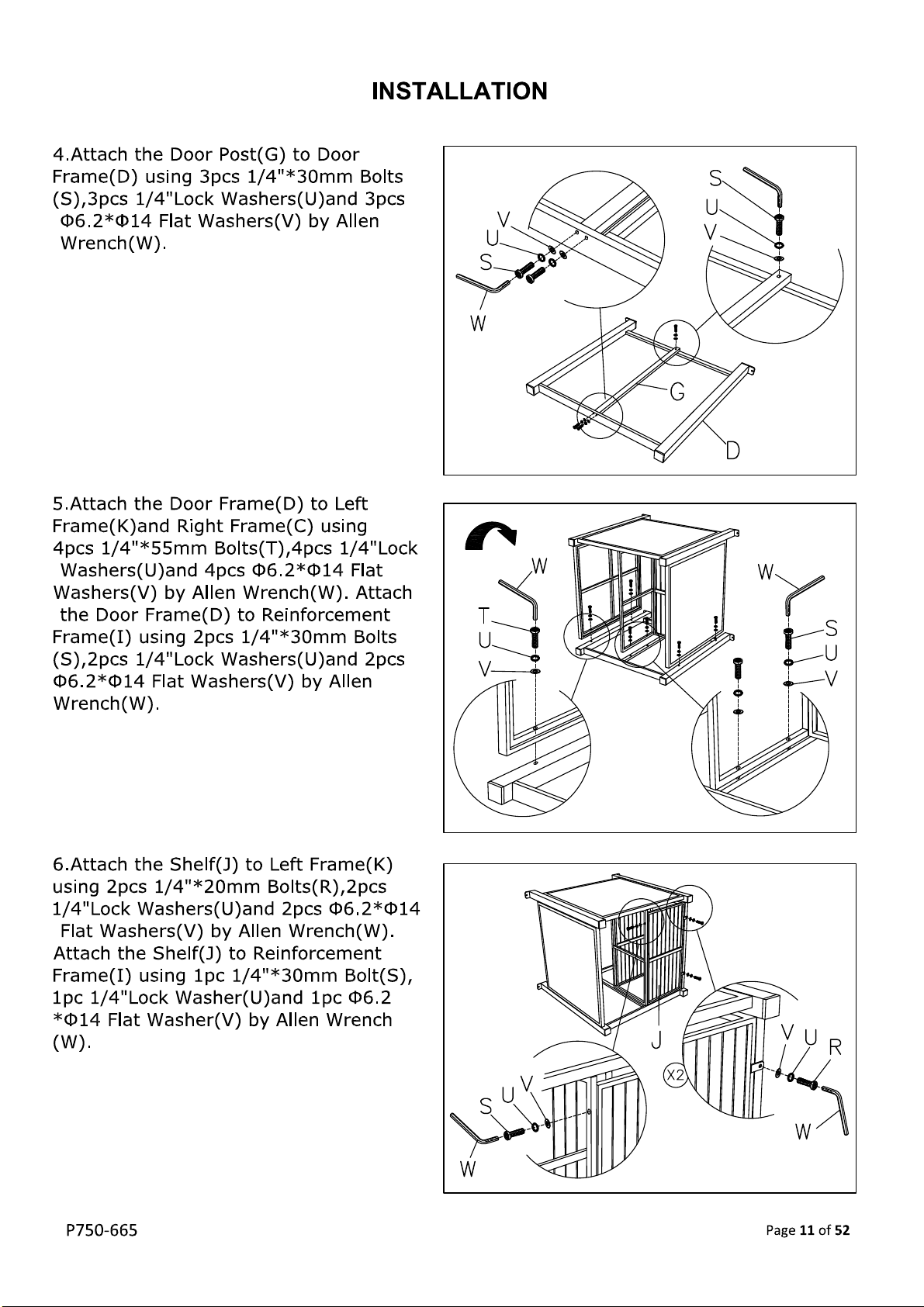

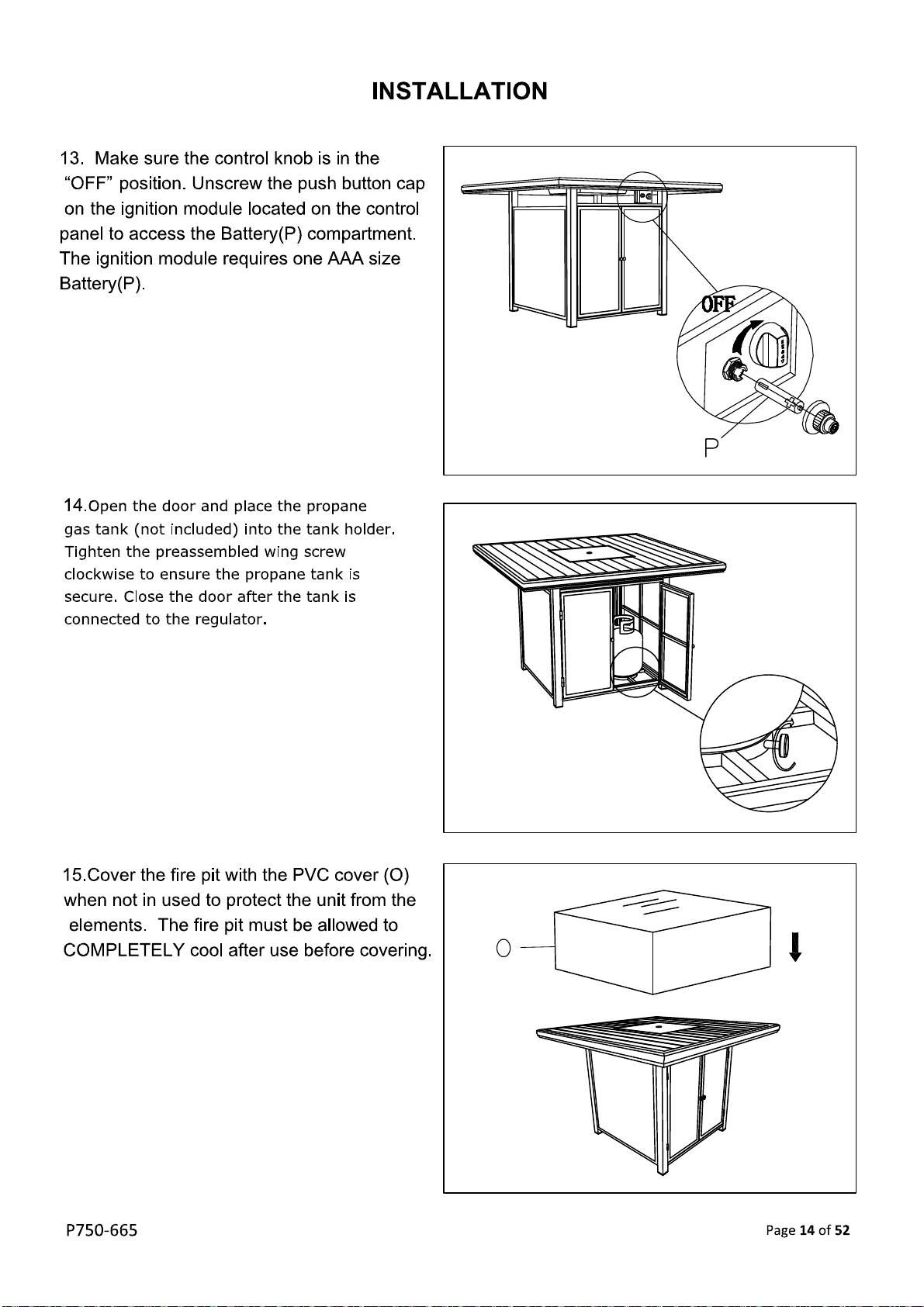

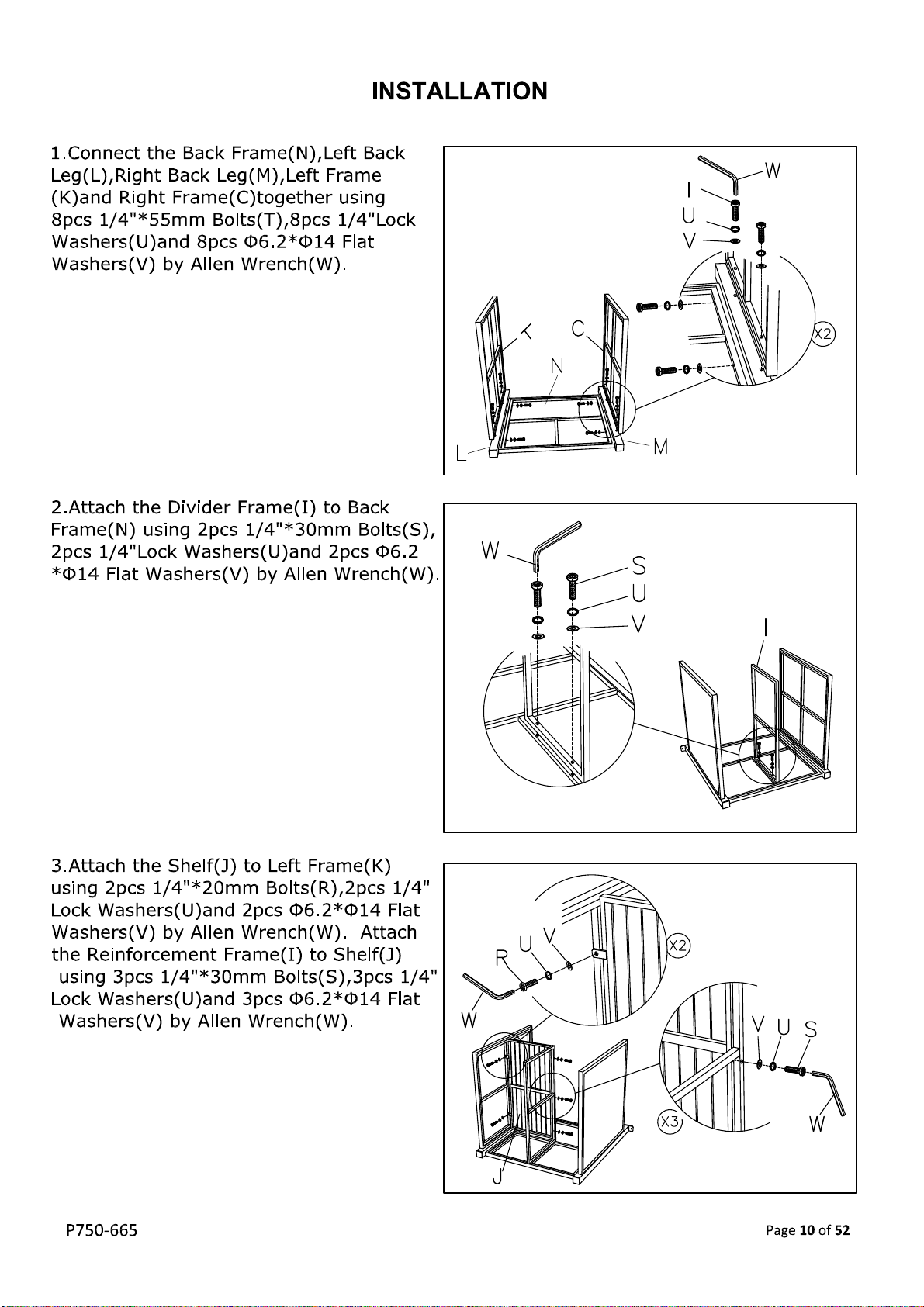

6. Installation.............................................................................................. 10
7.

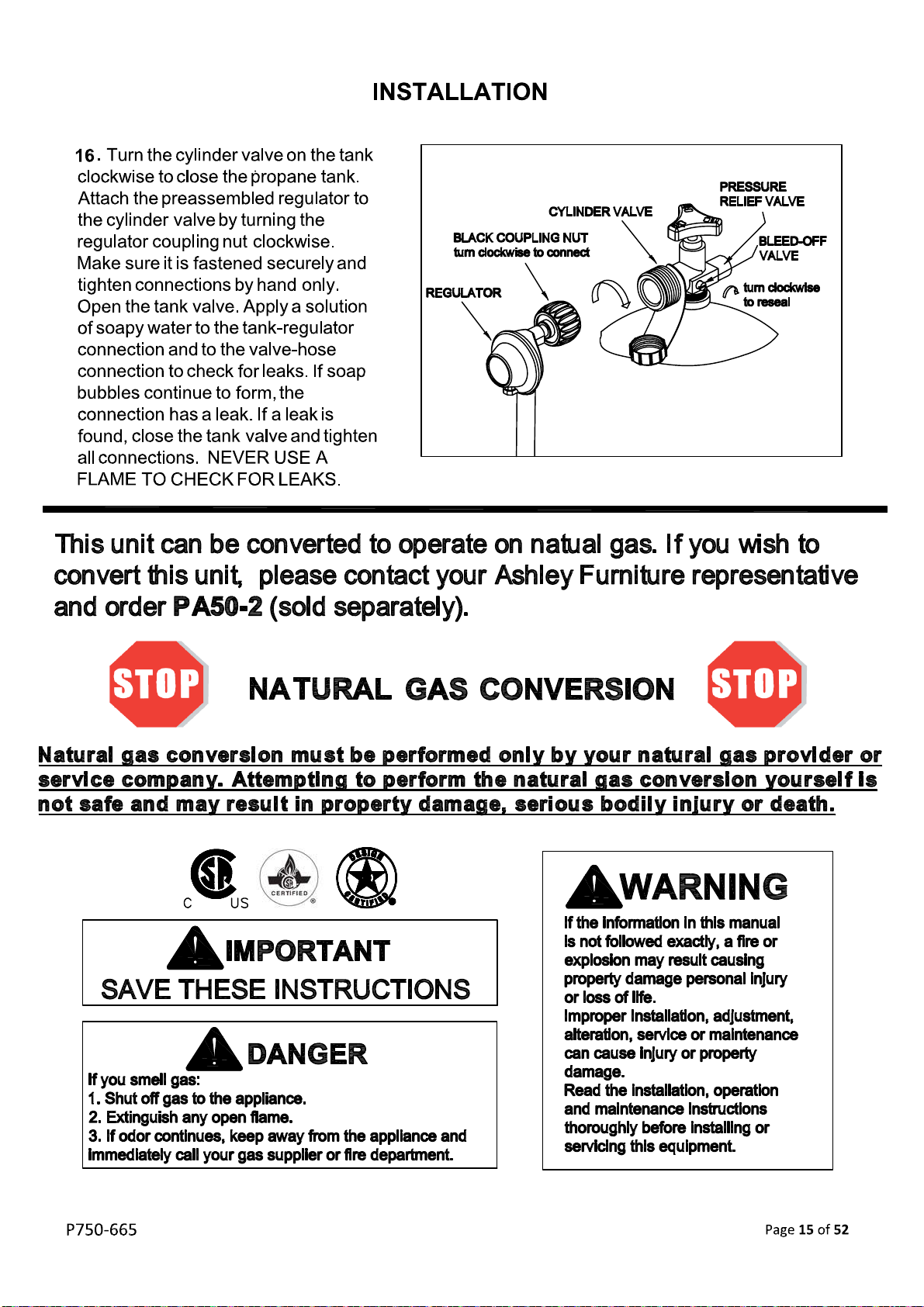

Natural Gas Conversion ..........................................................................15
8. Lighting Instructions.............................................................................16
9. Maintenance........................................................................................17
10. Troubleshooting Guide ..................................................................... 17

Page 5of 5
2
P750-665
IMPORTANT SAFETY INFORMATION
The installation must conform with local codes or, in the absence of all applicable local codes, including,
without limitation, with the National Fuel Gas Code, ANSI Z223.1/NFP A 54; International Fuel Gas Code;
Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as
applicable.
The appliance and its appliance main gas valve must be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shutoff valve
during any pressure testing of the gas supply system at test pressure equal to or less than 1/2 psi (3.5kPa).
The appliance area must be kept clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
Do not use this appliance if any part has been damaged or under water. Immediately call a qualified service
technician to inspect. Immediately call a qualified service technician to inspect the appliance and to replace
any part of the control system and any gas control which has been damaged or under water.
Do not sit or stand on appliance even when not in use and do not touch appliance
while in use or for at least 45 minutes after use as the appliance is very hot during
use and can cause serious burns.
The appliance will remain hot for up to 45 minutes after use. Do not touch or move
appliance for at least 45 minutes after it has been completely shut off.
Children and adults should be alerted to the hazards of high surface temperatures
and kept at a safe distance to avoid burns or clothing ignition.
All children should be kept away from the appliance and should not be allowed near the
product unless carefully supervised by an adult.
Clothing, any other object or flammable material should not be hung from the
appliance, placed on, near or underneath the appliance.
Any screen or guard removed for servicing an appliance must be replaced prior
to operating the appliance.
Keep children away from this appliance. This appliance contains small parts that
can be swallowed by children resulting in serious bodily injury or death.
Installation and repair should be done by a qualified service person. The appliance
should be inspected before use and at least annually by a professional service person. More frequent
cleaning may be required as necessary. It is imperative that the control compartments, burners and
circulating air passageways of the appliance be kept clean.
Do NOT burn solid fuels in this gas fireplace.
Do NOT ignite the burner before pouring all of the burner media (lava rock or fire glass) into the burner pan.
The media must be evenly distributed over the burner.
If during initial firing of fire pit, please stay away from the fire pit for 20 minutes as fire media (lava rock or
fire glass) may pop and hit someone on the face or eyes
Do NOT ignite or use the fire pit if the burner media (lava rock or fire glass) are wet. Ensure the burner media are
completely dry before igniting as intense heat could cause the media to crack and pop. Always place the cover
on the appliance when not in use in order to avoid water contacting the media.

Page 6of 5
2
P750-665
IMPORTANT SAFETY INFORMATION
It is UNSAFE to use this product for any purpose except as described in this document including, without
limitation, cooking.
CAUTION: The propane gas pressure regulator provided with this appliance must be used. This
regulator is set for an outlet pressure of 11 inches water column.
This outdoor gas appliance is not intended to be installed in or on recreational vehicles and/or boats.
Before each use of this gas appliance, open the LP (Liquid Propane) Tank Drawer and inspect the LP
Hose. If there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced prior to
the gas appliance being put into operation. Use only the replacement hose assembly specified in this
manual. Inspect the burner before each use of the appliance. The burner must be replaced prior to the
appliance being put into operation if it is evident that the burner is damaged. Use only the burner listed in
these instructions.
Keep the fuel supply hose away from any heated surfaces.
If you have any questions regarding the use of this unit, or find that your fire pit unit needs service, please
contact Ashley Furniture Industries at the below number.
1 [phone] Customer Service.

Page 7of 5
2
P750-665
IMPORTANT SAFETY INFORMATION ABOUT
PROPANE (LP) GAS

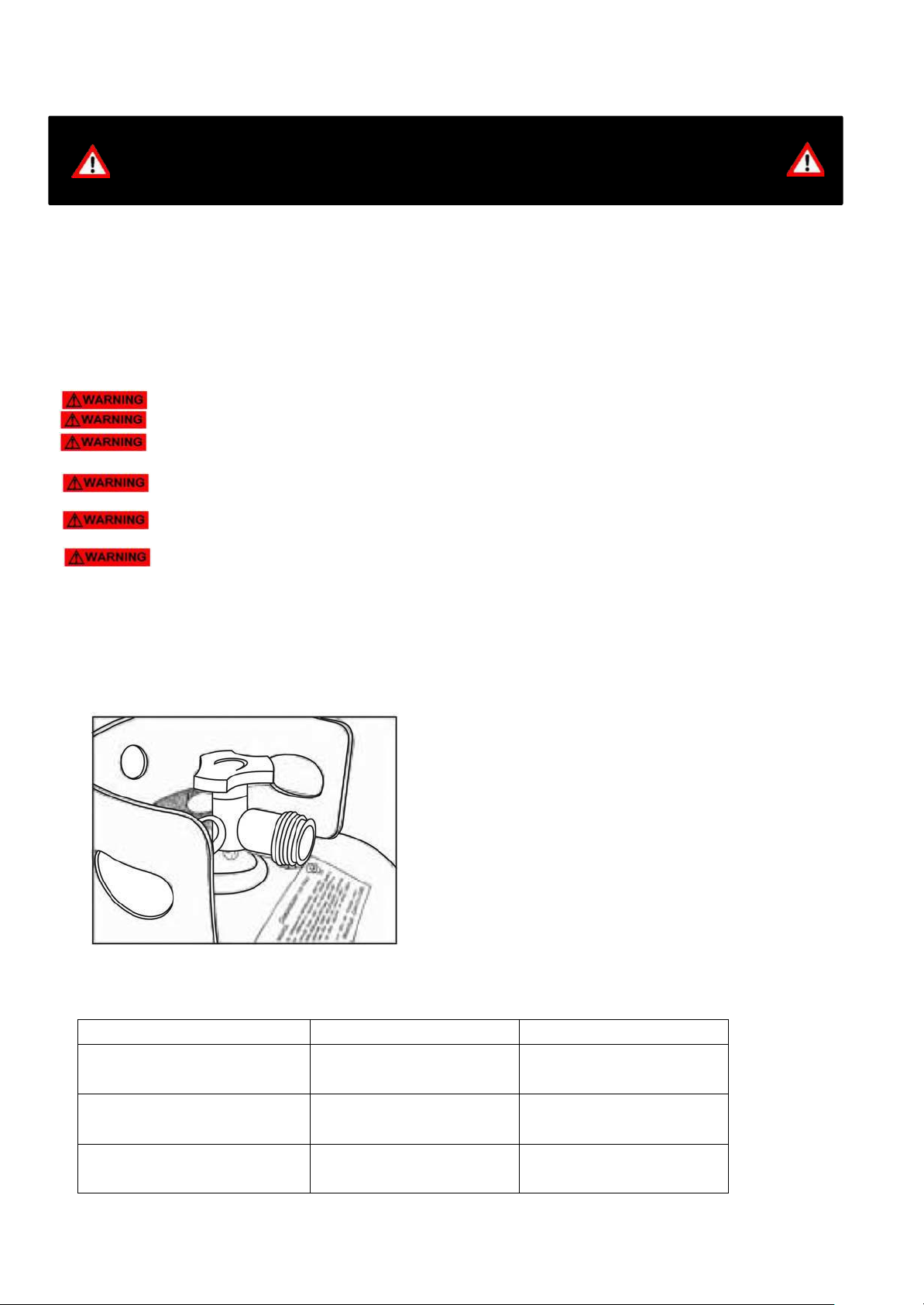

A self-contained LP-gas cylinder for use with this appliance must have a capacity of 20 lbs.
and must be equipped with a Type 1 connector and an OPD (overfill protection device).
See Figure 1.
The LP-gas supply cylinder to be used must be constructed and marked in accordance with
the specification for LP- gas cylinders of the U.S. Department of Transportation (DOT)
or the National Standard of Canada, CAN/CSA-B339, Cylinder, Sphere and Tubes for
the Transportation of Dangerous Goods.
The cylinder supply system must be arranged for vapor withdrawal.
The cylinder used must include a collar to protect the cylinder valve.
This appliance shall be used only outdoors in a well-ventilated space and
shall not be used in a building, garage or any other enclosed space.
When this appliance is not is use, the gas must be turned off at the
supply cylinder. Storage of this appliance indoors is permissible only if the
cylinder is disconnected and removed from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of
the reach of children. Disconnected cylinders must have threaded valve plugs tightly
installed and must not be stored in a building, garage or any other enclosed areas, storing
cylinders indoors or in poorly ventilated space outdoors can result in serious bodily
injury and/or death.
CSA (Canadian Standards Association) certified to ANSI Z21.97•CSA 2.41-2016
“Outdoor Decorative Gas Appliances”.
Figure 1
SPECIFICATIONS
INPUT
55,000 Btu/hr
Propane Regulator
Pressure
11 inches water column
Natural Gas Minimum
Inlet Pressure
7 inches water column
Clearances to
combustible surfaces
Sides: 24in. / 61cm Top: 72 in. / 183 cm

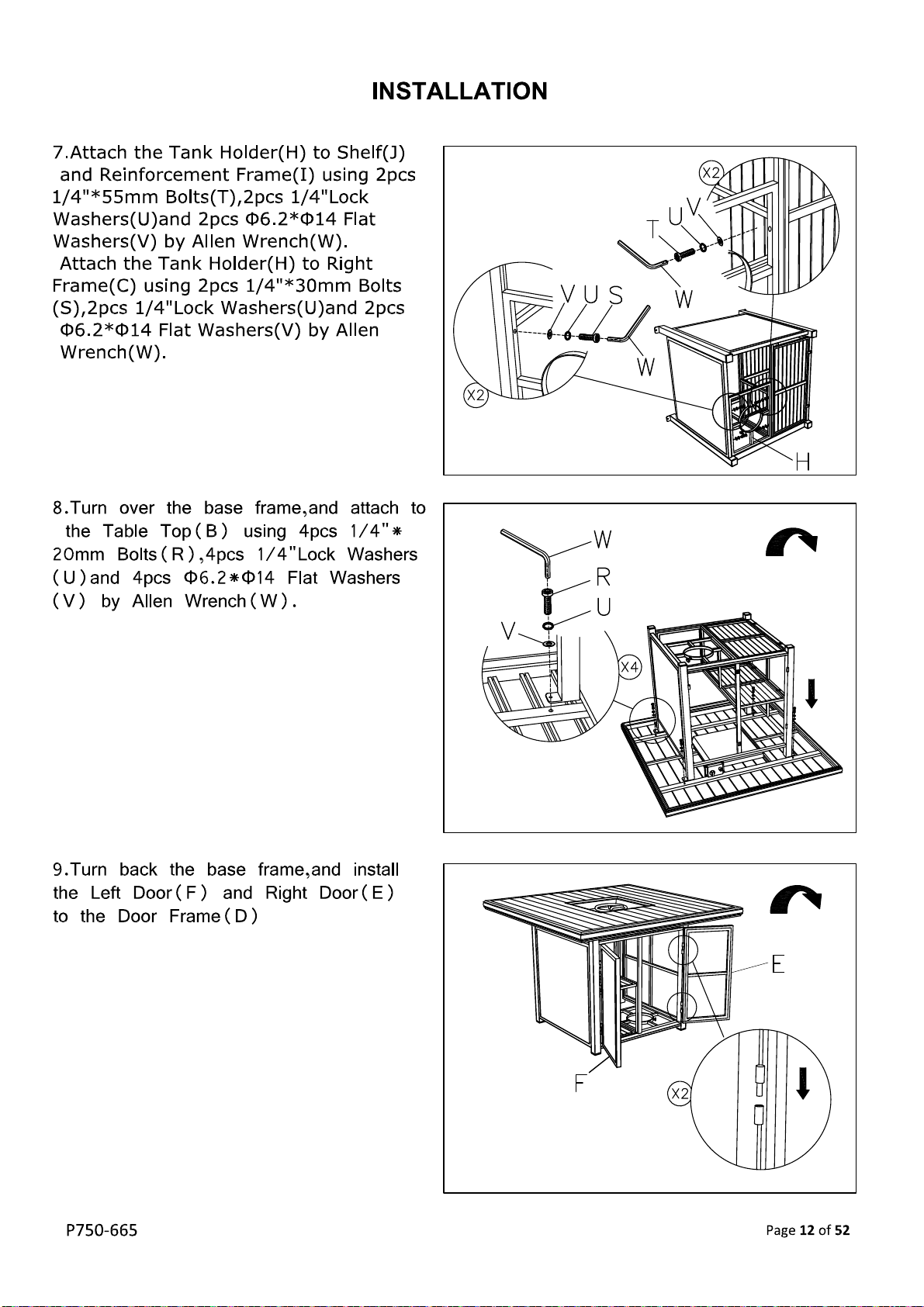

P750-665Page 16 of 52
Prior to turning gas on and attempting to light the appliance, make sure the appliance is
outside, in a well ventilated area and free of any debris and is not in contact with or near any
people, animals, materials or structures. Failure to adhere to the above instruction may result
in property damage, serious bodily injury or death.
LIGHTING INSTRUCTIONS
To Light
1. Read instructions before lighting.
2. Control knob must be in the “OFF” position.
3. Connect propane cylinder (See Manual), open cylindervalve.
4. Push and turn control knob counter clockwise to “LOW”.
5. Press the igniter button repeatedly to lightburner.
6. Release control knob after 45 seconds.
7. If ignition does not occur in 45 seconds, push and turn burner control knob to “OFF”, wait 5
minutes, fan with newspaper or magazine, and repeat lightingprocedure.
8. If igniter does not light burner, use a long match or long butanelighter.
9. After burner ignites, adjust flame to desired flame with the control knob.
To E nguish
1. Turn and push the control knob clockwise to the OFFposition.
2. Close cylinder valve, disconnect propane cylinder.

Page 17 of 52
P750-665
MAINTENANCE
• Before performing any maintenance always disconnect propane gas tank.
• Keep the heating item free and clear from combustible materials.
• Visually inspect burner for obstructions and keep tank enclosure free and clear from debris.
• Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner is
completely cooled down. Wipe down with a soft cloth.
• Harsh weather conditions may cause stubborn stains, discoloration and possibly rust pitting.
• Permanent damage may occur if powder or solvent comes in contact with painted or
plastic components on this heating unit.
• Keep the heating unit stored away from direct sunlight.
• If storing this unit inside, disconnect the propane gas tank from the gasvalve.
• Not using manufacturer approved or supplied parts/accessories may result in a defective
condition and void the warranty of this heating unit.
TROUBLESHOOTING GUIDE
It is recommended that you contact a qualified service technician if you believe the appliance is not
functioning properly.
PROBLEM CAUSE REMEDY
Burner won’t light
No Propane Gas at Burner
Check that gas tank valve is open.
Turn control knob to “ON” and push
control knob in. Make sure tank has
propane gas.
No Spark at Electrode
Check that AAA battery is installed
with negative (-) end first and has a
charge. Check that the wire is
connected to the ignition module.
Check that the electrode is not
cracked or broken.
Lack of oxygen Remove excess fire glass from
around the ignition well.
Burner won’t stay
lit after lighting
Thermocouple not in flame
Check that the tip of the
thermocouple is even with the top
of the ignition well. Remove any
glass beads from the ignition well.
Thermocouple connection
at the main control valve is
loose
Tighten the thermocouple nut at the
back of thevalve.
No fire glass on Burner Cover the burner with fire
glass per the instructions

P75 Page 19 sur 52 0-665
IMPORTANT, FAUTE DE LIRE ATTENTIVEMENT, COMPRENDRE ET SUIVRE CHAQUE
PARTIE DE CE DOCUMENT POURRAIT CAUSER LE DOMMAGE DE BIENS, DE
BLESSURE SERIEUSE DU CORPS OU LA MORT
INSTRUCTIONS DE MONTAGE
Installeur: Laisser ces instructionsavec le client.
Client: Garder ces instructions pour la consultation ultérieure.
CONSIGNES DE SECURITE
POUR L’UTILISATION AVEC LA BOUTEILLE DE
PROPANE DE 20LB (9KG) AVEC LA CONNEXION
DU TYPE 1 OU POUR L’UTILISATION AVEC LE
GAZ NATUREL APRES QUE LE KIT DE
CONVERSION SOIT INSTALLE (DOIT ETRE
INSTALLE PROFESSIONNELLEMENT) EGALEMENT
LE REGULATEUR LP DOIT ETRE FOURNIT PAR LE
FABRICANT.
!
DANGER
DANGER indique une situation extrêmement dangereuse
qui, si elle n
’
est pas évitée, pourrait causer des blessures
!DANGER
POUR VOTRE SECURITE –si vous sentez le gaz;
1.Eteindre le gaz à l’appareil.
2.Eteindre toute flamme ouverte
3.Si l’odeur continue. Garder loin de l’
appareil et appeler immédiatement votre
fournisseur de gaz ou le département de feu
!AVERTISSEMENT
UTILISER SEULEMENT LES PIECES DE REMPLACEMENT ET
LES ACCESSOIRES APPROUVES PAR L’USINE.
L’UTILISATION DE PIECE OU ACCESSOIRE NON
APPROUVE PEUT ANNULER LA GARANTIE SUR CE
PRODUIT ET CAUSER UNE CONDITION DANGEREUSE.
VEUILLEZ NOUS CONTACTER POUR L’INFORMAITON
CONCERNANT LES TUYAUX , LES THERMOCOUPLES ? DES
ELECTRODES , DES MODULES D’ALLUMAGE, DES PIERRES
DE LAVA, DES BUCHES, ET LA GLACE DE FEU ETC.
!
!DANGER
Faute de conformer avec les précautions et les
instructions fournies avec ce foyer peut causer la mort, la
blessure grave corporelle et la perte de propriétéou
dommage des dangers d’incendie, d’explosion, de
brûlure, l’asphysie, et/ou l’intoxication de monoxyde
de carbone. S eule le s per so nne s q ui pe uve nt com
pre ndre et sui vr e le s instructions doivent ut i l iser ou
server ce foyer.
!AVERTISSEMENT
Ne pas stocker ou utiliser l’essence ou autres
vapeurs et liquides inflammables àl’approximité
de ceci ou tout autre appareil. Une bouteille LP non
connectée pour l’utilisation ne doit pas être
stockéeàl’approximitéde ceci ou tout autre
appareil.
C S A Model P750-665

P750-665
CONSIGNES DE SECURITE
AVERTISSEMENT
Nous ne pouvons pas anticiper chaque usage qui
pourrait être de notre foyer.
Vérifier avec l’autoritéde sécuritéde votre local si vous
avez des questions àpropos de l’usage de foyer.
Autres normes régissent l’emploi de gaz et des
produits produisant de chaleur pour des usages
spécifiques. Votre autorités locales peuvent vous
conseiller àpropos de celles-ci.
Si aucun code local existe, suivre le Code de Gaz National,
ANSI Z223. 1. Au Canada, l’installation doit conformer
aux codes locaux. Si aucun code local existe, suivre les
normes nationales actuelles de Canada.
DANGER DE MONOXYDE DE
CARBONE
Cet appareil peut produire le
monoxyde de carbone qui n’a aucune
odeur. L’utilisation de ceci dans un
espace enfermé peut vous tuer.
Jamais utiliser cet appareil dans un
camp, une tente, un
véhicule ou à la maison
!DANGER
DANGER D’EXPLOISION-FEU
Garder des combustibles solids, tels que des
matériaux de consutruction, le papier de carton,
une distance sûre loin de foyer comme
recommandépar des instructions.
Garder le déblaiement adéquat autour des
ouvertures d’air dans la chambre de
combustion.
Jamais utiliser le foyer dans les espaces qui ne ou pourrait
contenir les combustibles volatiles ou aérieuns, ou des
produits comme l’essence, les solvants, le diluant à
peinture, des particules de poussières ou des produits
chimiques inconnus.
En cours d’opération, ce produit peut être une
source d’allumage. Garder la zone de foyer
déblaie et sans matériaux de construction, d’
essence, de diluant àpeinture, des solvants de
nettoyage et autres vapeurs et liquides
inflammables. Ne pas utiliser le foyer dans les
zones avec le contenu de poussière élevé.
!
DANGER
DANGER DE MONOXYDE DE CARBONE
Ce foyer est un appareil de combustion. Tous les appareils
de combustion produisent le monoxyde de carbone (CO) en
cours de combustion. Ce produit est conçu pour produire de
s
montants de particules infimes non dangereuses de CO si
utiliséet maintenu en conformitéavec tous les
avertissements et des instructions. NE pas bloquer la
circulation d’air dans ou àl’extérieur de foyer. L’
intoxication de monoxyde de carbone (CO) produit des
symptômes similaires àla grippe, des yeux larmoyants, des
maux de tête, des vertiges, la fatigue et possiblement la
mort. Vous ne pouvez le voir et vous ne pouvez le sentir. C
’
est un tueur invisible. S ices symptômes sont presents en
cours d’opération de ce produit avoir l’air frais
immédiatement!
Pour l'usage extérieur seul.
Jamais utiliser àl'intérieur de la maison, ou autres zones no
!DANGER
DANGER EXPLOSION -FEU
Jamais stocker la propane prèsde haute chaleur, des
flammes ouvertes, des voyants lumineux, des lumières
solaires directe, autres sources d’allumage ou oùles
températuredépassant 120 degrés F
(49°C). Les vapeurs de propane sont plus épaissesque l’
air et peuvent accumuler dans les endroits bas.
Si vous sentez le gaz, laisser immédiatement la zone la
zone. Jamais installer ou enlever la bouteille de propane
lorsque le foyer est allumé, près de flamme, des voyants
lumineux, ou autres sources d’allumage ou lorsque le
foyer est chaud àtoucher
Le foyer est chaud rouge en cours d’utilisation et peut
allumer des flammes très près de brûleur. Garder des
flammes au mois 2 pouces de côtés & 2 pouces d’
arrière, 6 pouces de plafond. Garder l’essence et
autres liquides et vapeurs loin de foyer. Stocker la
bouteille de propane àl’extérieur dans un espace bien
ventiléhors portéedes enfants. Jamais stocker la
bouteille de propane dans une zone enfermée (maison,
garage etc.). Si le puits de feu doit être entreposé à
l'intérieur, débranchez le cylindre de propane pour
l'entreposage en plein air et laissez le puits de feu se
refroidir complètement avant d’être déplacé à l'intérieur
!AVERTISSEMENT
AVERTISSEMENT indique une situation extrêmement
dangereuse qui, si elle n
’
est pas évitée, peut causer la
mort ou la blessure grave.
!AVERTISSEMENT
Ne pas stocker ou utiliser l’essence ou autres vapeurs et
liquides inflammables àl’approximitéde cet ou tout autre
appareil. Une bouteille LP non connectée pour l’utilisation
ne doit pas être stockéeàl’approximitéde cet ou tout
autre appareil.
!AVERTISSEMENT:Seulement pour l’usage extérieur
usage extérieur
!AVERTISSEMENT
L’installation incorrecte, l’altération d’ajustement,
l’entretienou la maintenance peut causer le dommage
de bien, lablessure ou la mort. Lire complètement des
instructionsd’installation, d’opération et de
maintenance avantl’installation ou l’opération de cet
équipement.
!
!
Page 20 sur 52
