Ashley Signature P556-665 User manual

P556-665
Page 1 of 46
SAVE THESE INSTRUCTIONS
Product has been CSA tested and certified.
THIS PRODUCTWAS MANUFACTURED BY JIAXING HERO IMP & EXP CO,.LTD FOR ASHLEY FURNITURE INDUSTRIES, INC.
Outdoor Bar Table User Guide
ITEM#: P556-665

P556-665
Page 2 of 46
ASSEMBLY INSTRUCTIONS
Installer: Leave these instr ctions with cons mer. C S A Model 70102512
Cons mer: Keep these instr ctions for f t re reference .
SAFETY INFORM ATION
IMPORTANT,
FAILURE
TO
CAREFULLY
READ,
UNDERSTAND
AND
FOLLOW
EVERY
PART
OF THIS DOCUMENT MAY RESULT IN PROPERTY DAMAGE, SERIOUS BODILY INJURY
OR DEATH
FOR USE W ITH 20LB 9KG) PROPANE CYLINDER
WITH TYPE 1 CONNECTION OR FOR USE WITH
NATURAL GAS AFTER CONVERSION KIT IS
INSTALLED MUST BE PROFESSIONALLY
INSTALLED) ALSO THE LP REGULATOR MUST BE
SUPPLIED BY THE MANUFACTURER.
DANGER
DANGER
indicates
an
imminently
hazardous
situation
which.
If not avoided. Will result in death or serious injury.
! DANGER
FOR YOUR SAFETY - if you smell gas;
1. Shut off gas to the
appliance.
2. Extinguish any open flame.
3. If odor continues. Keep away from the appliance
and immediately call you gas supplier or fire
department.
! WARNING
USE FACTORY APPROVED REPLACEMENT PARTS
AND ACCESSORIES ONLY. USE OF UNAPPROVED
PART OR ACCESSORIES CAN VOID THE WARRANTY
ON THIS PRODUCT AND RESULT IN AHAZARDOUS\
CONDITION. PLEASE CONTACT US FOR
INFORMATION REGARDING REPLACEMNT HOSES,
THERMOCOUPLES, ELECTRODES, IGNITION
MODULES, LAVA ROCKS, LOGS, FIRE ICE, ETC.
!
! DANGER
Failure to comply with the precautions and instructions
provided with this fire pit can result in death, serious
bodily injury and property loss or damage from
hazards of fire, explosion, burn, asphyxiation, and/or
carbon monoxide poisoning. Only persons who can
understand and follow the instructions should use or
service this fire pit.
! WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored
in the vicinity of this or any other appliance.

P556-665
Page 3 of 46
SAFETY INFOR MATION
! WARNING
We cannot foresee every use which may be made of
our fire pit.
Check with your local fire safety authority if you have
questions about fire pit use.
Other standards govern the use of fuel gases and heat
producing products for specific uses. Your local
authorities can advise you about these.
If no local codes exist, follow National Fuel Gas Code,
ANSI Z223. 1. In Canada, installation must conform to
local codes. If no local codes exist, follow the current
National standards of CANADA CAN/CGA-B 149.2.
! DANGER
EXPLOSION-FIRE HAZARD
Keep solid combustibles, such as building materials,
paper of cardboard, a safe distance away from the
fire pit as recommended b y the instructions.
Provide adequate clearances around air openings
into the combustion chamber.
Never use the fire pit in spaces which do or may
contain volatile or airborne combustibles, or products
such as gasoline, solvents, paint thinner, dust particles
or unknown chemicals.
During operation, this product can be a source of
ignition. Keep fire pit area clear and free from
combustible materials, gasoline, paint thinner, cleaning
solvents and other flammable vapors and liquids. DO
not use fire pit in areas with high dust content.
Minimum fire pit clearances from combustible
materials: two 2) feet from the sides &two 2)
feet from th e rear, 6 feet from ceiling.
DANGER
CARBON
MONOXIDE
HAZARD
This fire pit is a combustion appliance. All combustion
appliances produce carbon monoxide CO) during the
combustion process. This product is designed to produce
extremely minute, non-hazardous amounts of CO if used
and maintained in accordance with all warnings and
instructions. DO not block air flow into or out of the fire pit.
Carbon monoxide CO) poisoning produces flu-like
symptoms, watery eyes, headaches, dizziness, fatigue
and possibly death. You can't see it and you can't
smell it. It’s an invisible killer. If these symptoms are
present during operation of this product get fresh air
immediately!
For outdoor use only.
Never use inside house, or other unventilated or
enclosed areas.
This fire pit consumes air oxygen). Do not use in
unventilated or enclosed areas to avoid endangering
your
life.
! DANGER
EXPLOSION - FIRE HAZARD
Never store propane near high heat, open flames,
pilot lights, direct sunlight, other ignition sources or
where temperatures exceed 120 degrees F 49°C).
Propane vapors are heavier than air and can
accumulate in low places. If you smell gas, leave the
area immediately.
Never install or remove propane cylinder while fire pit is
lighted, near flame, pilot lights, other ignition sources
o r while fire pit is hot to touch.
The fire pit is red hot during use and can ignite
flammables too close to the burner. Keep flammables
at least 2 feet from sides & 2 feet from rear, 6 feet
from ceiling. Keep gasoline and other flammable liquids
and vapors well away from fire pit.
Store the propane cylinder outdoors in a well- ventilated
space out of reach of children. Never store the propane
cylinder in an enclosed area house, garage, etc.). If fire
pit is to be stored indoors, disconnect the propane
cylinder for outdoor storage and allow the fire pit to fully
cool down prior to move indoors.
! WARNING
WARNING indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
! WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
! WARNING: For Outdoor Use Only
! WARNING
Improper installation, adjustment alteration, service or
maintenance can cause property damage, injury or
death. Read the installation, operating and
maintenance instructions thoroughly before installing
or servicing this equipment.
!
!
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or home.

P556-665
Page 4 of 46
TABLE OF CONTENTS
1. Important Safety Information ................................................... 5
2. Information about Propane ..................................................... 7
3. Specifications ................................................................................ 7
4. Parts List ....................................................................................... 8
5. Installation ...................................................................................... 9
6. Natural Gas Conversion ............................................................. 13

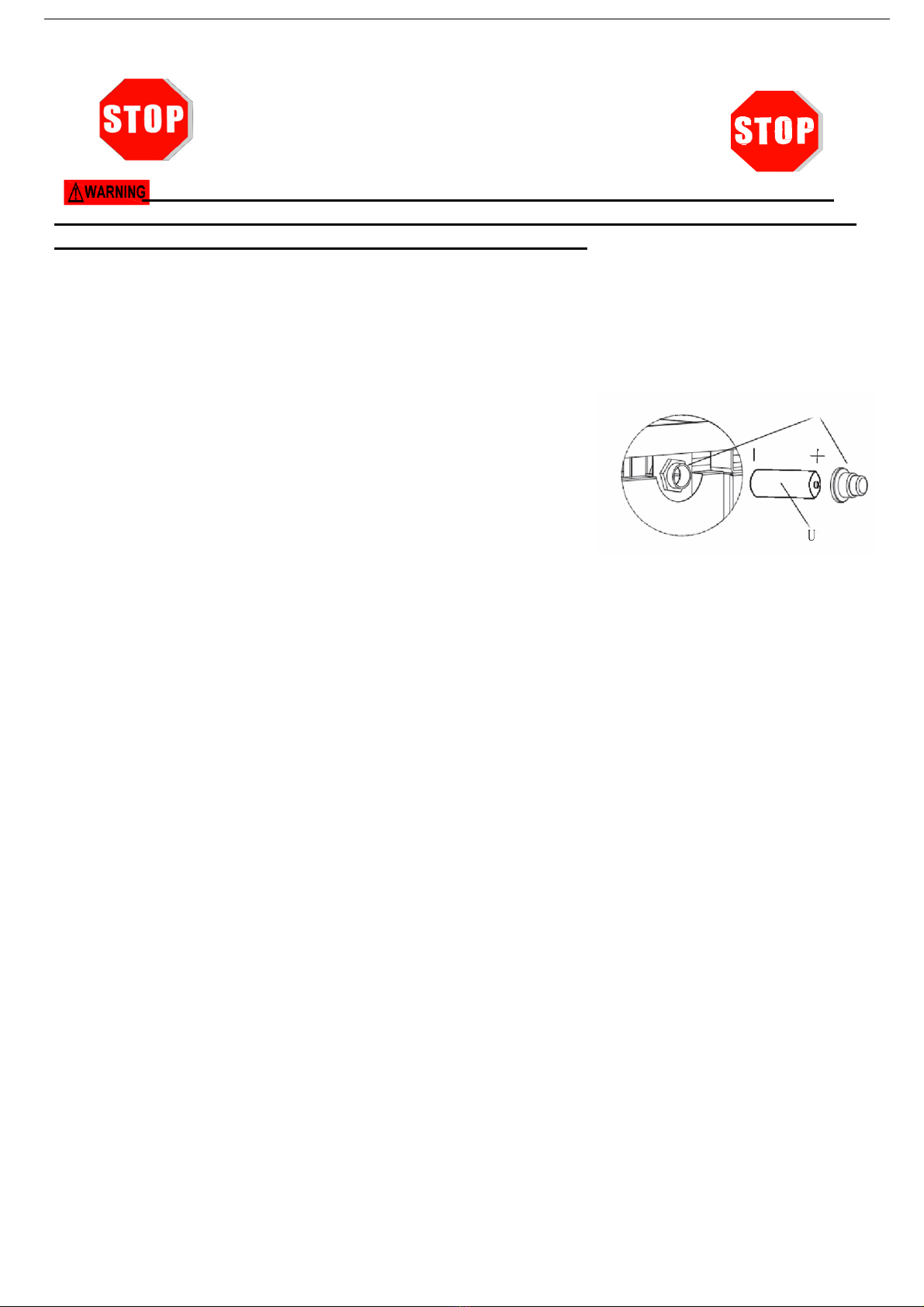

7. Batteries ....................................................................................... 13
8. Lighting Instructions ...................................................................... 14
9. Maintenance ................................................................................ 15
10. Troubleshooting Guide .............................................................. 15

P556-665
Page 5 of 46
IMPORTANT SAFETY INFORMATION
The installation must conform with local codes or, in the absence of all applicable local codes, including,
without limitation, with the National Fu el Gas Code, ANSI Z223.1/NFP A 54; International Fuel Gas Code;
Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as
applicable.
The appliance and its appliance main gas valve must be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures in excess of 1/2 psi 3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shutoff valve
during any pressure testing of the gas supply system at test pressure equal to or less than 1/2 psi 3.5kPa).
The appliance area must be kept clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
Do not use this appliance if any part has been damaged or under water. Immediately call a qualified service
technician to inspect. Immediately call a qualified service technician to inspect the appliance and to replace
any part of the control system and any gas control which has been damaged or under water.
Do not sit or stand on appliance even when not in se and do not to ch appliance
while in se or for at least 45 min tes after se as the appliance is very hot d ring
se and can ca se serio s b rns.
The appliance will remain hot for p to 45 min tes after se. Do not to ch or move
appliance for at least 45 min tes after it has been completely sh t off.
Children and ad lts sho ld be alerted to the hazards of high s rface temperat res
and kept at a safe distance to avoid b rns or clothing ignition.
All children sho ld be kept away from the appliance and sho ld not be allowed near the
prod ct nless caref lly s pervised by an ad lt.
Clothing, any other object or flammable material sho ld not be h ng from the
appliance, placed on, near or nderneath the appliance .
Any screen or g ard removed for servicing an appliance m st be replaced prior
to operating the appliance.
Keep children away from this appliance. This appliance contains small parts that
can be swallowed by children res lting in serio s bodily inj ry or death.
Installation and repair sho ld be done by a q alified service person. The appliance sho ld
be inspected before se and at least ann ally by a professional service person. More freq ent cleaning
may be req ired as necessary. It is imperative that the control compartments, b rners and circ lating
air passageways of the appliance be kept clean.
Do NOT burn solid fuels in this gas fireplace.
Do NOT ignite the burner before pouring all of the burner media lava rock or fire ice) into the burner pan. The
media must be evenly distributed over the burner.
If during initial firing of fire pit, please stay away from the fire pit for 20 minutes as fire media lava rock or fire ice)
may pop and hit someone on the face or eyes
Do NOT ignite or use the fire pit if the burner media lava rock or fire ice) are wet. Ensure the burner media are
completely dry before igniting as intense heat could cause the media to crack and pop. Always place the
cover
on the appliance when not in use in order to avoid water contacting the media.

P556-665
Page 6 of 46
IMPORTANT SAFETY INFORMATION
It is UNSAFE to use this product for any purpose except as described in this document including, without
limitation, cooking.
CAUTION: The propane gas pressure regulator provided with this appliance must be used. This
regulator is set for an outlet pressure of 11 inches water column.
This outdoor gas appliance is not intended to be installed in or on recreational vehicles and/or boats.
Before each use of this gas appliance, open the LP Liquid Propane) Tank Drawer and inspect the LP
Hose. If there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced prior to
the gas appliance being put into operation. Use only the replacement hose assembly specified in this
manual. Inspect the burner before each use of the appliance. The burner must be replaced prior to the
appliance being put into operation if it is evident that the burner is damaged. Use only the burner listed in
these instructions.
Keep the fuel supply hose away from any heated surfaces.
If you have any questions regarding the use of this unit, or find that your fire pit unit needs service, please
contact Ashley Furniture Industries at the below number.
1 800) 477-2222 Customer Service.

P556-665
Page 7 of 46
A self-contained LP-gas cylinder for use with this appliance must have a capacity of 20
lbs. and must be equipped with a Type 1 connector and an OP D overfill protection
device). See Figure 1.
The LP-gas supply cylinder to be used must be constructed and marked in accordance
with the specification for LP- gas cylinders of the U.S. Department of Transportation
DOT) or the National Standard of Canada, CAN/CSA-B339, Cylinder, Sphere and
Tubes for the Transportation of Dangerous Goods.
The cylinder supply system must be arranged for vapor withdrawal.
The cylinder used must include a collar to protect the cylinder valve.
This appliance shall be used only outdoors in a well-ventilated space
and shall not be used in a building, garage or any other enclosed space.
When this appliance is not is use, the gas must be turned off at
the supply cylinder.
Storage of this appliance indoors is permissible only if the
cylinder is disconnected and removed from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of the
reach of children .Disconnected cylinders must have threaded valve plugs tightly
installed and must not be stored in a building, garage or any other enclosed areas,
storing cylinders indoors or in poorly ventilated space outdoors can result in serious
bodily injury and/or death.
CSA Canadian Standards Association) certified to ANSI Z21.97•CSA 2.41-2016
“Outdoor Decorative Gas Appliances”.
Figure 1
SPECIFICATIONS
INPUT 30,000 Btu/hr
Propane Regulator
Pressure
11 inches water column
Natural Gas Minimum
Inlet Pressure
7 inches water column
Clearances to
combustible surfaces
Sides: 24in. / 61cm Top: 72 in. / 183 cm
IMPORTANT SAFETY INFORMATION ABOUT
PROPANE (LP) GAS

P556-665
Page 8 of 46
PARTS IDENTIFICATION LIST
Item
Description
Qty
A
Burner Cover
1
B Top 1
C Left Side 1
D
Right Side 1
E
Door
1
F Divider 1
G Shelf 2
H Cylinder Holder 1
J Back 1
K Knob 2
L 1/4 in x 32 mm Bolt 24
M
1/4 in x 55 mm Bolt 2
N #4 x 30 mm Screw 2
P Flat Washer 28
R Spring Washer 26
S Nut 2
T Lava Glass 1 Box
U Battery 1
W Allen Wrench 1
Y Open End Wrench 1
Z PVC Cover 1
AA Adjustable Leveler 4

P556-665
Page 9 of 46
INSTALLATION
Note: DO NOT tighten any bolts until all bolts have been started; Philips screw driver NOT included.

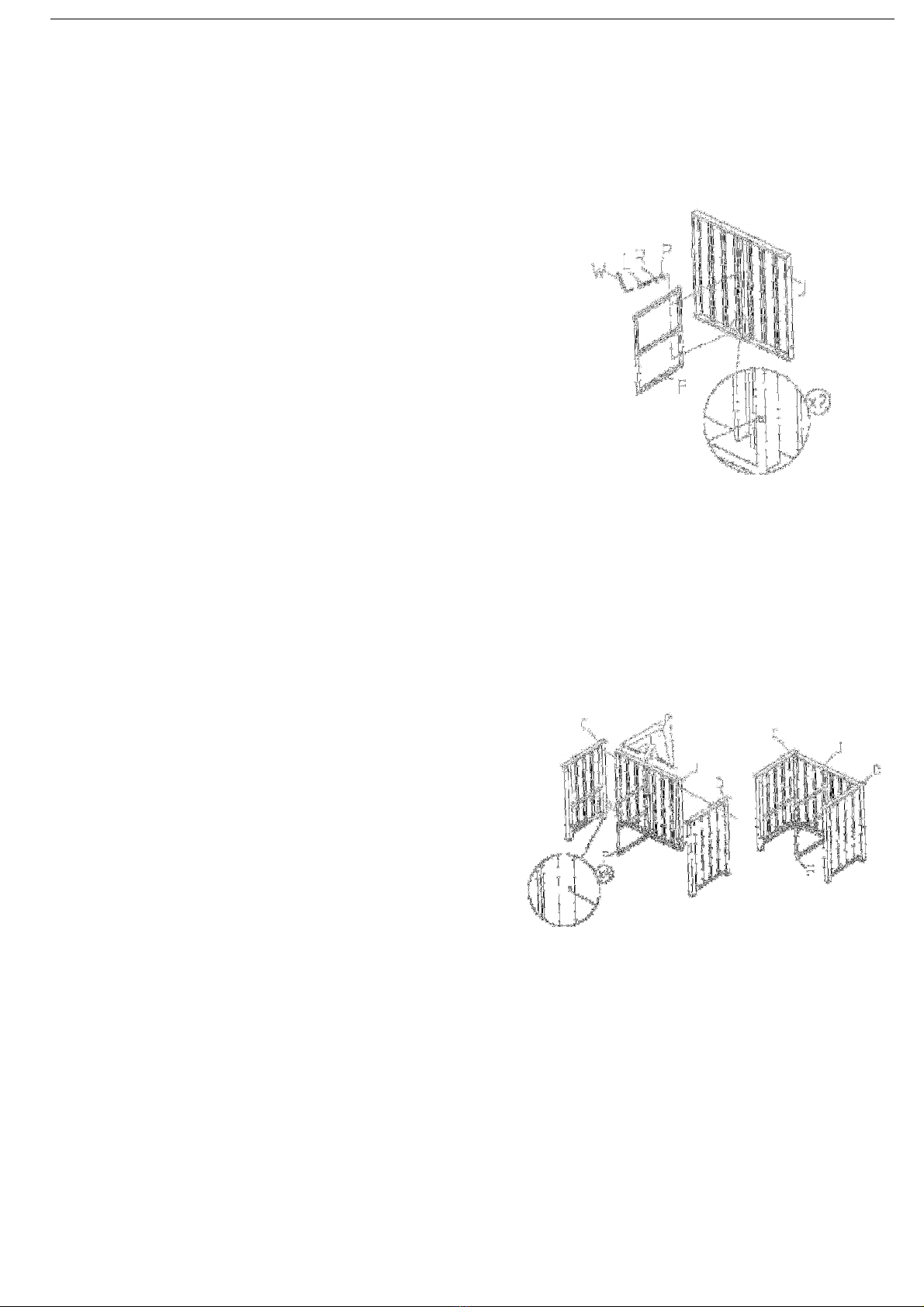

1. Attach the divider F) to the back J) with 2 bolts
¼ in x 30 mm L), 2 flat washers P) and 2
spring washers R) by using the Allen wrench
W) as shown on the right, see Figure1).
Figure 1
2. Assemble the left side C), the right side D) and back J) together with 4 bolts ¼ in x 30 mm L), 4
flat washers P) and 4 spring washers R) by using the Allen wrench W), see Figure 2).
Figure 2

P556-665
Page 10 of 46
3. Assemble the left side C), the shelf G), divider
F), cylinder holder H) and right side D) together
with 8 bolts ¼ in x 30 mm L), 8 flat washers P)
and 8 spring washers R); 2 bolts ¼ in x 55
mm M), 4 flat washers P) and 2 spring washers
R), 2 nuts S) by using the Allen wrench W) and
open end wrench Y) see Figure 3).
Figure 3
4. Assemble the door frame E), left side C), right side D) and the divider F) together with 6 bolts ¼
in x 30 mm L), 6 flat washers P) and 6 spring washers R) by using the Allen wrench W); attach
the knob K) to the door E) with screw #4 x 30
mm N) see Figure 4).
Figure 4

P556-665
Page 11 of 46
5. Turn over the assembled frame, and attach to
the top B) with 4 bolts ¼ in x 30 mm L), 4 flat
washers P) and 4 spring washers R) by
using the Allen wrench W), see figure 5)
Figure 5
6. Turn over the table, use adjustable leveler AA) to make sure the table was level, see figure 6)
Figure 6

P556-665
Page 12 of 46
INSTALLATION
7. Pour the box of lava glasses T) into the fire pit
table top B) around, see figure 7)
DANGER
To ensure proper function, the
guard on this burner should be free of lava
rocks at all times.
Figure 7
8. Turn the cylinder valve on the tank clockwise
to close the propane tank. Attach the
preassembled regulator to the cylinder valve by
turning the regulator coupling nut clockwise.
Make sure it is fastened securely and tighten
connections by hand only. Open the tank valve.
Apply a solution of soapy water to the tank-
regulator connection and to the valve-hose
connection to check for leaks. If soap bubbles
continue to form, the connection has a leak. If a
leak is found, close the tank valve and tighten all
connections. NEVER USE A FLAME TO CHECK
FOR LEAKS AS DOING SO CAN CAUSE AN
EXPLOSION OR FIRE RESULTING. IN
PROPERTY DAMAGE, SERIOUS BODILY
INJURY OR DEATH.
9. Open the door, place the 20-pound cylinder
into the main body and tighten it as shown on
the right, so the gas cylinder cannot move
and fall down, close the door, cover the fire
pit with PVC cover Z) when not in use to
protect it from the elements or when fire pit is
cool COMPLETELY after the use, see figure
8).
Note: A) Cover must be removed when burner is in
operation.
Figure 8

P556-665
Page 13 of 46
NATURAL GAS CONVERSION
Nat ral gas conversion m st be performed only by yo r nat ral gas provider or
Service Company. Attempting to perform the nat ral gas conversion yo rself is not safe and
may res lt in property damage, serio s bodily inj ry or death.
BATTERIES
Make sure the control knob is in the “OFF” position.
Unscrew the push button cap on the ignition module located
on the control panel to access the battery compartment.
The ignition module requires one AAA size battery.

P556-665
Page 14 of 46
LIGHTING INSTRUCTIONS
To Light
1. Read instructions before lighting.
2. Control knob must be in the “OFF” position.
3. Connect propane cylinder See Manual), open cylinder valve.
4. Push and turn control knob counter clockwise to “LOW”.
5. Press the igniter button repeatedly to light burner.
6. Release control knob after 45 seconds.
7. If ignition does not occur in 45 seconds, push and turn burner control knob to “OFF”, wait 5
minutes, fan with newspaper or magazine, and repeat lighting procedure.
8. If igniter does not light burner, use a long match or long butane lighter.
9. After burner ignites, adjust flame to desired flame with the control knob.
To Extinguish
1. Turn and push the control knob clockwise to the OFF position.
2. Close cylinder valve, disconnect propane cylinder.
Prior to turning gas on and attempting to light the appliance, make sure the appliance is
outside, in a well ventilated area and free of any debris and is not in contact with or near any
people, animals, materials or structures. Failure to adhere to the above instruction may result
in property damage, serious bodily injury or death.

P556-665
Page 15 of 46
MAINTENANCE
• Before performing any maintenance always disconnect propane gas tank.
• Keep the heating item free and clear from combustible materials.
• Visually inspect burner for obstructions and keep tank enclosure free and clear from debris.
• Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner is
completely cooled down. Wipe down with a soft cloth.
• Harsh weather conditions may cause stubborn stains, discoloration and possibly rust pitting.
• Permanent damage may occur if powder or solvent comes in contact with painted or
plastic components on this heating unit.
• Keep the heating unit stored away from direct sunlight.
• If storing this unit inside, disconnect the propane gas tank from the gas valve.
• Not using manufacturer approved or supplied parts/accessories may result in a defective
condition and void the warranty of this heating unit.
• Carbon deposits may pose as a fire hazard; clean the reflector and inside of the glass tube
with soap and water if any carbon deposits are present.
TROUBLESHOOTING GUIDE
It is recommended that you contact a qualified service technician if you believe the appliance is not
functioning properly.
PROBLEM CAUSE REMEDY
Burner won’t light
No Propane Gas at Burner
Check that gas tank valve is open.
Turn control knob to “ON” and push
control knob in. Make sure tank has
propane gas.
No Spark at Electrode
Check that AAA battery is installed
with negative -) end first and has a
charge. Check that the wire is
connected to the ignition module.
Check that the electrode is not
cracked or broken.
Lack of oxygen
Remove
excess
lava
rock
s
or
fire
ice from around the ignition well.
Burner won’t stay
lit after lighting
Thermocouple not in flame
Check that the tip of the
thermocouple is even with the top of
the ignition well. Remove any lava
rock s from the ignition well.
Thermocouple connection
at the main control valve is
loose
Tighten the thermocouple nut at the
back of the valve.
No lava rocks on Burner
Cover
the
burner
with
fire
ices
per the instructions

P556-665
P
a
g e
16
s r
46
SAUVEGARDER CES INSTRUCTIONS
Le produit a été testé et certifié par CSA.
CE PRODUIT A ETE FABRIQUE PAR JIAXING HERO IMP & EXP CO,.LTD FOR ASHLEY FURNITURE INDUSTRIES, INC
Guide de l utilisateur de la table de bar extérieure
ARTICLE#: P556-665

P556-665
P
a
g e
17
s r
46
INSTRUCTIONS DE MONTAGE
Installe r: Laisser ces instr ctionsavec le client. C S A Model 70102512
Client: Garder ces instr ctions po r la cons ltation ltérie re .
CONSIGNES DE SEC RITE
IMPORTANT,
FAUTE
DE
LIRE
ATTENTIVEMENT,
COMPRENDRE
ET
SUIVRE
CHAQUE
PARTIE
DE CE DOCUMENT POURRAIT CAUSER LE DOMMAGE DE BIENS, DE BLESSURE
SERIEUSE DU CORPS OU LA MORT
POUR L’UTILISATION AVEC LA BOUTEILLE DE
PROPANE DE 20LB 9KG) AVEC LA CONNEXION
DU TYPE 1 OU POUR L’UTILISATION AVEC LE GAZ
NATUREL APRES QUE LE KIT DE CONVERSION
SOIT INSTALLE DOIT ETRE INSTALLE
PROFESSIONNELLEMENT) EGALEMENT LE
REGULATEUR LP DOIT ETRE FOURNIT PAR LE
FABRICANT.
!
DANGER
indique
une
situation
extr
ê
mement
dangereuse
qui, si elle n
’
est pas
é
vit
é
e, pourrait causer des blessures
! AVERTISSEMENT
Ne pas stocker ou utiliser l’essence ou autres vapeurs
et liquides inflammables à l’approximité de ceci ou tout
autre appareil. Une bouteille LP non connectée pour
l’utilisation ne doit pas être stockée à l’approximité de
ceci ou tout autre appareil.
! DANGER
Faute de conformer avec les précautions et les
instructions fournies avec ce foyer peut causer la mort,
la blessure grave corporelle et la perte de propriété ou
dommage des dangers d’incendie, d’explosion, de
brûlure, l’asphysie, et/ou l’intoxication de monoxyde
de carbone. S eule le s per so nne s q ui pe uve nt
com pre ndre et sui vr e le s instructions doivent
ut i l iser ou server ce foyer.
!
AVERTISSEMENT
UTILISER SEULEMENT
ET
LES
LES
PIECES
DE
REMPLACEMENT
ACCESSOIRES
APPROUVES
PAR
L
’
USINE.
L
’
UTILISATION
DE
PIECE
OU ACCESSOIRE NON APPROUVE PEUT ANNULER
LA GARANTIE SUR CE PRODUIT ET CAUSER UNE
CONDITION DANGEREUSE. VEUILLEZ NOUS
CONTACTER POUR L’INFORMAITON CONCERNANT
LES TUYAUX , LES THERMOCOUPLES ? DES
ELECTRODES , DES MODULES D’ALLUMAGE, DES
PIERRES DE LAVA, DES BUCHES, ET LA GLACE DE
FEU ETC.
!
DANGER
POUR
VOTRE
SECURITE
–
si
vous
sentez
le
gaz
;
1. Eteindre le gaz à l’appareil.
2. Eteindre toute flamme
ouverte
3. Si l’odeur continue. Garder loin de l’appareil et appeler
immédiatement votre fournisseur de gaz ou le
d
é
partement de feu

P556-665
P
a
g e
18
s r
46
CONSIGNES DE SECURITE
! AVERTISSEMENT
!
DANGER
DANGER EXPLOSION -FEU
Jamais stocker la propane prè sde haute chaleur, des
flammes ouvertes, des voyants lumineux, des
lumières solaires directe, autres sources d’allumage
ou où les tempé raturedé passant 120 degré s F
49° C). Les vapeurs de propane sont plus é paissesque l’air
et peuvent accumuler dans les endroits bas.
Si vous sentez le gaz, laisser immé diatement la zone
la zone. Jamais installer ou enlever la bouteille de
propane lorsque le foyer est allumé, près de flamme,
des voyants lumineux, ou autres sources d’allumage
ou lorsque le foyer est chaud à toucher
Le foyer est chaud rouge en cours d’utilisation et
peut allumer
des flammes très près de brûleur. Garder des flammes au
mois 2 pouces de côtés & 2 pouces d’arrière, 6 pouces de
plafond. Garder l’essence et autres liquides et vapeurs loin
de foyer. Stocker la bouteille de propane à l’extérieur dans
un espace bien ventilé hors porté edes enfants. Jamais
stocker la bouteille de propane dans une zone enfermée
maison, garage etc.).
Si le puits de feu doit être entreposé à l'intérieur, débranche
z le cylindre de propane pour l'entreposage en plein air et lai
ssez le puits de feu se refroidir complètement avant d’être d
éplacé
à
l'intérieur
Nous
ne
pouvons
pas
anticiper
chaque
usage
qui
pourrait être de notre foyer.
Vérifier avec l’autorité de sécurité de votre local si
vous
avez des questions à propos de l’usage de foyer.
Autres normes régissent l’emploi de gaz et des
produits produisant de chaleur pour des usages
spécifiques. Votre autorités locales peuvent vous
conseiller à propos de celles-ci.
Si aucun code local existe, suivre le Code de Gaz
National, ANSI Z223. 1. Au Canada, l’installation doit
conformer aux codes locaux. Si aucun code local
existe, suivre les normes nationales actuelles de
Canada.
! DANGER
DANGER D’EXPLOISION-FEU
Garder des combustibles solids, tels que des
matériaux de consutruction, le papier de carton, une
distance sûre loin de foyer comme recommandé par
des instructions.
Garder le déblaiement adéquat autour des
ouvertures d’air dans la chambre de combustion.
Jamais utiliser le foyer dans les espaces qui ne ou
pourrait contenir les combustibles volatiles ou aérieuns,
ou des produits comme l’essence, les solvants, le diluant
à peinture, des particules de poussières ou des produits
chimiques inconnus.
En cours d’opération, ce produit peut être une source
d’allumage. Garder la zone de foyer déblaie et sans
matériaux de construction, d’essence, de diluant à
peinture, des solvants de nettoyage et autres vapeurs
et liquides inflammables. Ne pas utiliser le foyer dans
les zones avec le contenu de poussière élevé.
DANGER
DANGER
DE
MONOXYDE
DE
CARBONE
Ce foyer est un appareil de combustion. Tous les
appareils de combustion produisent le monoxyde de
carbone CO) en cours de combustion. Ce produit est
conçu pour produire des montants de particules infimes
non dangereuses de CO si utilisé et maintenu en
conformité avec tous les avertissements et des
instructions. NE pas bloquer la circulation d’air dans ou
à l’extérieur de foyer. L’intoxication de monoxyde de
carbone CO) produit des symptômes similaires à la
grippe, des yeux larmoyants, des maux de tête, des
vertiges, la fatigue et possiblement la mort. Vous ne
pouvez le voir et vous ne pouvez le sentir. C’est un
tueur invisible. S ices symptômes sont presents en
cours d’opération de ce produit avoir l’air frais
immédiatement!
Pour l'usage extérieur seul.
Jamais utiliser à l'intérieur de la maison, ou autres zones no
! AVERTISSEMENT
AVERTISSEMENT indique une situation extrêmement
dangereuse qui, si elle n’est pas évitée, peut causer la
mort ou la blessure grave.
! AVERTISSEMENT
Ne pas stocker ou utiliser l’essence ou autres vapeurs
et liquides inflammables à l’approximité de cet ou tout
autre appareil. Une bouteille LP non connectée pour
l’utilisation ne doit pas être stockée à l’approximité de
cet ou tout autre appareil.
! AVERTISSEMENT:Seulement pour l’usage extérieur
! AVERTISSEMENT
L’installation incorrecte, l’altération d’ajustement, l’entretien
ou la maintenance peut causer le dommage de bien, la
blessure ou la mort. Lire complètement des instructions
d’installation, d’opération et de maintenance avant
l’installation ou l’opération de cet équipement.
!
!
DANGER
DANGER DE MONOXYDE DE
CARBONE
Cet appareil peut produire le
monoxyde de carbone qui n’a
aucune odeur. L’utilisation de ceci
dans un espace enfermé peut vous
tuer. Jamais utiliser cet appareil
dans un camp, une tente, un
véhicule ou à la maison

P556-665
P
a
g e
19
s r
46
TABLE DE MATIERES
1. Consignes de Sécurité Importantes .......................................... 20
2. Information à propos de Propane ............................................. 22
3. Sp é cifications ................................................................................... 22
4. Liste des Pièces ......................................................................... 23
5. Installation .................................................................................. 24
6. Conversion de Gaz Naturel ....................................................... 28
7. Batteries ..................................................................................... 28
8. Instructions d’Allumage. ............................................................ 29
9. Maintenance ............................................................................... 30
10. Guide de Dépannage.............................................................. 30

P556-665
P
a
g e
20
s r
46
CONSIGNES DE SECURITE IMPORTANTES
L’installation doit conformer aux codes locaux ou, dans l’absence de tous les codes locaux applicables, y compris,
sans limite, avec National Fu el Gas Code, ANSI Z223.1/NFP A 54; International Fuel Gas Code; Natural Gas and
Propane Installation Code, CSA B149.1; ou Propane Storage and Handling Code, B149.2, comme applicable.
L’appareil et la vanne de gaz principale de l’appareil doivent être déconnectés de système de tuyauage
d’alimentation de gaz en cours de test de pressure de ce système à la pressure de test limitée à1/2 psi 3.5kPa).
L’appareil doit être isolé de système de tuyauage de gaz en fermant la vanne de fermeture en cours de test de pressure
de système d’alimentation de gaz à la pressure de test égal ou moins de 1/2 psi 3.5kPa).
La zone de l’appareil doit être gardée dégagée et libre des matériaux combustibles, d’essence et autres vapeurs et liquides
flammables.
Ne pas utiliser cet appareil si toute pièce a été endommagée ou dans l’eau. Appeler immédiatement un technicien
d’entretien qualifié pour inspecter l’appareil et remplacer toute pièce de système de contrôle et tout contrôle de gaz qui
a été endommagé ou dans l’eau.
Ne pas vo s asseoir o reposer s r l’appareil même s’il n’est pas en tilisation et ne pas
to cher l’appareil en co rs d’sage o po r a moins 45 min tes après l’sage comme l’appareil est très
cha d en co rs d’sage et pe t ca ser les brûl res graves.
L’appareil va rester cha d po r j sq ’à 45 min tes après l’sage. Ne pas to cher o déplacer
l’appareil po r a moins 45 min tes après q ’il soit complètement éteint.
Les enfants et les ad ltes doivent être avertis a x dangers de ha tes températ res de s rface et
gardées à ne distance sûre po r éviter des brûl res o l’all mage de tiss e.
Les enfants doivent être gardés loin de l’appareil et ne doivent pas être permis de près d prod it
sa f s rveillance attentive par n ad lte.
La garnit re, to t a tre objet o matériel flammable ne doit pas être s spend de l’appareil, mis la-
dess s, près o so s l’appareil .
To t écran o protection enlevée po r entretenir n appareil doit être replace avant l’opération de
l’appareil.
Garder des enfants loin de cet appareil. Cet appareil contient des petites pièces q i pe vent être
avalées par les enfants ca sant de bless re grave corporelle o la mort.
L’installation et la réparation doivent être faites par ne personne d’entretien q alifiée. L’appareil
doit être inspecté avant l’sage et a moins ne fois par an par ne personne d’entretien professionnelle. Le nettoyage pl s
fréq ent po rrait être exigé si nécessaire. Il est impérative q e les compartiments de contrôle, les brûle rs et les passages
d’air de circ lation de l’appareil soient gardés propre.
Ne PAS brûler des carburants solides dans ce foyer au gaz.
Ne PAS allumer le brûleur avant de verser tout de media de brûleur pierre de lava ou glace de feu) dans le plat de brûleur.
Le média doit être distribué proportionnellement sur le brûleur.
Si en cours d’allumage de foyer, veuillez rester loin de foyer pour 20 minutes comme le media de feu pierre de lava ou
glace de feu) pourrait sauter et frapper quelqu’un sur le visage ou dans les yeux.
Ne PAS allumer ou utiliser le foyer si le média de feu pierre de lava ou glace de feu) sont mouillé. S’assurer que le
média de brûleur soit sec complètement avant de l’allumer comme la chaleur intense pourrait causer le média à craquer et
sauter. Mettre toujours le couvercle sur l’appareil en cas de non usage afin d’éviter l’eau de contacter le média .
