Asko T884XLCHP User manual

Operating Instructions
Tumble dryer
T884XLHP
Dear Customer,
Thank you for choosing this quality product from ASKO. We hope it will
meet your expectations and fulfil your needs for many years to come.
Scandinavian design combines clean lines, everyday functionality and
high quality. These are key characteristics of all our products and the
reason they are greatly appreciated throughout the world.
To get the most out of your new machine, we recommend that you read
the operating instructions before using the machine. The operating
instructions also include information on how you can help protect the
environment.
WARNING: Read the instructions before using the machine.

2
BEFORE USING YOUR MACHINE FOR THE
FIRST TIME 3
Language selection 3
Laundry labels 3
SAFETY INSTRUCTIONS 4
General 4
Safety 4
Installation 4
Transport/winter storage 4
Packing material 4
Recycling 4
Child safety 6
Child-safe start 6
Activating/deactivating child-safe start 6
To deactivate child-safe start temporarily 6
DESCRIPTION OF THE TUMBLE DRYER 7
ADVICE AND TIPS BEFORE YOU
TUMBLE-DRY 8
Have the clothes been spun? 8
Materials that can be tumble-dried 8
Materials that must not be tumble-dried 8
Static electricity 8
TUMBLE DRYING 9
Sort your fabrics 9
Select the programme 9
Selecting options 10
Press the start button 10
Drying programme finished 11
Programme chart 12
SETTINGS 13
You can carry out the following settings 13
Language 13
Child-safe 13
CARE AND CLEANING 14
Cleaning the lint filter 14
Emptying the condensed water container 14
Cleaning the evaporator filter and evaporator 15
Cleaning the auto filter 16
Cleaning the outside of the machine 16
TROUBLESHOOTING 17
The machine will not start 17
The machine loses all power during a program 17
The machine leaks water 17
Drying takes too long 17
Error messages 17
TECHNICAL INFORMATION 18
Technical data 18
Standard tests 18
SERVICE 19
Before contacting the service division 19
INSTALLATION 20
Positioning the tumble dryer 20
DOOR HANGING 22
QUICK GUIDE 24
CONTENTS
Original Instructions

3
LANGUAGE SELECTION
You will be prompted to select the display language
when you have connected your machine and start it for
the first time. Do as follows:
1. Turn the programme selector to choose from: US
English, English, Svenska, Dansk, Norsk, Suomi,
Français, Deutsch, Italiano, Espanol, Русский,
Nederlands.
2. Press Stop to save the setting.
LAUNDRY LABELS
Certain materials are not suitable for tumbledrying.
Always check and follow the instructions on each item’s
laundry label. You can find more information in the
Advice and tips before you tumble-dry chapter.
NOTE
When starting the tumble dryer for the first time or
after a long period without use, you may notice a slight
thumping noise. This noise is completely normal and
will disappear after a few loads.
BEFORE USING YOUR MACHINE FOR THE FIRST TIME

4
GENERAL
Read the operating instructions and keep
them in a safe place!
• The machine may be used in public areas.
• Electrical installation, if required, should be carried
out by a qualified electrician.
• The machine should only be used for tumble-drying
as described in these instructions.
• Repairs and maintenance relating to safety or
performance must be carried out by a qualified
professional.
• Damaged mains cables must only be replaced by a
qualified electrician.
• Sufficient ventilation is required to prevent smoke
from open fires or fumes from equipment burning
other fuels being sucked into the room when the
tumble dryer is running.
• Do not dry dirty laundry in the tumble dryer.
• Items that are stained with e.g. cooking oil, acetone,
alcohol, petrol, kerosene, stain remover, turpentine,
wax and wax remover should be washed in hot water
with extra detergent before they go in the tumbler
dryer.
• Items such as foam rubber, latex, plastic, waterproof
textiles, rubber-coated items and clothes and foam-
rubber filled cushions must not be dried in the tumbler
dryer.
• Fabric softener or similar products should be used
as per the recommendations of the detergent
manufacturer.
• This machine can be used by children aged 8 and
upwards, and by people with reduced physical
capacity, mental ability, memory loss or lacking
experience and knowledge. These individuals
must be supervised when using the machine or
have instructions on how to use the machine and
understand the risks that can occur.
• Children must be watched to ensure they do not play
with the machine.
• Children under 3 years should be kept away from the
machine unless they are not constantly supervised at
all times.
SAFETY
• The machine must not be used for drying items that
have been dry-cleaned at home or fabrics that may
contain residues of flammable liquids.
• The appliance is not intended for use by young
children or infirm persons without supervision.
• The machine automatically cuts offif the condenser
water tank is full or outlet hose is blocked.
WARNING!
When the tumble dryer is operating, the back of the
tumble dryer will get very hot. Leave the machine to
cool completely before touching the back.
INSTALLATION
See the section Installation.
WARNING!
Do not start the machine until it has been in position for
24 hours. If for some reason the tumble dryer needs to
be laid down for transport or service, it must be laid on
its left side viewed from the front.
TRANSPORT/WINTER STORAGE
If you need to move your machine or store it over the
winter in unheated premises, make sure that you drain
the condensed water container beforehand.
PACKING MATERIAL
Please sort waste materials in accordance with local
guidelines.
RECYCLING
This machine is manufactured and labelled for recycling.
In order to prevent personal injury, the machine must be
made inoperable after deciding to take it out of service.
Contact your local authority for information about where
and how your machine should be correctly recycled.
SAFETY INSTRUCTIONS
S
S
S
S
S
S
S
S
S
S
S
A
A
A
A
A
A
A
A
A
A
A
A
A
F
F
F
F
F
F
F
F
FF
F
F
E
E
E
E
E
E
E
E
E
E
E
E
T
T
T
T
T
T
T
T
T
T
T
T
Y
Y
I
N
S
TR
UCT

5
To minimize the risk of fire in a tumble dryer,
the following should be observed:
• Items that have been spotted or soaked with
vegetable or cooking oil constitute a fire hazard
and should not be placed in a tumble dryer.Oil-aff
ected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble
dryer. The items become warm, causing an oxidation
reaction in the oil. Oxidation creates heat. If the
heat cannot escape, the items can become hot
enough to catch fire. Piling, stacking or storing oil-aff
ected items can prevent heat from escaping and so
create a fire hazard. If it is unavoidable that fabrics
that contain vegetable or cooking oil or have been
contaminated by hair care products be placed in
a tumble dryer they should first be washed in hot
water with extra detergent - this will reduce, but not
eliminate, the hazard. The ’cool down’ cycle of tumble
dryers should be used to reduce the temperature
of the items. They should not be removed from the
tumble dryer or piled or stacked while hot.
• Items that have been previously cleaned in, washed
in, soaked in or spotted with petrol/ gasoline, dry-
cleaning solvents or other flammable or explosive
substances should not be placed in a tumble dryer.
Highly flammable substances commonly used in
domestic environments include acetone, denatured
alcohol, petrol/gasoline, kerosene, spot removers
(some brands), turpentine, waxes and wax removers.
• Items containing foam rubber (also known as latex
foam) or similarly textured rubberlike materials should
not be dried in a tumble dryer on a heat setting. Foam
rubber materials can, when heated, produce fire by
spontaneous combustion.
• Fabric softeners or similar products should not be
used in a tumble dryer to eliminate the effects of
static electricity unless this practice is specifically
recommended by the manufacturer of the fabric
softener or product.
• Undergarments that contain metal reinforcements
should not be placed in a tumbledryer. Damage to the
tumble dryer can result if metal reinforcements come
loose during drying. When available a drying rack
could be used for such items.
• Plastic articles such as shower caps or babies’
waterproof napkin covers should not be placed in a
tumble dryer. Rubber-backed articles, clothes fitted
with foam rubber pads, pillows, galoshes and rubber-
coated tennis shoes should not be placed in a tumble
dryer.
SAFETY INSTRUCTIONS
Vented dryers
• There has to be adequate ventilation to avoid the
back flow of gases into the room from appliances
burning other fuels, including open fires, when
operating the tumble dryer.
• The exhaust air must not be discharged into a flue
which is used for exhausting fumes from appliances
burning gas or other fuels.
CAUTION!
Air from the tumble dryer must not be fed through
ducts used for equipment that burns gas or other
fuels.
S
S
S
S
S
S
S
S
S
S
S
A
A
A
A
A
A
A
A
A
A
A
A
A
F
F
F
F
F
F
F
F
FF
F
F
E
E
E
E
E
E
E
E
E
E
E
E
T
T
T
T
T
T
T
T
T
T
T
T
Y
Y
I
N
S
TR
UCT

6
SAFETY INSTRUCTIONS
CHILD SAFETY
WARNING!
DO NOT ALLOW CHILDREN TO PLAY
WITH THE TUMBLE DRYER.
• If the door is opened when a programme is running
the garments may be very hot, with a risk of burn
injuries.
• The tumble dryer does not start automatically when
the door is closed (if a child pulls the door shut from
the inside, for example).
CHILD-SAFE START
By activating the child-safe start function you can
prevent children from starting the tumble dryer or
changing the current programme.
ACTIVATING/DEACTIVATING CHILD-
SAFE START
1. Turn offthe machine using the main power switch.
2. Press and hold the + button and the temperature
selection button and turn on the main power switch.
3. Turn the programme selector and choose ”Child-safe
start off” or ”Child-safe start on”.
4. Press the Start button to save.
TO DEACTIVATE CHILD-SAFE START
TEMPORARILY
You can temporarily deactivate Child-safe start for three
minutes by pressing the temperature button and the
minus button under Delayed Start at the same time.
S
S
S
S
S
S
S
S
S
S
S
A
A
A
A
A
A
A
A
A
A
A
A
A
F
F
F
F
F
F
F
FF
F
F
F
E
E
E
E
E
E
E
E
E
E
E
E
T
T
T
T
T
T
T
T
T
T
T
T
Y
Y
I
N
S
TR
UCT

7

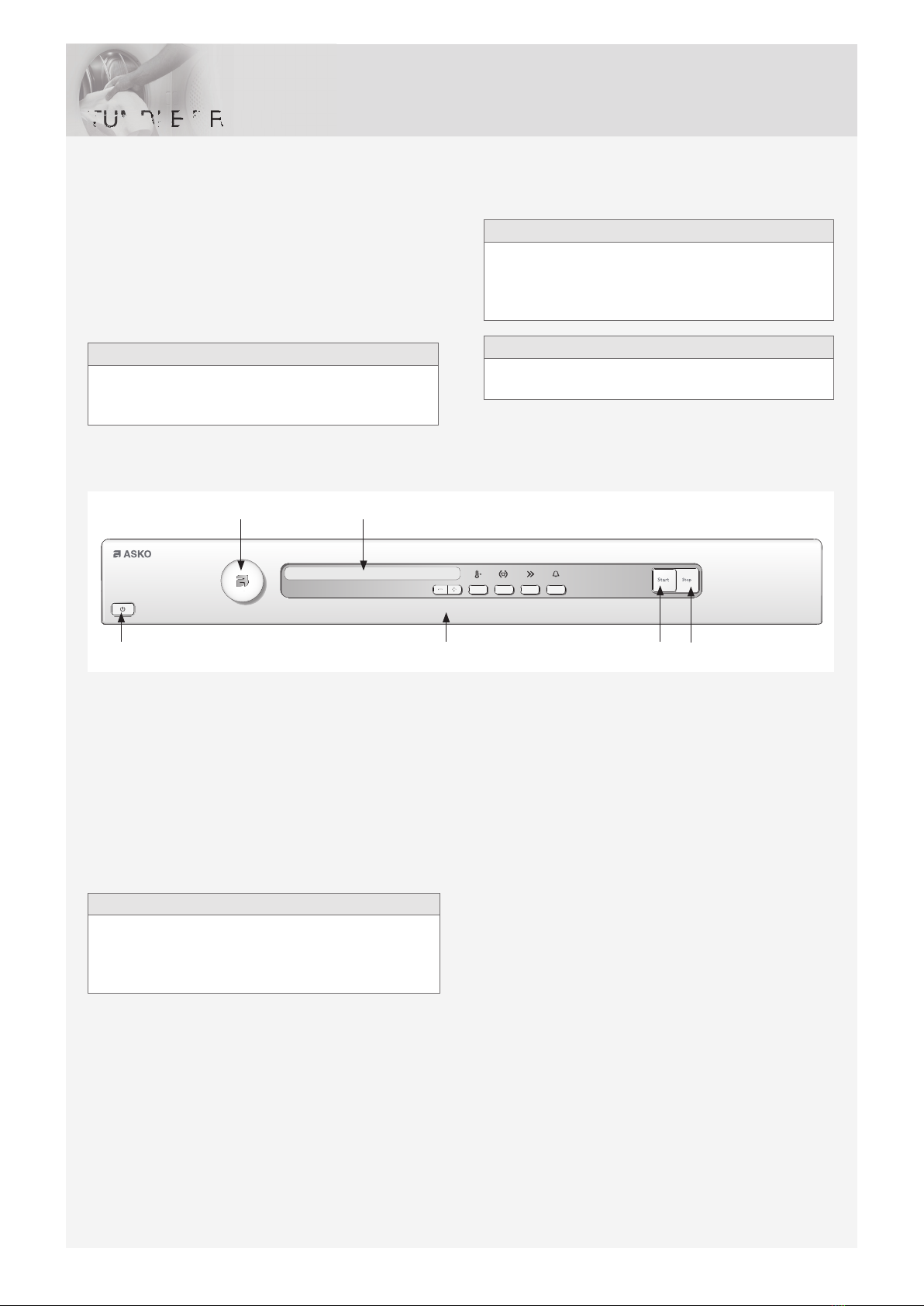

DESCRIPTION OF THE TUMBLE DRYER
1. Main power switch
2. Condensed water container
3. Panel
4. Serial Number
5. Lint filter
6. Outer door
7. Steamer and filter
1
7
23 4 56
D
D
D
D
D
D
D
D
D
D
E
E
E
E
E
E
E
E
SS
S
S
S
S
S
S
S
S
S
S
S
S
S
S
C
C
C
C
C
C
C
CC
C
C
C
C
C
C
R
R
R
R
R
R
R
R
R
R
R
R
R
R
I
I
I
I
I
I
I
I
P
P
P
P
P
T
T
T
I
O
O
N
N
N
N
O
O
O
F
F
F
TH
E

8
ADVICE AND TIPS BEFORE YOU TUMBLE-DRY
Here are some tips that may help you before you begin
tumble-drying.
HAVE THE CLOTHES BEEN SPUN?
Items to be tumble-dried should be spun at 1000 rpm
or faster. Higher spin speeds save energy and reduce
drying time.
MATERIALS THAT CAN BE TUMBLE-
DRIED
This symbol means that the material is suitable for
tumble- drying. Fabrics best suited to tumble-drying are
cotton fabrics, terry cloth and synthetic fibres. Garments
will be softer and lighter when tumbled than when hung
out to dry.
NOTE!
The tumble dryer does not cause any significant wear
on fabrics. The lint that collects in the lint filter consists
of dust and fibre residues formed when the items are
used.
MATERIALS THAT MUST NOT BE
TUMBLE-DRIED
This symbol means that the material is not suitable
for tumble-drying. Certain materials may melt or become
a fire hazard if exposed to heat, and others can lose their
shape or shrink.
And do not tumble-dry:
• materials labelled ”Do not dry near heat”.
• garments that have been dry-cleaned at home.
• plastic foam.
• fibreglass material.
• wool must not be tumble-dried because of the risk of
felting.
STATIC ELECTRICITY
To reduce the risk of static electricity in the laundry after
tumble drying you can:
• Use fabric softener when washing.
• Wait five minutes after the drying program ends
before opening the door and removing the laundry
from the dryer.
NOTE!
You can stop the tumble dryer by pressing the Stop
button for three seconds or by opening the door. In
both cases the programme is stopped and starts from
the beginning if restarted. If you do not want to restart
the programme then immediately remove all laundry
and spread it out to allow the heat to dissipate.
A
A
A
A
A
A
A
A
A
A
D
D
D
D
D
D
D
D
VV
V
V
V
V
V
V
V
V
V
V
V
V
V
I
I
I
I
I
I
I
I
I
I
I
I
CC
C
C
C
C
C
C
C
C
C
C
C
EEE
E
E
E
E
E
E
E
E
E
E
E
E
E
A
A
A
A
A
N
N
D
D
T
T
T
T
I
I
P
P
S
S
S
BE
F

9
Guidelines as to what specific programmes can be used
for:
Auto extra dry
This program is for items that are particularly difficult to
dry.
NOTE!
Knitted fabrics in particular are prone to shrinkage.
Use the Auto extra dry, Auto normal dry or Auto Iron
dry programs for these items. Stretch clothes back
into shape immediately after drying.
Auto dry and Auto normal dry
These programs end automatically when the load is dry.
The Auto dry program gives slightly drier laundry than
Auto normal dry.
Auto Iron dry
This program shuts offthe heat once the load is just
damp enough for ironing or pressing.
Jeans
Program for jeans and clothing with very thick seams.
Delayed Start can be selected as an option.
Synthetics
Gentle program for synthetics. Delayed Start can be
selected as an option.
Terry towels
Program intended for large and small loads of thick terry
cloth, such as towels and bathrobes.
Down
Gentle program that dries down items completely. Can
be used to dry up to three pillows or one quilt.
Timed dry
The most suitable program time depends on what you
intend to do with the items after tumble-drying them. Use
trial and error to find out what works best. When you use
Timed dry to tumble-dry a load of mixed fabrics, some of
the garments may remain damp. Tumble-dry any damp
garments for a further 30 minutes or so using the Timed
dry program.
Select a programme by turning the programme selector. The selected programme is shown in the display window.
Use the option buttons to select any options.
Programme selector Display window
Main power switch Options buttons Start Stop
SELECT THE PROGRAMME
TUMBLE DRYING
Below are step-by-step instructions to help you achieve
the best possible tumble-drying results.
SORT YOUR FABRICS
You will achieve the most uniform drying results if the
items are made of the same type of material. Do up zips
and buttons, fasten belts, sort the items and adjust the
load and temperature.
NOTE!
Do not overload the drum!
Overloading the dryer will result in poor drying results
and wrinkling.
Press the main power switch until the display lights.
Open the door, load the items and then close the door.
NOTE!
Make sure that objects e.g. detergent dispensing
balls, have been removed from the laundry. They
could melt and cause damage to the dryer or the
laundry.
NOTE!
To save energy, always observe the maximum load for
each programme (see Program chart)
T
T
T
T
T
T
T
T
T
T
T
T
U
U
U
U
U
U
U
U
U
U
U
U
U
U
M
M
M
M
M
M
M
M
M
M
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
L
L
L
L
L
L
L
E
E
E
E
E
E
E
E
E
E
D
D
D
D
D
D
R
R
YIN
G

10
TUMBLE DRYING
Select the program time by pressing the + and - buttons.
A program time between 30 minutes and 3 hours can be
selected and each button press changes the time by 15
minutes.
NOTE!
When using the Timed dry program with a program
time that is too long, the garments can become “over-
dry”. This can cause items to shrink or crease and
feel rough to the touch. Synthetic materials can also
become charged with static electricity.
Revitalise
Use the Air fluffprogram when you just want to refresh,
air or soften up items. Select the program time by
pressing the + and - buttons. A program time between
15 minutes and 3 hours can be selected and each button
press changes the time by 15 minutes.
SELECTING OPTIONS
By selecting options, you can tailor a drying programme
to suit your requirements. The available options depend
on the selected programme. Once you have started the
programme, the options you selected are saved for the
next time you use the same programme. The exception
is option Delayed Start, which is not saved for the next
time.
Energy save
You can choose Energy save with all programmes
except in the Revitalise programme and Timed dry.
• Select Energy save by pressing the button under the
symbol.
• The symbol lights when the option Energy save is
selected.
Audible Volume
You can choose to have the machine notify you when a
programme is finished or if an error has occurred.
• Select Audible Volume by pressing the button under
the symbol.
• The symbol lights when Audible Volume is selected.
Time saver
You can select Time saver with all programmes except
Revitalise. The programme is shortened by about 12
minutes.
• Press the button under the symbol.
• The symbol lights when Time saver is selected.
Anti crease
This option means that the drum will rotate for three
seconds per minute for two hours after the drying
programme has finished. This option prevents items
from remaining in the same position and becoming
creased if you are unable to remove them immediately
after tumble-drying has finished. Cannot be selected
with the Revitalise programme. If the Audible Volume
option has also been activated, an audible signal will
sound each time the drum rotates as a reminder that the
drying programme has finished.
• Select Anti crease by pressing the button under the
symbol.
• The symbol lights when Anti crease is selected.
T
T
T
T
T
T
T
T
T
T
T
T
U
U
U
U
U
U
U
U
U
U
U
U
U
U
M
M
M
M
M
M
M
M
M
M
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
L
L
L
L
L
L
L
E
E
E
E
E
E
E
E
E
E
D
D
D
D
D
D
R
R
YIN
G

11
Delayed Start
First select which programme you want to use and
then select Delayed Start by pressing the + button. The
display shows Delayed Start in whole hours. Press the +
/ - button to select a delayed start of 1 to 24 hours. The
symbol for Delayed Start lights next to the number of
hours. Press the Start button and the machine counts
down 1 hour at a time and starts after the selected delay.
This option cannot be used with Timed dry or Revitalise.
PRESS THE START BUTTON
An estimate of the remaining drying time will be shown
on the display a few minutes after the drying programme
starts. For example, 1:35 means that it will take
approximately 1 hour and 35 minutes for the load to dry.
If the option.Anti crease has been selected, the drum will
rotate for three seconds per minute for two hours after
the programme is finished. The actual remaining time
may be longer than the estimated time shown on the
display. The remaining time is then shown as 0:15 until
the load is sufficiently dry. If you selected Time Saver the
display will show 0:05 instead. You can stop the tumble
dryer by pressing the Stop button for three seconds or
by opening the door. In both cases the programme is
stopped and starts from the beginning if restarted.
NOTE!
The programme will not be affected if you change the
programme selector after the programme has started.
DRYING PROGRAMME FINISHED
The text Done appears on the display when the
programme is finished. If the Anti crease option has
been selected, the drum will rotate for three seconds per
minute for two hours after the programme is finished.
The compressor’s cooling fan continues to run after the
program finishes, but stops automatically or when any
button/knob is activated.
Backlighting
Two minutes after the drying programme finishes the
backlighting on the display and options buttons enters
energy saving mode. Turn the programme selector if you
want to activate the machine.
Condensed water
The condensed water container must be emptied after
each load. Remove the condensed water container,
empty out the water and replace the container. If the
condensed water container becomes full to overflowing,
the program is interrupted and Over Flow appears on the
display. Empty the container and press the Start button
to start a new program.
TIP!
The condensed water is decalcified and can be used
in steam irons. Pour it through a coffee filter.
NOTE!
• Clean the lint filter in the outer door after each load.
See the Care and cleaning chapter.
• Clean the steamer and the steamer filter at the
intervals shown on the machine’s display or more
often.
• Empty the condensed water container after each
load.
WARNING!
If the lint filter becomes clogged, the machine’s
automatic overheating cut-out may be triggered.
Clean the filter, wait until the machine has cooled then
try starting it. If it still does not start: call the service
division.
Once drying has finished
Turn offthe main power switch. Remove the clothes and
close the door to prevent small children from climbing
into the machine.
TUMBLE DRYING
T
T
T
T
T
T
T
T
T
T
T
T
U
U
U
U
U
U
U
U
U
U
U
U
U
U
M
M
M
M
M
M
M
M
M
M
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
L
L
L
L
L
L
L
E
E
E
E
E
E
E
E
E
E
D
D
D
D
D
D
R
R
YIN
G

12
TUMBLE DRYING
PROGRAMME CHART
Here we present the energy and time consumption of a few different programmes. The table shows the effect of using
different spin speeds when washing the load. Consumption can vary depending on room temperature, humidity, load,
variations in the power supply and selected options.
For the consumption values given below, the requirements are as follows:
Temperature of intake air: 23 °C
Moisture content of intake air: 55%
Dryingtemperature: Normal
Programme Material Load Spin speed (rpm) Energy
consumption,
approx. (kWh)
Programme time,
approx. (min)
Auto extra dry Cotton, linen 1/1 800 2,30 225
1000 2,00 205
1400 1,88 190
1600 1,80 180
Auto dry Cotton, linen 1/1 800 2,20 225
1000 1,90 195
1400 1,77 175
1600 1,70 170
Auto normal dry Cotton, linen 1/1 800 2,10 215
1000 1,80 185
1400 1,65 165
1600 1,60 160
Crease-resistant,
polyester/cotton
1/2 1000 1,00 120
Auto iron dry Cotton, linen 1/1 800 1,80 185
1000 1,55 160
1400 1,40 150
1600 1,35 140
T
T
T
T
T
T
T
T
T
T
T
T
U
U
U
U
U
U
U
U
U
U
U
U
U
U
M
M
M
M
M
M
M
M
M
M
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
L
L
L
L
L
L
L
E
E
E
E
E
E
E
E
E
E
D
D
D
D
D
D
R
R
YIN
G

13
SETTINGS
YOU CAN CARRY OUT THE FOLLOWING
SETTINGS
• Language
• Child-safe
You will be prompted to select the display language
when you have connected your machine and start it for
the first time.
LANGUAGE
Do as follows:
1. Turn offthe machine using the main power switch.
2. Press and hold the Start button and then press the
main power switch.
3. Turn the programme selector and choose from: US
English, EU English, Svenska, Dansk, Norsk, Suomi,
Français, Deutsch, Italiano, Espanol, Русский,
Nederlands.
4. Press the Start button to save.
CHILD-SAFE
Activating/deactivating Child-safe start
1. Turn offthe machine using the main power switch.
2. Press and hold the “+” button and the option “Energy
save” and then turn on the main power switch.
3. Turn the programme selector and choose ”Child-safe
On” or ”Child-safe Off”.
4. Press the Start button to save.
You can temporarily deactivate Child-safe start for three
minutes by pressing the option “Energy save” and “-”
button at the same time.
S
S
S
S
S
S
S
E
E
E
E
E
E
E
E
E
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
I
I
I
I
I
I
I
I
I
N
N
N
N
N
N
N
G
G
G
G
S
S
S
S
S

14
CARE AND CLEANING
CLEANING THE LINT FILTER
The lint filter must be cleaned after each load.
1. Lift the filter from the holder in the door.
2. Lift the filter from the holder in the door. Open the
lint filter. Use your thumb to press on the edge as
illustrated and pull it out.
3. Use your hand or a soft cloth to remove the lint
from all sides of the filter. If necessary, use a damp
sponge and a small amount of washing-up liquid to
remove any deposits. Dry the filter thoroughly with a
towel.
NOTE!
Clean the surface of the lint (fluf) filter after each
drying program.
4. Close the lint filter and put it back in the door.Close
the lint filter before closing the door.
EMPTYING THE CONDENSED WATER
CONTAINER
If you have not connected the machine to a separate
drain the condensed water container must be emptied
after each load. Remove the condensed water container,
empty out the water and replace the container.
If the condensed water container becomes full to overfl
owing, the program is interrupted and “Over Flow”
appears on the display. Empty the container and press
the Start button to restart the program.
For connection to a separate drain, see the installation
instructions in the set of documents.
NOTE!
The dryer must not be used without the condenser unit
in place.
CC
C
C
C
C
C
C
C
C
C
AA
A
A
A
A
A
A
A
A
RRR
R
R
R
R
R
R
EEE
E
E
E
E
E
E
E
A
A
A
A
A
N
N
N
N
N
N
N
N
N
DD
D
D
D
D
D
D
D
D
D
D
C
LEANIN
G

15
CARE AND CLEANING
CLEANING THE EVAPORATOR FILTER
AND EVAPORATOR
Clean the evaporator and the evaporator filter at the
intervals shown on the machine’s display or more often.
1. Turn offthe Main power switch and open the outer
door.
2. Remove the plinth.
3. Open the heat pump door.
4. Pull out the filter by lightly pressing the filter support
downwards.
5. Remove the sponge filter (B) from the filter support
(A). Clean it with a vacuum cleaner and wash it under
running water.
A
B
RECOMMENDATION!
Wash the sponge filter in the washing machine after 30
drying cycles (use the rinse or quick wash program).
6. Clean the heat pump ribs by spraying water on them
(use a plant sprayer). The water will carry away the
lint and the condensate pump will drain the lint and
water mixture.
7. Replace the clean sponge filter into the filter support.
To replace the support, first insert the bottom edge of
the support under an angle, and then lightly press it
towards the heat pump ribs to align it. Close the heat
pump door.
NOTE!
Do not touch the heat pump ribs. They are very thin
an easily damaged. If the ribs are bent or damaged,
the efficiency of the condenser unit will deteriorate
considerably, which in turn leads to poorer drying
results.
CC
C
C
C
C
C
C
C
C
C
AA
A
A
A
A
A
A
A
A
RRR
R
R
R
R
R
R
EEE
E
E
E
E
E
E
E
A
A
A
A
A
A
N
N
N
N
N
N
N
N
N
DD
D
D
D
D
D
D
D
D
D
D
C
LEANIN
G

16
CARE AND CLEANING

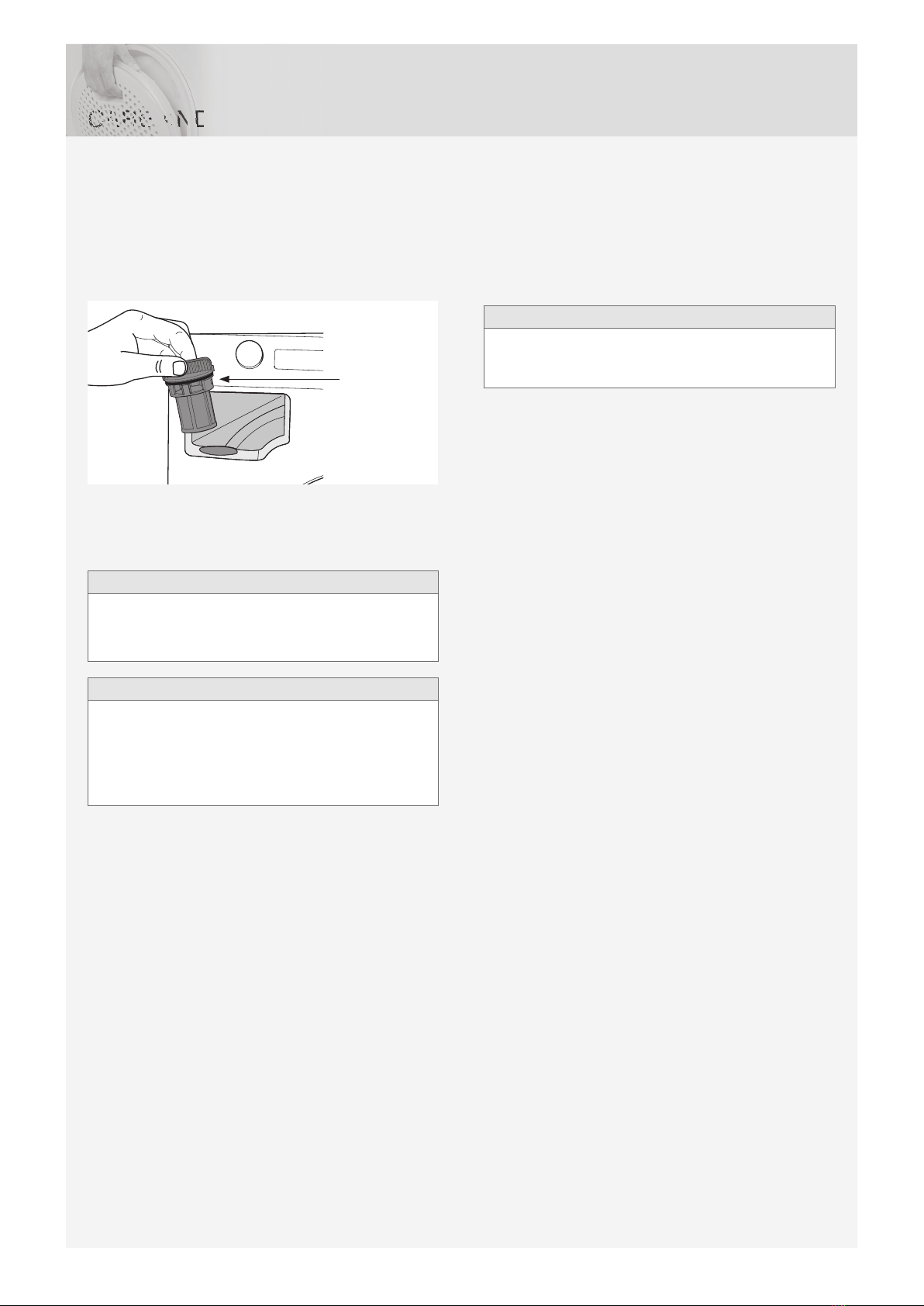

CLEANING THE AUTO FILTER
Clean the filter at the intervals shown on the machine’s
display or more often
1. Pull the condensed water container out and up.
2. Unscrew and remove the auto filter.
Sealing
3. Rinse the auto filter clean with water.
4. Screw the autofilter back into place. Check that the
seal is properly seated.
NOTE!
Clean the filters after each drying.
Do not replace the filters if they are damp or wet.
Damp or wet filters could cause operational faults.
NOTE!
The dryer should never be operated without the filters
in place,
or with damaged filters as excessive amount of
accumulated fibres from the fabric could cause
malfunction or failure of the dryer.
CC
C
C
C
C
C
C
C
C
C
AA
A
A
A
A
A
A
A
A
RRR
R
R
R
R
R
R
EEE
E
E
E
E
E
E
E
A
A
A
A
A
A
N
N
N
N
N
N
N
N
N
DD
D
D
D
D
D
D
D
D
D
D
C
LEANIN
G
CLEANING THE OUTSIDE OF THE
MACHINE
Clean the outside of the machine and the programme
panel with a mild cleaner. Do not use solvents, as these
can damage the machine. Do not hose down or spray
the machine with water.
NOTE!
Do not allow dust to accumulate around the machine.
Keep the area around the tumble dryer clean and cool;
dust, heat and moisture prolong drying times.

17
TROUBLESHOOTING
NOTE!
When starting the tumble dryer for the first time or
after a long period without use, you may notice a slight
thumping noise. This noise is completely normal and
will disappear after a few loads.
THE MACHINE WILL NOT START
Check:
• that the door is properly closed.
• that the main power switch is on.
• that the Delayed Start option has not been selected.
To cancel Delayed Start, press the Stop button for
three seconds.
• that the plug is connected.
• that the main fuses have not blown.
THE MACHINE LOSES ALL POWER
DURING A PROGRAM
Contact the service division.
THE MACHINE LEAKS WATER
Check that the autofilter and its seal are installed
correctly and not faulty.
DRYING TAKES TOO LONG
• Check that the lint filter is not clogged (see the Care
and cleaning chapter).
• Empty the condensed water container. Clean the
evaporator filter (net filter + foam filter), evaporator, lint
filter and autofilter, see chapter Care and cleaning.
ERROR MESSAGES
• If Over Flow appears on the display, the condensed
water container is full or the evaporator filter is
blocked. Empty the container, clean the filter and
restart the machine. See the Care and cleaning
chapter.
• Read Drying takes too long in this chapter if Max
program time appears on the display.
• If Clean Lint Filter appears on the display, clean the
lint filter.
• If Clean condenser appears on the display, clean the
evaporator. See the Care and cleaning chapter.
• If Clean auto filter appears on the display, clean the
auto filter. See the Care and cleaning chapter.
• Call the service division if Thermistor fault appears on
the display.
• Press the Stop button to close any error messages.
TT
T
T
T
T
T
T
T
T
T
T
R
R
RR
R
R
R
R
R
R
O
O
O
O
O
O
O
O
O
UU
B
B
B
B
B
B
B
L
L
L
L
L
L
L
L
L
L
L
L
L
E
E
E
E
E
E
E
E
E
E
E
E
E
S
S
S
H
H
O
O
TIN
G

18
TECHNICAL INFORMATION
TECHNICAL DATA
Height: 850 mm
Width: 595 mm
Depth: 745 mm
Weight (net): 61 kg
Cylinder volume: 145 l
Max. drying capacity: 10 kg
Speed: 50-55 rpm
Rated power: See type plate.
Drum material: Stainless steel
Outer casing material: Powder-coated and hot-galvanized sheet steel or stainless steel
Setup: Stacking or freestanding
STANDARD TESTS
Australia:
Drying performance: AS/NZS 2442.1:1996. Auto normal dry, 10 kg cotton, temperature Normal, Time saver.
Energy declaration: AS/NZS 2442.2:2000. Auto normal dry, 10 kg cotton, temperature Normal, Time saver.
Test method for noise
measurement:
IEC 60 704-2-6.
TT
T
T
EE
CC
HH
N
N
N
N
N
N
N
N
N
I
I
I
I
I
I
C
C
C
C
A
A
A
A
A
A
L
L
I
I
NF
O
RM
A

19
SERVICE
BEFORE CONTACTING THE SERVICE
DIVISION
See the Troubleshooting and Care and cleaning
chapters to see whether you can rectify the problem. If
you need to contact the service division, make sure that
you know the model designation, type designation and
serial number.The model designation (1) can be found
on the first page of the operating instructions and on
the machine panel. The type designation (2) and serial
number (3) can be found on the type plate, which is
found on the front of the tumble dryer inside the outer
door.
NOTE!
Repair or any warranty claim resulting from incorrect
connection or use of the dryer shall not be covered by
the warranty. In such cases, the costs of repair shall be
charged to the user.
1
TYPE
3
2
S
S
S
S
S
S
E
EE
E
R
R
R
R
R
R
R
R
R
R
R
R
R
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
I
I
I
I
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
E
E
E
E
E
E
E
E
E
E
E
E
E
E

20
WARNING!
Do not start the machine until it has been in position for
24 hours. If for some reason the tumble dryer needs to
be laid down for transport or service, it must be laid on
its left side viewed from the front.
POSITIONING THE TUMBLE DRYER
The tumble dryer can be free-standing or in a stack.
Remember that the tumble dryer produces heat and
should therefore not be located in a room that is too
small. If the room is very small, drying will take longer
due to the limited quantity of air.
NOTE!
• Do not install the machine in a room where there
is a risk of frost occurring. At temperatures around
freezing point the machine may not be able to
operate properly.
• The room in which the appliance is installed should
be adequately ventilated, with temperature between
15°C and 25°C.
WARNING!
• Any electrical installation must be carried out by
qualified professionals.
• The machine must not be installed behind a
lockable door, a sliding door or a door with hinges
on the opposite side to those of the tumble dryer.
• The tumble dryer’s plinth ventilation must not be
blocked by a rug or the like.
NOTE!
To improve ventilation, leave the door to the room
where the tumble dryer is located open.
Freestanding
The tumble dryer can be positioned beside the washing
machine.
If the customer has a problem with the machine sliding
when on a low-friction floor, the plastic cups can be used
under the feet of the tumble dryer (between foot and
floor).
Stacking
The tumble dryer can be placed on top of a ASKO
washing machine. In this case you use the stacking
attachments (foot cups and anti-tilt devices) that come
with the machine. Two rubber feet and two anti-tipping
brackets are supplied in the bag found in the drum of the
dryer.
INSTALLATION
How to assemble the stack:
1. Undo the screw on the back of the ASKO washing
machine as shown in the figure.
2. Secure the anti-tilt device using the screws as shown
in the picture.
3. Take the other anti-tipping bracket from the bag and
attach it on the dryer with two screws as shown in the
figure.
4. Place the two rubber feet on the front feet of the
dryer.
I
I
N
N
S
S
S
S
T
T
T
T
T
T
T
T
T
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
L
L
L
L
LL
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
A
A
A
A
A
A
A
A
A
A
TI
O
O
N
