INSTRUCTIONS FOR USE
TD75.23XX
Carefully read the instructions for use before using the dryer.
Tumble dryer
T608HX.UK

2
Safety precautions 3
Dryer description 7
Before using the appliance for the first time 8
Installation and connection 10
Advices before drying 20
Drying process, step by step (1 – 7) 22
Settings 31
Cleaning and maintenance 34
Errors – what to do? 42
Servicing 46
Technical information 47
Program table 49
Disposal 51
Quick guide 55
The following symbols are used throughout the manual and they have the following meanings:
Information, advice, tip, or recommendation Warning – danger of hot surface
Warning – general danger Warning – danger of fire
Warning – danger of electric shock
Original instructions See Quick guide on the last page.
Dear Customer,
We thank you for purchasing this quality ASKO product.
We hope it meets all your expectations. Scandinavian design combines pure lines, everyday functionality,
and high quality. These are the key characteristics of all our products, and the reason why they are highly
appreciated across the globe.
We kindly recommend you to read these instructions before using the appliance for the first time. The
instruction manual also includes information on how you can help protect the environment.
TABLE OF CONTENTS

3
GENERAL
Please read the instruction manual and save it for future reference.
• Please do not use the tumble dryer if you have not read and
understood these instructions or use first.
• Failure to observe the instructions for use or inappropriate use of the tumble
dryer may result in damage to the laundry or appliance, or injury to the user.
• Instructions for use are available on our website at www.asko.com.
• Your dryer is intended solely for household use.
• Before connecting the dryer to the power mains, please read carefully the
instructions for use that describe the dryer and its correct and safe use. The
instructions apply to several appliance types or models; thus, settings or
equipment may be described herein which is not available in your dryer.
• Leave any repairs and similar tasks on the dryer to an expert. Unprofessional
repair may result in an accident or major malfunction.
• After installation, the dryer should stand still for two hours before it is
connected to the power mains.
• At least two persons are required to install the tumble dryer on top of a
washing machine.
• The dryer shall not be connected to the power mains using an extension cord.
• Do not connect the tumble dryer to an electrical outlet intended for an
electric shaver or hair dryer.
• If the power cord is damaged, it has to be replaced by the manufacturer,
an authorized service technician, or a similarly qualified person, in order to
avoid any hazards.
• The appliance shall not be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly switched on and off
by a utility.
• After the drying process, unplug the dryer power cord from the power
outlet.
• In case of incorrect appliance connection, incorrect use, or servicing by an
unauthorized person, the user shall bear the cost of any damage.
• Air in the dryer environment should not contain dust particles.
The air where the dryer is installed should be thoroughly ventilated to prevent
reverse flow of gases released from the gas appliances with open fire (e.g.
fireplaces).
• Do not evacuate the air from the dryer through channels used for appliances
or devices that use natural gas or other fuels for their operation (only applies
to the evacuation dryer).
SAFETY PRECAUTIONS

4
• Do not dry unwashed laundry in the dryer.
• Laundry stained with oil, acetone, alcohol, oil derivatives, stain removers,
turpentine, wax, and wax removers should be washed in a washing machine
with hot water and detergent before it is dried in the dryer.
• Clothing that includes latex, rubber parts, shower and bathing caps, and
laundry or covers with rubber foam shall not be dried in the dryer.
• Use laundry conditioners or similar products in compliance with
manufacturer's instructions.
• Do not place the dryer behind lockable or sliding door, or door with a hinge
on the opposite side of the dryer door hinge. Install the dryer in such way that
the door can always be freely opened.
• Never block the air vents.
• Do not place the dryer on a carpet with long fibres as this may impede air
circulation.
• The air in the room where the dryer is installed may not contain dust
particles.
• Make sure the fibres do not accumulate around the dryer.
• Remove all objects such as lighters and matches from the pockets.
• After installation, wait for 24 hours before using the appliance. If the dryer
has to be laid down on one of the sides during transport or servicing, place it
with its left side, viewing from the appliance front, downwards (only applies to
dryers with a heat pump).
• The appliance shall not be in contact with a wall or adjacent furniture.
• If the dryer is connected to an air exhaust system already used for another
appliance, a non-return valve must be installed. Reverse flow into the dryer
could damage the appliance, and the non-return valve prevents such reverse
flow (only applies to the evacuation dryer).
• A float will switch offthe appliance if the condensed water pipe is clogged
or if there is a risk of overflowing of the condensed water accumulated in the
condensed water tank (only applies to the evacuation dryer).
• If you wish to move the dryer or store it in a non-heated room during winter, it
is essential that you first empty the condensed water tank (only applies to the
condenser dryers and dryers with a heat pump).
• Maximum drying capacity in kg (for the Cotton program) is indicated on the
rating plate.

5
SAFETY
• Only use the dryer to dry laundry that was washed with water. Do not
dry any laundry that was washed or cleaned with flammable cleaners or
substances (such as gasoline, trichloroethylene etc.) as this may result in an
explosion.
• If you have cleaned your clothes with industrial cleaners or chemical
substances, do not dry them in the dryer.
• If the air exhaust hose is connected to an opening in the wall, influx of
cool air may be prevented by installing a ventilation grille. (Only applies to
evacuation dryer.) .
• The air exhaust hose shall not be connected to an active chimney used to
evacuate smoke or waste gases; into a shaft intended for ventilating rooms
with combustion equipment; or into a chimney used by third parties. If smoke
or waste gases return to the room where the dryer is installed, there is a
danger of poisoning (only applies to evacuation dryer).
• The dryer is protected with an automatic switch-offsystem in case of
overheating. The system switches offthe heater if the temperature is too high
(only applies to evacuation and condenser dryer).
• If the net filter is clogged, the automatic heater switch-offdevice can be
triggered. See chapter "CLEANING AND MAINTENANCE" (only applies to
evacuation and condenser dryer).
• WARNING! The back of the dryer may get very hot during
operation. Wait for the dryer to cool down completely before
touching its back side. (Observe the instructions in the chapter
"INSTALLATION AND CONNECTION")
• Never stop a drying cycle or do not open the door before the end of the
program. If you do so for any reason, be careful when taking the laundry from
the drum as it can still be very hot and there is a risk of burning.
Quickly remove the laundry from the drum and spread it to allow it to cool
down as quickly as possible.
CHILD SAFETY
• Do not allow the children to play with the dryer.
• Prevent your children and pets to enter the dryer drum.
• Before closing the dryer door and running the program, make sure there is
nothing except laundry in the drum (e.g. if a child climbed into the dryer drum
and closed the door from the inside).
• Activate the child lock.
See chapter "SETTINGS", section Child Lock.

6
• Do not let children younger than three years to come near the dryer,
unless they are under constant supervision.
• The dryer is made in compliance with all relevant safety standards. This
dryer may be used by children aged 8 years and above and by persons with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge, but only if they are supervised during the use of the appliance,
if they have been provided relevant instructions regarding safe use of the
dryer, and if they understand the hazards of inappropriate use. Make sure
children do not play with the appliance. Make sure the children do not clean
the dryer or perform any maintenance tasks without supervision.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!

7
1. Main switch (ON/OFF)
2. Program selector knob
3. Display unit
4. Program selector buttons
5. Button (start/pause)
6. Rating plate with information about the dryer (on
the inside of the drying machine door)
7. QR and AUID code (on the inside of the drying
machine door)
8. Dryer door
9. Door net filter
10. Condensate tank (depending on the model)
11. Heat pump
12. Heat pump filter
13. Air vents
DRYER DESCRIPTION
9
110 62345 7
11 12 13
8

8
PACKAGING
Remove all packaging.
Please sort the materials in compliance with local recommendations (see chapter "DISPOSAL").

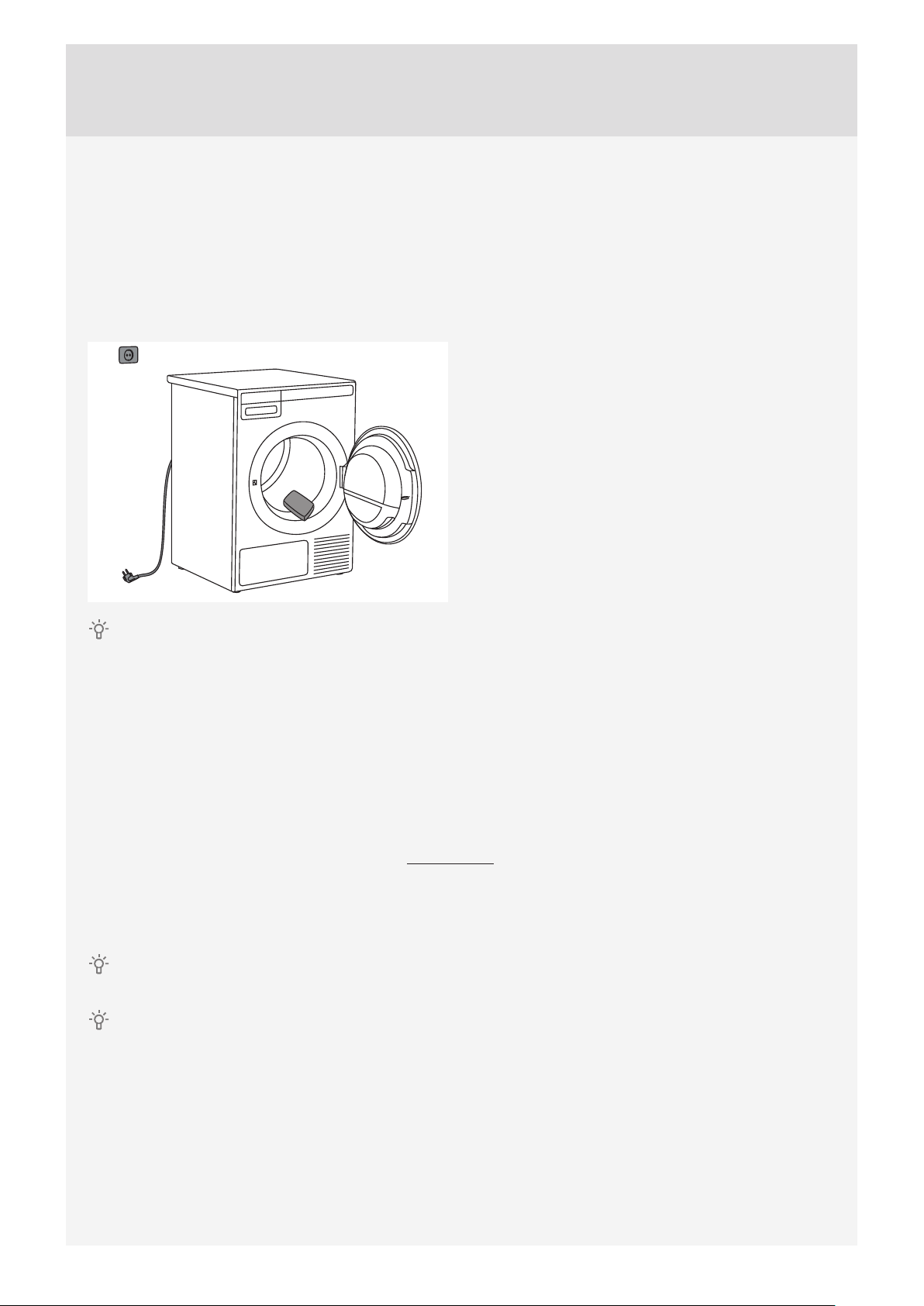

CLEANING
Disconnect the dryer from the power mains and open the door towards you. Before using the dryer for the first
time, clean the dryer drum using a soft damp cotton cloth and water.
No program can be started while the door is open.
CHOOSING THE LANGUAGE
When the dryer is connected (see chapter "INSTALLATION AND CONNECTION") and switched on for the
first time, choose the preferred language:
1. Use the program selector knob or buttons to scroll the list of languages.
2. Confirm the selection by pressing the "Set" button.
For further drying process, see chapter "DRYING PROCESS, STEP BY STEP (1–7)".
STEAM PROGRAMS
If you select one of the steam programs as the first program to be run with your dryer, first add distilled water
to the steam generator tank (min.=0,3 l; max.=1,5 l); the dryer needs the distilled water to generate steam.
If the steam generator tank is empty, none of the steam programs will be available.
"LOW" will be indicated on the display (empty steam generator tank). As you use your dryer, the system will
be filled automatically with condensed water extracted during the drying process.
Only use distilled water. Use of regular tap water or any additives is forbidden. Limescale may damage
the heater. Such damage is not covered by the warranty.
Only add distilled water when the appliance is switched on and one of the steam programs is selected
(but before you start the program). Otherwise, the level sensor will not operate and water may overflow to the
dryer interior.
BEFORE USING THE APPLIANCE FOR THE FIRST TIME

9

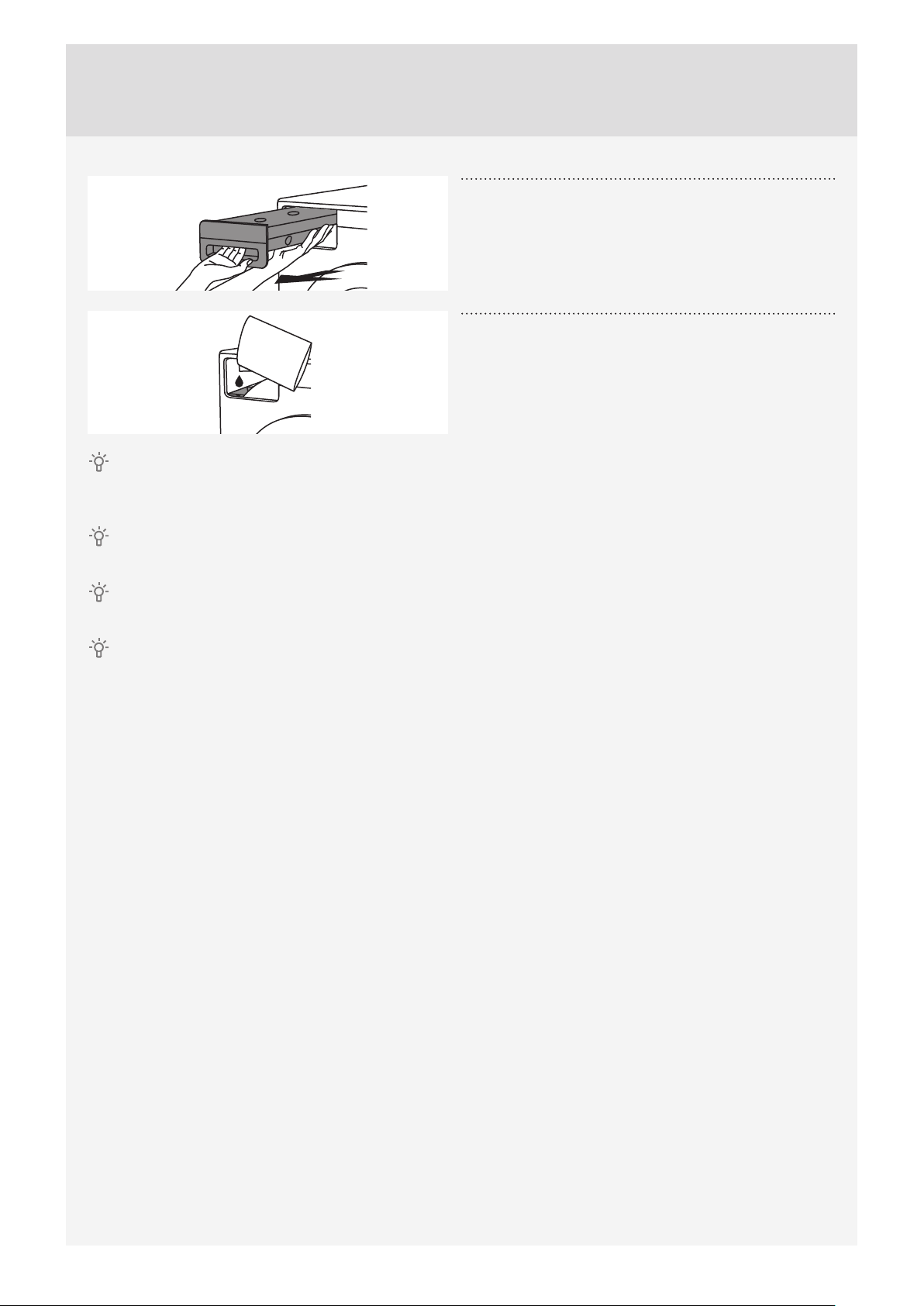

1Remove the condensate tank
2Slowly add distilled water to the steam generator tank filter.
By pouring the water slowly, you will prevent the water from flowing down the front wall of the appliance.
Steam generator tank is not visible as it is located in the dryer interior; only the steam generator tank filter is
visible.
When the steam generator tank is full, ”HIGH” will be displayed on the screen and an acoustic alarm will
be emitted.
If you decide to run the condensate drain hose into a drain, siphon, or washbasin, the steam program will
run normally, without manual adding distilled water into dryer.
When you run the dryer for the first time, or if the dryer has been out of use for a long time, slight hitting
noise may appear. This is normal and it will disappear after a few drying cycles.

10
INSTALLATION AND CONNECTION
After installation, wait for 24 hours without
moving the appliance before using it for the first time.

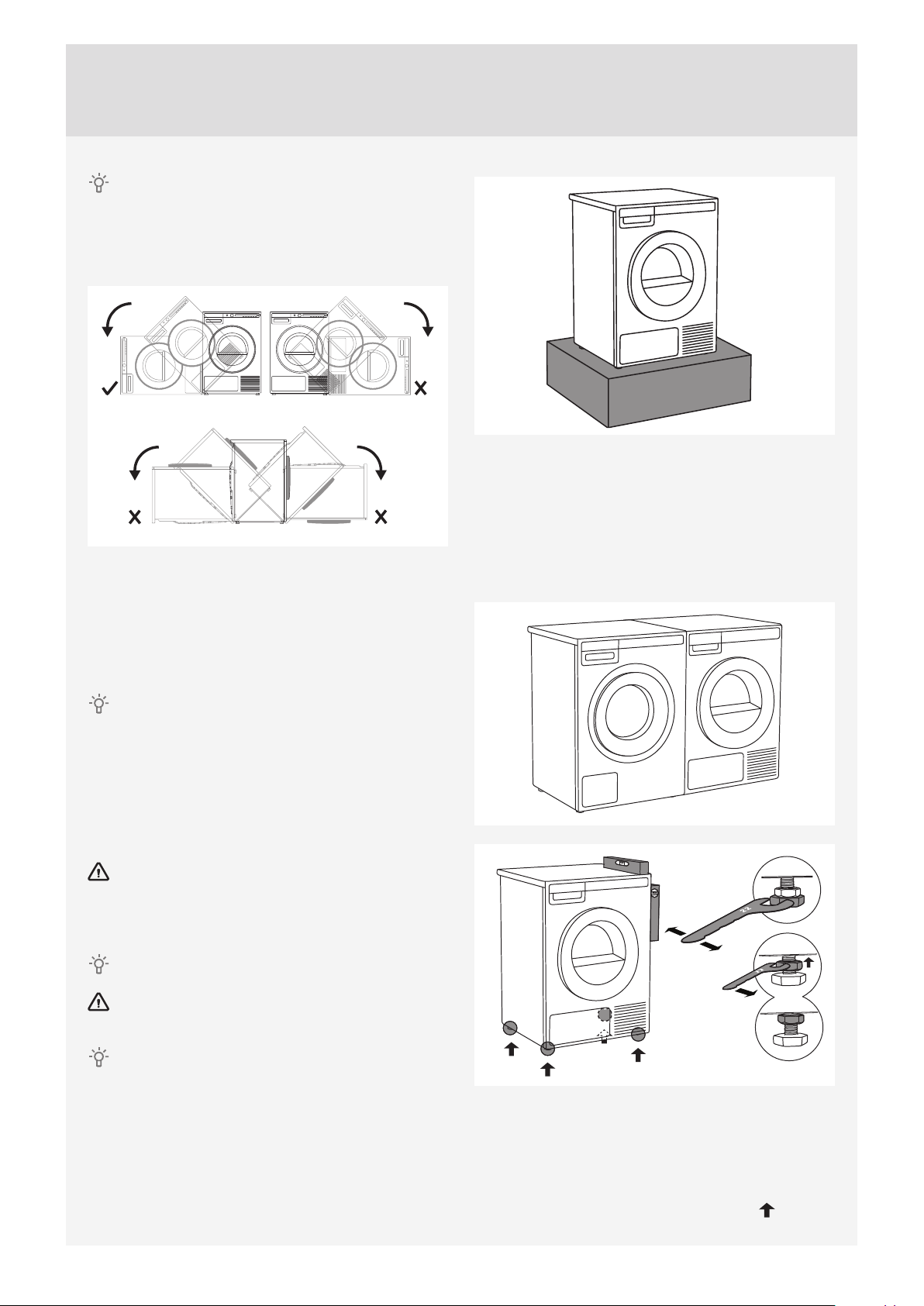

If the dryer has to be laid down on one of the sides
during transport or servicing, place it with its left
side, viewing from the appliance front, downwards.
90° 90°
90° 90°
DRYER PLACEMENT

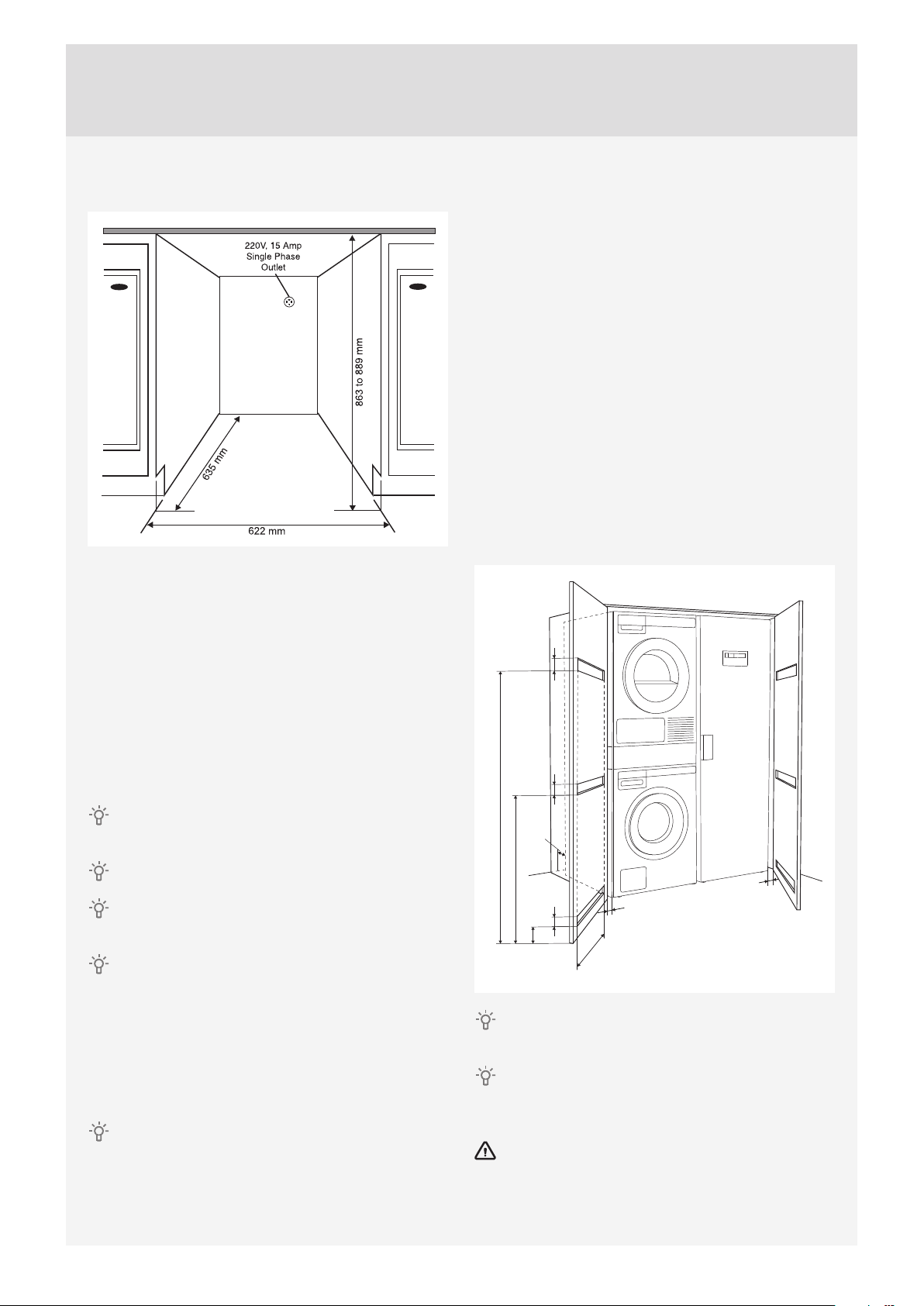

The dryer can be either free standing or installed on
top of a washing machine.
The dryer emits heat. Therefore, do not place it in
a very small room, as the drying process may be
longer due to limited amount of ambient air.
Do not place the dryer in a room where
temperature can drop below 0 °C, as the machine
may not operate correctly at such low temperatures,
or freeze, which in turn can result in damage to the
machine.
For optimum dryer operation, install it in a room with
adequate ventilation and a temperature between
10 °C and 25 °C.
Do not place the dryer behind lockable or sliding
door, or door with a hinge on the opposite side of the
dryer door hinge. Install the dryer in such way that
the door can always be freely opened.
Never block the air vents.
Do not place the dryer on a carpet with long
fibres as this may impede air circulation.
If the appliance is installed on a plinth or a
similar structure, then the appliance must be fixed to
it, to avoid the risk of falling.
ASKO original accessories are available for this
purpose, complete with fixing instructions.
Free-standing appliance
The dryer may be placed adjacent to a washing
machine.
If the friction between the dryer feet and the floor is
not sufficient, the dryer may move during operation.
To prevent sliding, use a non-slide mat or install the
supplied vacuum feet onto both front feet.
Place the dryer so that it is stable. Use a spirit
level to level the dryer in longitudinal and traverse
direction by rotating the adjustable feet using a No.
22 spanner (max. 15 mm). Then, firmly tighten the
jam nuts (counter nuts) by rotating them towards the
appliance bottom using a No. 17 spanner .

11
Clearance around the dryer for optimum
operation
50 mm
100 mm
100 mm
The appliance shall not be in contact with a wall
or adjacent furniture. For optimum dryer operation,
observe the clearance from the wall as shown in Fig.
Opening the dryer door (top view)
480 mm
1074 mm
176°
Stacking on top of a washing machine
To stack the dryer on top of a washing machine, use
the extra vacuum feet and the tipping guard (A+B),
supplied in the cardboard box in the dryer drum.
Tipping guard part B is designed to fit on ASKO
washing machines and it may be hard or impossible
to mount on appliances of other brands. If the
washing machine and dryer are not of matching
dimensions or if you have installed a hidden helper
between the two appliances, then binding plates
are available as optional accessories at the service
center (… available only for HH (acessory Hidden
Helpers) and TD75 stacked on top of WM80 or
WM85; not intended for any other combinations).
A
A
B
B
All ASKO washing machines can bear the weight of
the dryer.
Washing machine on which you wish to install
the dryer must be able to bear the weight of the dryer
(see washing machine’s rating plate or technical
information).
At least two persons are required to install the
tumble dryer on top of a washing machine.

12
How to stack a dryer onto the washing machine (ASKO):
There is a cardboard box in the dryer drum, containing the vacuum feet and the tipping guard.
A B
1The tipping guard consists of two metal parts (A + B).
Use two screws to attach the A part to the back of the
dryer.
2Undo the screw on the back side of the washing machine.
3Use the screw to attach the tipping guard (B part) to the back of the washing machine.
1
2
3
4Level the washing machine so that it is stable. 1. Level the washing machine in longitudinal and
traverse direction by rotating the adjustable feet
using a No. 32 spanner.
The feet allow levelling by +/- 1 cm.
2. After adjusting the height of the feet, firmly
tighten the jam nuts (counter nuts) using a
spanner No 17, by turning them towards the
bottom of the washing machine .
3. Tighten the jam nuts (counter nuts).
5 mm
1
2
5Set the dryer feet: 1. Tighten the front two feet all the way in.
2. Undo the back feet by 3.5 turns or 5 mm; then,
fasten the jam nuts towards the bottom of the
appliance .
13
A
B
2
6Place the dryer onto the washing machine: 1. Lift the front part of the dryer by 5 to 10 cm.
2. Attach the vacuum feet onto the front feet of the
dryer.
3. Push the dryer into the tipping guard (so that
the B part is inserted into the A part) and
release it (See figure on previous page).
Make sure the tipping guard is "locked"!

13

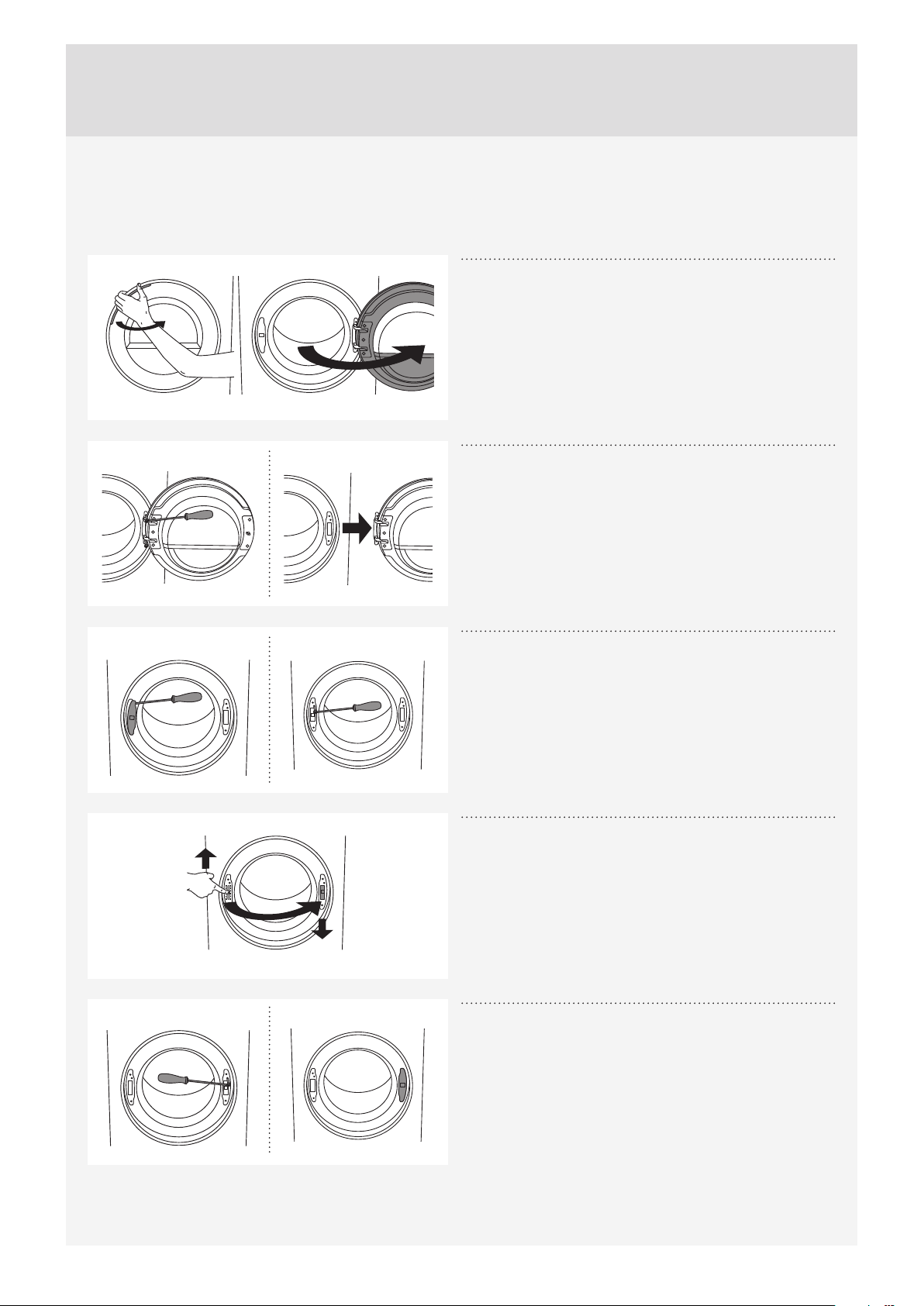

CHANGING THE DOOR OPENING DIRECTION
To change the direction of door opening, proceed as follows.
1Open the door fully.
2Undo the screws and remove the door.
3Use a screwdriver to remove the door lock cover and undo the screw on the door lock.
4Push the door lock upwards and remove it. Move it to the other side and push it downwards.
5Fasten the screw on the door lock. Replace the door lock cover.

14
6Undo the door hinge assembly (left) and the door latch assembly (right), switch their positions, and
replace the screws (door hinge assembly to the right-
hand side, door latch assembly to the left-hand side).
Use a screwdriver to remove the plastic part more
easily.
7Undo the door ring and remove it temporarily.
8Rotate the door glass cover by 90°so that the sign indicating the opening of the door is on the other
side.
9Rotate the door ring by 180°, install it onto the door, and fasten it with screws.
10 Replace the door on the door hinge and fasten the screws.

15
BUILT-IN
ASKO dryers can be installed beneath a cabinet
or worktop with a minimum height of 864 mm.
There must be a gap of about 12 mm all around the
machine and a minimum gap of 25 mm between the
rear edge of the machine top panel and the back
wall. The opening width must be at least 622 mm.
The condensing models work best when they have
good air circulation.
Install the dryer so the condensed water will
continuously flow into a drain or sink, you will need
a drain outlet behind the unit. The maximum drain
height is 1016 mm.
The height adjustment for the dryer is 850 mm to
876 mm. Do not raise it higher than 876 mm.
It is very important to avoid a buildup of heat.
The warm air which is expelled from the rear of
the dryer must be able to dissipate.
Warm air which cannot dissipate could cause a
fault.
A buildup of heat could be avoided by:
• Creating a gap for the dryer in the kitchen
furniture plinth facing.
• Creating ventilation gaps in the kitchen unit.
When build under, drying times may be longer.
The dryer should not be installed next to a
refrigeration appliance. The warm air expelled from
the rear of the dryer would increase the temperature
around the refrigeration appliance heat exchanger
causing the compressor to run continuously. If it is
not possible to install the dryer anywhere else, then
the refrigeration appliance must be sealed offfrom
the dryer.
Ventilation Requirements of ASKO laundry
concept or closet installation
ASKO's front panel controls make it possible to
install the washers and dryers in a cabinet or closet.
Make sure there is clearance between appliances
and cabinet or wall and 25 mm minimum clearance
between the rear edge of the appliance top panel
and the cabinet or wall.
When closet or cabinet is closed by the door, we
recommend louvered doors, to ensure proper
ventilation.
Otherwise there must be ventilation openings on
the door. See illustration of dimension for ventilation
openings below:
'
12 mm
25 mm
65 mm
635 mm
1550 mm
35 mm 50 mm
12 mm
465 mm
65 mm
Ensure the dryer door can be opened without
hindrance after installation.
The cool air intake panel at the front of the dryer
must not be blocked or covered. Doing so could
cause a fault.
Disregarding of instructions influences on
appliance performance and may also result in failure
of the appliance.

16
DRAINING THE CONDENSATE
The moisture from the laundry is extracted in the condenser unit and accumulated in the condensate tank.
Condensate tank has to be emptied regularly (see chapter "CLEANING AND MAINTENANCE").
To simplified and avoid emptying and interruption of the drying cycle due to full condensate tank, run the
condensate discharge tube located at the back of the appliance directly into a drain (see chapter "SETTINGS/
Condensed water").
A1Remove the small short hose from the attachment
(A).
max 1000 mm
max 300 mm
max 300 mm
B
C
D
2Connect the supplied drain hose to the same attachment (A).
Run the condensate drain hose into a drain. Tie the
hose onto a tap (B) so that it cannot slip during use.
The drain hose can also be fed into the washbasin
siphon (C) or directly into the floor drain (D).
Then, the water is pumped directly into a washbasin, a
siphon, or a floor drain.
Do not pull the drain hose, and make sure it is not
under tension, clamped, or bent.
If you decide to run the condensate drain hose into a drain, siphon, or washbasin, make sure the hose is
securely fastened. This will prevent any water spillage that could result in unexpected damage.
Always use hoses that are supplied with the appliance.
If the dryer is connected to an air exhaust system already used for another appliance, a non-return valve
must be installed. Return flow into the dryer could damage the appliance and the non-return valve prevents
such flow.

17
CONNECTING TO THE POWER MAINS
After installation, the dryer should stand still for
two hours before it is connected to the power mains.
Connect the appliance to an earthed power outlet.
After installation, the wall outlet should be freely
accessible. The outlet should be fitted with an earth
contact (in compliance with the relevant regulations).
Connection upon delivery
TYPE: TDXX.XXXXX
Art.No.: XXXXXX/XX Ser.No.: XXXXXXXX
MODEL: XXXXXX.X
XXXX W
XXA
IPX4
X kg
XXX V ~
XX Hz Refrigerant: X XXXX Volume: XXXX
Information about your dryer is indicated on the
rating (type) plate.
Use the type A differential current protection switch.
The dryer shall not be connected to the power
mains using an extension cord.
Do not connect the tumble dryer to an electrical
outlet intended for an electric shaver or hair dryer.
Any repair and maintenance pertaining to safety
or performance should be done by trained experts.

18
ASKO LAUNDRY CARE - HIDDEN HELPERS*
Laundry care ironing board
The ironing board is a clever solution. It is always
handy when you need to iron your clothes, and it can
be easily, safely and invisibly stored away when not in
use.
It can be installed between your washer and dryer, or
on top of one of them.
Laundry care double
A wire basket and pull-out shelf. It can be used as an
additional surface for folding clothes, sorting socks
and for storage. The basket is useful for removing and
carrying laundry to the wardrobe or workbench for
ironing and folding.
It can be installed between your washer and dryer, or
on top of one of them.
Laundry care single
Pull-out shelf. It can be used as an additional surface
when folding clothes and sorting socks or for storage.
It also makes loading and unloading your laundry
much easier.
It can be installed between your washer and dryer.
Laundry care basket
A large pull-out basket that is easily accessible via a
push-pull door opening. Useful for removing laundry
and carrying it to the wardrobe or workbench for
ironing and folding.
It can be installed between your washer and dryer, or
on top of one of them.
Pedestal drawer with shelf
A useful storage drawer with a height of 30 cm. Ideal
for storing your detergent, softener, coat hangers,
pegs, user manuals and other useful items in the
laundry area. The drawer also comes with a shelf for
easy loading and unloading of your laundry.

19
Laundry care plinth
Thanks to the stainless steel plinth, your appliance
will be raised by 30 cm, which makes loading and
unloading of laundry easier.
*AVAILABILITY DEPENDING ON MARKET
DENOMINATION ART. No.
IRONING BOARD HI1153 White 576552
IRONING BOARD HI1153 Stainless steel 732756
IRONING BOARD HI1153 Titanium 576553
LAUNDRY CARE DOUBLE HDB1153 White 576554
LAUNDRY CARE DOUBLE HDB1153 Stainless steel 732757
LAUNDRY CARE DOUBLE HDB1153 Titanium 576555
LAUNDRY CARE SINGLE HSS1053 White 576730
LAUNDRY CARE SINGLE HSS1053 Titanium 576732
LAUNDRY CARE HB1153 White 576733
PEDESTAL DRAWER W. SHELF HPS5323 White (only 8 or 9 kg models) 576735
PEDESTAL DRAWER W. SHELF HPS5323 Stainless steel (only 8 or 9 kg models) 576737
STAINLESS STEEL PLINTH HPL530S FOR 8 AND 9 kg MODELS 441663
STAINLESS STEEL PLINTH HPL830S FOR 11 AND 12 kg MODELS 445501

20
This chapter includes several advices on how to
prepare the laundry from drying.
LAUNDRY SORTING
Sort the laundry according to:
• type,
• fabric thickness.
For the most even drying, make sure the laundry is
made of a similar material.
CLOTHING
1. Close the buttons, zips, and hook-and-loop
fasteners, so that they do not damage the fabric.
2. Turn the pockets inside out.
3. Place very sensitive clothes in a special-purpose
laundry washing bag.
(The special purpose laundry bag is available as
an optional accessory in general stores.)
Laundry to be dried in the dryer should be spun
at a minimum of 1000 rpm. Higher spinning speeds
will save energy and cut drying time.
If you decide to dry only one large item, we
recommend drying it separately from smaller items of
laundry.
ADVICES BEFORE DRYING

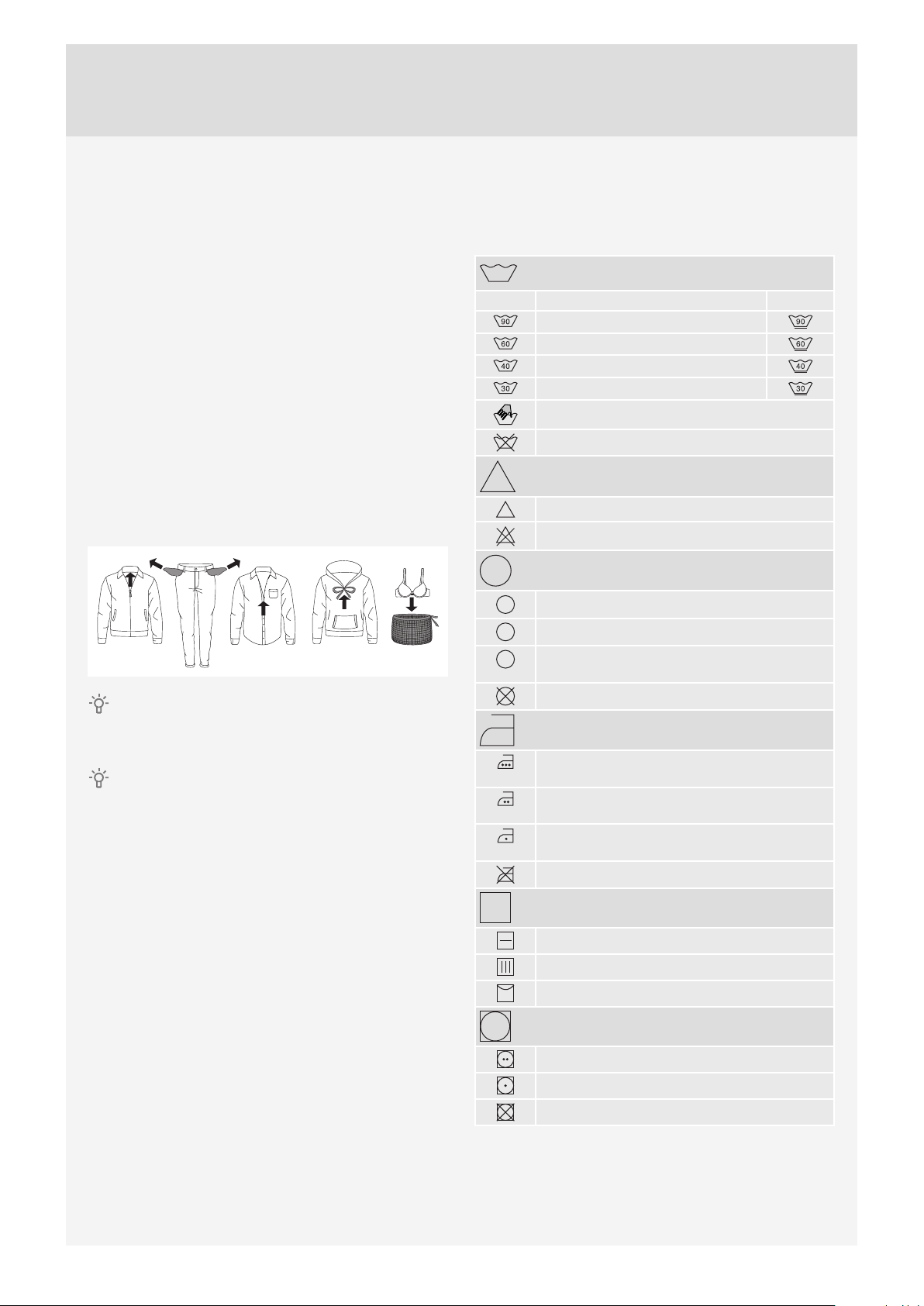

LAUNDRY SYMBOLS
Observe the laundry symbols.
Textile maintenance symbols:
Washing
Normal Delicate
Max. washing temperature 90 °C
Max. washing temperature 60 °C
Max. washing temperature 40 °C
Max. washing temperature 30 °C
Hand wash only
Do not wash
Bleaching
c1 Bleaching in cool water
Bleaching not allowed
Dry cleaning
ADry cleaning with all agents
PPerchloroethylene R11, R113, petroleum
FDry cleaning in kerosene, pure alcohol,
and R113
Dry cleaning not allowed
Ironing
Ironing with a hot iron with a maximum
temperature of 200 °C
Ironing with a hot iron with a maximum
temperature of 150°C
Ironing with a warm iron with a maximum
temperature of 110°C
Ironing not allowed
Natural drying
Drying on a flat surface
Drying without prior spinning
Drying on a clothes line or a hanger
Tumble drying
Drying at high temperatures
Drying at low temperatures
Tumble drying not allowed
