Asoka PL9571-WAP User manual



PlugLink 500 Wireless “N”Adapter
User’s Guide
PL9571-WAP
66-0377-01Rev.001

© 2012 Asoka USA Corporation
ALL RIGHTS RESERVED
Notice: No part of this publication may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopying and recording, or stored in a
database or retrieval system for any purpose without the express written permission of
Asoka USA Corporation.
Asoka USA Corporation reserves the right to make changes to this user’s guide at any time
without notice and assumes no responsibility for its use. Asoka USA products and services
can only be ordered under the terms and conditions of Asoka USA Corporation's applicable
agreements. All of the features described in this user’s guide may not be currently
available. Refer to the most recent product announcement for information about feature
and product availability.
This user’s guide contains the most current information available at the time of
publication. When new and/ or revised information becomes available, this entire user’s
guide is updated and distributed to all registered users.
Asoka, PlugLink, and the Asoka logo are registered trademarks or trademarks of Asoka USA
Corporation.
All company and product names mentioned herein are trademarks of their respective
companies. Mention of third-party products is for informational purposes only and
constitutes neither an endorsement nor a recommendation. Asoka USA Corporation
assumes no responsibility with regard to the performance or use of these products.
Revision Date Description
66-0377-01Rev.001 July 2012 draft

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE
SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND
RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED
WITHOUT WARRANTY OF ANY KIND, EXPRESSED OR IMPLIED. USERS MUST TAKE FULL
RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE
SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE
INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE
LICENSE OR LIMITED WARRANTY, CONTACT YOUR ASOKA REPRESENTATIVE FOR A COPY.
The following information is for FCC compliance of Class B devices: This equipment has
been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio-frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case users will be required to correct the interference at their
own expense.
Modifying the equipment without Asoka’s written authorization may result in the equipment
no longer complying with FCC requirements for Class B digital devices. In that event, your
right to use the equipment may be limited by FCC regulations, and you may be required to
correct any interference or radio or television communications at your own expense.
You can determine whether your equipment is causing interference by turning it off. If the
interference stops, it was probably caused by the Asoka equipment or one of its peripheral
devices. If the equipment causes interference to radio or television reception, try to correct
the interference by using one or more of the following measures:
Turn the television or radio antenna until the interference stops.
Move the equipment to one side or the other of the television or radio.
Move the equipment farther away from the television or radio.
Plug the equipment into an outlet that is on a different circuit from the television or
radio. (That is, make certain the equipment and the television or radio is on circuits
controlled by difference circuit breakers or fuses.)
Modifications to this product not authorized by Asoka could void the FCC approval and
negate your authority to operate the product.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE
OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH ALL FAULTS. ASOKA DISCLAIM ALL
WARRANTIES, EXPRESSED OR IMPLED, INCLUDING, WITHOUT LIMITATION, THOSE OR
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR
ARISING FROM A COURSE OF DEALING, USAGE OR TRADE PRACTICE.
IN THE EVENT SHALL ASOKA BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR
DAMAGE TO DATA ARISING OUT OF THE USE OF INABILITY TO USE THIS MANUAL, EVEN IF
ASOKA HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Contact Information
For more information about the PlugLink 500 Wireless “N” Adapter or any of
Asoka’s other leading-edge solutions, please contact us using any of the following
methods:
• Voice calls: [phone] - We welcome your calls Monday through Friday, from
9:00 am to 5:00 pm Pacific Time. Voice mail is available during non-business
hours.
• Email: If you prefer, you can send information requests to our e-mail address:
[email protected].
• Web site: Our Web site contains valuable information about our products,
solutions, and services. We encourage you to visit us at
http://www.asokatech.com.
Customer Service
Available from: Monday through Friday, from 9:00 am to 5:00 pm Pacific Time, by
calling [phone] or through email at [email protected].
Technical Support
Technicalsupport is availableMonday through Friday, from 8:00 am to 5:00 pm
Pacific Time, by calling [phone] or through email at
[email protected].
Please provide the following information about the problem:
• Product name and model.
• System configuration, including a description of the devices connected to your
PlugLink 500 Wireless “N” Adapter.
• The circumstances surrounding the error or failure.
• A detailed description of the problem and what has been done to try to solve it.

Page2of38
Table of Contents
Chapter1.............................................................................................................................................3
Introduction .................................................................................................................................3
Chapter2.............................................................................................................................................4
Important Safety Instruction....................................................................................................4
Chapter3.............................................................................................................................................5
Learning about PL9571.............................................................................................................5
Chapter4.............................................................................................................................................8
Preparing to Install.....................................................................................................................8
Chapter5.............................................................................................................................................9
Installing PL9571..........................................................................................................................9
Chapter6...........................................................................................................................................11
Logging on.................................................................................................................................11
Chapter7...........................................................................................................................................13
Basic Configuration.................................................................................................................13
Chapter8...........................................................................................................................................20
AdvancedConfiguration...............................................................................................................20
Chapter9...........................................................................................................................................33
TechnicalSupport.........................................................................................................................33
Chapter10.........................................................................................................................................34
TechnicalSpecification.................................................................................................................34
Chapter11.........................................................................................................................................33
FCCStatement...........................................................................................................................35
Chapter12.........................................................................................................................................34
WarrantyInformation................................................................................................................36


Page3of38
Chapter 1

Introduction
Thank you for purchasing a PlugLink 500 Wireless “N” Adapter from
Asoka. This adapter lets you extend an existing Powerline network
allowing you to set up an instant wireless hotspot simply by plugging
into a power outlet. With your PlugLink 500 Wireless “N” Adapter, you
can easily share your high-speed Internet broadband, mp3s, video
and gaming throughout the home or home office without pulling any
new cabling.
This unit will not interfere with other household appliances such as hair dryers,
vacuum cleaners or microwave ovens. Consuming only 7 watts of power, it
is environmentally friendly and will not noticeably increase your electrical bill.
It is a simple, secure and reliable choice for web surfing, playing games, and
complimenting your existing wireless network, mp3 streaming and even
video sharing.
This User’s Guide shows you how to connect your PlugLink 500 Wireless “N”
Adapter to your existing Powerline network. Setup is easy. Just follow the
instructions in this guide, your network will be up and running in a matter of
minutes.

Page4of38
Chapter 2

Important Safety Instruction
The following precautions should be taken when using this
product:
•Read all instructions before installing and operating this product.
•Do not open the cover or casing on this product and/or alter this
product in any way.
•Follow common household electrical safety
practices.
If you have any questions or concerns regarding these safety measures,
please contact Technical Support via email at [e-mail] or
via phone at 408-550-8173 Monday through Friday between 9:00 am and
5:00 pm PST (excluding holidays.

Page5of38
Chapter 3
Learning about PL9571
Package Contents
z PlugLink 500 Wireless “N” Adapter
(PL9571-WAP)
zQuick Installation
Guide
zInstallation Resource
CD
zWarranty and Support Information Card
zEthernet Cable
IF ANY OF THE PARTS ARE INCORRECT, MISSING, OR DAMAGED, CONTACT
THE RETAILER WHERE OU MADE YOUR PURCHASE. Keep the carton,
including the original packing materials, in case you need to return the
unit for repair.
The Front Pane l
The front panel of the PL9571-WAP Adapter contains the status lights
described below.
Figure 3-1: PL9571-WAP Front Panel
You can use the status lights to verify connections. Viewed from top to
bottom, left to right, the table describes the lights on the front panel of the
unit.
Table 3-1: Status Light Descriptions
Power On Indicates Device Powered On
Off Indicates No Power
PLC Activity Blinking.
The colors act as
throughput indicators.
Indicates Activity on Powerline.
Green means good throughput.
Orange means average
thro
ughput
Off Indicates No Activity on Powerline
(Should blink Intermittently)
Wireless Activity Blinking Indicates Activity on Wireless
Off Indicates No Activity on Wireless
ETH Link On Indicates Ethernet Connectivit
y
Blinkin
g
Indicates Ethernet Traffic Indicates
Off No Ethernet Activity

Page6of38
The Bottom Panel

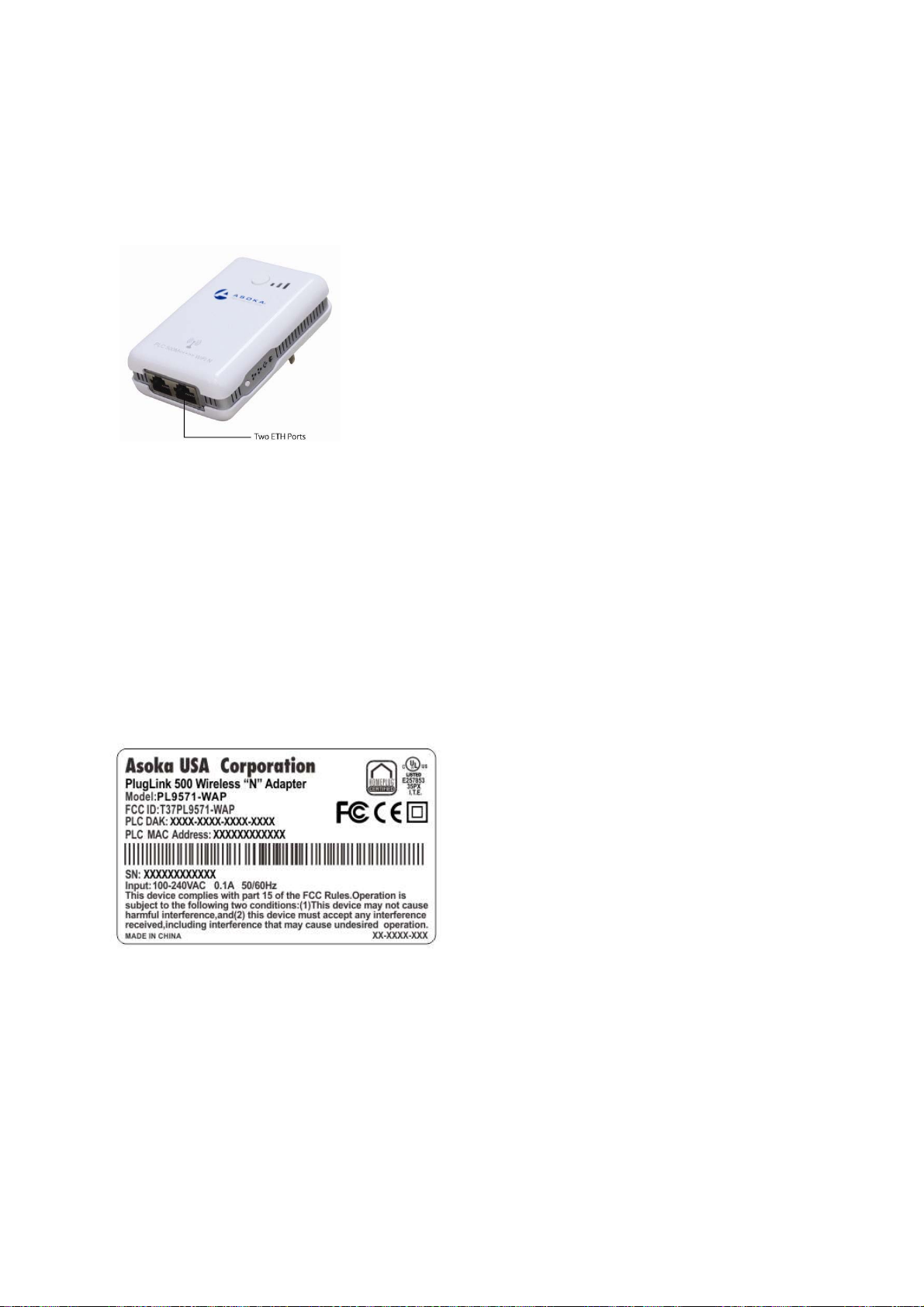

The bottom panel of the PL9571-WAP two (RJ-45) ports shown in figure 3-2.
zFigure 3-2: PL9571-WAP Bottom Panel
The Rear Panel
The label on the rear panel of the PL9571-WAP Adapter contains the items
listed below.
Model number
Unique device password
PLC MAC Address
Device MAC Address
Serial number
Note: For future convenience, please write this information down in your
Warranty and Support Information Card.
Figure 3-3: Rear Label
Buttons
The PlugLink 500 Wireless “N” Adapter device has three push buttons:
SW1 (Left) Button/ PowerlineSecurity - The NID button allows you to set a
randomized Network Encryption Key (NEK) by pressing it. You can then
have additional units use the same randomized NEK by pressing their
respective NID buttons.

Page7of38
SW2 (Front) Button / WPS Wireless and power- Key reuse, and the button
at different times, said two functions.
1. This button allows you to configure wireless security by simply pushing a
button. This requires software and a network adapter that supports
this feature.
2. This buttonallowsyou to configure wireless power.
SW3– Resets the PlugLinK9571 back to factory default settings. Press and
hold the button with a pin or sharp object for about 2 seconds until you
see the lights on the device flash briefly.

Page8of38
Chapter 4
Preparing to Install
The PlugLink 500 Wireless “N” Adapter lets you set up an instant wireless
Access Point using your existing electrical outlets. It can also easily
compliment your existing network by connecting to any device with a
10/100BaseT Ethernet-capable device.
To setup a PLC (PowerLine Communication) Network you will need
:
 One (1) PL9571-WAP device
 One (1) PL9660-Q1 device (sold
separately)
 Standard Cable/ DSL gateway (provided by your ISP)
Figure 4-1: Connecting PL9571-WAP with PL9661-ETH diagram

Page9of38
Chapter 5
Installing PL9571
Do not connect the PlugLink 500 Wireless “N” Adapter to a
power
strip, extension cord, uninterruptible power supply (UPS),
or surge
protector. This may prevent the unit from working
property or degrade the
network performance.
Plug the PlugLink 500 Wireless “N” Adapter into the wall outlet
vertically (right side up).
1. Use the Ethernet cable shipped with your PlugLink HD AV
Adapter
PL9660-Q1 (PL9660-Q1 not included; sold separately) to a LAN port on
your router.
2. Plug the PlugLink HD AV Adapter PL9660 (PL9660-Q1 not included) into a
nearby wall outlet.
Figure 5-1: Connecting the PL9661-ETH to a router.

Page10of38
3. Plug the PlugLink 500 Wireless “N” Adapter into a wall outlet near the
wireless computer that you want to connect.
Figure 5-2: Plugging the PL9571-WAP vertically into a wall outlet.
4. Wait a few seconds and the top three LEDs on the PlugLink 500 Wireless “N”
Adapter will light up.
5. From your computer scan your Wireless Network Connections to look for
your PlugLink 500 Wireless “N” Adapter’s network name (SSID). The default
name (SSID) of the PlugLink 500 Wireless “N” Adapter is Asoka. You will be
prompted for your “Encryption Key”. The default Encryption Key is the last
10 digits of the serial number. The serial number is printed on the PL9571
label.
If you changed the default network name (SSID), be sure to
use
the correct network name (SSID) you set in the PlugLink
500 Wireless “N” Adapter
.
Wireless security is enabled by default on the PL9571-WAP. For
more information about changing the PL9571-WAP security
settings, see the subsection in Chapter 10 entitled Wireless
Security.
6. Verify wireless connectivity by connecting to the Internet or log into the
PL9571-WAP from a computer with a wireless adapter.

Page11of38
Chapter 6
Logging on
1. Open a web browser application (Internet Explorer or Mozilla Firefox).
2. Enter the router’s default IP address (192.168.1.254) in the URL address field.
Press Enter to
open the login screen..
Figure 6-1: Login Address
For security, the PL9571-WAP has its own user ID and password. When prompted,
enter admin for the user ID, welcome for the password, both in lower case
letters, and press Login. To change the login password, see “Setting or
Changing the Administrative Login Information” on chapter 10.
Figure 6-2: Login Screen


Page12of38
3. The first time the login screen opens, use the default user name admin and
password welcome. Click Login (Note that user accounts are managed in User
Account Management and can be changed after the first login.)
The web interface opens to the basic devices information.

Page13of38
Chapter 7
Basic Configuration
Working mode
Middleware-enabled platforms have two operation modes:
To configure AP mode using the router (router build only):
1. Choose the NETWORK tab to open the Network Connection Settings:
2. Select Enable Access Point Mode. A confirmation box appears. Click OK.
3. A confirmation screen appears. The router will now work in AP mode.
To configure router mode using the AP:
Unselect the check box Enable Access Point Mode.
Router Build Software that is built with BUILD_CONFIG=-router in the build process
(user scan select between full router mode and AP mode)
AP Build Software not built using BUILD_CONFIG=-router. For AP build, Enable AP
Mode is selected automatically and grayed out; users cannot change modes
Select Enable Access Point Mode. A confirmation box appears. Click OK.

Page14of38
A confirmation screen appear, the router will now work in Router Mode.
To configure router mode using the Ap: unselect the check box Enable Access
Point Mode.
To add a PPPoE internet connection:
See “To set the router IP address” on page 24 for how to configure the router to
the Internet connection. Much of this information is obtained from the ISP.
1. Choose the NETWORK tab to open the Network Connection Settings:
2. At Name of Connection, make sure Choose New Connection is selected.
3. Select the connection type PPPoE.

Page15of38
4. Enter the user name and password provided by the ISP. Leave Name of Service
blank if unsure.
5. Select the preferred dial-up style under Dial-up Method.
6. Click Save to commit the changes.
To add a DHCP internet connection:
1. Choose the NETWORK tab to open the Network Connection Settings:
2. At Name of Connection, make sure Choose New Connection is selected.
3. Select the connection type Static.
4. Fill in the boxes for:
IP Address
Subnet mask code
Default gateway
Preferred DNS
Alternative DNS (optional)
5. Click Save to commit the changes
To delete an internet connection:
1. Choose the NETWORK tab to open the Network Connection Settings.
2. At Name of Connection, choose the name of the connection to delete.
3. Click Delete Connection.

Page16of38
Wireless LAN (WLAN) Setup
Set up a WLAN either manually or by using WiFi protected setup (WPS). WPS allows
easy setup of client devices that support WPS. Choose the NETWORK tab, then
choose the WLAN SETTINGS tab to open the Radio Settings screen. Note that WPS
configures one client device at a time. Repeat the instructions for each client
device that supports WPS.

Page17of38
Figrure7-2 WPS Setup Screen
To user automatic automatic WPS configuration:
1. Under the Wireless Security Mode section of the WPS setup screen:
In the WPS Configured drop-down menu, choose Yes.
For a client device with a WPS button: click the WPS button on the client
device, then click the WPS button on the router board. After the client device
has been configured, click OK. See the client device documentation for more
instructions.
For a client dev ice that asks for a Router PIN number: enter the PIN number
listed on the web page (or on the label on the bottom of the router). After the
client device has been configured, click OK. See the client device
documentation for more instructions.
