PlugLink HD AV Adapter
User’s Guide
PL9660-Q1
QUICKFIND LOCATOR
Contact
Information
Getting Help
Table of Contents
Installation
66‐0375‐01Rev.001

2 of 39
© 2012 Asoka USA Corporation
ALL RIGHTS RESERVED
Notice: No part of this publication may be reproduced or transmitted in any form or by any means, electronic
or mechanical, including photocopying and recording, or stored in a database or retrieval system for any
purpose without the express written permission of Asoka USA Corporation.
Asoka USA Corporation reserves the right to make changes to this user’s guide at any time without notice and
assumes no responsibility for its use. Asoka USA products and services can only be ordered under the terms
and conditions of Asoka USA Corporation's applicable agreements. All of the features described in this user’s
guide may not be currently available. Refer to the most recent product announcement for information about
feature and product availability.
This user’s guide contains the most current information available at the time of publication. When new and/
or revised information becomes available, this entire user’s guide is updated and distributed to all registered
users.
All company and product names mentioned herein are trademarks of their respective companies. Mention of
third-party products is for informational purposes only and constitutes neither an endorsement nor a
recommendation. Asoka USA Corporation assumes no responsibility with regard to the performance or use of
these products.
Revision Date Description
66‐0375‐01Rev.001July
2012 Preliminary Release
Changes in This Revision
• Not applicable (preliminary release)

3 of 39
Contact Information
For more information about the PlugLink HD AV Adapter or any of Asoka’s
other leading-edge solutions, please contact us using any of the following
methods:
zVoice calls: We welcome your calls Monday through Friday, from 9:00 am
to 5:00 pm Pacific Time at [phone]. Voice mail is available during non-
business hours.
zEmail: If you prefer, you can send information requests to our e-mail address:
[email protected].
zFax calls: You can also send your requests for information to our 24-hour fax
number: [phone].
zWeb site: Our Web site contains valuable information about our products,
solutions, and services. We encourage you to visit us at
thttp://www.asokatech.com.
Getting Help
Asoka USA backs its products with unparalleled customer service and technical
support for our valued customers.
Customer Service
Customer service, the customer-satisfaction arm of Asoka USA, is available Monday
through Friday, from 9:00 am to 5:00 pm Pacific Time, by calling [phone] or
emailing [email protected].
Technical Support
Technical support is available Monday through Friday, from 6:00 am to 6:00 pm
Pacific Time, by calling [phone] or through email at [email protected].
Please provide the following information about the problem:
zProduct name, model number, part number (if applicable) and serial number
zSystem configuration, including a description of the devices connected to your
PL9660
zThe circumstances surrounding the error or failure
zA detailed description of the problem and what has been done to try to solve it

4 of 39
Table of Contents
1 Simple Installation............................................................................. 5

Package Contents.......................................................................................................5
Types of Connections .................................................................................................5
Simple Connection (Peer to Peer).................................................................................6
Simple Broadband
Connection .....................................................................................6
Other Connections......................................................................................................7
Finding a Suitable Location .........................................................................................7
Installing the Hardware ..............................................................................................7

2 Advanced Configuration(Expert Users Only)......................................... 8

Installing the Software................................................................................................8

3 Network Management.......................................................................12

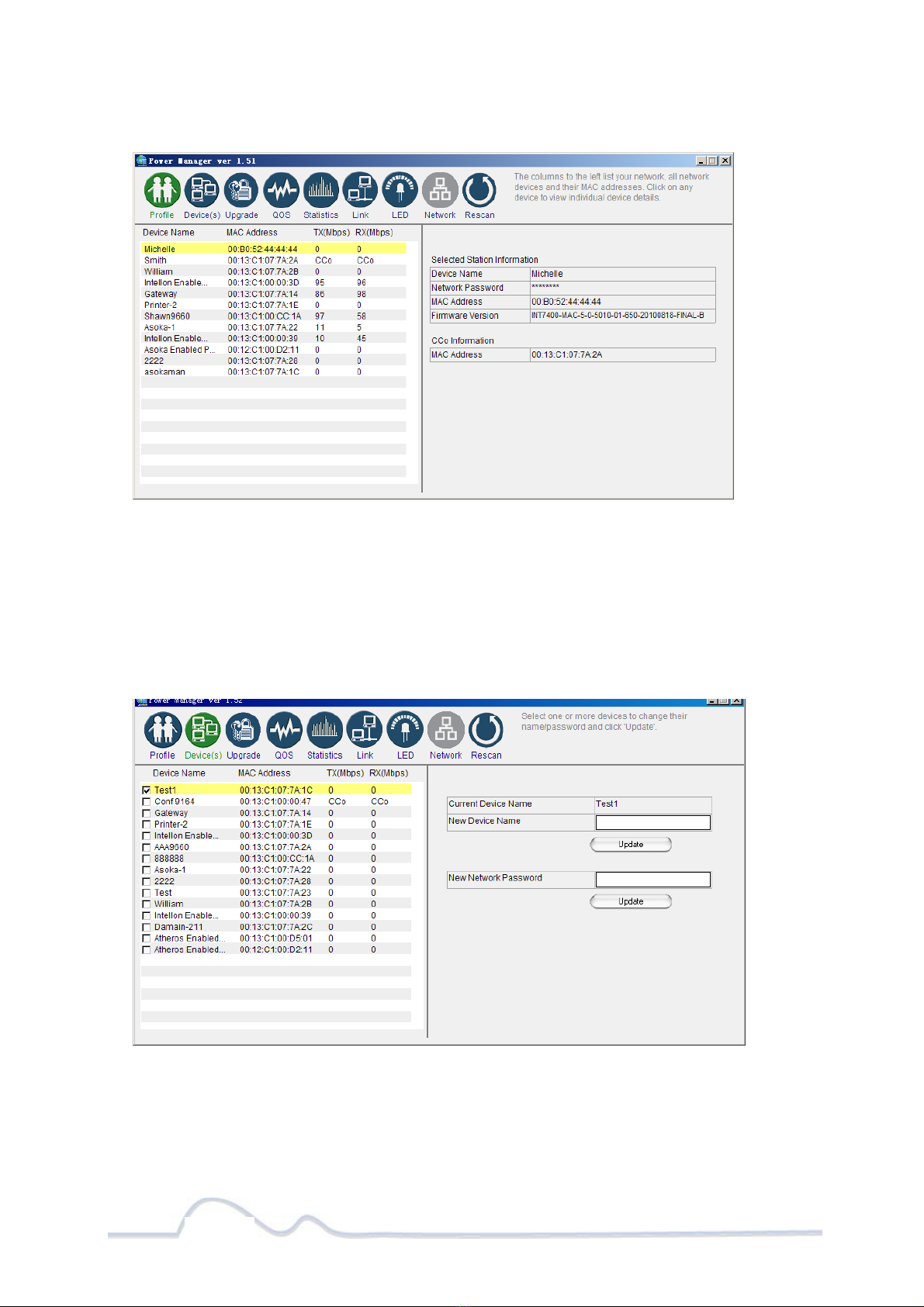

Viewing the Device Information (Profile).................................................................... 12

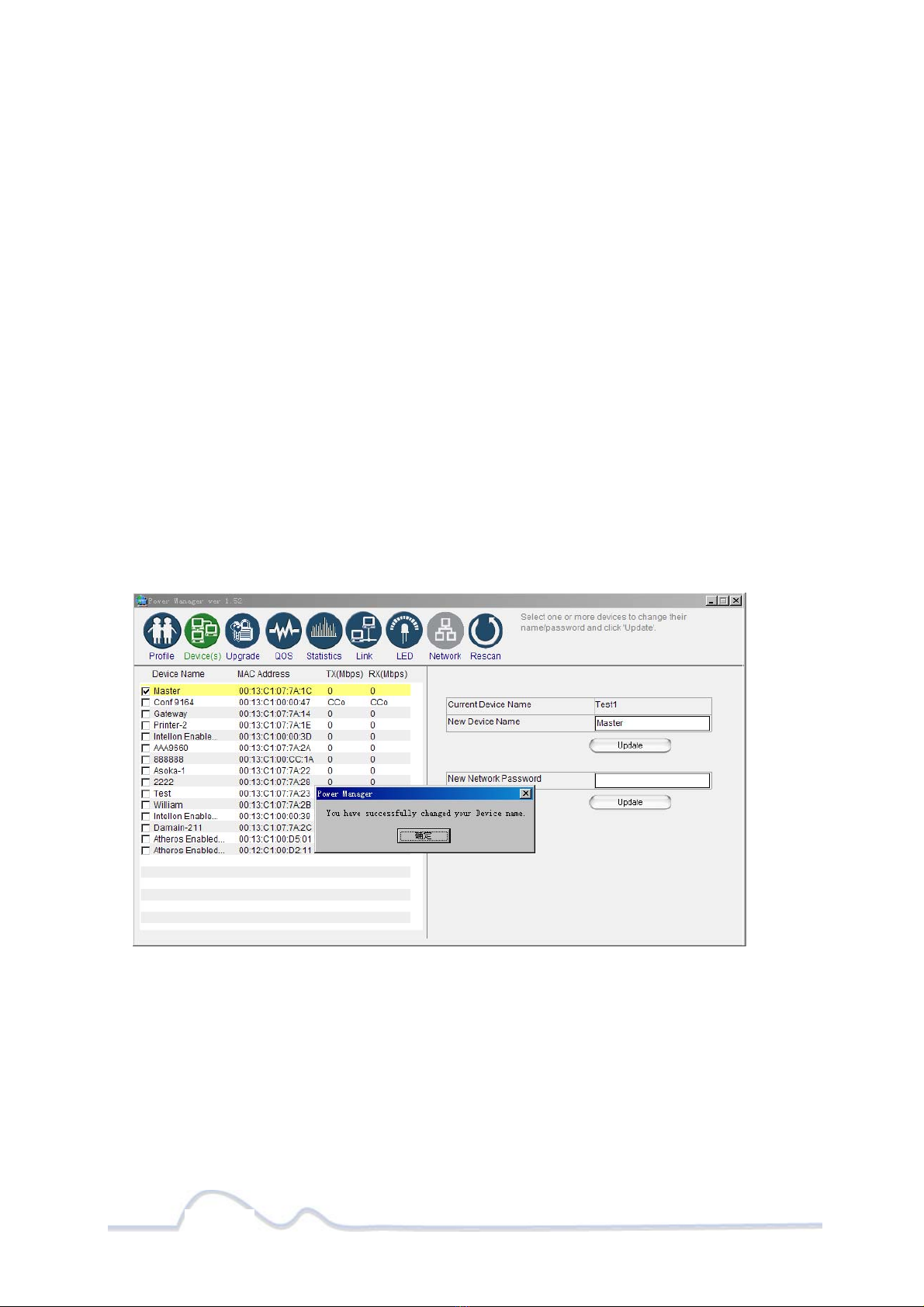

Changing your device Name and Network Encryption Key (NEK).................................. 13
DEVICE NETWORK ENCRYPTION KEY (NEK).............................................................. 16
Resetting and Upgrading the PlugLink HD AV Adapter................................................. 21
Prioritizing the Network Traffic.................................................................................. 22
Viewing the Network Statistics screen........................................................................ 23
Viewing the Link screen............................................................................................ 23
Viewing the LED screen............................................................................................ 25
Rescanning your Powerline Network.......................................................................... 25
Manually Resetting the Firmware and Network ID (NID) .Error! Bookmark not defined.

4 Troubleshooting................................................................................27

A Specifications...................................................................................29

B Components.....................................................................................31

C Warranty .........................................................................................36

D FCC Notice.......................................................................................38

5 of 39
Simple Installation
Congratulations on your purchase of the PlugLink HD AV Adapter !
This adapter allows you to network your home or office by plugging directly into an
electrical outlet. With your PlugLink HD AV Adapter, you can easily share your high-
speed Internet, mp3s, video, and gaming throughout the home or office.
This manual describes how to connect your PlugLink HD AV Adapter to a PC or cable/DSL
Router.
Package Contents
zPlugLink HD AV Adapter(PL9660-Q1)
z6-foot Ethernet cable
zQuick Installation Guide
zInstallation Resource CD (for advanced users only)
zWarranty and Support Information Card
If any of the parts are incorrect, missing, or damaged, contact the retailer
where you made your purchase. Keep the carton, including the original packing
materials, in case you need to return the unit for repair.
Types of Connections
This section describes what you need to do to before installing the PlugLink HD AV
Adapter. You can set up a home or an office network or compliment your existing
network by connecting to any device with a 10BaseT/100BaseT Ethernet- capable device.

6 of 39

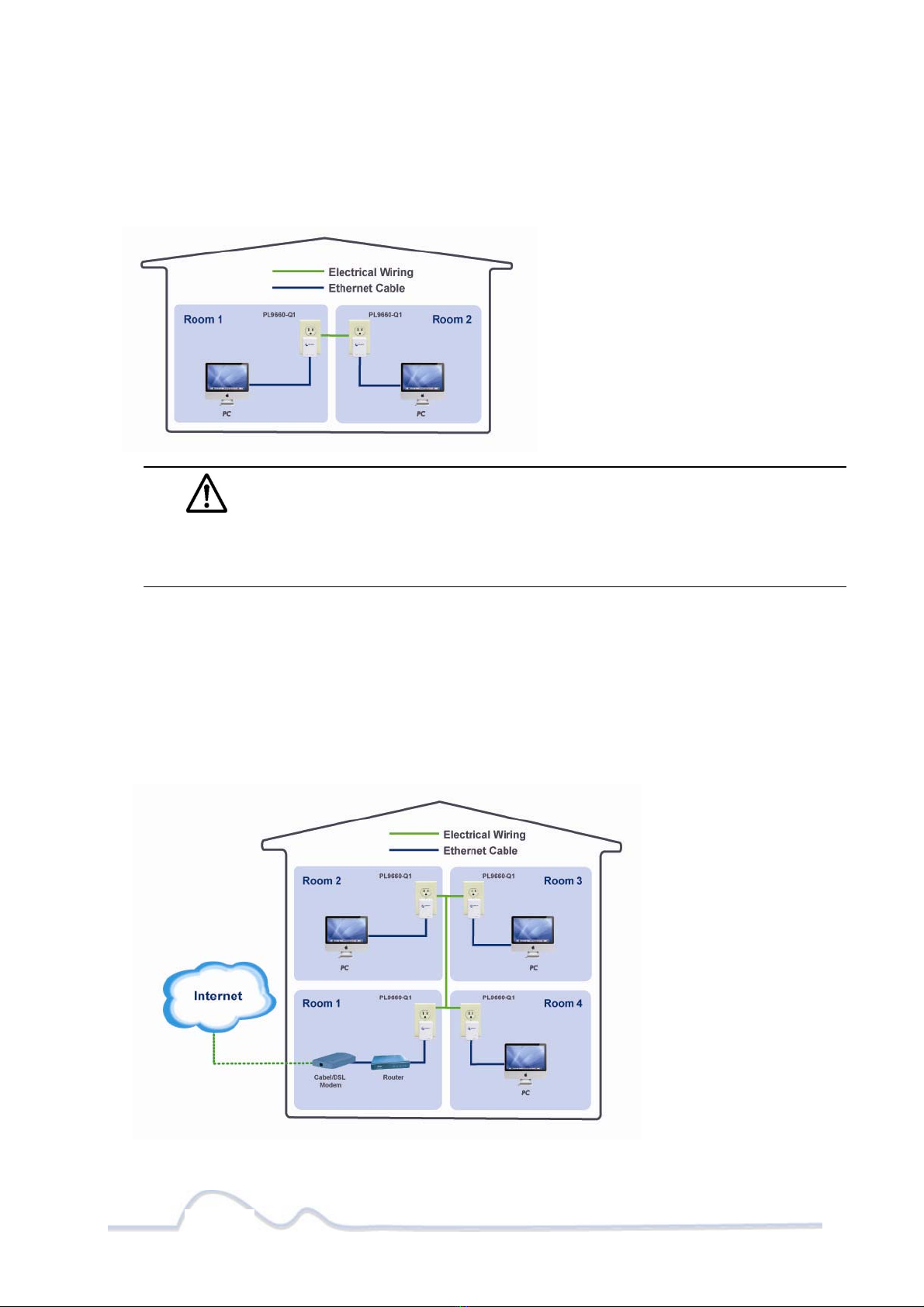

Simple Connection (Peer to Peer)
To share a simple connection between computers, attach one PL9660-Q1 device to
each computer.
NOTE: Do not connect the PlugLink HD AV Adapter into a power strip,
extension cord, un-interruptible power supply (UPS), or surge protector. This may
prevent the unit from working properly or degrade the network performance.
Simple Broadband Connection

The following items are needed to share a Broadband connection with computers:
zOne (1) PL9660-Q1 device attached to a standard cable, DSL, or wireless router;
zOne (1) PL9660-Q1 device attached to each computer;

7 of 39

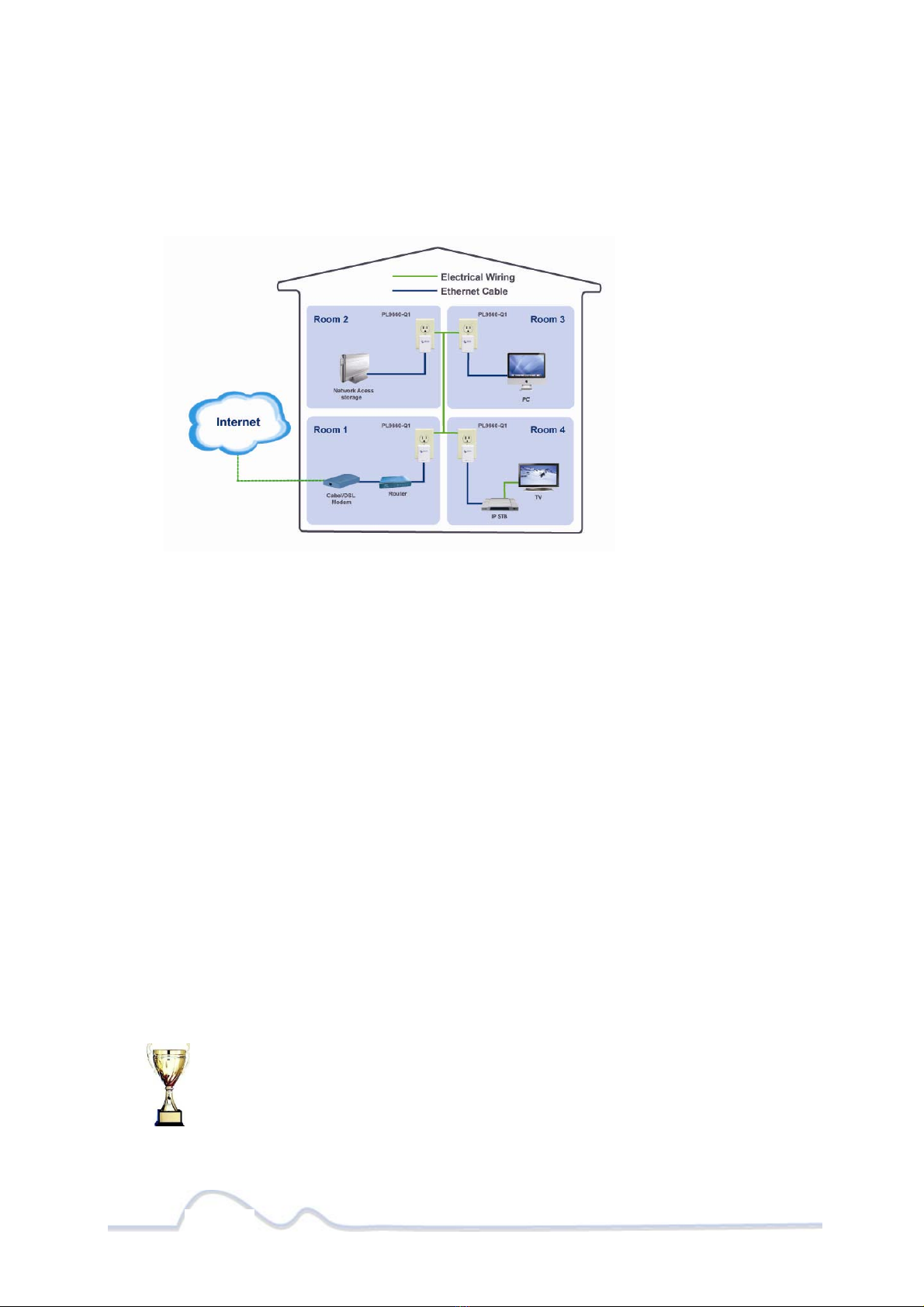

Other Connections

You can also use the PlugLink HD AV Adapter with other Ethernet enabled devices,
such as IP Cameras, IP set top box, game consoles, etc.“Up to eight (8) PL9660 can
be placed on the same PLC (Powerline Communication) network.”
Finding a Suitable Location
Find a suitable location to install your PlugLink HD AV Adapter. Where you install
the units can affect their performance. Find a location that is:
zAcceptable temperature and humidity ranges.
zFree of strong electromagnetic field generators (such as motors), vibration, dust,
and direct exposure to sunlight.
zAn electrical outlet for your PlugLink HD AV Adapter. Outlet must be within six feet
(1.82 meters) of the device you are connecting to.
Installing the Hardware
Connect each of your PlugLink HD AV Adapter.
1. Connect the unit into a nearby wall outlet (Do not plug the adapter into a power
strip).
2. Connect the enclosed Ethernet cable to the Ethernet port of the unit.
3. Connect the other end of the cable to the Ethernet port of the PC or device.
Congratulations! You have completed the installation of the PL9660
for normal use.

8 of 39

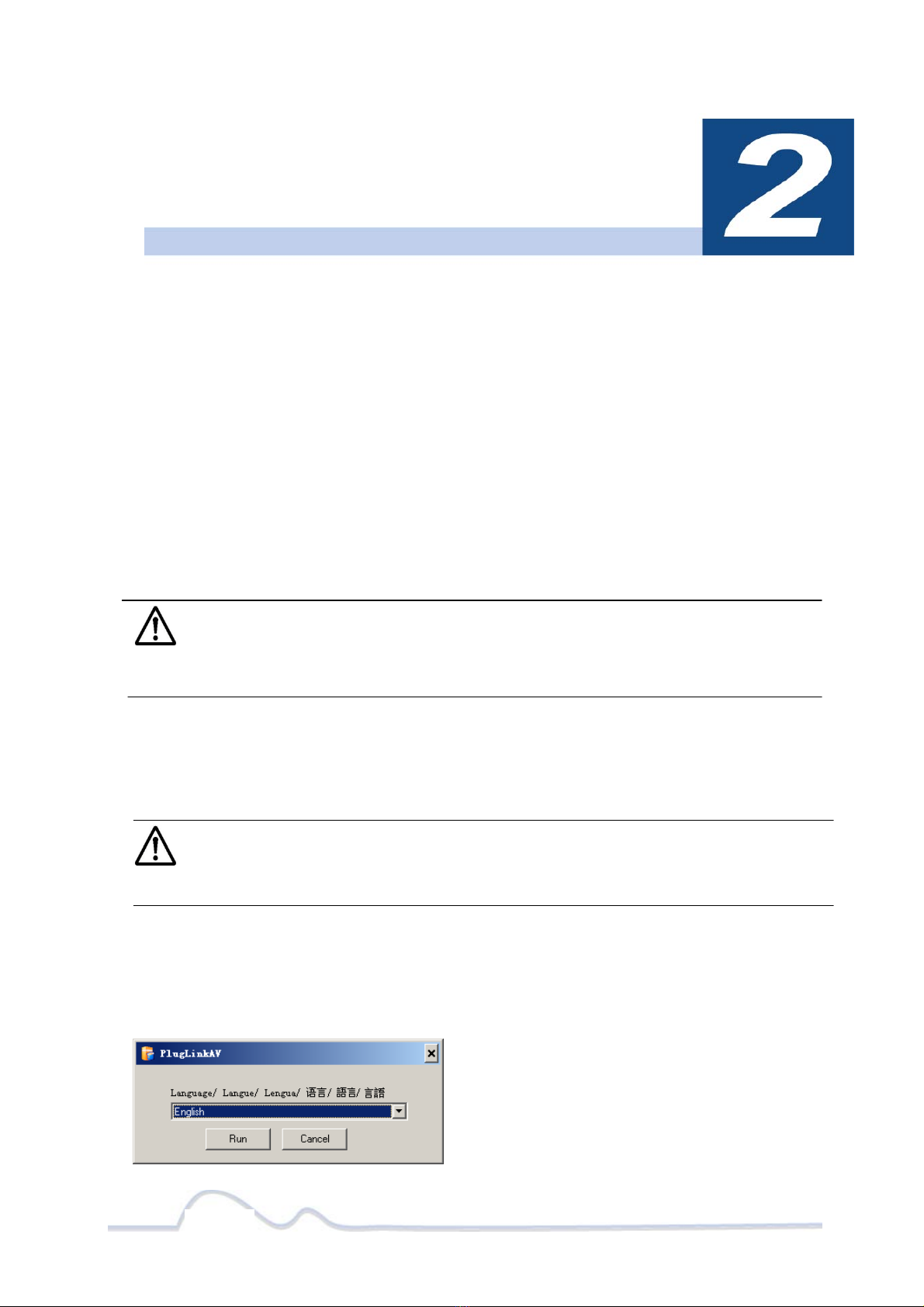

Advanced Configuration
(Expert Users Only)
This chapter provides information on installing and setting up the PlugLink HD AV
Adapter.
NOTE: Do not connect the PlugLink HD AV Adapter into a power strip,
extension cord, un-interruptible power supply (UPS), or surge protector. This may
prevent the unit from working properly or degrade the network performance.
Installing the Software
Following are software installation procedures for advanced users.
NOTE: Software installation is not required for normal use. The utility is used to
change the security settings and view information about the network.
1. Insert the enclosed Installation Resource CD into your CD-ROM drive If the PlugLink
HD AV Adapter Installation Utility does not appear within 30 seconds, select your
CD-ROM drive and double-click the Setup.exe icon to start the Installation Utility.
2. Select the language preference, and click the Run button.

9 of 39

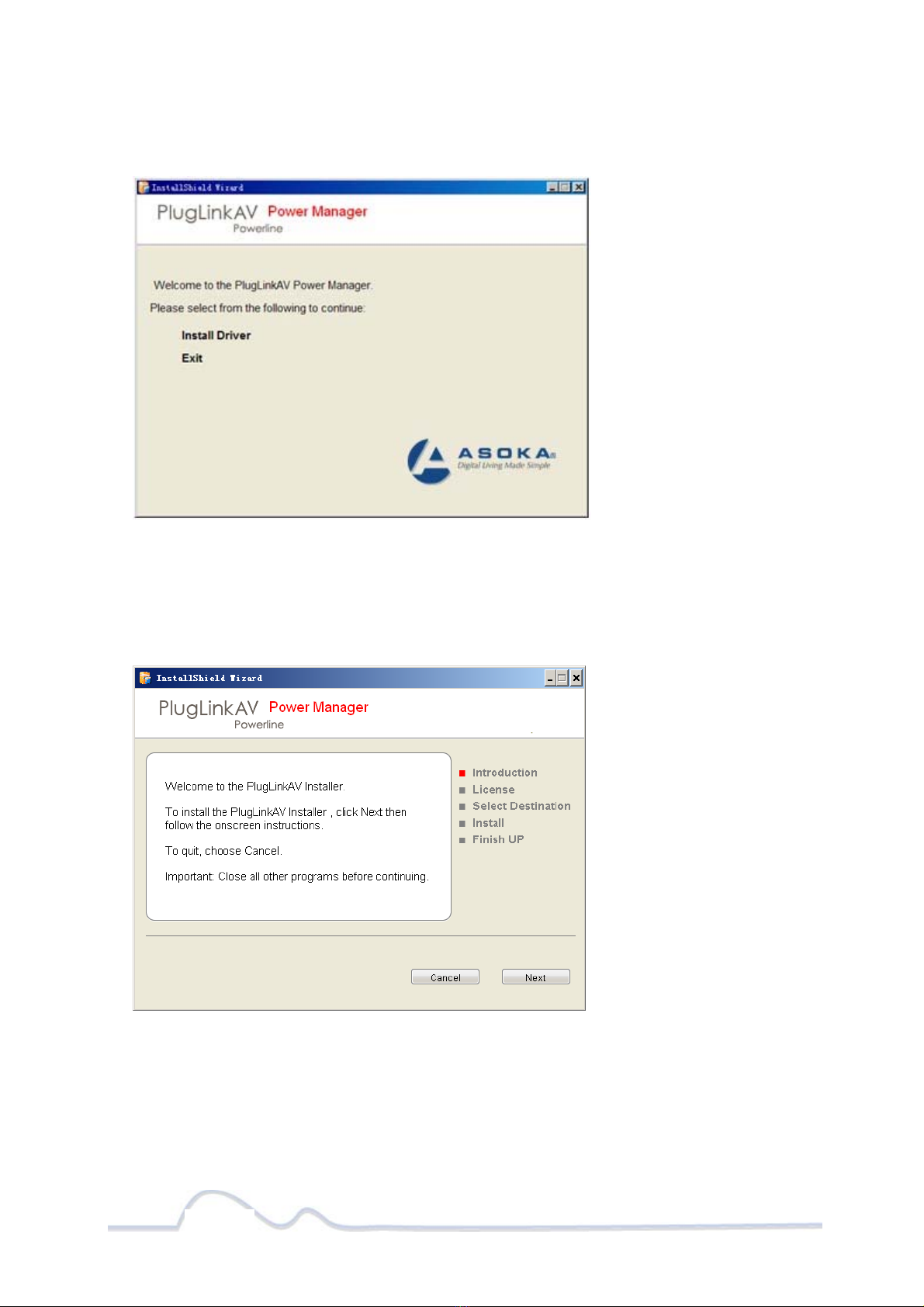

3. In the Start screen, click Install Driver to start the installation.
4. In the Welcome screen of the screen of the wizard, click Next to begin the
installation.

10 of 39
5. Read the End User Software License Agreement, and if you agree, click the Agree
button to continue the installation.
6. To change the name of the PlugLink AV unit, select Yes, and enter a name in the
text field. Otherwise, select No. Click Next to advance to the next screen.
