Aspire Maui User manual

Verona
USER MANUAL
ELECTRIC LIFT &
RECLINE CHAIRS
Maui
Montana
Raphael
Porto

2
ASPIRE ELECTRIC LIFT & RECLINE CHAIRS
The symbols below are used throughout this owner’s manual and on the product to identify warnings
and important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow
designated procedures can cause either personal injury, component damage or
malfunction. On the product, this icon is represented as a black symbol on a yellow
triangle with a black border.
MANDATORY! These actions should be performed as specified. Failure to perform
mandatory actions can cause personal injury and/or equipment damage. On the
product, this icon is represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed
at any time or in any circumstances. Performing a prohibited action can cause
personal injury and/or equipment damage. On the product, this icon is represented
as a black symbol with a red circle and red slash.
Please fill out the following information for quick reference:
NOTE: This owner’s manual is compiled from the latest specifications and product information
available at the time of publication. We reserve the right to make changes as they become necessary.
Any changes to our products may cause slight variations between the illustrations and explanations
in this manual and the product you have purchased. The latest/current version of this manual is
available on our website.
Aspire Dealer
Address
Phone Number
Purchase Date
Serial Number

3

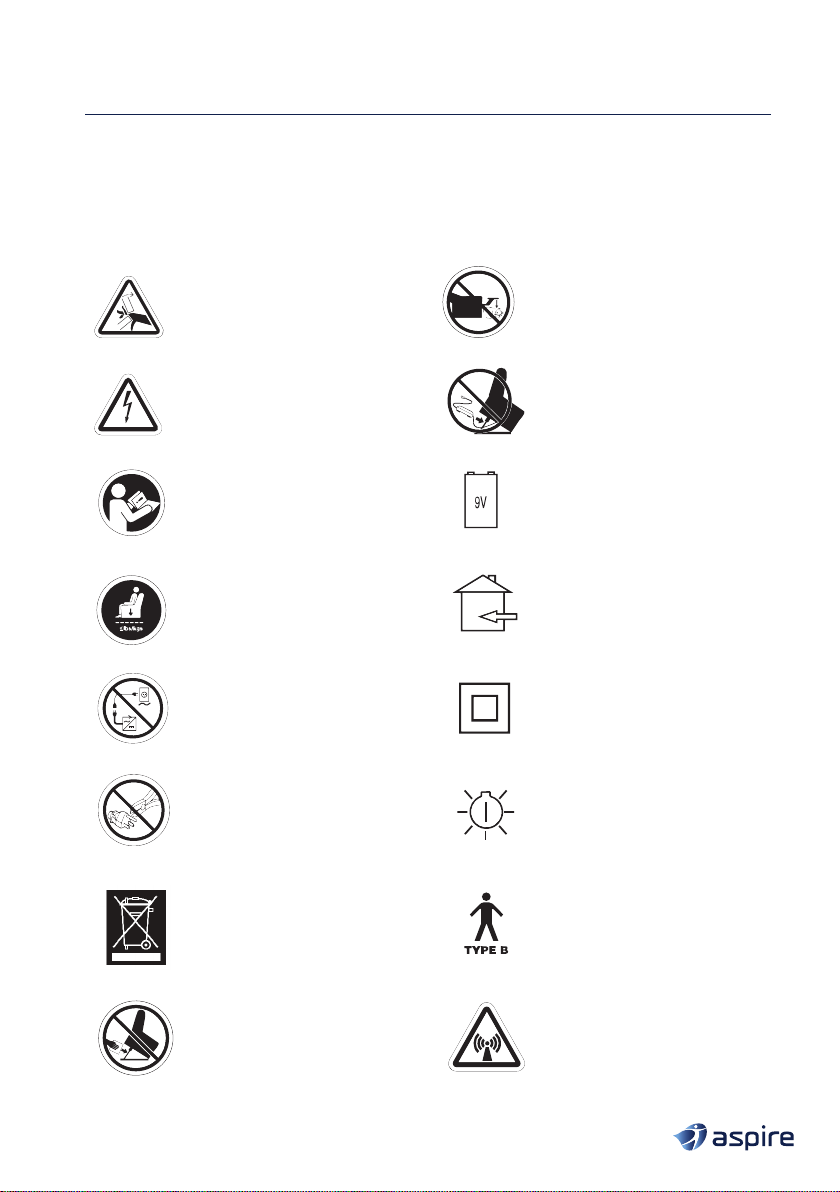

Pinch/Crush Points Hazard! Do not
place objects or appendages in the
path of moving parts.
Do not place objects under the
footrest when the lift chair is in
the fully reclined position. Make
sure area is clear of obstructions,
including pets and small children
during operation.
Electrical Hazard
Do not cover or place the external
transformer under the riser recliner.
Keep in an open, well-ventilated
area free from foreign material and
away from possible pinch points.
Read and follow the information in the
owner’s manual. Battery Door Location
Maximum weight capacity
Indoor Use Only. Avoid exposure
to rain, snow, ice, salt or standing
water. Maintain and store in a clean
and dry environment.
Do not connect an extension lead to
the AC/DC converter or the battery
charger.
Class II Equipment
Removal of grounding prong can
create electrical hazard. If necessary,
properly install an approved
3-pronged adapter to an electrical
outlet having 2-pronged plug access.
Green LED indicates power to the
unit is on. Not applicable to all
models.
Properly dispose of all electronic
components, including the external
transformer, hand control, batteries,
actuator motors and wiring. Contact
your authorised Aspire Dealer for
more information.
Degree of protection against
electric shock.
Do not place objects under the lift
chair. Make sure the area is clear
of obstructions, including pets and
small children during operation.
This product has been tested and
complies to IEC 60601-1-2.
PRODUCT SAFETY SYMBOLS
The symbols below represent labels used on the product to identify warnings, mandatory actions and
prohibited actions. It is very important for you to read and understand these symbols completely. Do not
remove these labels from your product. Please note that not all of the symbols may be used on your lift
chair model.
LABEL INFORMATION

4
TABLE OF CONTENTS
Lift Recline Series
Label Information
1. Introduction
• Safety
• Purchaser’s agreement
• Information exchange
2. General Guidelines
• Modifications
• Weight Limitations
• Pinch / crush hazards
• Degree of protection / mode of
operation
• Storage and operation temperatures
• EMI/RFI
• Shipping and delivery
• Motor vehicle transport
3. Your Lift Chair
• Body components
• Electrical components
4. Assembly/Disassembly
• Lift chair set-up
• Lift chair placement
• Battery installation
• Lift chair disassembly
5. Operation
• Space Saver hand control operation
• Dual Action hand control operation
• Multifunctional hand control operation
6. Troubleshooting
• Frequently asked questions
7. Care and Maintenance
• Fabric care
• Electronics care
8. Warranty
9. Specifications
10. Appendix A
2
3
5
6
8
11
15
18
19
20
21
22

5
SAFETY
CONGRATULATIONS on purchasing your Aspire Lift Chair. The product you have purchased combines
state-of-the-art components with safety, comfort and styling in mind. We are confident the design
features will provide you with the conveniences you expect during your daily activities. Understanding
how to safely operate and care for this product should bring you years of trouble-free operation and
service.
Read and follow all instructions, warnings and notes in this manual and all other accompanying literature
before attempting to operate this product for the first time. In addition, your safety depends upon you,
as well as your dealer, carer or healthcare professional in using good judgement.
If there is any information in this manual which you do not understand, or if you require additional
assistance for setup or operation, please contact your authorised Aspire Dealer. Failure to follow the
instructions, warnings and notes in this manual and those located on your Aspire product can result in
personal injury or product damage and will void the Aspire product warranty.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter or modify this product
or remove or render inoperable or unsafe any guards, shields or other safety features of this product; fail,
refuse or neglect to install any retrofit kits from time to time provided by Aspire to enhance or preserve
the safe use of this product.
INFORMATION EXCHANGE
We want to hear your questions, comments and suggestions about this manual. We would also like to
hear about the safety and reliability of your new lift chair and about the service you received from your
authorised Aspire Dealer. Please notify us of any change of address, so we can keep you apprised of
important information about safety, new products and new options that can increase your ability to use
and enjoy your lift chair.
Please feel free to contact us at the address below:
Australia:
Aidacare Head Oce
Building 3A, 1 Moorebank Avenue,
Moorebank NSW 2170
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact
us and we will be glad to send you a new one immediately.
1. INTRODUCTION

6
Your lift chair is a state-of-the-art life-enhancement device designed to increase mobility. Please be
aware that the final selection and purchasing decision regarding the type of lift chair to be used is the
responsibility of you, the lift chair user, if capable of making such a decision, and/or your healthcare
professional (i.e., medical doctor, allied health professional, therapist, etc.).
MANDATORY! Read and follow the information provided in this owner’s manual
before attempting to operate your lift chair for the first time.
There are certain situations, including some medical conditions, where you will need to practice
operating the lift chair in the presence of a trained attendant. A trained attendant can be defined as a
family member or healthcare professional specially trained in assisting you with performing various daily
living activities while safely operating a lift chair.
Below are some precautions, tips and other safety considerations that will help you become accustomed
to operating the lift chair in a safe manner.
MODIFICATIONS
Aspire chairs are designed and engineered to provide maximum comfort and utility. However, to prevent
personal injury and/or damage to your lift chair, you should not modify, add, remove or disable any
feature, part or function of your lift chair. Unauthorised modifications may also void your product’s
warranty.
NOTE: Use Aspire approved parts only for all repairs and replacements.
WEIGHT LIMITATIONS
Your lift chair is rated for a maximum weight capacity. Refer to “Appendix A” for more information.
MANDATORY! Stay within the specified weight capacity of your lift chair. Failure
to do so may result in injuries and/or product damage, Aidacare will not be held
responsible for any such issues/failures.
PINCH/CRUSH HAZARDS
The scissor and lift mechanisms are labelled as pinch/crush point hazards on your lift chair. Keep clear
of these areas and make sure the path of motion is unobstructed. See figure 3.1 for pinch/crush point
locations.
WARNING! Do not place objects or appendages in the path of moving parts.
DEGREE OF PROTECTION/MODE OF OPERATION
• Class II equipment/Type B protection against electric shock
• Degree of protection against the ingress of solid/liquids—IPX0
• Mode of operation—Maximum Duty Cycle: 2 min. ON/18 min. OFF
2. GENERAL GUIDELINES

7
STORAGE AND OPERATION TEMPERATURES
• Transportation or storage: -75°C/-104°F to 70°C/158°F
• Operation: 10°C/50°F to 40°C/104°F
ELECTROMAGNETIC AND RADIO FREQUENCY INTERFERENCE (EMI/RFI)
WARNING! Laboratory tests have shown that electromagnetic and radio frequency
waves can have an adverse aect on the performance of electrically-powered
devices, such as lift chairs.
Electromagnetic and Radio Frequency Interference can come from sources such as cellular phones,
mobile two-way radios (such as walkie-talkies), radio stations, TV stations, amateur radio (HAM)
transmitters, wireless computer links, Wifi, microwave signals, paging transmitters and medium-range
mobile transceivers used by emergency vehicles. In some cases, these waves can cause unintended
movement or damage to the control system of electrically-powered devices. The lift chair user can
help prevent electromagnetic interference by maintaining a minimum distance between portable and
mobile RF communications equipment. It is recommended that at least 3 metres (9 feet) of distance be
maintained between the lift chair and any handheld equipment emitting 10 W or more of output power.
Refer to the manufacturer’s literature for the handheld device to determine the maximum output power
of that device.
Every electrically-powered device has an immunity (or resistance) to EMI. The higher the immunity level,
the greater the protection against EMI. Per EMC standards, this product has passed immunity testing
and is rated as a Group 1, Class B product, meaning the lift chair uses RF energy only for its internal
function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby
electronic equipment making the lift chair suitable for use in all establishments, including domestic
establishments and hospitals.
WARNING! Be aware that cell phones, two-way radios, laptops and other types of
radio transmitters may cause unintended movement of your electrically-powered
device due to EMI. Exercise caution when using any of these items while operating
your lift chair.
WARNING! The addition of accessories or components to the lift chair can increase
the susceptibility of the chair to EMI. Do not modify your lift chair in any way not
authorised by Pride.
WARNING! Your lift chair itself can disturb the performance of other electrical
devices located nearby, such as alarm systems.
NOTE: If unintended motion occurs, discontinue use of the lift chair. Contact Aidacare to report the
incident.
SHIPPING AND DELIVERY
Before using your lift chair, make sure your delivery is complete as some components may be packaged
individually. If you do not receive a complete delivery, please contact your authorised Aspire Dealer
immediately. Where damage has occurred during transport, either to the packaging or content, please
contact the delivery company responsible.
MOTOR VEHICLE TRANSPORT
If you will be transporting your lift chair in a motor vehicle, individual components (external transformer,
etc.) should be secured. The lift chair itself must also be secured (a possible hazard during vehicle
braking).

8
BODY COMPONENTS
This section describes the features of your lift chair. Carefully review the function and location of
each item described, and note that the illustrations and option locations shown in this manual may
not reflect the type of lift chair that you own.

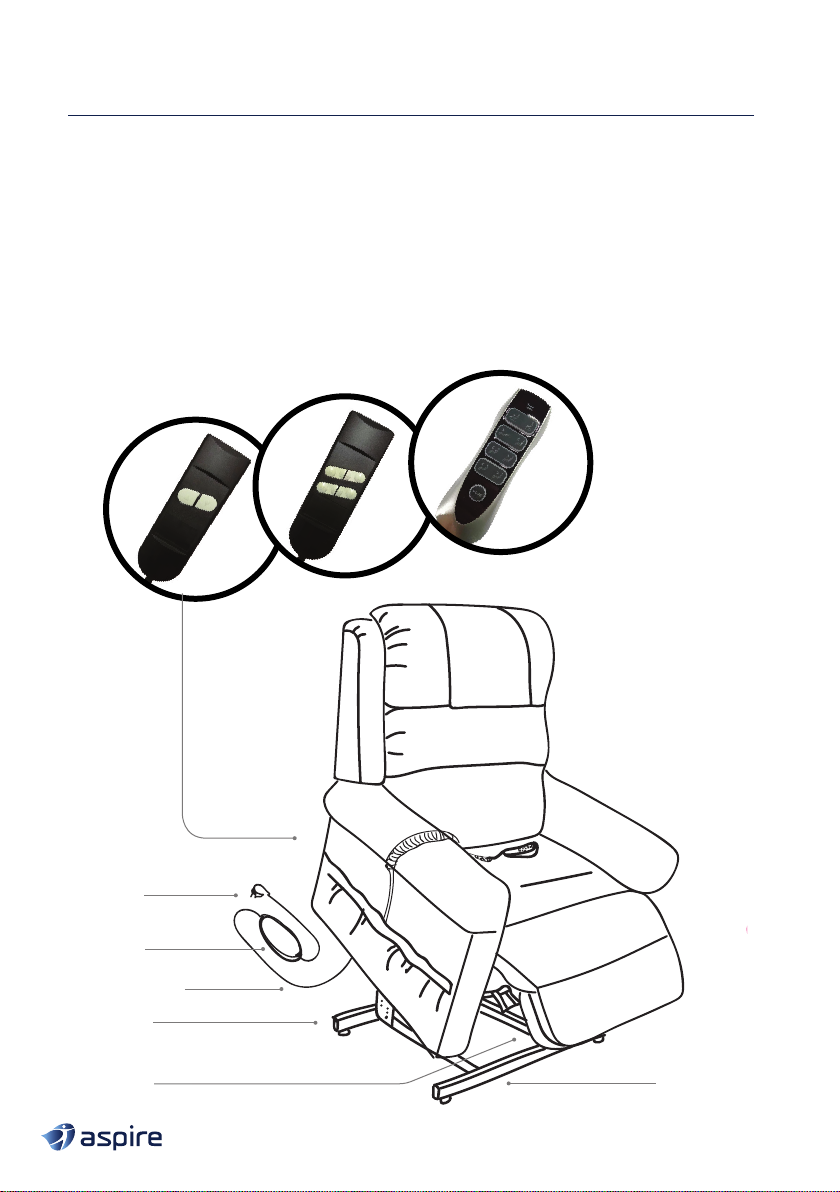

Figure 3.1 Lift Chair Main Components
Lift Mechanism: Responds to the hand control commands to position the chair in the sit, recline and
stand positions.
3. YOUR LIFT CHAIR

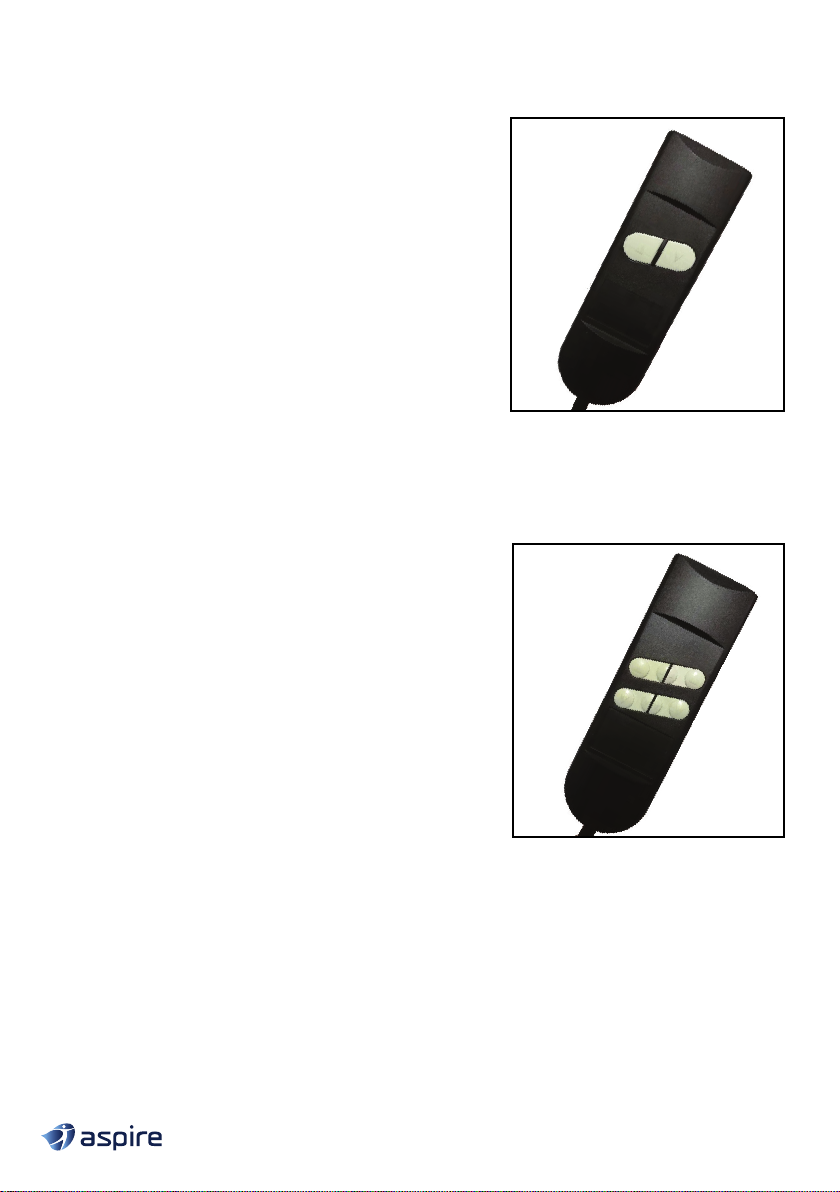

Single Action
Hand Control
Dual Action
Hand Control
Multifunction
Hand Control
External
Transformer
Low Voltage
Connection Cable
Leg Levellers
Lift Mechanism
(Pinch Point)
Power lead
Scissor Mechanisms
(Pinch Point)

9
Figure 3.2 Leg Levellers
Leg Levellers: Manually rotate up or down in order to stabilise the chair before use.
Figure 3.3 Scissor Mechanism
Scissor Mechanisms: Extend or retract to take the
chair through the various stages of recline.
WARNING! Pinch/Crush Points Hazard!
Be aware that the lift mechanism and
scissor mechanisms are a pinch point
on the lift chair. Keep the following
items and similar objects clear of
these points when operating the lift
chair:
• Appendages
• Small children
• Pets
• Wires
• Oxygen tubes
• Loose items, including but not
• Limited to clothing and blankets
• Electrical power leads
Scissor Mechanism
(Pinch Point)
Rotate the leg levellers to raise
or lower the chair
NOTE: Applicable to Montana chair only.

10
ELECTRICAL COMPONENTS
Your Aspire Lift Chair is equipped with a low voltage DC motor system that reduces the standard
household alternating current of 90V AC - 264V AC to direct current (24/39V DC). The electrical
components include the external transformer, batteries and hand control. Keep these areas free from
moisture at all times.
WARNING! Keep all electrical components free from moisture at all times to prevent
shock and/or electrical hazard.
External Transformer: Connects to a standard electrical outlet to provide power to the lift chair. The
transformer may be equipped with an LED indicator, which shows green when power to the transformer
is on.
The external transformer may also come equipped with mounting brackets that allow the transformer to
be mounted to the wall directly under the standard electrical outlet. The screws must be mounted to the
wall stud for security. Refer to “Appendix B” for a mounting diagram.
NOTE: Aidacare is not responsible for damage due to improper installation.
Batteries: Provide the power needed to return the lift chair to an upright or semi-upright position in the
event of a power failure. Batteries are not included and must be installed into the external transformer.
See IV. “Assembly/Disassembly.”
NOTE: The batteries will provide power for only a short period of time after power is removed from
the system, so it is important to act quickly in the event of a power failure. Engage and hold the up/
down switch in the UP position as soon as possible. Maintain a steady pressure on the switch to avoid
excessive draw from the battery and achieve the most amount of lift. Keep in mind that the amount of
lift the batteries will be able to provide is aected by user weight and battery condition.
Hand Control: Contains the controls needed to operate the various functions of the lift chair. Refer to V.
“Operation” for more information. The hand control may be equipped with a quick-release connector,
which enables the user to detach the hand control from the lift chair, disabling all functions of the hand
control.
