Aspire Community Commode User manual

USER MANUAL
ATTENDANT
PROPELLED
SELF
PROPELLED
Community Commodes

2 3
TABLE OF CONTENTS
1. Introduction
2. Safety Precautions
3. Product Overview
4. Unpacking & Inspection
5. Assembly Instructions
6. Operation
7. Troubleshooting
8. Cleaning
9. Service & Maintenance
10. Specifications
11. Warranty
4
5
7
8
9
12
14
15
16
17
18
Thank you for choosing this commode from
our Aspire Commode range.
This product has been specifically designed
to oer comfort, support and safety.

4 5
2. SAFETY PRECAUTIONS1. INTRODUCTION
The Aspire Community Commode range is designed for the community or
homecare environment. The commodes have a fabricated aluminum frame with
a powder coat finish and utilise plastic and PU components of various material
specifications.
Clinical Applications and Area of Use
These commodes are appropriate for adult patient care and should only be used
under the instruction of a carer or health professional where concerns exist around
patient use.
Key Features
• Maximum safe working load (SWL) of the commodes is 136kg
• Attendant propelled and self propelled options available
• Locking and non-locking castors
• Height adjustability to accommodate dierent users
• Power coated aluminium finish
• Swing back arms for ease of cleaning
• Soft opening PU seat
It is important that this User Manual is read in its entirety prior to using the
commode. The manual is designed to ensure that users are equipped with the
information required to competently and responsibly operate this commode.
It is recommended that the User Manual be kept in an easily accessible place for
quick reference. If required, Aspire product specialists can provide additional
training.
All warnings and cautions within this manual should be strictly adhered to. Failure to
do so could result in harm to the patient or operator.
Warnings highlighted throughout this manual identify possible hazards in
procedures or conditions which if not followed correctly could result in serious
injury or fatality.
Cautions highlighted throughout this manual identify possible hazards in
procedures or conditions, which if not followed correctly could result in equipment
damage or failure.
GENERAL
• This commode is designed to be used indoors.
• Suitable for wet areas but not pools.
• The clinically qualified person responsible should consider the age, size and
condition of the patient before using the commode.
• The maximum user weight is 136kg.

6 7

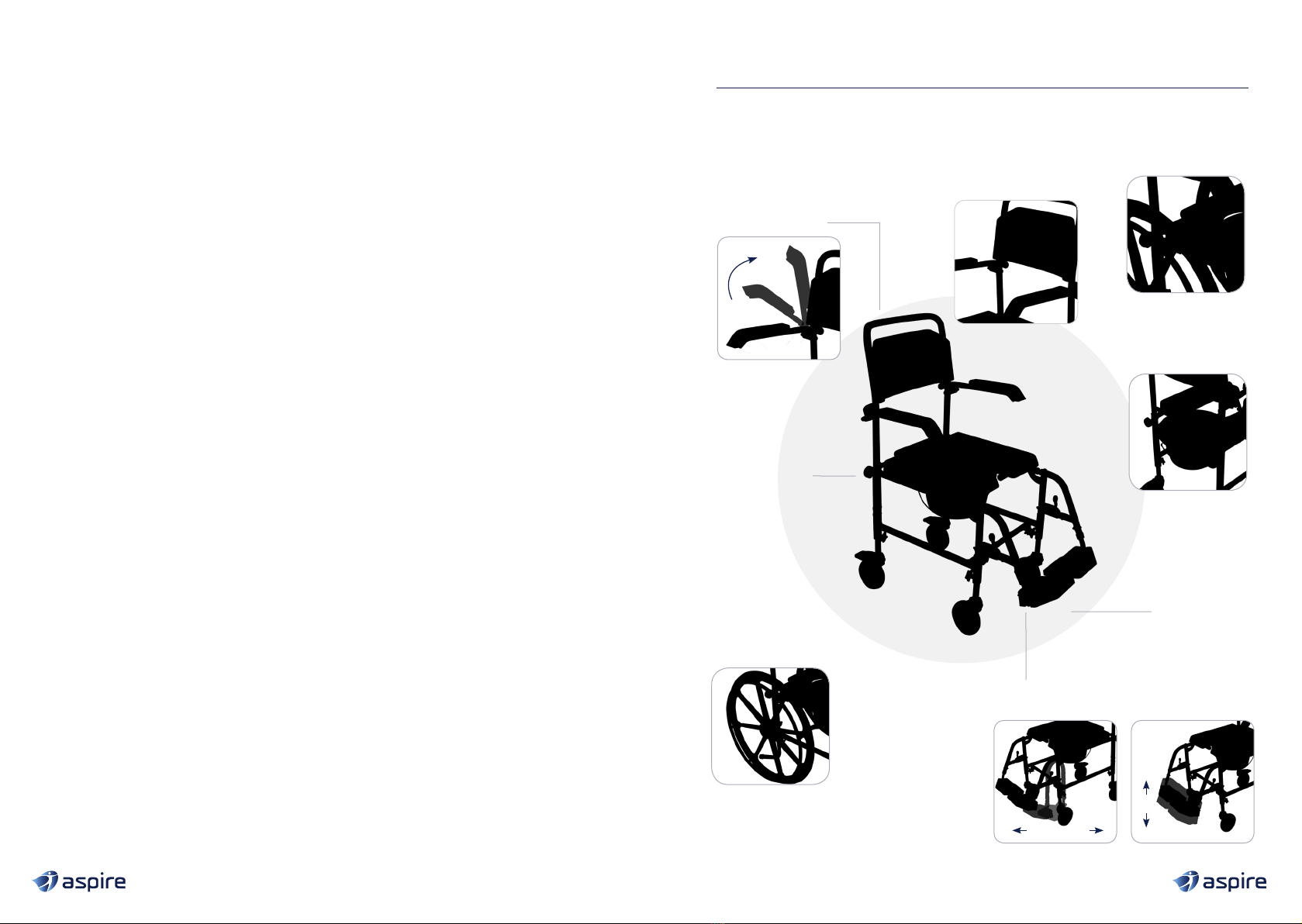

3. PRODUCT OVERVIEW
The Aspire Community Commode range is designed specifically for the
community and aged care environment. Please take time to familiarise
yourself with key components shown below:
ANTI-TIP BARS
Self Propelled model
only
SWING BACK
SAFETY ARMS
SOFT PU
OPENING SEAT
SWING AWAY &
ADJUSTABLE LEGRESTS
EASY MOVE
LOCKING CASTORS
Attendant Propelled
model only EASY MOVE
NON-LOCKING
CASTORS
COMMODE BOWL
EASY MOVE LOCKING
SELF PROPELLING
WHEELS
Self Propelled model only
• ALWAYS check with your healthcare professional prior to using this commode.
• ALWAYS apply the brakes when the commode is stationary.
• ALWAYS ensure brakes remain locked when transferring into or out of the
commode.
• ALWAYS ensure that the legrests are swung away when transferring into and
out of the commode.
• ALWAYS ensure that attendant and patient limbs are free from potential
entrapment areas before operating any functions.
• DO NOT stand on the product.
• DO NOT use outdoors.
• DO NOT use this product without reading the user manual in its entirety.
• DO NOT use if defective.
• DO NOT make any changes or modifications to this product without
consultation from your Aspire Dealer.
PADDED SEAT

8 9

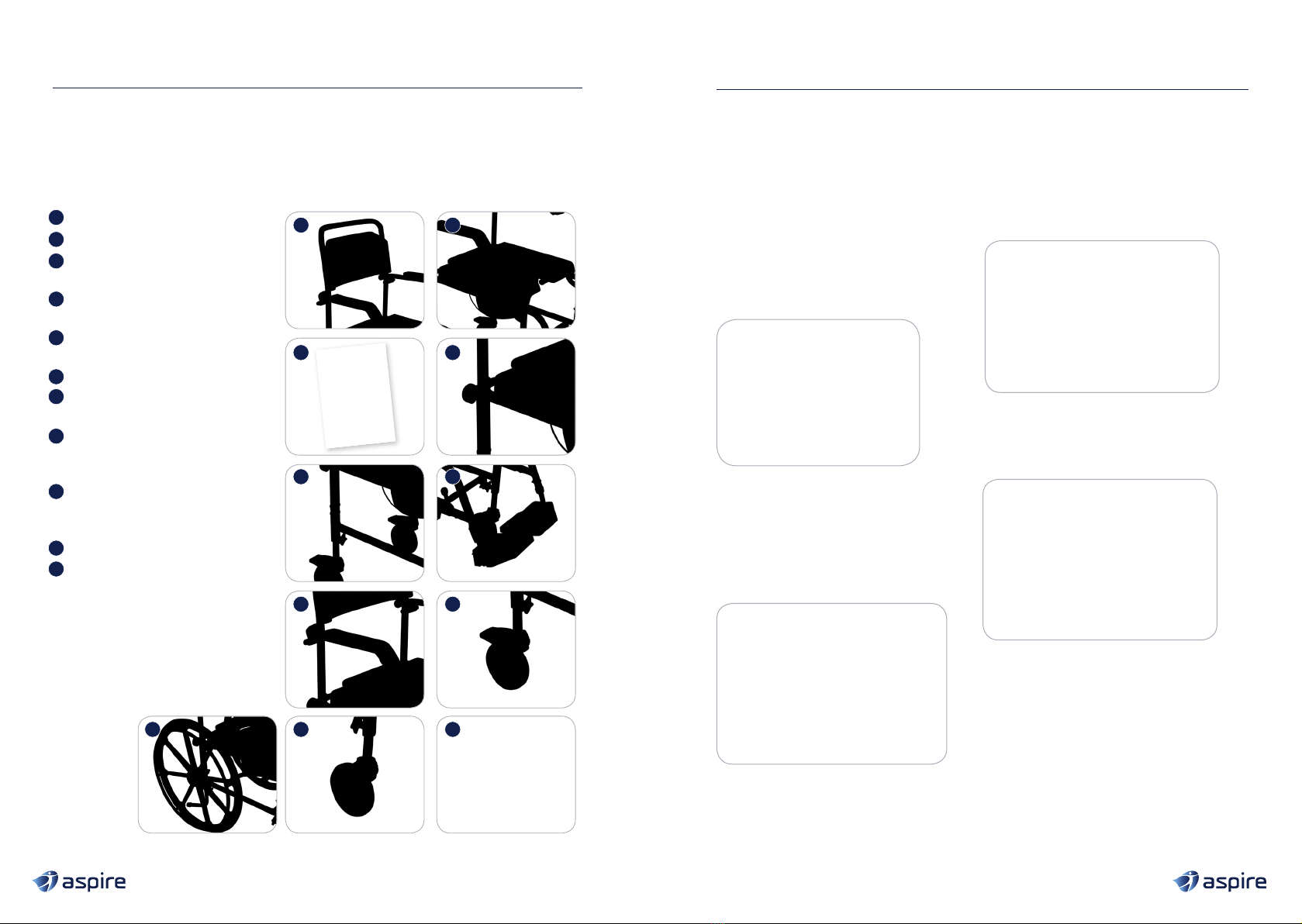

4. UNPACKING & INSPECTION
Aspire Community Commodes come packaged in 1 box for maximum
protection. Check box to ensure no components are missing and contact
Aidacare if this occurs on 1300 133 120
• Soft PU backrest
• Soft PU seat
• User Manual (in plastic
bag)
• Hand wheels for backrest
(2x)
• Hand wheels for height
adjustment (4x)
• Swing away footrests
• Commode frame with
armrests
• Locking castors (2x)
- Attendant propelled
model only
• Locking self propelling
wheels (2x) - Self
propelled model only
• Non-locking castors (2x)
• Bowl & lid
5. ASSEMBLY INSTRUCTIONS
Step 1a
Insert the castor tube into the
frame and secure in place with
hand wheels. Repeat 4 x times
for attendant propelled version
(2 x locking on back and 2 x non-
locking on front) and 2 x times
(non- locking on front only) for
the self propelled version.
Step 1c
1c - Mount self propelling wheel
onto anchor clamp and lock in
place with quick release axle
(self propelling version only)
Step 1b
Mount the axle plate on the rear
section of the frame (self propelled
version only) and tighten screws with
allen key provided.
Step 1d
Brakes will be mounted to the frame
already (self propelled version only)
1
3
5
7
109
2
4
6
8
11
1
2
3
4
5
6
7
8
9
10
11

10 11
Step 2a
Slide the backrest downwards onto
mounting points until the clicks in
place.
Step 4
Slide the edge of the commode bowl
along the rails and make sure it is in a
stable position and clicks into place.
Repeat this step in reverse to remove
the bowl for easy cleaning.
Step 3a
Under the seat frame 1there are
6 x clips. Place the clips in the right
positions highlighted in red 2
until they click into place.
Make sure all 6 x clips keep the seat
firmly in position.
Step 3b
On the seat is a removable seat
cover. When using the chair as a
shower chair, slide the insert into
the open seat.
Step 2b
Tighten with hand wheels and ensure
the backrest is properly positioned
and firmly secured.
Step 5
Insert legrests into receivers on front
of commode 1and lock into place
by swinging towards centre. Lift the
pivot pin 2to unlock and remove
the footrests by swinging outwards.
1
2
1
2

12 13
6. OPERATION
Activating the Locking Castors - Attendant Propelled Model
• To engage, press the red lever down with your foot
• To disengage, press the black lock down with your foot
Activating the Brakes - Self Propelled Model
• Push down and forward on the black hand levers on both sides of the
commode to lock rear wheels in place
• Pull up and back on the hand levers
Adjusting the Legrests
• Lift the pivot pin to lock or unlock the footrests
• If the user wishes to vacate the chair, swing the footrests outwards for
clearance. They can be completely removed by lifting upwards
Installing & Removing Commode Bowl
• Slide the edge of the commode bowl along the rails and make sure it is in
a stable position and clicks into place
• Repeat this step in reverse to remove the bowl for easy cleaning
Using Safety Swing Armrests
• The armrests can be swung up by 90⁰ to assist with transfers
1
2
2
1
1
2
1 2

14 15
7. TROUBLESHOOTING
Fault Cause Solution
Difficulty in
removing/
adjusting
footrests
Build up of
material in
receivers
• Remove footrests, clean receivers and footrest
mounts
Difficulty
adjusting the
seat height
Build up of
material
between castors
and frame
• Remove castors, clean receivers and castor
mounts
Difficulty in
maneuvering
castors
Build up of dirt
between fork
and castor
• Clean castors thoroughly
Should problems persist contact Aspire Service on 1300 133 120.
8. CLEANING
WARNING
Note: It is strongly recommended that protective clothing be used when cleaning.
• Frame and metal components - Always keep the commode clean for greater
comfort and long-lasting performance. Clean metal components with water and
a mild detergent. Wipe dry.
• Brakes - The braking eect depends on the state of the tyre tread. Excessive
dirt build-up may negatively aect the application of the brakes. If necessary,
clean tyres with a small brush to remove dust and waste.
• Seat and backrest padding - All padding is made in PU foam that can be
washed with water and neutral soap/detergent.
• Commode Bowl - Remove and clean with water and a neutral soap/detergent.
CAUTION
Do not use abrasive Hypocarbonate or Phenolic compounds or pads.

16 17
9. SERVICE & MAINTENANCE
To prolong the working life of the commode and for trouble free operation it is
recommended that routine inspections should be performed by a person who is
suitably qualified and well acquainted with the design, use and care of Community
Commodes.
If inspection reveals that the safety of the commode is compromised in any way, it
should be IMMEDIATELY WITHDRAWN FROM SERVICE, tagged as such and the
owner notified, until repair or replacement has occurred.
Inspection:
A visual and functional inspection should be performed monthly and every time the
commode changes user.
• Visually inspect mechanical components: can you see damage, chips or
deformation to the frame, armrests, seat, backrest, legrests or commode bowl?
• Are the castors, wheels and brakes functioning as they should?
• Are all frame securement hand wheels present and tightened?
10. SPECIFICATIONS
