USER MANUAL
DASH WHEELCHAIR

2 3
Congratulations and thank you for choosing an
Aspire Dash Wheelchair.
This product has been designed to oer the
maximum in comfort, safety and lightweight
portability. Aspire Dash Wheelchairs are suitable
for indoor and outdoor use.
It is important that you read this user manual
carefully before using your new wheelchair.
1. Intended Use
2. Product Description
3. Warnings
4. Product Specifications
5. List of Components
6. Assembly Instructions
7. Preliminary Checks
8. General Operation
9. Adjusting Your Wheelchair
10. Troubleshooting 
11. Care & Maintenance
12. Warranty
13. Compliance
14. Service Maintenance & Customisation
15. Service Log Book
TABLE OF CONTENTS
4
5
5
6
7
8
9
9
12
13
14
15
16
16
17
8.1 How to Activate Brakes
8.2 How to Lock Brakes
9.1 Adjusting Legrest Height
9.2 Removing Legrests

4 5
1. Intended Use
This product is specifically designed for individuals who, due to a wide variety of reasons, have limited
mobility or are unable to walk. This product should be used as a tool to assist with mobility or walking
diculties.
Attendant Propelled Wheelchairs are able to be propelled by an attendant with the push handles.
This wheelchair has been designed to be used indoors and outdoors on dry, hard and levelled terrain.
Self Propelled Wheelchairs are able to be propelled by a user with the self-propelling wheels or by an
attendant with the push handles. This wheelchair has been designed to be used indoors and outdoors
on dry, hard and levelled terrain.
WARNING! This wheelchair is intended to bear the weight of an occupant through its wheels
during propulsion and when stationary. It is NOT designed to be carried with an occupant in the
seat and doing so may cause serious injury or death.
Symbols Used In This Manual
The symbols below are used throughout this user manual and on the product to identify warnings and
important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated
procedures can cause either personal injury, component damage or malfunction. On the
product, this icon is represented as a black symbol on a white triangle with a black border.
ALWAYS! These actions should be performed as specified. Failure to perform mandatory
actions can cause personal injury and/or equipment damage. On the product, this icon is
represented as a white infinity symbol on a black dot with a white border.
DO NOT! These actions are prohibited. These actions should not be performed at any time
or in any circumstances. Performing a prohibited action can cause personal injury and/or
equipment damage. On the product, this icon is represented as a white symbol with a black
circle and black slash.
3. Warnings
2. Product Description
The Aspire Dash AP is an attendant propelled, four wheel wheelchair with a cross folding frame.
The product is made from aluminum, so it is light and easy to store or transport. This wheelchair
oers great maneuverability, stability and it’s leg rests are height adjustable for a customised fit.
It is equipped with a padded mesh seat and backrest, push handles, 13 inch rear wheels, swing-away
legrests and padded armrests.
The Aspire Dash SP is an self propelled, four wheel wheelchair with a cross folding frame. The product
is made from aluminum, so it is light and easy to store or transport. This wheelchair oers great
maneuverability, stability and it’s leg rests are height adjustable for a customised fit. It is equipped
with a padded mesh seat and backrest, push handles, 22 inch rear wheels, swing-away legrests and
padded armrests.
MAXIMUM WEIGHT CAPACITY - 135KG
• DO NOT exceed maximum user weight. This weight limit includes any accessories, shopping or
other personal items that may be carried on the chair.
• DO NOT stand on the foot plates as the wheelchair may tip forwards. The foot plates are not
designed to be a weight bearing surface.
• DO NOT use the wheelchair on escalators, even if accompanied by an attendant.

6 7
7.4KG 8.8KG
4. Product Specifications 5. List Of Components
MODEL
OVERALL
LENGTH
OVERALL
WIDTH
OVERALL
HEIGHT
SEAT
DEPTH
SEAT
WIDTH
ANTERIOR
SEAT
HEIGHT
POSTERIOR
SEAT
HEIGHT
BACKREST
HEIGHT
ARMREST
HEIGHT
SAFE
WORKING
LOAD
REAR
WHEEL
MWS449850
Attendant Propelled
Orange
995 655 930 420 450 495 445 430 200 135 13”
MWS449855
Attendant Propelled
Green
995 655 930 420 450 495 445 430 200 135 13”
MWS449860
Self Propelled
Orange
1030 685 930 420 450 495 445 430 200 135 22”
MWS449865
Self Propelled
Green
1030 685 930 420 450 495 445 430 200 135 22”
KG
Product Finishes:
MODEL FRAME COLOUR UPHOLSTERY COLOUR
MWS449850 Silver Orange
MWS449855 Silver Green
MWS449860 Silver Orange
MWS449865 Silver Green
113” Rear Wheels (AP) | 22” Rear Wheels (SP)
27” Front Wheels
3Wheel fork
4Attendant Brakes
5Height Adjustable Legrests
6Folding Foot Plates
7Padded Armrests
Padded Seat Upholstery
9Folding Backrest with Padded Upholstery
and Carry Pouch
10 Attendant Hand Grips
11 Frame Cross Bar
12 Legrest Removal Lever
13 Folding Backrest Lever
Dash
Chair Weights:
Aspire Dash Attendant Propelled Aspire Dash Self Propelled
(mm) (SWL) (inch)(mm) (mm) (mm) (mm) (mm) (mm) (mm)(mm)
Aspire Dash
Self Propelled
10 10
1
2
35
6
7
8
9
11
12
13
4
Aspire Dash
Attendant Propelled
10 10
3
5
6
7
8
9
11
12
13
4
2
1

8 9
Wheelchairs come with a left and right
legrest.
Insert the legrest into the corresponding
receiver at a 90oangle (as shown).
Pull up and hold the hook, simultaneously
rotating the legrest towards the centre
until it clicks into place. Repeat for the
other side.

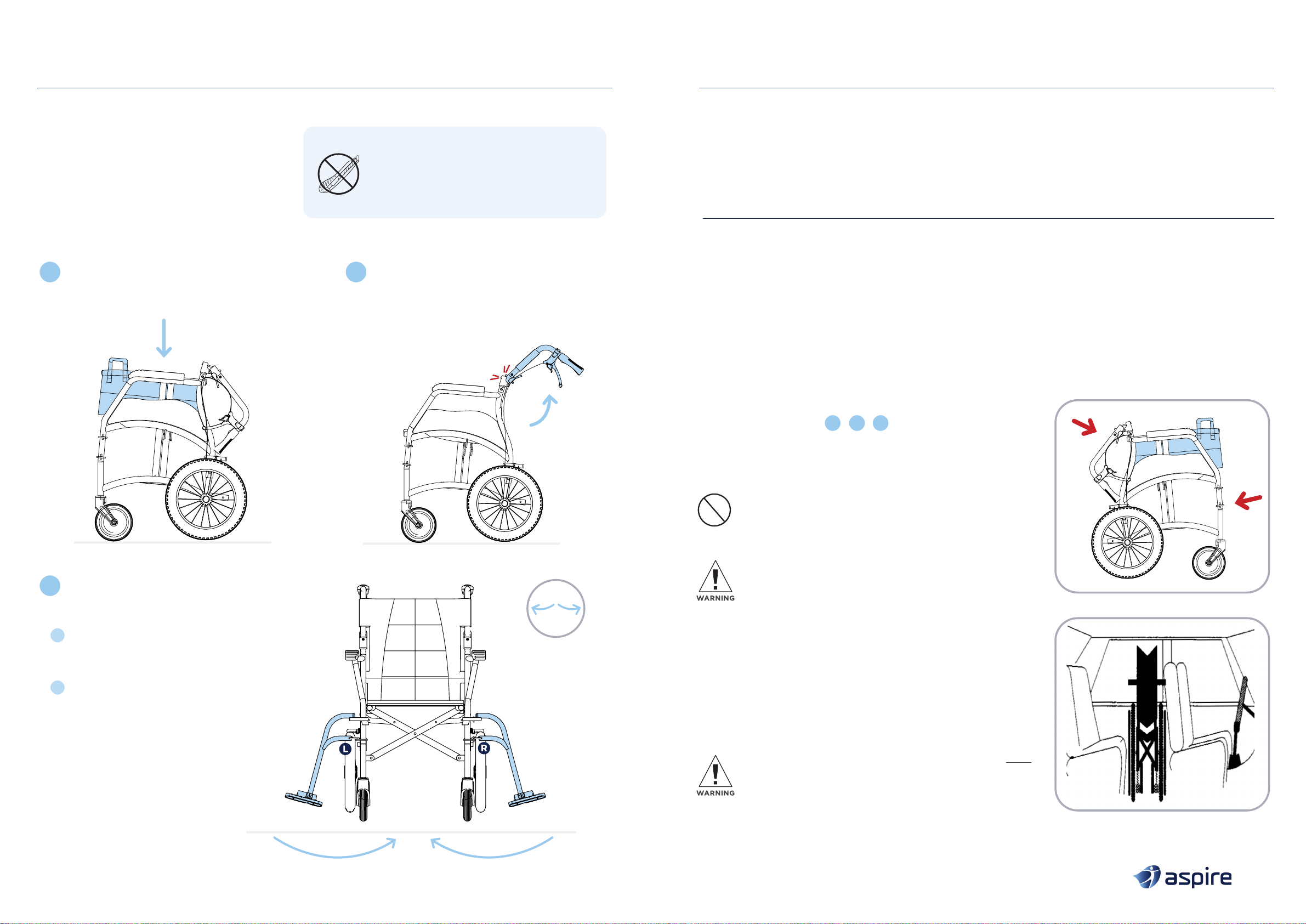

Lifting the Wheelchair
To fold your chair correctly follow the ‘ASSEMBLY’
instructions in reverse , , .
Then, use the carry handle on the seating surface to safely lift
the wheelchair.
DO NOT lift the wheelchair with an occupant in the
seat. This lifting guide is for safe handling of the
wheelchair only.
WARNING! DO NOT lift the wheelchairbyholdingitby
the legrests or the armrests! Fold-up the legrests prior
to lifting the chair.
Transporting the Wheelchair
To transport this chair in a motor vehicle it is suggested that
the backrest, seat and legrests are folded as per the “Lifting
the Wheelchair” instructions above. This will help reduce the
overall chair size in order to fit into the rear boot or backseat
of a standard motor vehicle.
WARNING! Aspire Dash Wheelchairs are NOT
crash tested and SHOULD NOT ever be used as a
means of transporting a user in a motor vehicle.
6. Assembly Instructions
Wheelchair frame fitted with rear wheels
• Wheelchair
• Left Legrest
• Right Legrest
• Allen Keys (4mm, 5mm)
• User Manual
1
When opening the carton, ensure it is done in a safe
and careful manner. DO NOT USE a box cutter or sharp
implement as this may damage the product. For WH&S
purposes, lay the carton on its side with the top of the
carton open and slide the plastic bag out containing
the wheelchair.
2
3
7. Preliminary Checks
After assembling the wheelchair, these checks should be completed prior to initial use:
1. Check that the seating surface is locked into place, creating a flat support surface.
2. Check that rear wheels are locked in place.
3. Check that rear brakes engage and disengage.
8. General Operation
General Operation
It is very important that this wheelchair is used under guidance from all warnings or hazards listed in this
product user manual. Key safety measures should be taken by both users and attendants when using this
wheelchair:
• Avoid quick direction changes.
• Ensure your wheelchair is used on surfaces intended for its use.
• Ensure an attendant is available to assist at all times.
BOX CONTAINS:
Flip up
*CLICK*
Push
Rotate
towards
centre
Place the wheelchair on levelled ground.
Then pushdown on the side rails of the
seat until flat.
Flip up and click backrest into place.
IMPORTANT: Ensure your fingers are kept
clear from the pivoting mechanism.
a
b
REMOVING
LEGRESTS:
Pull up hook, hold,
swing outwards
and lift.
1
2
3

10 11
WARNING! This should only ever be done with an attendant and not performed by a user on their
own. It is very important the above steps are followed to prevent injury to both the user and the
attendant.
WARNING! This should only ever be done with an attendant and not performed by a user on their
own. It is very important the above steps are followed to prevent injury to both the user and the
attendant.

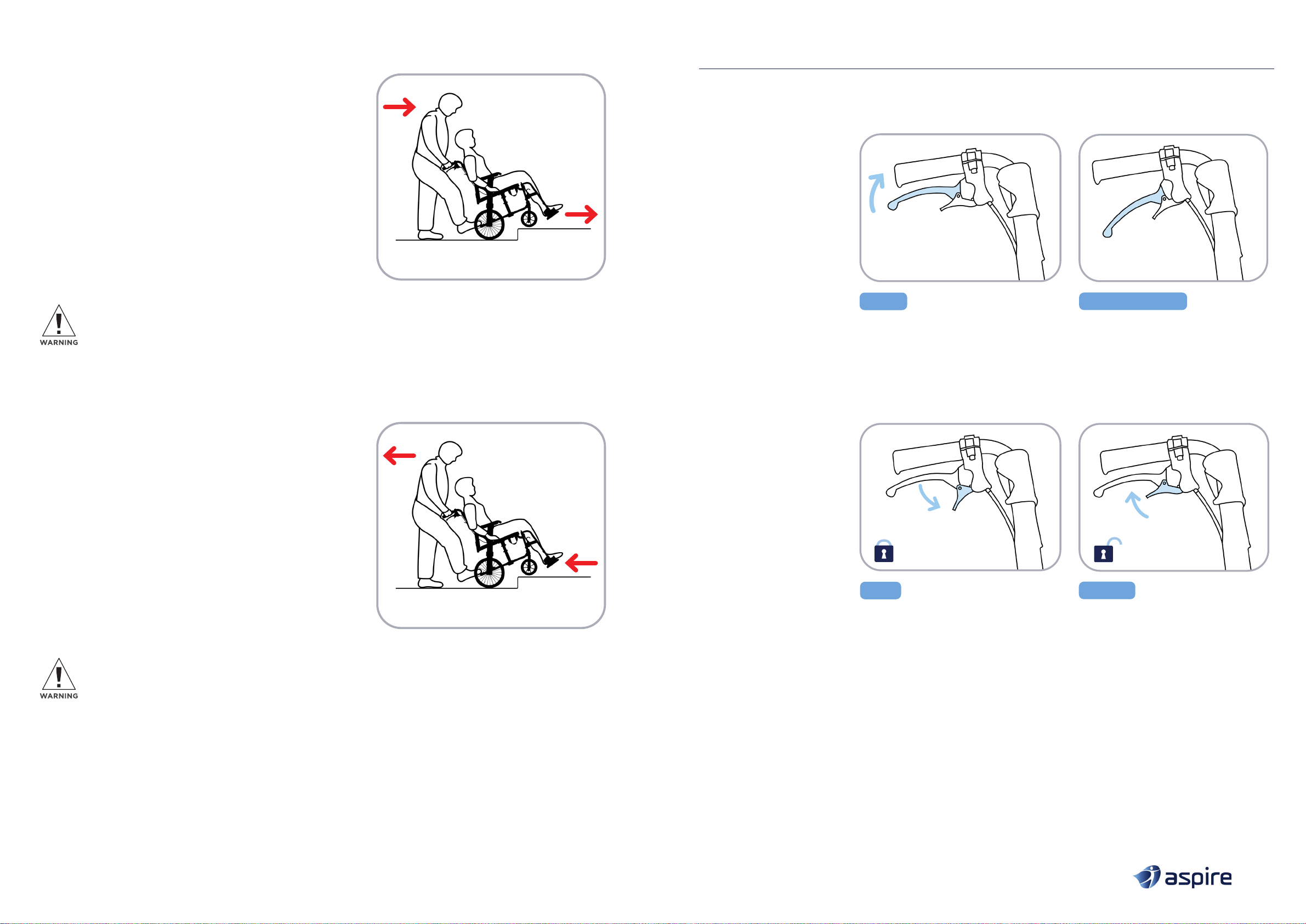

Moving Wheelchair Up a Kerb - With an Attendant
1. Push the wheelchair up to the kerb FEET FIRST.
2. The attendant should push down on the rear foot peg to
slightly incline the chair. DO NOT tilt the chair back with
the push handles.
3. Once the front wheels are firmly on the ground above
the kerb, the rear wheels should be pushed against
the kerb to propel the the entire chair to rest above
the kerb.
Moving Wheelchair Down a Kerb - With an Attendant
1. Reverse the wheelchair up to the kerb FEET LAST.
2. The attendant should check for cars or obstructions
prior to commencing the descent.
3. The attendant should slowly lower the rear wheels down
to the road surface, ensuring not to tip the chair.
4. Once the rear wheels are firmly on the road surface,
the front wheels should be slowly lowered onto the road
surface.
1
Lock / Unlock
Activating
Brakes
BRAKE: To engage brakes, squeeze
the handbrake in an upwards direction.
Release
to go
Squeeze
to brake
Flip up
Press down
*CLICK*
Product may vary to image.
Product may vary to image.
Attendant Handbrake Operation
8.1 How to Activate Brakes
8.2 How to Lock Brakes
RELEASE BRAKE: To disengage
brakes, release the handbrake.
LOCK: Toengagebrakes,squeezethe
handbrake in an upwards direction.
Press down on the switch until it clicks,
this will lock the brakes.
UNLOCK: To disengage brakes, flip
the switch upwards.

12 13
10. Troubleshooting
Correct adjustment of the wheelchair is essential for the successful and safe use of this product.
Should assistance be required, contact the Aidacare Service Department on 1300 133 120.
Wheelchair is
steering/pulling to
one side
• Make sure the rear wheels are attached correctly to the frame.
• Make sure the end user is able to evenly distribute his/her weight on the
wheelchair.
• Make sure one wheel has not been mounted more tightly than the other.
Wheelchair is
moving slowly
• Make sure the rear wheels are attached correctly to the frame.
• Remove any hair or dirt from castor and rear wheel axles.
• Make sure there is not too much weight applied to the castors, otherwise adjust
the centre of gravity.
• Ensure user clothing is not interfering with movement of the rear wheels.
• Ensure both brakes are disengaged.
Wheelchair does
not turn smoothly
• Make sure the front fork bolts are not over tightened which can restrict front
castor wheel rotation.
• Remove any hair or dirt from castor axles.
• Ensure both brakes are disengaged.
Brakes are not
working properly
• Check distance between tyres and brake foot is sucient such that the requisite
amount of force can be applied to the tyre surface to stop it moving when the
brake is in the engaged position.
Wheelchair
cannot be opened
or folded easily
• Clean the crossbar under the seat and apply some grease.
• Check that nothing has become lodged under the seat or in and around the
cross bar mechanism.
• Check foot plates are folded up.
9.1 Adjusting Legrest Height
Using a 5mm Allen key
loosen the bolt and
remove the centre pin.
Nominate the preferred
height by raising or
lowering footplate.
Tosecure,alignthecentre
pin with the chosen hole
and tighten.
9. Adjusting Your Wheelchair
Loosen.
Raise/Lower.
Tighten.
9.2 Removing Legrests
Pull up and hold the
hook, simultaneously
rotating the legrest
(away from the centre
of the chair) in an
outwards direction until
loose. Repeat for the
other side.
Pull Up Hook & Hold.
Swing Outwards.
Lift to Remove.
1
2
3
1
5mm

14 15
11. Care & Maintenance
Weekly Periodically Yearly Serviceable Components
• Check brakes are
functioning properly • Check for signs of wear on front castors
• Check for signs of
wear on rear tyres
Service to be completed
by authorised Aspire
service agent
• Wheels & Tyres
• Forks
• Axles
• Armrest receivers
• Seat sling
• Footrest mounts
• Footplates
• Armrest Pads
Maintenance Schedule
Care for Your Chair
• The seat and backrest upholstery can be removed by loosening the screws and wiping with a wet
sponge and a mild detergent. All other components can be cleaned with a damp cloth.
• Check tyre condition at least twice per month.
• Check that rear wheel spokes are not loose. Loose wheel spokes can reduce the strength of the rims
and must be safely adjusted by a qualified technician.
• Always keep rear wheel axles clean and free from dirt and hair build up.
• Brakes should be checked regularly.
Should you have any doubts about the correct functioning of the wheelchair or of any of its components,
please contact AIDACARE on 1300 133 120 or your local Aspire distributor.
The tool kit provided will allow basic adjustments to the wheelchair, for further information on repairs and
service contact AIDACARE on 1300 133 120.
Aidacare is bound by Australian Consumer Law in respect to ‘Warranty against Defects’ on this product. A
copy of the Aidacare ‘Warranty against Defects’ statement is available o the Home page of our website at
www.aidacare.com.au. Any contact in regard to warranty matters should be made to Aidacare Customer
Service sta on 1300 133 120 or where support will be provided.
Aidacare does not warrant against excessive or incorrect use, modification or any situation that could not
be deemed as fair wear and tear. Tyres, tubes and castor wheels are not covered under the 1 year warranty
as these are considered consumable items. These consumable items carry a 12 month warranty against
manufacturer defects only, NOT wear and tear from reasonable use.
The warranty on this product is a back to base warranty and does not cover any freight costs pertaining
to the return of any items under warranty. Aidacare acknowledges and conforms to all ACCC guidelines
around consumer rights. For further information contact Aidacare 1300 133 120.
Aidacare will not guarantee the safety and the correct functioning of the wheelchair in the case that any
of the original components have been changed or modified and or replaced with non-original Aidacare
approved parts. If any faults are detected upon receiving the wheelchair please phone Aidacare to arrange
a replacement. Any faults that are detected during normal use should be reported to Aidacare immediately
to determine if warranty conditions apply and organise repair and/or replacement as applicable.
12. Warranty
Aspire Dash Wheelchairs come with
a 2 year warranty (frame) and a 1 year
warranty (components).
Please keep purchase invoice as proof
of warranty commencement.
1
Year
Warranty
2
Years
Warranty
FRAME COMPONENTS

16 17
13. Compliance
This Wheelchair range is manufactured in ISO compliant production facilities in P.R China to strict quality
control standards.
As part of Australian Standards compliance, safety stickers are located on the frame of this wheelchair.
Please ensure that you familiarise yourself with these prior to use.
This product complies with Australian Standard AS/NZS 3695.1:2011. As the importer of this product,
Aidacare maintains records of all testing reports and compliance certificates. All testing was Certified by
Novitatech Children’s Services in South Australia.
Novitatech is an independent NATA accredited laboratory and is widely acknowledged as the leading
provider of safety testing services for wheelchairs and mobility products in Australia.
14. Service Maintenance & Customisation
FOR ALL ENQUIRIES, PLEASE CALL 1300 133 120
When sending the chair back for warranty, service or repair work please include all components such as
leg rests, armrests and seat cushion. Please ensure wheelchair is clearly marked with owner’s name and
contact details.
To organise pickup by Aidacare, please call 1300 133 120, standard pickup and delivery charges apply.
SPARE PARTS
Aidacare stock replacement parts for the Aspire wheelchair range. All replacement of parts should be
completed by Aidacare or authorised Aspire service technician. The term parts includes but is not limited
to: tyres, brakes, armrests, footrests and upholstery.
A complete parts list is available upon request.
CUSTOMISATION AND MODIFICATION
All wheelchair customisation, modifications and or alterations made to this product are considered as
“custom” changes. These may cause the product to no longer satisfy Australian Standards and should be
considered prior to commencement.
For customisation or modification work, contact AIDACARE on 1300 133 120. Our team of qualified Rehab
Engineers are available to assist if required.
15. Service Log Book
YEAR 1
Service Type:
Condition Report:
Action taken:
Inspected By:
Date:
YEAR 2
Service Type:
Condition Report:
Action taken:
Inspected By:
Date:
YEAR 3
Service Type:
Condition Report:
Action taken:
Inspected By:
Date:
YEAR 4
Service Type:
Condition Report:
Action taken:
Inspected By:
Date:
YEAR 5
Service Type:
Condition Report:
Action taken:
Inspected By:
Date:
Signature: _________________________________________
Signature: _________________________________________
Signature: _________________________________________
Signature: _________________________________________
Signature: _________________________________________

18 19
NOTES NOTES

ASUM79.3 141221
AIDACARE PTY LTD
Building 3A, 1 Moorebank Avenue,
Moorebank NSW Australia 2170
www.aspirecare.com.au
1300 133 120 | MADE IN PRC
