ASROCK 4X4 BOX-5000 Series User manual

4X4 BOX-5000 Series
User Manual
Version 1.0
Published May 2022

Version 1.0
Published May 2022
Copyright©2022 ASRock Industrial Inc. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Industrial Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock Industrial. ASRock Industrial assumes no
responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock Industrial does not
provide warranty of any kind, either expressed or implied, including but not limited
to the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock Industrial, its directors, ocers, employees, or agents
be liable for any indirect, special, incidental, or consequential damages (including
damages for loss of prots, loss of business, loss of data, interruption of business
and the like), even if ASRock Industrial has been advised of the possibility of such
damages arising from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Industrial’s Website: https://www.asrockind.com

Replaceable batteries
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
Contact Information
If you need to contact ASRock Industrial or want to know more about ASRock
Industrial, you’re welcome to visit ASRock Industrial’s website at https://www.
asrockind.com; or you may contact your dealer for further information.
ASRock Industrial Incorporation
Email: [email protected]
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Product Specications 2
1.3 Block Diagram 4
Chapter 2 Product Overview 5
2.1 Front View 5
2.2 Rear View 6
2.3 Inside View 8
Chapter 3 Hardware Installation 9
3.1 How to Remove the Bottom Case 9
3.2 How to Install the WiFi Module 10
3.3 How to Remove the M.2 SSD and the Bracket 11
3.4 How to Install the M.2 SSD 12
3.5 How to Install the 2.5-inch Hard Drive 13
3.6 How to Install the Memory Modules
(DDR4) 16
Chapter 4 Motherboard 17
4.1 Motherboard Layout 17
4.2 Motherboard Specications 18
4.3 Jumpers Setup 20
4.4 Onboard Headers and Connectors 21
4.5 Expansion Slots (M.2 Slots) 24

Chapter 6 UEFI Setup Utility 25
6.1 Introduction 25
6.2 Main Screen 26
6.3 Advanced Screen 27
6.4 Hardware Health Event Monitoring Screen 35
6.5 Security Screen 36
6.6 Boot Screen 37
6.7 Exit Screen 39
Chapter 8 Software Support 40
8.1 Install Operating System 40
8.2 Support CD Information 40

4X4 BOX-5000 Series
PB 1
English
Chapter 1 Introduction
1.1 Package Contents
• 4X4 BOX-5000 Series
• 4X4 BOX-5000 Series (pre-installed motherboard)
• 1 x SATA 1 to 1 Power Cable
• 4 x HDD Screws (M3x4)
• 1 x WiFi Module Screw
• 1 x Screw for M.2 slot
• 1 x Bracket for M.2 2280 support
• 1 x 19V/90W Power Adapter
• 1 x VESA Mount Bracket & Screw Package
• Quick Installation Guide
Because the hardware specications might be updated, the content of this documentation
will be subject to change without notice.
If any items are missing or appear damaged, contact your authorized dealer.

2 3
English
1.2 Product Specications
4X4 BOX-5000
Series Barebone
CPU
4X4 BOX-5800U
(AMD Ryzen™ 7 5800U, 8Cores, Max Speed up to 4.4GHz)
4X4 BOX-5600U
(AMD Ryzen™ 5 5600U, 6Cores, Max Speed up to 4.2GHz)
4X4 BOX-5400U
(AMD Ryzen™ 3 5400U, 4Cores, Max Speed up to 4.0GHz)
OS N/A
Chipset SoC
Memory Supports Dual Channel DDR4 3200 MHz, 2 x SO-DIMM slots,
Max. 32GB
HDD
Optional
Supports 1 x 2.5" SATA HDD*/SSD
LAN LAN1:
Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2:
Realtek R8111FPV with 10/100/1000 Mbps, support DASH
function
WiFi 1 x Intel® Wi-Fi 6 AX200 module
Audio Realtek ALC233, High Definition Audio
Front I/O 1 x USB 3.2 Gen2 (Type A), 2 x USB 3.2 Gen2 (Type C, Supports
DP1.2a display output), 1 x Audio-out with MIC-In
M.2 slot
2.5”HDD

4X4 BOX-5000 Series
2 3
English
* For 4X4 BOX-5000 Series, it is not recommended to install 2.5” HDD. If you install the 2.5” HDD, please keep the
4X4 BOX-5000 Series in a vertical position to ensure better cooling performance.
Rear I/O 2 x USB 2.0 (Type A), 1 x HDMI, 2 x DP, 2 x LAN( 1 x 1 Gigabit
LAN, 1 x 2.5 Gigabit LAN), DC-IN, 1 x Kensington lock
Power Unit 19V/90W Adapter
Dimension 110.mm (W)x 117.5mm (D) x 47.85mm (H)
VESA Bracket included , supports 75 x 75 and 100 x 100 mm
Volume
(Liters) 0.6L
Operating
Temperature 0°C~40°C

4 5
English
1.3 Block Diagram
5 5
4 4
3 3
2 2
1 1
D D C C B B A A
4X4-5000U
DDR4 SO-DIMM 3200MT/S)
USB 2.0 port 7
USB2.0 HUB
port 1 port 2 port 3
SIO
Nuvoton NCT5525D
DDR4 SO-DIMM 3200MT/S)
Dual Channel
AMD Ryzen 5000U
UART*1
Line_Out Line_In header
DP1
LPC Header
LPC BUS
HW Monitor FANx1
DP++ Connector
PCIEx4(GPP8~11) w SATA
DP2/USB3 port 0
TYPE C Connector
DP0
(Front I/O)
HDMI2.0 Con Retimer
BIOS
SPI
Realtek ALC233
Line_Out Mic_In combo jack
HD AUDIO
PCIEx1 (GPP4)
RTL8111EPV
PCIEx1 (GPP5)
RTL8125BG
Gb LAN RJ45 2.5Gb LAN RJ45
Infinion SLB9670VQ2.0
SPI
USB 2.0 port 3
USB 2.0 CONN. (Rear I/O)
SATA#1(GPP2)
DP3/USB3 port 4
TYPE C Connector
SATA3_1
(Front I/O)
M.2 M Key 2242/2260 SATA/PCIe
USB 3.2 Gen 2 CONN. (Front I/O)
USB 3.2 Gen 2 P5 USB 3.2 Gen 2 P1
PCIEx1(GPP6) w U2 P6
M.2 E Key
USB 2.0 port 2
USB 2.0 CONN. (internal)
COM port (RS232/422/485)
OPTIONAL

4X4 BOX-5000 Series
4 5
English
Chapter 2 Product Overview
is chapter provides diagrams showing the location of important components of
the 4X4 BOX-5000 Series.

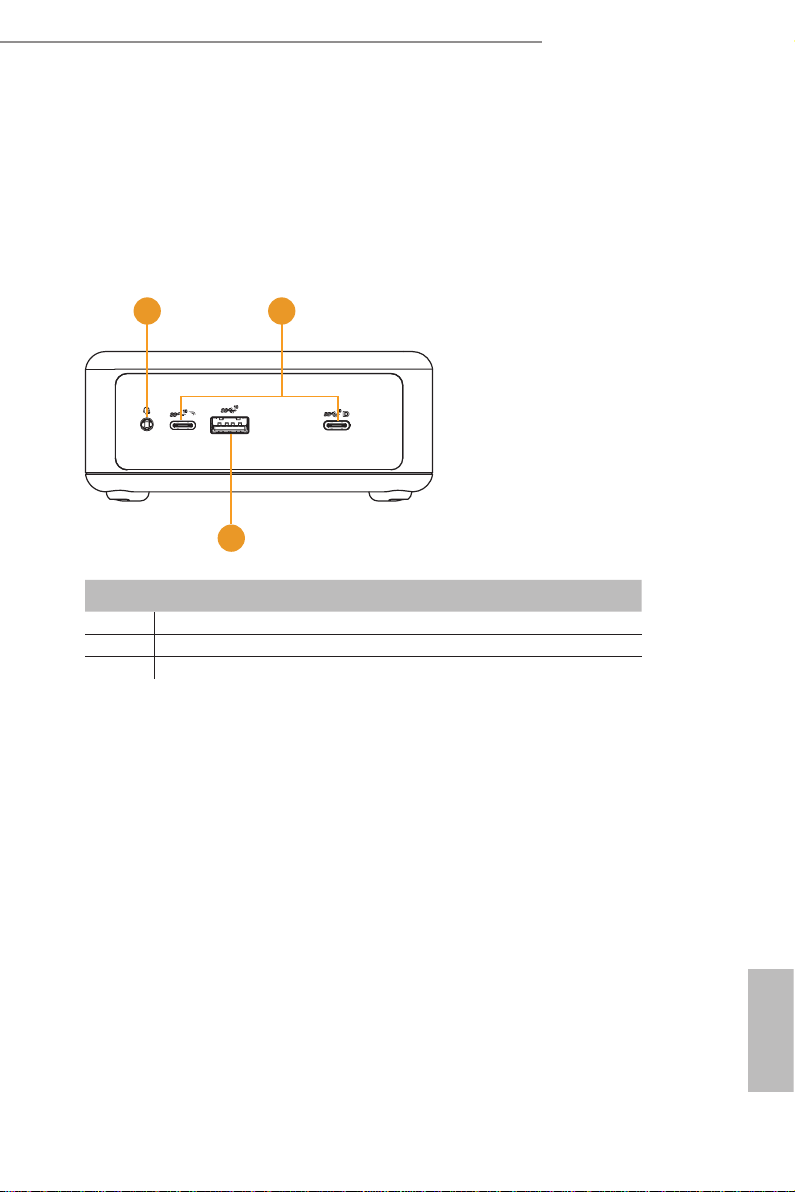

2.1 Front View
No. Description
1Audio(Mic-in, Line-out)
2 2 x USB 3.2 Gen2 Ports (Type C, supports DP1.2a display output)
3 USB 3.2 Gen2 (Type A)
1 2
3

6 7
English
2.2 Rear View
No. Description
1DC-IN
2HDMI
3 RJ-45 (1G)*
4 2 x USB 2.0 Ports
5DisplayPort
6 RJ-45 (2.5G)**
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1 2 3
4 5 6

4X4 BOX-5000 Series
6 7
English
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps
connection
On Link Green 2.5Gbps connection
ACT/LINK LED
SPEED LED
LAN Port

8 9
English

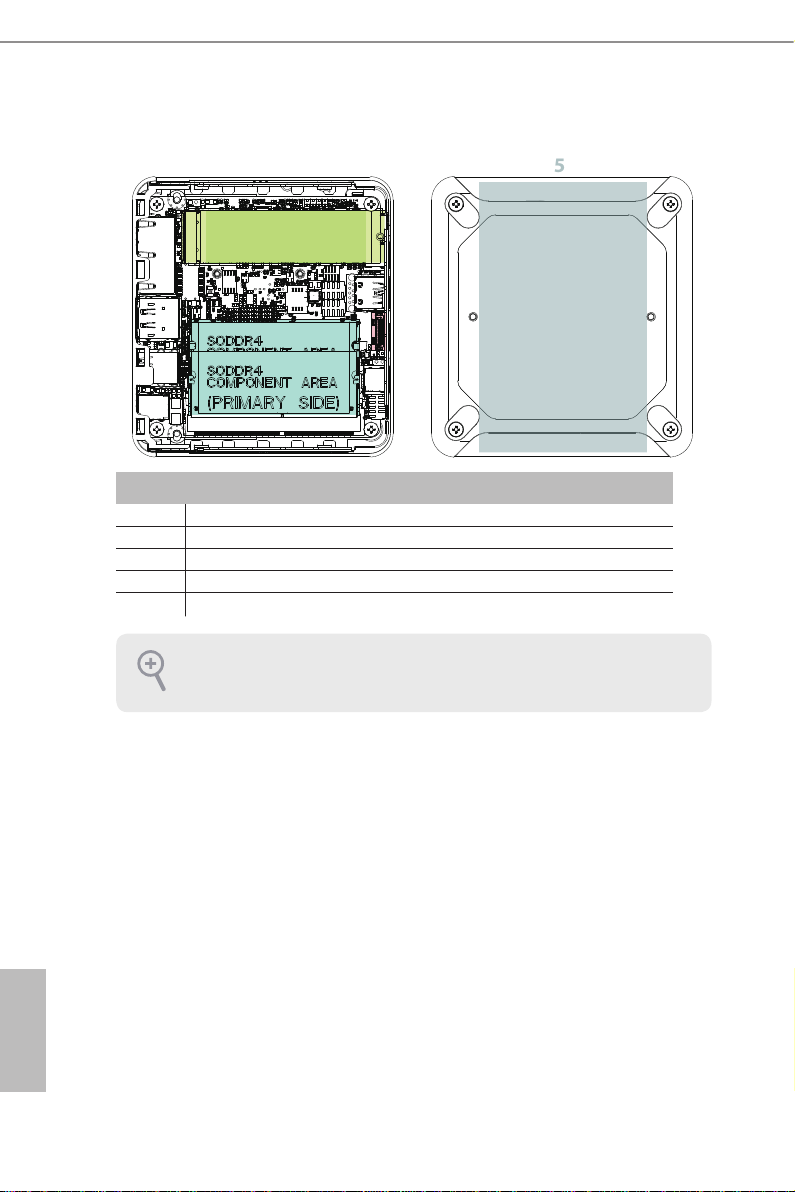

2.3 Inside View
No. Description
1SO-DIMM Slot
2 SATA 3.0 Connector
3 Mini PCIe Slot
4M.2 Slot
5 Hard disk drive tray (compatible with 2.5" SATA HDD/SSD)
SO-DIMM memory, hard drive and mSATA SSD are not included with this system.
1
3
2
4
5

4X4 BOX-5000 Series
8 9
English
Chapter 3 Hardware Installation
is chapter helps you install or remove important components.
3.1 How to Remove the Bottom Case
1. Remove the four screws on the bottom case.
2. en li up and remove the bottom panel..
2
1

10 11
English

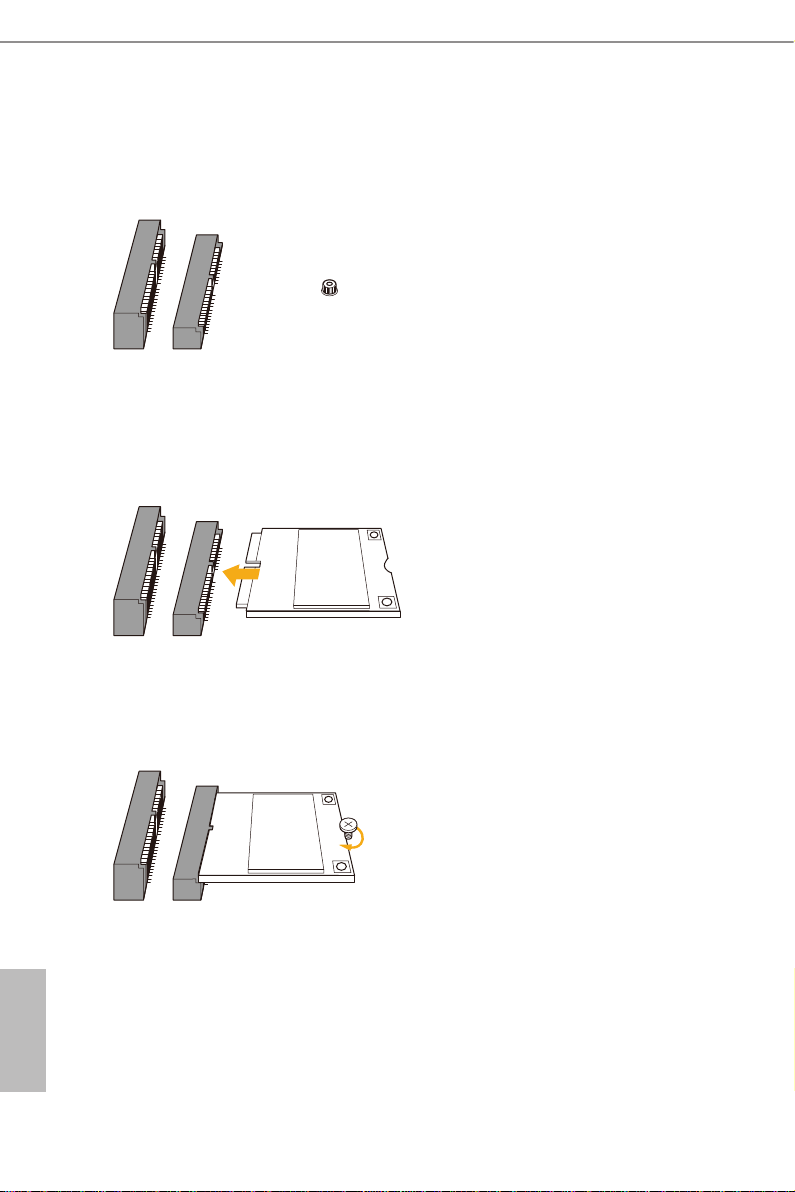

3.2 How to Install the WiFi Module
1. Locate the WiFi Module slot on the motherboard.
2. Carefully insert the WiFi Module into the slot.
3. Tighten the screw to secure the WiFi Module to the motherboard.

4X4 BOX-5000 Series
10 11
English
3.3 How to Remove the M.2 SSD and the Bracket
1. Release the screw and carefully remove the M.2 SSD.
2. Release the screw and remove the bracket from the motherboard.

12 13
English

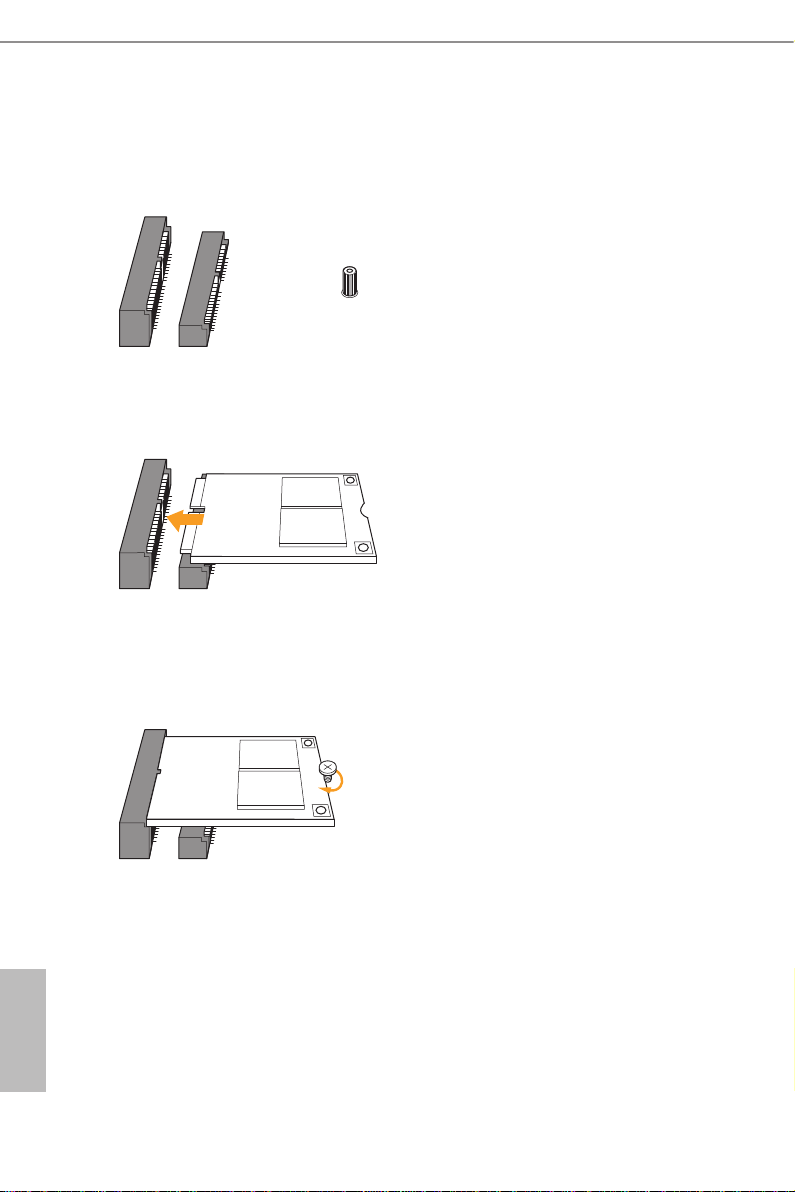

3.4 How to Install the M.2 SSD
1. Locate the M.2 slot on the motherboard.
2. Carefully insert the M.2 SSD into the slot.
3. Tighten the screw to secure the M.2 SSD to the motherboard.

4X4 BOX-5000 Series
12 13
English

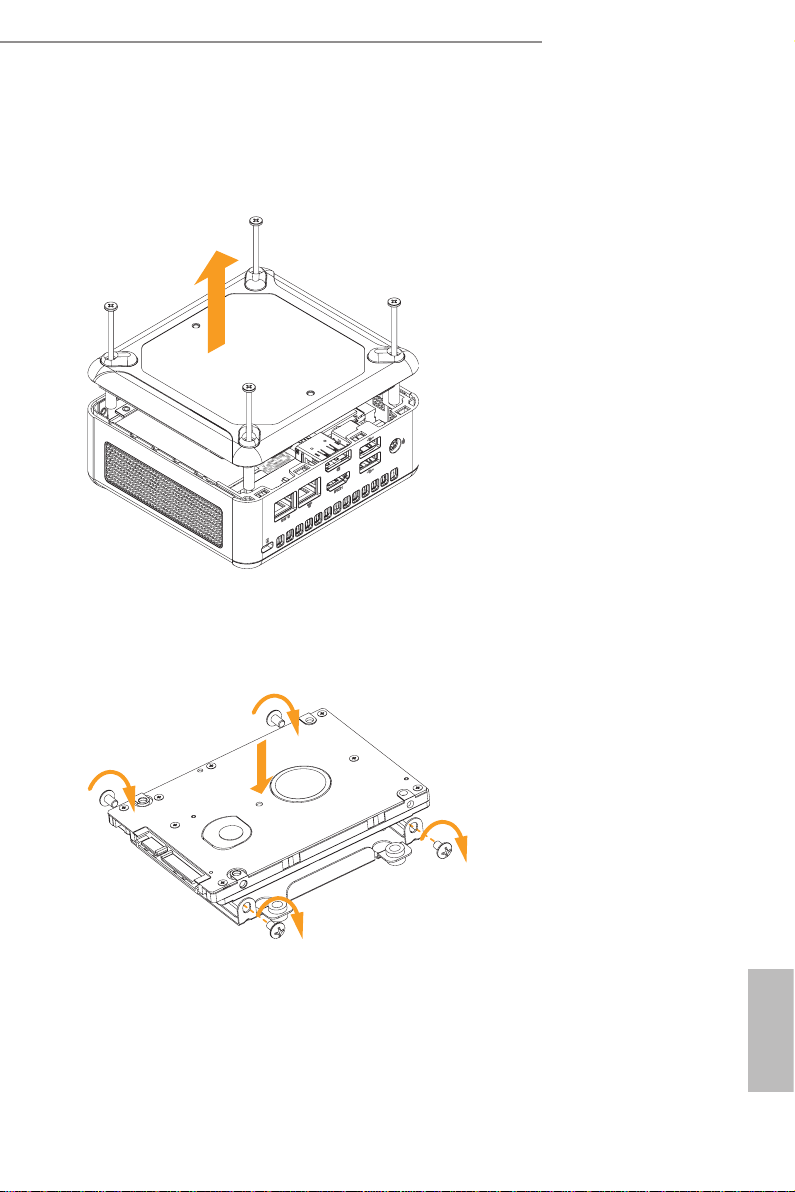

3.5 How to Install the 2.5-inch Hard Drive
1. Remove the four screws on the bottom case. en li up and remove the bottom panel.
2. Attach the HDD to the hard drive mounting bracket and secure it using the four
screws.

14 15
English

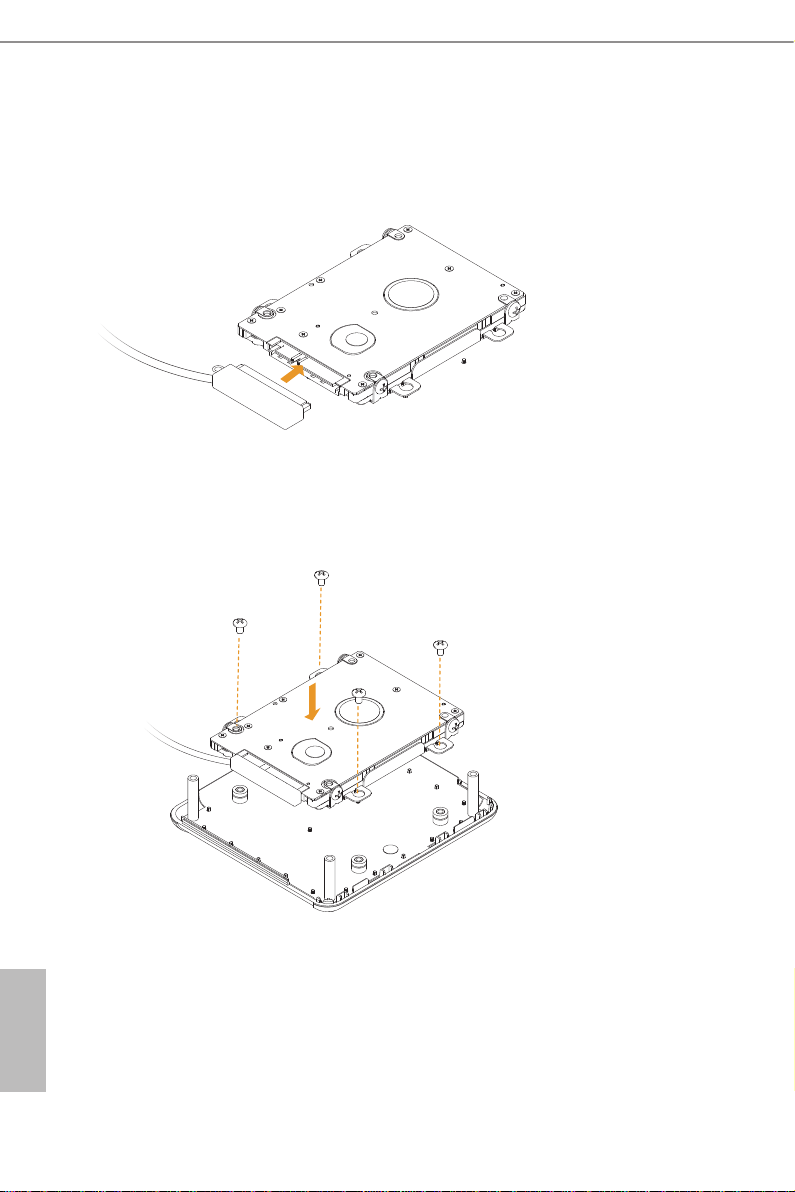

3. Connect the SATA Data and Power Cable to the HDD.
4. Connect the SATA Data and Power Cable to the HDD.
