ASROCK iBOX 1100 Series User manual

iBOX 1100 Series
User Manual
Version 1.0
Published March 2021

Version 1.0
Published March 2021
Copyright©2021 ASRock Inc. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock’s Website: www.ASRock.com

Replaceable batteries
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
Contact Information
If you need to contact ASRock or want to know more about ASRock, you’re welcome
to visit ASRock’s website at www.ASRock.com; or you may contact your dealer for
further information.
ASRock Incorporation
6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,
Taipei City 112, Taiwan (R.O.C.)
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Product Specications 2
1.3 Block Diagram 4
Chapter 2 Product Overview 5
2.1 Front View 5
2.2 Rear View 6
2.3 Inside View 8
Chapter 3 Hardware Installation 9
3.1 How to Remove the Bottom Case 9
3.2 How to Install the WiFi Module 10
3.3 How to Remove the M.2 SSD and the Bracket 11
3.4 How to Install the M.2 SSD 12
3.5 How to Install the 2.5-inch Hard Drive 13
3.6 How to Install the Memory Modules (DDR4) 16
Chapter 4 Motherboard 17
4.1 Motherboard Layout 17
4.2 Motherboard Specications 18
4.3 Jumpers Setup 20
4.4 Onboard Headers and Connectors 21
4.5 Installation of ROM Socket 24
4.6 Expansion Slots (M.2 Slots) 25

Chapter 5 UEFI Setup Utility 26
5.1 Introduction 26
5.2 Main Screen 27
5.3 Advanced Screen 28
5.4 Hardware Health Event Monitoring Screen 36
5.5 Security Screen 37
5.6 Boot Screen 38
5.7 Exit Screen 40
Chapter 6 Software Support 41
6.1 Install Operating System 41
6.2 Support CD Information 41

iBOX 1100 Series
PB 1
English
Chapter 1 Introduction
1.1 Package Contents
• iBOX-1100 Series (pre-installed motherboard)
• 1 x SATA 1 to 1 Power Cable
• 4 x HDD Screws (M3x4)
• 1 x WiFi Module Screw
• 1 x Screw for M.2 slot
• 1 x Bracket for M.2 2280 support
• 1 x 19V/90W Power Adapter
• 1 x VESA Mount Bracket & Screw Package
• Support CD
• Quick Installation Guide
Because the hardware specications might be updated, the content of this documentation
will be subject to change without notice.
If any items are missing or appear damaged, contact your authorized dealer.

2 3
English
1.2 Product Specications
iBOX 1100 Series Barebone
CPU
iBOX-1185G7E (I7-1185G7E, QC, Max Speed up to 4.4GHz)
iBOX-1145G7E (I5-1145G7E, QC, Max Speed up to 4.1GHz)
iBOX-1115G4E (I3-1115G4E, DC, Max Speed up to 3.9GHz)
iBOX-6305E (Celeron 6305E, DC, 1.8GHz)
OS N/A
Chipset SOC
Memory Supports Dual Channel DDR4 3200 MHz,
2 x 260-pin SO-DIMM, Max. 64GB (32 GB per DIMM)
HDD
Optional
Supports 1 x 2.5" SATA HDD*/SSD
LAN iBOX-1185G7E/ iBOX-1145G7E:
LAN1: Intel® I219LM with 10/100/1000 Mbps
LAN2: Intel® I225LM with 10/100/1000/2500 Mbps
iBOX-1115G4E / iBOX-6305E:
LAN1: Intel® I219V with 10/100/1000 Mbps
LAN2: Intel® I225LM with 10/100/1000/2500 Mbps
WiFi Optional
Audio Realtek ALC233, High Denition Audio
Front I/O 2 x USB 3.2 Gen2 (Type A),
2 x USB 3.2 Gen2 (Type-C, Supports DP1.4 display output),
2 x USB 2.0, 1 x Audio-out with MIC-In
* USB4™ Compliance Test is pending for certication
M.2 slot
2.5”HDD

iBOX 1100 Series
2 3
English
* For iBOX 1100 Series, it is not recommended to install 2.5” HDD. If you install the 2.5” HDD, please keep the
iBOX 1100 Series in a vertical position to ensure better cooling performance.
Rear I/O 2 x USB 3.2 Gen2 (Type-A)
1 x COM(RS-232), 1 x HDMI, 1 x DP, 2 x LAN (1 x 1 Gigabit
LAN, 1 x 2.5 Gigabit LAN), DC-IN, 1 x Kensington lock
Power Unit 19V/90W Adapter
Dimension 110.mm (W)x 117.5mm (D) x 47.85mm (H)
VESA Bracket included , supports 75 x 75 and 100 x 100 mm
Volume
(Liters) 0.6L
Operating
Temperature 0°C~40°C

4 5
English
1.3 Block Diagram

iBOX 1100 Series
4 5
English
Chapter 2 Product Overview
is chapter provides diagrams showing the location of important components of
the iBOX 1100 Series.
2.1 Front View
No. Description
1Audio(Mic-in, Line-out)
2 2 x USB 3.2 Gen2 Ports (Type C, supports DP1.2a display output)
3 USB 3.2 Gen2 (Type A)
4 USB 2.0 (Type A)
1 2
34

6 7
English

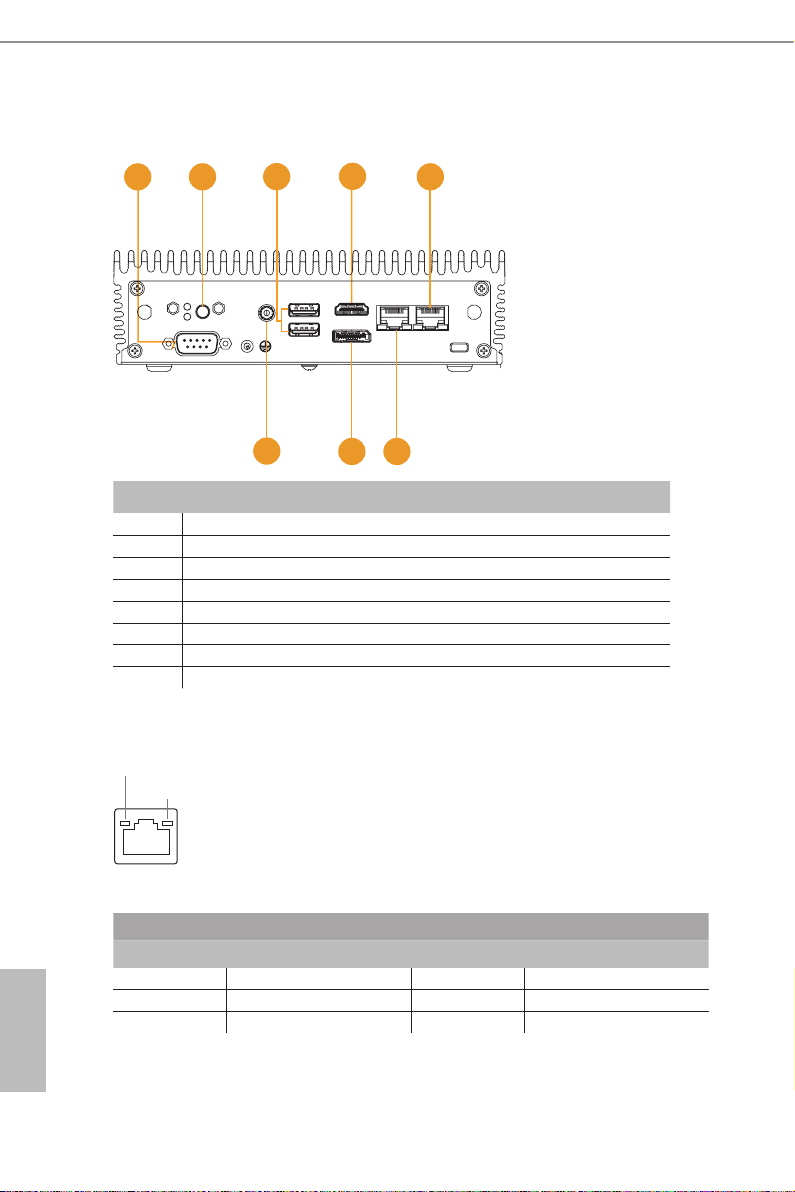

2.2 Rear View
No. Description
1COM Port
2 Power Button
3 2 x USB 3.2 Gen2 (Type A)
4HDMI
5 RJ-45 (2.5G LAN)**
6DC-IN
7DisplayPort
8 RJ-45 (1G LAN)*

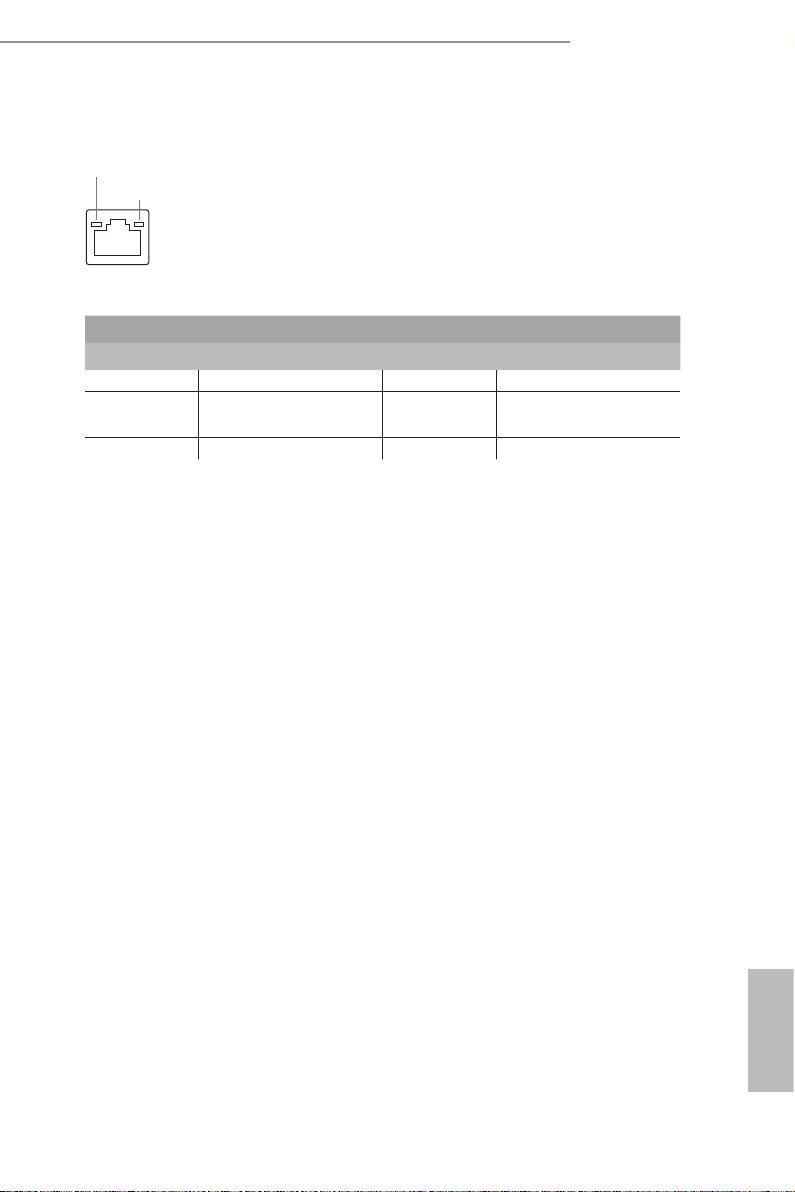

* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
23
145
678

iBOX 1100 Series
6 7
English
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps
connection
On Link Green 2.5Gbps connection
ACT/LINK LED
SPEED LED
LAN Port

8 9
English
2.3 Inside View
No. Description
1SO-DIMM Slot
2 SATA 3.0 Connector
3 Mini PCIe Slot
4M.2 Slot
5 Hard disk drive tray (compatible with 2.5" SATA HDD/SSD)
SO-DIMM memory, hard drive and mSATA SSD are not included with this system.
1
3
2
4
5
D

iBOX 1100 Series
8 9
English
Chapter 3 Hardware Installation
is chapter helps you install or remove important components.

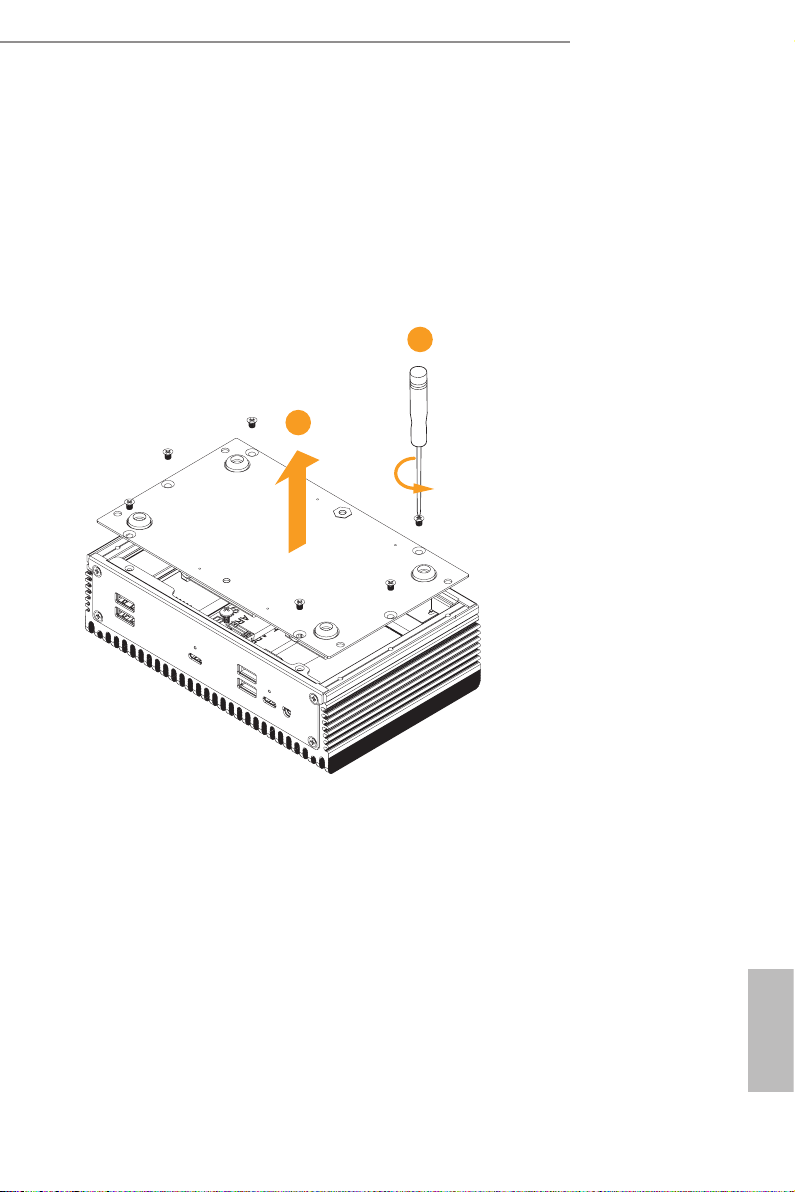

3.1 How to Remove the Bottom Case
1. Remove the four screws on the bottom case.
2. en li up and remove the bottom panel.
1
2

10 11
English

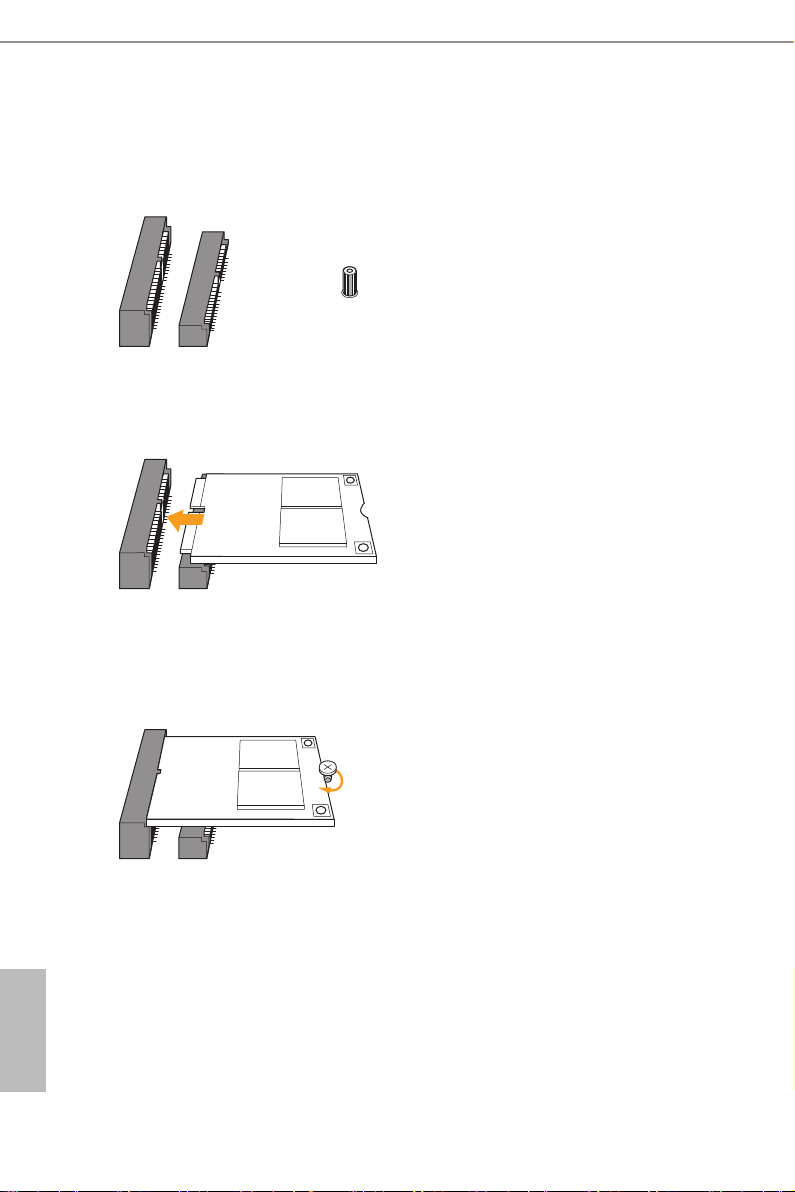

3.2 How to Install the WiFi Module
1. Locate the WiFi Module slot on the motherboard.
2. Carefully insert the WiFi Module into the slot.
3. Tighten the screw to secure the WiFi Module to the motherboard.

iBOX 1100 Series
10 11
English

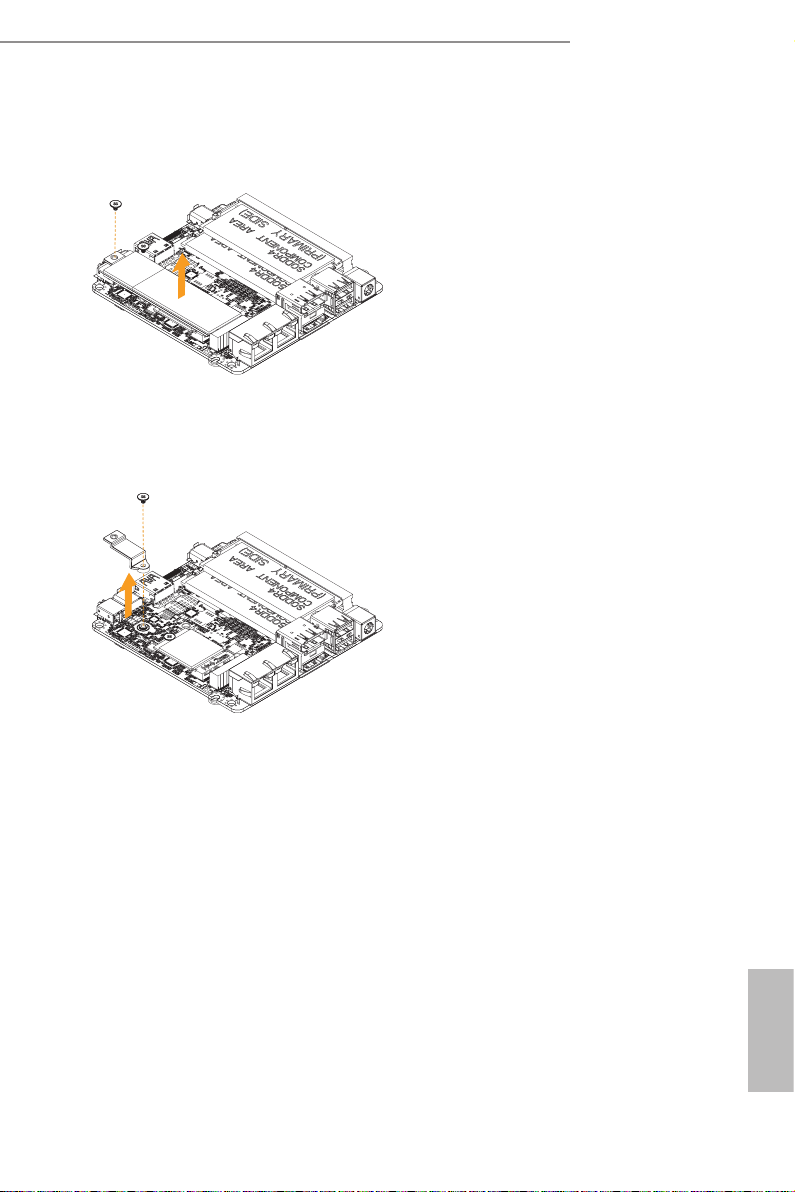

3.3 How to Remove the M.2 SSD and the Bracket
1. Release the screw and carefully remove the M.2 SSD.
2. Release the screw and remove the bracket from the motherboard.

12 13
English
3.4 How to Install the M.2 SSD
1. Locate the M.2 slot on the motherboard.
2. Carefully insert the M.2 SSD into the slot.
3. Tighten the screw to secure the M.2 SSD to the motherboard.

iBOX 1100 Series
12 13
English
3.5 How to Install the 2.5-inch Hard Drive
1. Remove the four screws on the bottom case. en li up and remove the bottom panel.
2. Attach the HDD cage to the bottom panel and secure it using the four screws. en
connect the SATA cable to the HDD.

14 15
English

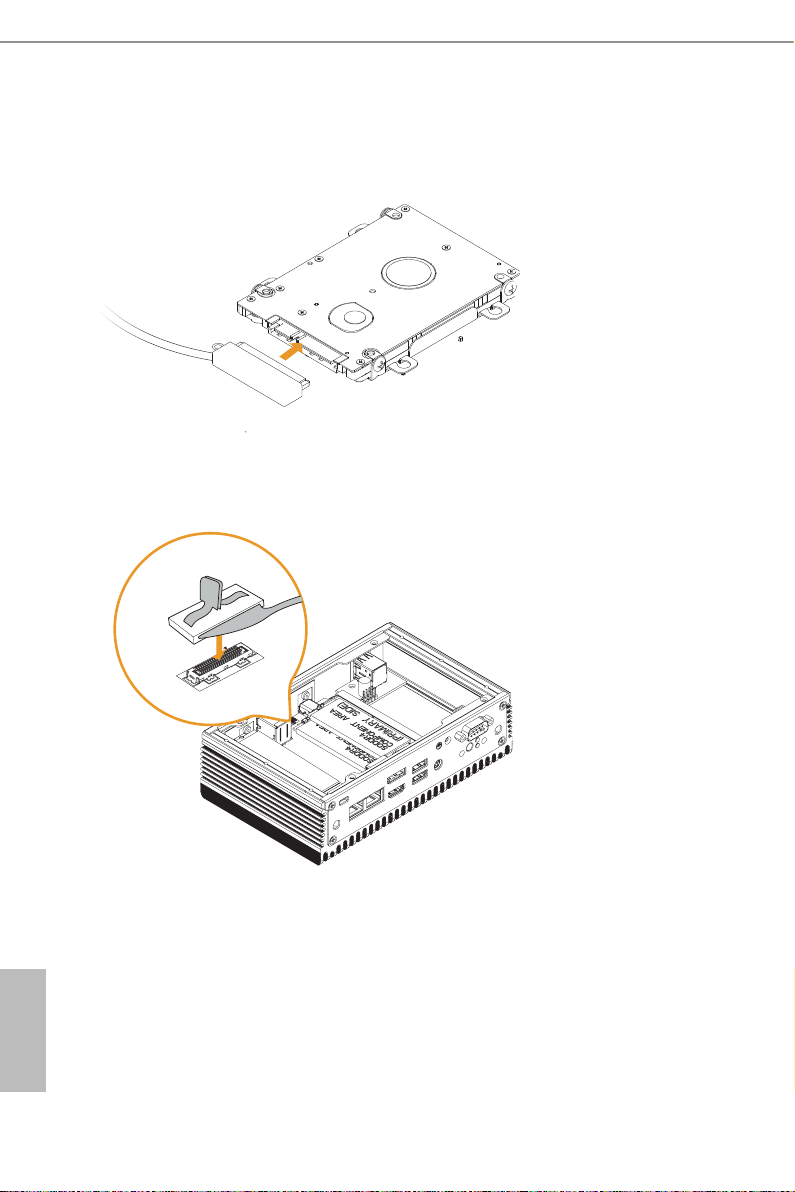

3. Connect the SATA Data and Power Cable to the HDD.
4. Connect the SATA Cable to the connector.
