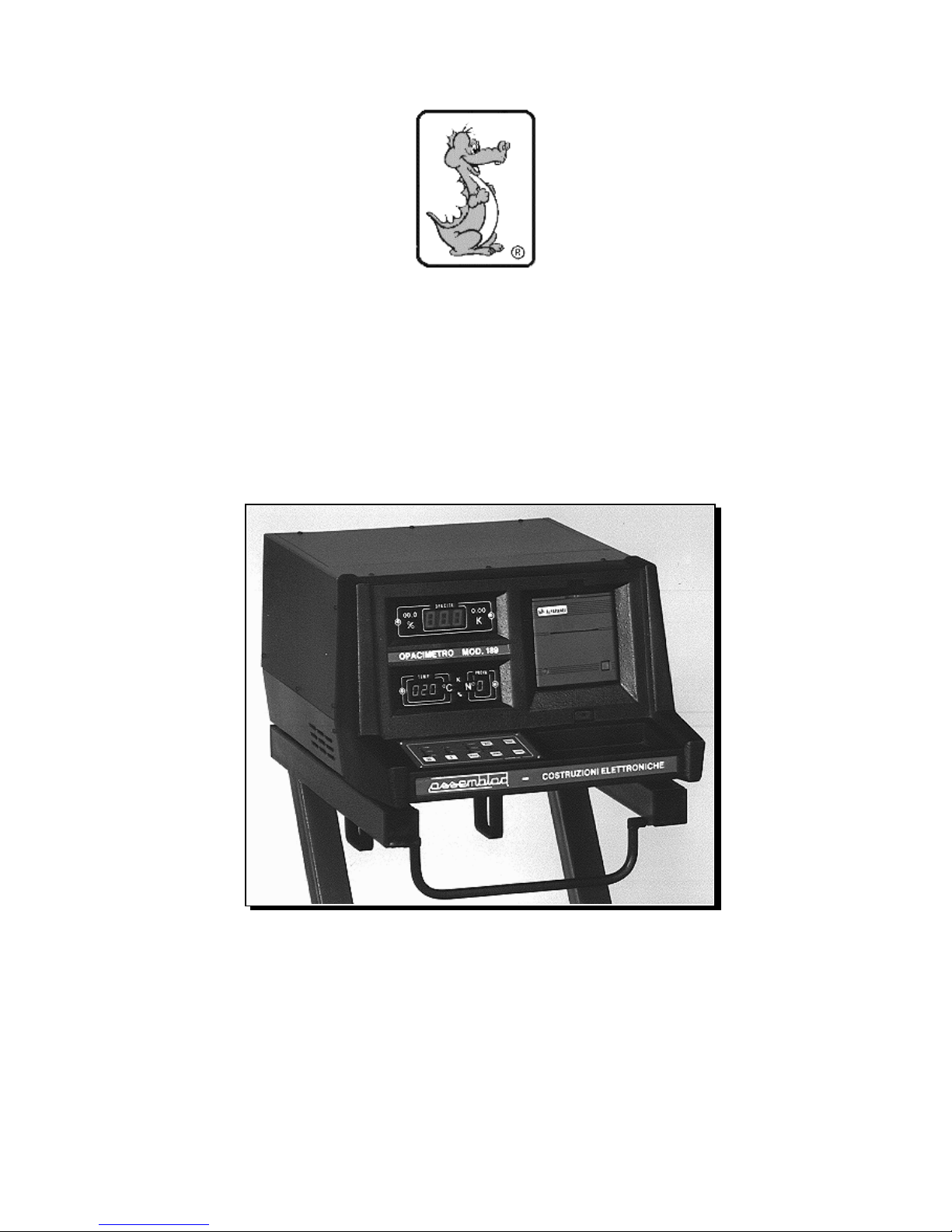

ASSEMBLAD OPA-189 User manual

ASSEMBLAD s.a.s. - Costruzioni Elettroniche
50013 - Campi Bisenzio - Firenze - Italy
SAMPLING SMOKE METER
Model OPA-189
USER MANUAL
February 1997, Rev. V1.00
ASSEMBLAD - Engineering Department - Automotive Division
File: c:\winword\189\M189gb10.doc

OPA 189 User Manual
2
TABLE OF CONTENTS
1INTRODUCTION page 4
1.1 Fittings supplied page 4
1.2 Smoke Meter - Front page 4
1.3 Smoke Meter - Back page 5
2TECHNICAL FEATURES page 6
2.1 Photodetector - Technical Features page 6
2.2 Measuring Chamber - Technical Features page 6
2.3 Method for Taking Measurements page 6
2.4 Standards page 6
2.5 Electronic Structural Features page 7
2.6 Settings and Controls page 7
2.7 Power Supply page 7
2.8 Supplementary Functions page 7
2.9 Other Features page 8
3KEYPAD page 9
4INFRARED REMOTE CONTROL page 12
5STARTING THE SMOKE METER page 13
5.1 Power Supply Connections page 13
5.2 Start-Up page 13
5.3 Preparation for Measurements page 14
5.4 Messages at Start-up page 15
6SMOKE MEASUREMENTS page 16
6.1 Keypad Settings page 16
6.2 Continuous Smoke Measurement page 16
6.3 Smoke Measurement as per CUNA Standards (Italy) page 17
6.4 Smoke Measurement according to directive ECC 72/306 page 18
7RESETTING WITH THE FILTER page 19
8REPLACING THE HALOGEN LAMP page 20
9CLEANING THE MEASURING CHAMBER page 21
10 TEMPERATURE READINGS page 22

OPA 189 User Manual
3
11 PRESSURE/DEPRESSION MEASUREMENTS page 22
12 POWER SUPPLY VOLTAGE page 22
13 PRINTER page 23
14 REPLACING FUSES page 24
15 ERRORS page 25
15.1 Function Errors Reported to the Operator page 25
15.2 Function Errors That Cannot Be Immediately resolved page 26
16 SMOKE-INTERCEPT SOLENOID VALVE
MAINTENANCE page 27
APPENDIX page 28
WARRANTY page 29

OPA 189 User Manual
4
1INTRODUCTION
1.1 FITTINGS SUPPLIED
N. 1 Rubber sampling hose
N. 3 Exhaust pipe connectors
N. 1 Ballast
N. 1 220 VAC mains lead
N. 1 Battey mains lead
N. 1 Calibration filter
N. 1 Infrared remote control device (without battery)
N. 1 User manual

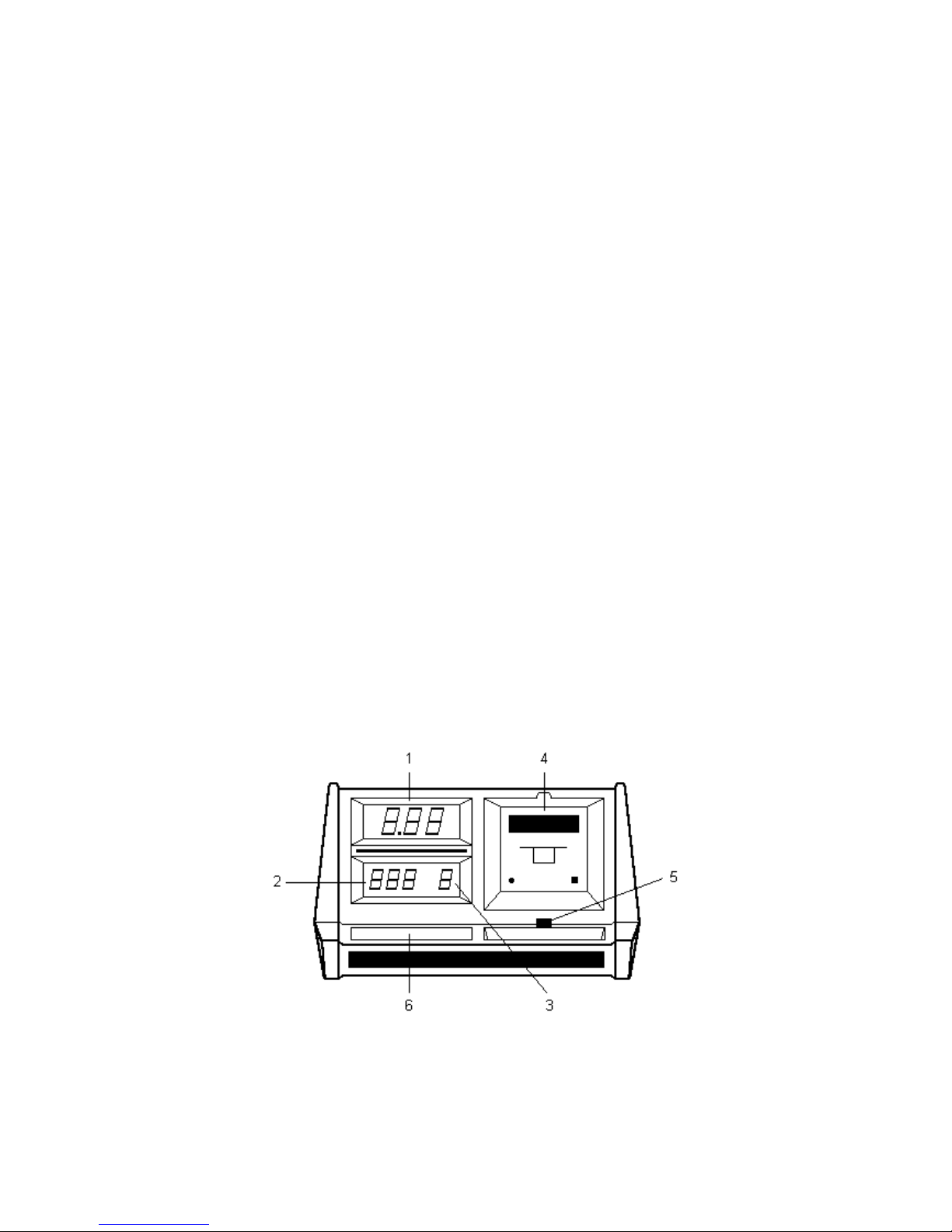

1.2 SMOKE METER - FRONT
1) Smoke value display
This display shows the SMOKE values of the vehicle exhaust gases expressed as
percentage from 00.0 to 99.9% and in K from 0.00 to 9.99 (m-1).
2) Temperature display
This display show the temperature of the gas entering the measuring.
3) Display of test number being performed/that can be performed.
4) 24 column pin printer
5) Infrared remote control receiver
6) Control keypad and function lights
Keys: ON/OFF, %/K, MODE, COUNT ADV, ZERO, PRINT, PAPER ADV.
LEDS: ON, +15%, -15%, %, K, CONT, ITALY, CEE.
Figure 1

OPA 189 User Manual
5

OPA 189 User Manual
6
1.3 SMOKE METER - BACK
1) Measuring Chamber
2) Fitting for exhaust gas input
3) Exhaust gas vent
4) Fitting for releasing condensate formed in the measuring chamber
5) Metal label-plate
6) Switch filter complete with: prestart filter, fuses, mains outlet
7) Connector for vehicle-battery power supply (13.8 VDC)
8) Not used
9) Not used
10) Not used
11) Not used
12) Calibration Filter
Figure 2

OPA 189 User Manual
7
2TECHNICAL FEATURES
2.1 Photodetector - Technical Features
"Reflection" type transceiver:
Transmitter - 6V 10W halogen lamp
Color temperature - 3000°K
Lamp filament voltage - Microprocessor controlled
Average lamp life - 2000 hours
Receiver - BPW21 photodiode
Response corrector filter - L.I.S.S. passband
Periodic settings - Neutral wire supplied
2.2 Measuring Chamber - Technical Features
Chamber ventilation - Controlled
Measuring cell length - 198 mm
Measuring cell, inside diameter - 36 mm
Actual length of an exhaust gas
specimen - 400 mm
Exhaust gas input - Balanced
Clean air input - Balanced
Exhaust gas intercept - 1/2 inch solenoid value
Clean air intercept - 1/8 inch solenoid valve
Gas discharge - By ventilation
Pressure/depression sensor - Differential, solid state
Temperature probe - Integrated circuit
Measuring chamber - Interchangeable
Chamber mechanics - Inspectable
Condensate drainage - At the base of the chamber
2.3 Method for Taking Measurements
Continuous measurement - For motors being bench-tested
Italy measurements - 5 accelerations as per Italian Law n. 615 dated
13/07/66
EEC measurements - 6 to 8 accelerations in accordance to directive ECC
72/306
2.4 Standards
Meets CUNA NC-005/11 standards

OPA 189 User Manual
8
2.5 Electronic Structural Features
Setting - Automatic when switched on
Microprocessors - 2 (Motorola MC68705R5 and MC68705U5)
Measurement processing - Microprocessor controlled (measure-
ment card)
Measurement display - Microprocessor controlled (display card)
Printer - Impact, 24 columns
Smoke display - 3, 7-segment high intensity LEDS 20 mm high, red
Temp display - 3, 7-segment high intensity LEDS 20 mm high,
green
Test N° Display - 1, 7-segment high intensity LED 14 mm high, green
Measurements displayed - Smoke: from 00.00 to 99.9%
Smoke K (m-1) from 0.00 to 9.99
Gas temp: from 0 to 150°C
Solenoid valves - Stabilized power supply
Chamber ventilation - Controlled delivery
Start-up and self-test time - 1 min, normal
Time to reach optimum operating
rates - 5 min, normal (at 25°C)
Messages - On display and printed
Operating temperature - +0° to +45°C
Humidity range - 45%-90%
Clearing measurement device - Automatic, press ZERO key
2.6 Settings and Controls
Console keypad - Synoptic touch type
Function keys - Seven
Measuring lights - Eight LEDs on keypad
Remote control - Infrared
Remote control signal receiver - On front of console
2.7 Power Supply
From mains - Single phase 50 Hz (±2%)
220V (±10%)
From battery - 13.8 VDC (-15%+10%C)
Absorbed power - from mains, 50VA, normal
from battery, 50 W, normal
2.8 Supplementary Functions
Gas temperature probe - built-in

OPA 189 User Manual
9
2.9 Other Features
Approximate dimensions - 480 x 300 x 630 mm
Weight - 25 kg, approx.
Exhaust pipe connectors - To be connected to the hose connected to the
instrument; 3 different sizes, inside diameters of 10,
17 and 27 mm
Ballast - 2 kg approx; to connect to the hose
connected to the instrument to take
stable gas specimens

OPA 189 User Manual
10
3 KEYPAD
Figure 3
Description:
ON/OFF This key switches the smoke meter on and off. It only
functions if the ON led is lit. The key is timed at about 0.5
seconds to prevent inadvertent switching. Each time the
instrument is turned on, the smoke meter automatically goes
through a self-test and setting procedure (the messages
concerning instrument status are either printed or shown on the
display).
%/K Use this key to display smoke values, that is in terms of
percentage on a 00.0% to 99.9% scale, or with the K (m-1)
factor. The form you select is confirmed by the % and K LEDs.
The machine is automatically in the % mode when it is switched
on.
MODE Use this key to set the desired measuring mode. You can select
from: CONT (continuous measurement of smoke values), ITALY
(measurement of mean smoke value according to CUNA NC-
OO5/11 standards - law n.615 dated 13.07.1966) or CEE
(measurment of mean smoke value according to the ECC
directive n. 72/306).Your selection will be shown on the
respective LED CONT, ITALY, CEE. When measuring in the
ITALY or CEE modes, the MODE key is inhibited by the
program; it will only be released if you give a clear or PRINT
command when measuring is completed. The machine is
automatically in the CONT mode when it is switched on.

OPA 189 User Manual
11
COUNT ADV Use this key to increment measurements in the ITALY or CEE
modes. The measuring increment is timed for 3 seconds to
prevent program skips if you do not press the key properly. If you
are measuring in the ITALY mode, the increment will stop at the
fifth test; in the CEE mode increments are possible up to the
tenth test.
ZERO Use this key to clear the measurement in progress and recover
the initial drift after the pre-heating phase. Press this key each
time you start a new measuring procedure During this phase the
smoke meter will clean out gases from the chamber and recheck
the settings.
PRINT Press this key to if you want a print-out of the results of a
measurement. If the machine is in the CONT mode you can print
at any time. If it is in the ITALY or CEE mode it will only print
after having completed the number of measurements required
for the test. You can make as many reprints of a measurement
as you want until you press the ZERO key.
PAPER ADV Use this key to advance the printer paper. If you keep the key
depressed as you press the ON/OFF key (switching on the
smoke meter) you will obtain a function TEST of the printer.
RPM/TEMP Not used
F1 Not used
F2 Not used
F3 Not used

OPA 189 User Manual
12
The LEDS:
ON When this LED is lit, it means that the smoke meter is already
connected to the vehicle's battery or the 220VAC mains power
supply. If the device is connected to the mains, the switch on the
back has to be set to ON. When this LED is lit, it means that the
smoke meter is ready to be switched on.
+15% When this LED is lit it means that the power supply to the smoke
meter is 15% above the rated value. This can damage the
smoke meter or impact the results of the measurements if it is
not corrected.
-15% When this LED is lit it means that the power supply to the smoke
meter is 15% below the rated value. This can alter results of the
measurements, or yield a printout with a pre-depression error
signal if it is not corrected.
%When this LED is lit, it means that the smoke measurements on
the display are expressed in percentage terms.
KWhen this LED is lit, it means that the smoke measurements on
the display are expressed according to the K(m-1) factor.
CONT When this LED is lit, it means that the CONTINUOUS mode has
been selected for measuring smoke values.
ITALY When this LED is lit, it means that the smoke values will be
measured in accordance with CUNA 005/11 standards as per
Italian law n.615 dated 13.07.66.
CEE When this LED is lit, it means that smoke values will be
measured in accordance with the directive ECC 72/306.
C° Not used
RPM Not used
F4 Not used
F5 Not used

OPA 189 User Manual
13
4INFRARED REMOTE CONTROL
This device consists of 4 keys that you need to start the measuring functions, even while
driving the vehicle.
KEYS:
MODE Use this key to select the measurement mode: CONTINUOUS
(CONT) according to CUNA standards, as per Italian Law N.615
dated 13.07.66 (ITALY), and according to the directive 72/306
(CEE). Each time you press the MODE key, the machine will
shift over to the next method. The position is shown on the
LEDS.
ADV Use this key to increment test number when working in the
ITALY or CEE modes.
ZERO Use this key to clear the smoke meter
PRINT Use this key to print the results of measurements, you can print
multiple copies.
The remote control device is powered by a 9VDC battery (use an alkaline
type battery); the battery housing is on the back of the devices.
IMPORTANT:The infrared receiver on the console (see Fig.1, item 5) must never receive
strong, direct light, such as lamps with strong infrared rays, or sunlight; this can "blind" the
device and the remote control will not work any more. If necessary turn the machine
around so that any direct light falls on the back part and not on the front.

OPA 189 User Manual
14
5STARTING THE SMOKE METER
5.1 Power Supply Connections
Select the power supply for the smoke meter. Usually 220VAC mains power is used. If it is
not available, connect the smoke meter to the battery of the vehicle being tested, or to a
fully-charged shop battery.
MAINS POWER SUPPLY
Connect the smoke meter to a 220VAC outlet using the cable supplied with the device; set
the switch on the back to ON. The ON LED on the keypad with will light up (if you set the
switch to OFF, the LED will go out very slowly).
BATTERY POWER SUPPLY
Connect the smoke meter to a 12V battery using the cable that is supplied with the device.
Make sure that the cable is properly inserted and screwed into the round connector on the
back of the device before connecting the battery. Check polarity as you connect to the
battery: Red clip = Positive, Black clip = Negative. The smoke meter is protected against
inversions, but be careful when making these connections. As soon as the battery cable is
connected the ON LED will light up, irrespectively of the back switch position.
5.2 Start-Up
When the ON LED is lit, press the ON/OFF key. The smoke meter will now switch on, and
go through a series of selftest and setting procedures automatically.The self-test series
consists of several steps; you can see the following ones:
a) All the displays will read 8
All the LEDs are lit.
b) The displays will all read zero, except for N°TEST that will read 1.
The ON, %, CONT, C° LEDS will remain lit.
The printer will start sending a partial message.
c) The N° TEST display will read 2.
The two other displays will blink on zero.
The printer will stop.
d) All the displays will read zero.
The printer will complete its message.
e) The temperature display will show the actual temperature in the measuring chamber.
The smoke display will show a value around zero, oscillating by a few units. (The
initial oscillation is due to the intrinsic stabilization of the filament, and will continue
for a few minutes after the device is turned on).

OPA 189 User Manual
15
Select the unit of measure K (%/K key) if you want to see the smoke value display in
terms of the K factor rather than a percentage (the % position is selected automatically
when the machine is turned on).
Select the measurement mode using the MODE key to select ITALY or CEE (CONT is
selected automatically when the machine is turned on).
Press the ZERO key to clear the smoke values from the display The display will blink
during the automatic clearing phase. Clearing may not work the first time, therefore,
repeat the procedure until you get zero (the value on the display should not be higher than
00.5%).
NOTE:If any problems occur during this initialization procedure such as inadequate
settings, defects inside the machine, etc., the smoke meter will go into the alarm mode
and will send messages via the printer specifying the type of problem and, whenever,
possible how to solve it. If the problem is more serious, all the displays will blink and LEDS
will blink at the same time (see the section on errors).
5.3 Preparation for Measurements
Bring the engine to its normal operating temperature.
Connect the vehicle exhaust pipe to the smoke meter using the hose that comes with the
instrument. Fit the hose into the 19mm fitting on the back of the measuring chamber.
Connect the other end of the hose onto the vehicle's exhaust pipe. To take gases from
inside the exhaust pipe, use one of the three metal fittings supplied with the instrument
(use the small probe with the conical fitting for pipes with diameters up to 35 mm; the
medium size probe for pipes with diameters of 35 to 80 mm, and the biggest one for
exhaust pipes with diameters exceeding 80 mm).
Use the ballast to prevent the engine's vibrations from shaking the hose loose during
testing.

OPA 189 User Manual
16
5.4 Messages at Start-Up
When you turn on the instrument the printer will issue a message like this:
ASSEMBLAD
COSTRUZIONI ELETTRONICHE
FIRENZE - ITALY
OPACIMETRO MOD. 189
OMOL. PROT. 601/4103/8-L
AUTOTEST AUTOTARATURA
IN PROGRESSIONE
which means that self-testing and self-setting are in progress.
After this first message, the machine will complete all the internal tests as required by the
program. Then, if everything is in proper order, the printer will continue with:
AUTOTEST = OK
AUTOTARATURA = OK
which means
Self-test = OK
Self-setting = OK
If any errors or other malfunctions are found, the printer will send a message specifying
the problem and, if possible, how to solve it.

OPA 189 User Manual
17
6SMOKE MEASUREMENTS
6.1 Keypad Settings
CONTINUOUS MODE
When the smoke meter is switched on it is automatically ready to work in this mode, and
to give readings on the percentage scale. To be able to take measurements, the CONT
LED must be on (otherwise, press the MODE key).
You can print the values shown on the display at any time.
ITALY MODE (CUNA Standards - Law 615 dated 13.07.66)
After the automatic self-test/self-setting sequence, you must press the MODE key until the
ITALY LED lights up. The program will now be ready to measure smoke levels according
to the requirementsof CUNA NC 005/11 standards - Law 615 dated 13.07.66.
CEE MODE ( In accordance to directive ECC 72/306 )
After the automatic self-test/self-setting sequence you must press the MODE key until the
CEE LED lights up. The program will now be ready to measure smoke levels according to
the requirements of the ECC directive 72/306.
6.2 Continuous Smoke Measurement
Measurements are continuous in the sense that the smoke values of the gases are shown
continously: the value on the display is the smoke value that is being "read" at that instant.
This type of measurement is particularly useful in bench tests, since it shows the smoke
values as they rise and fall.
The print-outs of these results do not have any legal value since the reading is an
absolute result and not the results of an average of readings taken according to specific
standards.

OPA 189 User Manual
18
6.3 Smoke Measurement as per CUNA Standards (Italy)
This method makes it possible to work in accordance with the requirements of Italian Law
n.615 dated 13 July 1966. To take measurements follow the procedure described below:
a) Before starting the test disconnect any devices on the vehicle that can reduce the
pollutants in the exhaust gases by mixing them with air.
b) Connect the smoke meter's sampling hose to the vehicle exhaust pipe.
c) Before taking the measurements, accelerate fully three times and as quickly as
possible, and bring the engine to maximum power each time, if there is a governor,
then to the maximum allowed. Take the measurements during further complete
accelerations immediately following the first three.
d) Press the MODE key and select ITALY.
e) Press the ZERO key and wait for the instrument to clear.
f) Press the COUNT ADV key (the N° TEST display will read 1). Accelerate all the way,
until you reach maximum power and then release the accelerator. The display will
show the maximum smoke or pollution value reached in that phase.
g) Press the COUNT ADV key (the N° TEST display will read 2). Accelerate as
described in (f), above.
h) Repeat steps (f) and (g) for a total of 5 measurements.
i) After the fifth acceleration (N° TEST 5) press the PRINT key. The printer will give
the mean caculated on the basis of the 3 closest values. The display will show that
mean value.
NOTE:Up to and including the fourth test you can interrupt the measurements and clear
the smoke meter. After you have run the fifth test you cannot clear the machine, you must
press the PRINT key (the reason for this is to prevent you from losing all the
measurements you have taken if you accidentally press the ZERO key).
The printer will give the 5 (five) data on smoke levels obtained during the 5
measurements, expressed in the selected unit of measure (% or K), but the mean value
will be expressed in (%).

OPA 189 User Manual
19
6.4 Smoke Measurement according to directive ECC 72/306
This method makes it possible to work in accordance with the requirements of the
directive 72/306 . To take measurements follow the procedure described below:
a) Before starting the test disconnect any devices on the vehicle that can reduce the
pollutants in the exhaust gases by mixing them with air.
b) Connect the smoke meter's sampling hose to the vehicle exhaust pipe.
c) Before taking the measurements, accelerate fully three times and as quickly as
possible, and bring the engine to maximum power each time, if there is a governor,
then to the maximum allowed. Take the measurements during further complete
accelerations immediately following the first three.
d) Press the MODE key and select CEE.
e) Press the ZERO key and wait for the instrument to clear.
f) Press the COUNT ADV key (the N° TEST display will read 1). When the engine is at
the minimum number of RPMs, accelerate quickly but gently until the injection
delivery is at maximum. Maintain this position until the engine reaches its maximum
number of RPMs. Then release the accelerator until the engine returns to the
minimum number of RPMs.
g) Press the COUNT ADV key (the N° TEST display will read 2). Accelerate as
described in (f), above.
h) Repeat steps (f) and (g) press COUNT ADV until the 6 minimum test (max. 8).
i) After you have reached the stabilized average press the PRINT key. The printer will
give the mean calculated on the basis of the selected standard. The display will show
that mean value expressed in K(m-1).
NOTE:
The printer will give the data on smoke levels obtained during the measurements
performed, expressed in the selected unit of measure (% or K), and finally the mean
smoke value calculated as described in i), above.
The symbol "#" will appear next each of the 4 measurements used to calculate the
average.
The maximum number of tests is 8.

OPA 189 User Manual
20
7RESETTING WITH THE FILTER
Afilter is supplied with the smoke meter. The filter's absorption factor is specified so you
can use it to check the accuracy of the smoke meter's measurements and/or settings.
To check or set the values shown on the instrument, proceed as follows:
1Switch on the smoke meter.
2The following LEDS should light up: ON, %, CONT, °C.
3Open the top hinged cover on the smoke meter.
4Let the initial drift stabilize (about 15 minutes).
5Press the ZERO key to clear the measurement.
6Place the filter (4) in the rear slot on the photoelectric cell unit (6), or insert (O) as far
as the position (B)
7Watch the display; it should show a percentage absorption value equal to that shown
on the filter ±1.0%.
8If the difference exceeds ±1.0% you have to reset the device, use the potentiometer
(2) to do this.
9Once you have reached the indicated value, remove the filter [or to free (O)].
10 Press the ZERO key and wait for the device to clear.
11 Reinsert the filter and make sure that the nominal value on the filter is exactly the
same as the value on the display (±0.5%). If necessary, reset repeating from step
(8).
IMPORTANT: NEVER CLEAR THE SMOKE METER WITH THE FILTER INSERTED.
Table of contents
Other ASSEMBLAD Measuring Instrument manuals
