Wall Mount Fireplace
Owner’s Manual
Item number: EF-WM402
Model Number: DD5
READ & SAVE THESE INSTRUCTIONS
Carefully read and review before assembling, installing,
operating or maintaining this product. Observe all safety
instructions and information.
FAILURE TO FOLLOW WARNINGS & OPERATIONAL
INSTRUCTIONS CONTAINED IN THIS MANUAL CAN RESULT
IN PROPERTY DAMAGE OR PERSONAL INJURY.
**IMPORTANT NOTICE**
Please contact :
For customer service & warranty issues
[email protected]om
1
YEAR
limited
WARRANTY

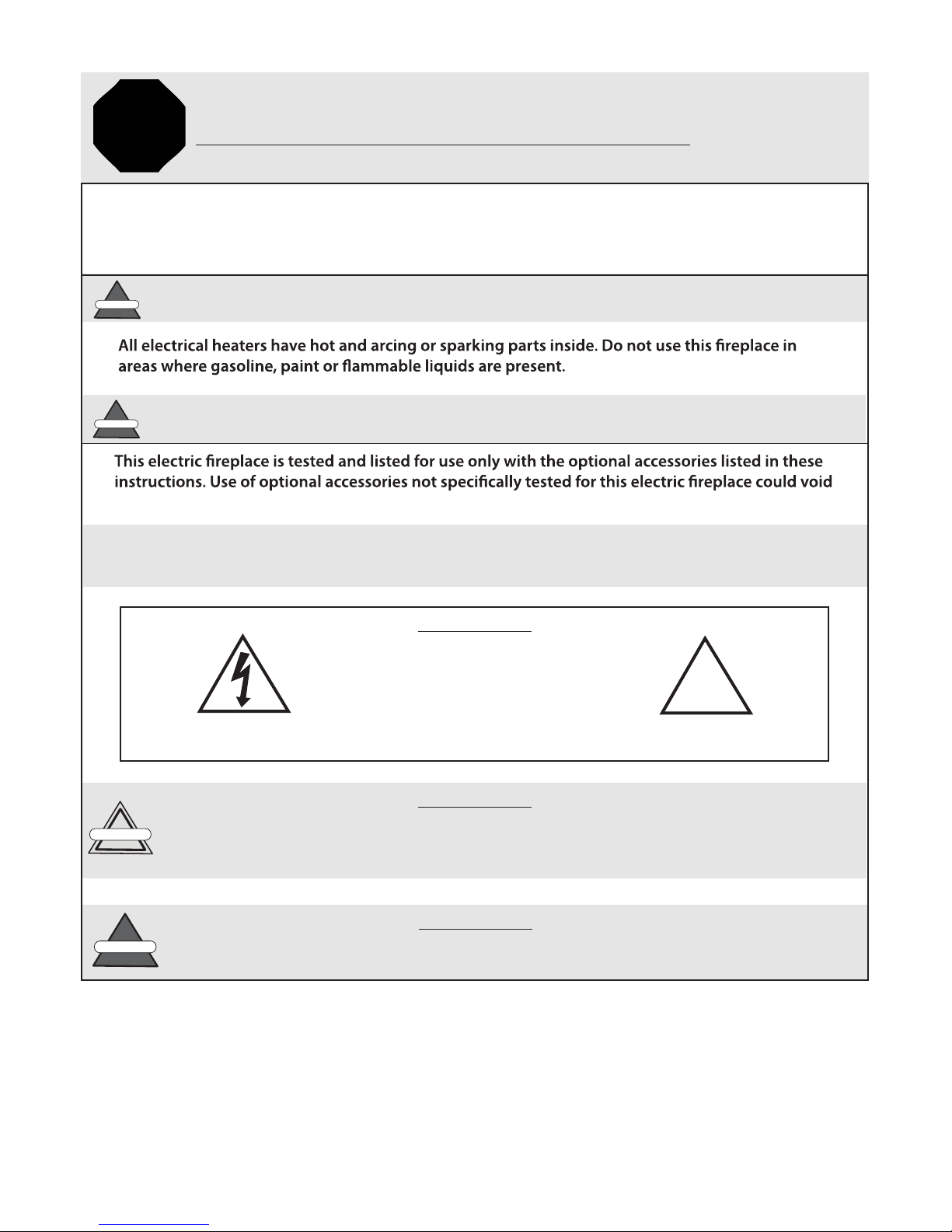

SAFETY GUIDELINES
Read this manual carefully for the assembly and use of this product.
Page 2
Read these instructions completely before beginning installation. Failure to follow these
instructions could cause a heater malfunction resulting in serious injury and/or property
damage.
WARNING:
WARNING!
WARNING:
WARNING!
the heater warranty and/or result in a safety hazard.
This electric replace meets the construction and safety standards of H.U.D. for application in manufactured homes when
installed according to these instructions.
CAUTION:
SA1965 ! SA1965
RISK OF ELECTRIC SHOCK
DO NOT OPEN FIREPLACE
NO USER-SERVICEABLE PARTS INSIDE
HIGH TEMPERATURE
CAUTION:
CAUTION! High temperature, risk of re. Keep electrical cords, drapery, furnishings and other combus-
tibles atleast 3 feet (0.9m) from the front of the replace and away from the sides and back.
WARNING:
Servicing should be done only while the replace is disconnected from the power supply circuit.
WARNING!

TABLE OF CONTENTS
Page 3
Important Safety Instructions.....................................................................................................................................
Listing Approvals.............................................................................................................................................................
Product Dimensions.......................................................................................................................................................
Fireplace Location...........................................................................................................................................................
Unpacking and Testing..................................................................................................................................................
Grounding Instructions.................................................................................................................................................
Warnings ..........................................................................................................................................................................
Installation of Crystal Embers & Designer Panel................................................................................................
Installation ......................................................................................................................................................................
Operating Instructions..........................................................................................................................................
Storage Instructions.....................................................................................................................................................
Cleaning Instructions...................................................................................................................................................
Troubleshooting............................................................................................................................................................
Warranty...........................................................................................................................................................................
4
5
6
7
8
8
9
10
11
Installation Checklist .................................................................................................................................................. 12
12-13
14
14
15
15

IMPORTANT SAFETY INSTRUCTIONS
Stop and read this! Read all instructions before using this electric fireplace
1. Prior to plugging in your replace into an electrical outlet, verify that the house curcuit breakers for the outlet are on.
2. The heater may emit a slight, harmless odor when rst used. This odor is normal and it is caused by the initial heating of
internal heater elements and will not occur again.
3. If your replace does not emit heat, consult the operation section of this manual for further information.
4. Use with a CSA or UL certied surge protector.
5. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such
as furniture, pillows, bedding, paper, clothing and curtains atleast 3 feet (0.9m) from the front of the heater and keep them
away from the sides and rear.
6. Extreme caution is necessary when any heater is used by or near children and whenever the heater is left operating and
unattended.
7. Always unplug electric replace when not in use.
8. Do not operate any heater with a damaged cord, plug or after the heater malfunctions, has been dropped or damaged in
any manner.
9. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
10. Do not use outdoors.
11. This electric replace is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate
electric replace where it may fall into a bathtub or other water container.
12. Do not run cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange cord away from trac
area and where it will not be tripped over.
13. To disconnect electric replace, turn controls to“OFF”before removing plug from the outlet.
14. Connect to properly grounded outlets only.
15. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or
re or damage the heater.
16. To prevent possible re, do not block air intakes in any manner. Do not use on soft surfaces, like a bed, where opening
may become blocked.
17. The electric replace has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or
ammable liquids are used or stored.
18. Use this electric replace only as describe in this manual. Any other use not recommended by the manufacturer may
cause re, electric shock or injury persons.
19. Avoid the use of an extension cord because the extension cord may overheat and cause risk of re. However, if you have
to use extension cord, the cord should be No. 14AWG minimum size and rated not less than 1875 watts.
20. Always use properly grounded fused and polarized outlets.
21. Always use ground fault protection where required by electrical cords.
22. To prevent a possible re, do not burn wood or other materials in this replace. To prevent electrical shock or re, always
hire a certied electrician should new circuits or outlets be required.
23. When transporting or storing this replace, keep in a dry place free from excessive vibration and store to avoid damage.
Page 4
When using electrical appliances, basic precautions should always be followed to reduce the
risk of fire, electrical shock, and injury to persons, including the following
SAVE THESE INSTRUCTIONS!

55.12
39.6839.6839.68
7.0”
26.10
39.37”
EF-WM402
LISTING APPROVALS
Stop and read this!
Page 5
This heater has been tested in accordance with the CSA Standards for xed and location-dedicated
electric room heaters in the United States and Canada. If you need assistance during installation, please
contact your local dealer.
Model Number: EF-WM402 /DD5
Description: Designer Plasma Style Wall Mount Fireplace
Voltage: 120V AC
Watts: MAX 1500W
Amps: 15Amp Grounded Circuit
Length: 39.37”
Height: 19.68”
Depth: 7.09”
Fireplace
Net Weight 39.6 lbs
Gross Weight: 55.1lbs
Note: This heater must be electrically wired and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code ANSI/NFPA 70- latest edition or the Canadian Electric
Code CSA C22.1 as appropriate.

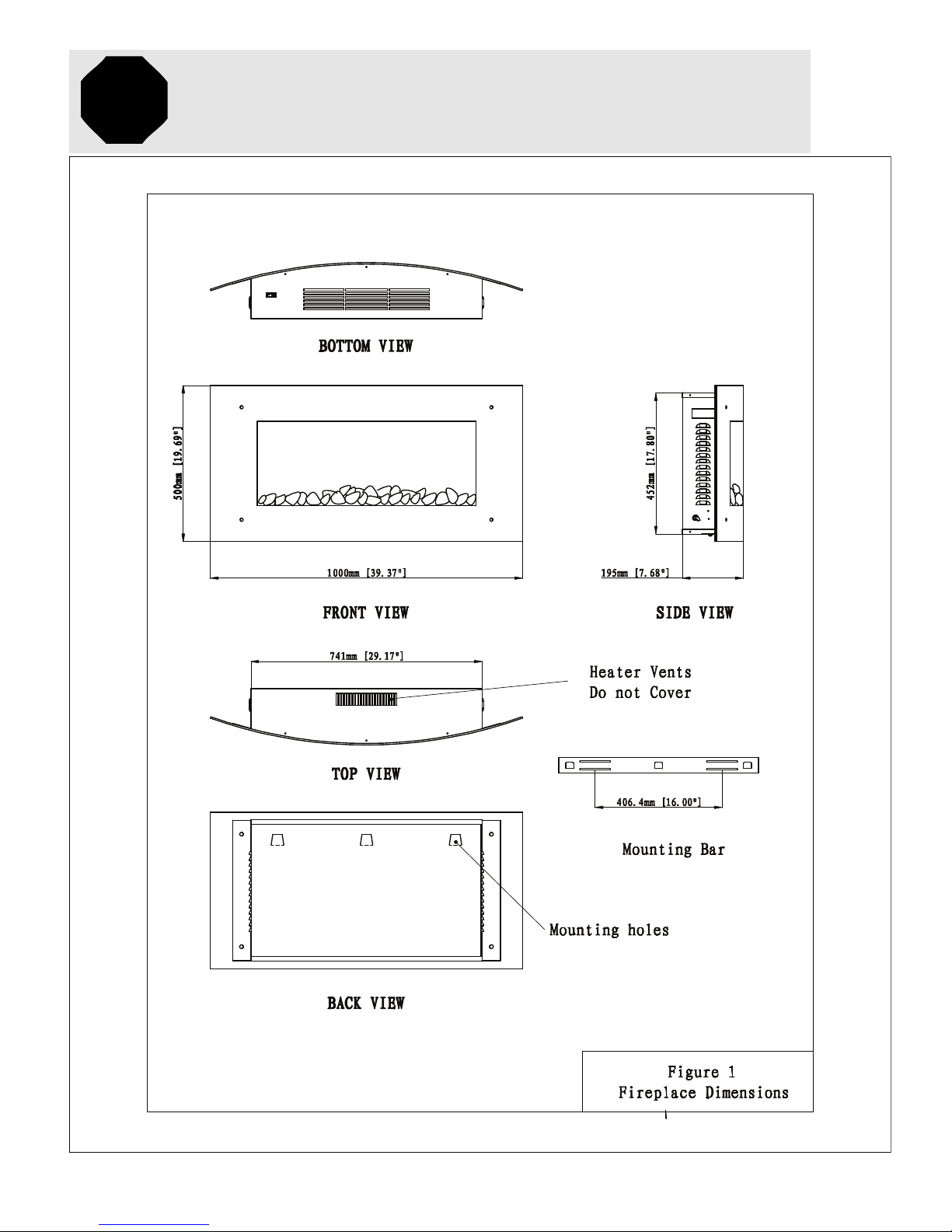

PRODUCT DIMENSIONS
Stop and read this!
Page 6

WARNING:
Due to high temperatures this electric replace should be located out of trac. Keep combustible materi-
als such as furniture, pillows, bedding, paper, clothing and curtains at least 3 feet (0.9m) from the front of
the replace.
FIREPLACE LOCATION
Stop and read this!
Page 7
WARNING:
Never locate this electric replace where it may fall into a bathtub or other water container.
WARNING!
WARNING!
CAUTION:
Do not expose the electric replace to the elements (such as rain etc). Wear gloves and safety glasses for
protection during installation and maintenance.
CAUTION!
WARNING:
To prevent contact with sagging or loose insulation, the electric replace must not be installed against
vapor barrier or exposed insulation. Localized overheating could occur and a re could result.
WARNING!

UNPACKING AND TESTING FIREPLACE
Stop and read this!
Carefully remove the unit from the box. Prior to installing the unit, test to make sure the unit operates prop-
erly. To do this, plug the unit’s power supply cord into a conveniently located 120-Volt grounded outlet.
Page 8
GROUNDING INSTRUCTIONS
Stop and read this!
This insert is for use on 120 Volts. The cord has a plug as shown in (A) of Figure 2 given below. An adapter
as shown in (C) is available for connecting three-blade grounding-type plugs to two-slot receptacles. The
properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is avail-
able.
To disconnect heater, turn controls to o, then remove the plug from outlet.
Figure 2
(A) (B)
(C)
Grounding Methods
METAL SCREW
COVER OF GROUNDED
OUTLET BOX
GROUNDING PIN
ADAPTER
GROUNDING
MEANS
NOT ALLOWED
IN CANADA
green grounding lug extending from the adapter must be connected to a permanent ground such as a

INSTALLATION
Stop and read this!
WARNING: RISK OF FIRE
The power cord must not be pinched or against a sharp edge. Secure cord to avoid tripping or snag-
ging to reduce risk of re, electric shock or personal injury. Do not run cord under carpeting. Do not
cover cord with throw rugs, runner or the like. Arrange cord away from trac area and where it will
not be tripped over.
Page 9
WARNING: RISK OF FIRE
To prevent a possible re, do not block air intake or exhaust in any manner. Do not use on soft surfaces
where openings may become blocked.
WARNING: RISK OF FIRE
Do not blow or place insulation against the replace.
WARNING:
This electric replace is tested and listed for use only with the approved optional accessories. Use of
optional accessories not specically tested for this electric replace could void the warranty and/or
result in a safety hazard.
WARNING:
If the information in these instructions is not followed exactly, a re or explosion may result causing
property damage, personal injury or death. Do not store or use gasoline or other ammable vapors in
the vicinity of this or any other heater.
WARNING!
WARNING!
WARNING!
WARNING!
WARNING!

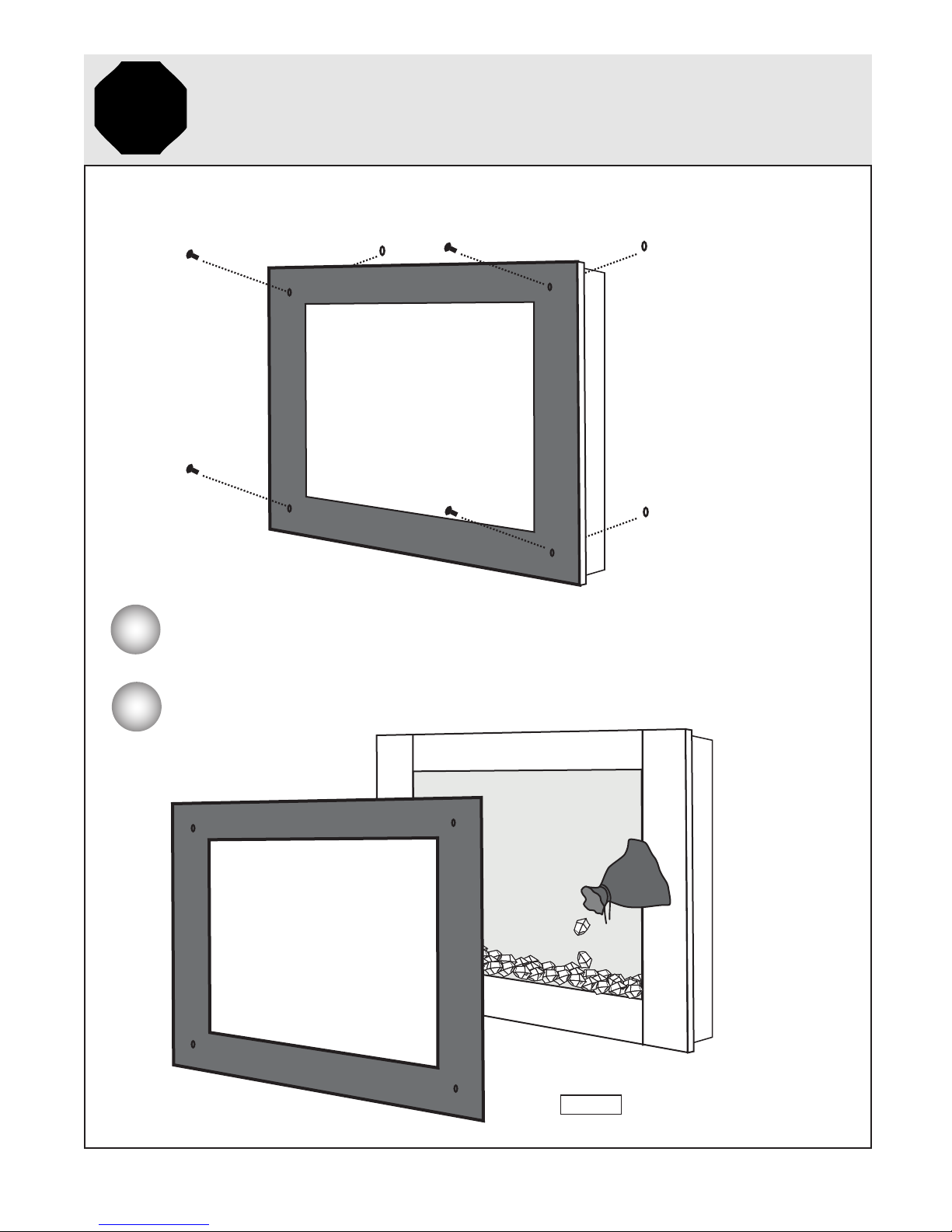

INSTALLATION of crystal embers
Stop and read this!
Page 10
Remove 4 nuts from back and 4 bolts from front.
1
See Figure 3
2
Figure 3
Remove the tan front glass and pour crystal on the ember bed.

T replace must be mounted on a wall
with a height abov tween 0.5M
(1.64 feet) and 2.5M (8.2 feet)
Due to the many di erent materials used on di erent walls, it is highly recommended that you consult
your local hardware store to determine what type of mounting screws are needed before you install this
replace onto the wall.
WARNING: Heater vents (See Figure 1, Page 6) on this
electr replace cannot, in any way, be covered as it
may creat re hazard.
Page 11
INSTALLATION
Stop and read this!
(Team Lift)
Stud Stud
approximately 16 inches
Mounting Hooks
Screws
Mounting holes
Front view of wall
back view of fireplace
wall side view
fireplace with designer panel side view

Power (on/o)
Page 12
INSTALLATION CHECKLIST
Stop and read this!
> Power supply service must be completed prior to nishing to avoid recontruction.
> Heater vents and air openings cannot be covered in any circumstances.
OPERATING INSTRUCTIONS
Stop and read this!
Once the unit has been properly connected to a grounded electrical outlet, it is ready to operate.
Note: Ensure the house circuit breakers for the power supply are turned on.

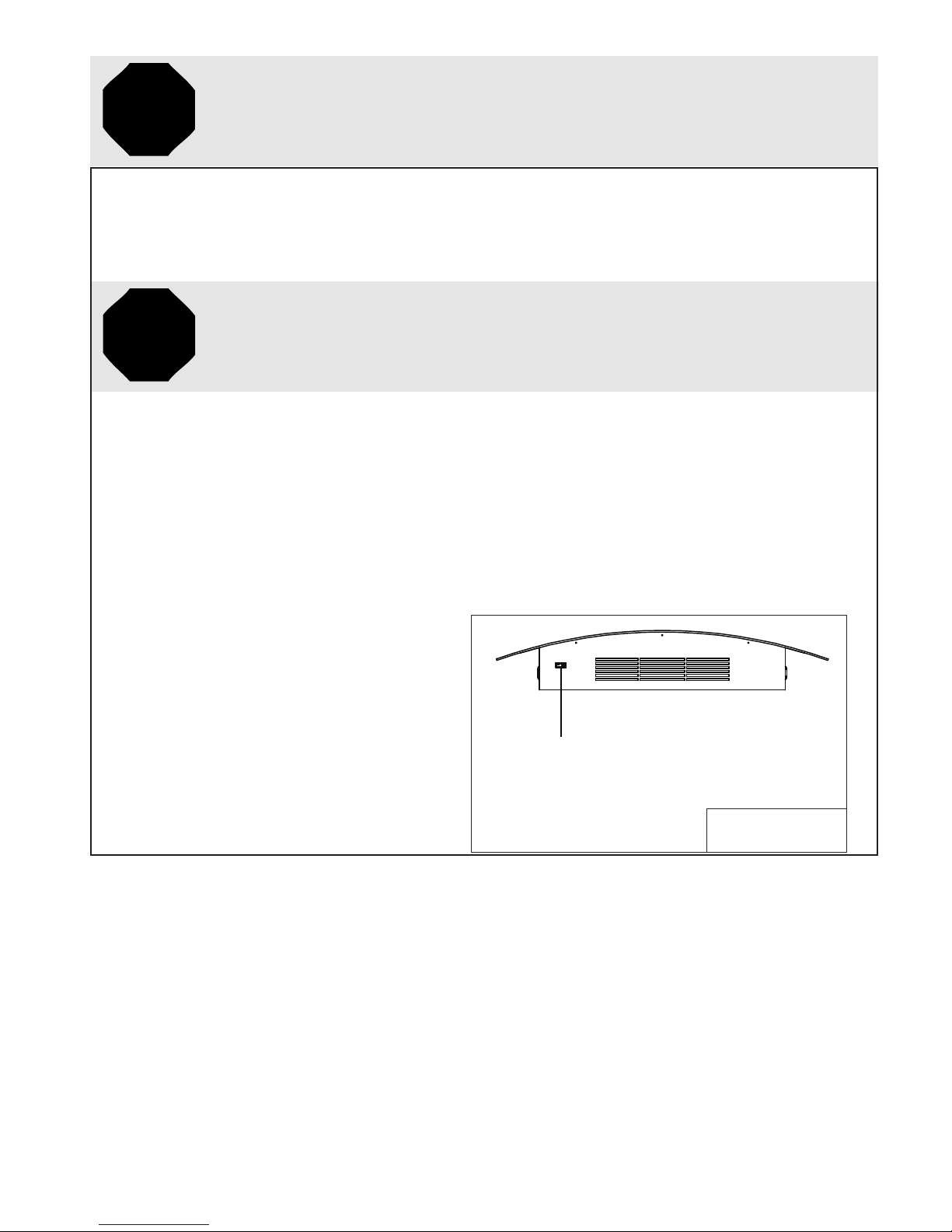

Main Power Switch:
The Main Power Switch is located on the bottom of the unit. Figure 4 illustrated the location of the
switch. The “|”indicated ON and the“O”indicated OFF. Push the switch to“|”to turn on the unit and
ame eect. The red LED indicator will be turned on.
Figure 4
Main Power Switch

OPERATING INSTRUCTIONS
OPERATING BY REMOTE CONTROL
1. Plug in your electric replace.
2. Make sure the unit’s Main Power ON/OFF Switch is at the ON position. The remote control will NOT
work if the Main Power Switch is at the OFF position.
3. When operating the remote control, it must be pointed towards the front of the unit.
4. The ON/OFF button at the top left of the remote is the main ON/OFF power button (Figure 5). Press-
ing this button activates the power to the unit.
5. To activate the heater, press the HEATER button. Press and release the HEATER button to cycle
through LOW, MED, HIGH and OFF. The heater has a built-in thermostat so it will shut o automatically
once the pre-set temperature is reached. It will also turn on automatically if the room temperature
drops below the pre-set temperature.
6. To adjust the ame height and ember bed brightness, press the FLAME+ or FLAME- buttons. To in-
crease the ame height and ember bed brightness, press FLAME+ button, to decrease the ame height
and ember bed brightness, press the FLAME- button. There a ame eects.
7. To turn o the replace, press the ON/OFF button once. NOTICE: This remote control must remain
within 8 meters or 26ft of the replace to be eective.
Page 13

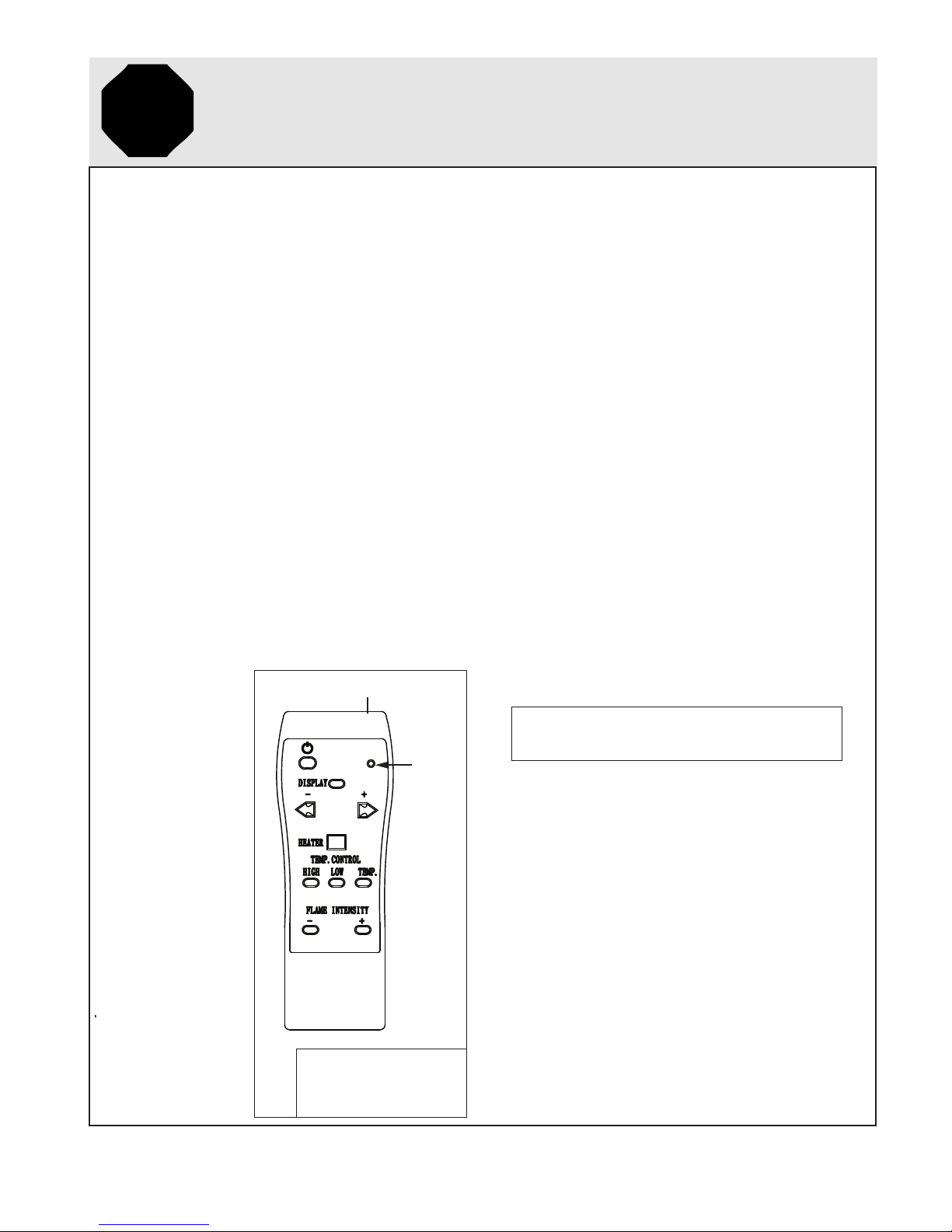

Figure 5
Remote Control For
Electric Fireplace
Infrared Ray Exit
Indicator
Light
Note: Make sure your batteries are fully charged
and installed correctly in your remote control.
re nine levels of

Page 14
STORAGE INSTRUCTIONS
WARNING: Ensure the power cord is not installed so that it is pinched or against a sharp edge and
ensure that the power cord is stored or secured to avoid tripping or snagging to reduce the risk of re
electric shock or injury to persons.
Construction and electrical outlet wiring must comply with local building codes and other applicable
regulations to reduce the risk of re, electrical shock and injury to persons.
Do not attempt to wire your own new outlets or circuts. To reduce the risk of re, electric shock or injury
to persons, always use a licenced electrician.
CLEANING INSTRUCTIONS
GLASS CLEANING:
The glass is cleaned in the factory during assembly operation. During the shipment, installation, han-
dling, etc., the glass may collect dust particles, these can be removed by dusting lightly with a clean dry
cloth.
To remove ngerprints or other marks, the glass can be cleaned with a damp cloth. To prevent scratch-
ing, do not use abrasive cleaners or spray liquids on the glass surface.
FIREPLACE SURFACE CLEANING:
Use a cloth dampened with warm water only to clean painted surfaces of the electric replace. Do not
use abrasive cleaners.

t the LED inside the
1. Insert the ember bed LED and replace them1. Insert the ember bed LED and replace them1. Insert the ember bed LED and replace them
1. LED lights are burnt out.
is set to LOW or HIGH)
TROUBLESHOOTING
?
OBSERVED PROBLEM
Dim or no ame.
Ember bed is not glowing or
dimming.
No warm air is coming out
of the heater. Heat doesnt
turn on when it is set to Low
setting.
Fireplace turns o and will
not turn on.
Fireplace will not come on
when switch is ipped to ON.
Remote control does not
work.
Page 15
POSSIBLE CAUSE
1. LED lights are burnt out.
Room temperature is higher
than the heater setting (if it
1. Fireplace has over heated
and safety device has
caused the thermal switch
to disconnect. 2. House cir-
cuit breaker has tripped.
1. Fireplace is not plugged
in. 2. Fireplace has overheat-
ed and safety device has
caused the thermal switch
to disconnect.
1. Low batteries
POSSIBLE CAUSE
1. Inspec ame gener
1. Insert the ember bed LED and replace them
if necessary.
1. Set heater to a higher temperature setting
(LOW or HIGH).
1. Unplug the unit, allow heater to cool for 10
minutes, then plug it back in. 2. Reset house
circuit breaker.
1. Check plug and plug it in. 2. Unplug the unit,
allow heater to cool for 10 minutes, then plug it
back in.
1. Replace AA batteries in remote control.
1. LED lights are burnt out.
WARRANTY
This product is inspected, tested and carefully packaged to minimize the chance of
damage during shipment. If a part (excluding light bulbs and fuses*) within one year from
the date of purchase proves to be defective in material or fabrication under normal
use, the part will be repaired or replaced. The Company’s obligation under the warranty
is to replace or repair defective parts at our discretion. Any expenses or damage resulting
from the installation, removal or transportation of the product will be the responsibility
of the owner and are not covered by this warranty. The owner assumes all other risks
arising from the use or misuse of the product. The warranty will be void if the product
damage or failure is deemed by the Company to be caused by accident,
alteration, misuse, abuse, incorrect installation or removal, or connection to an incorrect
power source by the owner. The Company neither assumes, nor authorizes any person or
entity to assume for it any obligation or liability associated with its products.
Light bulbs and fuses are not covered under this warranty. If you have any questions
regarding the warranty or service, please call our toll free number: 1-800-561-5550.
Customer Service
JR Home Products
Unit 1 - 5628 Riverbend Drive, Burnaby BC, V3N 0C1
Toll Free: 1-800-561-5550
E-mail: [email protected]
Registration can be completed online at www.jrhome.com
You MUST register your product to receive warranty service.

Foyer mural design avec panneau à apparence d'écran plasma
Guide de l’utilisateur
Numéro d'article: EF-WM402
Modéle #: DD5
LIRE ET CONSERVER CES DIRECTIVES
Lire et consulter attentivementles présentes directives
avant de procéder au montage, à l’installation, à la mise
en marche et à l’entretien de cet article. Suivre toutes les
consignes de sécurité.
LE DÉFAUT DE SE CONFORMER AUX MISES EN GARDE ET
AUX DIRECTIVES DE FONCTIONNEMENT CONTENUES DANS
LE PRÉSENT GUIDE POURRAIT PROVOQUER DE GRAVES DOMMAGES
MATÉRIELS ET DES BLESSURES.
*** AVIS IMPORTANT ***
Veuillez composer notre :
pour joindre le service à la clientèle etobtenir des
réponses à vosquestions sur la garantie
[email protected]om
1
YEAR
limited
WARRANTY

CONSIGNES DE SÉCURITÉ
Lire attentivement le présent guide pour savoir comment monter et utiliser ce produit.
Page 2
Avant de commencer à installer cet appareil, prière de lire attentivement les directives en entier.
Le défaut de se conformer aux directives pourrait entraîner une défaillance de l’appareil de
chauage, ce qui pourrait résulter en des blessures graves ou en des dommages matériels.
AVERTISSEMENT
AVERTISSEMENT
ATTENTION
SA1965 ! SA1965
RISQUE DE CHOC ÉLECTRIQUE
NE PAS OUVRIR
AUCUNE PIÈCE INTERNE NE NÉCESSITE DE L’ENTRETIEN
TEMPÉRATURE ÉLEVÉE
ATTENTION:
Température élevée! Risque d’incendie! Garder les cordons électriques, les rideaux, les meubles
et les matériaux combustibles à au moins 0,9 m (3 pi) du devant et des côtés de l’appareil.
AVERTISSEMENT:
Ne procéder à l’entretien de l’appareil qu’après l’avoir débranché
de son circuit d’alimentation électrique.
MISE EN GARDE !
MISE EN GARDE !
Tous les appareils de chauage électriques sont dotés de pièces qui produisent de la chaleur ou
des étincelles. Ne jamais utiliser dans un endroit où sont utilisés ou entreposés de l’essence, de la
peinture ou des liquides inammables.
Ce foyer électrique est testé et homologué pour n’être utilisé qu’avec les accessoires optionnels
mentionnés dans les présentes directives. Utiliser des accessoires optionnels qui n’ont pas été testés
précisément pour ce foyer électrique annule la garantie couvrant le foyer électrique et pose un
risque d’accident.
À condition que le foyer électrique soit installé conformément aux présentes directives, il respecte les normes de construction et de
sécurité préconisées par le Department of Housing and Urban Development en ce qui a trait à une installation dans des maisons
préfabriquées.
MISE EN GARDE !

TABLE DES MATIÈRES
Page 3
Consignes de sécurité importantes........................................................................................................................
Homologations................................................................................................................................................................
Dimensions de l’appareil................................................................................................................................................
Choix de l’emplacement du foyer.................................................................................................................................
Déballage et mise à l’essai..........................................................................................................................................
Directives de mise à la terre.......................................................................................................................................
Installation des cristaux du lit de braises..............................................................................................................
Avertissements ..............................................................................................................................................................
Installation.......................................................................................................................................................................
.................................................................................................................
Directives de fonctionnement...........................................................................................................................
Directivesde rangement............................................................................................................................................
Directives de nettoyage.............................................................................................................................................
Dépannage.......................................................................................................................................................................
Garantie.............................................................................................................................................................................
4
5
6
7
8
8
10
9
11
12
12-13
11
14
15
15

CONSIGNES DE SÉCURITÉ IMPORTANTES
Lisez ceci! Avant d’utiliser l’appareil, prière de lire en entier le Manuel de l’utilisateur.
1. Avant de brancher l’appareil à une prise de courant, vériez si le disjoncteur du circuit de la prise est amorcé.
2. Il se peut que l’appareil de chauage dégage une faible odeur, non dangereuse, lors de la première utilisation. Cette
odeur est normale : elle provient des éléments chauants internes qui sont chaués pour la première fois. Par la suite,
l’appareil ne dégagera plus d’odeur.
3. Si l’appareil ne produit pas de chaleur, consultez la section consacrée au fonctionnement dans le manuel pour obtenir
plus de détails.
4. Utilisez un limiteur de surtension homologué CSA ou UL.
5. L’appareil peut devenir chaud quand il fonctionne. An de prévenir les brûlures accidentelles, éviter le contact entre la peau
nue et les surfaces chaudes de l’appareil. S’assurer que les matériaux combustibles, comme les meubles, les oreillers, la literie,
le papier, les vêtements et les rideaux, se trouvent à au moins 0,9 m (3 pi) du devant de l’appareil et loin des côtés et de l’arrière.
6. Il est nécessaire d’observer une grande prudence quand des enfants utilisent l’appareil ou se trouvent à proximité de
celui-ci ou quand l’appareil fonctionne sans surveillance immédiate.
7. Toujours débrancher un foyer électrique qui ne sert pas.
8. Ne pas faire fonctionner un appareil défectueux, qui est tombé ou qui a été endommagé d’une quelconque façon, ou
dont le cordon ou la che sont endommagés.
9. Retourner l’appareil à un point de service autorisé an qu’il soit vérié, que des réglages électriques ou mécaniques y
soient apportés ou qu’il soit réparé.
10. Ne pas utiliser à l’extérieur.
11. L’appareil n’est pas conçu pour être utilisé dans une salle de bain, une salle de lessive ou des endroits semblables. Ne
pas utiliser ni installer l’appareil dans un endroit où il pourrait tomber dans une baignoire ou un réservoir contenant
de l’eau.
12. Éviter de faire passer le cordon d’alimentation sous une moquette. Ne pas recouvrir le cordon d’un tapis, d’une bande
de tapis, etc. Éloigner le cordon des endroits très passants où il pourrait faire trébucher quelqu’un.
13. Pour débrancher l’appareil, tourner le bouton de commande à la position d’arrêt (OFF), puis retirer la che de la prise.
14. Ne brancher qu’à une prise mise à la terre.
15. Ne pas insérer ni permettre que s’inltrent des corps étrangers dans les ouvertures d’aération ou d’évacuation au risque
de recevoir un choc électrique, de provoquer un incendie ou d’endommager l’appareil.
16. Pour prévenir le risque d’un incendie, ne jamais bloquer les prises d’air ou d’évacuation. Ne pas utiliser sur une surface
non rigide, comme un lit, car cela risque d’obstruer les ouvertures.
17. Tous les appareils de chauage électriques sont dotés de pièces qui produisent de la chaleur ou des étincelles. Ne jamais
utiliser dans un endroit où sont utilisés ou entreposés de l’essence, de la peinture ou des liquides inammables.
18. Ne pas utiliser l’appareil pour un autre emploi que celui décrit dans le présent Manuel. Un usage non recommandé par
le fabricant pose un risque d’incendie, de choc électrique ou de blessures.
19. Éviter d’utiliser une rallonge : elle pourrait surchauer et causer un incendie. Cependant, s’il s’avère nécessaire d’en
utiliser une, il doit s’agir d’une rallonge d’une grosseur minimale de 14 AWG et d’un calibre minimal de 1 875 W.
20. Toujours utiliser des prises de courant mises à la terre et polarisées adéquatement.
21. Toujours utiliser un disjoncteur de fuite à la terre s’il s’agit d’une exigence du code de l’électricité en vigueur.
22. An de prévenir tout risque d’incendie, ne pas brûler de bois ou d’autres matériaux dans cet appareil. Si l’installation
de nouveaux circuits ou de nouvelles prises de courant est nécessaire, toujours faire appel aux services d’un maître
électricien pour éviter tout risque d’incendie.
23. Au moment de transporter ou d’entreposer l’appareil, le placer dans un endroit sec et exempt de vibrations excessives
an d’éviter de l’endommager.
Page 4
L’utilisation d’appareils électriques nécessite des précautions élémentaires afin de réduire les risques
d’incendie, de brûlures, de choc électrique, de blessures graves ou de mortalité. Voici ces précautions :
CONSERVEZ CES CONSIGNES!

HOMOLOGATIONS
Lisez ceci!
Page 5
d’aide pendant l’installation, prière de communiquer avec le marchand de votre région.
No de modèle : EF-WM402 / DD5
Description: Foyer mural design avec panneauà apparence d'écran plasma
Tension : 120V ca
Puissance : MAX. 1 500 W
Intensité : 15 A circuit avec mise à la terre
Longueur : 100 cm
:ruetuaH 50 cm
Profondeur : 17,8 cm
Foyer
Poids net : 18 kg
Poids brut : 25 kg
codes en vigueur dans la région ou, en l’absence de tels codes, à la version la plus récente de la norme
ANSI/NFPA 70 du Code national de l’électricité ou à la norme CSA C2.1 du Code canadien de l’électricité,
selon le cas.
