Asus K50AB Instructions for use

Notebook PC
Hardware User’s Manual
E4547 / March 2009

2
Table of Contents
1. Introducing the Notebook PC
About This User’s Manual �������������������������������������������������������������������������������6
Notes For This Manual ������������������������������������������������������������������������������������6
Safety Precautions ������������������������������������������������������������������������������������������7
Preparing your Notebook PC���������������������������������������������������������������������������9
2. Knowing the Parts
Top Side���������������������������������������������������������������������������������������������������������12
Bottom Side���������������������������������������������������������������������������������������������������14
Left Side ��������������������������������������������������������������������������������������������������������16
Right Side������������������������������������������������������������������������������������������������������17
Rear Side�������������������������������������������������������������������������������������������������������18
Front Side������������������������������������������������������������������������������������������������������19
3. Getting Started
Power System �����������������������������������������������������������������������������������������������22
Using AC Power��������������������������������������������������������������������������������������������������� 22
Using Battery Power �������������������������������������������������������������������������������������������� 23
Battery Care��������������������������������������������������������������������������������������������������������� 24
Powering ON the Notebook PC ��������������������������������������������������������������������������� 25
The Power-On Self Test (POST)��������������������������������������������������������������������������25
Checking Battery Power �������������������������������������������������������������������������������������� 26
Charging the Battery Pack�����������������������������������������������������������������������������������26
Power Options ����������������������������������������������������������������������������������������������������� 27
Power Management Modes���������������������������������������������������������������������������������28
Sleep and Hibernate �������������������������������������������������������������������������������������������� 28
Thermal Power Control����������������������������������������������������������������������������������������28
Special Keyboard Functions��������������������������������������������������������������������������29
Colored Hot Keys������������������������������������������������������������������������������������������������� 29
Multimedia Control Keys��������������������������������������������������������������������������������������31
Microsoft Windows Keys�������������������������������������������������������������������������������������� 32
Extended Keyboard ��������������������������������������������������������������������������������������������� 32
Status Indicators��������������������������������������������������������������������������������������������33
4. Using the Notebook PC
Pointing Device����������������������������������������������������������������������������������������������36
Using the Touchpad ��������������������������������������������������������������������������������������������� 36
Contents

3
Table of Contents (Cont.)
Touchpad Usage Illustrations�������������������������������������������������������������������������������37
Caring for the Touchpad���������������������������������������������������������������������������������������39
Automatic Touchpad Disabling����������������������������������������������������������������������������� 39
Storage Devices ��������������������������������������������������������������������������������������������40
Flash Memory Card Reader ��������������������������������������������������������������������������������40
Optical Drive ��������������������������������������������������������������������������������������������������������41
Hard Disk Drive����������������������������������������������������������������������������������������������������43
Memory (RAM)�����������������������������������������������������������������������������������������������������45
Connections���������������������������������������������������������������������������������������������������46
Network Connection ��������������������������������������������������������������������������������������������46
Wireless LAN Connection (on selected models) �������������������������������������������������47
Windows Wireless Network Connection ��������������������������������������������������������������48
Appendix
Optional Accessories����������������������������������������������������������������������������������� A-2
Optional Connections ���������������������������������������������������������������������������������������� A-3
Operating System and Software������������������������������������������������������������������ A-4
System BIOS Settings ��������������������������������������������������������������������������������������� A-4
Common Problems and Solutions ��������������������������������������������������������������������� A-7
Windows Vista Software Recovery������������������������������������������������������������������ A-14
Glossary ���������������������������������������������������������������������������������������������������� A-16
Declarations and Safety Statements ��������������������������������������������������������� A-20
Notebook PC Information �������������������������������������������������������������������������� A-27
Contents

4

5
1. Introducing the Notebook PC
About This User’s Manual
Notes For This Manual
Safety Precautions
Preparing your Notebook PC
Photos and icons in this manual are used for artistic purposes only and do not
show what is actually used in the product itself.
There may be differences between your Notebook PC and the drawings shown in
this manual. Please accept your Notebook PC as being correct.

6
About This User’s Manual
You are reading the Notebook PC User’s Manual. This User’s Manual provides
information on the various components in the Notebook PC and how to use them. The
following are major sections of this User’s Manuals:
1. Introducing the Notebook PC
Introduces you to the Notebook PC and this User’s Manual.
2. Knowing the Parts
Gives you information on the Notebook PC’s components.
3. Getting Started
Gives you information on getting started with the Notebook PC.
4. Using the Notebook PC
Gives you information on using the Notebook PC’s components.
5. Appendix
Introduces you to optional accessories and gives additional information.
Notes For This Manual
A few notes and warnings in bold are used throughout this guide that you should be aware of in order
to complete certain tasks safely and completely. These notes have different degrees of importance as
described below:
NOTE: Tips and information for special situations.
TIP: Tips and useful information for completing tasks.
IMPORTANT! Vital information that must be followed to prevent damage to data,
components, or persons.
WARNING! Important information that must be followed for safe operation.
Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the
< > or [ ] and the enclosed letters.
< >
[ ]
1 Introducing the Notebook PC

7

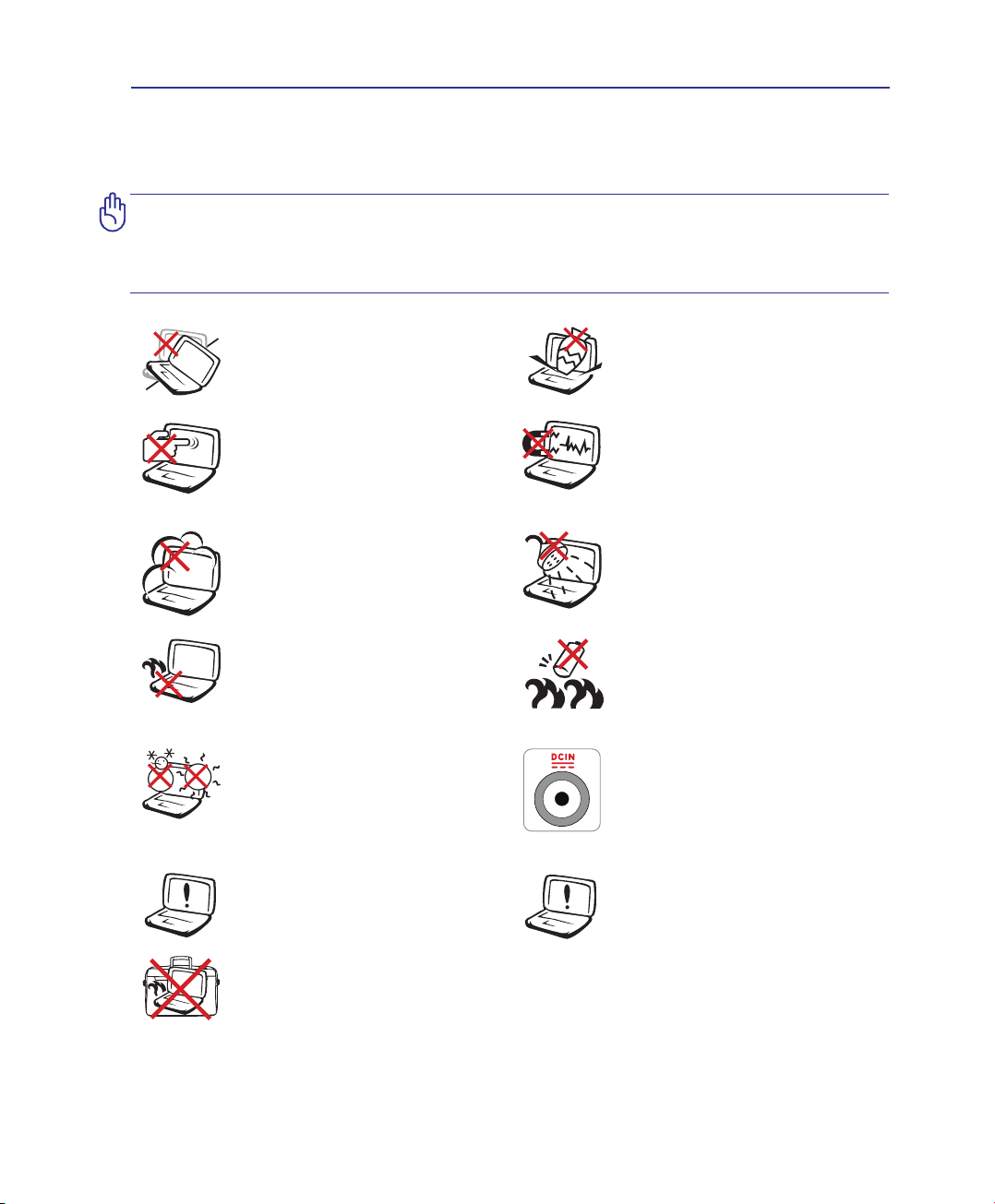

Safety Precautions
The following safety precautions will increase the life of the Notebook PC. Follow all precautions and
instructions. Except as described in this manual, refer all servicing to qualied personnel.
IMPORTANT! Disconnect the AC power and remove the battery pack(s) before
cleaning. Wipe the Notebook PC using a clean cellulose sponge or chamois cloth
dampened with a solution of nonabrasive detergent and a few drops of warm water
and remove any extra moisture with a dry cloth.
Introducing the Notebook PC 1
DO NOT expose to or use near
liquids, rain, or moisture. DO NOT
use the modem during an electrical
storm.
DO NOT expose to dirty or dusty en-
vironments. DO NOT operate during
a gas leak.
SAFE TEMP: This Notebook PC
should only be used in environments
with ambient temperatures between
10°C (50°F) and 35°C (95°F)
Battery safety warning:
DO NOT throw the battery in re.
DO NOT short circuit the contacts.
DO NOT disassemble the battery.
DO NOT expose to strong magnetic
or electrical elds.
DO NOT place on uneven or unsta-
ble work surfaces. Seek servicing if
the casing has been damaged.
DO NOT place or drop objects on
top and do not shove any foreign
objects into the Notebook PC.
DO NOT press or touch the display
panel. Do not place together with
small items that may scratch or enter
the Notebook PC.
DO NOT leave the Notebook PC on
your lap or any part of the body in
order to prevent discomfort or injury
from heat exposure.
DO NOT carry or cover a Notebook PC that is powered ON with any materials that will
reduce air circulation such as a carrying bag.
INPUT RATING: Refer to the rat-
ing label on the bottom of the Note-
book PC and be sure that your power
adapter complies with the rating.
DO NOT use damaged power cords,
accessories, or other peripherals.
DO NOT use strong solvents such
as thinners, benzene, or other chemi-
cals on or near the surface.

8
1 Introducing the Notebook PC
CAUTION! There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on people
walking through security checks), and magnetic wands (hand-held devices used on
people or individual items). You can send your Notebook PC and diskettes through
airport X-ray machines. However, it is recommended that you do not send your
Notebook PC or diskettes through airport magnetic detectors or expose them to
magnetic wands.
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack and any optional battery
packs before going on long trips. Remember that the power adapter charges the battery pack as long as
it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge
the battery pack when the Notebook PC is in use.
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the airplane. Most airlines will have
restrictions for using electronic devices. Most airlines will allow electronic use only between and not
during takeoffs and landings.
Transportation Precautions
To prepare the Notebook PC for transport, you should turn it OFF and disconnect all external pe-
ripherals to prevent damage to the connectors. The hard disk drive’s head retracts when the power
is turned OFF to prevent scratching of the hard disk surface during transport. Therefore, you should
not transport the Notebook PC while the power is still ON. Close the display panel and check that it is
latched securely in the closed position to protect the keyboard and display panel.
CAUTION! The Notebook PC’s surface is easily dulled if not properly cared for. Be
careful not to rub or scrape the Notebook PC surfaces.
Cover Your Notebook PC
Purchase a carrying bag to protect the Notebook PC from dirt, water, shock, and scratches.
DO NOT throw the Notebook PC in municipal waste. This product has been designed
to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled
bin indicates that the product (electrical, electronic equipment and mercury-containing
button cell battery) should not be placed in municipal waste. Check local regulations for
disposal of electronic products.
DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled
bin indicates that the battery should not be placed in municipal waste.

9

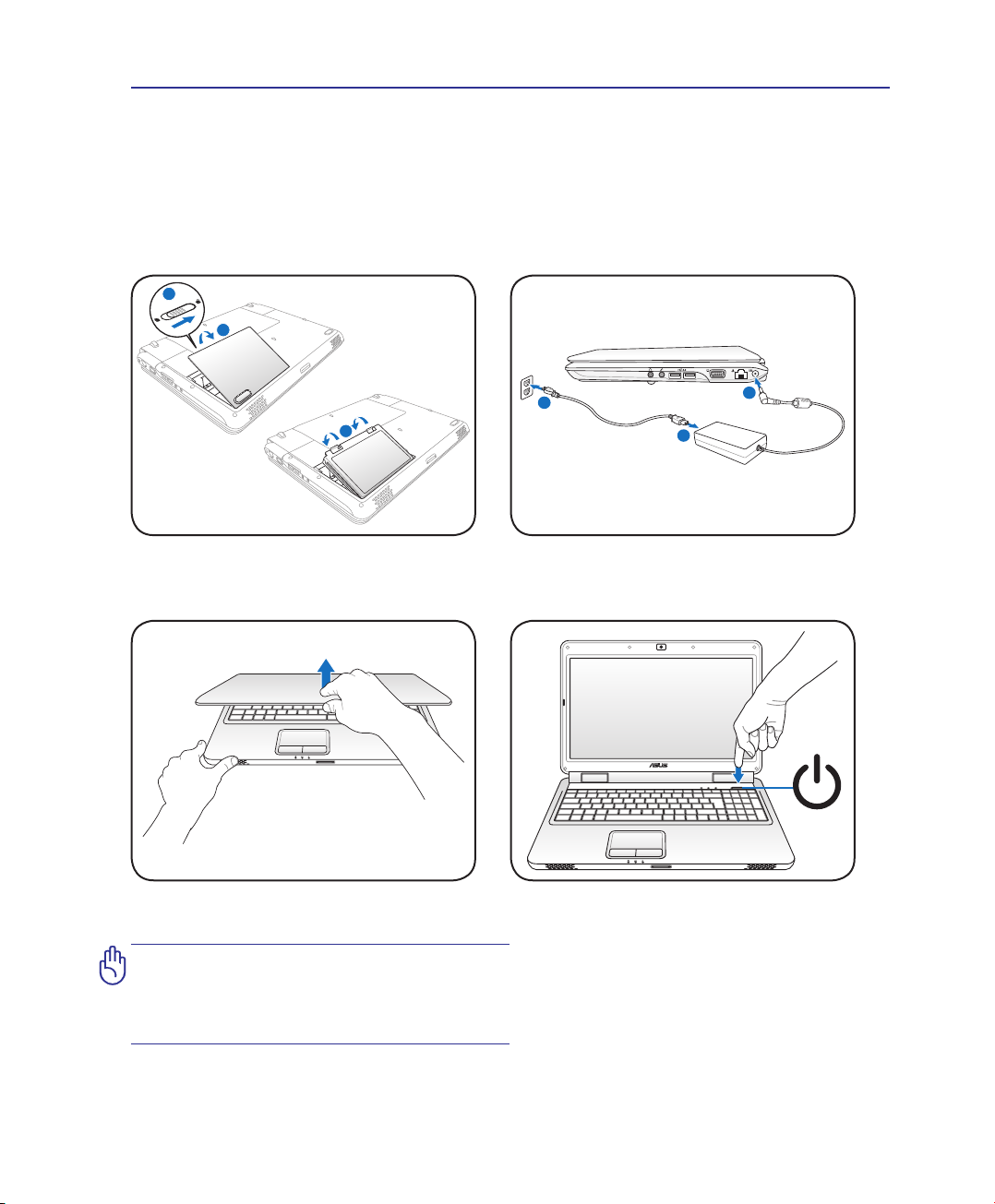

Preparing your Notebook PC
These are only quick instructions for using your Notebook PC. Read the later pages for detailed infor-
mation on using your Notebook PC.
1. Install the battery pack 2. Connect the AC Power Adapter
3. Open the Display Panel 4. Turn ON the Notebook PC
The power switch turns ON and OFF the Note-
book PC or putting the Notebook PC into sleep
or hibernation modes. Actual behavior of the
power switch can be customized in Windows
Control Panel > Power Options > System Set-
tings.
IMPORTANT! When opening, DO NOT
force the display panel down to the table
or else the hinges may break! Never lift
the Notebook PC by the display panel!
Introducing the Notebook PC 1
1
2
3
110V-220V
3 3
1
2 4

10

11
2. Knowing the Parts
Basic sides of the Notebook PC
Photos and icons in this manual are used for artistic purposes only and do not
show what is actually used in the product itself.
There may be differences between your Notebook PC and the drawings shown in
this manual. Please accept your Notebook PC as being correct.

12
3
2
4
5
6
7
1
8
Top Side
Refer to the illustration below to identify the components on this side of the Notebook PC.
The keyboard differs for each territory.
2Knowing the Parts

13
Camera (on selected models)
The built-in camera allows picture taking or video recording. Can be used with video
conferencing and other interactive applications.
1
2Display Panel
The display panel functions the same as a desktop monitor. The Notebook PC uses
an active matrix TFT LCD, which provides excellent viewing like that of desktop
monitors. Unlike desktop monitors, the LCD panel does not produce any radiation or
ickering, so it is easier on the eyes. Use a soft cloth without chemical liquids (use
plain water if necessary) to clean the display panel.
Power Switch
The power switch turns ON and OFF the Notebook PC or putting the Notebook PC into
sleep or hibernation modes. Actual behavior of the power switch can be customized in
Windows Control Panel “Power Options.”
5
Knowing the Parts 2
3Microphone (Built-in)
The built-in mono microphone can be used for video conferencing, voice narrations, or simple
audio recordings.
4Status Indicators (top)
Status indicators represent various hardware/software conditions. See indicator details in section 3.
6Keyboard
The keyboard provides full-sized keys with comfortable travel (depth at which the
keys can be depressed) and palm rest for both hands. Two Windows function keys are
provided to help ease navigation in the Windows operating system.
7Touchpad and Buttons
The touchpad with its buttons is a pointing device that provides the same functions as a
desktop mouse. A software-controlled scrolling function is available after setting up the
included touchpad utility to allow easy Windows or web navigation.
8Status Indicators (front)
Status indicators represent various hardware/software conditions. See indicator details in section 3.

14
2Knowing the Parts
Bottom Side
Refer to the illustration below to identify the components on this side of the Notebook PC.
1
3 4
2
WARNING! The bottom of the Notebook PC can get very hot. Be careful when han-
dling the Notebook PC while it is in operation or recently been in operation. High
temperatures are normal during charging or operation. Do not use on soft surfaces
such as beds or sofas which may block the vents. DO NOT PUT THE NOTEBOOK
PC ON YOUR LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE
HEAT.
The bottom side may vary in appearance depending on model.
The battery pack size varies depending on model.

15
Knowing the Parts 2
Memory (RAM) Compartment
The memory compartment provides expansion capabilities for additional memory.
Additional memory will increase application performance by decreasing hard disk
access. The BIOS automatically detects the amount of memory in the system and
congures accordingly. There is no hardware or software (including BIOS) setup
required after the memory is installed. Visit an authorized service center or retailer for information on
memory upgrades for your Notebook PC. Only purchase expansion modules from authorized retailers
of this Notebook PC to ensure maximum compatibility and reliability.
1
Hard Disk Drive Compartments
The hard disk drive is secured in a compartment. Visit an authorized service center or
retailer for information on hard disk drive upgrades for your Notebook PC. Only purchase
hard disk drives from authorized retailers of this Notebook PC to ensure maximum compat-
ibility and reliability.
2
3Battery Pack
The battery pack is automatically charged when the Notebook PC is connected to an AC
power source and maintains power to the Notebook PC when AC power is not connected.
This allows use when moving temporarily between locations. Battery time varies by usage
and by the specications for this Notebook PC. The battery pack cannot be disassembled
and must be purchased as a single unit.
Battery Lock - Spring
The spring battery lock is used to keep the battery pack secured. When the battery pack is inserted, it will
automatically lock. To remove the battery pack, this spring lock must be held in the unlocked position.
4

16
2Knowing the Parts
Left Side
Refer to the illustration below to identify the components on this side of the Notebook PC.
1 3
2
Optical Drive
The Notebook PC comes in various models with different optical drives. The Note-
book PC’s optical drive may support compact discs (CD) and/or digital video discs
(DVD) and may have recordable (R) or re-writable (RW) capabilities. See the market-
ing specications for details on each model.
1
2Optical Drive Emergency Eject (location varies by model)
The emergency eject is used to eject the optical drive tray in case the electronic eject
does not work. Do not use the emergency eject in place of the electronic eject.
3
2.0
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices
such as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners
connected in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB al-
lows many devices to run simultaneously on a single computer, with some peripherals act-
ing as additional plug-in sites or hubs. USB supports hot-swapping of devices so that most peripherals
can be connected or disconnected without restarting the computer.

17
Knowing the Parts 2
Right Side
Refer to the illustration below to identify the components on this side of the Notebook PC.
12 3 4 5 6
Microphone Input Jack
The mono microphone jack (1/8 inch) can be used to connect an external microphone or out-
put signals from audio devices. Using this jack automatically disables the built-in microphone.
Use this feature for video conferencing, voice narrations, or simple audio recordings.
2
1Headphone Output Jack
The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to
amplied speakers or headphones. Using this jack automatically disables the built-in speakers.
3
2.0
USB Port (2.0/1.1)
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a moni-
tor or projector to allow viewing on a larger external display.
4
5LAN Port
The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and supports
a standard Ethernet cable for connection to a local network. The built-in connector al-
lows convenient use without additional adapters.
Power (DC) Input
The supplied power adapter converts AC power to DC power for use with this jack. Power sup-
plied through this jack supplies power to the Notebook PC and charges the internal battery pack.
To prevent damage to the Notebook PC and battery pack, always use the supplied power
adapter. CAUTION: MAY BECOME WARM TO HOT WHEN IN USE. BE SURE
NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.
6

18
2Knowing the Parts
Rear Side
Refer to the illustration below to identify the components on this side of the Notebook PC.
1 12
2Air Vents
The air vents allow cool air to enter and warm air to exit the Notebook PC.
IMPORTANT! Make sure that paper, books, clothing, cables, or other ob-
jects do not block any of the air vents or else overheating may occur.
1Kensington®Lock Ports
The Kensington®lock ports allow the Notebook PC to be secured using Kensington®
compatible Notebook PC security products. These security products usually include
a metal cable and lock that prevent the Notebook PC to be removed from a
xed object. Some may also include a motion detector to sound an alarm when
moved.

19
Knowing the Parts 2
Front Side
Refer to the illustration below to identify the components on this side of the Notebook PC.
1 12
Audio Speakers
The built-in stereo speaker system allows you to hear audio without additional attachments.
The multimedia sound system features an integrated digital audio controller that produces
rich, vibrant sound (results improved with external stereo headphones or speakers). Audio
features are software controlled.
1
Flash Memory Slot
Normally an external memory card reader must be purchased separately in order to use
memory cards from devices such as digital cameras, MP3 players, mobile phones, and PDAs.
This Notebook PC has a built-in high-speed memory card reader that can conveniently read
from and write to many ash memory cards as mentioned later in this manual.
2

20
2Knowing the Parts
This manual suits for next models
15
Table of contents
Other Asus Laptop manuals

Asus
Asus VivoBook S15 Guide

Asus
Asus C200M Chromebook Guide

Asus
Asus N73JF User manual

Asus
Asus Eee PC X101H User manual

Asus
Asus C202SA User manual

Asus
Asus E18203 User manual

Asus
Asus Chromebook Flip C214MA User manual

Asus
Asus L3Tp User manual

Asus
Asus G531GW Installation and operation manual

Asus
Asus Z91N Instructions for use
