Asus WL-120g V2 User manual

Wireless Local Area Network Card
WL-120g V2
(For 802.11g and 802.11b Wireless Networks)
®
User’s Manual

2ASUS WLAN Card
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translatedintoanylanguageinanyformorbyanymeans,exceptdocumentation
kept by the purchaser for backup purposes, without the express written
permission ofASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITYORFITNESS FORAPARTICULAR PURPOSE. IN
NO EVENT SHALLASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES
ORAGENTSBELIABLEFORANYINDIRECT,SPECIAL,INCIDENTAL,
ORCONSEQUENTIALDAMAGES(INCLUDINGDAMAGESFORLOSS
OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA,
INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS
BEENADVISED OFTHE POSSIBILITYOFSUCH DAMAGESARISING
FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired,
modified or altered, unless such repair, modification of alteration is authorized
in writing by ASUS; or (2) the serial number of the product is defaced or
missing.
Products and corporate names appearing in this manual may or may not be
registeredtrademarksor copyrightsoftheir respectivecompanies,and areused
only for identification or explanation and to the owners’ benefit, without intent
to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS
MANUALARE FURNISHED FOR INFORMATIONALUSE ONLY,AND
ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND
SHOULD NOT BE CONSTRUEDASACOMMITMENT BYASUS.ASUS
ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS
OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,
INCLUDING THE PRODUCTSAND SOFTWARE DESCRIBED IN IT.
Copyright © 2003ASUSTeK COMPUTER INC. All Rights Reserved.
Copyright Information
Product Name: ASUS WLAN Card (WL-120g)
Manual Revision: 1
Release Date: October 2003

ASUS WLAN Card 3
Copyright Information
ASUSTeK COMPUTER INC. (Asia-Pacific)
Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
General Tel: [phone]
General Fax: [phone]
Web Site: www.asus.com.tw
Technical Support
MB/Others (Tel): [phone] (English)
Notebook (Tel): [phone] (English)
Desktop/Server (Tel): [phone] (English)
Support Fax: [phone]
ASUS COMPUTER INTERNATIONAL (America)
Address: 44370 Nobel Drive, Fremont, CA 94538, USA
General Fax: [phone]
General Email: [email protected]
Web Site: usa.asus.com
Technical Support
Support Fax: [phone]
General Support: [phone]
Notebook Support: [phone] x5110
Support Email: [email protected]
ASUS COMPUTER GmbH (Germany and Austria)
Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany
General Email: [email protected] (for marketing requests only)
General Fax: [phone]
Web Site: www.asuscom.de
Technical Support
Components: [phone]
Notebook PC: [phone]
Support Fax: [phone]
Support Email: www.asuscom.de/support (for online support)
ASUSTeK COMPUTER (Middle East and North Africa)
Address: P.O. Box 64133, Dubai, U.A.E.
General Tel: [phone]
General Fax: [phone]
Web Site: www.ASUSarabia.com

4ASUS WLAN Card
Table of Contents
1. Introduction ............................................................................. 7
Overview .............................................................................................. 7
The ASUS Wireless LAN Family..................................................... 8
The ASUS WLAN™ Family .................................................................. 8
System Requirements ........................................................................ 10
The Product Package......................................................................... 10
2. Installation ............................................................................. 11
Installing the ASUS WLAN Card Driver.............................................. 11
Verifying Drivers............................................................................ 12
Installing the ASUS WLAN Card Utilities............................................ 13
ASUS WLAN Utility Quick Start.......................................................... 15
Reading the ASUS WLAN Status Indicators................................. 17
Orientating the Antenna ................................................................ 18
3. Software Reference .............................................................. 19
Chapter Overview............................................................................... 19
Windows XP Wireless Options ..................................................... 20
Control Center Utility .......................................................................... 21
Site Monitor Utility......................................................................... 24
Wireless Settings Utility...................................................................... 26
Status - Status Tab ....................................................................... 27
Status - Connection Tab ............................................................... 31
Status - IP Config Tab ................................................................... 32
Config - Basic Tab......................................................................... 33
Config - Encryption Tab ................................................................ 35
Survey - Site Survey Tab .............................................................. 38
About - Version Info Tab ............................................................... 39
Link State...................................................................................... 40

ASUS WLAN Card 5
Table of Contents
Exit Wireless Settings ................................................................... 40
Mobile Manager Utility........................................................................ 41
New Configuration Wizard ............................................................ 45
Edit Configuration ......................................................................... 46
Troubleshooting Utility ........................................................................ 54
Windows XP Wireless Properties ....................................................... 58
4. Troubleshooting.................................................................... 60
5. Glossary................................................................................. 62
IEEE 802.11b (11Mbits/sec) ............................................................... 67
Direct-Sequence Spread Spectrum (for 802.11b) .............................. 68
IEEE 802.11a (54Mbits/sec) ............................................................... 69
COFDM (for 802.11a/g) ...................................................................... 70
6. Safety Information................................................................. 71
Federal Communications Commission............................................... 71
FCC Radio Frequency Interference Requirements ...................... 72
FCC RF Exposure Guidelines (Access Points) ............................ 72
FCC RF Exposure Guidelines (Wireless Cards)........................... 72
Canadian Department of Communications ........................................ 73
France Restricted Frequency Band.................................................... 74

6ASUS WLAN Card

ASUS WLAN Card 7
Chapter 1 - Introduction
Chapter 1
1. Introduction
Overview
Thank you for purchasing theASUS WLAN Card.TheASUS WLAN Card is
a PCI compliant “wireless” network interface card (NIC) for any computer
equipped with a PC Card slot (available mainly in Notebook PCs).
TheASUS WLAN Card is designed to be fully compliant with both the IEEE
802.11gandIEE802.11bwirelesslocalareanetwork(WirelessLAN)standards.
As a result of the completion of the standard, the interoperability of Wireless
LAN products among multiple manufacturers will be guaranteed. The ASUS
WLAN Card product provides high-speed, standards-based Wireless LAN
solutions.
TheASUS WLAN Card is designed to be fully compliant with IEEE 802.11g
wireless local area networks (WLAN). 802.11g is an extension to 802.11b,
used in majority of wireless LANs today. 802.11g will broaden 802.11b's data
ratesto 54 Mbps withinthe 2.4 GHz band usingOFDM (orthogonal frequency
divisionmultiplexing)technology.802.11gallowsbackwardcompatibilitywith
802.11b devices but only at 11 Mbps or lower depending on the range and
presence of obstructions.
The ASUS WLAN Card supports data rates up to 11 Mbps, with automatic
fallbackto5.5,2, and1Mbpsin 802.11bnetworks. Itoperatesinthe unlicensed
2.4 GHz frequencies called the Instrumentation, Science, and Medical (ISM)
band. Unlicensed means free of charge to users.
TheASUSWLAN Card configuration utility is a user-friendlyapplication that
helpsyouquickly setupmultiple roamingnodes usingtheASUSWLANCard.
You can even export the configuration settings to a file and import them to
other computers for fast multiple installations using ASUS Mobile Manager.
WirelessLANsarecomplementaryextensionsto existing wiredLANs,offering
complete mobility while maintaining continuous network connectivity to both
corporate and home Intranets. They add a new level of convenience for LAN
users. PC users stay connected to the network anywhere throughout a building
without being bound by a LAN wires.This is accomplished through the use of
ASUSWLANAccessPointsorASUSWLANHomeGateways.ASUSWLAN
Home Gateways with built-in Internet gateway capability, allows your family
toshareabroadbandModemandoneISPaccountsimultaneouslyfromdifferent
rooms without wires! ASUS WLAN products can keep you connected
anywhere, any time.
Overview

8ASUS WLAN Card
Chapter 1 - Introduction
Chapter 1
WLAN Family
The ASUS Wireless LAN Family
The ASUS Wireless LAN family contains a complete solution for wireless
local area networks in the office or at home.
The above illustrations are not to scale.
The ASUS WLAN
802.11b/a Cardbus
Card(WL-200)isadual
band (IEEE 802.11a/b)
wirelessLANadapterthat
fits into a Notebook PC’s
PCMCIA Type II slot
with Cardbus support.
LNK
AIR
The ASUS WLAN
802.11b PC Card
(WL-100) is a IEEE
802.11b wireless
LAN adapter that fits
into a PCMCIAType
II slot in a Notebook
PC.
The ASUS WLAN
802.11b CF Card
(WL-110) is a IEEE
802.11b wireless
LAN adapter that fits
into a Compact Flash
Type II slot in a
Portable Digital
Assistant (PDA).
The ASUS WLAN
802.11b Access Point
(WL-300) creates a
wireless network using
the IEEE 802.11b
wireless standard.
TheASUSWLAN802.11bGateway
(WL-500) creates a wireless network
using the IEEE 802.11b wireless
standard and allows sharing a single
Internet connection.
The ASUS WLAN
802.11b/a PCI Card
(WL-230) is a dual
band(IEEE 802.11a/b)
wireless PCI card that
alsosupportsBluetooth
connections.

ASUS WLAN Card 9
Chapter 1 - Introduction
Chapter 1
TheASUSWLAN802.11b/aRouter
(WL-600) creates a wireless network
using the IEEE 802.11b and 802.11a
wireless standards and allows sharing
a single Internet connection.
The ASUS WLAN 802.11b USB
Client (WL-140) is an IEEE
802.11bwirelessUSBLANadapter
that connects to any computer’s
USB port with the benefit of being
able to place the antenna anywhere
inordertomaximizesignalstrength.
The ASUS WLAN
802.11g Access Point
(WL-300g) creates a
wireless network using
the IEEE 802.11g and
802.11b wireless
standards.
The above illustrations are not to scale.
LNK
AIR
The ASUS WLAN
802.11g PC Card
(WL-120g)isaIEEE
802.11g and 802.11b
wirelessLANadapter
that fits into a
PCMCIATypeIIslot
in a Notebook PC.
WLAN Family

10 ASUS WLAN Card
Chapter 1 - Introduction
Chapter 1
System Requirements
To begin using the ASUS WLAN Card, you must have the following
minimum requirements:
• Windows XP/2000/ME/98SE
• Standard PCI Slot
• 32MB system memory or larger
• 300MHz processor or higher
The Product Package
When you receive the ASUS WLAN Card package, it should contain the
following items:
• ASUS WLAN Card
• ASUS WLAN Card Quick Start Guide
• ASUS WLAN Card User’s Manual
• CD-ROM Disc (Drivers, Utilities, Documentation)
If any of the above items are not included or damaged, contact your
local dealer for instructions.
Requirements

ASUS WLAN Card 11
Chapter 2 - Installation
Chapter 2
Installing Driver

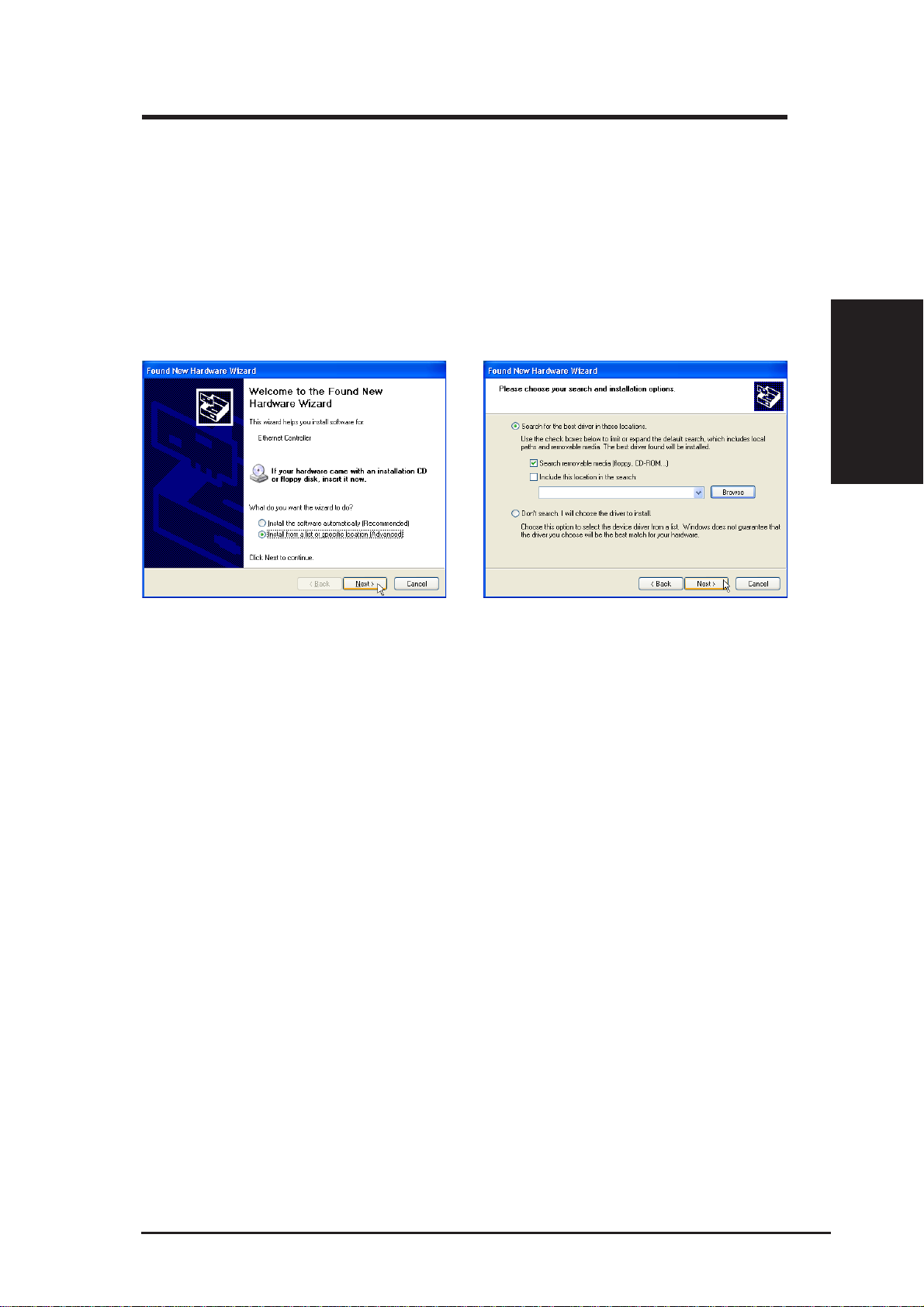

3. Windows will automatically detect the
ASUS WLAN Card once it is inserted into
the PCI slot, then the “Add New Hardware
Wizard” dialog will appear. Click Next.
4. Insert the support CD that came with your
ASUS WLAN Card.
5. Select “Search for the best driver in”...
and “Search removable media...”, then
click Next.
2. Installation
Installing the ASUS WLAN Card Driver
1. Install the ASUS WLAN Card into a free PCI slot and replace your chassis door, panels,
screws, and cables.
2. Turn ON your computer and enter Windows.
Installing Driver

12 ASUS WLAN Card
Chapter 2 - Installation
Chapter 2

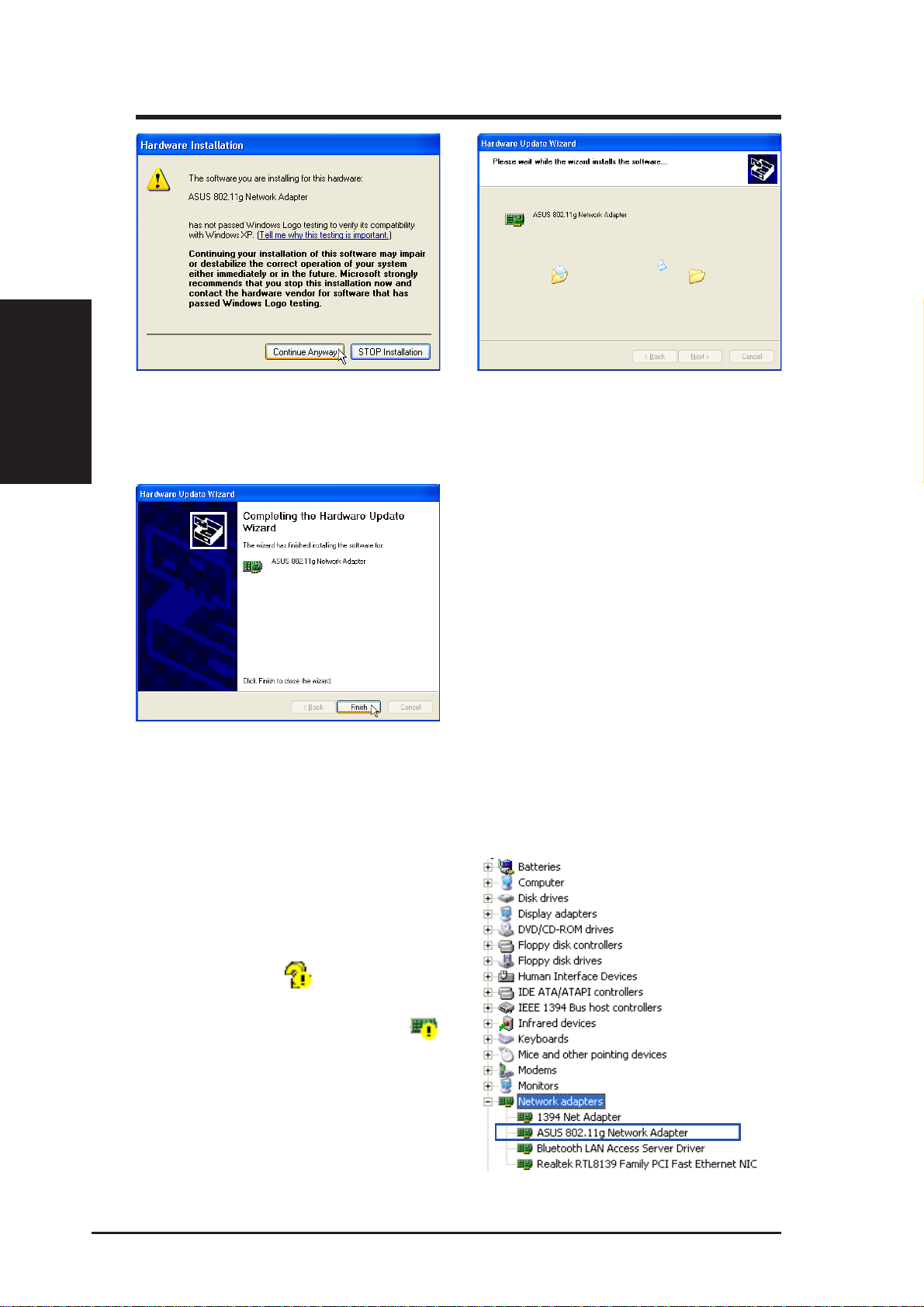

6. When asked about driver compatibility
with Windows XP. Click Continue
Anyway since ASUS has always tests its
drivers before product shipment.
7. Wait while Windows XP creates a restore
point for you system files in case you
need to restore your current system.
8. Click Finish when installation has
complete. Restart your computer if
prompted.
Verifying Drivers
You can verify the ASUS WLAN
Card driver in Device Manager.
(AccessDevice Managerfrom Start|
Control Panel | System | Hardware).
A question mark means that no
driver has been installed. An
exclamation mark over a card
means that the driver is incorrect.
Verify that you are using the correct
productanddriver CD.Try repeating
the installation and contact customer
support if necessary.
Installing Driver

ASUS WLAN Card 13
Chapter 2 - Installation
Chapter 2
Installing the ASUS WLAN Card Utilities
After you have installed the ASUS WLAN Card driver, you can install the
WLANAdapterutilities. Refertothe
User’s Manual for the detailed
information.
1. Insert the ASUS WLAN Card support CD
and an autorun menu will appear. If your
autorun is disabled, double click
SETUP.EXE in the root directory of the
support CD.
2. From the autorun menu, select your
language and click Install ASUS WLAN
Card Utilities.
3. Click Next on the Welcome screen. 4. Click Next after reading the Information.
5. Click Next to use the default Destination
Folder or click Browse to select another
folder.
6. Click Next to place icons in the default
program folder or type another folder
name.
Installing Utilities

14 ASUS WLAN Card
Chapter 2 - Installation
Chapter 2

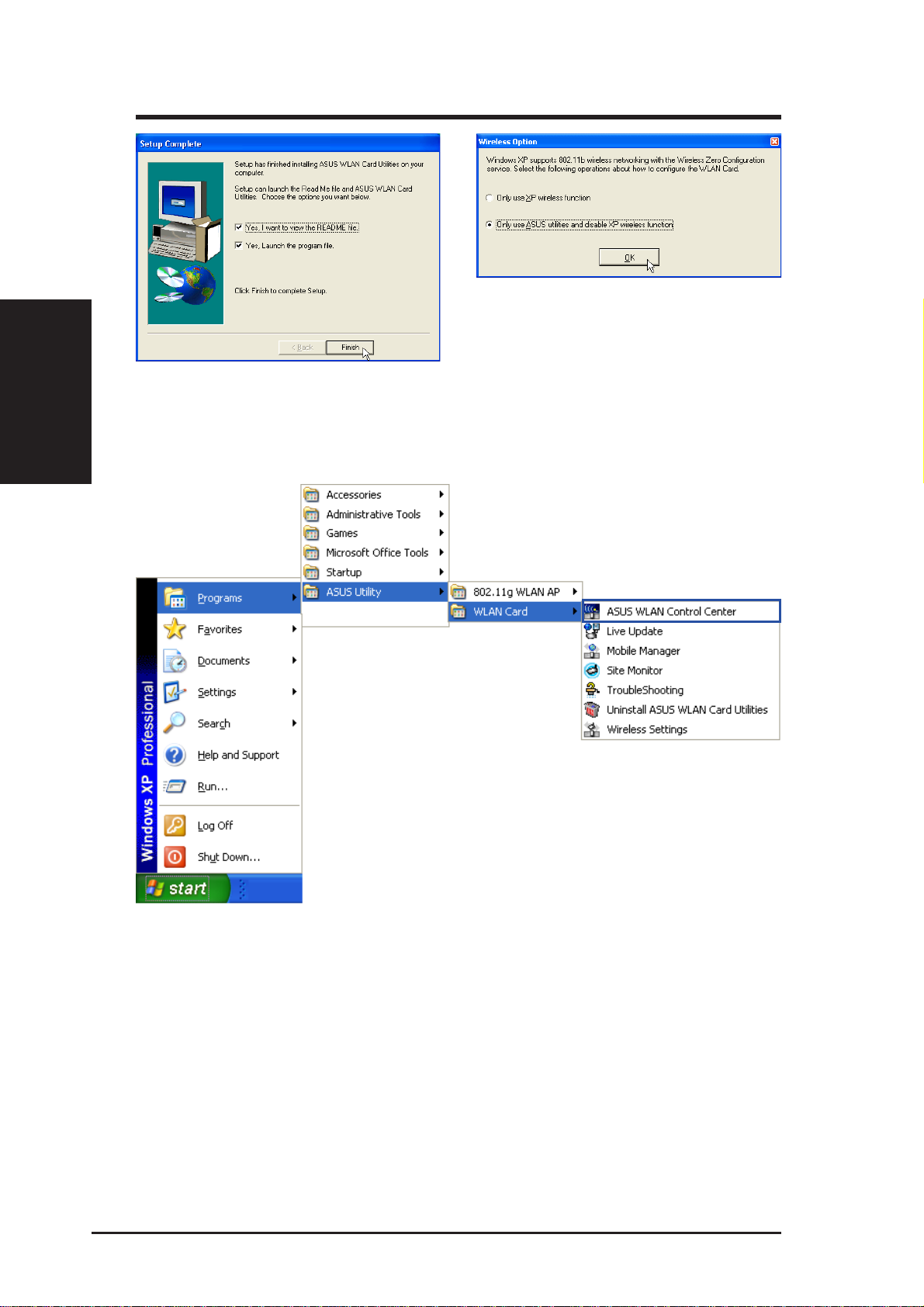

7. When Setup is complete, click Finish to
exit the installation wizard.
Several shortcuts will be created
which can be accessed through Start.
8. When the program is launched for the first
time, you will be asked which function to
use. Select to use ASUS utilities for more
functions.
By default, the “ASUS WLAN
Control Center” is set to launch with
Windows. If necessary, you can
launchitmanuallyfromtheWindows
Start Menu.
Installing Utilities

ASUS WLAN Card 15
Chapter 2 - Installation
Chapter 2
ASUS WLAN Utility Quick Start
After installing the ASUS WLAN driver and utility, you may need to make
some settings before being able to use your wireless connection.
1. Right-click the ASUS WLAN icon and
select “Wireless Settings” 2. Set the Network Name (SSID) to the
same name as the SSID set in your
wireless access point.
3. Use “Site Survey” if you don’t know the
name of your access point(s). 4. Encryption settings must also match
those set in the access point. Talk with
your network administrator if necessary.
Right-Click Menu
Quick Start

16 ASUS WLAN Card
Chapter 2 - Installation
Chapter 2
ASUS WLAN Utility Quick Start (Cont.)
6. You can also see the connection quality
on the “Connection” page. Click OK to
exit the utility.
5. Click Apply to save your settings and
check the “Status” page to see the
“Association State”. It should show
“Connected - xx:xx:xx:xx:xx:xx”.
Quick Start

ASUS WLAN Card 17
Chapter 3 - Reference
Chapter 3
Software Reference
•Control Center – Makes it easy to launch applications and activate
network location settings.
•Mobile Manager – A convenient tool to setup and manage network
location settings.
•Site Monitor – Measures the received signal strength indicator (RSSI)
values of all wireless networks. This tool is used for determining the
best placement ofAccess Points to provide the most efficient coverage
in a wireless network.
•Troubleshooting - Troubleshooting will test your settings and connec-
tion to try to pinpoint your problem and give you a solution.
•Wireless Settings – Allows users to control the ASUS WLAN Card.
Additional Reference
•Windows XP Wireless Properties - Brief overview of the wireless
settings provided in Windows XP.
3. Software Reference
Chapter Overview
The ASUS WLAN Card software includes five groups of utilities
Windows Start Menu - Programs

18 ASUS WLAN Card
Chapter 3 - Reference
Chapter 3
Software Reference

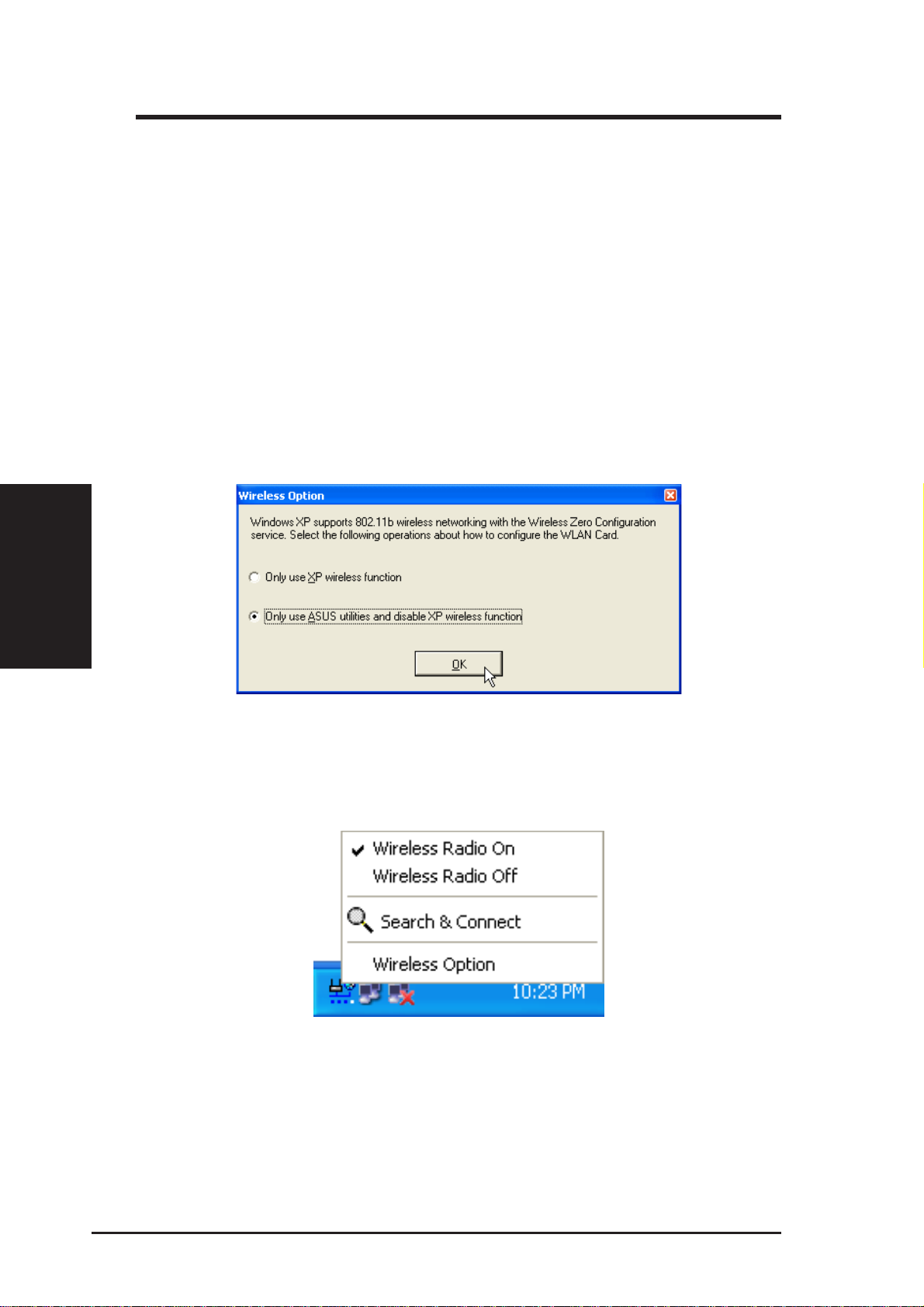

Windows XP Wireless Options
The wireless options shown below is only available for Windows XP. The
first time you run the Control Center utility, it will automatically show.
Select one of the radio buttons to decide which interface to use with your
ASUS WLAN Card.
OnlyuseXPwirelessfunction – Only use “Windows XP” wireless network
settings to configure the ASUS WLAN Card.
Only use ASUS utilities and disable XP wireless function – Only use
“ASUS WLAN Card utilities” to configure the ASUS WLAN Card.
(recommended)
You can return to the Wireless Option setting at any time by left clicking
the control center icon and choosing “Wireless Option”.
Taskbar Left-Click Menu

ASUS WLAN Card 19
Chapter 3 - Reference
Chapter 3
Control Center
Control Center Utility
Control Center is an application that makes it easy to launch applications
and activate network location settings. Control Center starts automatically
when the system boots. Whenever Control Center is running, you will see
a Control Center icon displayed on the Windows taskbar.
Starting the Control Center manually
• Select ASUS WLAN Control Center in Windows Start menu.
or
• Double click the ASUS WLAN Control Center icon on the desktop.
Using the Control Center Taskbar
The Control Center Taskbar menu display the following information:
• The link quality of the ASUS WLAN Card (Excellent, Good, Fair,
Poor, Not Linked)
• Whether theASUS WLAN Card is connected to the Internet (Blue:
Connected, Gray: Not Connected)
Taskbar Icon and Status
Windows Start Menu

20 ASUS WLAN Card
Chapter 3 - Reference
Chapter 3
Control Center
Wireless Status Icons (on the taskbar)
Excellent link quality and connected to Internet (Infrastructure)
Good link quality and connected to Internet (Infrastructure)
Fair link quality and connected to Internet (Infrastructure)
Poor link quality and connected to Internet (Infrastructure)
Not linked but connected to Internet (Infrastructure)
Excellent link quality but not connected to Internet (Infrastructure)
Good link quality but not connected to Internet (Infrastructure)
Fair link quality but not connected to Internet (Infrastructure)
Poor link quality but not connected to Internet (Infrastructure)
Not linked and not connected to Internet (Infrastructure)
