Asus TriplePlay User manual

TriplePlay
User Manual
Version 1.0
Version Date: August 1, 2005
Document #: BD-TU0001-10

TriplePlay
User Manual 1
Version 1.0
Document #: BD-TU0001-10
Table of Contents
GENERAL INFORMATION ...............................................................3
Package Contents ..................................................................3
Safety Instructions—Please read. ...........................................3
Front Panel View ....................................................................4
Indication................................................................................4
Back Panel View ....................................................................6
INSTALLING THE ROUTER..............................................................7
Connect the ADSL Line and Telephone.................................7
Connect the PC to the Router ................................................7
Connect a Printer or Server to the Router..............................8
Connect the Telephone to the Router ....................................8
Connect the Router to a Phone Jack .....................................8
Connect the Power Adapter ...................................................8
INSTALLATION DIAGRAM ...............................................................9
USB DRIVER INSTALLATION .......................................................10
CONFIGURING YOUR COMPUTER ................................................14
Windows 2000......................................................................14
Windows XP.........................................................................15
LOG IN TO THE ROUTER..............................................................16
DEVICE INFO..............................................................................17
Summary..............................................................................17
WAN.....................................................................................17

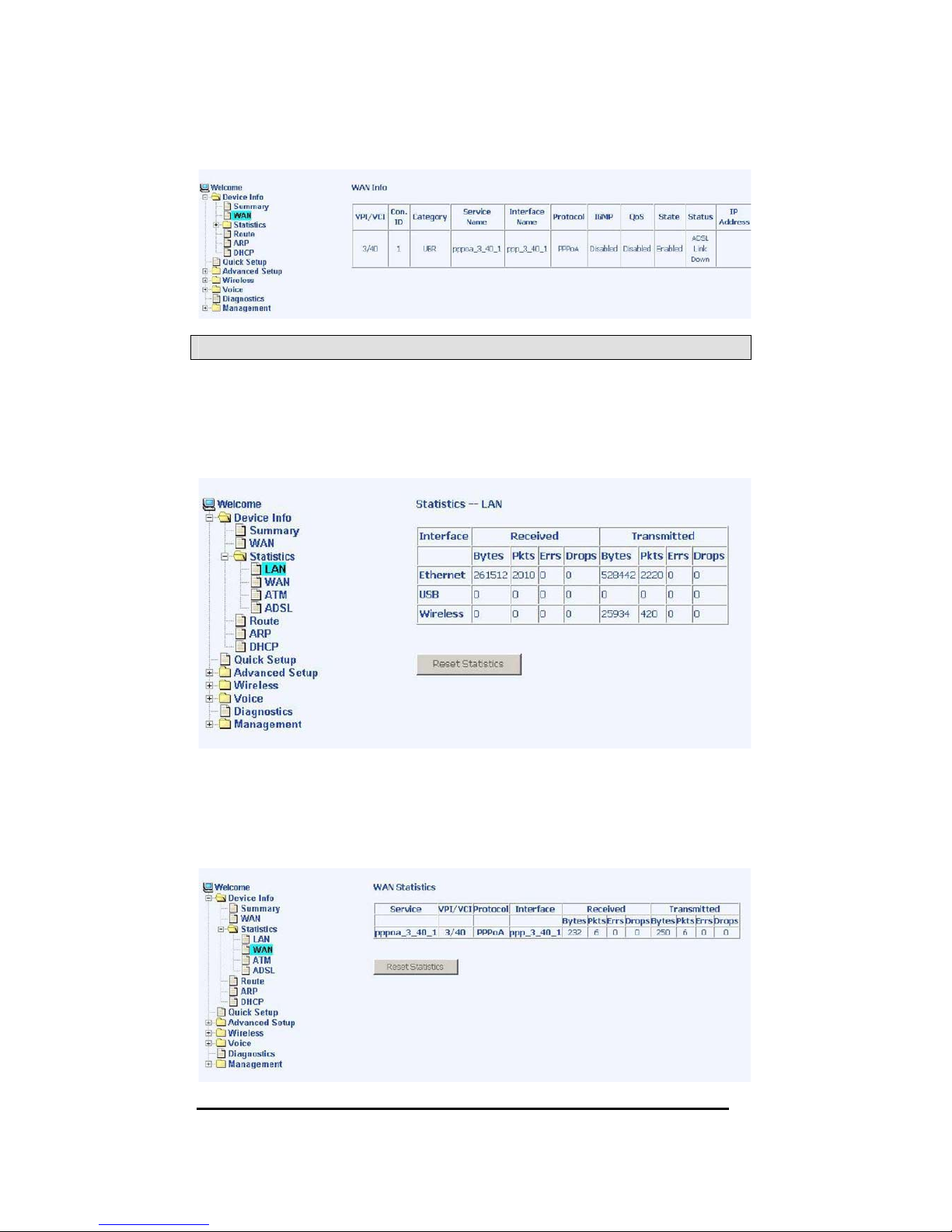

Statistics...............................................................................18
LAN Statistics................................................................18
WAN Statistics ..............................................................18

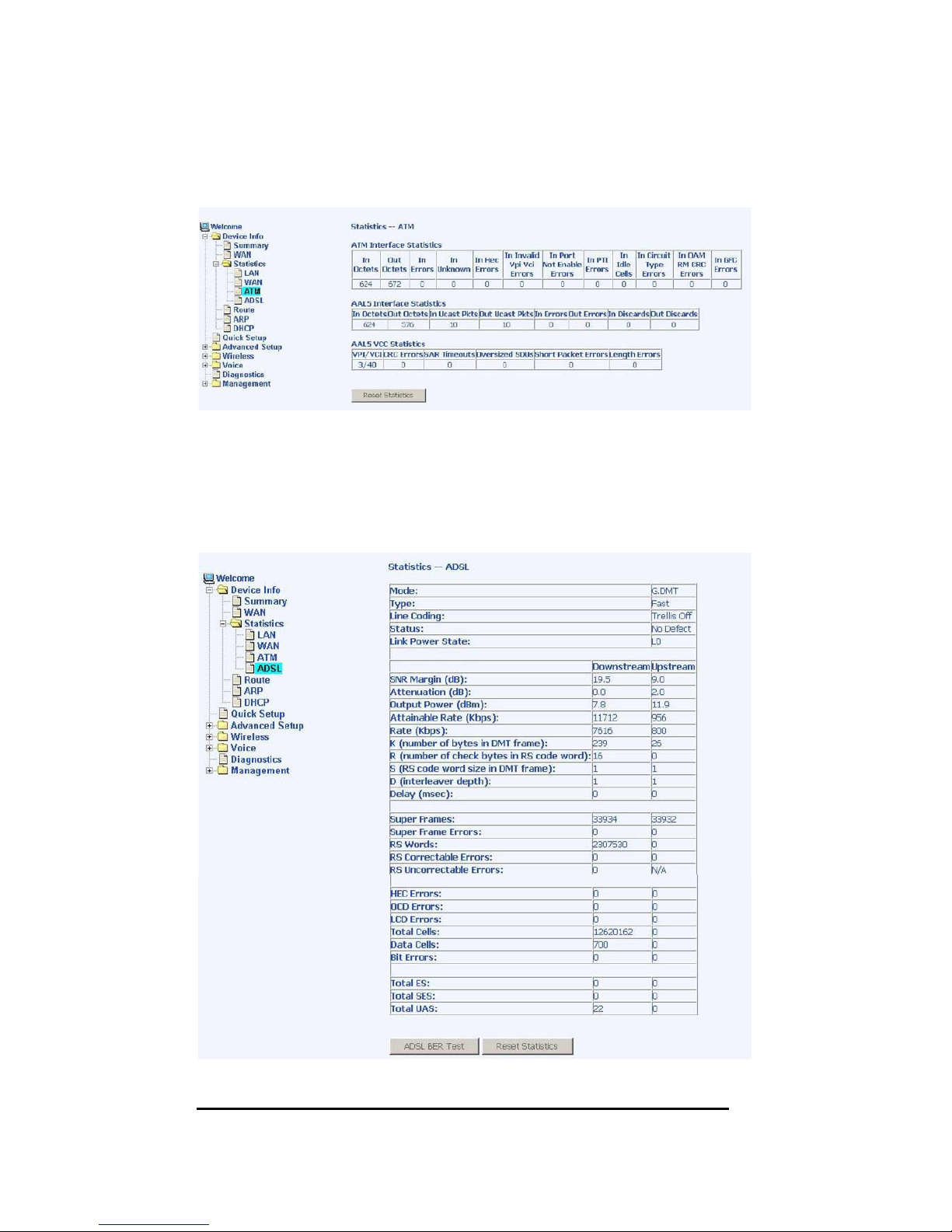

ATM Statistics ...............................................................19
ADSL Statistics .............................................................19
ADSL BER Test ............................................................20
Route....................................................................................21
ARP......................................................................................21
DHCP ...................................................................................22
QUICK SETUP ............................................................................22
ADVANCED SETUP .....................................................................26
WAN.....................................................................................26
LAN Local Area Network (LAN) Setup .................................31
NAT ......................................................................................32
Virtual Servers ..............................................................32
Port Triggering ..............................................................34
DMZ Host......................................................................35
Firewall.................................................................................36
IP Filtering—Outgoing ....................................................36
IP Filtering—Incoming ....................................................37

TriplePlay
User Manual 2
Version 1.0
Document #: BD-TU0001-10
MAC Filtering ................................................................38
Parental Control ............................................................39
Quality of Service .................................................................40
Routing.................................................................................43
Default Gateway ...........................................................43
Static Route ..................................................................43
RIP ................................................................................44
DNS......................................................................................44
DNS Server...................................................................44
Dynamic DNS ...............................................................45
ADSL....................................................................................46
DSL Advanced Settings ................................................47
Tone Settings................................................................47
Port Mapping ........................................................................48
WIRELESS .................................................................................49
Basic ....................................................................................49
Security ................................................................................49
MAC Filter ............................................................................51
Wireless Bridge ....................................................................52
Advanced .............................................................................52
Station Info ...........................................................................54
VOICE .......................................................................................55
SIP Basic..............................................................................55
SIP Advanced ......................................................................58
Phonebook ...........................................................................61
Call History...........................................................................62
DIAGNOSTICS ............................................................................63
MANAGEMENT ...........................................................................64
Settings ................................................................................64
Backup Settings ............................................................64
Restore User Settings ...................................................65
Restore Default .............................................................65
System Log ..........................................................................66
Configure System Log ..................................................67
SNMP...................................................................................67
Internet Time ........................................................................68
Access Control .....................................................................69
Services ........................................................................69
IP Addresses.................................................................69
Passwords ....................................................................70
Update Software ..................................................................70
Reboot Router ......................................................................71

TriplePlay
User Manual 3
Version 1.0
Document #: BD-TU0001-10
General Information
The TriplePlay is a 3-in-1 router having the functions of a
standard ADSL router, plus voice capabilities and wireless
accessibility all in one box. Including three features adds
convenience and provides increased functions for one router.
Package Contents
Included in the package is one of each of the following—
•TriplePlay router
•AC power adapter
•USB cable
•RJ-11 telephone cable
•RJ-45 Ethernet cable
•Splitter
•User Manual
•Place your router on a flat surface close to the cables in a
location with sufficient ventilation.
•To prevent overheating, do not obstruct the ventilation
openings of this equipment.
•Plug this equipment into a surge protector to reduce the risk
of damage from power surges and lightning strikes.
•Operate this equipment only from an electrical outlet with
the correct power source as indicated on the adapter.
•Unplug equipment first before cleaning. A damp cloth can
be used to clean the equipment. Do not use liquid / aerosol
cleaners or magnetic / static cleaning devices.
•Do not open the cover of this equipment. Opening the
cover will void any warranties on the equipment.
Safety Instructions—Please read.

TriplePlay
User Manual 4
Version 1.0
Document #: BD-TU0001-10
Front Panel View
LED Mode Indication
Solid The router is on.
1. Power No light
The router is not on.
Check if the AC power adapter is
connected to the router and plugged in.
Solid ADSL is connected.
No light ADSL is not connected. ALARM LED will
be red.
2. ADSL / LINK
Blinking Router is connected to ADSL.
Solid ADSL is connected; no traffic.
3. ADSL / ACT No light ADSL is not connected.
Blinking Presence of ADSL traffic.
Solid Router is connected to LAN.
No light No connection to LAN. Check if LAN
cable is connected to router.
4-7. LAN 1-4
Blinking Presence of LAN traffic.
Solid Connection established using USB.
8. USB Device Flashing The router is sending or receiving data
using USB.
Solid Wireless is enabled.
No light Wireless is disabled.
9. Wi-Fi
Blinking Presence of wireless traffic.

TriplePlay
User Manual 5
Version 1.0
Document #: BD-TU0001-10
Solid Line2 is off-hook.
10. Phone2 No light Line2 is on-hook.
Solid Line1 is off-hook.
11. Phone1 No light Line1 is on-hook.
Solid Line is off-hook.
12. LINE No light Line is on-hook.

TriplePlay
User Manual 6
Version 1.0
Document #: BD-TU0001-10
Back Panel View
Port Description
1. On / Off Press to turn the router on and off.
2. DC 18V 1A Connects to the AC adapter.
3. LINE Connects to the wall outlet using an RJ-11
cable.
4. Phone1 Connects to a telephone using an RJ-11 cable.
5. Phone2 Connects to a second telephone using another
RJ-11 cable.
6. Console For professional use by service personnel only.
7. USB Device Optional: Use only if not using any of the LAN
lines.
8. Reset
Short reset (“system reboot”)—push & hold the
reset button for 4 seconds.
Long reset (“default settings”)—push the reset
button for more than 4 seconds and then
release.
9-12. LAN 1-4 Connect to PC(s) using RJ-45 cable(s).
13. ADSL
Connect to the splitter provided using an RJ-11
cable. Refer to the next page for complete
instructions for splitter connections.

TriplePlay
User Manual 7
Version 1.0
Document #: BD-TU0001-10
Installing the Router
Connect the ADSL Line and Telephone
•Connect an RJ-11 cable between the wall phone jack and
the line-end of the splitter (see diagram below).
•Attach another RJ-11 phone wire to the modem-end of the
splitter and the ADSL port on the rear panel of the router.
•The phone-end of the splitter will be connected to the
telephone using a third RJ-11 phone wire.
NOTE: See connections on the installation diagram.
Connect the PC to the Router
By Ethernet—
•To use the Ethernet connection, connect the Ethernet cable
from the computer directly to the router.
•Connect one end of the Ethernet cable to the port(s)
labeled LAN 1-4 on the back of the router and attach the
other end to the Ethernet port of your computer.
By USB—
•Or, you can use the supplied USB cable to connect your
computer directly to the router.
•Connect one end of the USB cable to the USB port (labeled
USB Device) on the back of the router and connect the
other end to a free USB port on your PC.

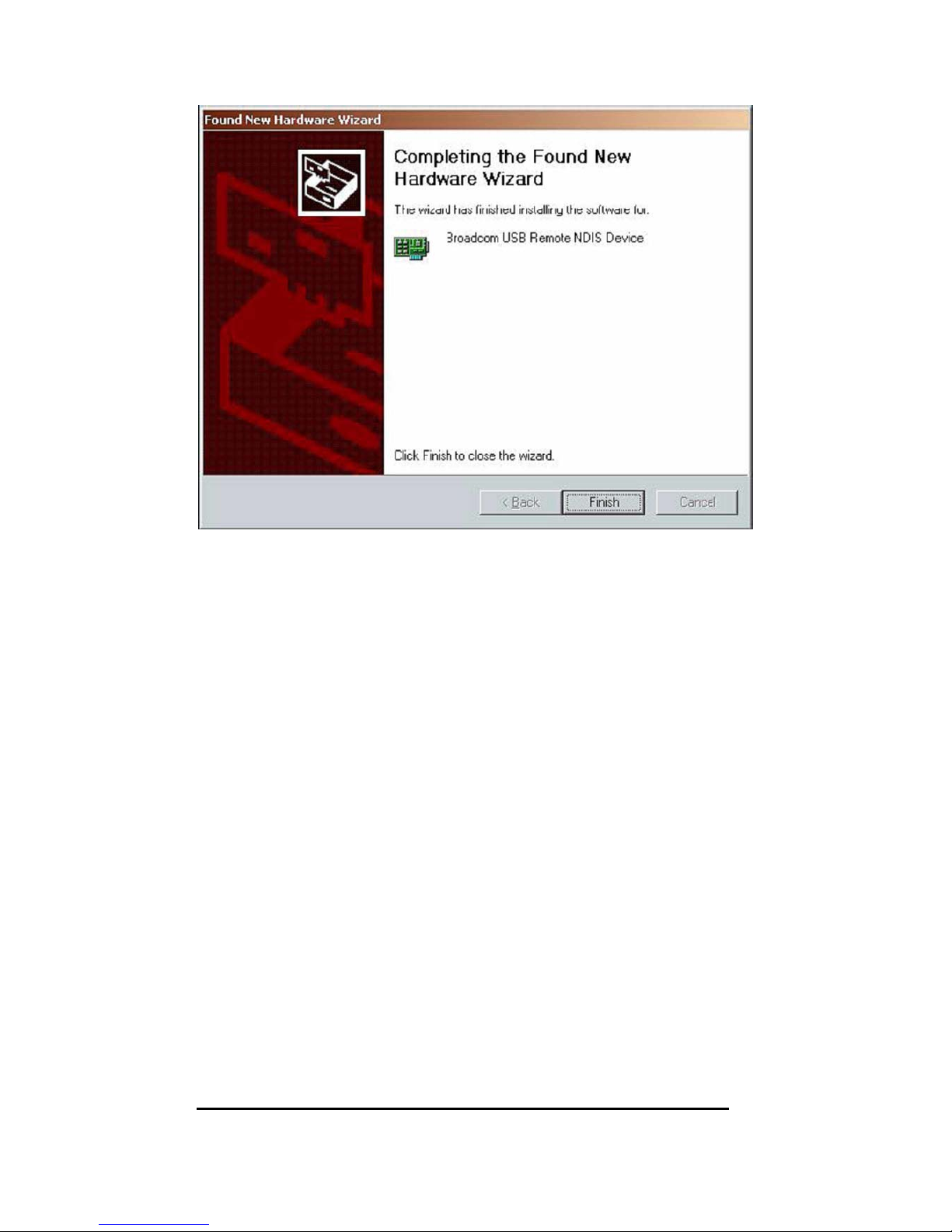

•The Found New Hardware Wizard will open on your PC.
See USB Driver Installation below.

TriplePlay
User Manual 8
Version 1.0
Document #: BD-TU0001-10
•If your LAN has more than one computer, you can attach
one end of an Ethernet cable to a hub or a switch and the
other to the Ethernet port (labeled LAN) on the router. Note
that either a crossover or straight-through Ethernet cable
can be used. The router automatically recognizes the type
of connection that is required.
Connect a Printer or Server to the Router
If you have a printer or server that you wish to connect to the
router, attach the printer or server to the port labeled USB Host
using the USB cable that comes with the device.
Connect the Telephone to the Router
There are two ports on the back of your router labeled Phone 1
and Phone 2 for you to connect up to two telephones to. Use
RJ-11 cables to connect the telephone(s) to the router.
Connect the Router to a Phone Jack
•Before connecting the power adapter, connect the router
directly to a phone jack using an RJ-11 cable.
•Connect one end of an RJ-11 cable to the port labeled Line
on the back of the router and the other end to a wall phone
jack.
Connect the Power Adapter
•Complete the process by connecting the AC power adapter
to the POWER connector on the back of the device and
plug the adapter into a wall outlet or power strip.
•Then turn on and boot up your PC and any LAN devices,
such as hubs or switches, and any computers connected to
them.

TriplePlay
User Manual 9
Version 1.0
Document #: BD-TU0001-10
Installation Diagram

TriplePlay
User Manual 10
Version 1.0
Document #: BD-TU0001-10
USB Driver Installation
The following instructions will guide you through the installation of
the USB driver.
1. When you attach the USB cable to the router for the first time
and turn on the device, Windows will detect new hardware
and the Found New Hardware Wizard will appear.
2. The Found New Hardware Wizard will appear shortly after,
identifying that a USB driver is needed. Click on Next to
continue with the installation.

TriplePlay
User Manual 11
Version 1.0
Document #: BD-TU0001-10
3. The Digital Signature Not Found window appears. Click
Yes to continue with the installation.
4. Then the Insert Disk window prompts you to insert the disk
(or CD) containing the USB driver. Click OK after inserting
the disk (or CD).

TriplePlay
User Manual 12
Version 1.0
Document #: BD-TU0001-10
5. After clicking OK at the previous window, you will be asked to
browse for the location of the disk (or CD) that the USB driver is
on. Then click OK to continue to the next step.
6. When you select the location of the disk (or CD), the required file
USB8023K.SYS will automatically be updated in the filename
window of this screen. Click on Open to continue with the
installation process.

TriplePlay
User Manual 13
Version 1.0
Document #: BD-TU0001-10
7. The last window lets you know that the driver installation is
complete. Click Finish to close the wizard.

TriplePlay
User Manual 14
Version 1.0
Document #: BD-TU0001-10
Configuring Your Computer
Prior to accessing the router through the LAN or the USB port,
note the following necessary configurations—
•Your PC’s TCP/IP address: 192.168.1.__( the last number
is any number between 3 and 254)
•The router’s default IP address: 192.168.1.1
•Subnet mask: 255.255.255.0
Below are the procedures for configuring your computer. Follow
the instructions for the operating system that you are using.
Windows 2000
1. In the Windows taskbar, click on the Start button and point
to Settings, Control Panel, and Network and Dial-up
Connections (in that order).
2. Click on Local Area Connection. When you have the Local
Area Connection Status window open, click on Properties.
3. Listed in the window are the installed network components.
If the list includes Internet Protocol (TCP/IP), then the
protocol has already been enabled, and you can skip to
Step 10.
4. If Internet Protocol (TCP/IP) does not appear as an
installed component, then click on Install.
5. In the Select Network Component Type window, click on
protocol and then the Add button.
6. Select Internet Protocol (TCP/IP) from the list and then click
on OK.
7. If prompted to restart your computer with the new settings,
click OK.

TriplePlay
User Manual 15
Version 1.0
Document #: BD-TU0001-10
8. After your computer restarts, click on the Network and Dial-
up Connections icon again, and right click on the Local
Area Connection icon and then select Properties.
9. In the Local Area Connection Properties dialog box, select
Internet Protocol (TCP/IP) and then click on Properties.
10. In the Internet Protocol (TCP/IP) Properties dialog box,
click in the radio button labeled Use the following IP
address and type 192.168.1.x (where x is any number
between 2 and 254) and 255.255.255.0 in the IP address
field and Subnet Mask field.
11. Click on OK twice to save your changes and then close
the Control Panel.
Windows XP
1. In the Windows taskbar, click on the Start button and point
to Settings and then click Network Connections.
2. In the Network Connections window, right click on the Local
Area Connection icon and click on properties.
3. Listed in the Local Area Connection window are the
installed network components. Make sure the box for
Internet Protocol (TCP/IP) is checked and then click on
Properties.
4. In the Internet Protocol (TCP/IP) Properties dialog box, click
in the radio button labeled Use the following IP address and
type 192.168.1.x (where x is any number between 2 and
254) and 255.255.255.0 in the IP address field and Subnet
Mask field.
5. Click on OK twice to save your changes and then close the
Control Panel.

TriplePlay
User Manual 16
Version 1.0
Document #: BD-TU0001-10
Log in to the Router
This section will explain how to log in to your router using the
following steps—
1. Launch your web browser.
2. Enter the URL http://192.168.1.1 in the address bar and
press Enter.
A login screen like the one below will be displayed after you
connect to the user interface.
3. Enter your user name and password, and then click on
OK to display the user interface.
NOTE: There are two default user name and password
combinations. The user / user name and password combination
can display device status, but cannot change or save
configurations. The admin / admin combination can perform all
functions. Passwords can be changed at any time. Please note
that this user manual is based on the admin / admin login which
includes all functions.
____________________________________________________

TriplePlay
User Manual 17
Version 1.0
Document #: BD-TU0001-10
This section describes the system information that can be
accessed using the menu items under Device Info.
Summary
Access the general information of the router by clicking on
“Summary” under “Device Info”. It shows details of the router
such as software version, wireless driver version, LAN IP address,
etc. It also displays the current status of your DSL connection as
shown below—
WAN
Access the WAN status report from the router by clicking on
“WAN” under “Device Info”. Since a WAN connection has not
been set up yet, there is no information to view. After completing
the configurations for a WAN connection, you can return to this
screen to view the information on your WAN status.
Device Info

TriplePlay
User Manual 18
Version 1.0
Document #: BD-TU0001-10
Below is how the screen will look once a WAN connection is set
up.
Statistics
LAN Statistics
Access the LAN statistics from the router by clicking on the “LAN”
item under “Statistics”
WAN Statistics
Access the WAN statistics from the router by clicking on the
“WAN” item under “Statistics”.

TriplePlay
User Manual 19
Version 1.0
Document #: BD-TU0001-10
ATM Statistics
Access ATM statistics from the router by clicking on the “ATM”
item under “Statistics”.
ADSL Statistics
You can view ADSL statistics by clicking on the “ADSL” item
under “Statistics”. Information contained in this screen is useful
for troubleshooting and diagnostics of connection problems.
