Thank you for purchasing an ASUS V9950 Series GPU Graphics Card.
With this purchase, you join a legion of mainstream graphics enthusiasts.
Powered by the NVIDIA™ GeForce FX™ 5900Ultra/5900 graphics
processing unit (GPU), the ASUS V9950 series delivers breakthrough
leading-edge graphics performance. Enjoy superior image fidelity
regardless of the CPU (central processing unit) employed by the computer
system.With the ASUS V9950 series, you will not only see but also
experience stunning, dynamic, realistic 3D worlds and characters.
Highlights
•Powered by the most programmable, precise and powerful
CineFX2.0 GPU: NVIDIA
®
GeForce FX 5900Ultra/5900
~ Delivers cinema-quality video to your PC.
•Built-in 256/128MB DDR frame buffer with 256-bit bus:
~ Provides the most resolution and color depth.
•Advanced CineFX 2.0 shader engine:
~ Delivers 2x floating-point pixel shading power of our previous
generation.
•UltraShadow:
~NVIDIA
®
‘s new patent pending shadow volume acceleration
technology, significantly enhances the performance for the latest
engines such as Doom 3 and Abducted.
•Intellisample HCT (Hi-resolution Compression Technology):
~ with new anisotropic algorithms, bring 50% efficiency improvement in
texture, color and Z compression than previous solutions, automatically
providing a boost to antialiasing.
•ASUS innovative GameFace Technology:

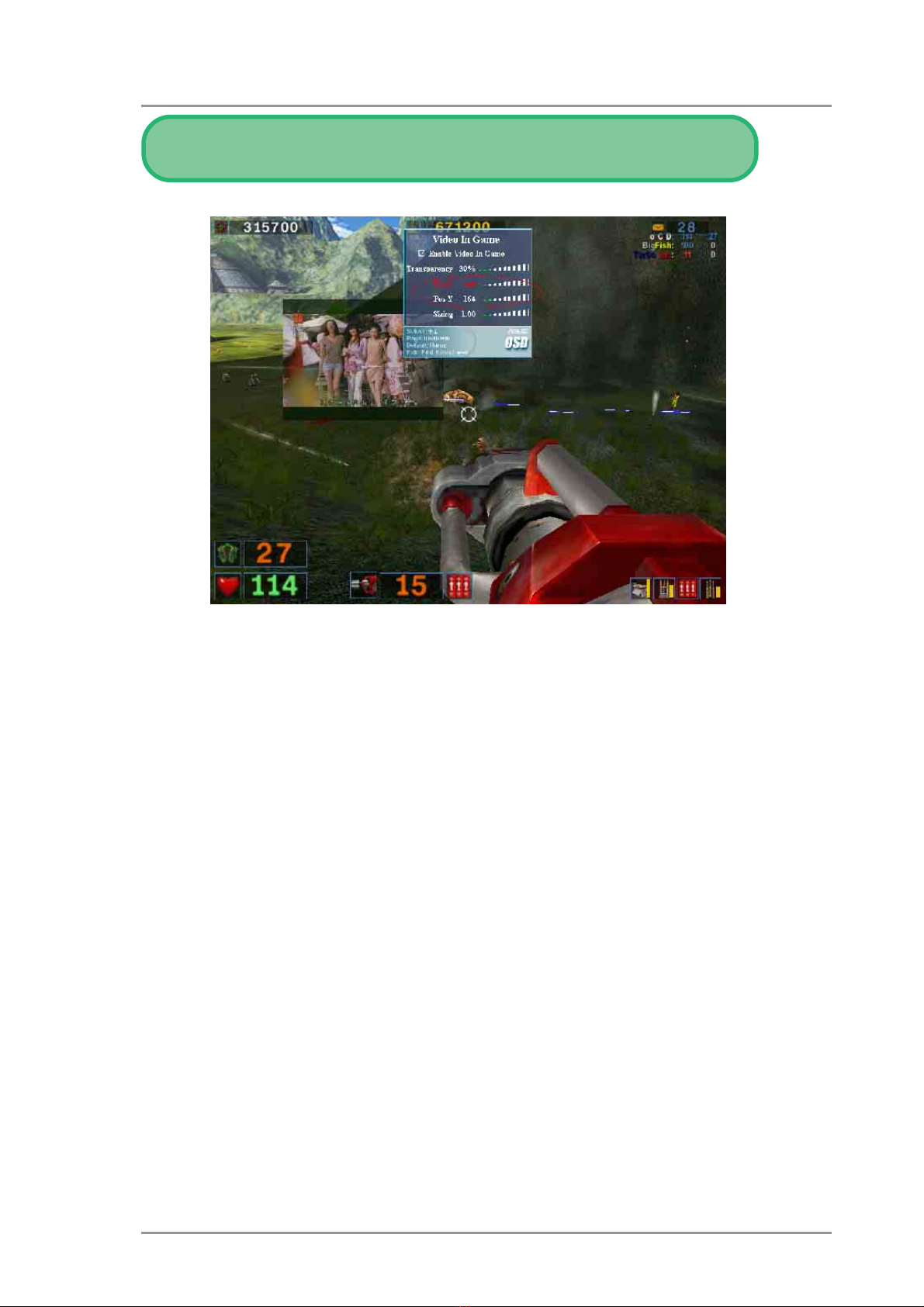

~real-time audio/video communication feature, elevates the interactive
gaming experience by enabling point-to-point video conferencing
functions and online gaming to take place simultaneously.
•AGP 8X support:
~By adding support for the newest AGP 8X (AGP 3.0) standard, the
V9950 series takes advantage of the new peak AGP bandwidth of 2.1
GB/s to offer even higher graphics.
•nVIEW™ display technology:
~ Supports TV encoder at 1024 x 768 resolution and two independent
display pipelines, providing the ultimate multiple display flexibility and
user control.
•Optimized for DirectX
®
9.0 and OpenGL
®
1.4 features:
~ Ensures broad application support.
•High-resolution LCD screen support
~ Supports up to 1600 x 1200 maximum LCD monitor resolution.
Actual screen resolution varies depending on LCD monitor resolution.

ASUS V9950 Series User’s Manual8
2. Hardware Setup
ASUS V9950 Ultra Layout
256MB DDR Frame Buffer
Item Checklist
ASUS V9950 Ultra 256M Graphics Card (PAL or NTSC)
This User’s Manual
ASUS V9950 Ultra Driver and Utility CD Disc
Notes
• Use the same TV standard for all devices.
• Drawings are for reference only; actual cards may vary.
DVI-I Dual-Link
output (28pins)
NVIDIA
TM
GeForce
FX 5900ultra
GPU Chip
(Graphics Processing Unit)
Chip with Fan
Frame
Buffer
(DDR)
DVI-enabled Flat-Panel Display
VGA Monitor
Output
(15pin)
(Standard)
VGA Output
Projector
TV output
(4pins)
Frame
Buffer
(DDR)
Frame
Buffer
(DDR)
Frame
Buffer
(DDR)
VGA Output
Projector
OR
S-Video Output
ATX POWER

9ASUS V9950 Series User’s Manual
2. H/W Setup
2. H/W Setup
Installation
2. Hardware Setup
ASUS V9950 Layout
128MB DDR Frame Buffer
Item Checklist
ASUS V9950 TD Graphics Card (PAL or NTSC)
This User’s Manual
ASUS V9950 Driver and Utility CD Disc
2. H/W Setup
V9950 /TD/64M
Notes
•Use the same TV standard for all devices.
• Drawings are for reference only; actual cards may vary.
DVI-I Dual-Link
output (28pins)
NVIDIA
TM
GeForce
FX 5900
GPU Chip
(Graphics Processing Unit)
Chip with Fan
DVI-enabled Flat-Panel Display
VGA Monitor
Output
(15pin)
(Standard)
VGA Output
Projector
TV output
(4pins)
VGA Output
Projector
OR
S-Video Output
ATX POWER
Frame
Buffer
(DDR)
Frame
Buffer
(DDR)
Frame
Buffer
(DDR)
Frame
Buffer
(DDR)

ASUS V9950 Series User’s Manual10
3. Resolution Table
Resolution Vertical Horizontal
Frequency Frequency
640 x 480 60Hz 31.5 √√√
70Hz 34.9 √√√
72Hz 37.9 √√√
75Hz 37.5 √√√
85Hz 43.3 √√√
100Hz 51.0 √√√
120Hz 61.8 √√√
140Hz 72.9 √√√
144Hz 75.2 √√√
150Hz 78.7 √√√
170Hz 90.3 √√√
200Hz 108.0 √√√
240Hz 132.9 √√√
800 x 600 60Hz 37.9 √√√
70Hz 43.8 √√√
72Hz 48.2 √√√
75Hz 46.9 √√√
85Hz 53.7 √√√
100Hz 63.7 √√√
120Hz 77.2 √√√
140Hz 91.1 √√√
144Hz 94.0 √√√
170Hz 112.7 √√√
200Hz 135.1 √√√
240Hz 166.2 √√√
1024 x 768 60Hz 48.4 √√√
70Hz 56.4 √√√
72Hz 57.5 √√√
75Hz 60.0 √√√
85Hz 68.7 √√√
100Hz 81.7 √√√
120Hz 98.8 √√√
140Hz 116.6 √√√
144Hz 120.2 √√√
150Hz 125.7 √√√
170Hz 144.1 √√√
200Hz 172.8 √√√
240Hz 212.1 √√
1152 x 864 60Hz 53.7 √√√
70Hz 62.9 √√√
72Hz 64.9 √√√
75Hz 67.5 √√√
85Hz 77.1 √√√
100Hz 91.3 √√√
120Hz 111.2 √√√
140Hz 131.3 √√√
144Hz 135.2 √√
150Hz 141.4 √√√
170Hz 162.9 √√√
200Hz 194.9 √√
1280 x 960 60Hz 60.0 √√√
70Hz 69.9 √√√
72Hz 72.1 √√√
75Hz 75.2 √√√
85Hz 86.0 √√√
100Hz 101.7 √√√
120Hz 123.5 √√√
140Hz 145.1 √√√
144Hz 150.5 √√
150Hz 157.2 √√√
170Hz 179.8 √√
Color Depth
8bpp = 16bpp = 32bpp =
256 colors 65K colors 16.7M colors
Standard High Color True Color

11ASUS V9950 Series User’s Manual
3. Resolution Table
Resolution Vertical Horizontal
Frequency Frequency
1280 x 1024 60Hz 64.0 √√√
70Hz 74.6 √√√
72Hz 76.8 √√√
75Hz 80.0 √√√
85Hz 91.3 √√√
100Hz 108.5 √√√
120Hz 131.7 √√√
140Hz 155.9 √√√
144Hz 159.6 √√
150Hz 167.3 √√√
170Hz 191.8 √√
1600 x 900 60Hz 55.9 √√√
70Hz 65.6 √√√
72Hz 67.5 √√√
75Hz 70.5 √√√
85Hz 80.4 √√√
100Hz 95.3 √√√
120Hz 115.4 √√√
140Hz 136.8 √√
144Hz 140.4 √√
150Hz 146.8 √√
1600 x 1200 60Hz 75.0 √√√
70Hz 87.5 √√√
72Hz 90.1 √√√
75Hz 94.0 √√√
85Hz 106.1 √√√
100Hz 127.5 √√√
120Hz 154.5 √√
1920 x 1080 60Hz 67.1 √√√
70Hz 78.7 √√√
72Hz 81.1 √√√
75Hz 84.6 √√√
85Hz 96.4 √√√
100Hz 113.9 √√
1920 x 1200 60Hz 74.6 √√√
70Hz 87.4 √√√
72Hz 90.0 √√√
75Hz 94.0 √√√
85Hz 106.7 √√√
100Hz 126.7 √√
1920 x 1440 60Hz 89.4 √√√
70Hz 104.9 √√√
72Hz 108.5 √√
75Hz 112.5 √√√
85Hz 129.4 √√
2048 x 1536 60Hz 95.5 √√√
70Hz 111.9 √√
72Hz 115.3 √√
75Hz 121.3 √√
Color Depth
8bpp = 16bpp = 32bpp =
256 colors 65K colors 16.7M colors
Standard High Color True Color

ASUS V9950 Series User’s Manual12
4. ASUS GameFace
4.1 Introduction
The revolutionary ASUS GameFace is a real-time audio/video
communication feature that enhances interactive gaming experience by
enabling point-to-point video conferencing functions and online gaming to
take place simultaneously thus allowing you to see and talk to your
opponents while playing full-screen online games!
Visit theASUS website (www.asus.com) for more information about the ASUS
GameFace technology.

13ASUS V9950 Series User’s Manual
4.2 Installing ASUS GameFace
Follow the given instructions to install ASUS GameFace.
1. Insert the CD installation disc
into your CD-ROM drive or
double click the CD drive icon in
My Computer to bring up the
autorun screen or run
Setup.exe in the root directory
of your CD-ROM drive.
Click Utilities.
2. The Utilities box appears.
Click Install ASUS
GameFace.
3. From the Welcome box, click
Next to start the installation.
To complete the installation,
simply follow the on-screen
instructions or prompts.
4. Click Finished after the
installation is complete.

ASUS V9950 Series User’s Manual14
4.3 Using ASUS GameFace
Follow the given instructions to use ASUS GameFace.
• Open Display Properties
dialog box from desktop or
control panel.
• Select Advanced tab on
Settings page.
• Select OSD from in Advanced
tab.
• Check the Enable OSD check
box and input the appropriate
hotkey.
• ASUS GameFace automatically
detects the connected audio/
video WDM capture device
upon start-up. You can change
the input device from Options
in the Tool menu if you have
more than one audio/video
device.

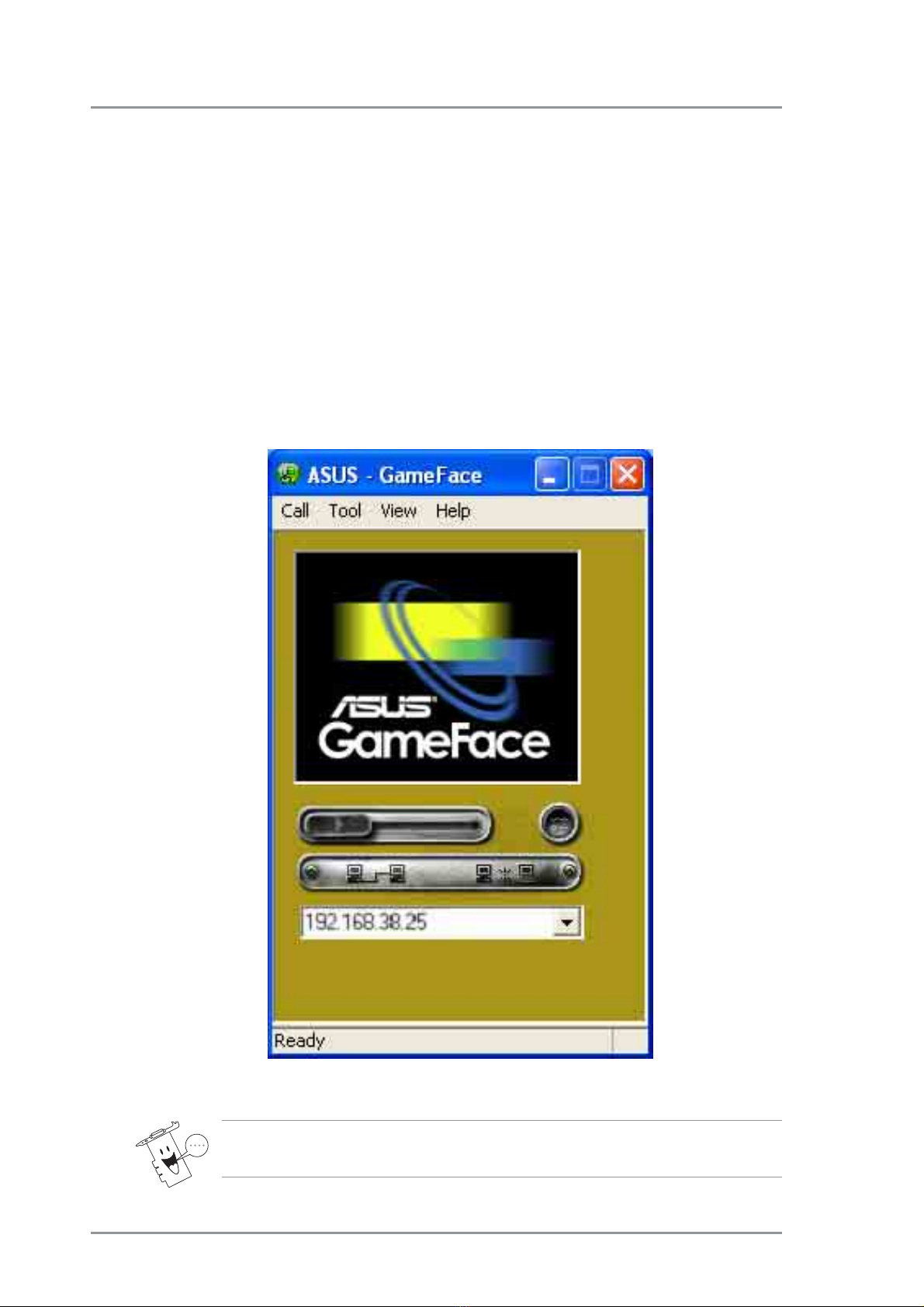

STEP 2: Launch ASUS GameFace
STEP 1: Enabling ASUS OSD
You can also enable the On-
Screen Display (OSD) in the
GameFace application.

15ASUS V9950 Series User’s Manual
STEP 3: Local Playback Mode
• Select Local Play/Stop from
the File menu to start local
playback when local video is not
playing.
• Select Local Play/Stop from
the File menu to stop local
playback when playing local
video.
• You can also press the
Play/Stop button to start or stop
local playback.
STEP 4: Network Playback Mode
• Connect to remote computer:
- Input the computer name
(Local Area Network) or IP
Address in the combo box.
- Select New Call from the
File menu or press the
“Make a Call” button.
- You will see and hear the
remote audio/video signal if
the remote computer
accepts the call.
For computer name and IP
addresses go to Tools->Info
for lists of information.

ASUS V9950 Series User’s Manual16
• Waiting for connection:
- Launch ASUS GameFace
- A message box appears on
an incoming call. Click Yes
to accept the call.
- Select End Call from the
File menu or press the
“End the Call” button to
disconnect.
STEP 5: GameFace Settings
• Select Option from the Tool menu.
• Select GameFace Option Dialogue
• Enter GameFace page to adjust transparency, position and hotkey
settings.

17ASUS V9950 Series User’s Manual
STEP 6: Launch Game and show GameFace
• Begin your game.
• After entering Full-Screen mode, press the hotkey
(default is Ctrl+Alt+V) to activate GameFace.
• Press the On-Screen Display hotkey to show the OSD menu.
• Use the arrow keys to select the GameFace application page and
adjust the Transparency, Position X, Position Y, Size or toggle to
enable or disable GameFace.

ASUS V9950 Series User’s Manual18
