Atag CX4574M/A03 User manual

Instructions for use
oven
CX4574M

EN Manual EN 3 - EN 49
Pictograms used
Important information
Tip

EN 3
CONTENTS
Your oven
Introduction 4
Control panel 5
Description 6
Guide rails/Telescopic guide rails 6
Accessories 6
Door 7
Cooling fan 7
Touch screen 8
Main displays 8
Function-setting display 11
Stand-by display 12
Initial use
Initial use 13
Operation
Using the ‘Plus’ menu 15
Opening the keyboard 17
Use
Oven function 18
Using the microwave 20
Microwave function 22
Using the ‘Extras’ functions 23
Functions table 27
Delayed start 32
Stage cooking 33
Additional functions 36
Settings 40
Cleaning
Cleaning the appliance 42
Steam clean 42
Removing and cleaning the guide rails 43
Replacing the oven light bulb 44
Solving problems
General 45
Your oven and the environment
Disposal of the appliance and packaging 47
Cooking test
Food tested in compliance with the EN 60350-1 standard 48
Food tested in compliance with the EN 60705-2 standard 49

EN 4
Introduction
Congratulations on choosing this Atag combi microwave oven.
This product is designed to offer simple operation and optimum
user-friendliness. The oven has a wide range of settings enabling you
to select the correct cooking method every time.
This manual shows how you can best use this oven. In addition to
information about operating the oven, you will also find background
information that may be useful when using the appliance.
Please read the separate safety instructions
carefully before using the appliance!
Read this manual before using the appliance and keep it in a safe
place for future use.
Installation instructions are supplied separately.
YOUR OVEN

EN 5
YOUR OVEN

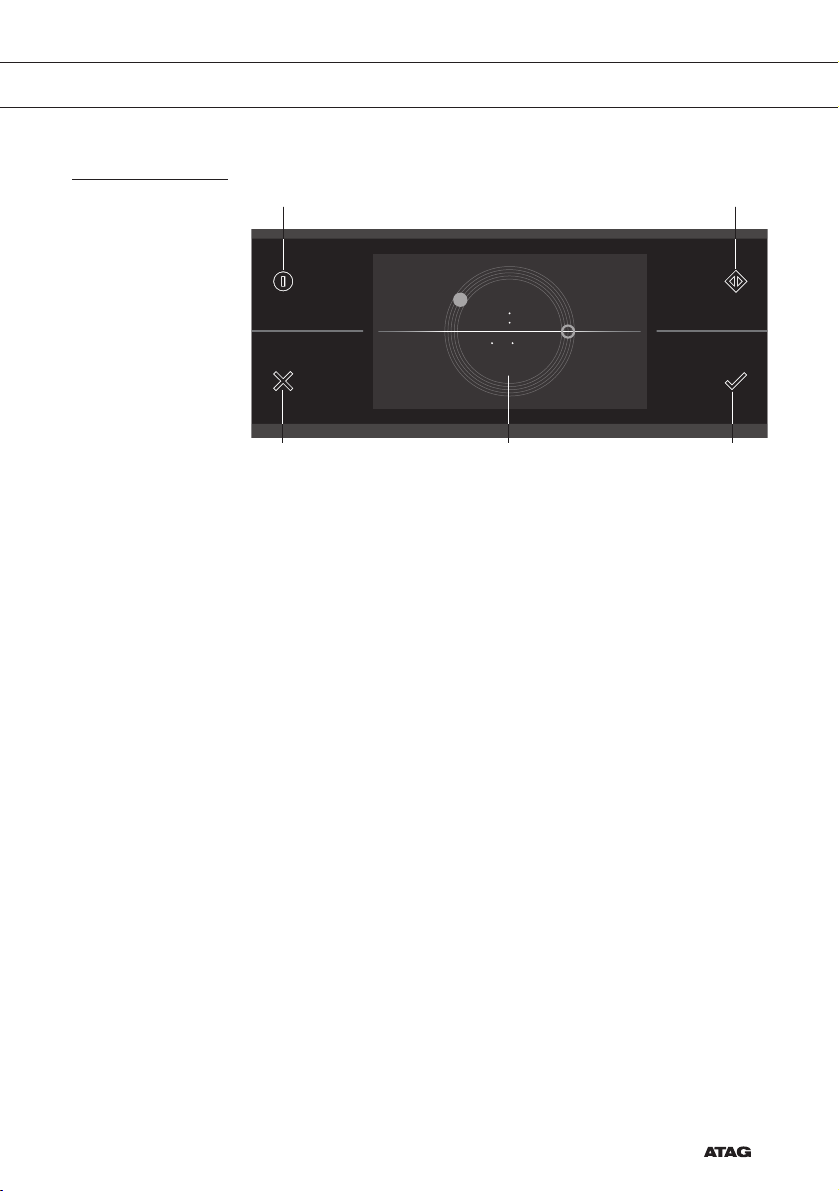

Control panel
01.On/Off key; use to:
▷switch on the appliance.
▷switch to stand-by
▷switch off the appliance. Keep the ‘On / Off’ key pressed until
the appliance switches off.
02.X key; use to:
▷go a step back in the menu.
▷close or answer ‘No’ to a pop-up.
▷close or cancel a menu or function.
03.Quick start; use to:
▷switch on the microwave function directly (from the start or
‘Extras’ menu or the various function menus). Touching the
display more often adds extra time. Microwave power and the
added cooking times can be adjusted in the settings menu.
04.Confirm key; use to:
▷confirm settings
▷start a function.
▷close or answer ‘Yes’ to a pop-up.
05.Touch screen/display
10 15
10 10 2015
040502
01 03

EN 6
YOUR OVEN

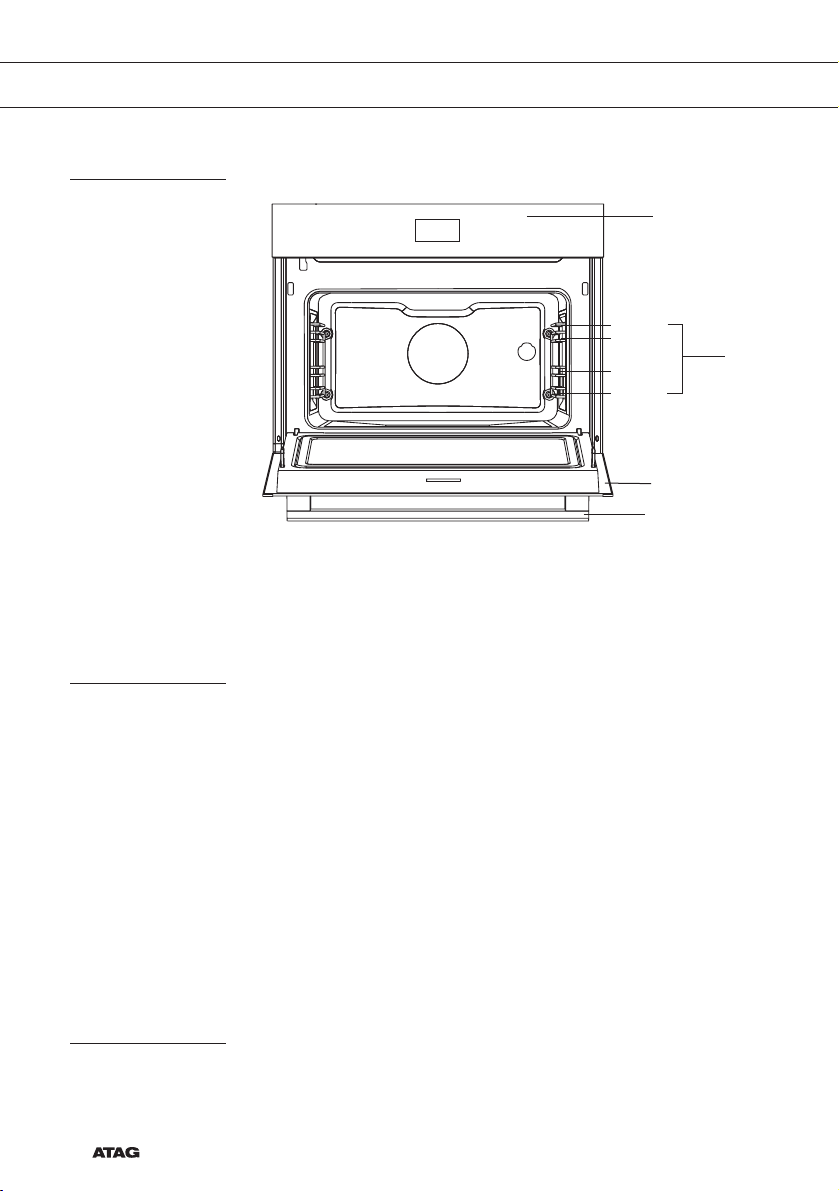

Description
1. Control panel
2. Shelf levels
3. Oven door
4. Door handle
Guide rails/Telescopic guide rails
• The oven has four or five guide rails (Level 1 to 4/5), depending on
the model. Level 1 is mainly used in combination with bottom heat.
The two upper levels are mainly used for the grill function.
• Place the oven rack, baking tray or steam dish in the gap between
the guide rail sliders.
• A number of shelf levels can have fully-retractable telescopic guide
rails, depending on the model.
▷Pull the telescopic guide rails out of the oven cavity completely
and place the oven rack / baking tray / steam dish on them.
Then slide the oven rack / baking tray / steam dish on the
telescopic guide rails, back into the oven cavity.
▷Only close the oven door when the telescopic guide rails have
been returned completely back into the oven cavity.
Accessories
Your appliance is accompanied by a range of accessories, depending
on the model. Only use original accessories; they are specially suited
to your appliance.
1
3
Level 1
Level 2
Level 3
Level 4
2
4

EN 7
Note: not all accessories are suitable/available for every appliance
(it may also differ by country). When purchasing, always provide the
exact identification number of your appliance. Please see the sales
brochures or check online for more details about optional accessories.
Accessories that can be supplied with your appliance (depending on the model)
Enamelled baking tray; to be used for pastries and cakes.
• Do not use the enamelled baking tray for microwave functions!
• Suitable for pyrolysis cleaning.
Oven rack; mainly used for grilling. A steam dish or pan with food
can also be placed on the oven rack.
• The oven rack is equipped with a safety peg. Lift the rack slightly
at the front to slide it out of the oven.
• Do not use the oven rack for microwave functions!
Deep enamelled baking tray; to be used for roasting meat and
baking moist pastry. It can also be used as a drip tray. Place
the deep baking tray into the first level for use as a drip tray
during grilling.
• Do not use the deep enamelled baking tray for microwave
functions!
• Suitable for pyrolysis cleaning.
Glass baking tray; for microwave and oven use.
• NOT suitable for pyrolysis cleaning.
Door
• The door switches interrupt the operation of the oven when the oven
door is opened during use. The oven resumes operation when the
door is closed.
• This oven has a ‘Soft close door system’. When closing the oven
door, this system dampens the movement, from a certain angle, and
silently closes the oven door.
Cooling fan
• The appliance is equipped with a cooling fan that cools the casing
and control panel.
YOUR OVEN

EN 8
YOUR OVEN
Touch screen
• Operate your oven’s touch screen by tapping or swiping it.
• Tap the display to open a function or adjust a setting.
• Swipe the display for further information/show options or adjust a
setting.
Tapping: Swiping:
EXTRASOVEN МICROWAVE
10
:
15
:
:
Hot air
PROGRAMS
180 30
31
°C
10:15
For the best response, touch the keys with the main part of your
fingertip. Every time you tap a key during use, a short tone will sound
(unless this is adjusted in the settings).
Main displays
Start display
EXTRASOVEN МICROWAVE
10:15
01
03
02
04
05
07
06

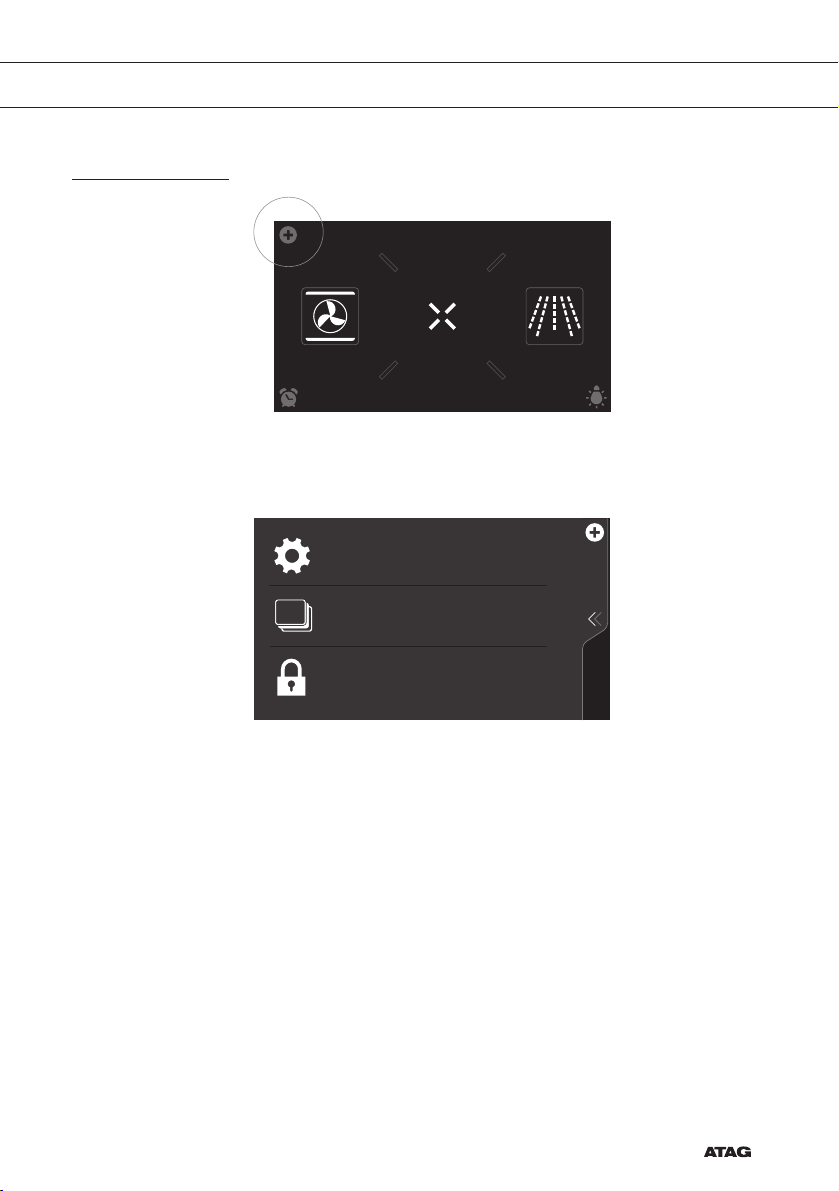

Plus menu (01)
• Tap the plus symbol to open the ‘Plus’ menu. The contents of this
menu change according to the control options available at that time.

EN 9
YOUR OVEN
Oven (02)
• Tap ‘OVEN’ to open the oven function menu.
Egg timer (03)
• Tap the egg timer symbol to open the egg timer menu. The egg
timer can be used independently from the oven function.
▷The longest possible alarm time is 24 hours.
▷When the egg timer has finished, a pop-up will appear and a
sound signal sounds.
▷Tap on the X key, confirm key or the display to switch off
the signal and close the pop-up. The sound signal will stop
automatically after approximately 1 minute.
Extras (04)
• Tap on ‘EXTRAS’ to show the appliance’s extra functions.
Time (05)
• The time is shown here.
Microwave (06)
• Tap on ‘MICROWAVE’ to open the microwave function.
Lighting (07)
• Tap on the ‘lamp’ symbol to switch the oven light on or off.
• The oven light will also light up when you open the oven door or
start cooking. The oven light will dim automatically (unless this is
adjusted in the settings).

EN 10
YOUR OVEN

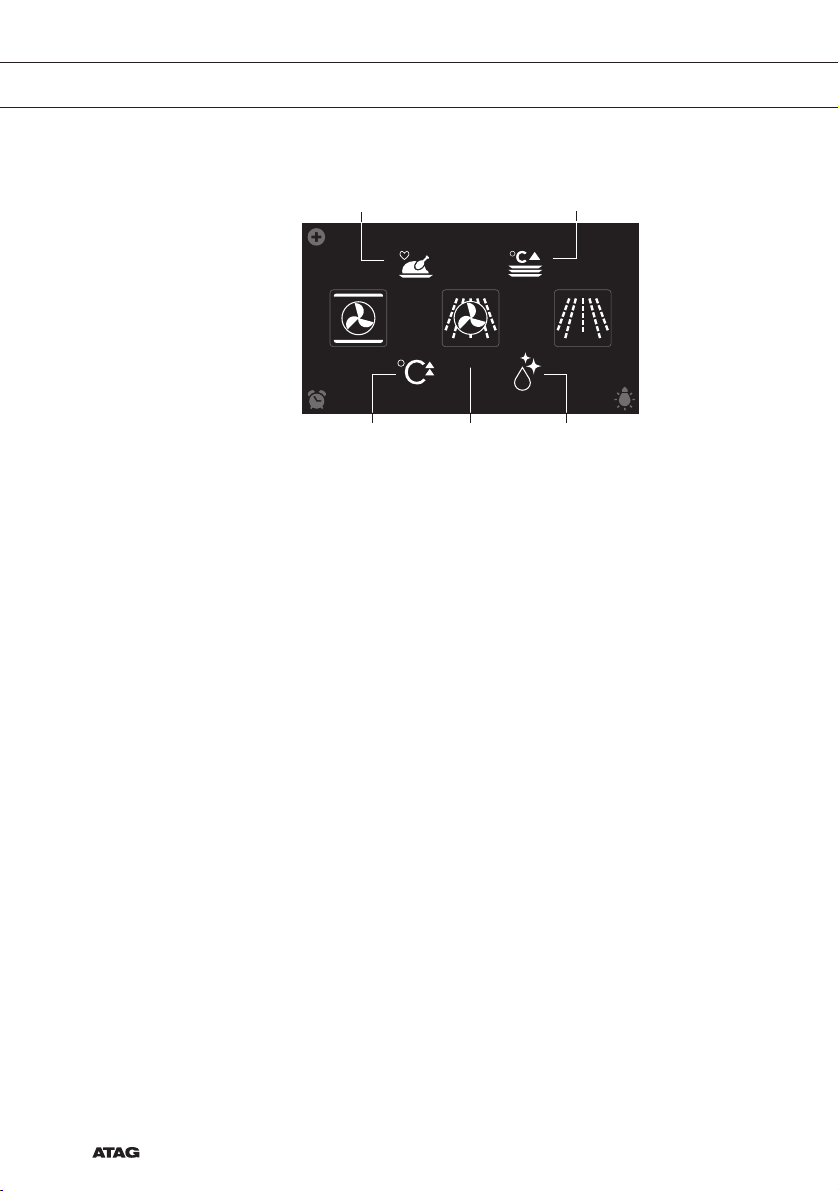

Extras display
COMBI
PROGRAMS WARMING
CLEANINGFAST PREHEAT
10:15
0201 03
04
05
Fast preheat (01)
• Tap on ‘FAST PREHEAT’ to open the fast preheat function.
Combi (02)
• Tap on ‘COMBI’ to open the combi function menu.
Cleaning (03)
• Tap on ‘CLEANING’ to open the cleaning function.
Warming (04)
• Tap on ‘WARMING’ to open the warming function menu.
Plate warming, defrost and keep warm can be found here.
Programs (05)
• Tap on ‘PROGRAMS’ to open the programs menu. The favourites
and automatic programs and can be found here.

EN 11
Function-setting display
Hot air
PROGRAMS
10
:
15
180°C
01
02
05
04
03
Selecting a function (01)
• Tap on the arrows above and below the function or sweep over the
symbol to select a function (see also ‘Opening the Keyboard’).
Setting temperature/power (02)
• Tap on the arrows above and below the temperature/power or sweep
over the temperature/power indicator to select a temperature or
power (see also ‘Opening the Keyboard’).
Cooking time (03)
• Tap the cooking time symbol if you want to set a cooking time. If a
cooking time is already stated, it is necessary to set this.
• Tap on the arrows above and below the time or swipe over the time
to adjust it (see also ‘Opening the Keyboard’).
Programs (04)
• Tap on ‘PROGRAMS’ to open the program menu. The favourites
and automatic programs can be found here.
Info tab (05)
• The name of the selected function appears in the bottom tab of
the display. Tap on the tab to request more information about the
selected function.
YOUR OVEN

EN 12
Stand-by display
10 15
10 10 2015
9:27 125°C
01
05 06
02 03
04
Display time (digital/01)
• Actual time of day.
Display time (analog/02 and 03)
• Actual time of day.
• The hour hand of the analog clock is indicated with a ‘closed’ circle
(02) and the minute hand with an ‘open’ circle (03).
Display of date (04)
• Actual date.
Display egg timer (05)
• The expiring egg timer.
Display descending temperature (06)
• Actual temperature in the oven (waste heat).
YOUR OVEN

EN 13
Initial use
• Clean the oven interior and accessories with hot water and
washing-up liquid. Do not use aggressive cleaning agents, abrasive
sponges and similar.
• The oven will emit a particular odor when it is used for the first
time; this is normal. Make sure that there is good ventilation during
initial use.
When the appliance is plugged in for the first time or after the appliance
was disconnected from the mains for a longer period of time, you have
to set ‘Language’, ‘Time’ and ‘Date’
Setting the language
English
Nederlands
Deutsch
Francais
LANGUAGE
Set the desired language in which the appliance’s display texts will
appear. ‘English’ is selected as standard.
1. Swipe over the display to view all languages.
2. Tap on a language to select this.
3. Press on the confirm key to save the set language.
10 15
10 10 2015
INITIAL USE

EN 14

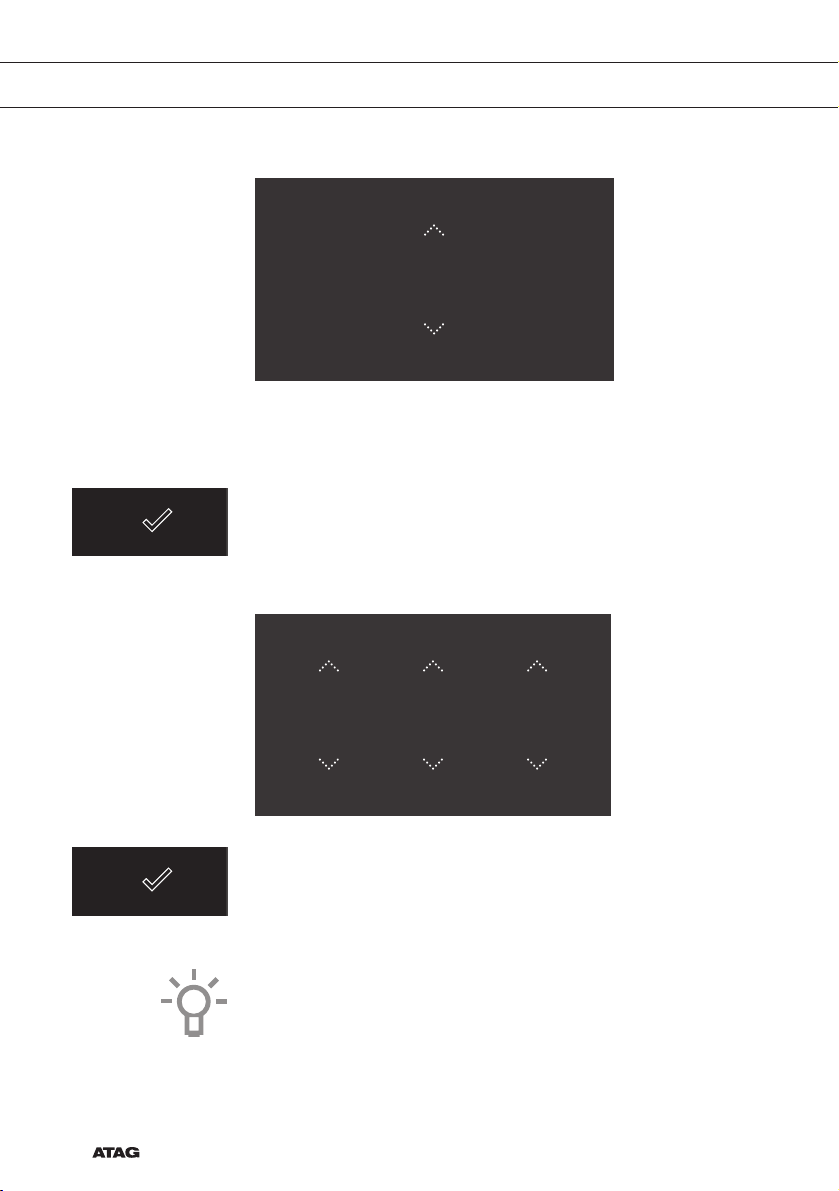

Setting the time
TIME
12:00
1. Tap on the arrows above and below the time or swipe over the time
to adjust it.
2. For fast entry, tap in the centre of the time display; a pop-up
keyboard will appear on which the desired time can be typed
(see ‘Opening the Keyboard’ chapter).
3. Press on the confirm key to save the set time.
Setting the date
DATE
DAY MONTH YEAR
01 01 2015
1. Tap on the arrows above and below the day, month or year or swipe
over the day, month or year to adjust these.
2. Press on the confirm key to save the set date.
The appliance is now ready for use.
The language, time and date can be adjusted in the settings menu
(see ‘Settings’ chapter). The settings menu can be opened from the
start display via the ‘Plus’ menu.
10 15
10 10 2015
10 15
10 10 2015
INITIAL USE

EN 15
OPERATION
Using the ‘Plus’ menu
EXTRASOVEN МICROWAVE
10:15
The ‘Plus’ menu comprises a number of functions or settings.
The offered plus functions depend on the display that is active.
KEY LOCK
To clean the dashboard or to apply as child
lock
SETTINGS
Combine up to three functions in one
cooking process
Go to the appliance settings
STAGE COOKING

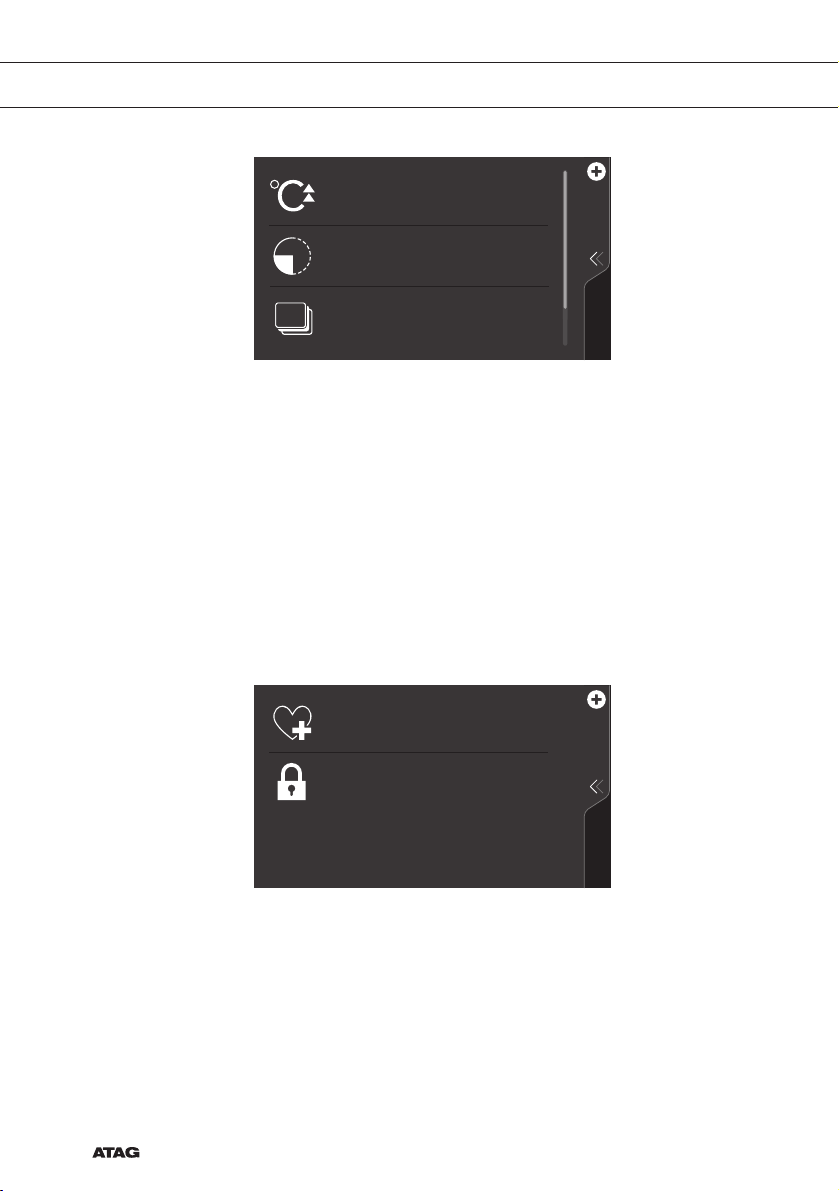

• From the start display, the following functions/menus can be found
in the ‘Plus’ menu:
▷Settings; Set your preferences (see ‘Settings’ chapter).
▷Stage cooking; Combine up to three functions in one cooking
process (see ‘Stage cooking’ chapter).
▷Key Lock; Lock all the keys to clean the control panel or to
prevent that the appliance gets into progress accidentally.
Hold the function pressed until the key lock is enabled.

EN 16
OPERATION
Preheat the oven space quickly
Don't insert the dish yet
FAST PREHEAT
DELAYED START
The cooking process starts automatically at
the preferred time
STAGE COOKING
Combine up to three functions in one
cooking process
• From the oven, microwave or combi function-setting display, the
following functions can be found in the ‘Plus’ menu:
▷Fast preheat; Preheat the oven space quickly to the desired
temperature within a cooking process (see ‘Fast preheat’ chapter)
Only from oven function-settings display.
▷Delayed start; The cooking process will start automatically at
the time you set (not available for microwave function).
▷Stage cooking; Combine up to three functions in one cooking
process (see ‘Stage cooking’ chapter).
▷Key Lock; Lock all the keys to clean the control panel or to
prevent that the appliance gets into progress accidentally. Hold
the function pressed until the key lock is enabled.
KEY LOCK
ADD TO FAVOURITES
Save the current cooking settings to your
favourites
To clean the dashboard or to apply as child
lock
• When an oven, microwave or combi function is started, the following
functions can be found in the ‘Plus’ menu:
▷Add to favourites; Add the settings for the cooked dish to your
favourites (see ‘Additional functions’ chapter).
▷Key Lock; Lock all the keys to clean the control panel or to
prevent that the appliance gets into progress accidentally. Hold
the function pressed until the key lock is enabled.

EN 17
Opening the keyboard
A keyboard can be opened for fast entry of a function, temperature,
power or cooking time. A quick setting can be selected with this or a
value can be entered.
Hot air
PROGRAMS 10:15
180°C 30H:M
:
1. Tap in the centre of the function symbol, temperature, power or
cooking time (activated). The keyboard appears.
Set function
2
4 5
7 8
13
9
6
000
Set temperature
°C
2
4 5
7 8
Set cooking time 13
9
6
00:00H:M
Set power level
W
WW
W
W
W
2. Enter the desired value or tap the desired value.
3. If the set value is not confirmed automatically, press on the confirm
key to confirm the entry.
10 15
10 10 2015
OPERATION

EN 18
USE
Oven function
Use the oven functions to cook dishes using, for instance, hot air, bottom
heat and grill.
Hot air
PROGRAMS
10
:
15
180°C
• Various oven functions can be selected.
• A temperature and a cooking time can be set for each oven function.
• Plus functions such as preheat, stage cooking and delayed start can
also be selected. Tap on the plus symbol for this. See the ‘Using the
‘Plus’ menu’ chapter.
Using an oven function
Select the oven function appropriate for the meal you are cooking.
Consult the Functions table for this. You can also consult the info tab.
Tap on the tab at the bottom of the display to request more information
about the selected function.
1. Switch on the oven using the ‘On/Off’ key.
2. Place the dish in the oven.
3. Tap ‘OVEN’ to open the oven function menu.
4. Select an oven function (see ‘Function-setting display’ chapter).
5. Select a temperature (see ‘Function-setting display’ chapter).
6. Tap the ‘cooking time’ symbol and set a cooking time (see
‘Function-setting display’ chapter).
Cooking can also be started without a cooking time being set.
You should then skip steps 6.
7. Select any additional settings using the ‘Plus’ menu (for example
fast preheat).
8. Start cooking the dish using the confirm key.
10 15
10 10 2015

EN 19
USE
165 23:54
10:45
°C
180°C
10 21
• The following values can now be read in the display:
▷current temperature (165 °C)
▷set temperature (180 °C)
▷status indicator time (outer circle)
▷status indicator temperature (inner circle)
▷cooking time (23:54)
▷end time (10:45)
• Tap in the middle of the display during cooking to open a pop-up
display with settings. Adjust these if desired.
• At the end of a dish’s cooking time a sound signal will sound. The
signal can be switched off by opening the oven door or pressing a
key.
• The selected settings can be saved in ‘Favourites’.
Open ‘ADD TO FAVOURITES’ from the ‘Plus’ menu (See ‘Saving a
cooking method’ in the ‘Additional functions’ chapter).
165 0:00
°C
10 50
Display view at the end of cooking.

EN 20
USE
Using the microwave
Microwaves are high-frequency electromagnetic waves. The energy
makes it possible to cook or warm up dishes without affecting the form
or colour.
• The microwave is used for:
▷Microwave function
▷Combi functions
Cooking principle
1. The microwaves generated by the microwave are spread evenly by
a distribution system. This cooks the dish evenly.
2. The food absorbs the microwaves to a depth of approximately 2.5 cm.
Cooking then continues, because the heat is spread in the dish.
3. The cooking times vary and depend on the dish you use and the
properties of the food:
▷Quantity and density
▷Moisture content
▷Starting temperature (whether or not it is cooled)
Important
The dish is cooked from the inside out by means of heat distribution.
The cooking continues even when you take the dish from the oven.
Standing times in recipes and in this book should therefore be
adhered to, in order to ensure:
• Even heating into the middle of the dish;
• Equal temperatures in all parts of the dish.
Guidelines for microwave cookware
Cookware that you use for the microwave function should not block
the microwaves. Metals such as stainless steel, aluminium and copper
reflect microwaves. For that reason, do not use metal cookware.
Cookware which is designated as microwave-safe can be used safely.
For more information about suitable cookware, consult the following
guidelines and always use the glass baking tray on level 1 if you use
the microwave function.
