AT&T U-verse VIP2200 User manual

AT&T U-verse Receiver
Installation Manual
Supports Models VIP2200 and VIP2250

Page intentionally Blank

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTSINSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTSINSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Graphical symbols and supplemental warning markings are located on the back and bottom
of the terminal.
WARNING
TO REDUCE THE RISK OF FIRE OR SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
The lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated dangerous
voltage within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Product identification and supply rating are provided on the label found
on the bottom of the unit.
IMPORTANT SAFETY INSTRUCTIONS
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install according to the manufacturer’s
instructions.
• Do not install near any heat sources, such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades, and a third grounding prong. The wide blade or the third prong is provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of
time.
• Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as the power supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
VIP2200 Series High-Definition U-verse Receiver Installation Manual iii

VENTILATE
At least
2 inches
2 inches 2 inches
Follow these important safety guidelines when positioning and connecting your TV
receiver:
• Do not block the slots and openings
• Do not place anything on top of the TV receiver
• Do not position the TV receiver in a confined space, such as an enclosed cabinet, that
does not provide adequate ventilation.
• Do not position the TV receiver near any external heat source that could raise the
temperature around the unit. Do not place the terminal on top of another heat
producing electronic device.
• Allow for adequate ventilation around the TV receiver to maintain normal operating
temperature. Do not place it in a sealed enclosure without providing for adequate
airflow.
• Do not plug the AC power cord into a switched power outlet.
• A coaxial cable screen shield needs to be connected to the earth at the building
entrance per ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section
820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.
IMPORTANT
Care and Handling of IPTV Receiver Units Equipped with a Hard Drive
A receiver containing an internal hard drive requires careful handling to avoid damaging the
drive. Be sure to follow these guidelines.
• If the receiver contains a hard drive (such as the VIP2250), it must be positioned so
that it remains horizontal and rests on its rubber feet. Do not attempt to mount or
position it in a vertical position.
• To allow the disk drive to spin down properly, wait at least 10 seconds after
disconnecting power before moving the receiver.
• Always transport the receiver in its original factory carton, or in an equally well-padded
container.
• Whether installed or being transported, do not expose the receiver to temperature
extremes. Do not exceed the range 41° F (5° C) to 122° F (50° C).
iv VIP2200 Series High-Definition U-verse Receiver Installation Manual
This manual includes the manufacturer’s recommended safeguards and all the information
needed to connect your receiver to both your in-home IP network and your entertainment
system. The safety and installation information was developed and provided primarily by
the receiver manufacturer, Motorola Mobility, Inc.

Contents
VIP2200 Series High-Definition U-verse Receiver Installation Manual v
Introduction ..............................................1
Overview ................................................2
Front Panel ...............................................2
VIP2200 and VIP2250 Rear Panel ..............................3
Connecting Your TV Receiver .................................4
Connection Options ........................................4
Connecting Your TV Receiver .................................5
Common Cabling Examples ..................................5
Connecting to an HDTV – Video Only ...........................6
Connecting to an HDTV – Audio Only...........................7
Connecting to a Home Theater Receiver ........................8
Connecting to a Stereo TV ...................................9
Connecting to a Stereo TV and Stereo VCR .....................10
Connecting to a Home Theater Receiver, TV, and VCR .............11
Troubleshooting ..........................................12

vi VIP2200 Series High-Definition U-verse Receiver Installation Manual

Introduction
Congratulations on receiving an ENERGY STAR®qualified Motorola®VIP2200 Series High
Definition U-verse TV Receiver.
The VIP2200 Series provides these extraordinary home entertainment features:
• High Definition TV (HDTV), which provides up to twice the color resolution and up to
six times the sharpness of standard TV when connected to an HD-capable TV
• On the VIP2250, a digital video recorder (DVR), which can record Standard Definition
and High Definition programs
• A direct digital connection to consumer audio and video devices through multiple
interfaces
• Video on Demand (VoD)
• Commercial free, CD quality music
This installation manual introduces the basic features, outlines important safeguards, and
provides options for integrating your TV receiver into your entertainment system. Take a
few moments to read through this manual. Its configuration diagrams and troubleshooting
section will help you make the most of your home entertainment experience.
Included in the carton:
• VIP2200 High-Definition (HD) and Standard-Definition (SD) receiver
OR
• VIP2250 High-Definition and Standard-Definition receiver with Digital Video Recorder
(DVR)
• Remote Control with batteries
• Power adapter and power cord
For more information about your U-verse TV service, refer to the other documentation from
your service provider.
In this manual, “VIP2200” refers to all VIP2200 Series TV receivers.
Dimensions:
VIP2200 and VIP2250 -- 10.0” W. x 8.0” D., x 2.2” H.
Unit Weight:
VIP2200 –– 2.91 lbs.
VIP2250 –– 4.37 lbs.
Top Assembly Weight (incl. carton and all inserts):
VIP2200 –– 4.98 lbs.
VIP2250 –– 6.39 lbs.
VIP2200 Series High-Definition U-verse Receiver Installation Manual 1

Overview
Front Panel
All VIP2200 Series models have identical front panel controls and lights. The illustration
below and the table following it describe the front-panel features.
Key Item Function
1 POWER Turns the U-verse TV receiver on or off
If held for ten (10) seconds or longer, restarts the TV receiver
Lights green when the TV receiver is on
2 USB USB 2.0 connector
3 LINK Lights green when receiving a video stream
4 HD Lights blue when receiving video resolution of 720p or 1080i
5 RECORD Lights red when a recording is in progress
6 MENU Displays the menu
7 Up/Down
arrow keys
Left/Right
arrow keys
OK
center key
Changes the channel (channel up/channel down)
Use to navigate through on-screen program guide and menu
Use to select programs or menu options
12 3
45
67
2 VIP2200 Series High-Definition U-verse Receiver Installation Manual

VIP2200 and VIP2250 Rear Panel
The VIP2200 and VIP2250 have nearly identical rear panel connectors arranged in the same
order.
AT&T VIP2232 Rear Panel (573205-007-00)
12
34
56
78910 11 12
Key Item Function
1TO WALL
(VIDEO IN)
Coaxial input for digital signal from your service provider
2 NETWORK Ethernet 10/100Base-T RJ-45 port for IP video output
3eSATA VIP2250 only (Reserved for future use)
4 OPTICAL Toslink (S/PDIF) audio output to a digital home theater
receiver
5 S-VIDEO High-quality video output to a VCR or TV that accepts
S-Video. It carries video only; you must also connect to the
TV or home theater receiver for audio
6 Y Pb Pr RCA component video outputs to an HDTV
7 VIDEO OUT RCA video outputs to a TV, VCR, or other device
8 AUDIO OUT
R and L
Left and right RCA stereo audio outputs
9TO TV
(VIDEO OUT)
Coaxial output to connect the TV receiver to the TV or VCR
10 HDMI™ Connects to a High Definition TV or home theater receiver
with an HDMI input (for a DVI input, use an HDMI-to-DVI
adapter)
11 USB USB 2.0 connector
12 POWER
+12 VDC
Connector for the DC power adapter
Set-tops with a DVR use a different power adapter than
those without a DVR. DVR models use a 36-Watt power
supply; non-DVR units use a 20-Watt power supply.
Overview
VIP2200 Series High-Definition U-verse Receiver Installation Manual 3

Connecting Your TV Receiver
This section describes connecting the VIP2200 Series to your home entertainment system.
Instructions and diagrams are included for connections to:
• High-Definition TV (HDTV)
• Home Theater Receiver–Audio
• Stereo TV
• Stereo TV and Stereo VCR
• Home Theater Receiver, TV, and VCR
Before you move or change components on your entertainment system, disconnect power
from the TV receiver.
Connection Options
The VIP2200 Series offers the following video outputs:
HDTV HDMI or Component video
Standard S-Video, Composite video, or RF coaxial
To determine the available inputs on your TV, check the manual supplied with the TV or
on the TV itself. Use the following guidelines to determine the best connections for your
system. Use one of the following.
Connector Description
High-Definition
HDMI
HDMI
HDMI offers higher video quality than component video. If your
HDTV has an HDMI input, use the HDMI connector.
HDMI provides both digital video and digital audio (including
Dolby®Digital 5.1 Surround Sound). No other connections are
necessary.
If your HDTV has a DVI input, you can use an HDMI-to-DVI
converter cable to connect to the VIP2200 HDMI connector.
Use a cable with an HDMI connector on one end and a DVI
connector on the other end. We do not recommend using an
HDMI-to-DVI or DVI-to-HDMI adapter. Because DVI does not
carry audio, a separate audio connection is required for a DVI
TV. If your TV has an optical S/PDIF audio connection, use the
OPTICAL connection. Otherwise, use the baseband AUDIO L
and R connections.
Component
Video
The Y Pb Pr connectors provide component video, the most
widely supported HDTV connection.
Component video provides a High-Definition analog video signal.
If your equipment supports an optical S/PDIF audio connection,
use the OPTICAL connection. Otherwise, use the baseband
AUDIO L and R connections.
4 VIP2200 Series High-Definition U-verse Receiver Installation Manual

Connector Description
Standard-Definition
S-Video
S VIDEO
If your standard TV has an S-Video input, use S VIDEO, which
is the highest quality Standard-Definition video output on the
VIP2200.
S-Video provides a Standard-Definition analog video signal. If
your equipment supports an optical S/PDIF audio connection,
use the OPTICAL connection. Otherwise, use the baseband
AUDIO L and R connections.
Composite
Video
If your standard TV does not have an S-Video input, use the
composite VIDEO OUT connector.
Composite video provides a Standard-Definition analog video
signal. If your equipment supports an optical S/PDIF audio
connection, use the OPTICAL connection. Otherwise, use the
baseband AUDIO L and R connections.
RF Coaxial If your TV only has a coaxial RF input, use the coaxial TO
TV (VIDEO OUT) connector. RF coaxial provides a Standard-
Definition video and audio signal. No other connections are
necessary.
Common Cabling Examples
The following cabling diagrams illustrate common sample audio/video (A/V) connections.
When connecting other components to your TV Receiver, refer to the other component
installation manuals for additional connection information.
Connecting Your TV Receiver
VIDEO
OUT
VIP2200 Series High-Definition U-verse Receiver Installation Manual 5

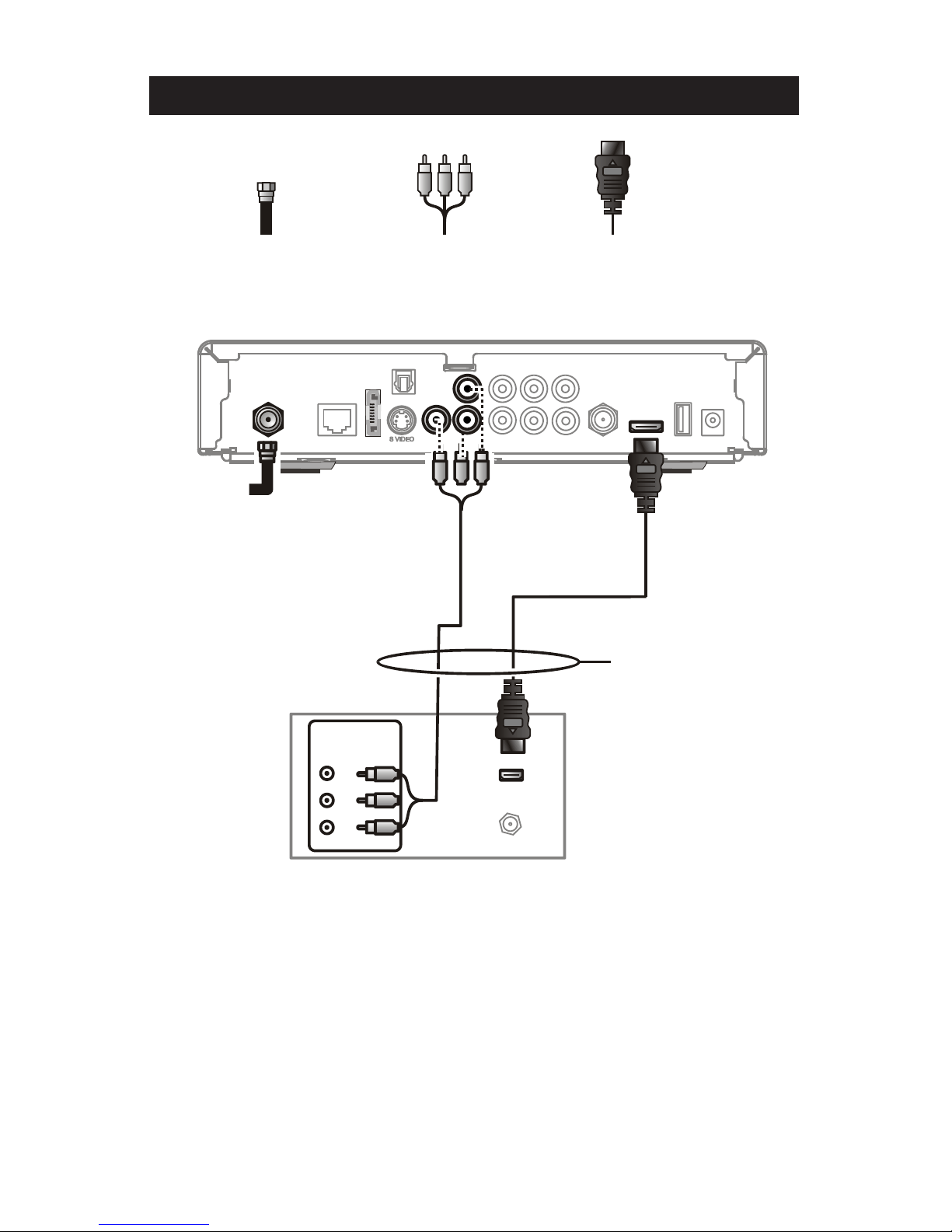

Connecting to an HDTV – Video Only
Sample HDTV
CABLE/
ANTENNA IN
Component
Video Input
Y
Pb
Pr
HDMI
VIP2200
TO WALL
(VIDEO IN) HDMI
NETWORK
Pr
Y
OPTICAL
TO TV
(VIDEO OUT)
R
+12V
DC
POWER
USB
L
VIDEO OUT AUDIO OUT
Pb
HDMI
connection
Component video
connection
Either / or
Video in
RF (75 Ohm)
connection
eSATA
• Connect an RF coaxial cable to the cable wall outlet and the TO WALL (VIDEO IN)
connector on the TV receiver.
• If your HDTV has an HDMI input, connect an HDMI cable to the HDMI connector.
HDMI connection carries both video and audio signals.
• If your HDTV has a DVI input, you can use an HDMI to DVI converter to connect to the
VIP2200 HDMI connector.
• If your HDTV has component video, connect component video cables to the Y, Pb, and
Pr connectors.
DVI and component video carry video signals only. To connect the audio, refer to the
following page. To connect to a home theater receiver, refer to “Connecting to a Home
Theater Receiver – Audio Only.”
6 VIP2200 Series High-Definition U-verse Receiver Installation Manual

Connecting to an HDTV – Audio Only
Sample HDTV audio inputs
CABLE/
ANTENNA IN
OPTICAL
S PDIF
INPU T
AU DIO LEFT
AU DIO RIGHT
S -VIDE O
VIDEO
Either / or
RF (75 Ohm)
connection
Optical S /PDIF
connection
Baseband audio
connection
Video in
VIP2200
TO WALL
(VIDEO IN) HDMI
NETWORK
Pr
Y
S VIDEO
OPTICAL
TO TV
(VIDEO OUT)
R
+12V
DC
POWER
USB
L
VIDEO OUT AUDIO OUT
Pb
eSATA
If your equipment supports it, use the OPTICAL S/PDIF output. Otherwise, use the AUDIO
OUT L and R connectors. In most cases, S/PDIF offers better audio quality, including
support for Dolby Digital 5.1 Surround Sound.
HDMI carries video and audio. If you connect your HDTV using HDMI, no additional audio
connections to the TV are necessary.
VIP2200 Series High-Definition U-verse Receiver Installation Manual 7

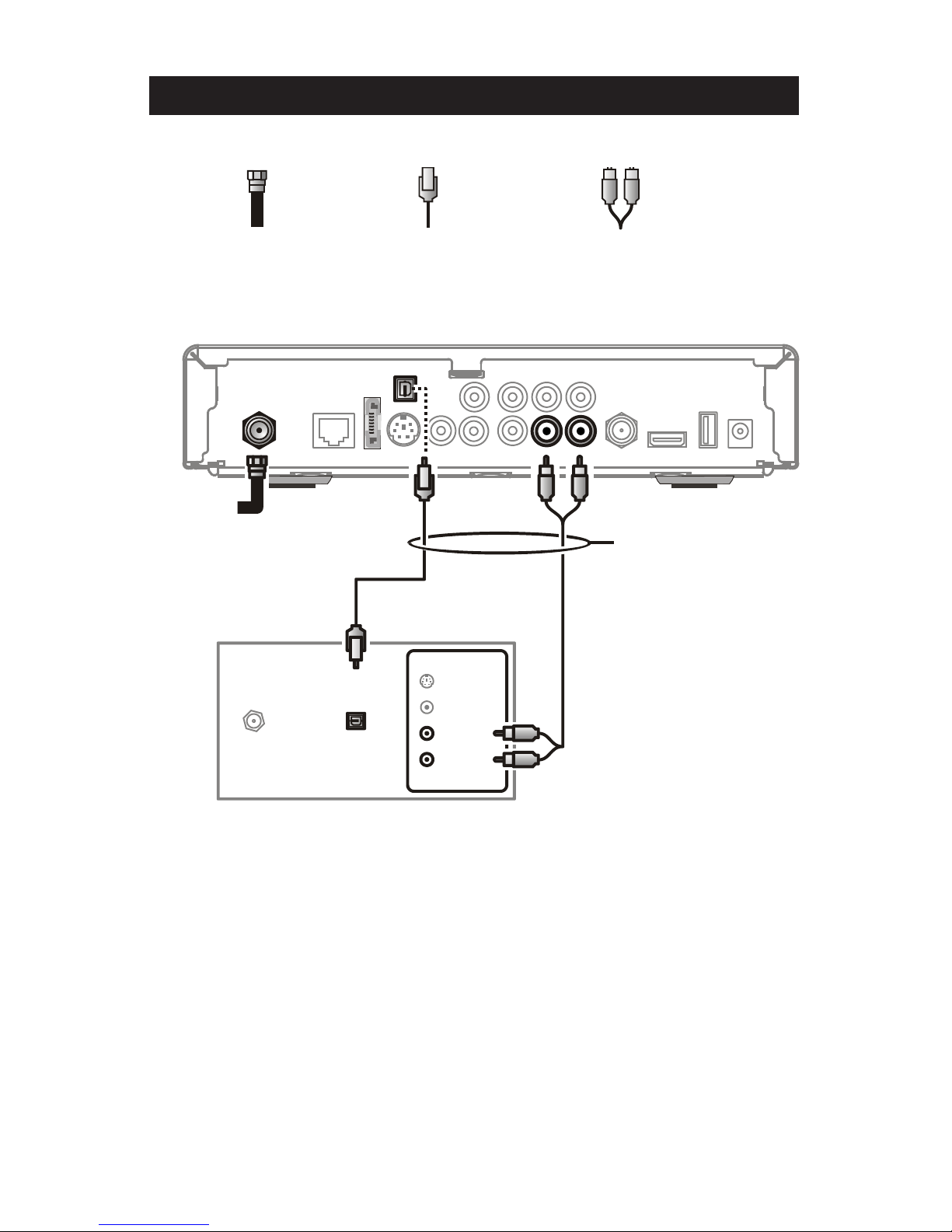

Connecting to a Home Theater Receiver
RF (75 Ohm)
connection
O p ti c a l S /P D I F
connection
Baseband audio
connection
Video in
VIP2200
TO WALL
(VIDEO IN) HDMI
NETWORK
Pr
Y
S VIDEO
OPTICAL
TO TV
(VIDEO OUT)
R
+12V
DC
POWER
USB
L
VIDEO OUT AUDIO OUT
Pb
DIGITAL INPUT
TV/MONITOR
OUTPUT
SPEAKER
CONNECTORS
COAX
VIDEO S-VIDEO
R
DVD
CABLE/TV
VIDEO 2
IN
OUT
VCR
AUDIO VIDEO
LVIDEO S-VIDEO
OPTICAL
Sample home theater receiver
Either / or
eSATA
If your home theater receiver supports it, use the OPTICAL S/PDIF output. Otherwise,
use the AUDIO OUT L and R connectors. In most cases, S/PDIF offers better audio quality,
including support for Dolby Digital 5.1 Surround Sound.
Need Help:
Contact AT&T ConnecTech®service to learn about affordable flat-rate home theater
installation services.
Call [phone] to speak with an AT&T ConnecTech Representative.
(Not available in all areas; See offers and terms & conditions at www.att.com/ConnecTech)
8 VIP2200 Series High-Definition U-verse Receiver Installation Manual

Connecting to a StereoTV
CABLE/
ANTENNA IN
INPUT
S -V IDE O
VIDEO
AU DIO LEFT
AU DIO R IG HT
Sample stereoTV
S -Video
connection
Either / or
Optical S /PDIF
connection
Baseband video
connection
Baseband audio
connection
RF (75 Ohm)
connection
VIP2200
TO WALL
(VIDEO IN) HDMI
NETWORK
Pr
Y
S VIDEO
OPTICAL
TO TV
(VIDEO OUT)
R
+12V
DC
POWER
USB
L
VIDEO OUT AUDIO OUT
Pb
Video in
eS ATA
This video connection method does not support HD video. For more information, see
“Connecting an HDTV – Video Only.”
VIP2200 Series High-Definition U-verse Receiver Installation Manual 9

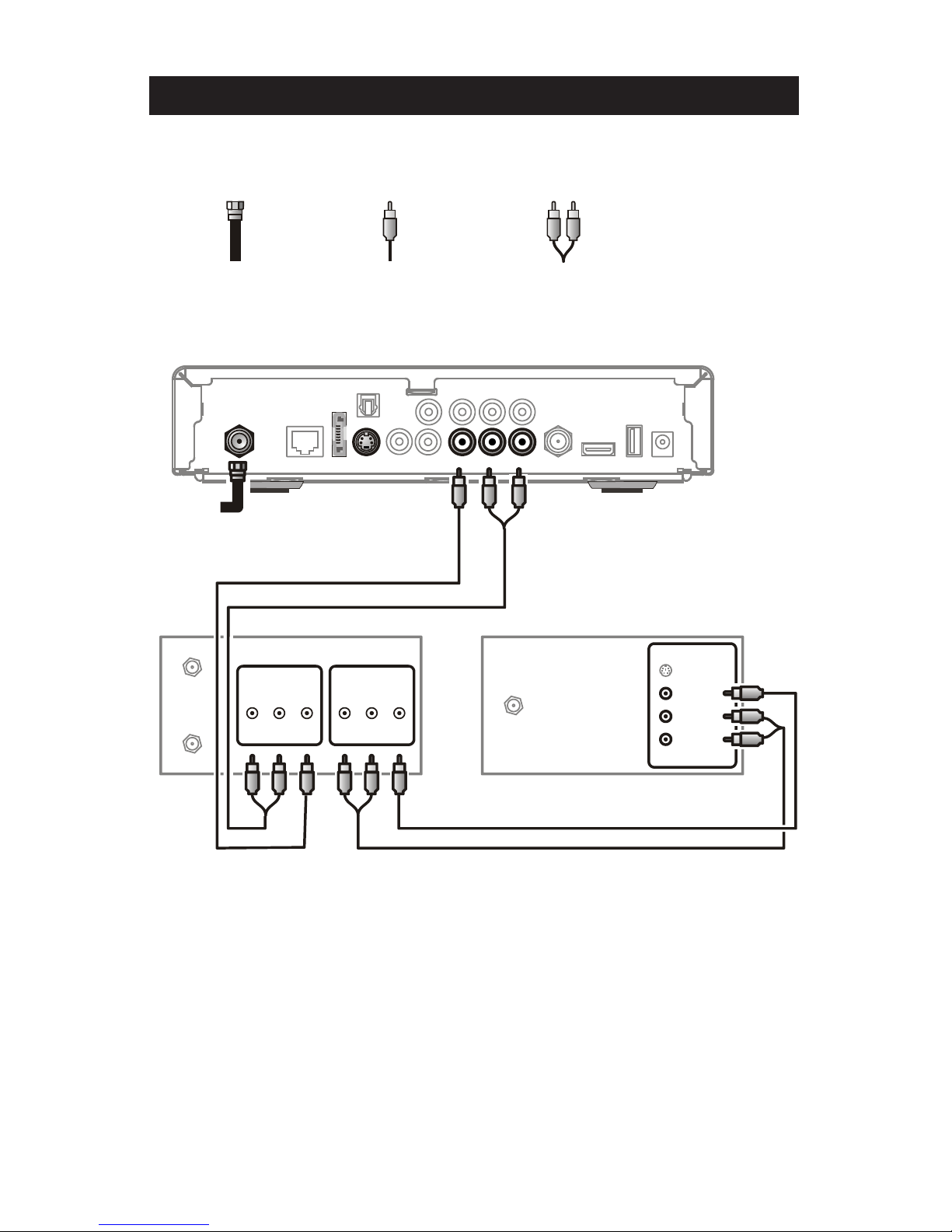

Connecting to a StereoTV and Stereo VCR
To T V
CABLE/
ANTENNA IN
INPU T
AU DIO
R
L
VIDEO
OUTPUT
AU DIO
R
L
VIDEO
CABLE/
ANTENNA IN
INPU T
S -VIDE O
VIDEO
AU DIO LEFT
AU DIO RIG HT
Sample stereo TVSample stereo VCR
Baseband video
connection
Baseband audio
connection
RF (75 Ohm)
connection
Video in
VIP2200
TO WALL
(VIDEO IN) HDMI
NETWORK
Pr
Y
S VIDEO
OPTICAL
TO TV
(VIDEO OUT)
R
+12V
DC
POWER
USB
L
VIDEO OUT AUDIO OUT
Pb
eS ATA
This video connection method does not support HD video. For more information, see
“Connecting to an HDTV – Video Only.”
10 VIP2200 Series High-Definition U-verse Receiver Installation Manual

Connecting to a Home Theater Receiver,TV, and VCR
CABLE/
ANTENNA IN
INPUT
S -V IDEO
VIDEO
AUDIO LEFT
AU DIO R IG HT
TV/MONITOR
OUTPUT
SPEAKER
CONNECTORS
VIDEO S-VIDEO
R
DVD
CABLE/TV
VIDEO 2
IN
OUT
VCR
AUDIO VIDEO
LVIDEO S-VIDEO
OPTICAL
Sample stereo TV
Sample home
theater receiver
Sample stereo VCR
To T V
CABLE/
ANTENNA IN
INPUT
AU DIO
L
R
VIDEO
OUTPUT
AU DIO
L
R
VIDEO
O p ti c a l S /P D I F
connection
Baseband video
connection
Baseband audio
connection
Video in
RF (75 Ohm)
connection
VIP2200
TO WALL
(VIDEO IN) HDMI
NETWORK
Pr
Y
S VIDEO
OPTICAL
TO TV
(VIDEO OUT)
R
+12V
DC
POWER
USB
L
VIDEO OUT AUDIO OUT
Pb
eSATA
This video connection method does not support HD video. For more information, see
“Connecting to an HDTV – Video Only.”
VIP2200 Series High-Definition U-verse Receiver Installation Manual 11

Troubleshooting
Before calling your service provider, review this troubleshooting guide. If the suggestions
do not help you quickly solve a problem, contact your service provider.
Problem Possible Solution
The TV receiver will
not power on.
Verify that the AC power cord is connected to the TV receiver
and an AC outlet. Unplug the TV receiver from the outlet, plug
it back in, and press the POWER button.
If the TV receiver is connected to a switched outlet on a wall
or another unit, verify that the switch or unit is powered on.
Unplug the TV receiver from the AC outlet, plug it back in, and
press the POWER button.
Press the POWER button on the TV receiver front panel instead
of the remote control. The batteries in the remote control may
be depleted.
The remote control
does not work.
Verify that the TV is on.
Verify that the remote control is on AT&T mode.
Verify that there are no obstructions between the remote
control and the TV receiver. Aim the remote control directly at
the TV receiver front panel, not the TV or VCR.
The angle between the remote control and the TV receiver may
be too large. Stand in front of the TV receiver and not too far to
either side.
Press and release operation keys one at a time, firmly and
deliberately.
Try changing channels using the buttons on the TV receiver
front panel.
Check the batteries in the remote control. Install new batteries
if needed.
12 VIP2200 Series High-Definition U-verse Receiver Installation Manual

Problem Possible Solution
There is no audio
when viewing TV
channels.
Verify that the Mute button on the remote control has not been
pressed. Press Mute on the remote control to restore sound.
If the TV receiver audio output is connected to the TV, verify
that the Mute button on the TV has not been pressed.
If the TV receiver audio output is connected to a home theater
receiver, verify that the home theater receiver is set to the
appropriate input source and its Mute button has not been
pressed.
Verify that you have the correct cables for the audio ports.
Verify that the audio cables are firmly connected between the
TV receiver and the audio playback device (TV, home theater
receiver, etc.).
There is no audio
from the center and/
or surround speakers
of a home theater
receiver connected to
the TV receiver.
Not all Dolby Digital programs feature full 5.1 surround sound.
In some cases, the programs may only contain left and right
stereo audio.
Verify that the Optical S/PDIF cable is firmly connected to the
TV receiver and the home theater receiver.
Verify that the home theater receiver is set to a surround
sound audio mode (Dolby Digital, Dolby Pro Logic® II, Dolby
Pro Logic).
Verify that the home theater receiver is properly configured to
work with all connected speakers.
Troubleshooting
VIP2200 Series High-Definition U-verse Receiver Installation Manual 13

Regulatory Information
Federal Communications Commission Radio and Television Interface Statement for a Class ‘B’ Device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in the
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If the equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following
measures:
• Increase the separation between the equipment and the affected receiver
• Connect the equipment on a circuit different from the one the receiver is on
• Ensure that the cover plate for the security card is secured and tight
Changes or modification not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Declaration of Conformity
According to 47 CFR, Parts 2 and 15 for Class B Personal Computers and Peripherals; and/or CPU Boards and
Power Supplies used with Class B Personal Computers, Motorola Mobility, Inc., 6450 Sequence Drive, San Diego,
CA 92121, 1 800 225 9446, declares under sole responsibility that the product identifies with 47 CFR Part 2 and 15 of
the FCC Rules as a Class B digital device. Each product marketed is identical to the representative unit tested and
found to be compliant with the standards. Records maintained continue to reflect the equipment being produced
can be expected to be within the variation accepted, due to quantity production and testing on a statistical basis as
required by 47 CFR 2.909. Operation is subject to the following condition: This device must accept any interference
received, including interference that may cause undesired operation. The above named party is responsible for
ensuring that the equipment complies with the standards of 47 CFR, Paragraphs 15.101 to 15.109. The Class B digital
apparatus meets all requirements of the Canadian Interface Causing Equipment Regulations.
Canadian Compliance
This Class B digital device complies with Canadian ICES 003. Cet appareil numérique de la classe B est conforme à
la norme NMB 003 du Canada.
Software License
IMPORTANT: PLEASE READ THIS SOFTWARE LICENSE (“LICENSE”) CAREFULLY BEFORE YOU USE ANY SOFTWARE,
FIRMWARE, AND RELATED DOCUMENTATION (“SOFTWARE”) PROVIDED WITH MOTOROLA’S IP VIDEO RECEIVER
OR HOME THEATER SYSTEM (EACH SHALL BE REFERRED TO IN THIS LICENSE AS A “RECEIVER”). BY USING THE
RECEIVER AND/OR USING ANY OF THE SOFTWARE, YOU INDICATE YOUR ACCEPTANCE OF EACH OF THE TERMS
OF THIS LICENSE. UPON ACCEPTANCE, THIS LICENSE WILL BE A LEGALLY BINDING AGREEMENT BETWEEN
YOU AND MOTOROLA. THE TERMS OF THIS LICENSE APPLY TO YOU AND TO ANY SUBSEQUENT USER OF THIS
SOFTWARE.
IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS LICENSE (I) DO NOT USE THE SOFTWARE AND (II)
RETURN THE RECEIVER AND THE SOFTWARE (COLLECTIVELY, “PRODUCT”), INCLUDING ALL COMPONENTS,
DOCUMENTATION, AND ANY OTHER MATERIALS PROVIDED WITH THE PRODUCT, TO YOUR POINT OF PURCHASE
OR SERVICE PROVIDER, AS THE CASE MAY BE, FOR A FULL REFUND.
The Software includes associated media, any printed materials, and any “on line” or electronic documentation.
Software provided by third parties may be subject to separate end user license agreements from the manufacturers
of such Software. The Software is never sold. Motorola licenses the Software to the original customer and to any
subsequent licensee for personal use only on the terms of this License. Motorola and its third party licensors retain
the ownership of the Software.
You may:
USE the Software only in connection with the operation of the Product.
TRANSFER the Software (including all component parts and printed materials) permanently to another person, but
only if the person agrees to accept all of the terms of this License. If you transfer the Software, you must at the
same time transfer the Product and all copies of the Software (if applicable) to the same person or destroy any
copies not transferred.
TERMINATE this License by destroying the original and all copies of the Software (if applicable) in whatever form.
14 VIP2200 Series High-Definition U-verse Receiver Installation Manual
