Atek AWE 110 User manual

KK-AWE.002 23.06.21 Rev No:2
1
AWE 110 wire encoders convert linear motion into incremental digital pulses. Different
measuring lengths from 300 mm to 1200 mm are available. Optionally other stroke
lengths, resolutions, cable lengths and socket connectors can be requested.
They make measurement by pulling and rewinding stainless steel wire. Usage is practical
and usage area is quite wide. By connecting to a counter or position controller, they
become a perfect system in high resolutions for position control in wood processing,
marble machines, glass processing machines and other machines.
In the left tablet he cable colors of sensors output signals are given. If the control circuit
is suitable in the Line Driver sensors of the not output signals (/A, /B, /Z) have to be
added to the system. If it is not suitable /A, /B, /Z signal cables must be fixed as insulated
separately. Don’t forget that these edges have electricity too.
Never make or undo electrical connections to the encoder when voltage is applied,
otherwise this may result in damage to devices.
AWE 110
DRAW WIRE ENCODER USER MANUAL
•The installation of the product is carried out by the customer who purchases the product, according to the wiring diagrams,
installation information, etc. in this manual.
•Maintenance and repair should be done by the technicians authorized by the manufacturer firm.
•There must be minimum distance between the sensor and control unit. Avoid additions except the suitable connector unless it
needs.
•Keep away the sensor cable from as high power energy cables, contactor, motor, switched power supplies, inductive and capacitive
noisy supplies.
•Shielding edge of the sensor cable must be ground connected.
•Not to damage the sensor supply directions and voltage must be paid attention (For TTL sensor max. 5V; PP, HTL, HPL sensor max.
30V). Don’t energize before all connections completed.
•Transport and storage should be at their original packaging and an ambient temperature of -25°C / + 85°C in such a way that they
will not be exposed to dust, humudity, impact, vibration, falling or water.
•Chemicals such as alcohol, thinner etc. should not be used for cleaning the product. The product should be wiped with a damp
cloth.
•The product may be damaged and may become unusable if used outside of the specifications in the user manual.
•The product will be out of warranty if used outside of the specifications in the user manual and opened or repaired other than
authorized services.
WARNINGS
GENERAL INFORMATION
ELECTRICAL CONNECTIONS
SIGNAL
CABLE COLOR
+V
Red
0V
Black
A
Yellow
/A
Blue
B
Green
/B
White
Z
Pink
/Z
Grey
EARTH
Silver

KK-AWE.002 23.06.21 Rev No:2
2

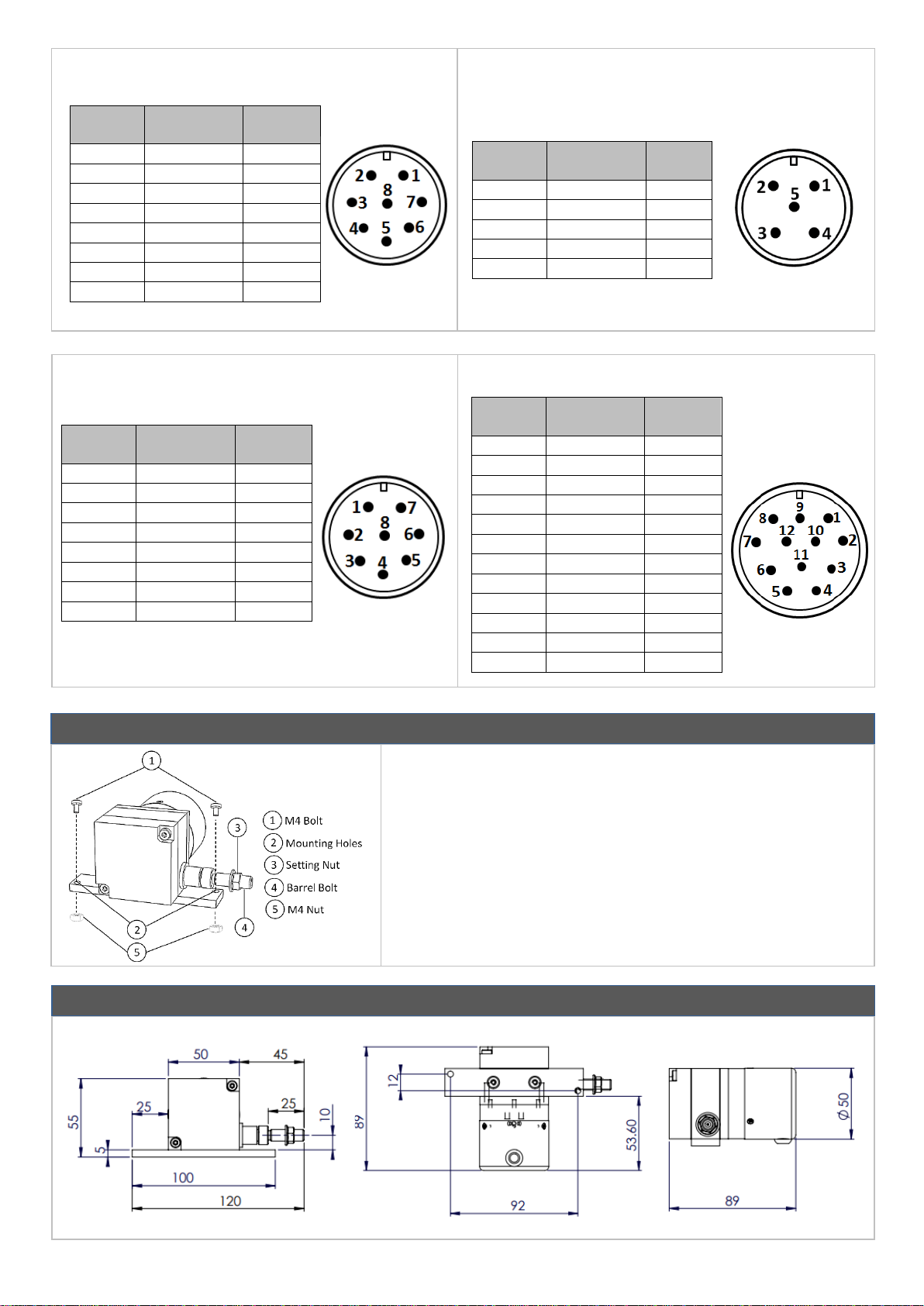

MECHANICAL MOUNTING
DIMENSIONS
1- The product should be mounted to the relevant area with 2 units M4
bolts(1) and nuts(5) from the mounting holes (2) according to the
mounting directions shown on page 3.
2- The encoder wire should be pulled towards the position to be
connected with the barrel bolt (4).
3- The encoder wire should be mounted on the device to be connected
by using the setting nut (3).
SIGNAL
CABLE
COLOR
PIN NO
A
Yellow
1
B
Green
2
+V
Red
3
0V
Black
4
Z
Pink
5
/A
Blue
6
/B
White
7
/Z
Grey
8
M12 CONNECTOR-PIN CONNECTIONS (8 PIN)
SIGNAL
CABLE
COLOR
PIN NO
A
Yellow
1
B
Green
2
+V
Red
3
0V
Black
4
Z
Pink
5
M12 CONNECTOR-PIN CONNECTIONS (5 PIN)
SIGNAL
CABLE
COLOR
PIN NO
A
Yellow
1
/B
White
2
+V
Red
3
0V
Black
4
/A
Blue
5
B
Green
6
/Z
Grey
7
Z
Pink
8
M16 CONNECTOR-PIN CONNECTIONS
SIGNAL
CABLE
COLOR
PIN NO
/B
White
1
+V
Red
2
Z
Pink
3
/Z
Grey
4
A
Yellow
5
/A
Blue
6
-
-
7
B
Green
8
Earth
Silver
9
0V
Black
10
0V
Black
11
+V
Red
12
M23 CONNECTOR-PIN CONNECTIONS

KK-AWE.002 23.06.21 Rev No:2
3
*Stroke (measuring)
length
Different measuring lengths from 300 mm to 1200 mm
Required Force
5 N
Accuracy
±0.25% FS
*Resolution
pulse/mm
mm/edge
Operating Temperature
-25°C … +85 °C
10 pulses/mm(standard)
20 pulses/mm
5 pulses/mm
0.025 mm (standard)
0.0125 mm
0.05 mm
*Supply Voltage
5…30V DC ±20%
Relative Humudity
%95
*Output Signals
A,B,Z (standard)
A,B
A,/A,B,/B
A,/A,B,/B,Z,/Z
Materials
Housing: Aluminum/steel /ABS
plastic
Measuring Wire: Stainless steel
(0.5mm or 1mm)
Measuring Type
Optic
*Connection cable length
3m (standard), 5m, 10m
Maximum Speed
2 m/s
IP Protection Class
IP53 (optional IP67)
Maximum Output Current
60 mA (per channel)
Weight
≈550 gr
Note: The technical specifications indicated by (*) vary according to the selected model. The detailed code table is shown on page 4.
TECHNICAL SPECIFICATIONS
2. The wire encoder must be mounted vertically in position, not be horizontally.
3. If there is a trickle of water (like a rain), the wire outlet must not be a drip of water upstream. If needed please use guide
rollers.
4. The wire should not be pulled in angular. If needed, please use guide rollers.
1. Never release the wire after pulling. Otherwise, the coil spring will be damaged.
Guide Roller
rOLLER
Important Note(!): Failure to comply with these recommendations, the malfunctions that may occur will not be
under the warranty.
MOUNTING AND USAGE WARNINGS
Guide Roller
Guide Roller

KK-AWE.002 23.06.21 Rev No:2
4
-
Electrical Connection*
3M : 3m (standard)
5M : 5m
10M: 10m
S13 : M12 5 Pin Male Socket
S16 : M16 8 Pin Male Socket
S23 : M23 12 Pin Male
Socket

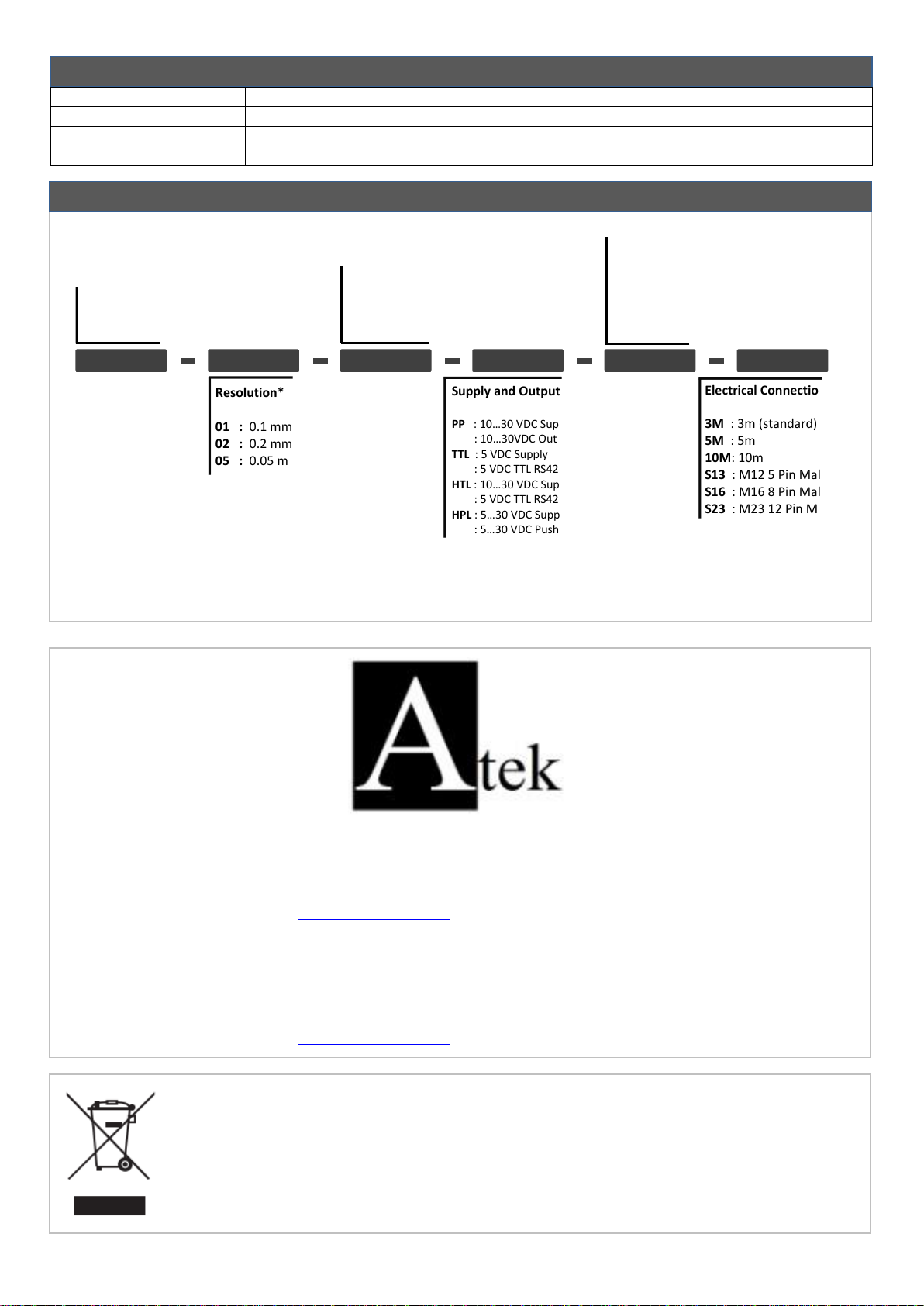

AWE 110 XX XXX XXX XXX
PRODUCT CODE TABLE
Stroke Length *
Different measuring lengths
from 300 mm to 1200 mm
Resolution*
01 : 0.1 mm/pulse (standard)
02 : 0.2 mm/pulse
05 : 0.05 mm/pulse
Model
AWE 110
Output Signals
2(A,B)
3(A,B,Z) (standard)
4(A,/A,B,/B)
6 (A,/A,B,/B,Z,/Z)
Supply and Output
PP : 10…30 VDC Supply
: 10…30VDC Output
TTL : 5 VDC Supply
: 5 VDC TTL RS422 Line Driver Output
HTL : 10…30 VDC Supply
: 5 VDC TTL RS422 Line Driver Output
HPL : 5…30 VDC Supply (standard)
: 5…30 VDC Push-Pull Output
Disposal of Packagings: Packaging materials consist of recyclable materials. For providing
recycling, please dispose waste packagings to collecting points of authorized recycling facilities.
Disposal of E-Waste: This device is in conformity with WEEE Directive and consists of recyclable
materials. This product should not be disposed with general waste for preventing negative effects
on enviroment and human health. This product should be disposed to collecting points of
authorized recycling facilities. Further information can be reached from authorized unit.
Manufacturer Firm’s Title, Address Details
Manufacturer Firm: ATEK ELEKTRONİK SENSÖR TEKNOLOJİLERİ SANAYİ VE TİCARET A.Ş.
Address: Gebze OSB, 800. Sokak, No:814 Gebze/KOCAELİ/TURKEY
TEL: [phone] FAX: [phone]
Web: www.ateksensor.com E-mail: [e-mail]
Authorized Service’s Title, Address Details
Authorized Service: ATEK ELEKTRONİK SENSÖR TEKNOLOJİLERİ SANAYİ VE TİCARET A.Ş.
Address: Gebze OSB, 800. Sokak, No:814, Gebze/KOCAELİ/TURKEY
TEL: [phone] FAX: [phone]
Web: www.ateksensor.com E-mail: [e-mail]
(*) Please contact for other (customized) options.
Product
Description
AWE 110
Draw Wire Encoder
Mounting Equipment
2 pcs. M4 bolts and nuts
User Manual
1 pcs.
BOX CONTENTS
