ATEN UC-232A User manual

UC232A / UC232A1
USB-to-Serial Adapter
User Manual
Copyright 2023 ATEN® International Co. Ltd.
ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All
rights reserved. All other trademarks are the property of their respective owners.

- 2 -
Compliance Statements
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the
limits for a Class B digital service, pursuant to Part 15 of the FCC
rules These limits are designed to provide reasonable protection
against harmful interference in a residential installation Any
changes or modifications made to this equipment may void the
user’s authority to operate this equipment This equipment
generates, uses, and can radiate radio frequency energy If not
installed and used in accordance with the instructions, may
cause harmful interference to radio communications However,
there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
 Reorient or relocate the receiving antenna
 Increase the separation between the equipment and
receiver
 Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
 Consult the dealer or an experienced radio/TV technician for
help
The device complies with Part 15 of the FCC Rules Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation

- 3 -
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void the
user's authority to operate this equipment
CC Statement
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-
003
RoHS
This product is RoHS compliant

- 4 -
UC232A / UC232A1 User Manual
Online Registration
Telephone Support
For telephone support, call this number:
Technical Support
 For international online technical support – including
troubleshooting, documentation, and software updates:
http://eservice.aten.com
 For North American technical support:
International http://eservice aten com
International 886-2-8692-6959
China 86-400-810-0-810
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
1-949-428-1111
Email Support support@aten-usa com
Online
Technical
Support
Troubleshooting
Documentation
Software Updates
http://www aten-usa com/support
Telephone Support 1-888-999-ATEN ext 4998

- 5 -
Package Contents
Check to make sure that all the components are in working order
If you encounter any problem, please contact your dealer
 1 UC232A / UC232A1 USB-to-Serial Adapter
 1 User Instructions*
Note:
 Read this manual thoroughly and follow the installation and
operation procedures carefully to prevent any damage to the
unit or any connected devices
 The product may be updated, with features and functions
added, improved or removed since the release of this
manual For an up-to-date user manual, visit
http://www aten com/global/en/

- 6 -
Overview
Universal Serial Bus (USB) port technology has emerged in
response to the proliferation of external peripheral devices
(scanners, digital cameras, removable drives, etc ) that are
increasingly being connected to the latest generation of
computers It is faster than traditional bus ports and, since it does
not require any IRQs, the problem of IRQ conflict is eliminated,
which means more peripheral devices can be attached to the
system
The UC232A / UC232A1 USB-to-Serial Adapter provides an
external plug-and-play RS-232 serial connection for computers,
notebooks, laptops, and handheld computing devices that
support the USB specification It comes with a standard DB-9
male connector for the peripherals to plug into, and an attached
USB cable (35 CM for UC232A and 100 CM for UC232A1) with a
type A plug for connecting to the computer's USB port, or to a
USB hub
The UC232A / UC232A1 provides mobile phones, PDAs, digital
cameras, modems and ISDN terminal adapters with high quality
serial connections at a data transfer rate of up to 921 6 Kbps It
makes the USB interface transparent to the peripherals, allowing
them to easily interface with the USB, eliminating the setup
hassle found with traditional serial port connections As a USB
specification compliant device, the UC232A / UC232A1 also
supports energy-saving suspend and resume operations
Note: The UC232A / UC232A1 does not support devices, such
as serial mice, that require an IRQ number or IO Address

- 7 -
eatures
 Supports RS-232 serial interface
 Proven performance in anti-electromagnetic interference
(anti-EMI) capability for stable transmission performance
 Full compliance with USB specification
 Supports automatic handshake mode
 Up to 921 6 Kbps data transfer rate
 OS Compatibility: Windows, Mac, and Linux
 Supports remote wake up and power management
 Provides a 96 byte buffer for each upstream and downstream
data transfer
 Works with cellular phones, PDAs, digital cameras, modems
and ISDN terminal adapters
 A trustworthy connectivity solution recommended and
adopted by leading enterprises worldwide
 Easy way to install an additional RS-232 port
 No IRQ required

- 8 -
System Requirements
 USB Host Controller installed on the system
Operating Systems
Supported operating systems are shown in the table, below:
If your Linux kernel is between v2 6 15 ~ v5 4 and your device
has a new chipset version, please update the Linux driver from
our product web page This driver works with 2021 or later chipset
version device only
Use the link below to identify which chipset version your device is
http://eservice aten com/eServiceCx/Common/FAQ/view do?id=18695
OS Version
Windows 2000, Vista, 7, 8, 8 1, 10, or above
Mac OS 10 or later
Linux Kernel 2 6 15 or later

- 9 -
Windows 2000 Installation
Installing the Driver(s)
To install the UC232A / UC232A1 drivers, do the following:
Note: The setup is for UC232A is the picture below The
UC232A1 is the same as the UC232A, except that it has
a 100 cm cable attached instead of 35 cm
1 Please download the latest software installation package from
the UC232A / UC232A1 product page at www aten com/
download (search for UC232A / UC232A1 and go to the
download tab)
2 Execute the file and follow the on-screen instructions to
configure detailed software settings
3 Double click UC-232ADriverInstaller.exe
After a few moments, the following dialog box appears:
4 Click Next to install the drivers

- 10 -
5 Windows displays the following warning:
6 You can safely ignore this warning Click Continue Anyway
to continue installing the new software When the installation
is complete, the following dialog box appears:
7 Click Finish to close the wizard You have successfully
installed the driver(s)

- 11 -
Connecting the UC232A / UC232A1

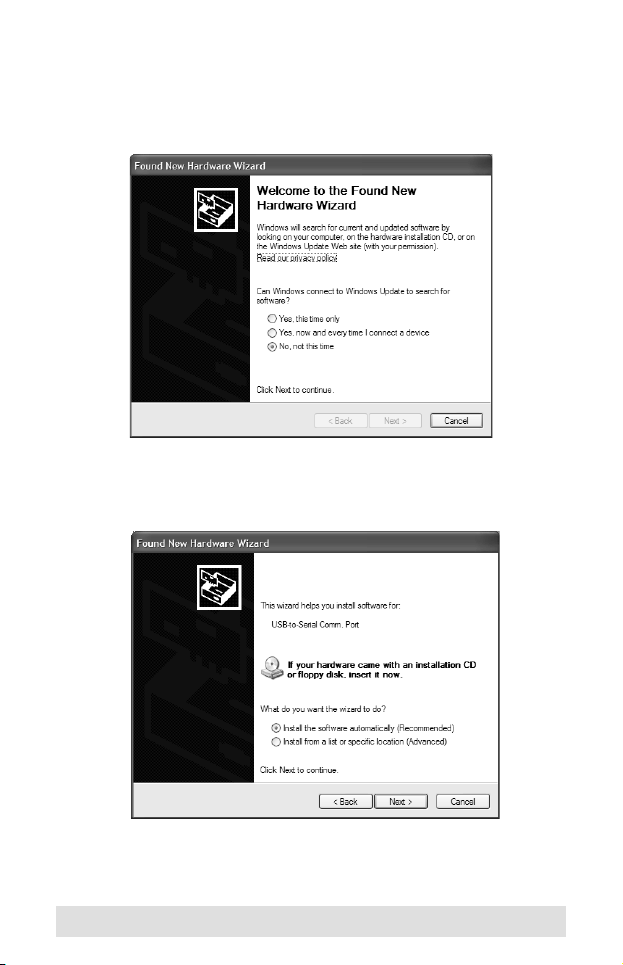

1 Connect the UC232A / UC232A1 USB-to-Serial Adapter to a
USB port on your computer The New Hardware Wizard
appears:
2 Select No, not this time, and then click Next to continue The
following dialog box appears:

- 12 -
3 Leave the default choice (Install the software automatically)
Click Next to continue

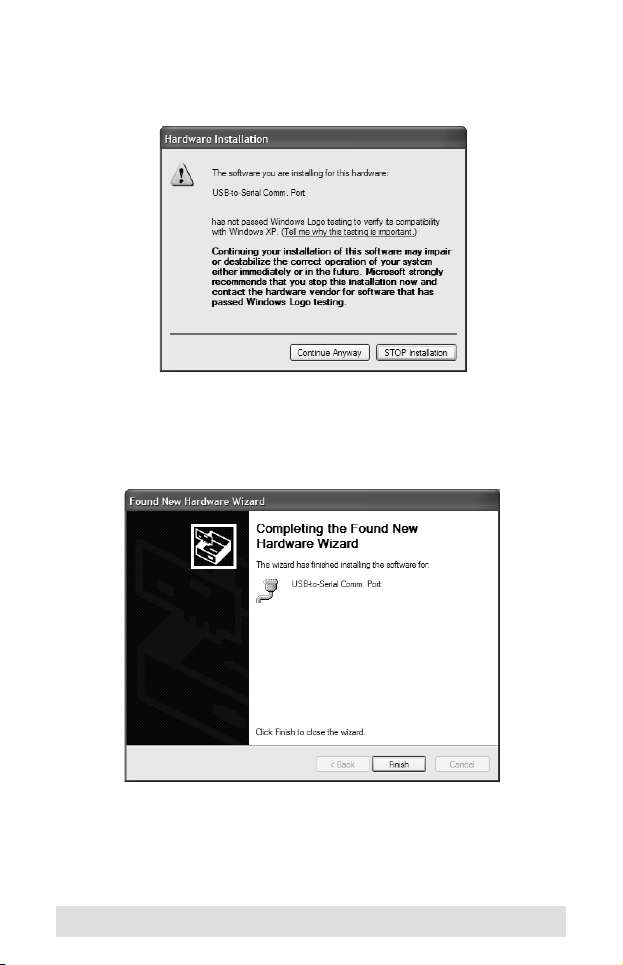

4 Windows displays the following warning:
5 You can safely ignore this warning Click Continue Anyway
to continue installing the new hardware When the installation
is complete, the following dialog box appears:
6 Click Finish to close the wizard You have successfully
installed the UC232A / UC232A1

- 13 -
Uninstalling the Driver(s)
1 Insert the installation disk into the CD-ROM drive The
following dialog box appears:
2 Select Uninstall the driver, and then click Next The following
dialog box appears:
3 Click Finish You have successfully uninstalled the driver(s)

- 14 -
Windows Vista/7/8/8.1/10 Installation
Installing the Driver
Note: The setup is for UC232A is the picture below The
UC232A1 is the same as the UC232A, except that it has
a 100 cm cable attached instead of 35 cm
1 Make sure that the Windows language for non-Unicode
programs is set to English by checking Regional and
Language ptions, then Administrative
2 Please download the latest software installation package from
the UC232A / UC232A1 product page at www aten com/
download (search for UC232A / UC232A1 and go to the
download tab)
3 Execute the file and follow the on-screen instructions to
configure detailed software settings

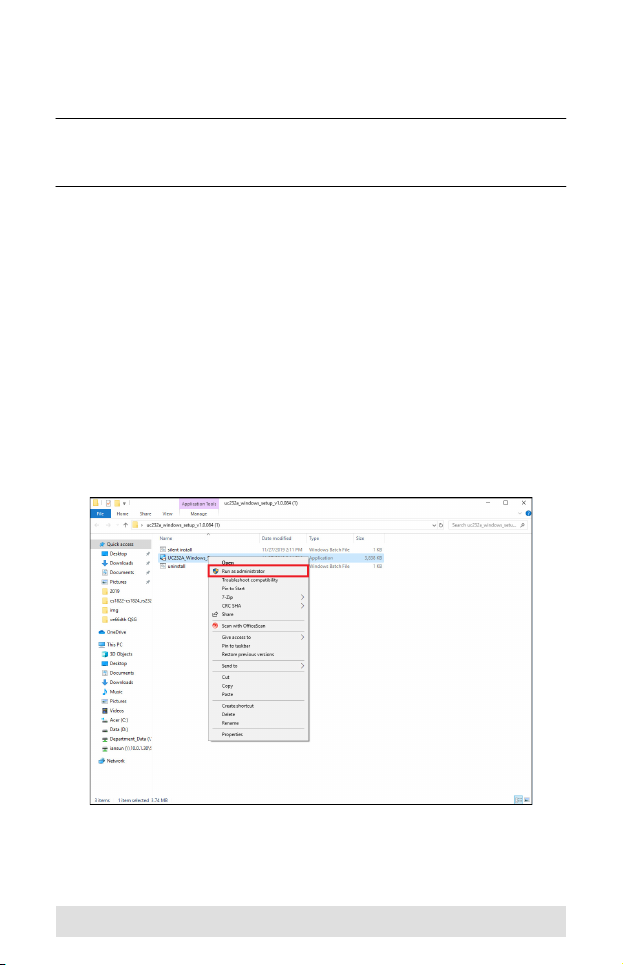

4 Open the downloaded file and right click on the
UC232A_Windows_Setup Select Run as administrator as
shown in the picture below

- 15 -

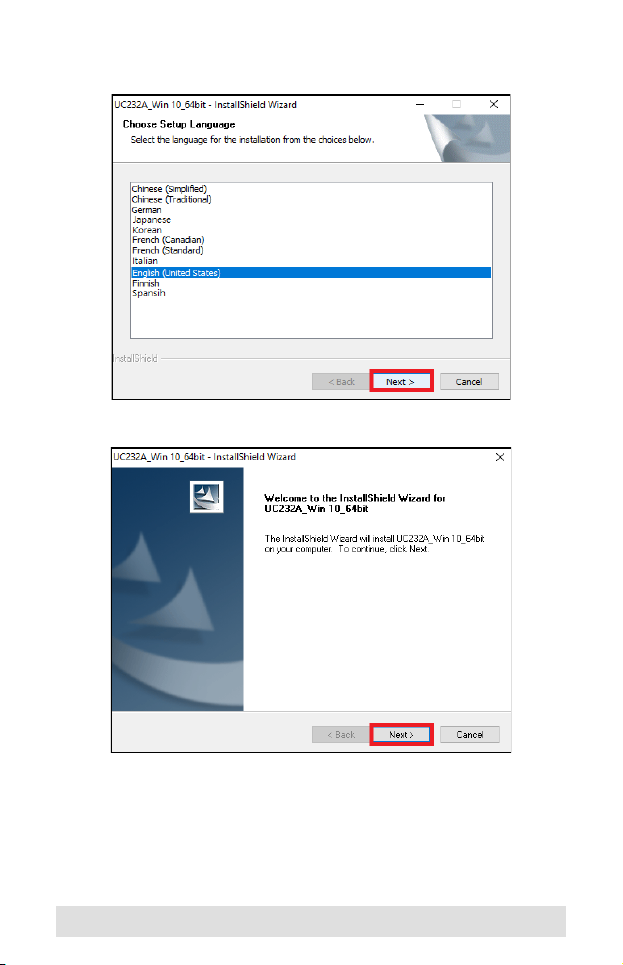

5 After a few moments, the following dialog box appears
Choose your desired Language and click Next
6 Click Next

- 16 -

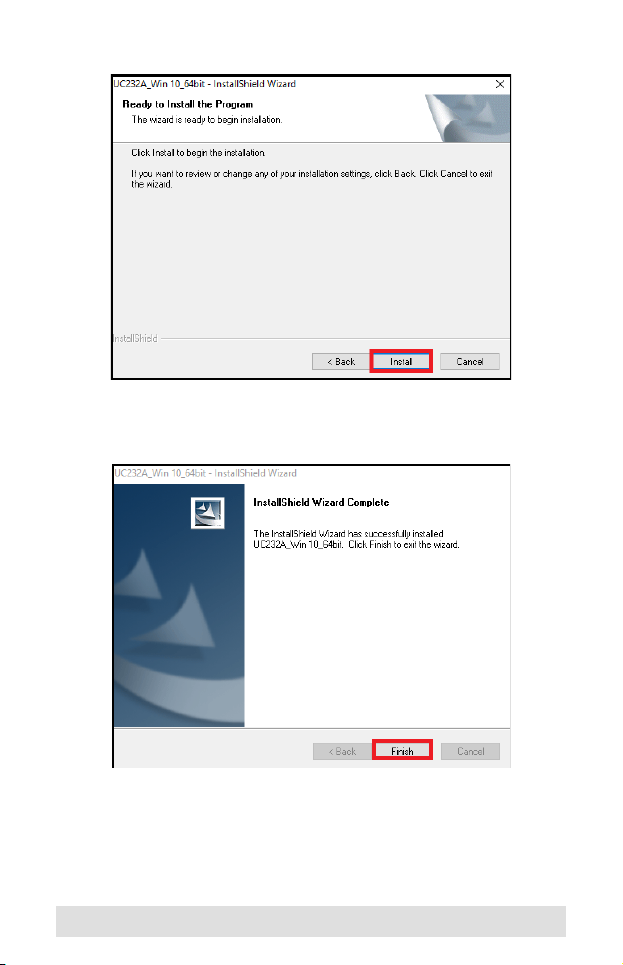

7 Click Install to install the drivers
8 When the installation is complete, the following dialog box
appears Click Finish to close the wizard You have
successfully installed the driver(s)

- 17 -
Connecting the UC232A / UC232A1

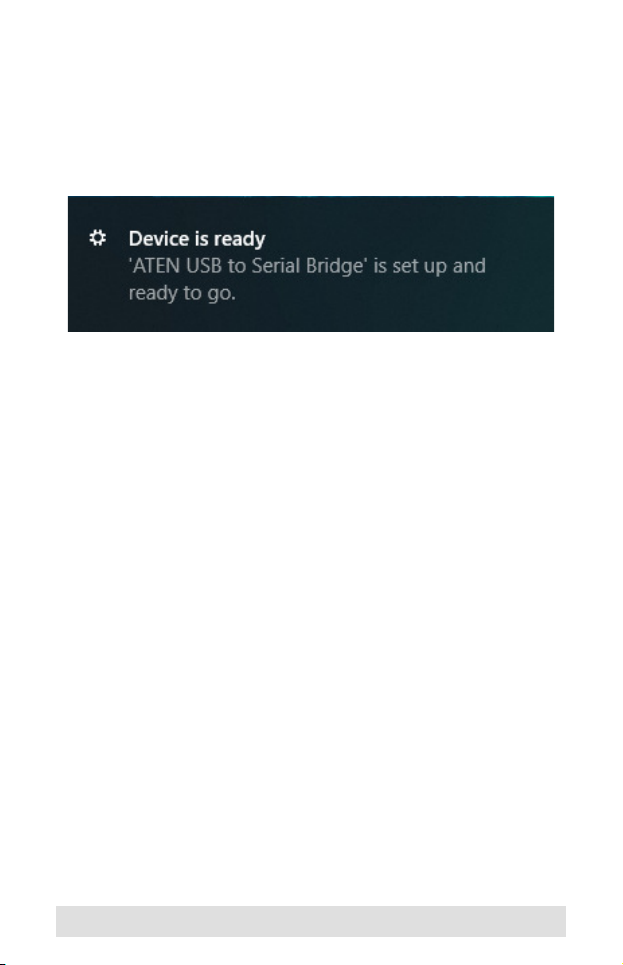

1 Connect the UC232A / UC232A1 USB-to-Serial Adapter to a
USB port in your computer The following dialog box appears
on the bottom right of your PC screen to confirm that the
driver has been installed and that your UC232A / UC232A1 is
ready to use:

- 18 -
Mac Installation
Installing the Software
Note: The setup is for UC232A is the picture below The
UC232A1 is the same as the UC232A, except that it has
a 100 cm cable attached instead of 35 cm
1 Please download the latest software installation package from
the UC232A / UC232A1 product page at www aten com/
download (search for UC232A / UC232A1 and go to the
download tab)
2 Execute the file and follow the on-screen instructions to
configure detailed software settings
3 Open the downloaded folder and copy the Mac OS file to your
hard disk
4 Double-click on the file icon to extract the compressed file(s)
5 Copy the extracted file(s) to the Hard Disk > System Folder >
Extensions folder
Note: If you are using a non-English language version, copy
the files to the corresponding folder for your system
Connecting the UC232A / UC232A1
Connect the UC232A / UC232A1 to a USB port on your Mac
Note: The UC232A / UC232A1 will not function properly
unless the software was previously installed

- 19 -
Linux Installation
Note: The setup is for UC232A is the picture below The
UC232A1 is the same as the UC232A, except that it has
a 100 cm cable attached instead of 35 cm
Installing the Driver(s)
1 Please download the latest software installation package from
the UC232A / UC232A1 product page at www aten com/
download (search for UC232A / UC232A1 and go to the
download tab)
2 Execute the file and follow the on-screen instructions to
configure detailed software settings
3 Open a command line
4 Move to the subdirectory that corresponds to the version of
your operating system (For example, if your operating
system is Red Hat 7 3, then move to the Redhat73
subdirectory )
5 Enter the following commands to copy the files in the
subdirectory to a directory on your hard disk:
cp pl2303.c /directory_name
cp Makefile /directory_name/makefile
where directory_name is the name of the directory on your
hard disk that you are copying the files to
Note: Be sure to change the capital “M” in “Makefile” to a
lowercase “m” when you copy the file to the new
directory
6 Move to the directory where you copied the files
7 Enter the following command:
make inst

- 20 -
8 Connect the UC232A / UC232A1 to a USB port on your
computer
Note: The UC232A / UC232A1 will not function properly
unless the drivers have been previously installed
