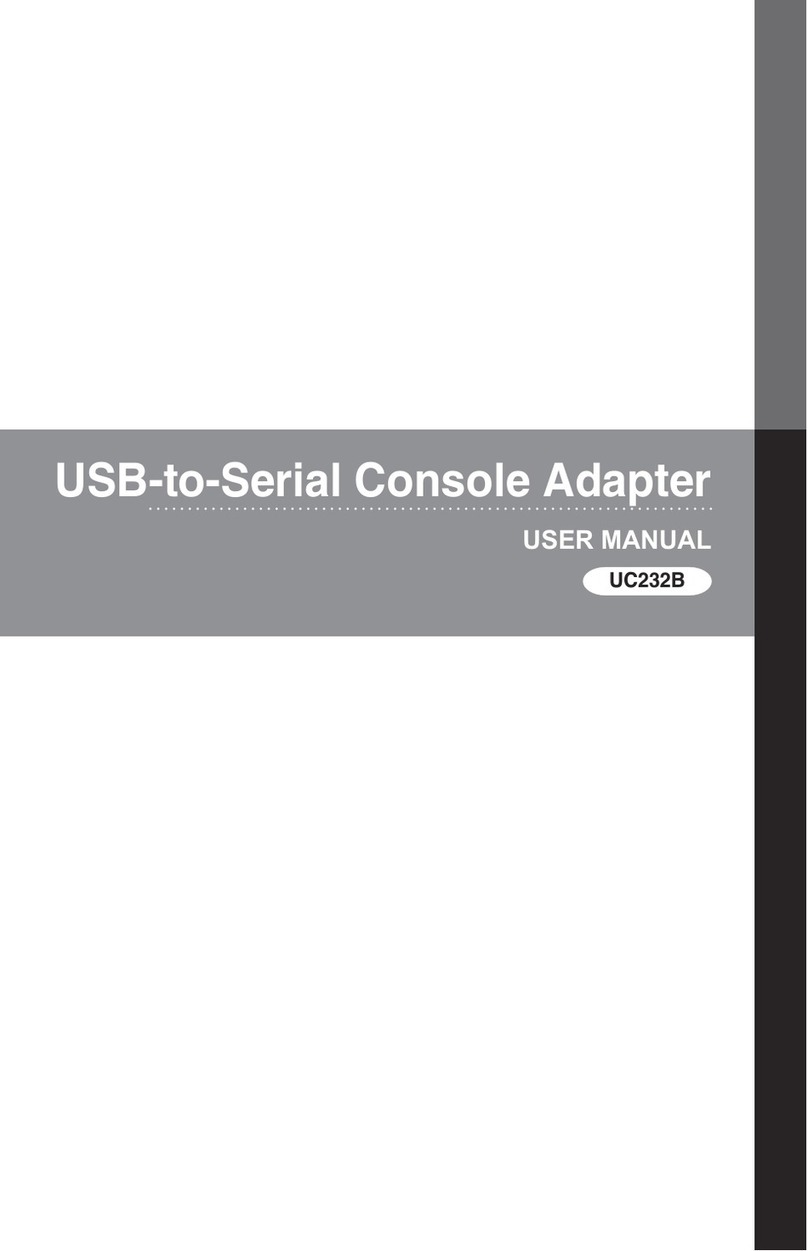

ATEN UC232B User manual

UC232B
USB to Serial Console Adapter
User Manual

- 2 -
Compliance Statements
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the
limits for a Class B digital service, pursuant to Part 15 of the FCC
rules These limits are designed to provide reasonable protection
against harmful interference in a residential installation Any
changes or modifications made to this equipment may void the
user’s authority to operate this equipment This equipment
generates, uses, and can radiate radio frequency energy If not
installed and used in accordance with the instructions, may
cause harmful interference to radio communications However,
there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
 Reorient or relocate the receiving antenna
 Increase the separation between the equipment and
receiver
 Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
 Consult the dealer or an experienced radio/TV technician for
help
The device complies with Part 15 of the FCC Rules Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation

- 3 -
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void the
user's authority to operate this equipment
CC Statement
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-
003
RoHS
This product is RoHS compliant

- 4 -
UC232B User Manual
Online Registration
Telephone Support
Technical Support
 For international online technical support – including
troubleshooting, documentation, and software updates:
http://eservice.aten.com
 For North American technical support:
International http://eservice aten com
International 886-2-8692-6959
China 86-400-810-0-810
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
1-949-428-1111
Email Support support@aten-usa com
Online
Technical
Support
Troubleshooting
Documentation
Software Updates
http://www aten-usa com/support
Telephone Support 1-888-999-ATEN ext 4998

- 5 -
Package Contents
Check to make sure that all the components are in working order
If you encounter any problem, please contact your dealer
The UC232B USB-to-Serial Console Adapter package contains
the following items:
 1 UC232B USB-to-Serial Console Adapter
 1 User Instructions*
Note:
 Read this manual thoroughly and follow the installation and
operation procedures carefully to prevent any damage to the
unit or any connected devices
 The product may be updated, with features and functions
added, improved or removed since the release of this
manual For an up-to-date user manual, visit
http://www aten com/global/en/

- 6 -
Overview
The ATEN UC232B is a one port USB-to-Serial console adapter
This high quality industrial adapter cable is designed to instantly
add single RS-232 console port connectivity for networking
appliances via a USB port The adapter is powered via the USB
connection
The UC232B is compatible with the USB 2 0 standard and works
conveniently with desktop and notebook PCs It also can be used
with large integrated computer-based systems or other
specialized applications, such as point-of-sale applications,
networking equipment, industrial automation systems, and native
serial transfer instruments to offer a convenient connectivity
solution The UC232B converter provides a plug & play solution
Windows, Mac and Linux drivers are included

- 7 -
Features
 Converts a USB port to RJ-45 Console port (RS-232)
 Supports straight RJ-45 cable, no need to use Rolled RJ-45
Cable for connecting Networking Router, modem or network
switch for configuration
 Fast COM Port Transmission – up to 921 6 Kbps data transfer
rate
 COM retention saves the assigned port settings for the device
 Proven performance in anti-electromagnetic interference
(anti-EMI) capability for stable transmission performance
 OS Compatibility: Windows, Mac, Linux
 Plug-and-Play portability – small and lightweight enclosure
makes it a perfect travel companion
 No external power supply needed
 A trustworthy connectivity solution recommended and
adopted by leading enterprises worldwide
 USB 2 0 compliant

- 8 -
Syste Require ents
 USB Host Controller installed on the system
Operating Syste s
Supported operating systems are shown in the table, below:
If your Linux kernel is between v2 6 15 ~ v5 4 and your device
has a new chipset version, please update the Linux driver from
our product web page This driver works with 2021 or later chipset
version device only
Use the link below to identify which chipset version your device is
http://eservice aten com/eServiceCx/Common/FAQ/view do?id=18695
OS Version
Windows 7, 8 1, 10 or above
Mac OS X 10 10 or later
Linux Kernel 2 6 15 or later

- 9 -
How to Install
1 Connect the USB plug for the UC232B to your computer’s
USB port and wait for the drivers to automatically install the
device *
Note: If you are using an older computer, you may need to visit our website to
download the UC232B drivers and install them before setting up the hardware
2 Plug a Straight-through Ethernet cable to the RJ-45
connector on the UC232B
3 Plug the other end of the Ethernet cable directly into an RJ-45
console port of the target networking device
4 Optionally, connect an RJ-45 to DB-9 adapter to a rolled
Ethernet cable (up to 15 m) when connecting to a standard
DB-9 serial port on the target serial device
5 Power on the target device
Up to 15 meters
@ 921 Kbps
RJ45 to DB-9

- 10 -
Specifications
Function Specification
Connectors USB Type A Plug Male (White)
Serial DB-9 Male (Silver)
LEDs Power Status (Orange)
Data Transfer Rate Up to 921 6 Kbps
Cable Length 1 2 m
Power Consumption DC5V, 0 202 W
Power Mode Bus Powered
USB Specification 2 0 Compliant
Environment Operating Temp 0–40
o
C
Storage Temp -20–60
o
C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Plastic
Weight 0 6 kg
Dimensions
(L x W x H)
2 56 x 5 84 x 2 23 cm

- 11 -
Rolled Ethernet Cable Pin-Outs
Note the reversed correlation of 1 to 8, 2 to 7, and so on
Console/Aux Cable Mode
Aten RS-232 Cable Mode
UC232B RJ-45 Port Console/Aux Port (DTE)
Signal Straight
Cable Pin
RJ-45 Pin Signal Type 1 Signal Type 2
CTS 1 1 RTS -
DSR 2 2 DTR DTR
RxD 3 3 TxD TxD
GND 4 4 GND GND
GND 5 5 GND GND
TxD 6 6 RxD RxD
DTR 7 7 DSR DSR
RTS 8 8 CTS -
UC232B RJ-45 Port Third Party RJ-45 to RS-232 Adapter
Signal Rolled Cable
Pin
RJ-45 Pin Signal DB-9 Out
CTS 1 8 CTS 7
DSR 2 7 DSR 4
RxD 3 6 RxD 3
GND 4 5 GND 5
GND 5 4 GND 5
TxD 6 3 TxD 2
DTR 7 2 DTR 6
RTS 8 1 RTS 8

- 12 -
