ATEN cs533 User manual

USB to Bluetooth KM Switch
CS533 Tap
User Manual
www.aten.com

CS533 User Manual
ii
FCC Information
This is an FCC Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
RoHS
This product is RoHS compliant.
SJ/T 11364-2006
The following contains information that relates to China.

CS533 User Manual
iii
User Information
Online Registration
Be sure to register your product at our online support center:
Telephone Support
For telephone support, call this number:
User Notice
All information, documentation, and specifications contained in this manual
are subject to change without prior notification by the manufacturer. The
manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose. Any of
the manufacturer's software described in this manual is sold or licensed as is.
Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of all
necessary servicing, repair and any incidental or consequential damages
resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV
interference caused by unauthorized modifications to this device. It is the
responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation
of this system if the correct operational voltage setting was not selected prior
to operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS
CORRECT BEFORE USE.
International http://eservice.aten.com
International 886-2-8692-6959
China 86-10-5255-0110
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
United Kingdom 44-8-4481-58923

CS533 User Manual
iv
Package Contents
Package
The CS533 Tap package consists of:
1 CS533 Tap USB to Bluetooth KM Switch
1 Plastic backing
1 Key Mapping Stickers
1 User Instructions*
Check to make sure that all the components are present and that nothing got
damaged in shipping. If you encounter a problem, contact your dealer.
Read this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit, and/or any of the
devices connected to it.
*Features may have been added to the CS533 Tap since this manual was
printed. Please visit our website to download the most up-to-date version.
© Copyright 2012 ATEN® International Co., Ltd.
F/W Version: V1.1.102
Manual Date: 2012-12-17
ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved.
All other brand names and trademarks are the registered property of their respective owners.

CS533 User Manual
v
Contents
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
RoHS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
SJ/T 11364-2006. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
User Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .viii
Product Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .viii
1. Introduction
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Keyboard and Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
USB Power Adapter (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Operating Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Mobile Devices*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Rear / Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Plastic Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. Setup
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connecting the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. Input Method Editor (IME)
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4. Advanced Functions
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Hotkeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Switching the Keyboard and Mouse between devices . . . . . . . . . . . . 15
Keyboard Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Keyboard Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Set the keyboard Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Key Mapping Stickers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Standard Keyboard Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Clear Bluetooth Pairing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Disconnect Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

CS533 User Manual
vi
Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Appendix
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Technical Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
North America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Compatible Mobile Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Standard Keyboard Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Keyboard Mapping Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

CS533 User Manual
vii
About this Manual
This User Manual is provided to help you get the most from your system. It
covers all aspects of installation, configuration and operation. An overview of
the information found in the manual is provided below.
Chapter 1, Introduction, introduces you to the CS533 Tap. Its purpose,
features, benefits, and requirements are presented, and its front and back panel
components are described.
Chapter 2, Setup, describes how to set up your CS533. The necessary steps
for basic hardware and Bluetooth setup are provided.
Chapter 3, Input Method Editor (IME), explains the IME feature for
international users and how to use IME with your device.
Chapter 4, Advanced Functions, provides a complete description of the
CS533's advanced functions, which include Hotkeys, Switching, Keyboard
Mapping, Clearing Bluetooth, Settings, and Firmware Upgrades.
An Appendix, provides specifications and other technical information
regarding the CS533 Tap.

CS533 User Manual
viii
Conventions
This manual uses the following conventions:
Product Information
For information about all ATEN products and how they can help you connect
without limits, visit ATEN on the Web or contact an ATEN Authorized
Reseller. Visit ATEN on the Web for a list of locations and telephone numbers:
Monospaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means to
press the Enter key. If keys need to be chorded, they appear
together in the same bracket with a plus sign between them:
[Ctrl+Alt].
1. Numbered lists represent procedures with sequential steps.
→Indicates selecting the option (on a menu or dialog box, for
example), that comes next. For example, Start →Run means to
open the Start menu, and then select Run.
Indicates critical information.
International http://www.aten.com
North America http://www.aten-usa.com

1
Chapter 1
Introduction
Overview
The CS533 Tap is a Bluetooth link that allows you to use a desktop keyboard
and mouse* on a mobile device. With the CS533 you can use a desktop
keyboard on your mobile device to compose and send text messages, e-mails,
and instant messages; plus work within smartphone applications.
The CS533 allows you to:
Wirelessly connect mobile devices to a desktop keyboard and mouse
Use a desktop USB keyboard and mouse* on your mobile device
Share a USB keyboard and mouse with a computer and 2 mobile devices
Tap to switch USB keyboard and mouse use between devices
*Mouse functionality only available on select mobile devices.

CS533 User Manual
2
Requirements
Device
1 Mobile Device with Bluetooth
Computer
1 Computer with Type A USB Port
Keyboard and Mouse
1 USB Keyboard
1 USB Mouse
USB Power Adapter (optional)
The CS533 can connect a mobile device to a USB keyboard and mouse without
a computer. If you use the CS533 without a computer, a USB Power Adapter
must be purchased to power the CS533.
Operating Systems
Supported operating systems are shown in the table, below:
Mobile Devices*
Supported Apple devices are shown in the table below:
*For a complete list of supported mobile devices see Compatible Mobile
Devices, page 27.
OS Version
Windows 2000 and higher
Mac OS 10.6 and higher
Apple iPad 1, 2, The new iPad
iOS 4.2.1 and higher
iPhone 3GS, 4, 4S
iPod touch 2nd, 3rd, 4th Generation

Chapter 1. Introduction
3
Components
Rear / Front View
No. Component Description
1 Port LED’s Blue LED: light indicates which device is selected for
keyboard and mouse use:
1. Computer
2. Bluetooth #1
3. Bluetooth #2
2 Keyboard Port Plug the USB keyboard into this port.
3 Mouse Port Plug the USB mouse into this port.
4 USB Cable Plug this cable into the computer which will share keyboard
and mouse use.
5 Cradle / Plastic
Stand
Cradle with plastic stand to hold your mobile device upright
and in place. (See Plastic Stand, page 4, for details)
4
5
2
3
1

CS533 User Manual
4

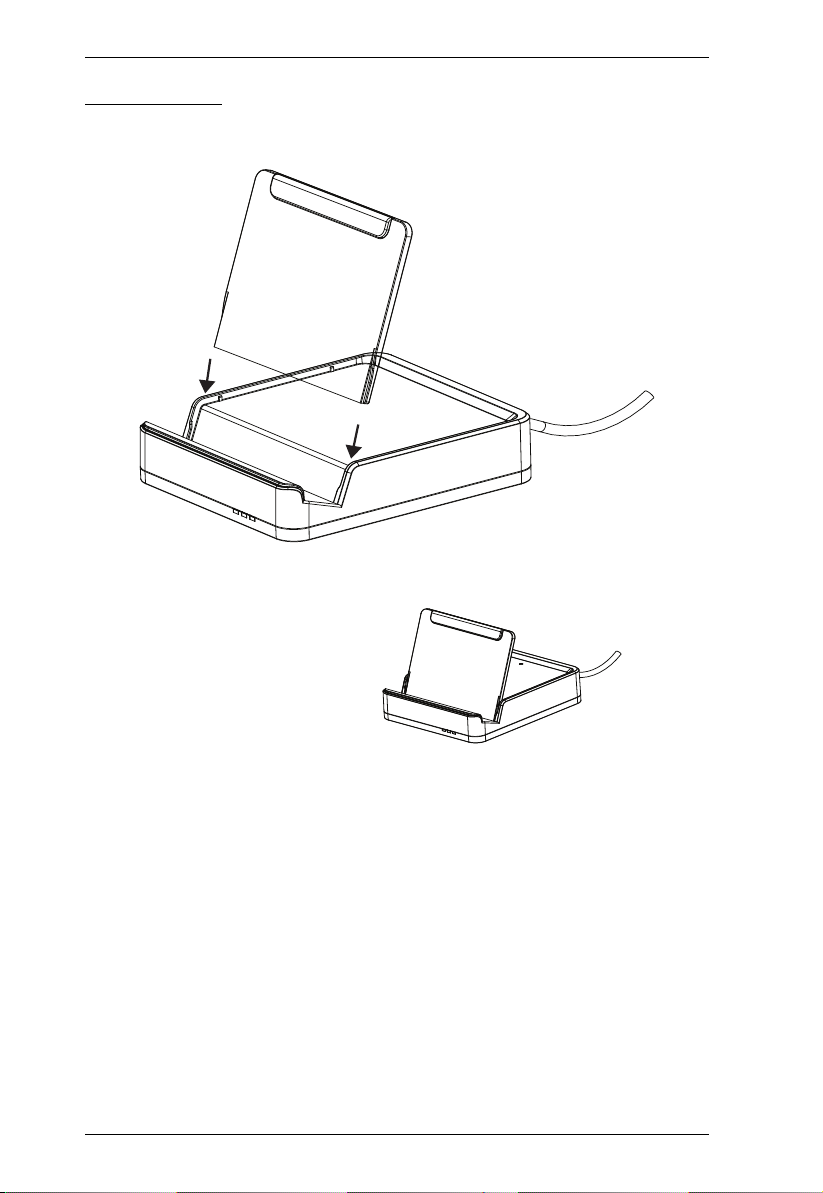

Plastic Stand
Insert the plastic stand as shown above and place the mobile device in the
cradle upright to hold it in place.

5
Chapter 2
Setup
Getting Started
To begin using the CS533 with your mobile device requires two steps,
explained in this chapter:
1. Connecting the Hardware
2. Connecting Bluetooth

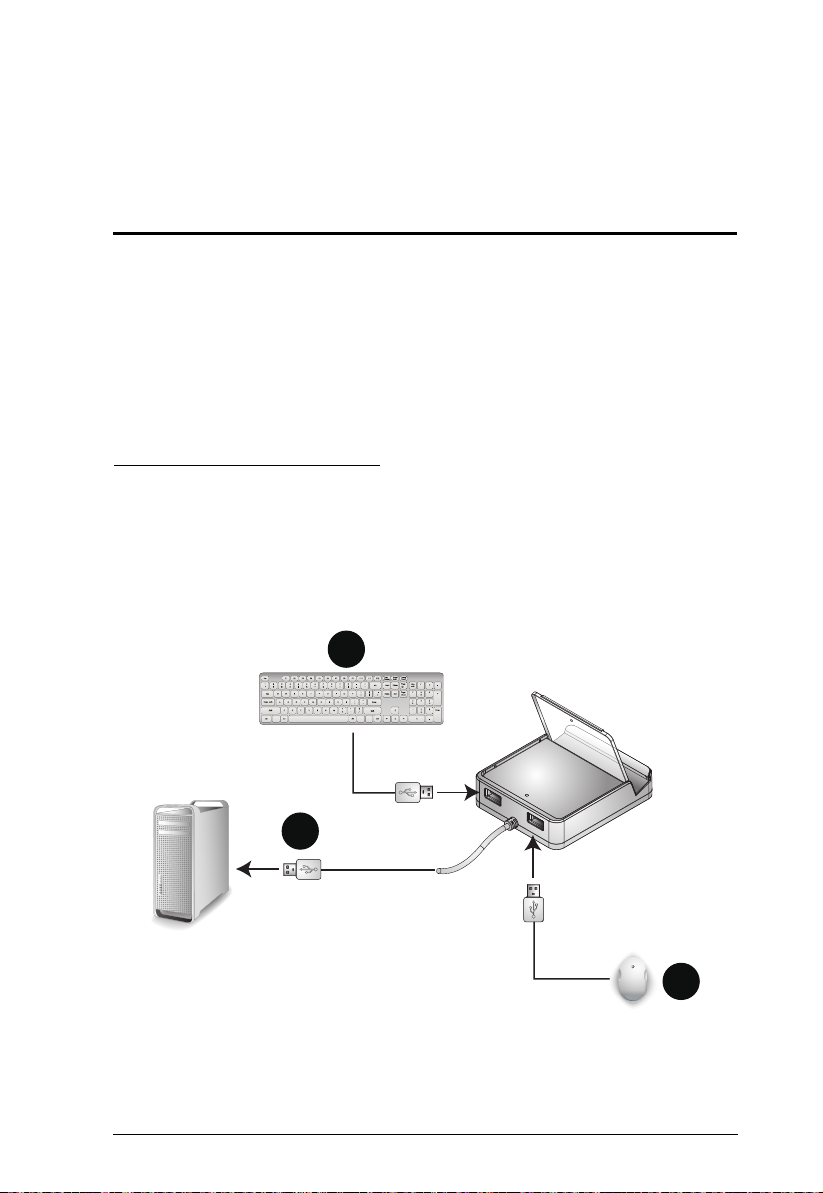

Connecting the Hardware
1. Plug the CS533’s USB cable into the computer:
2. Unplug the USB keyboard from the computer, and plug it into the CS533.
3. Unplug the USB mouse from the computer, and plug it into the CS533.
(Continues on next page.)
2
1
3

CS533 User Manual
6
(Continued from previous page.)
Note: 1. If you are using a wireless keyboard and mouse, be sure to plug the
wireless receiver into the CS533’s keyboard port.
2. When the CS533 is plugged into the computer, it switches to port #2
so you can connect a Bluetooth device. If you would like to use the
keyboard and mouse on the computer, use hotkey: [Alt][Alt] to
switch to port #1 (see Hotkeys, page 12).

Chapter 2. Setup
7
Connecting Bluetooth
To connect your iPad/iPhone via Bluetooth, do the following:
1. When the CS533 is plugged into the computer, it switches to port #2 to
connect a Bluetooth device.
2. The CS533’s #2 Blue LED light flashes:
3. Place your iPad/iPhone on the CS533:
4. From the Home Screen on your iPad/iPhone, go to: Settings:

CS533 User Manual
8
5. Select General, then Bluetooth:
6. Turn Bluetooth On.
7. With Bluetooth On, your iPad/iPhone will search for devices:

Chapter 2. Setup
9
8. When the CS533 is discovered, it appears on the screen.
9. Select CS533 from the iPad/iPhone, as shown above.
10. A message will appear on the iPad/iPhone screen:
11. From the USB keyboard, type the PIN code that appears on your iPad/
iPhone, and press Enter.
Note: If Bluetooth does not connect and pair with your device- repeat Step 9.

CS533 User Manual
10
12. The CS533 appears on the iPad/iPhone as Connected:
13. The keyboard is now connected and ready for use on the iPad/iPhone:
14. To switch the keyboard back to your computer, press:
Note: 1. If you have a problem with the Bluetooth connection, see Clear
Bluetooth Pairing, page 19, and repeat the steps above.
2. To connect a second Bluetooth device on the CS533, repeat the
instructions above, using [Alt]+[F3] for step 1.
3. To change the Keyboard Mapping for better use with a mobile device,
See Keyboard Mapping, page 17, for details.

11
Chapter 3
Input Method Editor (IME)
Overview
IME is a component to set English keyboards to use other languages. If your
device is used exclusively for English, you can skip this chapter.
An Input Method Editor (IME) is an operating system component that allows
users to enter characters and symbols not found on standard English keyboards.
For example; this allows users on English keyboards to input Chinese, Korean,
Japanese, or Indic characters.
To change your keyboard language using the IME on your computer or mobile
device, do the following:
1. Switch to the device you want to use (See Switching, page 15, for details).
2. To toggle the IME on or off, from the USB keyboard, press the hotkey:
3. Once IME is enabled, the device will use the characters of the language
setup for your device.
Note: It is recommended that iPad/iPhone users upgrade to iOS 6; as this
version provides the most effective IME component for typing in alternate
languages.
Keyboard Type iOS/Mac Hotkey Windows Hotkey
PC
Apple
+
Spacebar
+
Spacebar
+
Spacebar
+
Spacebar

12
Chapter 4
Advanced Functions
Overview
This chapter discusses the advanced functions of the CS533, including;
Hotkeys, Switching, Keyboard Mapping, Clearing Bluetooth, Resetting, and
Firmware Upgrades.
Hotkeys
The chart below lists the Hotkey functions and page for additional information.
The “+” means: hold-down [Alt], then press the second hotkey.
Function Hotkey Page
Switch to Port 1
Switches keyboard and mouse to the
Computer.
15
Switch to Port 2
Switches keyboard and mouse to the
Bluetooth Device.
Switch to Port 3
Switches keyboard and mouse to the
Bluetooth Device.
Switch Back
Switch to the previous port.
Clear Bluetooth Pairing
Clears Bluetooth pair
19
+
+
+3
+6
