ATEN CAMLIVE User manual
CAMLIVE User Manual
ii
EMC Information
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT: This equipment has been tested and found to comply with the
limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. Any changes or modifications made to
this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy. If not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
RoHS
This product is RoHS compliant.
CAMLIVE User Manual
iii
User Information
Online Registration
Be sure to register your product at our online support center:
Telephone Support
For telephone support, call this number:
User Notice
All information, documentation, and specifications contained in this manual are
subject to change without prior notification by the manufacturer. The
manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose. Any of the
manufacturer's software described in this manual is sold or licensed as is.
Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of all
necessary servicing, repair and any incidental or consequential damages
resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV
interference caused by unauthorized modifications to this device. It is the
responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation
of this system if the correct operational voltage setting was not selected prior to
operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS CORRECT
BEFORE USE.
International http://eservice.aten.com
International 886-2-8692-6959
China 86-400-810-0-810
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
1-949-428-1111
CAMLIVE User Manual
iv
Package Contents
1 CAMLIVE HDMI to USB-C UVC Video Capture
1 USB-C to USB-A Adapter*
1 User Instructions
*When using the adapter, if you are only detecting MJPG video, please
disconnect the USB-C head from the adapter, flip the USB-C head
around and reconnect it to the adapter. Please refer to Using USB-A
Adapter on page 13 for more details.
Note: Make sure that all of the components are present and in good
order. If anything is missing or was damaged in shipping, contact
your dealer.
CAMLIVE User Manual
v
Table of Contents
EMC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
RoHS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
User Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Product Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
1. Introduction
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Planning the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Hardware Setup
Connecting the CAMLIVE Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. Livestream / Record Setup
Livestream / Record Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Discovering CAMLIVE on your System. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Video and Audio Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using USB-A Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Appendix
Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
International. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
North America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
CAMLIVE User Manual
vi
About this Manual
This user manual is provided to help you get the most from the CAMLIVE unit.
It covers all aspects of installation, configuration, and operation. An overview of
the information found in the manual is provided below.
Chapter 1, Introduction introduces you to the HDMI to USB-C UVC Video
Capture. Its purpose, features, installation considerations, and panel
components are presented and described.
Chapter 2, Hardware Setup describes the steps that are necessary to quickly
and safely set up your installation.
Chapter 3, Livestream / Record Setup explains how to find CAMLIVE on your
system and presents how to setup video and audio source using an example
live-stream/record software/platform.
Appendix provides a list of safety instructions and precautions, contact
information for ATEN technical support, product specifications, and other
technical information.
Note:
Read this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit or any connected
devices.
ATEN regularly updates its product documentation for new features and
fixes. For an up-to-date CAMLIVE documentation, visit http://
www.aten.com/global/en/
CAMLIVE User Manual
vii
Conventions
This manual uses the following conventions:
Product Information
For information about all ATEN products and how they can help you connect
without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller.
Visit ATEN on the Web for a list of locations and telephone numbers:
Monospaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means to
press the Enter key. If keys need to be chorded, they appear
together in the same bracket with a plus sign between them:
[Ctrl+Alt].
1. Numbered lists represent procedures with sequential steps.
♦Bullet lists provide information, but do not involve sequential steps.
→Indicates selecting the option (on a menu or dialog box, for
example), that comes next. For example, Start
→
Run means to
open the Start menu, and then select Run.
Indicates critical information.
International http://www.aten.com
North America http://www.aten-usa.com
CAMLIVE User Manual
viii
This Page Intentionally Left Blank
1
Chapter 1
Introduction
Overview
"CAMLIVE" is an HDMI UVC Video Capture device that sends unencrypted
HDMI video to your USB-C or Thunderbolt 3 laptop (or USB-A with the included
adapter). It’s compliant with latest USB 3.1 Type-C specification.
CAMLIVE is designed to Plug & Play. Its built-in UVC and UAC standard
support allows system operation without installing drivers and, at the same time,
delivers eye-popping, high-quality video on Windows and Mac systems at 1080/
60fps. By sending captured RAW data, you can enjoy video editing or live
streaming with various popular third-party video-editing software/platforms -
Open Broadcaster Software (OBS), Xsplit, Twitch, YouTube, Facebook, to
name a few.
Having a slim and aesthetic design, CAMLIVE provides you with an enjoyable,
high-quality live streaming/video editing experience with style whether at work
or on the go.
CAMLIVE User Manual
2
Features
Captures unencrypted HDMI video signal such as camcorder or DSLR up
to 1080P @ 60*
Supports live video streaming, webcasting and video conferencing
Compatible with popular streaming software, such as OBS, Xsplit,
YouTube, Facebook and Twitch
Plug & Play – Supports UVC/UAC v1.1
Compatible with USB3.1 Gen1 Type-C standard
Works with all major operating systems: Windows® and OS X®
*CAMLIVE cannot display or capture HDCP protected content
Chapter 1. Introduction
3
Planning the Installation
Requirements
Prepare the following before installing the CAMLIVE unit:
1 HDMI and/or VGA source device
1 Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
Components
No. Component Description
1 HDMI Port Connects to an HDMI input.
2 USB-C Host
Connector
Connects to the host.
CAMLIVE User Manual
4
This Page Intentionally Left Blank
5
Chapter 2
Hardware Setup

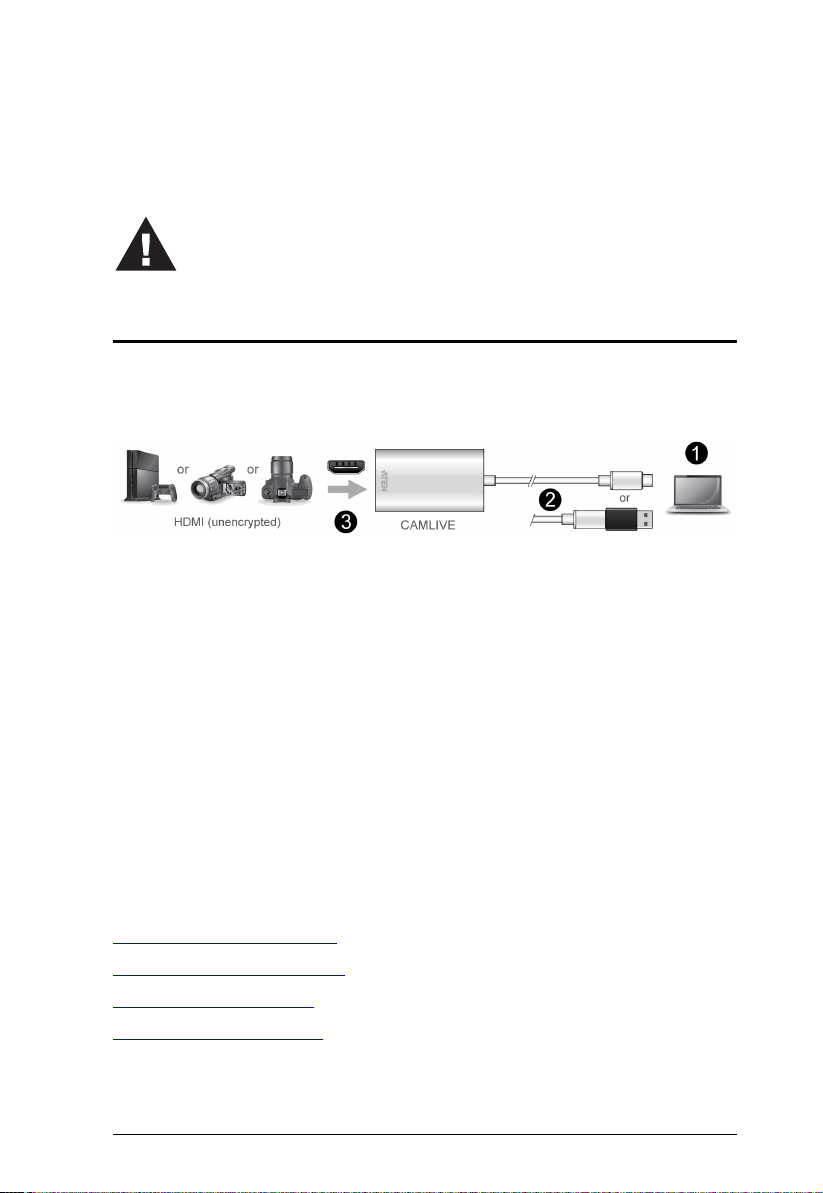

Connecting the CAMLIVE Unit
Follow the steps below to connect the CAMLIVE to an HDMI source and the
host.
1. Power on your host (e.g. laptop).
2. Connect the USB-C Host Connector to the host. If your laptop only has a
USB-A interface, connect the (included) USB-C to USB-A adapter*
between the host and the USB-C Host connector.
3. Connect your HDMI source device to the CAMLIVE’s HDMI port.**
*When using the adapter, if you are only detecting MJPG video, please disconnect the
USB-C head from the adapter, flip the USB-C head around and reconnect it to the
adapter. Please refer to Using USB-A Adapter on page 13 for more details.
**UC3020 cannot display or capture HDCP protected content
To enable CAMLIVE, please download and install a suitable video recording or
live streaming software for your requirement. Below lists some examples of
supported video recording / live streaming software.
All trademarks are property of their respective owners.
OBS: https://obsproject.com
Xsplit: https://www.xsplit.com
https://www.youtube.com
https://www.facebook.com
A general reference of how to go about using CAMLIVE is described in the next
chapter.
Please review the safety information regarding the placement
of this device in Safety Instructions, page 15.
CAMLIVE User Manual
6
This Page Intentionally Left Blank
7
Chapter 3
Livestream / Record Setup
Livestream / Record Platform
Below lists a few of the available live-streaming or recording software/platforms:
OBS: https://obsproject.com
Xsplit: https://www.xsplit.com
https://www.youtube.com
https://www.facebook.com
All trademarks are property of their respective owners.
Discovering CAMLIVE on your System
CAMLIVE is a plug-and-play device, please make sure your system is able to
discover it. After connecting CAMLIVE as shown in Connecting the CAMLIVE
Unit on page 5, refer to the MacOS example below on how your system may
discover CAMLIVE:
1. On the desktop, click to select “Go” followed by “Utilities”.
CAMLIVE User Manual
8
2. On the “Utilities” window, double-click “System Information” to bring up the
system window.
3. Go to the USB page by clicking “USB” under “Hardware”.
4. Under “USB 3.0 Bus”, you should see an “HDMI to U3 capture”. This
indicates that your system has successfully discovered CAMLIVE.
Chapter 3. Livestream / Record Setup
9
Go to the next section for an example of how to setup both video and audio for
live-streaming and recording using CAMLIVE.
Video and Audio Setup
After your system discovers CAMLIVE, choose your livestream/record platform.
You will need to setup the video and audio source coming from CAMLIVE.
Follow the steps below to setup your video and audio sources (separately).
Note: OBS software is the example used in the setup steps below.
CAMLIVE User Manual
10
1. On your system, open the OBS software.
2. Locate and click the “+” button on the bottom of the “Sources” pane
(outlined in red in the picture below) to open the add source menu:
Chapter 3. Livestream / Record Setup
11
3. Select “Video Capture Device” or “Audio Capture Device.
4. A pop-up window will be shown for you to name the video/audio source.
Click the “OK” button to continue.
It is recommended that “Make source visible” is checked.
CAMLIVE User Manual
12

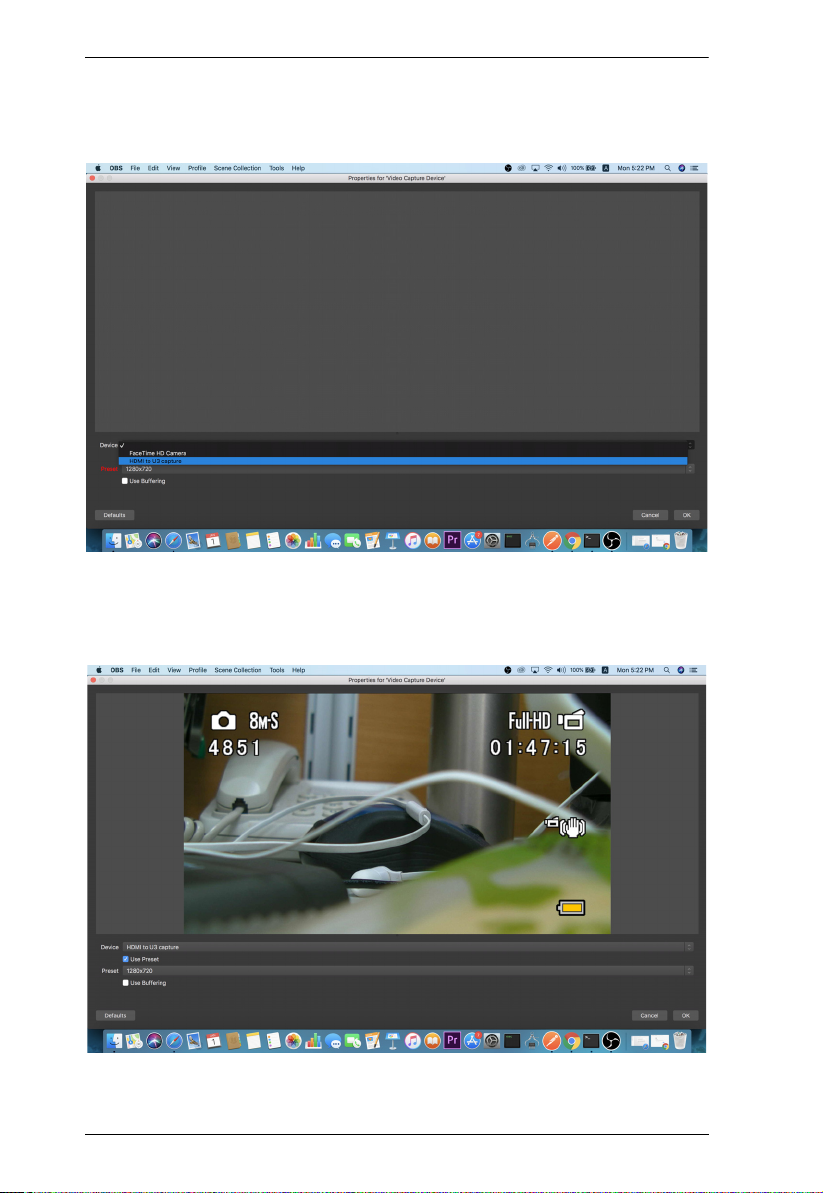

5. On the properties page, click the drop-down menu named “Device” to
select CAMLIVE’s video/audio source. Both the video and audio sources of
CAMLIVE have the name “HDMI to U3 capture”.
After selecting the video source, the image from CAMLIVE should be
displayed as shown below.
Click the “OK” button to continue.
Table of contents
Other ATEN Adapter manuals
