ATEN US3311 User manual

US3311
2-Port 4K DisplayPort USB-C KVM
Dock Switch with Power
Pass-Through
User Manual

US3311 User Manual
ii
Compliance Statements
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT
This equipment has been tested and found to comply with the limits for a Class
B digital service, pursuant to Part 15 of the FCC rules These limits are
designed to provide reasonable protection against harmful interference in a
residential installation Any changes or modifications made to this equipment
may void the user’s authority to operate this equipment This equipment
generates, uses, and can radiate radio frequency energy If not installed and
used in accordance with the instructions, may cause harmful interference to
radio communications However, there is no guarantee that interference will
not occur in a particular installation If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
The device complies with Part 15 of the FCC Rules Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment
KCC Statement

US3311 User Manual
iii
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003
RoHS
This product is RoHS compliant

US3311 User Manual
iv
User Information
Online Registration
Be sure to register your product at our online support center:
Telephone Support
For telephone support, call this number:
User Notice
All information, documentation, and specifications contained in this manual
are subject to change without prior notification by the manufacturer The
manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose Any of
the manufacturer's software described in this manual is sold or licensed as is
Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of all
necessary servicing, repair and any incidental or consequential damages
resulting from any defect in the software
The manufacturer of this system is not responsible for any radio and/or TV
interference caused by unauthorized modifications to this device It is the
responsibility of the user to correct such interference
The manufacturer is not responsible for any damage incurred in the operation
of this system if the correct operational voltage setting was not selected prior
to operation PLEASE VERIFY THAT THE VOLTAGE SETTING IS
CORRECT BEFORE USE
International http://eservice.aten.com
International 886-2-8692-6959
hina 86-400-810-0-810
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
1-949-428-1111

US3311 User Manual
v
Product Information
For information about all ATEN products and how they can help you connect
without limits, visit ATEN on the Web or contact an ATEN Authorized
Reseller Visit ATEN on the Web for a list of locations and telephone numbers:
International http://www.aten.com
North America http://www.aten-usa.com

US3311 User Manual
vi
Package Contents
Check to make sure that all the components are in working order If you
encounter any problem, please contact your dealer
1 US3311 2-Port 4K DisplayPort USB-C KVM Dock Switch with Power
Pass-Through
1 power adapter
2 USB-C cables
1 port switch button
1 user instructions

US3311 User Manual
vii
Table of Contents
ompliance Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
User Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Package ontents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Table of ontents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .viii
onventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
1. Introduction
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Host Requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. Hardware Setup
onnecting the Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3. The Firmware Upgrade Utility
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Downloading the Firmware Upgrade Package . . . . . . . . . . . . . . . . . . . 9
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Starting the Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Upgrade Succeeded . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Upgrade Failed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Appendix
Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
North America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
ATEN Standard Warranty Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

US3311 User Manual
viii
About this Manual
This user manual is provided to help you get the most from the US3311 unit It
covers all aspects of installation, configuration, and operation An overview of
the information found in the manual is provided below
Chapter 1, Introduction introduces you to the 2-Port 4K DisplayPort USB-
C KVM Dock Switch with Power Pass-Through Its purpose, features,
declaration, and panel components are presented and described
Chapter , Hardware Setup describes the steps that are necessary to
quickly and safely set up your installation
Chapter 3, The Firmware Upgrade Utility explains how to download
US3311’s firmware files and upgrade the device using the utility
Appendix provides a list of safety instructions and precautions, contact
information for ATEN technical support, product specifications, and other
technical information
Note:
Read this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit or any connected
devices
This product may be updated with features and functions added, improved
or removed since the release of this manual For an up-to-date user
manual, visit http://www aten com/global/en/

US3311 User Manual
ix
Conventions
This manual uses the following conventions:
Monospaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means to
press the Enter key. If keys need to be chorded, they appear
together in the same bracket with a plus sign between them:
[ trl+Alt].
1. Numbered lists represent procedures with sequential steps.
♦Bullet lists provide information, but do not involve sequential steps.
>Indicates selecting the option (on a menu or dialog box, for
example), that comes next. For example, Start > Run means to
open the Start menu, and then select Run.
Indicates critical information.

US3311 User Manual
x
This Page Intentionally Left Blank

1
Chapter 1
Introduction
Overview
Built to deliver easy control and seamless switching between dual USB-C
hosts, the US3311 is a 2-in-1 solution combining a KVM switch and a
multiport dock with 4 x USB Type-A ports, 1 x DisplayPort, 1 x USB-C PD
input, and 1 x DC jack input Quick switching from one laptop to the other is
made easy through one press of the dedicated port switch button, enabling use
of the same USB peripherals and a single DisplayPort monitor for two host
devices Work efficiency is boosted without the need to switch workstations or
unplug peripherals
Other highlights include video resolution support for up to 4K (3840 x 2160)
@ 60 Hz, ensuring that every video detail is displayed in crisp UHD quality
The US3311 is a 4-port USB 3 2 Gen 1 Type-A hub with up to 5 Gbps data
transfer rates while supporting high-speed downstream devices Furthermore,
the Power Delivery 3 0 technology enables charging of the host device with up
to 100 W, allowing your laptop to obtain the maximum power via your USB-
C power adapter The US3311 helps save valuable desk space and expands the
functionality and connectivity of your Mac laptops, creating an ultra-powerful
USB-C workstation

US3311 User Manual
2
Features
2-in-1 solution for 2 USB-C host devices – combines a KVM switch and a
multiport dock with 4 x USB 3 2 Gen 1 Type-A ports, 1 x DisplayPort, 1 x
USB-C PD input, and 1 x DC jack input
Superior video quality – up to True 4K (3840 X 2160 @ 60 Hz)
ATEN Video DynaSync™ Technology - eliminates boot-up display
problems and optimizes resolutions when switching among video sources
USB 3 2 Gen 1 compliant
Up to 5 Gbps data transfer rates
Supports DP 1 4 Alt Mode
Supports PD 3 0 up to 100 W USB PD charging - allows your laptop to
obtain the maximum power via your USB-C power adapter
Host device selection via the included port switch button
Plug-and-Play – no drivers needed

hapter 1. Introduction
3
Host Requirement
USB-C enabled computer or smartphone / tablet with one of the following
operating systems:
Windows® 10 (32-bit / 64-bit) with 7
th
-Gen Intel Core Processor or above
Windows 10 version 2004
Windows 11 version 21H2
MacOS X 10 12 or later
MacBook Pro 10 15 4
MacBook Air 11 3 1
Mac mini OS 11 3 1
Mac mini OS 12 3 1
MacBook Air 13” (A1932) 2018 macOS Monterey 12 2 1
Mac mini (A1993) 2018 macOS Monterey 12 4
iPadOS 13 1 or later
iPad Pro 11 (A2377) iPadOS 15 1
Android 8 0 or later
Huawei Mate 20 Harmony OS 2 0 0
Samsung Galaxy S21 Android 11
Samsung Galaxy Tab S7+ Android 12
Note: To transmit video through a USB-C port, make sure your computer
supports DP Alt Mode over the USB-C port, and that it has been
enabled

US3311 User Manual
4
Declaration
Samsung Dex is a registered application of Samsung Electronics US3311 is
not manufactured, sponsored, licensed or distributed by Samsung Electronics
Huawei Desktop mode is a registered application of Huawei Technologies
US3311 is not manufactured, sponsored, licensed or distributed by Huawei
Technologies
Below is a list of supporting mobile device:
Samsung Huawei HTC LG
Samsung Galaxy S8 Huawei P20 HT U11 LG V20
Samsung Galaxy S8+ Huawei P20 Pro HT U Ultra
Samsung Galaxy S9
Samsung Galaxy S9+
Samsung Galaxy S10
Samsung Galaxy S10+
Samsung Galaxy S10e
Samsung Galaxy Note 8
Samsung Galaxy Note 9

hapter 1. Introduction
5
Hardware Overview
No. Component Description
Front View
1 USB Type-A
ports
onnects up to 4 USB peripherals such as a USB mouse,
USB keyboard, camera, USB headset, or external hard drive.
Note: These ports are USB 3.2 Gen 1 compliant.
Rear View
2 jack for port
switch button
The port switch button plugs in here. lick the button to
switch the KVM control between the two computers.
1
8
9
5432 76

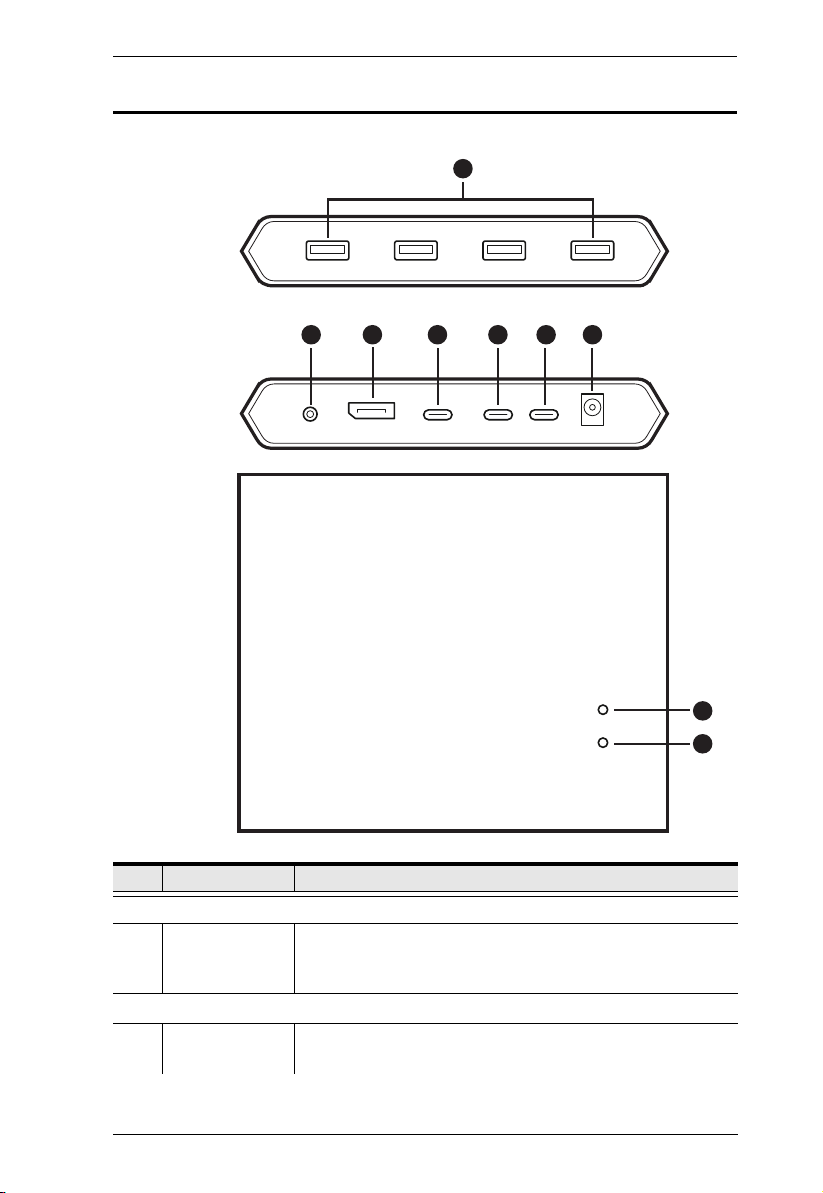

Front View
Rear View
Top View

US3311 User Manual
6
3 Display output
port
onnects to a DisplayPort-enabled monitor for video display.
4 USB- port
(source 2)
onnects to a USB- source device here.
Note: This USB- port supports device charing such as an
iPad for up to 5V, 3A, 15W. Please check the power
specification of the device before charging.
5 USB- port
(source 1)
onnects to a USB- source device here.
6USB- port
(power)
onnects to a laptop power adapter for laptop PD charging
on the source device connected to the USB- port (source
1).
Note:
 This USB- port (power) supports USB- PD laptop
charging at 5V, 9V, 15V, and 20V output, and the USB-
power adapter is not supplied in the package.
 For device charging, a Limited Power Source (LPS)
certified USB- PD Power Adapter over 65 watts is
recommended. The system power requirement for basic
USB functions and video output should be at least 5V,
3A.
7 power jack onnects to the power adapter here.
Top View
8 port 1 status
LED
The LEDs correspond to the consoles. When the console is
switched, the corresponding LED will light.
9 port 2 status
LED
No. Component Description

7
Chapter
Hardware Setup
Connecting the Unit
Follow the steps below to connect the US3311 unit
1 Please review the safety information regarding the placement of
this device in Safety Instructions, page 15
2 To prevent damage to your installation from power surges or
static electricity It is important that all connected devices are
properly grounded

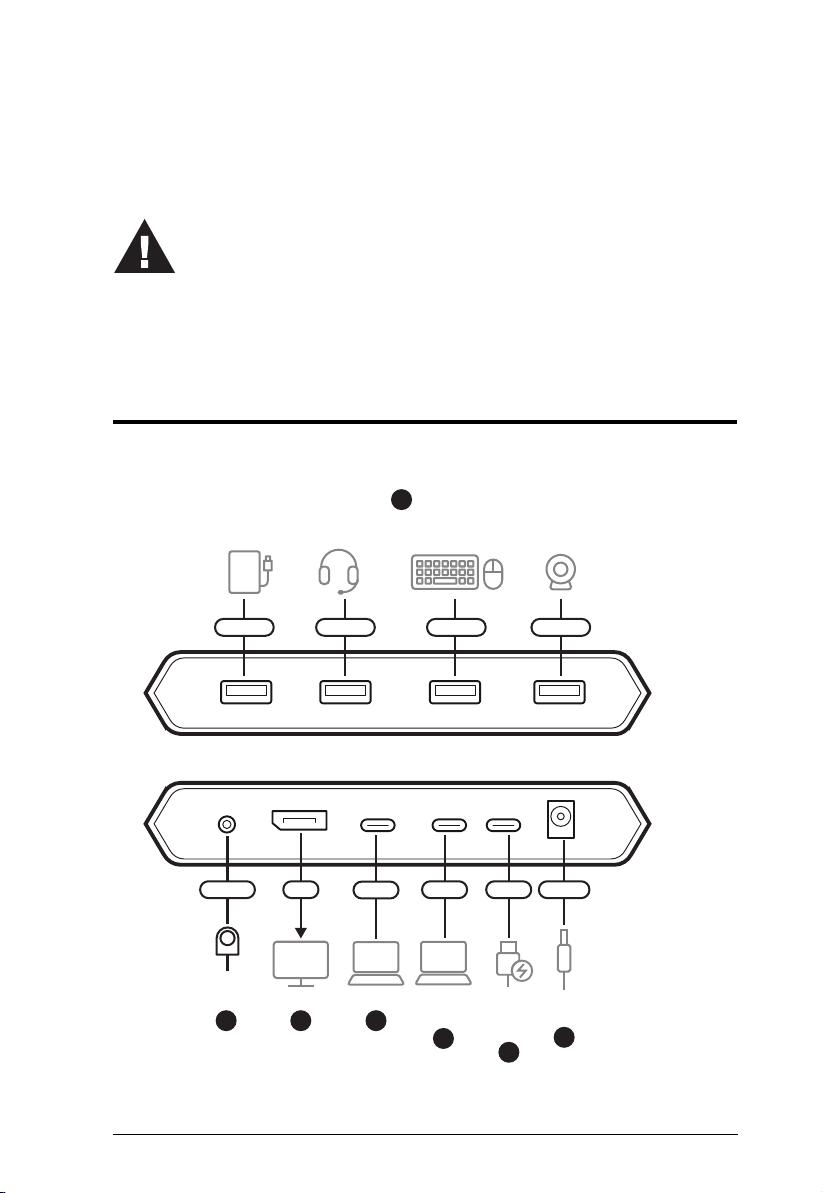

US3311
(Front)
US3311
(Rear)
Keyboard / Mouse
External
Hard Drive
1
Monitor
Power
Power
Adapter
Port Switch
Button Laptop
(PD Charging)
Laptop
2
3
4
56
7
USB-C USB-C2.5 MM DP
Laptop
Power
Adapter
USB-C
USB Headset Camera
USB 3.2* USB 3.2* USB 3.2* USB 3.2*
or or or
*The indicated ports are USB 3.2 Gen 1 compliant.

US3311 User Manual
8
1 Connect up to 4 USB peripherals such as a USB mouse, USB keyboard,
printer, or external hard drive to the unit’s USB Type-A ports
2 Connect a USB-C source device to the unit’s USB-C port (source 1)
3 Connect another USB-C source device to the unit’s USB-C port (source 2)
4 Connect a DisplayPort-enabled display to the unit’s DisplayPort output
port
5 Connect the supplied port switch button to the indicated jack
6 Connect the power adapter to the unit’s power jack
7 (Optional) You can connect your source device to the USB-C port (power)
for PD laptop charging
Note: For device charging, a Limited Power Source (LPS) certified USB-
C PD Power Adapter over 65 watts is recommended The system
power requirement for basic USB functions and video output should
be at least 5V, 3A
Operation
Press the port switch button to switch KVM control between the two USB-
C source devices The port LED for the selected port lights white
Press and hold the port switch button for 3 seconds if you encounter any
monitor compatibility issues

9
Chapter 3
The Firmware Upgrade Utility
Overview
As new firmware versions become available, new firmware upgrade packages
are posted on our website Check the website regularly to find the latest
information and packages
Downloading the Firmware Upgrade Package
To download the firmware upgrade package:
1 On our Website, go to Support Center - Download and choose the device
model, or from the US3311 product page, click on the Support and
Downloads tab, and go to Software & Drivers A list of available firmware
upgrade packages appears
2 Choose the firmware upgrade package that you wish to install (usually the
most recent) and download it to your computer

US3311 User Manual
10
Preparation
To prepare for the firmware upgrade, do the following:
1 Power off the US3311
2 Connect the USB-C port (source 1) to the computer (which the firmware
upgrade package was downloaded to) using the supplied USB-C cable
3 Press and hold the port switch button and make sure the port switch button
is connected to the US3311
4 Plug the power adapter cable into the power jack to power on the US3311
The port 1 status and port 2 status LEDs blink together once every 0 5
seconds to indicate Firmware Upgrade Mode is in effect
Starting the Upgrade
To upgrade the US3311, follow the steps below:
1 Run the downloaded Firmware Upgrade Package file – either by double
clicking the file icon, or by opening a command line and entering the full
path to it
The Firmware Upgrade Utility Welcome screen appears:
