ATEQ Huf VT46-HUF User manual

USER GUIDE
VT46-HUF
Version JHUF2-07
Powered by
Reference: UM-365HUA-U

REVISION OF THE VT46-HUF GUIDE
Due to continuing improvements, the information contained in this user manual, and the features and design
of this device are subject to be changed without prior notice.
Edition/
Revision Reference Date
(week/year) Chapters updated
First edition UM-365HUA-U 24/2017 S/W version JHUF2-07.
Powered by

VT46-HUF TPMS TOOL Table of contents
UM-365HUA-U User manual VT46-HUF Page 1/34
TABLE OF CONTENTS
User Guide 2
VT46-HUF TPMS TOOL..................................................................................................2
1. SPECIFICATIONS ...............................................................................................................................2
2. IMPORTANT SAFETY INSTRUCTIONS.............................................................................................3
3. CAUTION.............................................................................................................................................4
4. TOOL OVERVIEW...............................................................................................................................5
5. FUNCTION KEYS................................................................................................................................6
6. POWER ON..........................................................................................................................................7
7. OPERATING INSTRUCTIONS............................................................................................................8
TOOL USAGE.................................................................................................................9
1. CHECK SENSOR ................................................................................................................................9
2. SERVICE TPMS.................................................................................................................................13
3. PROGRAM BLANK SENSOR...........................................................................................................16
SETTINGS.....................................................................................................................20
1. SETTINGS..........................................................................................................................................20
RECENT SENSOR DATA.............................................................................................25
1. RECENT SENSOR DATA .................................................................................................................25
RKE TEST.....................................................................................................................26
1. RKE TEST..........................................................................................................................................26
MISCELLANEOUS .......................................................................................................28
1. CHARGE............................................................................................................................................28
2. TROUBLESHOOTING.......................................................................................................................29
3. TOOL UPDATE..................................................................................................................................30
4. LIMITED HARDWARE WARRANTY ................................................................................................31
5. SAFETY BATTERY AND CHARGE INFORMATION.......................................................................31
6. FCC STATEMENTS...........................................................................................................................33
7. CE STATEMENTS.............................................................................................................................33
8. RECYCLING ......................................................................................................................................33
Index 34

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 2/34
User Guide
VT46-HUF TPMS TOOL
1. SPECIFICATIONS
Battery Type: Rechargeable Lithium-Polymer.
Battery Life: Approximately 300 activations per full charge.
Dimensions (Max. L,W,D): 20.0 cm x 12.0 cm x 4.0 cm.
Case Material: High Impact ABS.
Response Frequency: Main frequencies: 315 MHz and 433.92 MHz (supporting
most specific frequencies).
Low Battery Indication: LCD bar graph display.
Weight: Approx. 2 lbs.
Temperature: Operating: -20° C to +55° C.
Storage: -40° C to +60° C.
Operating Altitude: Up to 6560 ft (2000 m).
Product content:
VT46-HUF TPMS Tool.
USB cable.
Power adapter (UK, US, Europe).
Optional accessories:
OBDII Module + RJ45 cable.

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 3/34
2. IMPORTANT SAFETY INSTRUCTIONS
Do not discard. Retain for future reference.
This device complies with:
- Part 15 of the FCC Rules (FCC ID: 2ABSJ-VT46)
- CE / CEM standards
- ROHS standards
Operation is subject to the following two conditions:
(1) This device will not cause harmful interference, and
(2) This device will accept any interference received, including interference that may
cause undesired or improper operation.
WARNING: This product emits electromagnetic and electronically
generated waves that may interfere with the safe operation of
pacemakers.
Individuals that have pacemakers should never use this product.
Read the Warranty, Safety and Recycling information at the end of this user guide.
Powered by

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 4/34
3. CAUTION
PLEASE READ THESE INSTRUCTIONS BEFORE USE
Your Tire Pressure Monitoring (TPM) tool has been designed to be durable, safe, and
reliable when properly used.
All TPMS TOOLS are intended for use only by qualified and trained automotive
technicians or in a light industrial repair shop environment. Please read all instructions
below before use. Always follow these safety instructions. If you have any questions
pertaining to the safe or reliable use of this tool, please call your local dealer.
3.1. READ ALL INSTRUCTIONS
All warnings on the tool and in this manual should be adhered to. All operating instructions
should be followed.
3.2. RETAIN INSTRUCTIONS
The safety and operating instructions should be retained for future reference.
3.3. HEED WARNINGS
Users and bystanders must wear safety goggles and must read instructions before use.
Do not use on live electrical circuits, due to risk of entanglement.
3.4. CLEANING
Clean with a soft dry cloth, or if necessary, a soft damp cloth. Do not use any harsh
chemical solvents such as acetone, thinner, brake cleaner, alcohol, etc as this may
damage the plastic surface.
3.5. WATER &MOISTURE
Do not use this tool where contact or immersion in water is a possibility. Never spill liquid
of any kind onto the tool.
3.6. STORAGE
Do not use or store the tool in an area where it is exposed to direct sunlight or excessive
moisture.
3.7. USAGE
To reduce the risk of fire, do not operate the tool in the vicinity of open containers or
flammable liquids. Do not use if the potential for explosive gas or vapors exists. Keep the
tool away from heat generating sources. Do not operate the tool with the battery cover
removed.

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 5/34
4. TOOL OVERVIEW
4.1. LIGHTS
Trigger light Result light
"Fail" Result light "Pass" Battery status
4.2. CONNECTORS
RJ45 connector for OBD
module connection USB connector for battery charge and
firmware update.
Display screen
Keyboard
Antenna

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 6/34
5. FUNCTION KEYS
Power ON/OFF switch Test or trigger sensor.
Next, continue or confirm. Cancel, previous step.
Navigate to select "up”. Navigate to select “down”.
Navigate to select “left”. Navigate to select “right”.

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 7/34
6. POWER ON
Press key to turn on the device.
The TPMS TOOL:
First displays the logo as Fig. 1.
Fig. 1
The software version and the work zone as
Fig. 2.
Fig. 2
The MAIN MENU will then be displayed as
Fig. 3.
Fig. 3

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 8/34
7. OPERATING INSTRUCTIONS
7.1. TPMS TOOL OVERVIEW
Read and diagnose sensors, OBDII ECU reset and transfer data to ECU.
Note: With some vehicles, if the vehicle is in “learn mode” the vehicle will also confirm that the
TPM sensor has communicated to the ECU with a series of horn beeps.
Service Procedure
Section 1.0: Read Sensor Test
Before servicing the tires/wheels, using your TPMS TOOL,
trigger each of the vehicle's sensors to make sure they are
working properly.
This will eliminate the liability associated with replacing
previously damaged or defective sensors. This procedure will
not change the vehicle settings because the vehicle has yet to
be put into learn/retraining mode.
This procedure allows you to quickly identify damaged or defective sensors, because some
vehicles do not report a damaged or defective sensor condition on the instrument cluster for up to
20 minutes.
Note: If the sensors do not trigger, please refer to the Troubleshooting section of this Guide.
Perform tire/wheel service.
For vehicles that require retraining, please see Section 2.0
Section 2.0: Learning the TPM System
Based on the Make-Model-Year of the vehicle, the tool informs
which relearn procedure is required: Auto, Manual or OBDII
relearn procedure.
For Manual and OBD relearn procedures, follow the instructions
on the tool screen. See paragraph 2 "Service TPMS" menu for
more information.
For vehicles with Auto relearn procedure, where the ECU is automatically
reset when driving the car, it is recommended to trigger each wheel
sensor, one final time, to make sure they are in correct working order prior
to releasing the vehicle to the customer.
1 LF
4 LR
RF 2
RR 3
Fig. 4

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 9/34
TOOL USAGE
IMPORTANT:
Vehicle specific information in this manual is used as an example and may not
represent specific instructions each make and model may require. When performing
various functions with the tool, it is important to refer to the on-screen prompts
and/or repair manual information.
1. CHECK SENSOR
= continue
= previous
1.1. SELECT CAR MANUFACTURER
= continue
= previous

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 10/34

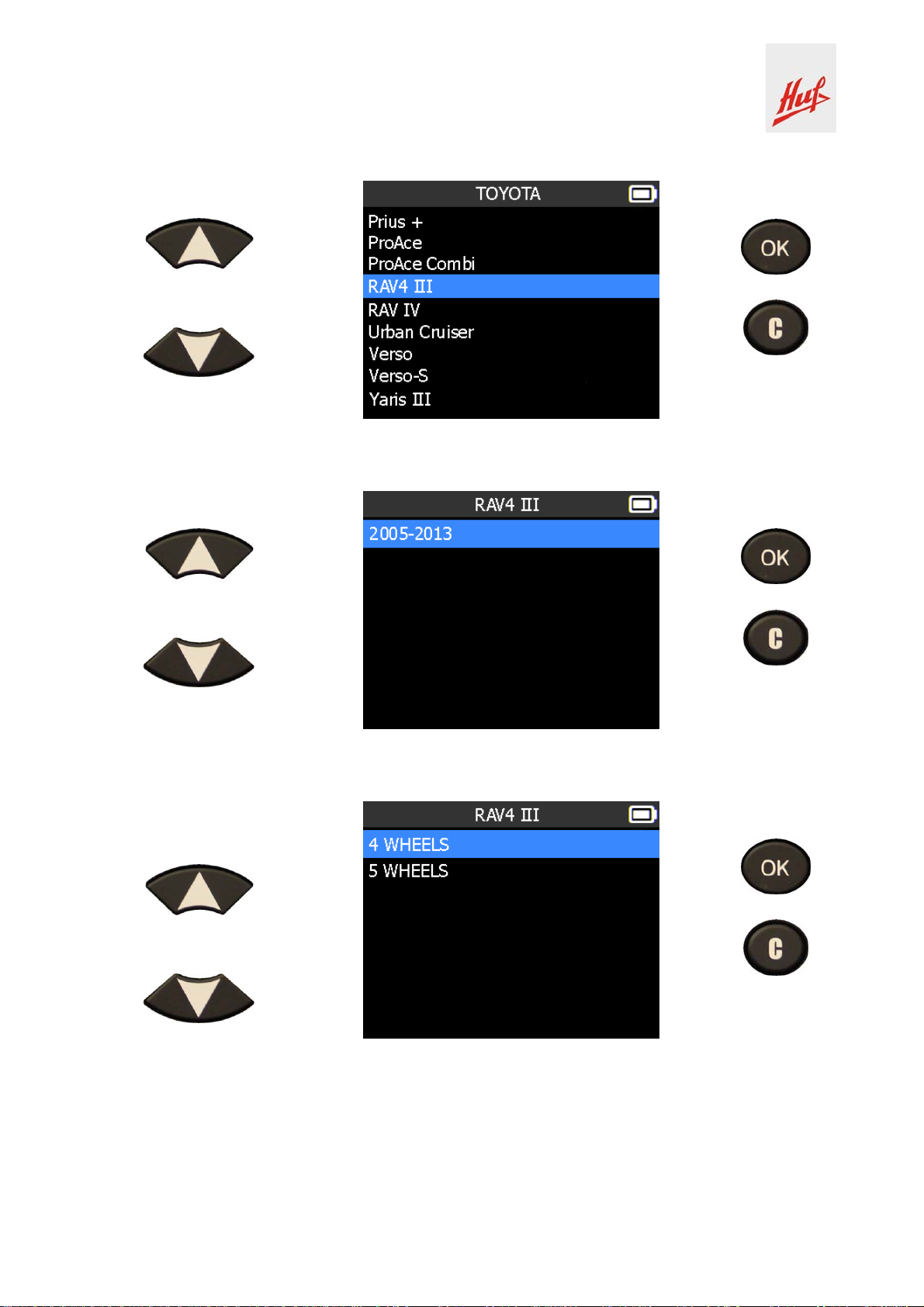

1.2. SELECT CAR MODEL
= continue
= previous
1.3. SELECT YEAR
= continue
= previous
1.4. SELECT NUMBER OF WHEELS
This option does not
appear for all vehicles.
= continue
= previous

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 11/34
1.5. TEST SENSORS (TRIGGER)
Select tire.
= continue
= previous
1.6. TEST RESULTS
LF
To select another tire or
The tool is triggering the sensor.
to select next
tire
RF
RR
LR

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 12/34

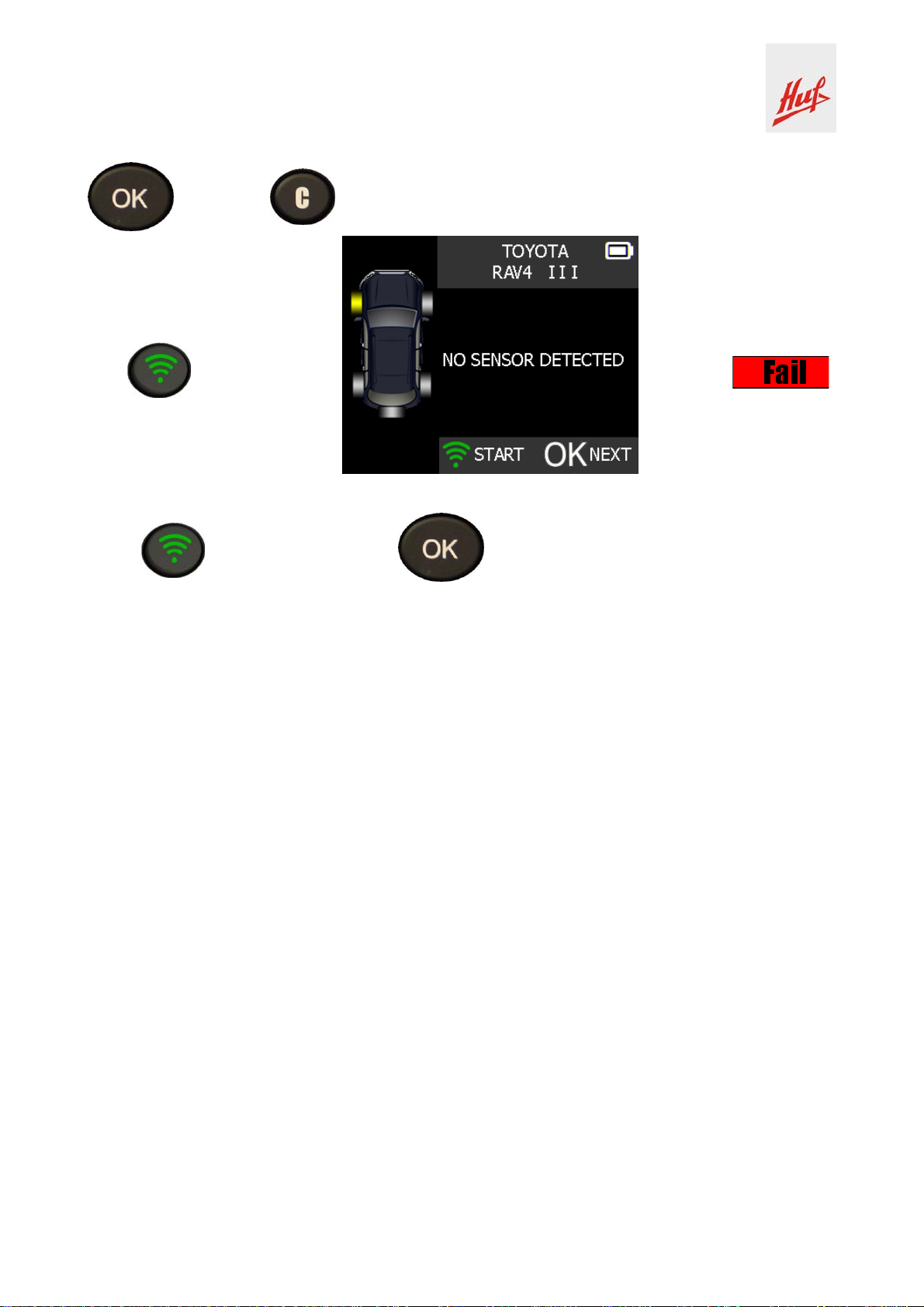

Trigger all wheels.
= continue = previous and erase results (no save)
LF
The tool does not detect a sensor
Press to test again. Or press to move on to the next step.

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 13/34
2. SERVICE TPMS
This menu has two functions, first to relearn sensor IDs to the ECU and second to read all
sensor spare part numbers available by vehicle.
Select "SERVICE TPMS"
menu.
= continue
= previous
Select car manufacturer.
Select car model.
Select year.
2.1. OBDII RELEARN
This menu is to reprogram or relearn the ECU through the OBDII port.
Select OBDII
= continue
= previous
= continue
= previous
Select wheel number.
Proceed with "Sensor check" to trigger all the sensors.

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 14/34
2.1.1. Reprogram ECU through OBDII port
The tool is triggering the sensor.
= continue
= previous
Plug OBDII module into
the OBDII port on vehicle.
= continue
= abort
Note: the following screen message is displayed when all the sensors are triggered and
the OBDII module is connected to the TPMS TOOL.
Wait a few seconds during
the data upload.

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 15/34
Note: this feature is not supported on all vehicles.
The data has been
successfully transferred to
the ECU.
The OBDII module can
now be unplugged from
the ECU.
= abort
2.2. PART #LOOKUP
This spare parts data base indicates the sensors available for each car.
= continue
= previous
= continue
= abort

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 16/34
3. PROGRAM BLANK SENSOR
This section explains how to recover a sensor ID in order to enter it in a blank sensor. If
the "old" sensor can be read, use the "COPY ORIGINAL SENSOR" menu to recover the
ID. If it cannot be read, use the "CREATE NEW SENSOR" menu to create a randomized
ID.
Select
"PROGRAM SENSOR"
menu.
= continue
= previous
Select car manufacturer.
Select car model.
Select year.
The device displays the
blank sensor reference.
= continue
= previous
Note: this is an example.

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 17/34
3.1. "COPY ORIGINAL SENSOR"MENU
= continue
= previous
to trigger the
original sensor
Wait a few seconds.
ID of the old sensor is
displayed.
= continue
= previous

VT46-HUF TPMS TOOL User guide
UM-365HUA-U User manual VT46-HUF Page 18/34
Hold the new
programmable sensor
near the device antenna.
to upload data
to the blank
sensor.
Wait a few seconds.
Wait a few seconds.
The data has now been
successfully transferred to
the sensor.
= continue
