USER MANUAL

ATH AC134a



© Copyright by ATH-Heinl GmbH & Co. KG, 2014, All rights reserved. / Subject to misprints and technical changes / Version: 05/2014
2 / 36
Contents

General information........................................................................................................................................................ 3
Disclaimer ................................................................................................................................................................... 3
Disposal of the device ................................................................................................................................................ 4
Safety instructions ...................................................................................................................................................... 5
Introduction..................................................................................................................................................................... 7
Specifications ................................................................................................................................................................. 8
Function table................................................................................................................................................................. 9
Parts description........................................................................................................................................................... 10
Panel survey................................................................................................................................................................. 12
Commissioning............................................................................................................................................................. 13
Filling of refrigerant, PAG oil and UV........................................................................................................................ 14
A/C wiring diagram....................................................................................................................................................... 15
Suction (Recovery)....................................................................................................................................................... 16
Vacuum......................................................................................................................................................................... 17
Adding oil...................................................................................................................................................................... 18
Filling ............................................................................................................................................................................ 19
Automatic procedure .................................................................................................................................................... 21
Calibration................................................................................................................................................................. 23
Scale for UV, new and used oil tank......................................................................................................................... 25
Pressure relief........................................................................................................................................................... 27
Unit of measurement ................................................................................................................................................ 28
Weight input for empty tanks.................................................................................................................................... 28
Service interval............................................................................................................................................................. 29
Troubleshooting............................................................................................................................................................ 30
Warranty ....................................................................................................................................................................... 33
Notes ............................................................................................................................................................................ 34















3 / 36

General information

The ATH AC134 eco is intended for professional use and should only be used by specialists or by a qualified

expert.

Because of the Chemical-Climate-Protection-Ordination of 2010 working on an air condition of motor vehicles may

be done only by persons, which are in possession of a certificate of competence. The minimum requirements for the

competence training are described in Regulation (EC) no. 307/2008.

In this context it should be noted that the competence requirements of the Federal Ministry for the Environment,

Nature Conservation and Nuclear Safety also apply to motor vehicle air-conditioning systems in commercial

vehicles, although the Regulatory Area of Regulation (EC) no. 307/2008 only on passenger cars and light

commercial vehicles is limited. In activities related to the recovery of refrigerants from motor vehicle air-conditioning

systems for automotive interior air-conditioning (passenger compartment and cab) in trucks, buses, construction

equipment and other commercial vehicles, a proof of competence on the basis of the requirements of Regulation

(EC) No. 307/2008 is required.

Disclaimer

All information, illustrations and specific information in this manual are based on the latest information

that was available at that time.

ATH-Heinl GmbH & Co.KG reserves all rights to make changes at any time without notice.

4 / 36

Disposal of the device

This device may not return to normal household waste, but it must be disposed of as hazardous waste.

The reuse or the right recycling of electrical and electronic equipment (EEE) is useful for the protection

of the environment and human health.

In accordance with the European WEEE Directive 2002/96 / EC are specific collection centers

available, where the waste of electrical appliances are to be transferred.

The public administration and the producers of electrical and electronic equipment shall endeavor to

facilitate the reuse and recycling processes of the waste of electrical and electronic equipment through

the organization of collection activities and through appropriate planning measures.

The law punishes those with appropriate sanctions, who illegally dispose of electrical and electronic

waste.

Electrical Equipment Register

WEEE-Reg.-Nr. DE 73551752

According to § 6, paragraph 1, sentence 1, § 17 paragraph 1 and 2 ElectroG in connection with the lending

decision of the Federal Environment Agency of 06.07.2005 for below mentioned brand and device type with

the following data:

Company ATH-Heinl GmbH & Co.KG

Place of business: 92237 Sulzbach-Rosenberg

Authorized: Mrs. Anja Antikidis-Heinl, Mrs. Corinna Heinl

Brand: ATH-Heinl

Category: 6

Device: Electrical and electronic tools for use in non-private households

5 / 36

Safety instructions

It is necessary to wear suitable protective clothing such as gloves and goggles. The contact with the refrigerant

can cause blindness and other injuries. Read all service procedures and precautions, installation instructions

and operating instructions carefully. Failure to follow these precautions or improper use of the equipment may

result in property damage, personal injury, or death. Never allow untrained personal to perform these

procedures or to operate this device.

In case of rain or excessive moisture never use the device outside

You necessarily need to wear gloves.

You necessarily need to wear goggles.

Before using the AC134 eco read and understand the manual.

Avoid contact with the skin. The low boiling temperature (about -22 °F) may provoke freezing.

The room in which the AC134 eco is operated must be adequately ventilated.

While the machine is in operation, do not smoke.

While using the device keep the tubes away from rotating and hot elements such as ventilators,

radiators, etc.

Do not inhale the steam of the refrigerant gas.

While the device is operating, children and mentally disabled people should keep away.

Before the AC134 eco is connected to an ACD system or to an external tank, make sure that all valves

are closed.

Before turning off the AC134 eco be ensured that the stages are over and that all valves are closed.

Thereby, the leakage of the refrigerant into the outside air is avoided.

Do not change the setting of the safety valves and control systems.

Exclusively use external tanks or other storage tanks that are equipped with safety valves and that

have the necessary standards.

Put the AC134 eco in not-energized modus if it is not used. Before a long time of nonuse or before

servicing always disconnect the power supply

During maintenance, proceed with caution: in the tubes could be refrigerant under pressure.

Do not use the device in an explosive environment. Extraordinary maintenance interventions should

only be done by special personal.

For checking the consistence and pressure in the R134a devices or in the air-conditioning system of

the vehicle do not use compressed air. Some mixtures of air / HCF-134a can burn at high pressure.

Such mixtures are potentially very dangerous and may cause fire or explosions and subsequent

injuries or damages. For more information on safety measures and the protection of persons and

objects ask the manufacturer of coolant.

The device must always be placed in the normal standing position. When moving, the bottle must not

be shaken too much.

Work in a well-lit environment.

Do not inhale oil vapor or steam of the refrigerant. The steams may irritate the eyes and respiratory

tract. To remove residues of R134a on the A/C system only use the special recycling-units for R134a. If

refrigerant gets into the outdoor air, ventilate the working area well before you start working again.

6 / 36

Do not use the device in direct sunlight; sun exposure can cause excessive temperatures and

malfunctioning. The operating temperatures indicated refer to device that is protected from direct

sunlight.

Maintenance on the AC system should only be performed by trained personnel. The liquids required

must be specified by the manufacturer. ATH-Heinl GmbH & Co.KG accepts no responsibility for any

direct or indirect damage caused by incorrect operation.

Warning!

Work far away from open flames and hot surfaces; high temperature causes the decomposition of the

refrigerant so that toxic and irritant substances are emitted. That is harmful to the operator and environment.

Attention!

Make sure that the refrigerant does not get in the environment during the execution of the various operations.

This is in line with international environmental standards. It is avoided that the refrigerant in the room makes it

difficult to locate leaks.

Attention!

The AC134a eco may not be used for air-conditioning that have the R12 as refrigerant.

7 / 36

Introduction

With the advanced technology of the ATH AC134 eco the use in all air conditioners installed in cars, trucks and

industrial vehicles with R134a refrigerant is extremely easy. It is an easy-to-use and reliable air conditioner. The

processor-controlled AC134 eco enables the management of all functions via electronic scales, have electronically

controlled solenoid valves (measured values in weight or minutes and help messages of the selected cycles), via a

control panel with pressure gauges and a LCD display.

The connection of the AC134 eco with an A/C system allows recovering and recycling the refrigerant that is returned

to the system after evacuating.

The amount of oil that was taken during the recovery of the refrigerant of the A/C system can be measured and

subsequently refilled.

The AC134 eco is equipped with a two-stage high vacuum pump and a pressure measurement group (gauge); this

pressure measurement group let you see continuously the ongoing operations. The pressure of the refrigerant tank

is monitored and regulated electronically.

The tightness-test in the air-conditioning system is performed by the pressure gauge and the LCD display

program of the plant itself.

The AC134 eco is equipped with special connectors to avoid the risk of contamination with other units which are using

R12 as refrigerant.

8 / 36

Specifications

Measurements

635 x 585 x 1075 mm

Power supply

AC220V 50Hz / 110V 60Hz

Capacity of internal refrigerant cylinders

12kg max.

Capacity of vacuum pumps

120 L/min

Performance of the compressor

3/8HP

Average gas state of the refrigerant recovery rate

(HP/LP Port) 0,25kg/min

Recovery rate

99% at – 0,5bar

Capacity of internal dry filter

600 ml

Capacity of new and used oil bottles

330ml

Measurement accuracy of refrigerant scales

±10g

Measurement accuracy of the oil and fluid scale

±5g

Maximum pressure

20 bar

Exchange rate

2kg/min(max)

Measuring range of high pressure

-1bar~3.5MPa

Measuring range of low pressure

-1bar~3.5MPa

TFT color display

105.5*67.2mm, 480 x272 Pixel

Length of the service tubes

3.000 mm

9 / 36

Function table

Main function

Suction (recovery)

Sucks the refrigerant from the vehicle system into

the climate station.

Vacuum

This unit evacuates air and moisture from the A/C

system and then automatically performs a vacuum

leak test.

Adding oil

Adding compressor oil into the vehicle A/C system.

Process can be carried out manually or

automatically.

Adding UV Agent

Adding UV agent in the A/C system of the vehicle to

locate leaks. Process can be carried out manually or

automatically.

Filling/change

Refrigerant is filled from the A/C station into the A/C

system of the vehicle.

Automatic mode

Functions are performed fully automatically

(automatic process). The A/C station stops

automatically when the process is finished

System settings

Calibration

Calibration of the refrigerant cylinder, of the oil scale

and of the UV medium scale

Language

Language selection

Pressure relief

(refrigerant)

In case of failure of the automatic control the

refrigerant cylinder pressure can be released

manually here.

Unit of measurement

Choice of metric or British measuring units (lb)

Weight input for empty tanks

Enter of the empty weight of the refrigerant cylinder,

of the oil bottles and the UV-bottles.

Diagnosis

Direct control of the internal electronic components,

solenoid valves, compressor, vacuum pump. This is

used to check if a fault occurs.

10 / 36

Parts description

11 / 36

KBP2000

Control panel

ATH KAB2000 eco

Back cover

KAB2002

Side cover

KVP4000

Vacuum pump

KCP4000

Compressor

KKD4000 & KKL4000

Condenser with ventilator

KRD2000

Rear wheel

KRD2001

Front wheel

KAB2001

Front cover

KSB4001

Manifold 2

KTF4000

Dry filter

KSB4000

Manifold 1

KMV6000

Magnet valve

KOT4001

Oil bottles

KTH2001

Oil bottle support

KTW6003

Scale for oil and UV-bottle

KTW6001

Scale for refrigerant

KTH2000

Gas cylinder support panel

KKT4000

Refrigerant gas cylinder

KDR6000

Printer

KDM4000, KDM4001,

KDM4000

Pressure gauges

12 / 36

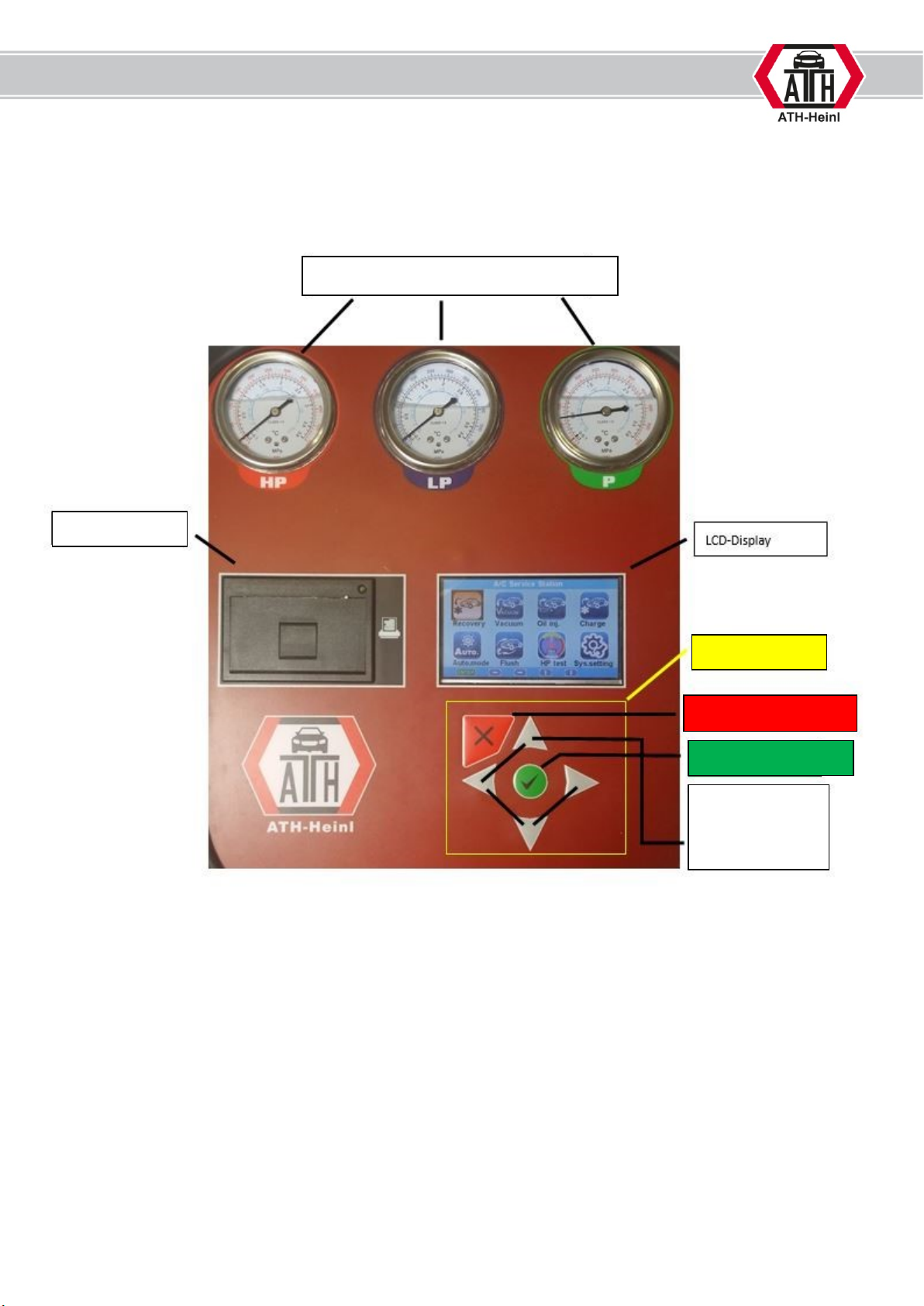

Panel survey

Keypad

EXIT, Cancel/back

ENTER, Confirm/next

Selection keys,

high, down, to the

left, to the right

Printer

Pressure gauge HP, LP, P (Refrigerant tank)

13 / 36

Commissioning

Removing the transportation safety (removing the protective material and fuses of the scales)

14 / 36

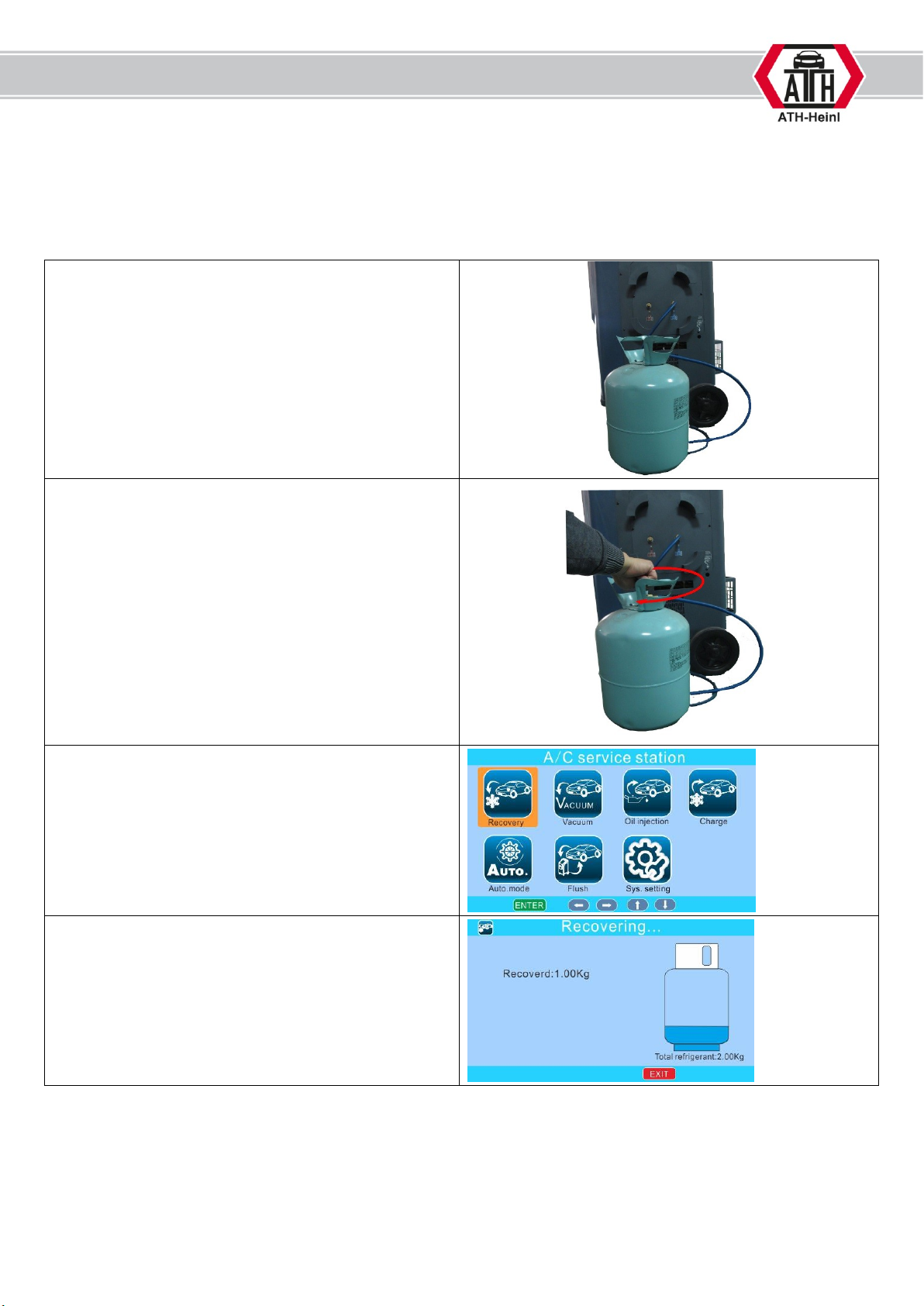

Filling of refrigerant, PAG oil and UV

(The device is supplied empty, fill the device with refrigerant, PAG oil)

1. Connect the external refrigerant to the A/C

device as shown in the picture (note the

details of the refrigerant manufacturer).

2. Open the valve of the external refrigerant

bottle

3. Start the suction function on the A/C device.

4. Once the required volume of refrigerant

sucked off (min. 2 kg, max. 10 kg), close the

valve of the external refrigerant bottle and

wait until the A/C unit automatically stops the

suction function. Then remove the external

refrigerant bottle. The A/C device is now

ready for use.

15 / 36

A/C wiring diagram

Attention: While vacuuming and while all other work on the A/C vehicle system, turn off the A/C system and

the engine. It is essential to note the specifications of the vehicle manufacturer.

16 / 36

Suction (Recovery)

17 / 36

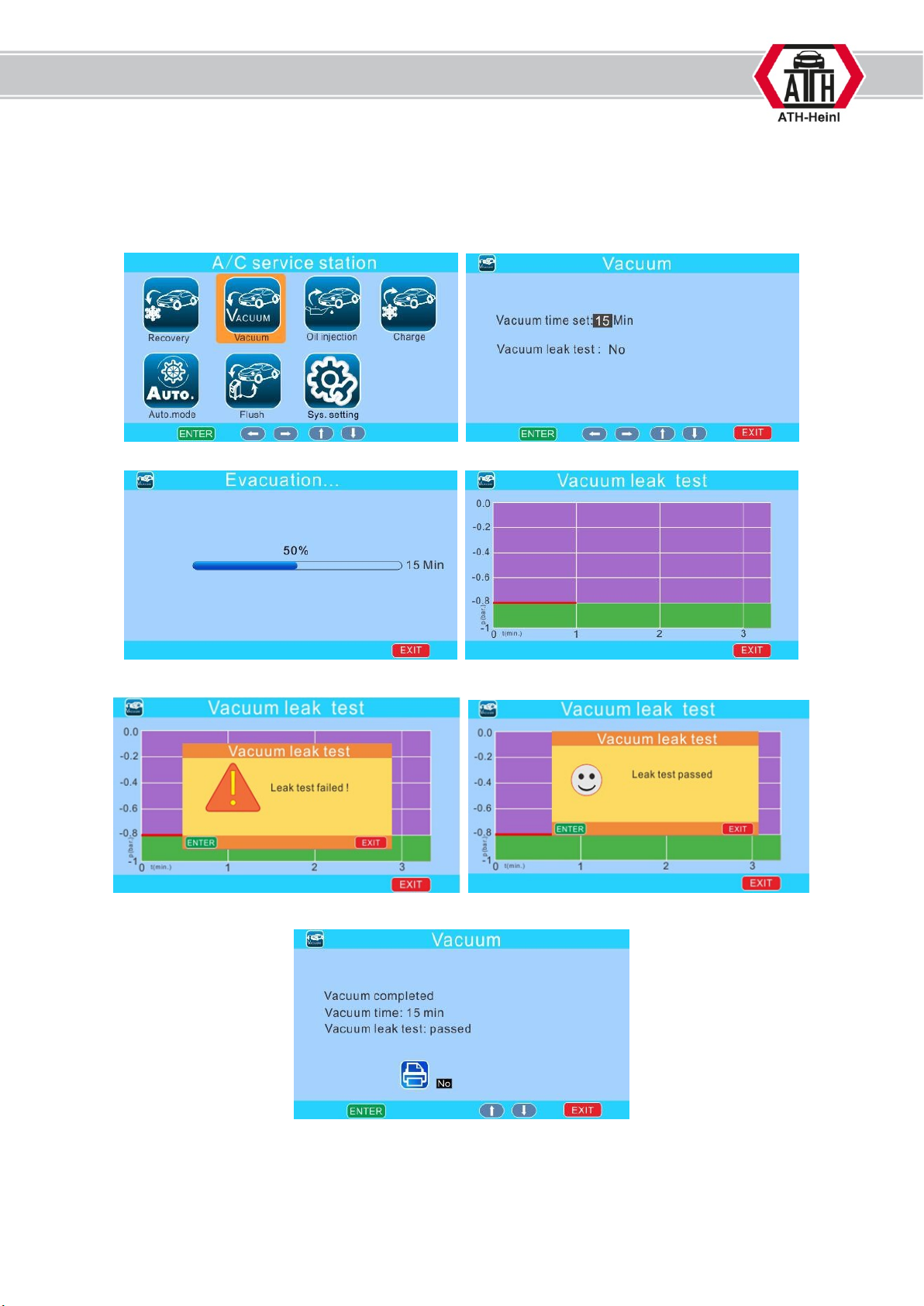

Vacuum

18 / 36

Adding oil

19 / 36

Filling

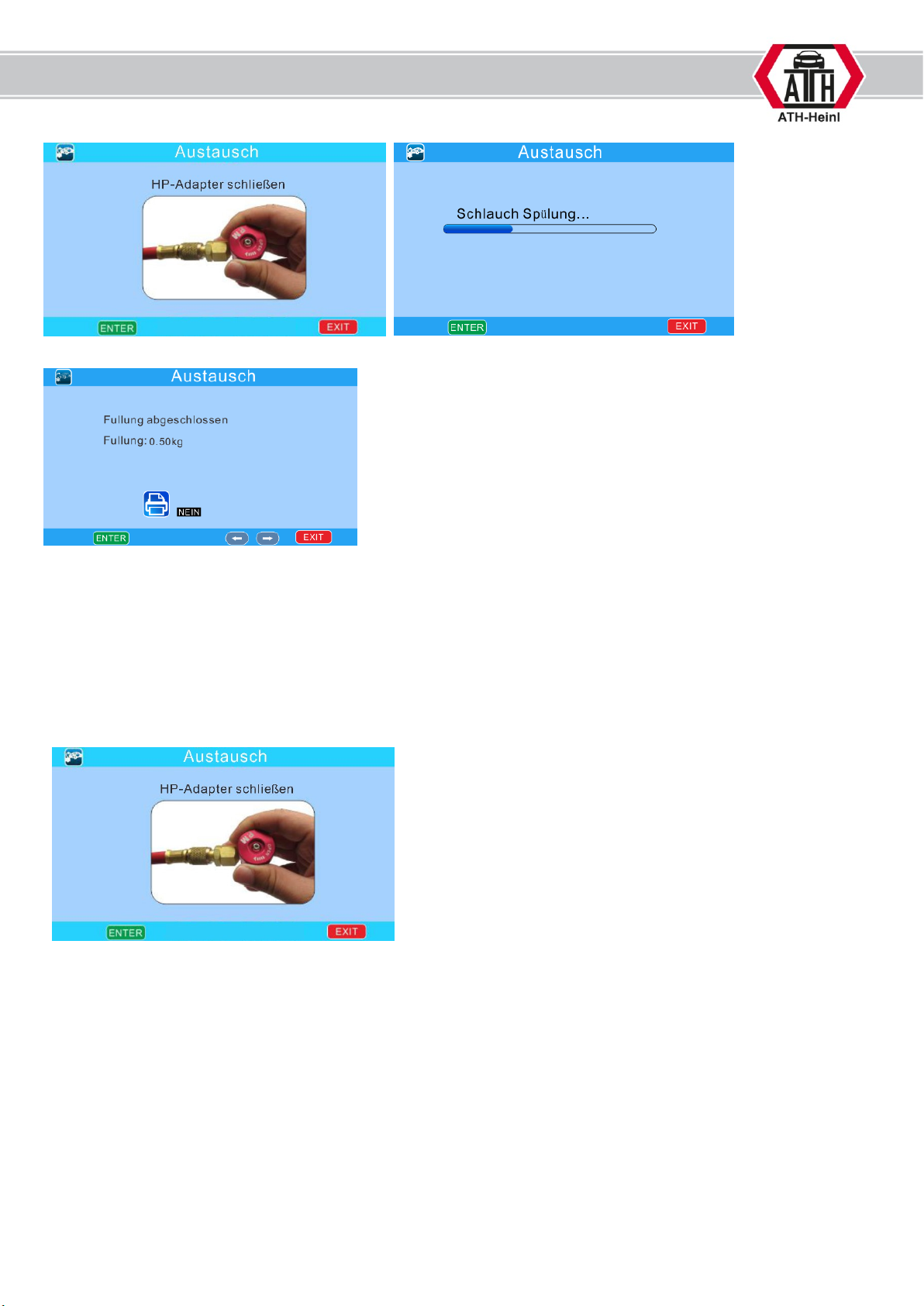

Note:

The tube flushing is used to extract

the refrigerant that is still present in

the tubes. If YES is selected, please

follow the instructions on the screen.

(See next page)

20 / 36

Note:

After flushing the device can be switched off and connected to the vehicle to check the pressure from

the vehicle system via the HP, LP pressure gauge.

Table of contents

Other ATH-Heinl Service Equipment manuals

ATH-Heinl

ATH-Heinl 7256 User manual

Popular Service Equipment manuals by other brands

Bosch

Bosch WBE 4200 Repair instructions

Ingersoll-Rand

Ingersoll-Rand ARO 637028 quick start guide

CLAS

CLAS HU 0139 manual

Bosch

Bosch SCT 815 Original operating instructions

Wen

Wen 73011T instruction manual

PROAIM

PROAIM TP-SPH-01 Assembly manual

Parkside

Parkside PFRS 1.5 B3 operating instructions

Sealey

Sealey PFT07 instructions

JohnDow Industries

JohnDow Industries JDI-LP5 user manual

Sealey

Sealey MS070CR instructions

Comco

Comco 523 Series Installation and operator's manual

Motorvac

Motorvac CARBONCLEAN MCS 245 Operator's manual

MICROMATIC

MICROMATIC PREMIUM PLUS instruction manual

Beta

Beta 1467LF Instructions for use

CLAS

CLAS OM 3493 manual

CLAS

CLAS OM 2024 manual

CEMO

CEMO DT-Mobil Easy 210I manual

Ecotechnics

Ecotechnics SUN ECK TWIN 12 user manual

ATH-Heinl AC134a User manual

Popular Service Equipment manuals by other brands
