J.E. Adams 8200 User manual

REV 8-22-191
Models- 8105 Commercial, 8200, 8600 pin lock
Single Door Vacuums
Page 2 Product Information
Page 3 Specifications
Page 4 Important Safety Instructions
Page 5 Product Dimensions
Page 6-8 Installation
Page 8-9 Programming
Page 10 Operating Instructions
Page 10-11 Maintenance & Troubleshooting

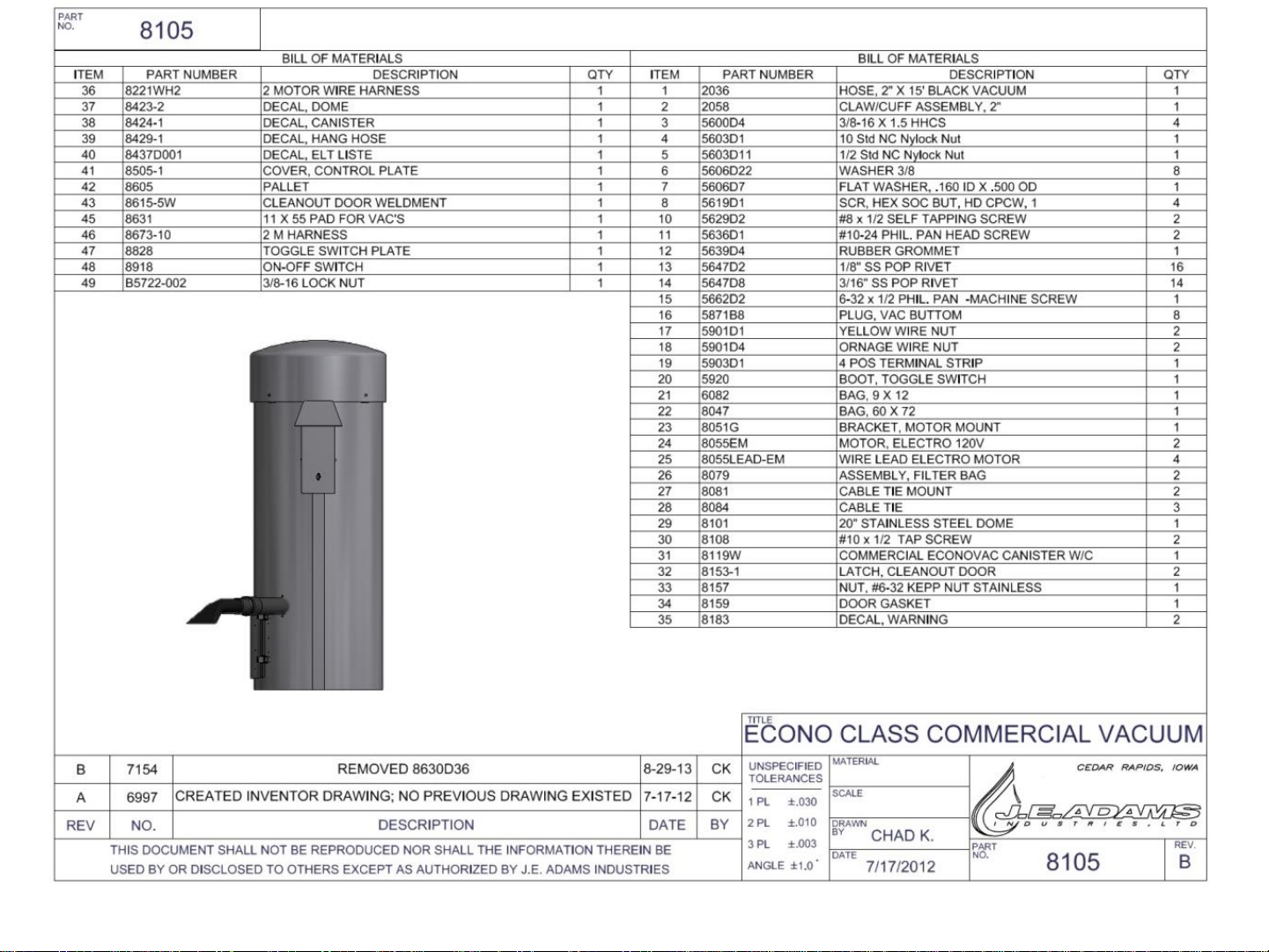

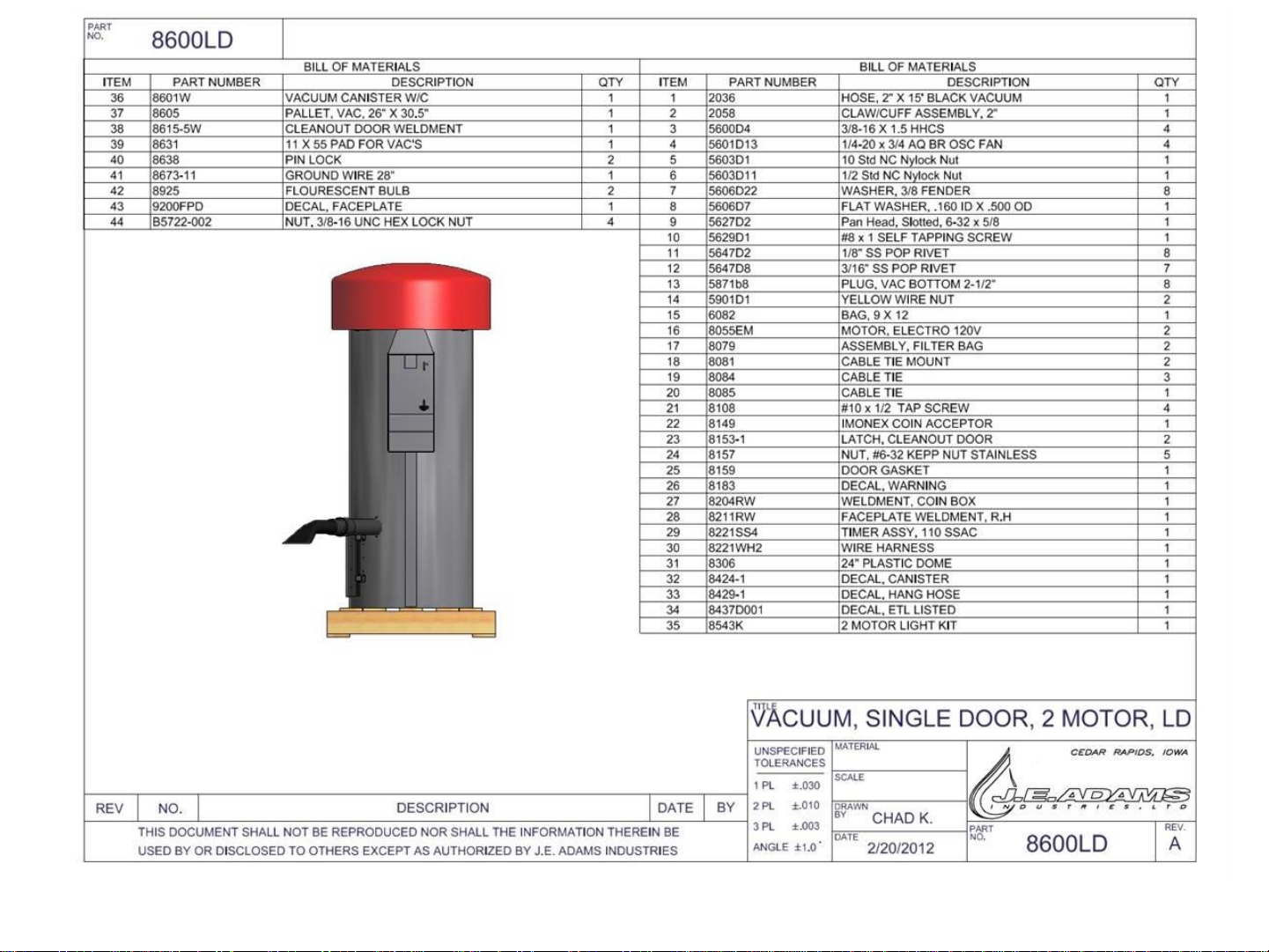

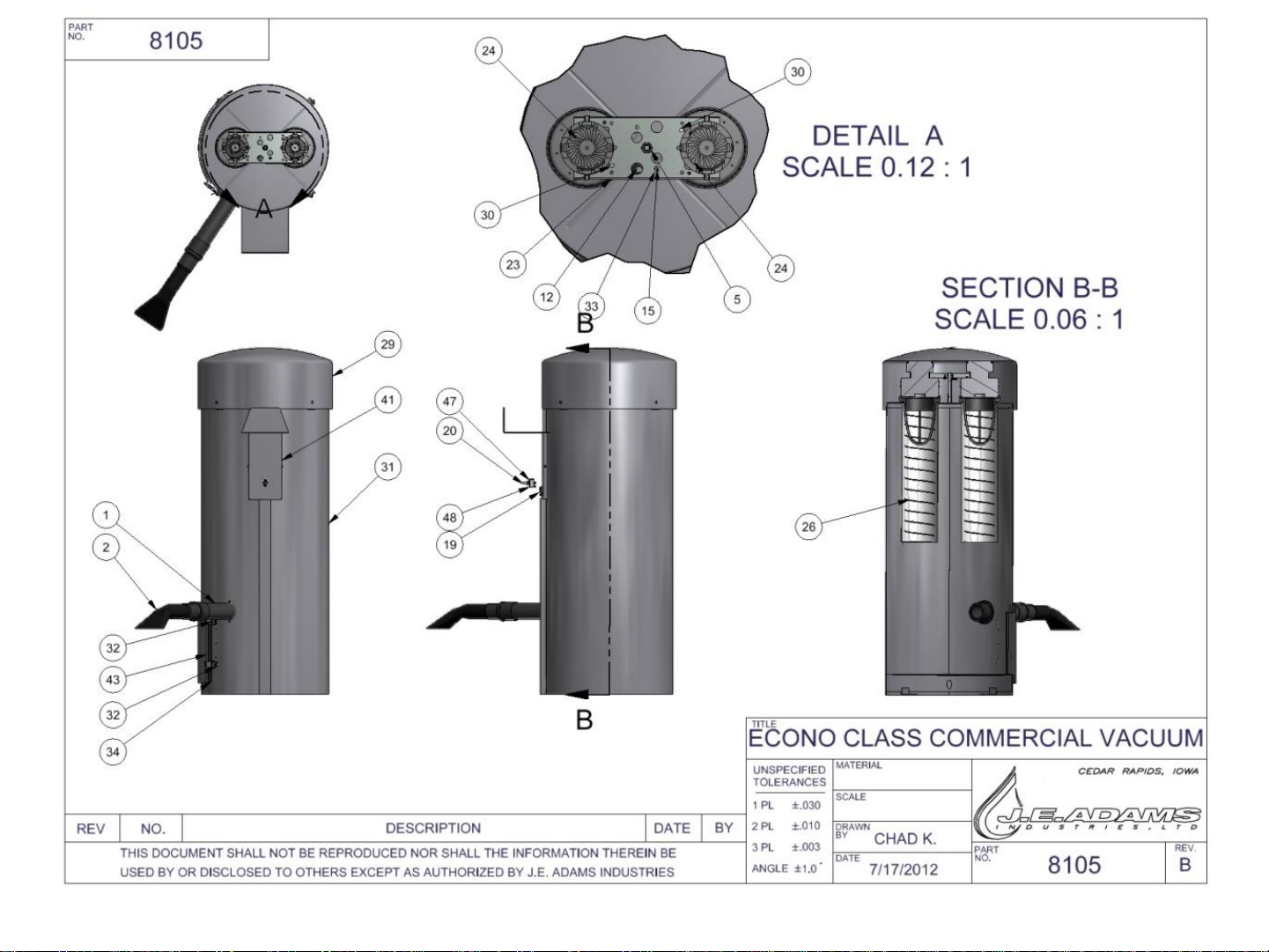

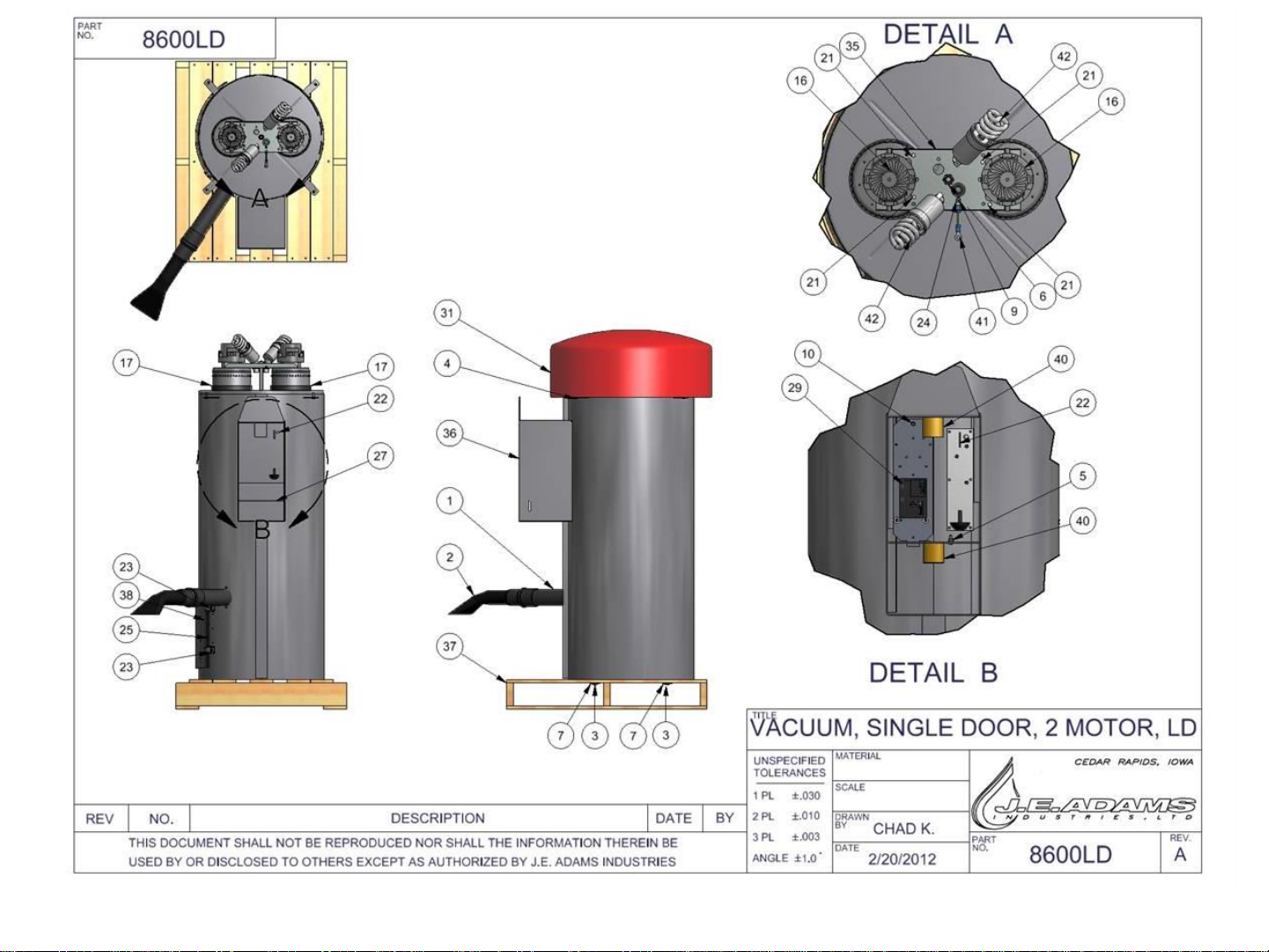

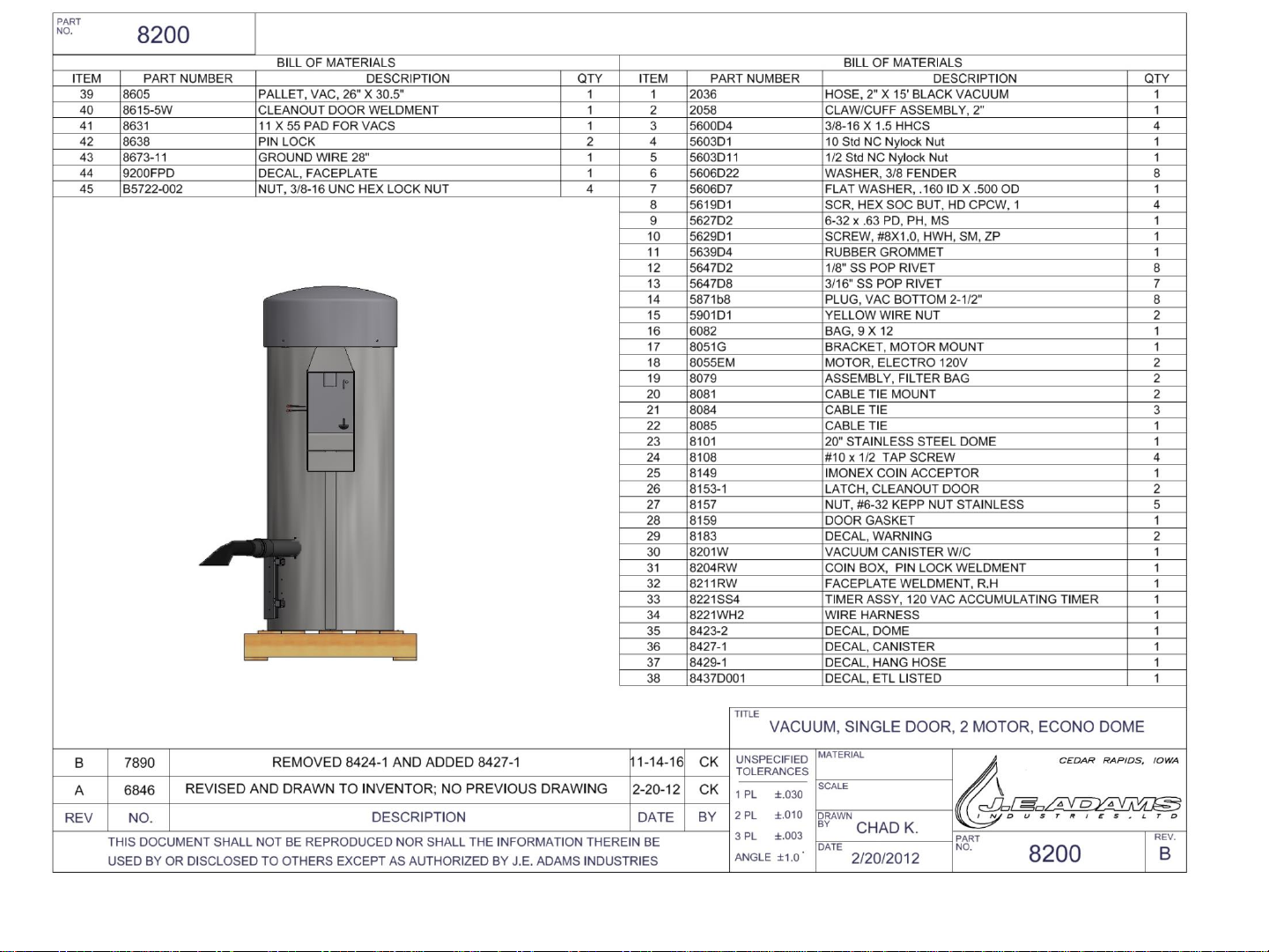

Page 12-18 Parts List
Page 19-20 Wiring Diagram
8200
8600LD
8105

REV 8-22-192
PRODUCT INFORMATION
Please take a moment to fill out the information below in order to aid us with any future sales
or service inquiries. Model number and serial number information can be found on the
serial tag located inside the control box and/or on the lower exterior of the can. Key
number can be found on the tag that comes attached to the keys. There may be more than
one key number depending on unit.
Please keep this information with your records.
MODEL#:____________________________
SERIAL#:____________________________
KEY NUMBER(S):_____________________
DATE PURCHASED:___________________
DISTRIBUTOR:_______________________
J.E. Adams Industries
1025 63rd Ave. S.W.
Cedar Rapids, IA 52404
1-800-553-8861
www.jeadams.com

REV 8-22-193
Specifications
Unit specifications: (All 2 vacuum motor units)
Voltage: 120VAC, 60Hz
Amperage: (1) 20 amp service is required for this unit
Weight: 137-147 lbs
Motors: (2) 120VAC vacuum motor
Fuses: (2) 10 amp inline fuses
__________________________________________________________________________________________
220VAC units:
Unit specifications: (All 2 vacuum motor units)
Voltage: 220VAC, 50Hz
Amperage: (1) 15 amp service is required for this unit
Weight: 137-147 lbs
Motors: (2) 220VAC vacuum motor
Fuses: (2) 8 amp inline fuses
Duty cycle time 4 minutes on, 4 minutes off.
NOTE: “UNIT INTENDED FOR COMMERCIAL USE ONLY”

REV 8-22-194
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE)
WARNING –To reduce the risk of fire, electric shock, or injury:
•Do not use on wet surfaces.
•Use only as described in manual. Use only manufactures recommended attachments.
•Do not allow to be used as a toy. Close attention is necessary when used by or near children.
•Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that
may reduce air flow.
•Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
•Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
•Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
•Do not use without dust bag and/or filters in place.
SAVE THESE INSTRUCTIONS
•Installation Instructions:
•Determine location to mount unit (“DANGER” “THIS EQUIPMENT INCORPORATES PARTS SUCH AS SWITCHES,
MOTORS, OR THE LIKE THAT TEND TO PRODUCE ARCS OR SPARKS THAT CAN CAUSE AN EXPLOSION. WHEN
LOCATED IN GASOLINE-DISPENSING AND SERVICE STATIONS INSTALL AND USE AT LEAST 20 FEET (6 M)
HORIZONTALLY FROM THE EXTERIOR ENCLOSURE OF ANY DISPENSING PUMP AND AT LEAST 18 INCHES (450
MM) ABOVE A DRIVEWAY OR GROUND LEVEL.”
•Run electrical service to that location (NOTE UNIT HAS WIRE PROVIDED UNDERNEATH TO CONNECT INCOMING
POWER SUPPLY).
•Grounding Instructions: This appliance must be connected to a grounded metal, permanent wiring system; or an
equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal
or lead on the appliance.
•Circuit must be protected by a GFCI device.
•All local and national electric codes must be followed for installation and use.
•Licensed electricians are recommended for installation.

REV 8-22-195
Product Dimensions
.
8600LD

REV 8-22-196
Installation:
Drill holes into
concrete surface and
install 3/8" studs (4).
NOTE: when mounting, provide clearance
so cleanout door can open!!
Bring electrical
in underneath
can and route
up front
channel to
terminal strip.

REV 8-22-197
Bring electrical
in underneath
can and route
up front
channel to
terminal strip.
With timer plate
flipped down as
shown, add
incoming power
"line and neutral" to
terminal strip.
(120V)
Remove screw
from
uppermost
point of timer
plate and tilt/
flip down as
shown below.

REV 8-22-198
Now the unit can be turned on and programmed.
Programming Instructions:
Coin acceptor:
No programming to acceptor needed if unit was purchased with the standard Imonex Z3 acceptor (8149 JEA part number)
as it is built accept US quarters.
If different acceptor was purchased, see additional literature sent along with unit for programming info.
Once unit has been installed use 5871B8 cap plugs (supplied with unit) to seal holes
in canister bottom located in lower cleanout door. Extra cap plugs are included with
the unit in case plug becomes damaged during shipping removal.

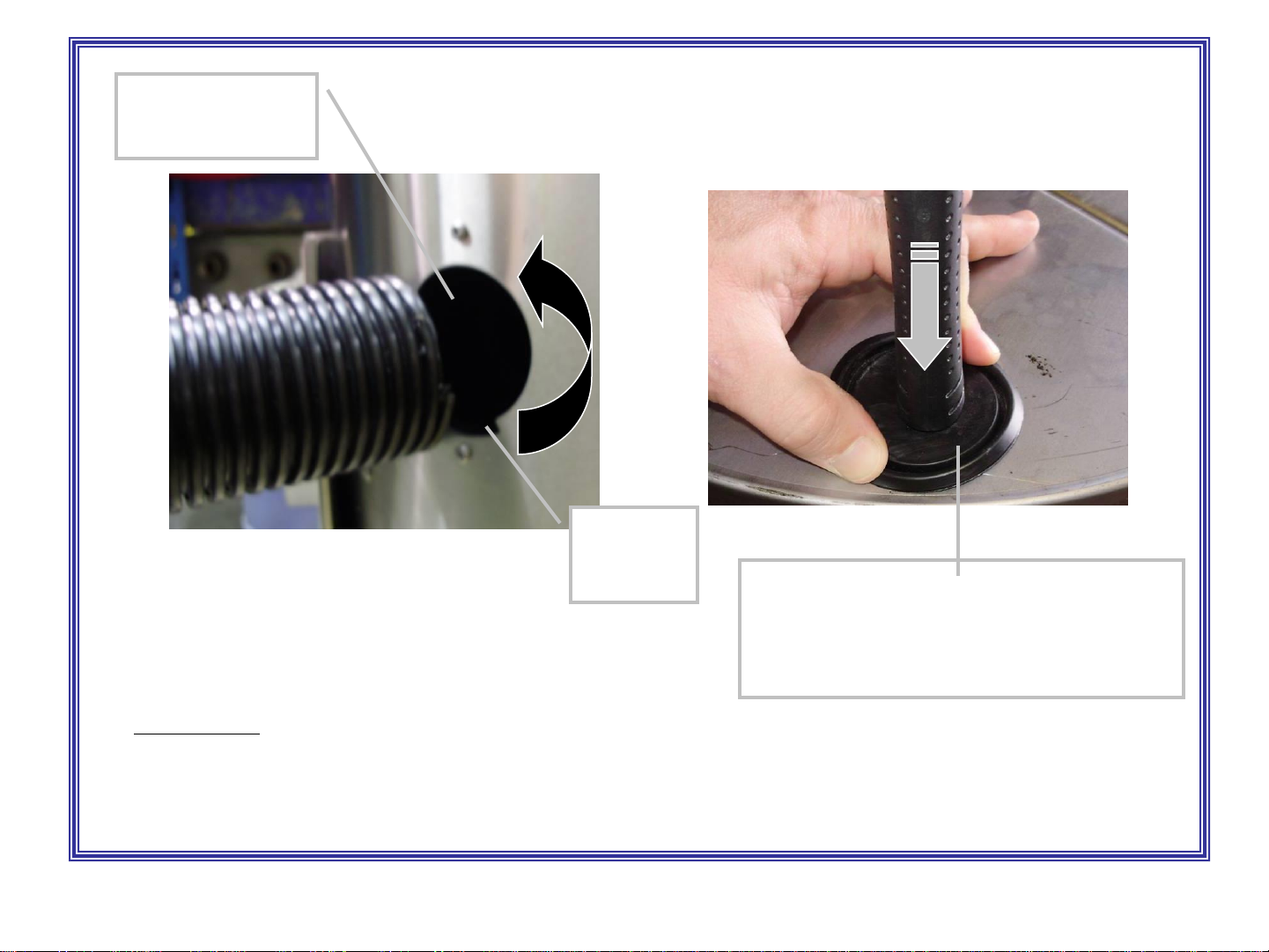

To attach hose, thread
into metal hole
counter clockwise.
Edge of
hose will
need to start
here. To insert 5871B8 cap plugs into bottom holes, pinch
cap plug into place using index finger and thumb.
With edges of plug resting against edges of hole,
firmly push down on plug with end of hammer or other
blunt object until plug snaps into place.

REV 8-22-199
Programming:
The below timer pictured is the standard SSAC model that allows the end user to select the "coins to start" and
the "time per coin" by settings series of dip switches. The number of "coins to start" dip switch is how many
quarters are needed to make the machine come on. In the below example, the "one coin" dip is selected which
makes the unit come on with one coin. The "time per coins" will then need to be set, but a good rule of thumb
would be 4 minutes which requires dip switches 3.2 and .8 to be set to on. This scenario means 1 quarter will
provide 4 minutes of vacuum time. The time per coin setting can be modified as desired by simply adding or
subtracting time. If the operator would later decide to increase the cost of the unit to "2" quarters, the 2 dip switch
would need to be in the on position (all other off) and the time dip switches would need to have the 1.6 and 0.4
dips selected. This would allow 2 minutes of time for each quarter for a total of 4 minutes for two quarters.
Time in minutes/per coin dip switch settings:
0.2 = 12 seconds
0.4 = 24 seconds
0.8 = 48 seconds
1.6 = 96 seconds
3.2 = 192 seconds
6.4 = 384 seconds

REV 8-22-1910
Operating Instructions:
•Insert payment to start vacuum.
•Once service is used, hang up hose.
•Commercial vacuum requires no payment, simply flip toggle switch to on to start.
Maintenance:
•All servicing of machine should be conducted by an authorized service representative!
•Filter bags should be accessed and shaken down weekly. It is recommended to keep a new set of bags on hand
so that once every few months the bags can be replaced and then laundered.
•To maintain performance, empty dirt bin from the canister on a regular basis.
•Periodically inspect wires and connections for wear or fatigue.
•Check door and motor gaskets periodically for signs of wear or damage and replace as needed.
•Check vac hose for cracks on a weekly basis.
•Clean canister with a stainless steel cleaner as needed. Decals can be cleaned with mild soap and water.
•Check motor brushes every month for excessive wear. Motor brushes should be changed immediately if they are
shorter than ¼”. Please disconnect power before doing this!
DISCONNECT POWER BEFORE SERVICING OR TROUBLESHOOTING!
Troubleshooting:
Problem Possible cause Solution
Breaker inside fuse panel is not in the on position. Turn breaker on.
No power to machine. Check incoming power line voltage.
Loose connection. Check incoming power connection.
Is the incoming power at 120V?
Check voltage and monitor while machine runs.
Low voltage can cause erratic behavior.
Are any of the machines wires worn through or connections
not making contact?
Inspect wiring and connections. Look for sharp
bends in wires and places where wire is against
the metal chassis.
Unit is not powered.
Machine is behaving
erratically.

REV 8-22-1911
Inadequate wire size ran to machine.
Call electrician and install proper wire size for
electrical service versus length or run.
Wrong size breaker.
Install correct breaker (only if wire size is
adequate to handle breaker).
Inadequate wire size ran to machine.
Call electrician and install proper wire size for
electrical service versus length or run.
Motor brushes may be bad or too short. Replace motor brushes.
Vac hose clogged? Clean debris from vac hose.
Filter bags need cleaned or dirt chamber needs emptied?
Shake or clean filter bags or replace and empty
lower dirt chamber.
Vac hose is split? Replace/repair vac hose.
Cleanout door gaskets torn or worn? Replace gaskets.
Vac motor gaskets are worn or motor is not tight against.
Inspect/replace gaskets and assure motor is
tight against them.
Lower chamber cap plugs/mounting hole covers have
popped out?
Open lower chamber and inspect plugs, order
new if needed.
Cleanout door gaskets torn or worn? Replace gaskets.
One of the vac motors is not working?
Check line motor fuse and replace. Replace
motor if necessary.
Lack of vacuum suction.
Unit keeps tripping
breaker.
Fuses for vac motors keep
blowing.

REV 8-22-1912

REV 8-22-1913

REV 8-22-1914

REV 8-22-1915

REV 8-22-1916

REV 8-22-1917

REV 8-22-1918

REV 8-22-1919

REV 8-22-1920
Model 8105, Toggle
Switch option
