ATI Technologies Q46H/79PR User manual

O&MManual
ModelQ46H-79PR
TotalChlorine Monitor
HomeOfficeEuropeanOffice
AnalyticalTechnology,Inc.ATI(UK)Limited
6Iron BridgeDriveUnit 1& 2GateheadBusiness Park
Collegeville, PA 19426 Delph NewRoad, Delph
Phone: [phone] SaddleworthOL3 5DE
610-917-0991Phone: [phone]
Fax: [phone]Fax: [phone]
Email: [e-mail] Email:[e-mail]
Web: www.Analyticaltechnology.com

2
O&M Manual
Rev-E(5/17)
Table of Contents
PART1 -INTRODUCTION...............................4
1.1General................................................4
1.2StandardSystem.................................4
1.3Features..............................................7
1.4Q46H/79PRSystemSpecifications....8
1.5Q46H-79PRPerformance
Specifications...............................................10
PART2 – ANALYZER MOUNTING................11
2.1General..............................................11
2.2Wall orPipe Mount............................12
2.3PanelMounting.................................14
PART3 – SENSOR/FLOWCELL MOUNTING15
3.1General..............................................15
3.2Constant-Head Flowcell....................15
3.3Sealed Flowcell.................................16
3.4Submersion Mounting.......................17
PART4 – ELECTRICALINSTALLATION......19
4.1General..............................................19
4.2PowerConnection.............................20
4.3Direct SensorConnection.................24
4.4SensorWiring....................................25
4.5JunctionBoxConnection..................26
4.6OptionalpH SensorInput..................27
PART5 – SENSORASSEMBLY....................28
5.1ChlorineSensorPreparation.............28
5.2OptionalpH Sensor...........................30
PART6 – CONFIGURATION.........................31
6.1UserInterface....................................31
6.11Keys..................................................32
6.12Display...............................................32
6.2Software............................................33
6.21Software Navigation.........................34
6.22MeasureMenu [MEASURE].............36
6.23 Calibration Menu [CAL].......................37
6.24Configuration Menu[CONFIG]..........37
6.25ControlMenu [CONTROL]................42
6.26 Diagnostics Menu [DIAG]...................46
PART7 – CALIBRATION............................... 49
7.1ChlorineCalibration.......................... 49
7.11ChlorineZero Cal.............................. 49
7.12ChlorineSpan Cal............................. 50
7.2Temperature Calibration................... 51
7.3pH Calibration................................... 52
7.31Two-Point pH Cal.............................. 53
7.32One-Point pH Cal.............................. 53
PART8 – PID CONTROLLER DETAILS....... 55
8.1PID Description................................. 55
8.2PID Algorithm.................................... 55
8.3ClassicalPID Tuning......................... 57
8.4ManualPIDOverride Control............ 57
8.5Common PID Pitfalls......................... 57
PART9 – SYSTEMMAINTENANCE............. 59
9.1General............................................. 59
9.2AnalyzerMaintenance...................... 59
9.3SensorMaintenance......................... 59
9.4SensorAcidCleaning....................... 60
9.5Q22PSensorCleaning..................... 60
9.6Replacing the Saltbridge and Reference
BufferSolution.................................... 61
9.7FlowCellMaintenance...................... 62
PART10 – TROUBLESHOOTING................. 63
10.1General............................................. 63
10.2ExternalSourcesofProblems.......... 63
10.3AnalyzerTests.................................. 64
10.4DisplayMessages............................. 65
10.5SensorTests..................................... 67
10.6Troubleshooting (Q22PSensor)....... 68
SPAREPARTS............................................... 69

3
O&M Manual
Rev-E(5/17)
Table of Figures
FIGURE 1-TYPICAL MONITORING SYSTEM....................................................................................................... 5
FIGURE 2-CHLORINE SYSTEMW/OPTIONALPHBAYONET STYLE SENSOR........................................................ 5
FIGURE 3-SEALED FLOWCELL ASSEMBLIESW/FLOW CONTROL........................................................................ 6
FIGURE 4-Q46 ENCLOSURE DIMENSIONS..................................................................................................... 11
FIGURE 5-WALL OR PIPE MOUNT BRACKET .................................................................................................. 12
FIGURE 6-WALL MOUNTING DIAGRAM .......................................................................................................... 13
FIGURE 7-PIPE MOUNTING DIAGRAM............................................................................................................ 13
FIGURE 8-PANEL MOUNT CUTOUT &DIAGRAM ............................................................................................. 14
FIGURE 9-CONSTANT HEAD FLOWCELL DETAILS........................................................................................... 15
FIGURE 10 -SEALED CHLORINE FLOWCELL DIMENSIONS................................................................................ 16
FIGURE 11 -SEALEDPHFLOWCELL DETAILS ................................................................................................. 17
FIGURE 12 -SUBMERSIBLE SENSOR MOUNTING............................................................................................. 18
FIGURE 13 -LINE POWER CONNECTION......................................................................................................... 21
FIGURE 14 -OPTIONAL RELAY BOARD WIRING............................................................................................... 22
FIGURE 15 -OPTIONAL RELAY BOARD WIRING............................................................................................... 23
FIGURE 16 -OPTIONAL ANALOG OUTPUT WIRING........................................................................................... 23
FIGURE 17 -SENSOR CABLE PREPARATION ................................................................................................... 24
FIGURE 18 -DIRECT SENSOR CONNECTION ................................................................................................... 25
FIGURE 19 -JUNCTION BOX INTERCONNECT WIRING...................................................................................... 26
FIGURE 20 -FLOW STYLE SENSOR ASSEMBLY ............................................................................................... 28
FIGURE 21 -SUBMERSIBLE STYLE SENSOR ASSEMBLY................................................................................... 29
FIGURE 22 -USER INTERFACE....................................................................................................................... 31
FIGURE 23 -SOFTWARE MAP ........................................................................................................................ 35
FIGURE 24 -AUTOMATICPHBUFFER TABLES................................................................................................. 41
FIGURE 25 -CONTROL RELAY EXAMPLE ........................................................................................................ 44
FIGURE 26 -ALARM RELAY EXAMPLE............................................................................................................. 45
FIGURE 27 -ISA (IDEAL)PID EQUATION........................................................................................................ 55
FIGURE 28 -REPLACINGTHE SALTBRIDGEAND REFERENCE BUFFER .............................................................. 62
FIGURE 29 -DISPLAY MESSAGES .................................................................................................................. 65
FIGURE 30 -DISPLAY MESSAGES (CONT'D).................................................................................................... 66
FIGURE 31 -PT100 RTD TABLE.................................................................................................................... 67

4
O&M Manual
Rev-E(5/17)
Part 1-Introduction
1.1General
The ModelQ46H/79PRis ahighlyversatileon-line monitoring systemdesignedforthe
continuousmeasurement oftotalchlorine insolution. The full scaleoperating range ofthe
systemmaybeselectedbythe userfor0-200.0 ppb, 0-2.000 ppm,0-20.00 ppm,or0-200.0 ppm,
and the sensingsystemwilloperateonwaterstreamswithtemperaturesranging from0to 55°C.
The Q46H/79PRTotalChlorine Measurement System iswellsuited forpotablewatersystems,
activated carbon filterbreak-through detection, and formonitoring wastewatertreatment effluents.
The basicsensing element used inthe totalchlorine monitorisa3electrode amperometric
membrane sensorwhichmeasureschlorine directly.Watersimplyflowspastthe sensorand
directlyto drain, with the flowrate and pressureacross the sensorcontrolledbyaconstant head
flowcellassembly.The chlorine measurement doesnot alterthe sampleoradd anychemicalsto
the sample stream, so the waterflowcan return to thesystemifdesired.
Q46H/79PRMonitors areavailableintwo basicelectronicversions,a90-260VACpowered
monitor,ora12-24VDCpoweredmonitor–both with threerelaysand two4-20 mAanalog
outputs.Both versionsallowflexibleoutputoptionswhichincludeadditional4-20 mAcurrent
outputs, additional0-30VDC signalrelays, PID control, anddigitalcommunicationcards.
In addition to normalchlorine measurement, the Q46H/79PRisalsoavailablewith an optionalpH
input whichprovidesatwo-parametermonitoringsystem.Both combined chlorine andpH are
displayed simultaneously.
1.2Standard System
The standardmodelQ46H/79PRsystemincludesthreemaincomponents,the Q46H analyzer,a
constant head flowcell,andatotalchlorine sensor.Alow-volumeflowcellisalsoavailablefor
applicationswheresampleflowrate and pressurecanbe carefullycontrolled. Figure2showsa
typicalinstallation includingthe optionalpH sensor.
Forconnectionofthesensorto theelectronics,a25' cableissupplied. Anadditional100feet of
interconnectcablemaybe addedusing #07-0100 junction box.All required sparepartsarealso
providedwiththe basicsystem,includingsparemembranes,electrolyte, o-rings,and anyspecial
hardware.
Note thatstandard25foot sensorcablesforboth chlorine andoptionalpH sensors can becut to
a shorterlength.Cutting the cableswillnotaffect performance, and elimination of extra cable can
sometimeseliminate electricalnoise pickup through the cables.

ATIQ46H/79PRChlorine Manual Part 1–Introduction
5
O&M Manual
Rev-E(5/17)
Figure1-Typical MonitoringSystem
Figure2belowshowsthesamestandardflowcellassemblyand chlorine sensoralong withthe conventional
typepH sensor.Aspecialadapterisrequiredto holdthe pH sensorinitsproperlocation inthe flowcell inlet
chamber.
Figure2-ChlorineSystemw/Optional pH Bayonet StyleSensor

ATIQ46H/79PRChlorine Manual Part 1–Introduction
6
O&M Manual
Rev-E(5/17)
Figure3belowshowsaninstallation usinga00-1522sealedflowcell forthechlorine sensoranda00-
1527 sealedflowcellforthe pH sensor.Thistypeofinstallationrequirescarefulflowcontrol.We
recommend theuseofour03-0372flowcontrolassemblywhenusingsealedflowcells.Thisassembly
consistsofan in-line filterand afixed-flowregulatorwhichwillmaintainaconstant 400 cc/minflowrate
throughthesystem.Thisflowwillbe maintained solong asinlet pressuresare between5and 125PSIG.
The in-linefilterisused mainlytoprotecttheflowcontrolelement againstlargerparticlesthat might cause
plugging ofthe device.
Figure3-Sealed Flowcell Assemblies w/FlowControl

ATIQ46H/79PRChlorine Manual Part 1–Introduction
7
O&M Manual
Rev-E(5/17)
1.3Features
•StandardQ46H/79PRanalyzers havefullyisolated inputsandoutputs.Analog outputsare
additionallycompletelyisolated fromeach other.
•Availableineither90-260VACor12-24VDC powersupplysystems.All featuresremainthe
same in both variations.
•Highaccuracy,high sensitivitysystem,measuresfrom0.1 ppb to 200.0 ppmthrough 4internal
automaticranges. Userrangesof200.0 ppb,2.000 ppm, 20.00 ppm, or200.0 ppm.
•Output Hold,OutputSimulate, Output Alarm,and Output DelayFunctions.All forced changesin
output condition include bumpless transferto provide gradualreturnto on-line signallevelsand to
avoid systemcontrolshocks on both analog outputs.
•Three 6ampSPDTrelayoutputsandtwoanalog 4-20 mAoutputsarestandard. Software
settingsforrelaycontrolinclude setpoint, deadband, phase, delay,and failsafe. Anoptional3-
relaycard, for0-30VDC signals, isavailable to bring the totalto 6 relays.
•SelectablePID controlleron mainanalogoutput. PID controllercan operate withinstrument
configured asloop-powertransmitter, orasone ofthetwo outputson the ACpowered instrument.
PID includesmanualoperationfeature, and diagnostic“stuck-controller” timerfeatureforrelay
notificationofcontrolproblems.
•Digitalcommunication optionsforProfibus-DP,ModbusRTU. Moreversionspending. SeeQ46
DigitalCommunicationsManualforSpecifications.
•OptionalpH sensorfeatureenablesactivepH measurement withtheQ46H/79PRmonitor.The
pH reading can alsobe sent to one ofthe analog outputsforcomplete pH +chlorine monitoring.
•Twoanalogoutputsontherelayversionmaybeconfiguredtotrackchlorineand temperature,
chlorine and chlorine, orchlorineand pH.Both analogoutputscan beindividuallyprogrammed to
fail to specificvalues.
•SelectableOutput FailAlarmfeatureon RelayBallowssystemdiagnosticfailuresto be sent to
externalmonitoring systems.
•Large, high contrast, customSuper-Twistdisplayprovidesexcellent readabilityeveninlowlight
conditions.The secondarylineofdisplayutilizes5x7dotmatrixcharacters forclearmessage
displaytwooffourmeasured parameters maybeon the displaysimultaneously.
•Diagnosticmessagesprovide acleardescription ofanyproblemwith no confusingerrorcodesto
lookup. Messagesare also included fordiagnosing calibration problems.
•Quickand easyone-point calibration method andsensorzero-cal.Toprovide high accuracy,all
calibration methodsincludestabilitymonitors that check temperature and main parameterstability
before accepting data.
•Highaccuracythree-wire Pt100 temperature input. Temperature element can be usercalibrated.
•Securitylockfeatureto preventunauthorized tamperingwithtransmittersettings.Allsettingscan
be viewed whilelocked, but theycannot be changed.

ATIQ46H/79PRChlorine Manual Part 1–Introduction
8
O&M Manual
Rev-E(5/17)
1.4Q46H/79PRSystemSpecifications
DisplayedParameters Main input, 0.1 ppb (0.0001 ppm)to 200.0ppm
Sensortemperature, -10.0 to 55.0 °C(23 to 131 ºF)
SensorCurrent, 0.0–999.9 nA, 0.000 to 99.99 uA
Loopcurrent, 4.00to 20.00 mA
Sensorslope/offset
Modelnumberand software version
PID ControllerStatus
OptionalpH Input value. 0.00 to14.00 pH
MainParameterRanges Manualselectionofone ofthe following ranges,
0.000 to 200.0 ppb
0.0 to 2.000 ppm
0.00 to 20.00 ppm
0.00 to 200.0 ppm
Display 0.75”(19.1 mm)high 4-digit main displaywith sign
12-digitsecondarydisplay,0.3"(7.6 mm)5x7dot matrix.Integral
LEDback-light forvisibilityin thedark.
Keypad 4-keymembrane typewith tactile feedback, polycarbonate with
UVcoating
Weight DC transmitterconfiguration:1 lb. (0.45 kg)
Line poweredunit:1.5 lb. (0.68 kg)
Ambient Temperature AnalyzerService,-20 to 60 °C (-4 to 140 ºF)
SensorService, -5 to 55°C(23 to 131 °F)
Storage, -5to 70 °C(-22 to 158 ºF)
Ambient Humidity 0to 95%,indoor/outdooruse, non-condensingtoratedambient
temperature range
Altitude Up to 2000 m(6562 Ft.)
Electrical Certification OrdinaryLocation, cCSAus(CSA and UL standards-both
approved byCSA),pollution degree 2, installation category2
EMI/RFI Influence Designed toEN 61326-1
Output Isolation 600 Vgalvanicisolation
Filter Adjustable0-9.9 minutesadditionaldamping to 90%step input
Temperature Input Pt100 RTDwith automaticcompensation
Sensor 3-electrode amperometricmembrane sensorfordirect
measurement ofchlorine

ATIQ46H/79PRChlorine Manual Part 1–Introduction
9
O&M Manual
Rev-E(5/17)
SensorMaterials PVC
SensorCable 25 ft. (7.5 meter) cable with 6-pinplug.
Max. Sensor-to-Analyzer
Distance 100 feet (30.5 meters), withjunctionbox
Optional pH Input 0-14 pHcorresponding toapprox. 0.3 – 1.5 VDC
FlowCell Constant head overflow, clearcast acrylic, 7-30 GPH, 15 GPH
recommended, inlet is¼”hose barbat 1/8”MNPT, outlet is½”
hose barb at 3/8”MNPT
Power 90 -260VAC,50-60 Hz, 10 VAmax
12-24 VDC,500 mAmax.
Enclosure NEMA4X,polycarbonate, stainless steelhardware,
weatherproofand corrosion resistant,
HWD: 4.9"(124 mm)x4.9"(124 mm)x5.5"(139 mm)
Mounting Options Wall orpipe mount bracket standard.Bracket suitableforeither
1.5”or2”I.D. U-Boltsforpipe mounting.
Panelmount adapteroptional.
ConduitOpenings Five½”NPTopenings,Adaptercan beremoved to provide a1”
NPTopeninginthebottomofthe enclosure. Gland seals
provided but not installed.
Relays, Electromechanical: Three SPDT,6amp@250 VAC, 5amp@24 VDCcontacts.
Softwareselectionforsetpoint, phase, delay,deadband,hi-lo
alarm,and failsafe. A-Bindicators on main LCD, and Cindicator
on lowerdisplay.
Optional Relays: Three additionalnon-isolated lowpowerrelaysavailable.SPST,
1 amp @30 VDC
Analog Outputs Two4-20 mAoutputs.Output one programmableforPPM
chlorine orPID.Output2programmableforPPMchlorine,
Temperature, orpH. Maxload 500Ohmsforeachoutput.
Outputsground isolatedand isolatedfromeachother.An
additional3rd analog option isavailable.

ATIQ46H/79PRChlorine Manual Part 1–Introduction
10
O&M Manual
Rev-E(5/17)
1.5Q46H-79PRPerformance Specifications
Accuracy 1.0%ofselected rangeor0.05 PPM
Repeatability 0.5%ofselected rangeor0.02 PPM
Sensitivity 0.1%ofselected range
Non-linearity 0.1%ofselected range
Warm-up Time 3 secondsto rated performance (electronics only)
SupplyVoltageEffects ±0.05%span
Instrument Response Time 60 secondsto 90%ofstep input atlowest damping
Equipment bearingthismarking maynot bediscarded bytraditionalmethodsinthe
EuropeancommunityafterAugust12 2005 perEUDirective2002/96/EC. End users
must return old equipment to themanufacturerforproperdisposal.

11
O&M Manual
Rev-E(5/17)
Part 2–AnalyzerMounting
2.1General
AllQ46 Seriesinstrumentsoffermaximummounting flexibility.Abracket isincluded with each
unitthat allowsmountingto wallsorpipes.In allcases,choosealocationthat isreadily
accessibleforcalibrations.Alsoconsiderthat itmaybe necessaryto utilizealocation where
solutionscan be usedduring thecalibration process.Totakefull advantage ofthe high contrast
display,mount the instrument inalocation wherethedisplaycan beviewedfromvariousangles
and long distances.
Locatetheinstrument incloseproximityto thepointofsensorinstallation -thiswill alloweasy
access duringcalibration. The sensor-to-instrument distanceshouldnotexceed100feet.To
maximizesignal-to-noiseratio,however,workwith the shortestsensorcablepossible. The
standard cable length ofthe chlorinesensoris25 feet.
Figure4-Q46 EnclosureDimensions

ATIQ46H/79PRChlorine Manual Part 2–AnalyzerMounting
12
O&M Manual
Rev-E(5/17)
2.2Wallor PipeMount
APVCmounting bracket with attachment screwsissupplied with eachtransmitter(see Figure5
fordimensions).The multi-purpose bracket isattachedto the rearof the enclosureusingthe four
flat headscrews.The instrument isthen attached tothe wall usingthefouroutermounting holes
inthe bracket. Theseholesareslotted to accommodate twosizesofu-boltthat maybeused to
pipemount the unit. Slotswill accommodate u-boltsdesigned for1½“or2”pipe. The actual
centertocenterdimensionsforthe u-boltsare shownin the drawing. Note that these slotsare for
u-boltswith¼-20threads.The 1½”pipe u-bolt(2”I.D. clearance)isavailablefromATIintype
304 stainless steelunderpart number(47-0005).SeeFigures6and 7 formounting diagrams.
Figure5-WallorPipe Mount Bracket

ATIQ46H/79PRChlorine Manual Part 2–AnalyzerMounting
13
O&M Manual
Rev-E(5/17)
Figure6-WallMounting Diagram
Figure7-Pipe Mounting Diagram

ATIQ46H/79PRChlorine Manual Part 2–AnalyzerMounting
14
O&M Manual
Rev-E(5/17)
2.3Panel Mounting
Panelmountingusesthe panelmountingflange molded into therearsectionof the enclosure.
Figure8 providesdimensionsforthe panelcutout required formounting.
The panelmounting bracket kitmustbe ordered separately(partnumber05-0094).Thiskit
containsametalretainerbracket that attachesto the rearoftheenclosure, 4screwsfor
attachment ofthisbracket, and asealinggasket to insurethat the panelmounted monitor
providesawatertight sealwhen mounted toa panel.
The sealing gasket must first be attached to the enclosure. The gasket containsan adhesiveon
one side sothatit remainsin place on the enclosure. Remove the protective paperfromthe
adhesive side ofthe gasket and slide the gasket overthe backofthe enclosure sothat the
adhesive side linesup with the backofthe enclosure flange. Onceinplace,you can proceed to
mount the monitorin the panel.
Figure8-PanelMount Cutout & Diagram

15
O&M Manual
Rev-E(5/17)
Part 3–Sensor/Flowcell Mounting
3.1General
Select a locationwithin themaximumsensorcablelength formounting ofthe sensorflowcell.
3.2Constant-HeadFlowcell
Chlorine sensors arebestused inaconstant-headoverflowchamberbecausevariationsin
sampleflowrateand pressurecan causeunstablereadings.When monitoring low
concentrations(below0.5PPM), thismethod shouldalwaysbe used.
Mechanicalinstallationofthe flowcellrequiresthatitbe mountedtoawallorotherconvenient
flat surface. Alternatively,the mounting holeson theplate will accommodate a2"U-boltfor
mounting the plate toa 2"pipe.
Figure9 -ConstantHeadFlowcell Details
showsthe dimensionsandmounting holelocationsforthe flowcell.Besuretoallowenough
clearanceonthe leftside of the flowcell forinsertionand removalof the sensor.About 12 inches
clearanceisrecommended.
Figure9-Constant HeadFlowcell Details
Oncemounted,inletand drainconnectionsmustbe made. The flowcellcontainsa1/8"MNPT
inlet connection anda3/8"MNPTdrainconnection. Hose barbsforthe inletanddrain
connectionsaresuppliedwith the flowcell forusewith flexibletubing. The inlet hosebarbis
used with ¼"I.D. tubingand thedrain hose barb isused with ½"I.D. tubing.

ATIQ46H/79PRChlorine Manual Part 3–Sensor/Flowcell Mounting
16
O&M Manual
Rev-E(5/17)
3.3SealedFlowcell
Applicationswherethesampleinletflowiswellcontrolled canuseasimplersealedflowcell.
Using thisflowcellrequiresthat sampleflowbe controlled externallytoabout 400 cc/min. using
pressureregulators and needlevalves.Variableflowrate orvariablepressurewill cause
unstablereadingsinthisflowcell.ATIoffers aspecialflowcontrolelement thatcan be used
aheadofthisflowcell ontheincoming sampleline. The flowcontrolassyispartno. (03-0372).It
willcontrolthe inlet flowrateat 400 cc/min. with inlet pressurevariationsfrom5-150 PSIG.A50
micron y-straineraheadofthe flowcontrolelement isrecommended.
Figure10- Sealed Chlorine Flowcell Dimensions

ATIQ46H/79PRChlorine Manual Part 3–Sensor/Flowcell Mounting
17
O&M Manual
Rev-E(5/17)
Figure11- Sealed pHFlowcell Details
Figure10- Sealed Chlorine Flowcell Dimensions
3.4Submersion Mounting
Someapplicationsaremucheasierdoneusing thesubmersiblesensor.Thismethod can
sometimesbe used whereflowisreasonablyconstant, and hydraulicheaddoesnot vary
appreciably.Chlorine sensors can neverbe used incompletelystagnantconditions.Aflow
velocityofatleast 0.3 feet persecondisnormallyrequiredformeasurement. Anyapplicationsfor
asubmersiblechlorine sensorshouldfirstbe discussed with ATI. Atrialof suchinstallationsmay
be necessary.
Submersible sensors are mounted to a 1"pipe using astandard1"PVC threadbythread pipe
coupling. The mounting pipe can be secured tostandard 1½"pipe rail usinga mountingbracket
kit availablefromATI (part number00-0628)asshownin Figure12.

ATIQ46H/79PRChlorine Manual Part 3–Sensor/Flowcell Mounting
18
O&M Manual
Rev-E(5/17)
SENSOR CABLE
2"HANDRAIL
1"ALUMINUM CONDUIT, THREADED1"T xT PVC COUPLING ONE END OR 1"SCHED 80 PVC PIPE
LENGTH AS REQUIRED
(SUPPLIED BYCUSTOMER)
SWIVEL MOUNTING BRACKET WITH
HARDWARE, SUPPLIED BYATI
SUPPLIED BYATI
SENSOR, TYPICAL
2 - 3 FT. SUBMERGENCE
Figure12- SubmersibleSensorMounting

19
O&M Manual
Rev-E(5/17)
Part 4–Electrical Installation
4.1General
The Q46 ispoweredinoneoftwoways,dependingon the version purchased. The 12-24 VDC
poweredanalyzerrequiresacustomersuppliedDC powersupply.The 90-260VACversion
requiresline power.Please verifythe type ofunitbefore connecting anypower.
WARNING: Donot connectAClinepowerto a12-24 VDCpoweredunit.Severe
damage will result.
ImportantNotes:
1. Usewiring practicesthat conformto all national,state and localelectricalcodes.For
propersafetyaswell asstable measuringperformance, itisimportant that the earth
ground connection be made to a solidground point fromTB7. The AC powersupply
containsa single 630mAslo-blo fuse (Wickmann/Littlefuse #372-0630). The fuse F1
islocated adjacent to TB7 and iseasilyreplaceable.
2. Do NOTrun sensorcablesorinstrument 4-20mAoutput wiring inthesameconduit
that containsACpowerwiring. ACpowerwiring shouldbe run inadedicated conduit
to prevent electricalnoise fromcoupling with the instrumentation signals.
3. Thisanalyzermustbe installed byspecificallytrainedpersonnelinaccordancewith
relevant localcodesand instructionscontained inthis operating manual.Observe
the analyzer'stechnicalspecificationsandinputratings.Properelectrical
disconnectionmeansmustbe provided priortotheelectricalpowerconnectedtothis
instrument, suchasacircuitbreaker-rated 250 VAC,2Aminimum.Ifone lineof
the line powermainsisnot neutral,useadouble-polemainsswitchto disconnectthe
analyzer.
4. Repeated problemswith lightning strikesdamagingsensitiveinstrumentation are
often attributedto poorlybondedearthgroundsinthe instrument powersource. The
protection schemesincorporatedintothisanalyzercannotoperatetomaximum
efficiencyunless theground connection isat its’absolute lowestimpedance.
Thereisnostandardground resistanceuniversallyrecognized.Manyagencies
recommend aground resistancevalue of5ohmsorless.The NECrecommendsan
impedanceto ground ofless than 25 ohms,and less than 5ohmswheresensitive
equipment isinstalled.Powersourcesfeedingsensitiveinstrumentslikethe
Q46H/79PR shouldhave the lowest possible impedance to ground.

ATIQ46H/79PRChlorine Manual Part 4–ElectricalInstallation
20
O&M Manual
Rev-E(5/17)
4.2PowerConnection
VerifytheACpowersupplyrequirement beforeinstalling.Alsoverifythat powerisfully
disconnected before attempting to wire.

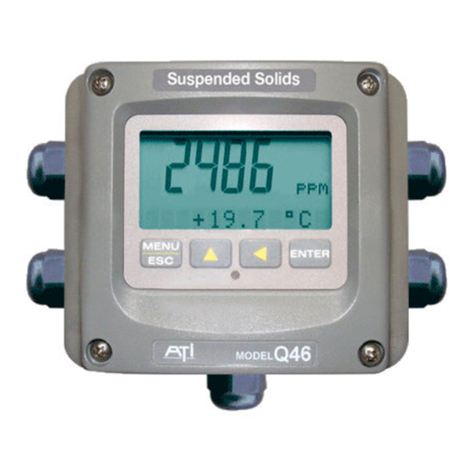

AC powered Q46 systemsare supplied with5 cablegland fittings.
Connect HOT, NEUTRAL, and GROUND to the matching designationson terminalstrip TB7.
The two analogoutputsforthe standardsystemarepresentatterminalTB1.The loop-load
limitationinthisconfiguration is500Ohmsmaximumforeachoutput.Alsonotethat thesetwo
outputsarecompletelyisolated fromeachotherto insurethat ground loopsdo not resultfrom the
connection ofboth outputsto the same device such asa PLC orDCS.
Aribbon cableconnectsthepowersupplyassemblywith the microprocessorassemblylocatedin
the front sectionoftheenclosure. Thiscablecanberemoved during installation tofacilitate
wiringifdesired. It isbesttounplug onlyoneend. Theribboncablehasamarking stripe onone
edge thatisusedto indicate properorientation. Theindicatorstripe shouldbeon the bottom
edgeofthe cable wheninstalled.
WARNING
DisconnectlinepowervoltageBEFOREconnecting linepower
wires to Terminal TB7 ofthepow
ersupply.Thepowersupply
acceptsonlystandardthree-wiresinglephasepower.ACpower
supplies areconfiguredfor90-
260VACoperationatthefactory
attimeof order,and thepowersupplyis labeledas such.Do
NOTconnectvoltages otherthanthel
abeledrequirement to the
input.
