FireMV™ 2400
User’s Guide
P/N 137-50054-11

ii
Copyright © 2005, ATI Technologies Inc. All rights reserved.
ATI, the ATI logo, and ATI product and product-feature names are trademarks and/or registered
trademarks of ATI Technologies Inc. All other company and/or product names are trademarks and/or
registered trademarks of their respective owners. Features, performance and specifications are subject
to change without notice. Product may not be exactly as shown in diagrams.
Reproduction of this manual, or parts thereof, in any form, without the express written permission of
ATI Technologies Inc. is strictly prohibited.
Disclaimer
While every precaution has been taken in the preparation of this document, ATI Technologies Inc.
assumes no liability with respect to the operation or use of ATI hardware, software or other products
and documentation described herein, for any act or omission of ATI concerning such products or this
documentation, for any interruption of service, loss or interruption of business, loss of anticipatory
profits, or for punitive, incidental or consequential damages in connection with the furnishing,
performance, or use of the ATI hardware, software, or other products and documentation provided
herein.
ATI Technologies Inc. reserves the right to make changes without further notice to a product or system
described herein to improve reliability, function or design. With respect to ATI products which this
document relates, ATI disclaims all express or implied warranties regarding such products, including
but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-
infringement.

iii
Note: This graphics card is for use only with compatible UL Listed
personal computers that have Installation Instructions detailing user
installation of card cage accessories.
LIMPORTANT SAFETY INSTRUCTIONS
•Read Instructions - All the safety and operating instructions should
be read before the product is operated.
•Retain Instructions - The safety and operating instructions should
be retained for future reference.
•Heed Warnings - All warnings on the product and the operating
instructions should be adhered to.
•Compatibility - This option card is for use only with IBM AT or
compatible UL Listed personal computers that have Installation
Instructions detailing user installation of card cage accessories.
•Grounding - For continued protection against risk of electric shock
and fire, this accessory should be installed only in products equipped
with a three-wire grounding plug, a plug having a third (grounding)
pin. This plug will only fit into a grounding-type power outlet. This is a
safety feature. If you are unable to insert the plug into the outlet,
contact your electrician to replace the obsolete outlet. Do not defeat
the safety purpose of the grounding-type plug.
•Secure Attachment - All card securement pins shall be completely
tightened as to provide continuous bonding between the option card
and the PC chassis.
•Lightning - For added protection for this product during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet, and disconnect the antenna or
cable system. This will prevent damage to the product due to
lightning and power-line surges.
•Power Lines - An outside antenna system should not be located in
the vicinity of overhead power lines or other light or power circuits, or
where it can fall into such power lines or circuits.
•Antenna Installation - When installing an outside antenna system,
extreme care should be taken to keep from touching such power lines
or circuits, as contact with them may be fatal.

iv

v
Table of Contents
Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
System Requirements 2
Before You Begin 2
Record Your Serial and Part Numbers 3
Uninstall Previous Graphics Card Drivers 3
Installing Hardware . . . . . . . . . . . . . . . . . . . . . . . . . 5
Quick Installation 5
Detailed Installation 6
Connecting Your Monitors 8
Turning on the System 8
Display Configurations 9
Installing Software and Drivers . . . . . . . . . . . . . . 11
HydraVision™ Multi-monitor Management 11
Installing Drivers and Software in Windows® 11
Software Installation Prerequisites 11
Monitor Configuration 13
Display Properties . . . . . . . . . . . . . . . . . . . . . . . . . 15
Accessing the CATALYST™ Software Suite 15
ATI Displays Tab 16
Dynamic Display Reassignment 17
ATI Color Tab 18
Hotkeys 21
ATI Options Tab 23
ATI Rotation Tab 24
ATI Overlay Tab 26
Theater Mode Options 28
ATI 3D Tab 29
Custom Properties Dialog 32
ATI VPU Recover Tab 34
Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Troubleshooting 37
Disclaimer 40
Operating Temperature Limitations 40

vi
Warranty Information 42
Hardware Warranty Service Statement 42
Warranty Service 42
Limitations 42
Additional Accessories 43
Compliance Information 43
FCC Compliance Information 43
Industry Canada Compliance Statement 44
CE Compliance Information 44
Informations de conformité de la CE 44
Electrical Safety 44
Waste Electrical and Electronic Equipment
(WEEE) Directive Compliance 45
VCCI Class B ITE Compliance Information 45
MIC Certification Information 45
BSMI Certification Information 46
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
3D 47
AGP 47
Frames Per Second 52
Gamma 52
GPU 52
HydraVision™ 53
HyperZ™ HD 53
Lighting 54
PCI Express™ (PCIe) 55
SmartShader™ HD 57
Vertex Shader 59
VGA Connector 59

1
CHAPTER 1:
Getting Started
Your ATI FireMV™ 2400 multi-view 2D workstation graphics card is
designed exclusively for the financial and corporate marketplaces. The
FireMV™ line has been engineered to deliver stability and reliability for a
wide range of professional operating environments. For mission-critical,
“always on” systems, FireMV™ graphics cards deliver uninterrupted
performance.
Look to the FireMV™ series to realize these core benefits:
• Reliability
• Stability
• Flexibility
• User-friendly software
• Direct user support
• Lower power consumption
• Space-efficient, low-profile design
• Product longevity
Features of your FireMV™ 2400 card include:
• Quad display through two VHDCI-to-dual DVI-I cables to support
both DVI and VGA displays.
• Low power consumption.
• Low-profile/half-length card for maximum flexibility.

2 System Requirements
System Requirements
Make sure you meet the following system requirements before installing
your FireMV™ 2400 card.
Display Modes
Resolutions are limited by the performance of the attached monitor(s).
• Maximum analog resolution = 2048 x 1536
• Maximum digital resolution = 1600 x 1200
Before You Begin
Before you begin installing your new graphics card, please do the
following.
Hardware • Intel® Pentium® 4/Xeon®; AMD Athlon® 64/K7/XP or
compatible.
• 128 MB of system memory; 256 MB or more for best
performance.
• Motherboard with available X16 lane PCI Express™
slot and correct chipset driver or available PCI slot, as
appropriate.
• CD-ROM drive (required for installation software).
Operating
System
• Windows® 2000 with Service Pack 1 (or higher).
• Windows® XP Home or Pro with Service Pack 1 (or
higher).
Monitor • High-resolution MultiSync or multi-frequency monitors
or other VGA monitors.
• Digital flat-panel (DFP) displays or digital CRT
displays.

Before You Begin 3
Record Your Serial and Part Numbers
The serial number and 102 part number printed on the graphics card are
required for registration. They are located on a sticker on the back of the
card.
Write the numbers, shown in bold above, down before installing your new
ATI product.
Uninstall Previous Graphics Card Drivers
To ensure the successful installation of your new FireMV™ 2400 card, you
must uninstall the drivers for the existing graphics card before removing it
from your computer.
To uninstall previous drivers
With your current graphics card still in your computer:
1Close all applications that are currently running.
2Navigate to the Control Panel and select Add/Remove Programs.
3Select your current graphics card drivers and select Add/Remove.
The wizard will help you remove your current display drivers.
Note: If the previously installed graphics card has any additional
software installed, it should also be removed at this point.
4Turn off your system and remove the old graphics card.
XSerial number (S/N)
Y102 part number (P/N)

4 Before You Begin

Quick Installation 5
CHAPTER 2:
Installing Hardware
This chapter will guide you through the physical installation of your new
graphics card.
Quick Installation
Experienced users and system administrators can follow these brief
instructions for installing the FireMV™ 2400 card in the shortest possible
time.
Detailed hardware and software installation instructions are given in the
next two sections.
To perform a quick installation
1Uninstall the drivers and software for your old graphics card if you
have not already done so.
Note: If you are using a motherboard containing an on-board
graphics solution and do not intend to use it as part of a multiple-
monitor setup, disable it.
2Shut down and disconnect your computer system.
3Remove any previously installed card.
4Install your new FireMV™ 2400 card.
5Reassemble and connect your computer system.
6Install the FireMV™ 2400 drivers and configuration software from
the ATI Installation CD-ROM by doing one of the following:
• Run through the automatic ATISETUP utility; or
•Start > Run > X:\SETUP.EXE (where Xis the drive letter of
your CD-ROM drive).

6 Detailed Installation
Detailed Installation
The following instructions will take you step by step through the
installation of your new FireMV™ 2400.

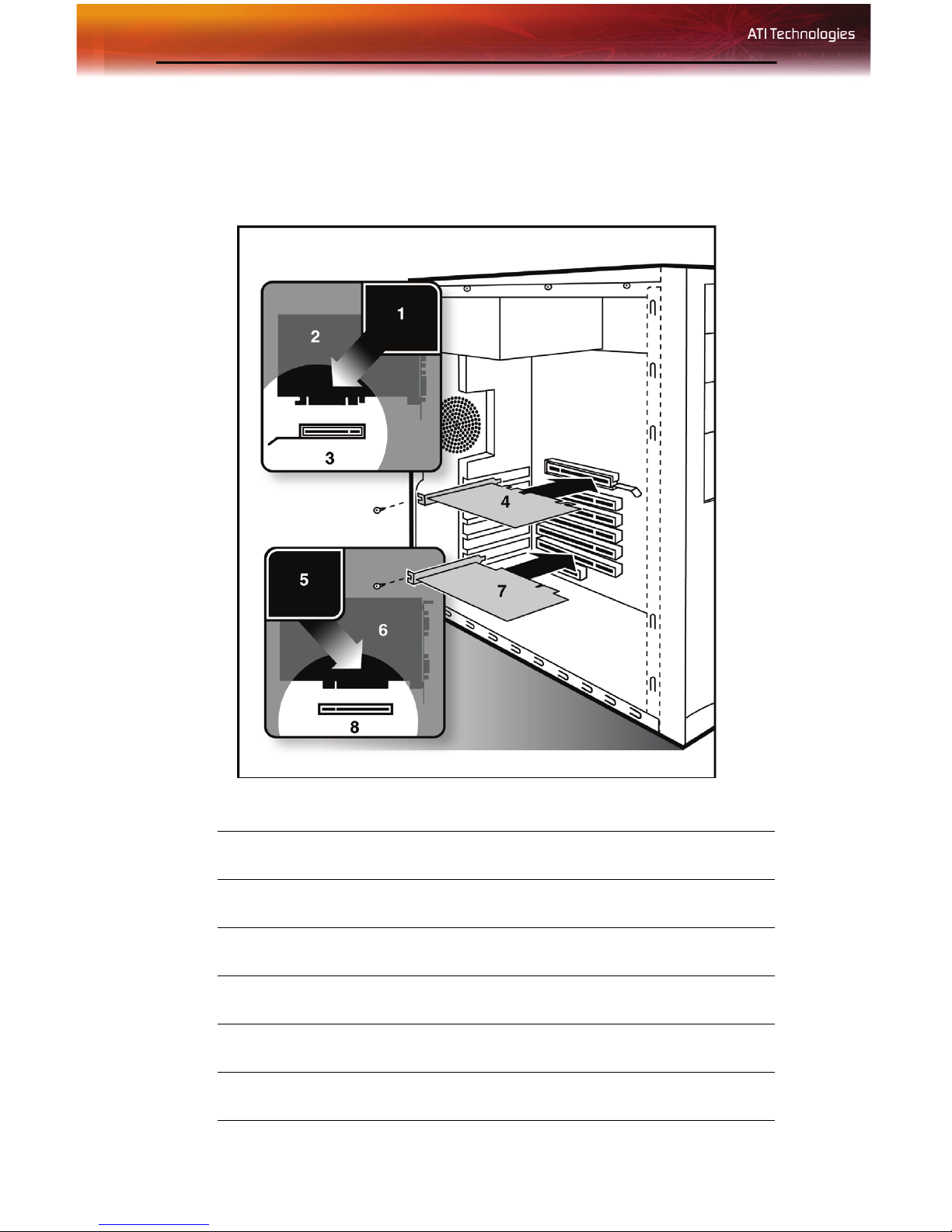

FireMV™ 2400 Installation Diagram
XPCIe Interface Connector
YPCIe Card
ZPCIe Interface Connection
[Insertion Point for PCIe Card
\PCI Interface Connector
]PCI Card

Detailed Installation 7
1Turn off the computer, monitor, and other peripheral devices.
2Unplug the computer’s power cord and disconnect all cables from the
back of your computer.
3Remove the computer cover.
If necessary, consult your computer’s manual for help in removing
the cover.
4Unscrew or unfasten and remove any existing graphics card from
your computer.
Note: If your computer has an on-board graphics capability, you may
need to disable it on the motherboard. For more information, see your
computer documentation.
5Locate the appropriate slot and, if necessary, remove the metal back-
plate cover.
6Align your ATI graphics card with the slot and press it in firmly until
the card is fully seated.
7Screw in or fasten the graphics card securely and replace the
computer cover.
8Reconnect any cables you have disconnected and plug in the
computer’s power cord.
9Turn on the monitor and then your computer.
^PCI Interface Connection
_Insertion Point for PCI Card
LWARNING - Wait approximately 20 seconds after unplugging the
power cord before disconnecting a peripheral or removing a
component from the motherboard to avoid possible damage to the
motherboard.
LWARNING - Remember to discharge your body’s static electricity by
touching the power supply or the metal surface of the computer
chassis.

8 Detailed Installation
Connecting Your Monitors
Your FireMV™ 2400 card is designed for use with a pair of VHDCI cables,
which each provide support for two monitors using two DVI-I connectors.
Note: The VHDCI cable has two connections: a primary and a
secondary. If you are using a single display, make sure you connect it
to the primary connection. A single display will not function properly
if it is connected to the secondary connection.
Turning on the System
If you have properly installed your graphics card, operating system
messages will appear once the boot procedure is finished.
XPrimary DVI-I Connector to VHDCI A.
YSecondary DVI-I Connector to VHDCI A.
ZPrimary DVI-I Connector to VHDCI B.
[Secondary DVI-I Connector to VHDCI B.
LWARNING - Turn on your monitor before you turn on your
computer. Failure to do so could damage your monitor.

Detailed Installation 9
Your monitor will be running in a basic video mode. Higher refresh rates
are not available at this stage of the installation. Once you have installed the
FireMV™ 2400 drivers and software, you can use the Display Properties
control panel to adjust the video settings and configure multiple monitors.
Display Configurations
The FireMV™ 2400 graphics card provides quad display functionality
through two VHDCI-to-dual-DVI-I-connector cables.
Any combination of four digital flat panels and CRT displays (using VGA-
to-DVI-I adaptors) is supported, provided that when a single monitor is
connected to a cable, the primary connector is used.

10 Detailed Installation

HydraVision™ Multi-monitor Management 11
CHAPTER 3:
Installing Software and Drivers
This chapter will guide you through the installation of the drivers and
software associated with your FireMV™ 2400 graphics card.
HydraVision™ Multi-monitor
Management
The HydraVision™ multi-monitor and desktop management software will
install automatically with the Express driver installation of the ATISETUP
utility.
For more information consult the HydraVision™ user’s guide included on
the ATI Installation CD-ROM.
Installing Drivers and Software in
Windows®
You will need to install the FireMV™ 2400 drivers and software in the
following cases:
• After you have installed the card in your system.
• After you have reinstalled or upgraded your operating system.
This procedure applies to Windows® XP and Windows® 2000.
Software Installation Prerequisites
To install or remove the drivers, you must have administrator rights or be
logged on as a user with administrator rights.
Your operating system must be installed and running before you can install
the FireMV™ 2400 drivers. You must also have Service Pack 1 (or higher)
for Windows® XP.
LIf you do not want to install HydraVision™, select the Custom driver
installation and clear the HydraVision™ check box.

12 Installing Drivers and Software in Windows®
Make sure your monitor cable is properly attached before you begin.
Note: The installation dialog will display in English if your operating
system’s language is not supported.
To install ATI drivers and software
1Start your system. When the Found New Hardware Wizard comes
up, click Cancel. When the System Settings Change window asks
you to restart your computer, click No.
2Run the ATISETUP utility. The ATISETUP utility will start
automatically if you insert the ATI Installation CD-ROM into your
CD-ROM drive after the operating system has started. If your CD-
ROM auto-run is not enabled or the ATISETUP utility does not start
automatically:
a) Click the Start button in the task bar.
b) Click Run.
c) Select SETUP.EXE from the root directory of the ATI
Installation CD-ROM.
d) Click OK.
3Click Install under Software Install.
4Click Next.
5Click Yes to the license agreement. ATI Easy Install will start the
Installation Wizard.
6Follow the wizard’s on-screen instructions to complete the
installation.
7When the Setup complete message appears, select Yes, I want to
restart my computer now and click Finish.
LThe Express installation option is recommended. The HydraVision™
multi-monitor and desktop management software will automatically
be installed, along with the ATI driver, by selecting this option. Not all
software components are installed using the Express installation.
Custom installation allows you to select individual software
components for installation.

Monitor Configuration 13
Monitor Configuration
Once the drivers and software have been installed, you can configure your
monitor.
To configure your primary display
1Navigate to the Control Panel and choose Display, or right-click on
the desktop and choose Properties.
2Choose the Settings tab and select the screen resolution and color
depth that best suit your requirements and your monitor’s
performance.
3Click Advanced and select the Monitor tab.
4Choose a refresh rate from the drop-down list.
5Click OK to return to the desktop.
To set up a multi-monitor display
1From the Start menu click Control Panel, then Display. Click the
Settings tab to access the basic multi-monitor configuration settings.
Note: ATI software provides many additional configuration features
that can be accessed by clicking the Advanced button from the
Display Properties > Settings tab.
2Select the Monitor icon identified by the number 2.
3Click Extend my Windows desktop onto this monitor.
4Set the Screen Resolution and Color Quality as appropriate for the
second monitor. Click Apply or OK to apply these new values.
• Refer to your Windows® online help and documentation for
further information on using the Settings tab.
5Repeat steps 2 through 4 for each additional monitor beyond 2.
Note: When you use multiple monitors with your FireMV™ 2400
card, one monitor will always be Primary. Any additional monitors
will be designated as Secondary.
LWarning -Choosing a refresh rate unsupported by your monitor may
damage your monitor. Consult your monitor’s documentation if
necessary.

14 Monitor Configuration
Reinstalling Drivers
You can install new drivers or reinstall existing drivers if there was a
Windows® conflict.
Reinstall the drivers at any time using the ATISETUP utility located on the
ATI Installation CD-ROM. The ATISETUP utility will start automatically
if you insert the ATI Installation CD-ROM into your optical drive after the
operating system has started.
To manually reinstall drivers
If your CD-ROM auto-run is not enabled and the ATISETUP utility does
not start automatically, follow these steps.
1In the Windows® task bar, click Start.
2From the Start menu, select Run.
3Browse to SETUP.EXE on the root directory of the ATI Installation
CD-ROM.
4Click OK.
