ATI Technologies All-In-Wonder Radeon User manual

i
ALL-IN-WONDER™RADEON™/
ALL-IN-WONDER™128 PRO /
ALL-IN-WONDER™128
Installation and Setup
User’s Guide
Version 4.0P/N137-70090-40 Rev.D
© Copyright 2000, by ATI Technologies Inc.
All rights reserved, including those to reproduce this guide or parts thereof, in any form without
the express written permission of ATI Technologies Inc.
Features and specifications are subject to change without notice. Trademarks and/or registered
trademarks are the properties of their respective owners:
ALL-IN-WONDER 128 ALL-IN-WONDER 128 PRO, RAGE 128,
RADEON – ATI Technologies Inc.; AC-3, ProLogic – Dolby Laboratories, Inc.; dbx – dbx
Professional Products; Athlon – Advanced Micro Devices. Inc.; Macintosh – Apple Computer
Inc.; Direct3D, Windows 98, Windows NT, Windows Millennium Edition, Windows 2000 –
Microsoft Corp.; Celeron, Pentium Pro, Pentium II, Pentium III – Intel Corporation; VGA –
International Business Machines Corp.; VESA – Video Electronics Standards Association;
WaveTop – WavePhore WaveTop Inc.

ii
Disclaimer
The manufacturer (MFR) reserves the right to make changes to this
document and the products which it describes without notice. The
MFR shall not be liable for technical or editorial errors or omissions
made herein; nor for incidental or consequential damages resulting
from the furnishing, performance, or use of this material.
The MFR makes no representation that the interconnection of products
in the manner described herein will not infringe on existing or future
patent rights, nor do the descriptions contained herein imply the
granting of license to make, use or sell equipment constructed in
accordance with this description.
The PCI accelerators have been designed to support the PCI local bus
standards. Some computers use proprietary local bus circuitry and
therefore may not be fully compatible with the MFR’s local bus cards.
Although tested successfully in a wide variety of computer systems, the
MFR cannot be held responsible for any incompatibilities which may
occur between this card and the system configuration you plan to use.
We recommend that you check with the dealer or distributor for your
computer system before installing your card.
Product Notices
Dolby* Laboratories, Inc.
Manufactured under license from Dolby Laboratories. Confidential
Unpublished Works. (c) 1992-1997 Dolby Laboratories, Inc. All rights
reserved.

iii
Table of Contents
Getting Started............................................................... 5
Using this Guide ............................................................................................ 6
What is the ALL-IN-WONDER Family?...................................................... 7
Digital flat panel support........................................................................ 8
System Requirements .................................................................................... 9
Other Sources of Information...................................................................... 10
Online Help .......................................................................................... 10
Online manual ...................................................................................... 10
ATI Multimedia Center Guide ............................................................. 10
Installing the Hardware and Software ....................... 11
Installing the Hardware ............................................................................... 12
Multiple monitor support...................................................................... 14
Windows®“New Hardware Found”........................................................... 17
To identify new hardware in Windows®98 or Me ............................. 17
To identify new hardware using “Add New Hardware Wizard”......... 18
Installing Enhanced Drivers for Windows®98 or Windows®Me ............ 19
To install the ATI enhanced drivers
for Windows®98 or Windows®Me................................................... 20
Installing Enhanced Drivers for Windows®2000 ...................................... 21
To identify new hardware in Windows®2000 .................................... 22
To install the ATI enhanced drivers for Windows®2000................... 23
Starting the ATI Multimedia Center ........................................................... 25
Input and Output Adapters .......................................................................... 26
Windows®Volume Control........................................................................ 30
TV reception tips .................................................................................. 31
Using Your ALL-IN-WONDER ..................................... 33
Connecting your PC to a video source ........................................................ 34
Attaching a TV to Your Card ...................................................................... 36
Using SCART connectors
for European televisions .............................................................................. 38
Using and adjusting TV Out................................................................. 38
Starting Windows®with television display enabled ........................... 39
Using a monitor vs. using the television display.................................. 39
Adjusting the monitor display .............................................................. 39
Viewing text on television.................................................................... 40
Reducing edge distortion...................................................................... 41
Changing display configurations.......................................................... 42
Using games and applications .............................................................. 42

iv
Reference ..................................................................... 43
Troubleshooting........................................................................................... 44
Basic troubleshooting tips .................................................................... 44
Windows®98 / Windows®ME troubleshooting tips ......................... 45
Audio and Video Troubleshooting .............................................................. 46
Audio problems ... ................................................................................ 46
Video problems ... ............................................................................... 50
CD Audio Connectors ................................................................................. 51
To Remove the ATI Multimedia Center...................................................... 52
Japanese Users Please Note ........................................................................ 52
Compliance Information.............................................................................. 53
Index ............................................................................. 55

5
CHAPTER 1
Getting Started
Welcome to the convergence of your PC, TV and video! This
new technology changes the way you view TV, graphics, and
video on your PC.
The ALL-IN-WONDER cards are powerful TV tuners, DVD
players, digital VCRs, and 2D & 3D graphics and video
accelerators. Their features will take your PC’s graphics and
video capabilities to the next level.
This guide provides all the information you need to install your
ALL-IN-WONDER card.
IN THIS CHAPTER...
■Using this Guide on page 6
■What is the ALL-IN-WONDER
Family? on page 7
■System Requirements on page 9
■Other Sources of Information on
page 10

6 GettingStarted
Using this Guide
The organization of this guide is as follows:
Installing the Hardware and Software on page 11 provides
instructions for installing your ALL-IN-WONDER card and
software, and connecting video input and output devices to your
ALL-IN-WONDER card.
Using Your ALL-IN-WONDER on page 33 explains how you
can take advantage of the advanced new features of your
ALL-IN-WONDER card.
Reference on page 43 provides troubleshooting tips and
regulatory compliance information for your card.
User Guide: The ATI Multimedia Center User’s Guide that
came with your card explains how to use the special features that
the ATI Multimedia Center provides.

Getting Started 7
What is the ALL-IN-WONDER Family?
The ALL-IN-WONDER family of cards delivers high-
performance 3D and 2D graphics, as well as advanced
multimedia features. You can play games, watch TV or videos,
listen to audio CDs, explore the Internet, and work in
Windows®98, Windows®Millennium Edition, and Windows®
2000 as never before.
ALL-IN-WONDER’s advanced 3D acceleration gives you
detailed color graphics and 3D features like multi-texturing,
alpha blending, and fog effects. ALL-IN-WONDER also
provides powerful 2D graphics features through the Display
Properties pages:
For comprehensive online information on the above features,
just right-click on your desktop, click Properties, select the tab
you want help for, then click the Help button.
ATI’s RADEON and RAGE 128 PRO accelerator chips provide
advanced 3D support and accelerated 2D graphics. Games and
software applications that support the RADEON and RAGE
128 PRO —including Direct3D applications and OpenGL —
run with fluid motion and in brilliant color.
ALL-IN-WONDER is a part of ATI’s legendary series of
graphics accelerators. Your existing 2D games and applications
will snap to life with 128-bit acceleration and faster, more
vibrant colors.
Settings
Customize your desktop settings such
as desktop size, screen resolution and
color depth, and store various desktop
preferences for easy recall later.
Adjustment
Adjust the position and size of your
screen, as well as manipulate the
screen refresh rate, frequencies and
synchronization.
Color
Correction
Correct color tone differences between
real color values and the way your
monitor displays them, and store
various color correction preferences for
easy recall later.

8 GettingStarted
You can use your ALL-IN-WONDER card to connect your
computer to a television. This feature is ideal for playing games,
giving presentations, watching movies, and browsing the
Internet. (For more information, see Attaching a TV to Your
Card on page 36.)
ALL-IN-WONDER also turns your PC into an intelligent TV
with the following features:
Digital flat panel support
ALL-IN-WONDER RADEON’s DVI-I (Digital Visual
Interface Integrated) option supports digital flat panel displays.
•TV-On-Demand™
•Zoom-in
•Scheduled Viewing
•Channel Scanning
•Video capture
•Closed Captioning with “Hot Words”(North America
only)
•Program transcript recording (North America only)
•TV magazine (North America only)
•Digital VCR with real-time video compression
•Interactive Program Guide
•dbx®stereo audio TV (because Europe uses different
stereo TV standards, only the 32MB ALL-IN-WONDER
128, the 32MB ALL-IN-WONDER 128 PRO, and ALL-
IN-WONDER RADEON provide stereo TV audio in
Europe.) ALL-IN-WONDER does not provide stereo TV
in Japan.
DVI-TO-VGA
ADAPTER
VGA
CONNECTOR
FROM
MONITOR
A/V IN
CATV
A/V OUT
See page 16 for
more information.

Getting Started 9
System Requirements
Computer
system
ALL-IN-WONDER 128,
ALL-IN-WONDER 128 PRO
(Pentium MMX, minimum) Pentium®II,
Pentium®III, Celeron™,or compatible
systems with PCI Local Bus or AGP
bus slot.
ALL-IN-WONDER RADEON
Pentium®II, Pentium®III,
AMD K6/Athlon, or compatible with
AGP 2X or AGP 4X bus slot.
Expansion
Slot
PCI cards use a PCI slot; AGP cards
use an AGP slot.
Operating
System
ALL-IN-WONDER 128,
ALL-IN-WONDER 128 PRO,
ALL-IN-WONDER RADEON
Windows®98, Windows®Me,
Windows®2000.
Monitor
VGA, supporting minimum 640x480
resolution. A Plug-and-Play monitor
that supports VESA’s Display Channel
specifications (DDC1 or DDC2b) is
required to take advantage of the
DDC1/DDC2b features.
The DVI-I interface on
ALL-IN-WONDER RADEON can be
used to attach a DVI display or an
analog VGA monitor, using the
supplied DVI-I-to-VGA adapter.

10 Getting Started
Other Sources of Information
If you need additional help or require information that is not
included in this guide, see the following sources:
Online Help
If you require additional information, you can refer to the online
help available under Windows®98, Windows®Millennium
Edition, or Windows®2000 for more information about using
ATI’s enhanced drivers.
For information on your card’s graphics features, double-click
the ATI icon in the lower-right corner of your screen.
Online manual
Your ALL-IN-WONDER card comes with localized online
manuals that describe the extensive features of your card.
To open the online manual
1Insert the ATI INSTALLATION CD-ROM into your
CD-ROM drive.
If Windows runs the ATI INSTALLATION CD-ROM
automatically, proceed to step 5.
2In the Windows®taskbar, click Start.
3Click Run....
4Type the following: D:\ATISETUP
(or substitute your CD-ROM drive letter.)
5Click the Online Manual icon.
ATI Multimedia Center Guide
The ATI Multimedia Center User’s Guide that came with your
card explains how to use the special features that the ATI
Multimedia Center provides.

11
CHAPTER 2
Installing the
Hardware and Software
Installing your card consists of three, easy steps.
•Placing the card in your computer
•Installing ATI’s enhanced display drivers
•Attaching input and output cables and optional TV, VCR,
camcorder, etc.
This chapter explains how to place the card in your computer,
how to install the software, and how to connect the input and
output cables.
IN THIS CHAPTER...
■Installing the Hardware on
page 12
■Installing Enhanced Drivers for
Windows®98 or Windows®Me
on page 19
■Installing Enhanced Drivers for
Windows®2000 on page 21
■Starting the ATI Multimedia
Center on page 25
■Input and Output Adapters on
page 26
■Windows®Vo l u m e C o n t ro l on
page 30

12 Installing the Hardware and Software

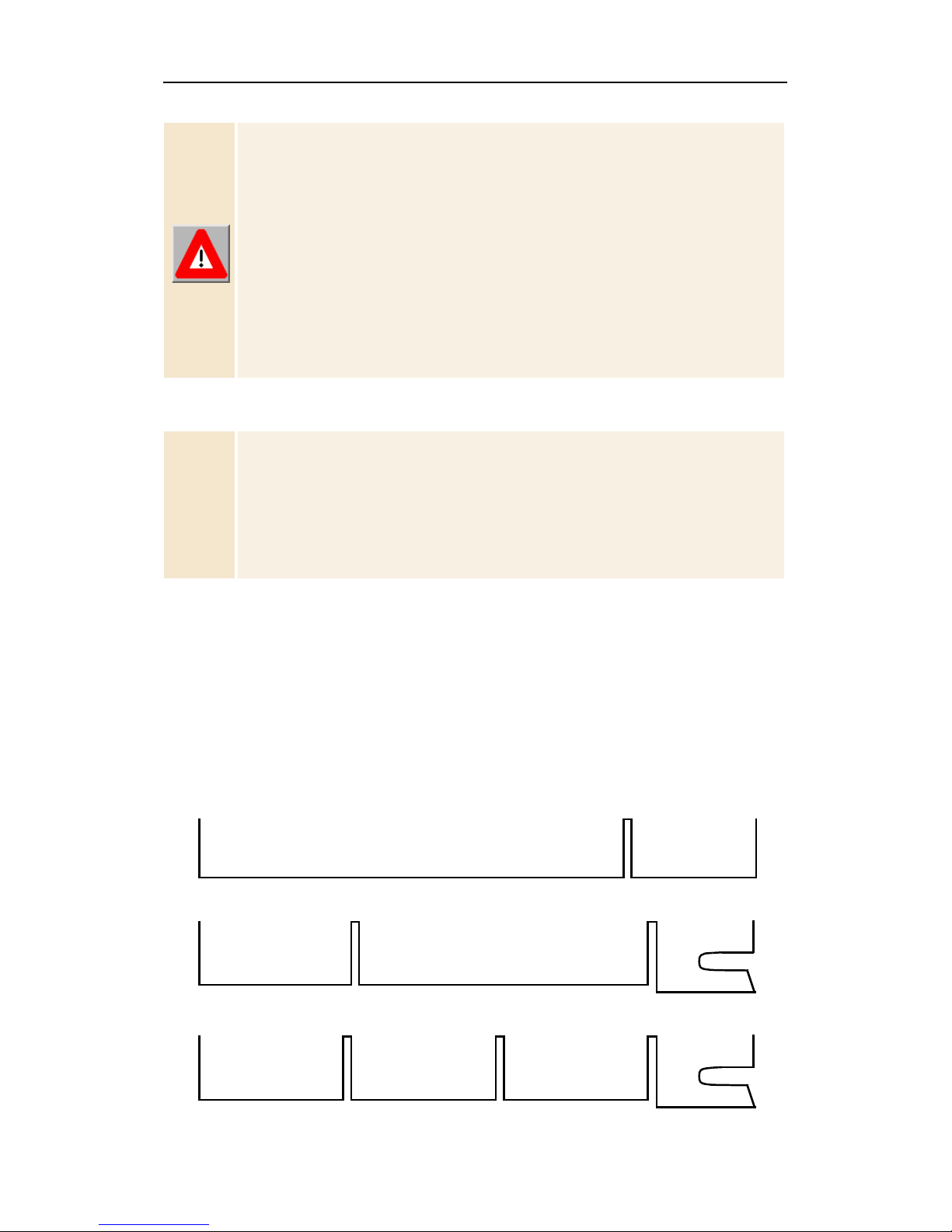

Installing the Hardware
Now that you have prepared your computer, you are ready to
install your card. If you are not sure whether your card is PCI or
AGP (ALL-IN-WONDER RADEON is AGP-only), compare
the bottom edge of your card with the following illustration:
Turn off the power to your system, and discharge your body’s static
electric charge by touching a grounded surface —for example, the
metal surface of the power supply —before performing any
hardware procedure.
The manufacturer assumes no liability for any damage, caused
directly or indirectly, by improper installation of any components by
unauthorized service personnel. If you do not feel comfortable
performing the installation, consult a qualified computer technician.
Damage to system components, the accelerator card, and injury to
yourself may result if power is applied during installation.
Note
Before you install your ALL-IN-WONDER card, we recommend
that you first uninstall the driver for your current video card, and
reconfigure your operating system to use the standard display
driver (VGA) supplied with your operating system. For more
information about changing to the VGA driver, see your operating
system documentation.
PCI
AGP 2x
Universal AGP 2x/4x

Installing the Hardware and Software 13

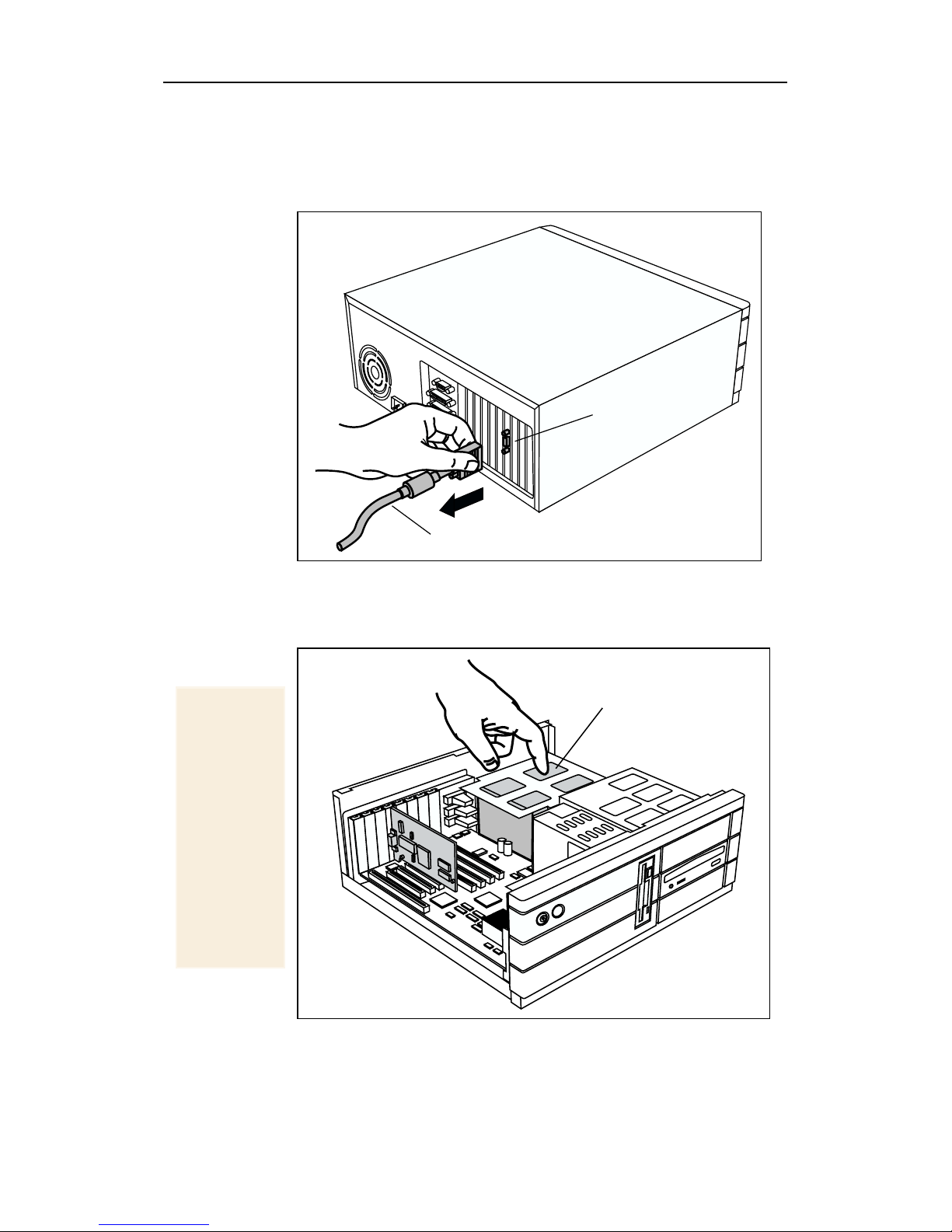

To install your card
Power-off the computer and monitor, then disconnect
the monitor cable from the back of your computer.
Remove the computer cover. If necessary, consult your
computer system manual about removing the cover.
1
MONITOR CABLE
VIDEO OUTPUT
CONNECTOR
2
Remember
to
discharge
your body’s
static
electricity
by touching
the metal
surface of
the
computer
chassis.
POWER SUPPLY

14 Installing the Hardware and Software

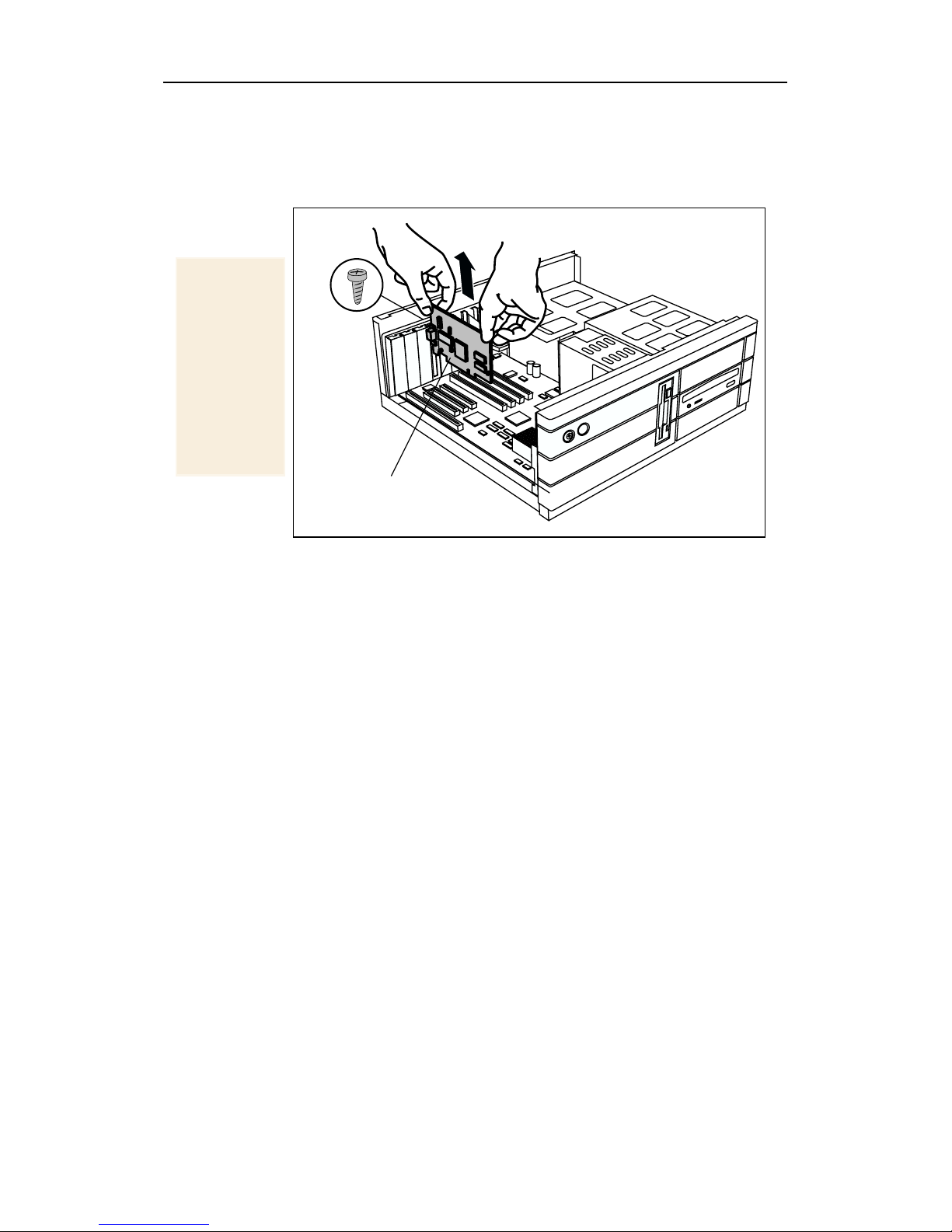

If you intend to run multiple monitors (see Multiple
monitor support on page 14), proceed to step 4.
Otherwise, remove any existing graphics card from
your computer.
Or, if your computer has any on-board graphics
capability, you may need to disable it on the motherboard.
For more information, see your computer documentation.
Multiple monitor support
If you use multiple monitors, the ALL-IN-WONDER must be
the primary graphics card. Normally, the system BIOS
determines whether the AGP or PCI card will be the primary.
For PCI cards, the system normally assigns priority to the card
slots in order of their appearance. Please refer to your computer
system manual for more information.
3
If the old
graphics
card sticks,
rock it
gently from
end to end.
Remember
to save the
screw.
SCREW
OLD GRAPHICS CARD

Installing the Hardware and Software 15

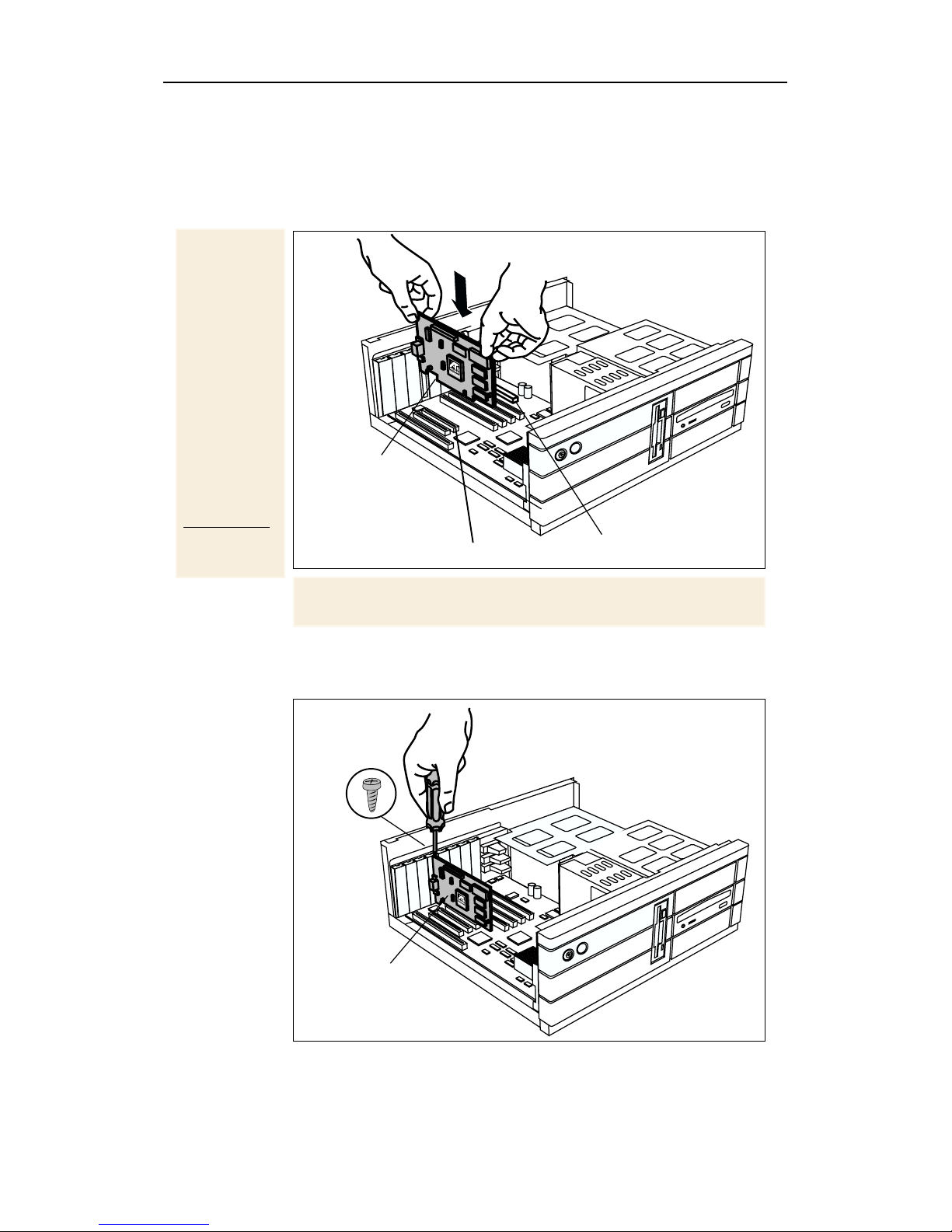

If necessary, remove the metal cover from the empty
expansion slot that you select (PCI cards use a PCI slot;
AGP cards use the AGP slot), then align your new card
with an empty expansion slot, and press it in firmly
until fully seated.
Replace the screw to fasten the card in place, and replace
the computer cover.
4
Grasp the
new card
by the top
edge and
carefully
seat it
firmly into
the correct
slot (PCI or
AGP).
Ensure that
the metal
contacts
are
completely
pushed into
the slot.
ALL-IN-WONDER
PCI EXPANSION SLOT AGP EXPANSION SLOT
Note: AGP 4x/2x cards can be used in either AGP 4x or
AGP 2x slots.
5
SCREW
ATI 3D GRAPHICS
CARD

16 Installing the Hardware and Software
Plug the monitor cable into your card (if you are running
multiple monitors, connect their cables to the appropriate
connectors), then turn on the computer and monitor(s).
If your ALL-IN-WONDER RADEON card has a DVI-I
connector, you can connect a flat panel to it, as shown
below. To connect a VGA monitor to the DVI-I connector,
plug the supplied DVI-I-to-VGA adapter into the DVI-I
connector, then plug your monitor cable into the adapter.
You are now ready to proceed with the installation of ATI’s
enhanced drivers. For detailed instructions, select your
operating system from the list below:
•Windows®98/Millennium Edition, see Windows®“New
Hardware Found”on page 17.
•Windows®2000, see page 21.
6
Make sure
your
monitor
cable is
securely
fastened.
DISPLAY CABLE
TO VGA MONITOR
TO F L AT PA N E L D I S P L AY
(DVI-READY CARDS ONLY)
DVI-I-TO-VGA
ADAPTER
DVI-I
CONNECTOR
VGA
CONNECTOR
ON CARD
FROM
MONITOR

Installing the Hardware and Software 17
Windows®“New Hardware Found”
If you are running Windows®98 or Millennium Edition (Me),
new hardware may be detected after you restart your computer.
Follow the step-by-step instructions below to allow Windows®
to correctly identify your new hardware.
To identify new hardware in Windows®98 or Me
1Windows®98/Me briefly displays the “New Hardware
Found”dialog before launching the “Update Device Driver
Wizard”.
If the wizard does not appear, proceed directly to Installing
Enhanced Drivers for Windows®98 or Windows®Me
on page 19.
2Click Next.
3Click Finish.
4Insert your Windows®98/Me CD-ROM into your
CD-ROM drive.
5Click OK.
6Type the following:
Windows®98 D:\WIN98
Windows®Me D:\WINME
(If Dis not your CD-ROM drive, substitute Dwith the
correct drive letter.)
7Click OK.
8Click Ye s to restart your computer.
You are now ready to install your ATI enhanced drivers. Proceed
to Installing Enhanced Drivers for Windows®98 or
Windows®Me on page 19, and follow the step-by-step
instructions to complete the installation.
After restarting your system, Windows®98/Me will briefly
display the “New Hardware Found”dialog. Depending on your
new hardware, you will either be prompted to insert your
Windows®98/Me CD-ROM, or Windows®98/Me will launch
the “Add New Hardware Wizard”.

18 Installing the Hardware and Software
If Windows®98/Me automatically begins installing drivers for
your new hardware, click Ye s to restart your computer when
prompted; then proceed to Installing Enhanced Drivers for
Windows®98 or Windows®Me on page 19.
To identify new hardware
using “Add New Hardware Wizard”
1Windows®98/Me launches the “Add New Hardware
Wizard”, which prompts you to search for the Standard
PCI Graphics Adapter (VGA).
2Click Next to continue.
3Select Search for the best driver for your device.
4Click Next to continue.
5Click Next to start the driver search.
6Click Next to install the Standard PCI Graphics Adapter
(VGA).
7Click Finish.
8Click Ye s to restart your computer.
You are now ready to install your ATI enhanced drivers. Proceed
to Installing Enhanced Drivers for Windows®98 or
Windows®Me on page 19, and follow the step-by-step
instructions to complete the installation.

Installing the Hardware and Software 19
Installing Enhanced Drivers for
Windows®98 or Windows®Me
With Windows®98 or Me running on your computer, you need
to install the enhanced ATI drivers to take advantage of your
card’s higher performance, resolutions, and special features. To
ensure that you install the latest drivers, install the ATI
enhanced drivers located on the CD-ROM shipped with your
graphics accelerator card.
Notes
•Close all open applications before installing
your ATI software.
•Before installing the ATI enhanced drivers,
ensure that any previously-installed ATI display
drivers have been removed from your system.
To do this:
1. In My Computer, double-click Control Panel,
then double-click Add/Remove Programs.
2. Click ATI Display Driver, then click
Add/Remove.
•Always use the latest version of the ATI
Installation CD-ROM to install ATI display
drivers and multimedia software.
The last three digits of the CD part number
represent the version —a higher number
indicates a later version.
•All ATI Installation CD-ROMs include a
complete set of display drivers and multimedia
software.

20 Installing the Hardware and Software
To install the ATI enhanced drivers
for Windows®98 or Windows®Me
1Insert the ATI INSTALLATION CD-ROM into your
CD-ROM drive.
If Windows®runs the CD-ROM automatically, proceed to
step 6.
2Click Start.
3Select Run.
4Type the following:
D:\ATISETUP
(If Dis not your CD-ROM drive, substitute D with the
correct drive letter.)
5Click OK.
6Click ATI Easy Install to begin the Installation Wizard.
7Click Next.
8Click Ye s to accept the license agreement.
9Follow the Wizard’s on-screen instructions to complete the
installation.
The Express installation option is recommended. If your
ATI product includes a multimedia component, the software
for that component will automatically be installed, along
with the ATI enhanced drivers, by selecting this option.
The Custom installation option can be used to specify
which components are installed, or the location in which
the software is installed.
