Atlas Filtri BIG F PRO Service manual

INSTALLATION, USE AND MAINTENANCE MANUAL

INDEX
INTRODUCTION
PREPARING YOUR SYSTEM
INFORMATION ON THE DISPOSAL OF THE SYSTEM
POSITIONING YOUR SYSTEM
INSTALLATION REQUIREMENTS
ELECTRICAL POWER SURGE PROTECTION
INITIAL INSTALLATION PROCEDURE
LAMP BALLAST OPERATION
BALLAST DISPLAY INFORMATION
MAINTENANCE
CARTRIDGE REPLACEMENT PROCEDURE
SYSTEM DISINFECTION
LAMP REPLACEMENT PROCEDURE
QUARTZ SLEEVE MAINTENANCE/REPLACEMENT PROCEDURE
UV SYSTEM CHARACTERISTICS
DECLARATION OF CONFORMITY
Pag. 3
Pag. 3
Pag. 4
Pag. 4
Pag. 4
Pag. 4
Pag. 5
Pag. 8
Pag. 8
Pag. 10
Pag. 10
Pag. 10
Pag. 12
Pag. 12
Pag. 13
Pag. 15

3
Thank you for purchasing an Atlas Filtri BIG F PRO Water Treatment System.
INTRODUCTION
Atlas Filtri BIG F PRO are designed to reduce turbidity and to kill harmful bacteria and viruses in water
supplies. By means of UV-C rays, a purification process that’s eco-friendly and chemical-free, DNA and
RNA of microrganisms is damaged, resulting in an effective germicidal action. A double-stage pre-filtration
unit ensures that particulate matter does not shield micro-organisms from the UV-C light.
This system will effectively treat water, depending on the required UV dosage and existing water quality.
The system is designed for mains and rainwater supply.
The Atlas Filtri BIG F PRO system cartridges and lamp need to be regularly maintained and/or replaced to
guarantee optimum performance. For replacements contact your nearest Atlas Filtri dealer.
Quartz sleeve needs to be cleaned periodically to ensure optimum performances.
Warning
According to the European standard EN 60204-1 (safety of the set-up off the electrical equipment-general
rules) low tension electrical equipment (rule 2006/95/CE) must be connected to a earthed current tap.
Safety warning
UV-C radiation can cause serious burns to unprotected skin and eyes, it is therefore compulsory not to
connect the appliance to the socket without having first fitted the UV lamp in its housing.
Caution
Atlas Filtri BIG F PRO are designed to reduce turbidity and to kill harmful bacteria and viruses in water
supplies. Do not use with chemically unsafe water (water that does not comply with the legal limits in force
in you country) or with water of unknown quality. It is compulsory to perform a complete water analysis and,
in case, adopt further treatments before using the system.
Note: This water filtering appliance should only be installed by a fully qualified & licenced plumber.
Any operation on the electrical part of the product must be carried out by a qualified electrician,
closely following the instructions supplied.
PREPARING YOUR SYSTEM
Please read all instructions carefully as failures caused by incorrect installation or operation make the
warranty void.
Carefully check all the components (especially the lamp) are present and not damaged:
1.Filter System and UV chamber (with double-stage filtration unit, flexible steel hose and metallic frame).
2.UV Lamp and quartz sleeve (in cardboard tube).
3. Bag containing: spanner, manometers (2), lubricant (2), brass joint (1), gaskets (2) and the metallic frame key.
4.Ballast (Atlas Filtri BIG F PRO systems come with Ballast pre-installed).
5. This user guide.
Remove all the packing materials before using.
You must dispose of this product and its packaging according to local laws and regulations.

4
POSITIONING YOUR SYSTEM
Choose a location with a structurally appropriate mounting position. Allow at least a chamber length space
above the unit for removal of the lamp and quartz-sleeve and 120 mm below the housings for replacing the
cartridges and maintenance.
Atlas Filtri BIG F PRO systems must be installed in a sheltered position, protected from direct sunrays,
weather, rain, frost, water and have adequate ventilation.
All Atlas Filtri BIG F PRO systems should be protected from harsh environments where overexposure to
salt or aggressive chemicals can occur.
INSTALLATION REQUIREMENTS
Warning - FOR CORRECT OPERATION OF THIS APPLIANCE, IT IS ESSENTIAL TO OBSERVE
THE MANUFACTURER’S INSTRUCTIONS.
Note: Ensure the connection of the device meets the applicable plumbing code in your area.
Note: Only use thread seal tape (not included) for the manometers and nipple-head connection. Do not
use liquid sealant.
ELECTRICAL POWER SURGE PROTECTION
An electrical power surge or spike can travel through the supply lines and cause serious damage to your
electrical equipment. The BIG F PRO has a fuse to protect the circuit. The fuse is not a lightning arrestor
and may not protect the product if lightning or a very powerful surge hits the unit. If the installation is
subject to electrical power surges or lightning we strongly recommend the use of suitable additional surge
Cold water line only.
Power supply: AC 110-240 V; 50/60 Hz
Max Working Pressure: 8,3 bar
Working temperature: 4-45 °C (protect from freezing).
Max Flow rates: mod. 156 3240 L/h (54 lpm) - mod. 256 4200 L/h (70 lpm)
mod. 267 5700 L/h (95 lpm)
INFORMATION ON THE DISPOSAL OF THE SYSTEM
Applicable disposal methods may be different in countries outside of the European Union. Ask your
retailer or local authority about the requirements that apply in your country.
We remind that, according to what is xed by D.L.25 July 2005, № 151 “Accomplishment of directives
2002/CE, 2002/96/CE and 2003/108/CE, concerning the reduction of the use of dangerous substances in
electric and electronic equipment, and the disposal of waste” both mercury vapours lamps and electrical
panels, when no longer used, must be considered as special waste, and in the same way disposed of.
To do that, it is possible to send to specialized centres for the recovery of dangerous materials, or to
contact directly our technical department.
INFORMATION TO USERS pursuant to art. 14 of the 2012/19 / EU DIRECTIVE OF THE
EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and
electronic equipment (WEEE).
The crossed bin symbol on the appliance or on its packaging indicates that the product at the
end of its useful life must be collected separately and not disposed of together with other mixed
urban waste.
Please contact your municipality, or local authority, for all information regarding the separate collection
systems available in the area. The retailler is obliged to collect the old equipment free of charge when
buying new equipment of an equivalent type, for the purpose of starting the correct recycling / disposal.
Appropriate separate collection for the subsequent start-up of the disused equipment for recycling,
treatment and environmentally compatible disposal helps to avoid possible negative effects on the
environment and on health and favors the re-use and / or recycling of the materials it is composed of
the equipment.

5
protection devices on all electrical equipment. We recommend the use of an RCD or earth leakage circuit
breaker on the power supply to your unit.
The flow rate MUST be equal or below the maximum values. Excessive flow will reduce UV dose and may
render the unit ineffective.
INITIAL INSTALLATION PROCEDURE
Warning
- Only use the system in the operating conditions indicated on the sticker on the filter bowl.
- if the sticker is tampered, damaged, not legible or missing, applicable working conditions are:
max pressure 8,3 bar, max temperature 45°C.
- If pressure exceeds use limits, protect with a pressure reducing valve.
- Install an “anti-water hammer” system to protect the filter. In case of installation on systems powered by a
pump and especially on those equipped with a pressure and flow controller, an additional expansion
vessel must be installed between the pump and the first filter unit to minimize pressure fluctuations.
Atlas Filtri BIG F PRO systems has 1” BSPP plumbing connections (Inlet 1” BSPP female, Outlet 1” BSPP male).
1. Remove the flexible hose from its seat inside the cardboard protection.
2. Before attempting installation, check that the UV lamp and its quartz sleeve are intact inside their
respective packaging.
3. Locate a suitable position for the BIG F PRO system remembering to allow 120mm under the housings
and at least a chamber length space above the unit for removal of the lamp and sleeve. A power outlet
with residual current protection is required.

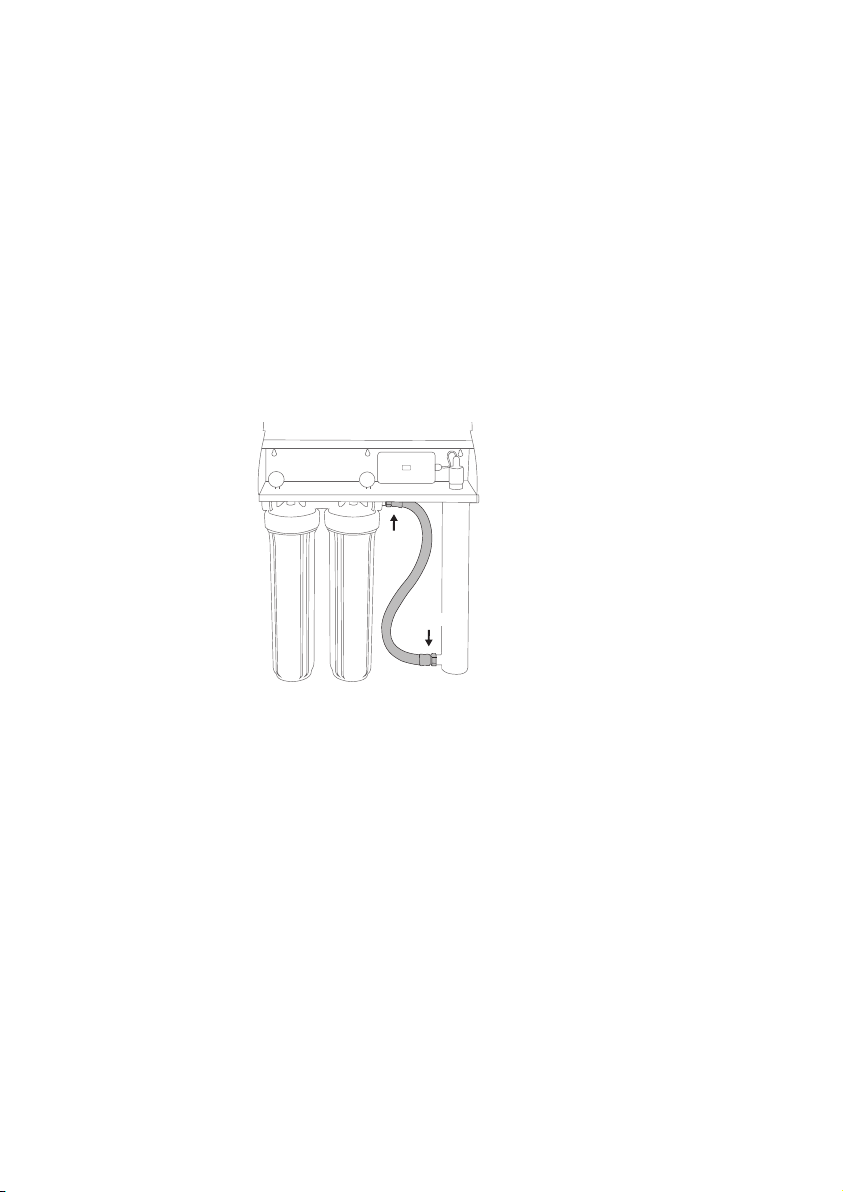

You can choose the direction of the water flow through the unit, depending on whether you have water inlet from the
left (default setting) or from the right. To reverse the direction of flow, unscrew the filter housings, the UV System, the
earthing and the power supply box, reassemble all the components removed so that the UV chamber is on the left, the
filter housing inlet on the right and the UV lamp controller is slightly to the left. Re-fit the gauges.
ØV [l]min V [l]max
1” 35 40
1”1/4 60 65
3/4” 20 25
5
only in case of installation
with feed pump
1
4
3
5
Ø
6
8 8
V [litre]
V [litre]
7
2
1. Water mains.
2. Check valve.
3. Pressure reducer.
4. By-pass.
5. Anti-water hammer device.
6. BIG F PRO.
7. Delivery.
8. Isolating valves.
Anti-water hammer sizing table
for Water Pressure Tank
8
For the correct performance of the system the inlet water must meet the below parameters:
Warranty will not apply to units which fail due to being used on water which
does not meet the above water quality parameters.
Hydrogen sulphide
Iron
Manganese
< 0,3 mg/L
< 0,3 mg/L
< 0,05 mg/L
Total hardness
UV transmittance
< 120 mg/L
> 95% - 1 cm

6
Warning
Pay attention to ensure the earth strap has been fitted. Check that once reversed the water will be flowing
through the filters in the correct direction.
N.B. The water MUST always pass through the Filter Housings BEFORE the UV unit.
4. Atlas Filtri BIG F PRO systems have 3 mounting holes at the rear of the mounting bracket. Use the
mounting holes to mark the desired position on the wall where the fixings are required to go.
5. Drill the holes and install the anchors (fixing anchors not included).
6. Position the mounting bracket on the wall. Insert and tighten the fixings to hold the system securely to
the wall.
Note: The outlet is always on the UV side of the system.
7. Turn off the water mains.
8. Plumb inlet and outlet pipework to the Atlas Filtri BIG F PRO unit. The inlet is a 1” BSPP female
and the outlet is a 1” BSPP male.
9. Connect the brass nipple to the outlet of the housing; PTFE sealant tape (not included). In case of
leakage of water add some more sealant tape and/or screw more tightly.
10. Connect the manometers applying some PTFE sealant tape (not included) to the thread and screw them
on tightly, but without over-tightening, into the 1/8” threaded ports on the top of the head; at product start-up,
in case of leakage of water add some more sealing tape and/or screw more tightly.
11. Connect the flexible hose to the brass nipple and to the inlet of the UV chamber using the
supplied gaskets.
12. ASSEMBLY OPERATIONS:
(A) Open the cover. Remove the lamp connector from the top nut, disconnecting the ground wire and
unscrew the black sleeve bolt. warning: pay attention to the blue gasket inside.
(B) Insert the quartz sleeve carefully centring the seat at the bottom plate of the UV chamber.
(C) Insert the o-ring into the quartz sleeve.
(D) Tighten the sleeve bolt and insert the spring into the quartz tube by dropping it into the chamber.
(E) Slowly insert UV lamp into the quartz sleeve.
(F) Connect the lamp connector to the pins on the lamp.
(G)Place the ground wire in the appropriate seat of the black bolt.
(H) Push the black cap on the black bolt and turn it clock wise to lock it. Connect again the ground wire
to the frame.
Use gloves to handle the quartz (glass) and lamp surface as marks or fingerprints may interfere with
UV transmission. If lamp is soiled, please clean lamp with an alcohol based cleaner.
13. Use the filter housing spanner to tighten filter bowls until firm. DO NOT OVER TIGHTEN.
14. Turn the water on, let the water flow through – opening a tap downstream to flush the unit for 5 minutes
at least. Then check the system thoroughly for leaks.
15. Turn the power on and ensure that the lamp is operating (see lamp ballast operation chapter)
16. Close and lock the cover. Note: Your cabinet comes with 1 key for your convenience. Please store it
safely.
OUT
housing
IN
UV chamber

7
2a
lock unlock
1
2
ground wire seat
tighten
the ground wire
A B
C D
E F
G H

8
OPERATION
• Prior to perform any work on the UV steriliser system, always disconnect the power supply.
Warning: Do not look directly into ultraviolet rays emitted from the UV lamp as they will cause
serious burns to unprotected eyes.
• The treated water will seem warm for a short period at first flow. This is because the UV lamp emits heat.
When turning on a tap, let the water run for a short time to purge any warm water.
LAMP BALLAST OPERATION
Any operation on the electrical part of the product must be carried out by a qualified electrician, closely
following the instructions supplied.

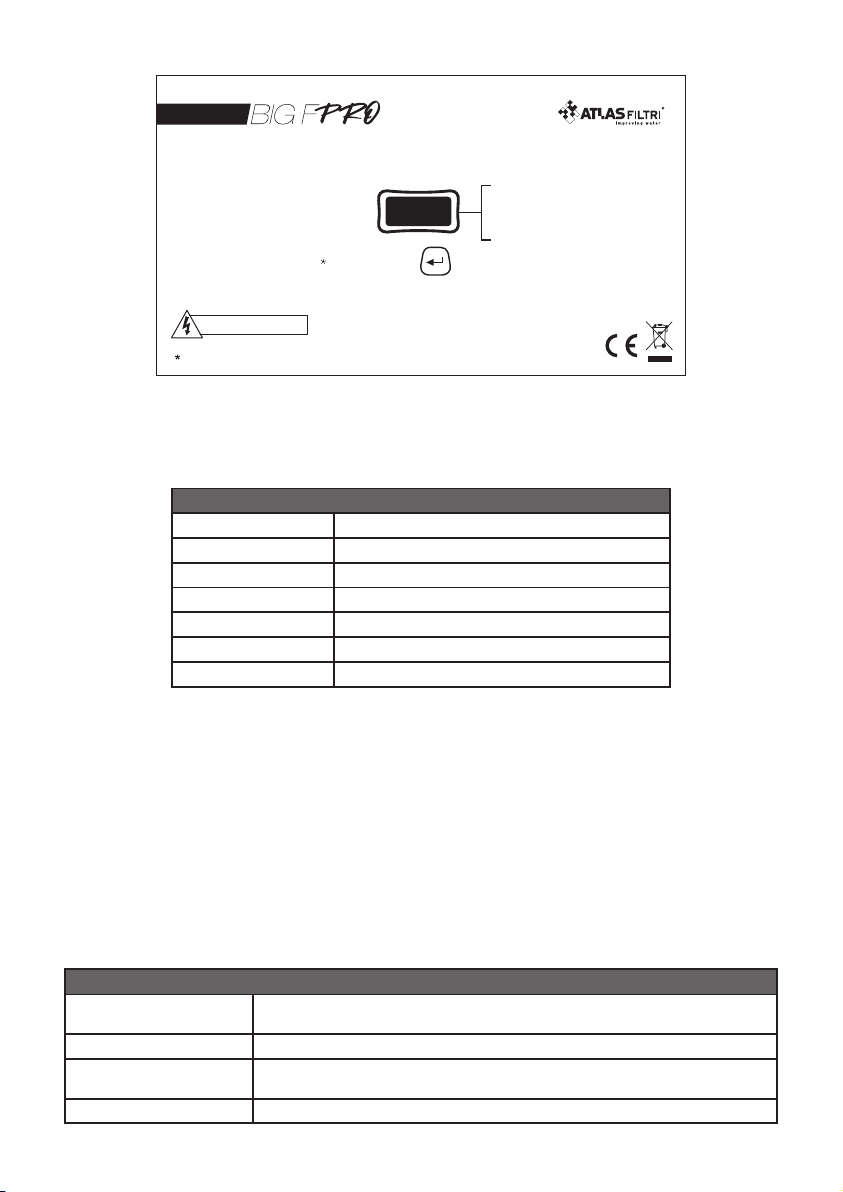

Ballast Display Information
ATTENTION: If the display does not turn-on replace the fuse in the UV control panel.

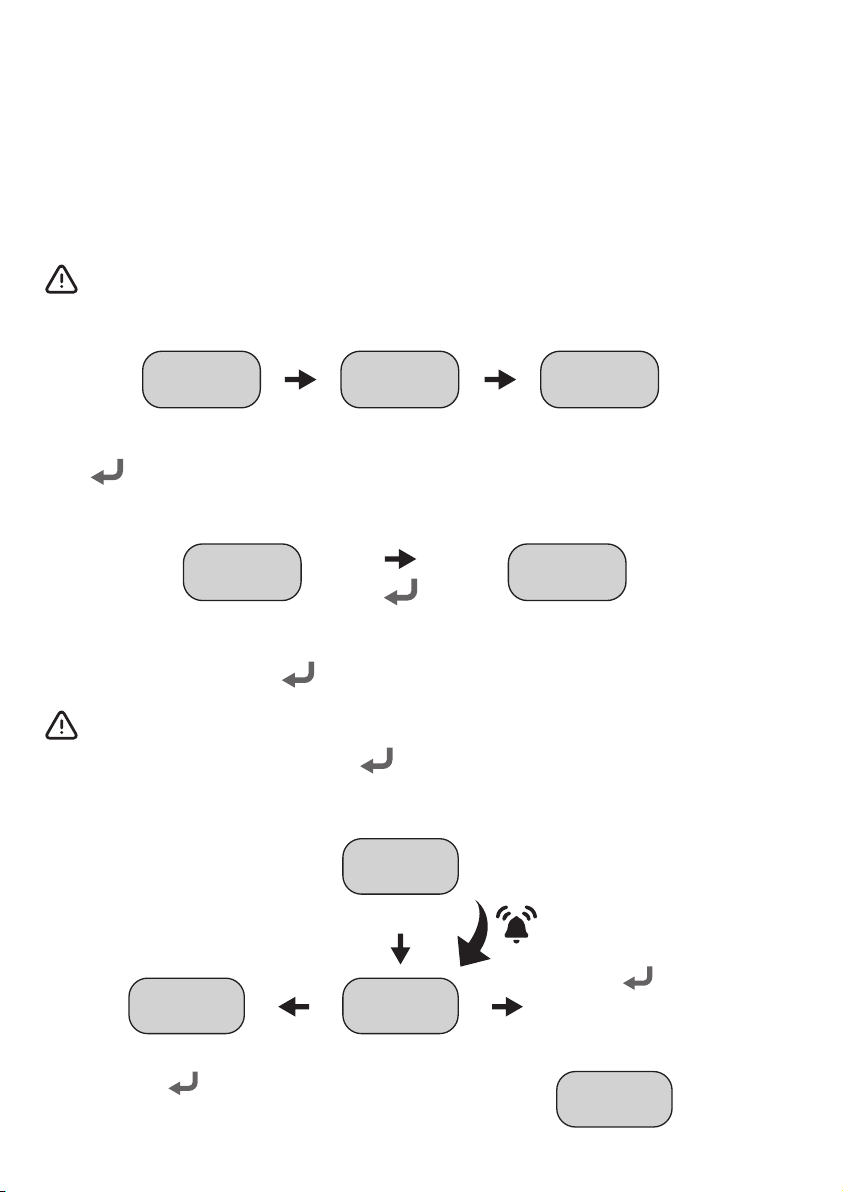

DISPLAY MESSAGES – Start up:
DISPLAY MESSAGES – Working days:
Press for less than 1 sec to show the lamp working days:

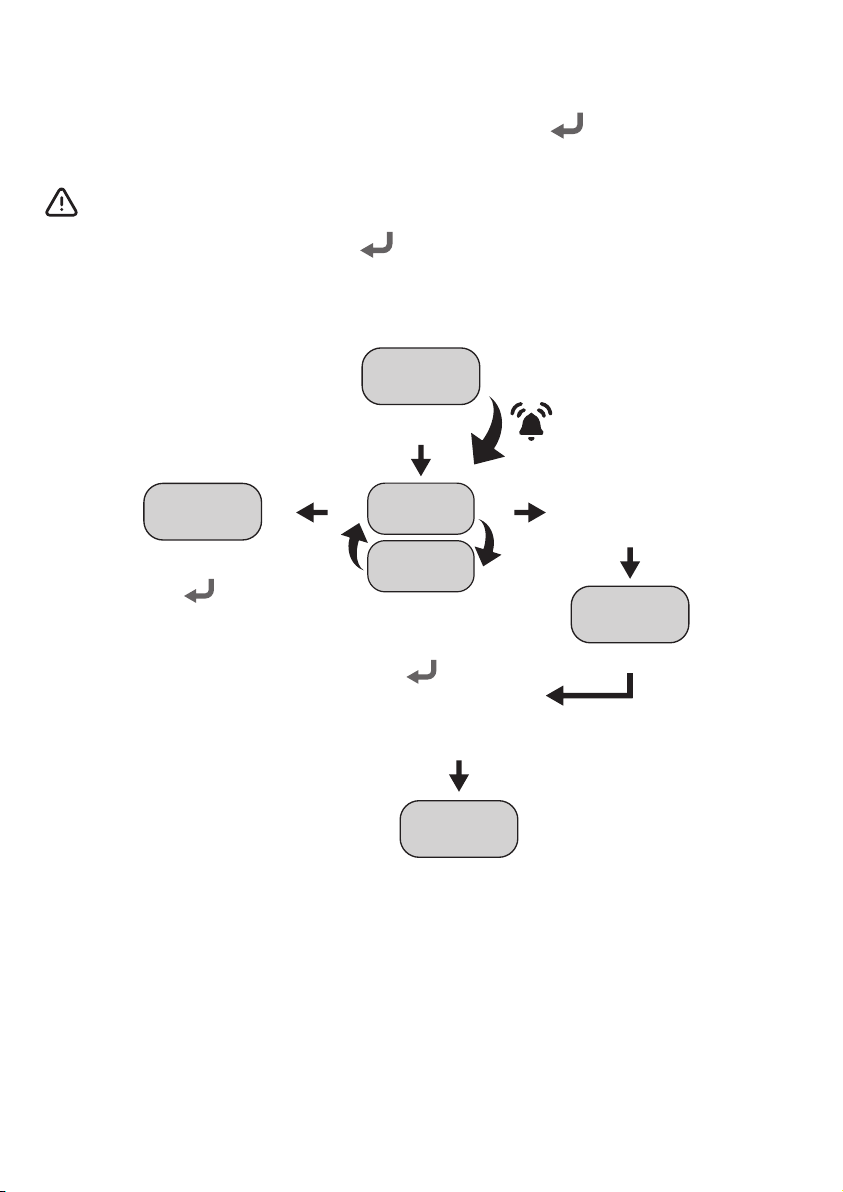

DISPLAY ALARMS - Troubleshooting:
AL1: Indicates the end of lamp life (count-down timer shows 0 days) In such case replace the UV lamp and
reset the working days count down. To reset the working days count down replace the lamp and press and
hold for less than 5 seconds the button. The value of the days-meter will start to flash. Within 5 sec
press the button again to confirm the days-meter reset.
ATTENTION: Do not replace the lamp with power connected to the unit.
Press and hold for more than 5 seconds the button to mute the alarm for 7 days (max 4 times).
N.B. if within 5 sec the lamp reset is not «confirmed», the days-meter reverts back to the current days
remaining value.
AL2: Indicates lamp failure. Check:
No power
(connect to power supply)
Indication of the
software version
01.0
Working days count down
(lamp life 1 year)
365
Press <1 sec
System total
working days
012
Working days
count down
353
Keep pressed for less
than 5sec.
The value of the days meter
will start to flash. Within 5 sec
press again the button to
confirm the days-meter reset.
Working days count
down (lamp expired)
Allarm + BuzzerPress and hold
> 5 sec.
to stop the buzzer
000
AL1 AL1
365
Working days count
down (restarted)
Alarm AL1

9
- Lamp connection.
- If the lamp is burnt out by testing a new lamp.
- If the lamp starter has failed by testing a new lamp.
In case of lamp replacement press and hold for less than 5 seconds the button. The value of the days-
meter will start to flash. Within 5 sec press again the button to confirm the days-meter reset.
ATTENTION: Do not replace the lamp with powered unit!
Press and hold for more than 5 seconds the button to mute the alarm for 7 days (max 4 times).
BALLAST DISPLAY INFORMATION
Working days
count down
Allarm + Buzzer
AL2/OFF alternately on display
Fix AL2 alarm, disconnect the
power from the unit
and then turn back on
Keep pressed for less than 5sec.
The value of the days-meter will start to flash.
Within 5 sec press again the button to confirm the days-meter reset.
N.B. if within 5 sec it is not “confirmed” the
days-meter comes back to the current counting value
113
AL2 AL2
OFF
113
Remaining lifespan
of the lamp (restarted)
365
Press and hold
> 5 sec.
to stop the buzzer
Alarm AL2
Event
Remaining working days
of the lamp.
Warning
DISPLAY OFF: The fuse of the pcb is blown. Unscrew the cap of the power supply box. Remove the
small box close to the power supply plug, replace the fuse (mod. 5x20 1,6A Fast).

10
Maintenance
You can obtain replacement parts from your local Atlas Filtri dealer. To maintain performance and warranty,
use genuine Atlas Filtri replacements.
The BIG F PRO series have been designed and manufactured with simple and functional features which
make the checking procedures and the periodical servicing particularly easy.
To maintain a high quality of disinfected water, cartridges, lamp and quartz-sleeve should be regularly
checked/replaced (dependent on water quality and usage).
Maintenance operations may only be carried out by personnel who have been trained and authorized for
this work by the owner and/or user. The owner and/or user must ensure that the maintenance personnel are
familiar with the safety measures and regulations, and that they also comply with them, in addition to having
read and understood the operating instructions.
Flush system for 10 minutes after any period of non-use of more than 2 days. For a period of non-use of 2
weeks or more, it may be necessary to replace the cartridges.
Only original replacement parts from the supplier must be used.
The following are the recommended service intervals for replacement parts:
Cartridge Replacement Procedure
DAYS COUNTDOWN
Alarms:
AL1 = lamp exhaust
AL2 = lamp OFF
DISPLAY OFF = replace fuse
• tc= max 70 °C
( )
after flashing press again to confirm countdown reset
Total Days < 1 sec.
( ) Reset < 5 sec.
Audio alarm OFF > 5 sec.
disconnect main supply
before removing the cover
MADE IN ITALY
REPLACEMENTS LIST
AB3505056 UV LAMP 56W
AB3505057 QUARTZ SLEEVE 56W + SPRING (mod. 156-256)
AB3505058 BIG F PRO UV LAMP CONTROLLER
AB3505066 O-RING FOR QUARTZ SLEEVE (BIG F PRO)
AB3505067 UV LAMP 67W
AB3505068 QUARTZ SLEEVE 67W + SPRING (mod. 267)
AA7530215 O-RING DP BIG Blue
SERVICE INTERVALS
Sediment cartridges replace with a new cartridge every 3-6 months or with a pressure drop more than
1Bar(100Kpa/15PSI).
UV lamp once per 9000 hours/one year.
UV quartz sleeve quartz sleeve cleaning is recommended at least quarterly, more frequent cleaning may be
required depending on your water quality, please seek the advice of your retailer.
O-ring for quartz sleeve annually.

11
Prior to performing any work on an Atlas Filtri BIG F PRO systems always disconnect the power supply first.
Change the cartridges at least every six months or when a drop in downstream water pressure of 1 bar or
more is observerd. To change the filter cartridges please adhere to the following procedure:
Replacement of the cartridge
Follow standards in force regarding waste disposal of used cartridges.
1. Before opening the filter housing turn-off the water mains.
2. Release the pressure from the product by un-screwing the vent-valve of the head. Then screw and
tighten again the vent-valve.
3. Open the housing unscrewing the bowl using the supplied wrench.
4. Remove the used cartridge.
5. Wipe clean the filter housing with cold water and a soft sponge.
6. Open the new cartridge wrap and discard wrap.
7. Put a new cartridge in the filter housing.
8. Change the O-ring in the top of the filter housing. Check if it is properly located, lubricated and free of any
damage. Tighten the housing bowl to housing’s head using a proper wrench. Do not over-tighten.
9. Turn-on the water mains, paying attention to completely remove the air left inside the housing using the
vent valves.
10. Slowly turn-on a water supply (tap) downstream of the BIG F PRO.
11. Open the vent-valve of the head, wait for air purge from the vent-valve, then screw and tighten the
vent-valve.
REMARK: let the water flow for at least 5 minutes before use.
Warning
at re-start after every maintenance operation and/or refill change, when the filter’s bowl is unscrewed from
head, change the o-ring with a new one and carefully lubricate before tightening the bowl to the head.
Make sure that there are no water leaks from the product and especially control the tightening between the
housing head and the housing bowl. Continue checking that the tightening is good and there is no water
leakage for 48 hours following the installation and start-up. In case of leakage, open the housing, remove
the o-ring from the bowl, place a new o-ring and apply lubricant, then re-tighten the bowl to head and repeat
the leakage check as above.
Ask your vendor for original o-rings, lubricant and other spare parts.
Use the following step for a full disinfection of the Home and Facility lines before a new installation,
after service or shut down of the unit.
- Plug In the Unit and remove any “dead ends” in the lines to avoid bacteria harbour.
- Unscrew the sumps and remove the cartridges. Fill the first sump with 1 cup of Bleach ( 5.25%
Chlorine) and replace the sump.
- Slowly turn on the water supply and run the water for each faucet, toilet, shower heads etc, until
bleach can be smelled and close it. Wait 30 minutes to let the Chlorine disinfects the utilities.
- Turn off the water inlet and replace the cartridges in the unit. Turn on again and flush every faucet,
shower heads etc until chlorine smell can no longer been detected.
Systemdisinfection

12
Lamp Replacement Procedure Procedure for the UV lamp replacement (9000 h/one year max)
Use gloves to handle the quartz (glass) and lamp surface as marks or fingerprints may interfere with UV
transmission.
1) Disconnect the power supply and turn off the water.
2) Unlock and open the metallic cover.
3) Release the water pressure using the valves on the top of the mounting bracket.
ATTENTION: Wait until the lamp has cooled down.
4) Lift the black cap slightly turning, carefully loosen the electrical 4-pins connection (A), and extract the old
lamp from the quartz sleeve (B).
5) Remove the lamp from the packing, handling it carefully by its ends.
6) Insert the new lamp into the quartz sleeve of the UV System.
7) Connect the lamp to the electrical connection and reposition the black cap on the black bolt and turn it
clockwise to lock it.
8) Reconnect the power supply and turn on the water.
Quartz Sleeve Maintenance/Replacement Procedure
Minerals dissoved in water form a coating on the quartz sleeve. The quartz sleeve must be regularly checked
and cleaned to remove this coating in order to maintain disinfection performances.
1) Disconnect the power supply and turn off the water
2) Unlock and open the metallic cover.
3) Release the water pressure using the filter housing valves on top of the housing head.
4) Remove the lamp, as for the lamp replacement procedure.
ATTENTION: Wait until the quartz sleeve has cooled down.
5) Unscrew the sleeve-bolt and extract the quartz sleeve with care.
6) Clean the quartz sleeve by wiping it with a cloth soaked with an acid solution such as vinegar, lemon or
calcium lime rust remover (CLR). If quartz sleeve cannot be cleaned or is damaged, it must be replaced
with a new one.
7) Repeat steps of initial installation procedure (page 6).
8) Turn on water checking for leaks.
9) Remount the lamp, its electrical connection and cover.
10) Reconnect the power supply .
REMARK: after maintenance, slowly turn on a water supply (tap) downstream of the unit and let the
water flow for at least 5 minutes before use.
REMARK: After a period of inactivity, it is suggested to perform all the maintenance operations,
replacing the sediment cartridges, cleaning the quartz-sleeve and checking/replacing the UV lamp.
After these maintenance opearations, slowly turn on a water supply (tap) downstream of the unit and let the
water flow for at least 5 minutes before use.

13
GENERAL INFORMATION
Max flow rate 54 l/m (40 mj/cm2) - 70 l/m (30 mj/cm2)
UV-C trasmittance 95% - 1 cm
UV-C dose 40 mj/cm2 - 30 mj/cm2
Water temperature range 4°- 45° C
Total consumption 61W
Mounting vertical or horizontal
UV REACTOR
Material Stainless steel 304
Connections Thread 1” BSPP Male
Max working pressure 8,3 bar
Protection class IP 54
Shape Z
Flow direction From bottom to top
UV LAMP
Number 1
Lifespan 9000 hr
Lamp power 56 W
Type LPHO
CONTROL PANEL
Material Thermoplastic
Dimension 218x113x60 mm
Protection class IP 54
Ambient temperature range 4°- 45° C
Power supply 110-240 V / 50-60 Hz
Lamp cable length 0,6 m
Power supply cable 2 m
Feed plug AUS Type L
Monitor display Digital
Days meter Yes for total system life
Resettable days meter Yes for lamp life control
Audio alarm With mute options
uv system characteristics
BIG F PRO 156 / BIG F PRO 256

14
GENERAL INFORMATION
Max flow rate 72 l/m (40 mj/cm2) - 95 l/m (30 mj/cm2)
UV-C trasmittance 95% - 1 cm
UV-C dose 40 mj/cm2 - 30 mj/cm2
Water temperature range 4°- 45° C
Total consumption 73 W
Mounting vertical or horizontal
UV REACTOR
Material Stainless steel 304
Connections Thread 1” BSPP Male
Max working pressure 8,3 bar
Protection class IP 54
Shape Z
Flow direction From bottom to top
UV LAMP
Number 1
Lifespan 9000 hr
Lamp power 67 W
Type LPHO
CONTROL PANEL
Material Thermoplastic
Dimension 218x113x60 mm
Protection class IP 54
Ambient temperature range 4°- 45° C
Power supply 110-240 V / 50-60 Hz
Lamp cable length 0,6 m
Power supply cable 2 m
Feed plug AUS Type L
Monitor display Digital
Days meter Yes for total system life
Resettable days meter Yes for lamp life control
Audio alarm With mute options
uv system characteristics
BIG F PRO 267

15
Atlas Filtri BIG F PRO Water Treatment System
EC DECLARATION OF CONFORMITY
The undersigned hereby declares, under full responsibility, that the unit:
BIG F PRO 156-256-267 MODELS
IS IN COMPLIANCE WITH
• 2014/35/UE (low voltage directive)
• 2014/30/UE (electromagnetic compatibility)
• 2015/863/UE (RoHS3)
• 2012/19/UE (WEEE)
• IEC -EN 60204-1 norms (safety of machinery-electrical equipment of machinery)
• IEC -EN 55022 norms (characteristics of radio interference)
• D.Lgs. 31/2001 (Implementation of Directive 2015/1787/UE on the quality of water intended for human
consumption)
• 2014/68/UE (art.4 comm.3) (PED)
The validity of CE marking is subordinated to the equipment integrity. Any modification,if not authorized,will
cancel the use of the CE marking.This will occurs in case the relevant risks have not been previously
analyzed by our company,and a new EC Declaration of Conformity has been issued.

Headquarter: via Pierobon, 32 | Production site: via del Santo, 227 | 35010 LIMENA (Padova) - ITALY
Tel. [phone] | Fax [phone] | www.atlasfiltri.com
