Atlona AT-HDPiX2 User manual

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515
User Manual
AtlonA
USB to HDMI Converter
AT-HDPiX2

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 2
TABLE OF CONTENTS
1. Introduction .................................................. 3
2. Package Contents .................................................. 3
3. Application .................................................. 3
4. System Requirements .................................................. 3
5. Features .................................................. 4
6. Specication .................................................. 4
7. Installation .................................................. 5
8. Using the DisplayLink Manager .................................................. 6
8.1. Using the DisplayLink Manager .................................................. 6
8.2. Using Multiple HDPiX2 units .................................................. 11
8.3. Software Update .................................................. 11
9. Uninstall the Device Driver .................................................. 12
10. Troubleshooting .................................................. 13
11. Setup Guide .................................................. 14
12. Managing Multiple Displays .................................................. 14
12.1. Setting the Display Resolutions .................................................. 15
12.2. Rotating a Display .................................................. 15
12.3. Setting the Position of Displays .................................................. 16
12.3.1. Display Positions .................................................. 16
12.3.2. Setting the Display to Mirror mode .................................................. 16
12.3.3. Setting the Display to Extend .................................................. 17
12.3.4. Using both extended and mirrored displays ....................................... 17
12.3.5. Changing the main display .................................................. 17
12.4. Conguring Displays from the Menu Bar .................................................. 18
13. Known Issues .................................................. 18
14. Safety Information .................................................. 19
15. Warranty .................................................. 20
16. Atlona Product Registration .................................................. 21

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 3
INTRODUCTION
PACKAGE CONTENTS:
APPLICATION:
SYSTEM REQUIREMENTS:
Atlona Technologies presents the all new USB to HDMI adaptor, the AT-HDPiX2. This new solution is designed to
add a HDMI port to any computer (Mac or PC) and has limitless applications in both consumer and commercial
environments. From digital signage to home theater, the all new HDPiX2 provides a simple solution for viewing
content from a computer on any HDTV making it the perfect device for any consumer or commercial application.
Set up is as simple as plug and play; convenient for any user, no matter the level of technical knowledge. Con-
nect up to 6 x AT-HDPiX2 to a PC and up to 4 x AT-HDPiX to a Mac. The HDPiX2 is able to display resolutions
up to 1080p or 1600x1200
• Atlona USB to HDMI Converter device
• Operation Manual x 1
• Driver CD x 1 (Mac users, please download drivers from Atlona website www.thehdpix.com/download.html
The AT-HDPiX2 is a perfect device for viewing content from a computer on any HDTV making it the perfect de-
vice for any consumer or commercial applications. HDPiX2 becomes your second video card which allows you
to clone another HDTV monitor which will be an identical replication of your laptop screen or desktop. Whatever
you do on the computer will display on your main computer as well as on the HDTV you are connecting the HD-
PiX2 too. Most of our customers are using the HDPiX2 for viewing Youtube, Hulu, downloaded movies, photos,
powerpoint presentation and many others. User has no limit on what to display.
• Operating System: Microsoft Windows XP, Vista (32/64 bit) and Windows 7, Snow Leopard 10.6.2 and 10.6.3,
Leopard 10.5.8, Tiger 10.4.11 (new support is added monthly. Please check DisplayLink.com for updates)
• Processor: Pentium 4 2.4GHz or above
• 512MB RAM or above
• Available USB 2.0 port
• 30Mb of available disk space

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 4
• Plug & play. Installs in seconds.
• Easily connect up to 6 (Windows OS)/ 4 (Mac OS) monitors to one PC through USB 2.0.
• Offers Great quality video and Audio though HDMI output.
• Supports resolution up to 1080p or 1600x1200
• Bundled Software:
• Supports Extended and Mirror Functions
• Supports screen resolution and color quality adjustment in extended mode.
• Allows you to rotate the screen on the add-on monitor by 90, 180 or 270 degrees
• Supports online update automatically.
• Compatible with Windows XP and Vista (32/64bit)and Window 7, Snow Leopard 10.6.2 and 10.6.3,
Leopard 10.5.8, Tiger 10.4.11 (new support is added monthly. Please check DisplayLink.com for updates)
• Completely new architecture to support Vista Aero (32/64bit).
• Supports all Intel Macs.
• No external power supply needed (power is supplied from the PC through USB connection).
Video input USB 2.0
Video output HDMI up to 1080p or 1600x1200
USB 2.0
Operating System Support Window XP/7, Vista 32/64, Mac OS X Tiger 10.4.11 or Mac OS X
Leopard 10.5.5 and Snow Leopard 10.6.3
Dimensions (mm) 114 x 65 x 26
Wight (g) 200
Chassis Material Aluminum
Color Black
Operating Temperature 10°C ~ 40°C
Power Consumption 2W
FEATURES:
SPECIFICATIONS:

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 5
INSTALLATION
Step 1:Insert the provided CD , then execute the Setup.exe le and select your language to install.
If you don’t have a CD, please download drivers from: http://www.displaylink.com/support/downloads.php
Step 2: Connect the unit to an USB 2.0 port of your computer.
Step 3: Use the supplied HDMI cable to connect your monitor or projector that supports HDMI.
Step 4: Switching EDID, the defaulting setting is on ON and the device will detect TV’s EDID. Leave as it is when
the display is propertly. Switching from ON to OFF inputsource PC must be reboot in order for the device to use
the built-in EDID. However, from OFF to ON the reboot is not necessary.
Monitor
Notebook
PC

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 6

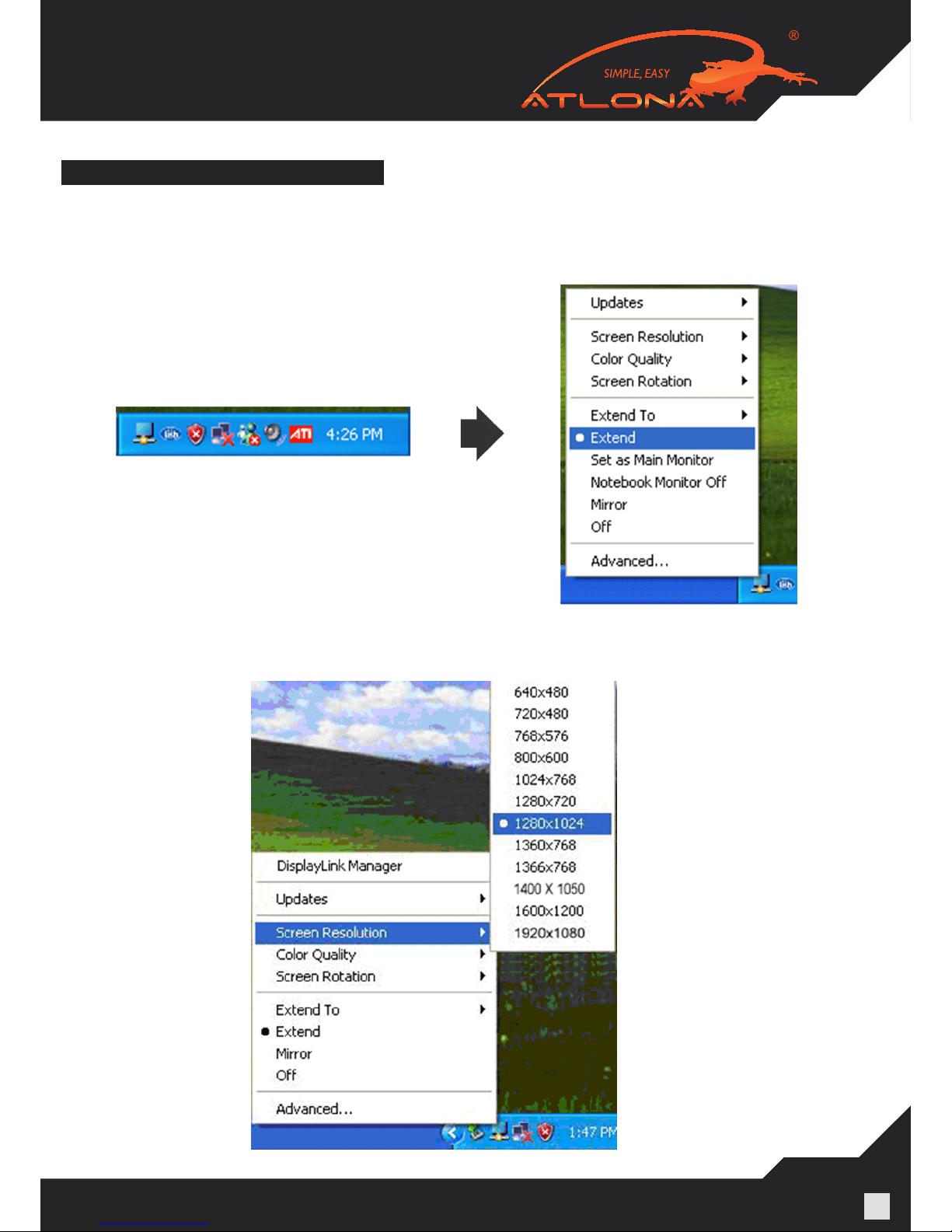

USING THE DISPLAYLINK MANAGER
8.1. Using the DisplayLink Manager
After the driver is installed, a utility (DisplayLink Manager) will automatically appear in the system tray. The utility
allows you to quickly change the settings and resolution for DisplayLink Manager. Right clicking the icon will bring
out the context menu.
Screen Resolution: Select the screen resolution (available only in extended mode).
NOTE: When display has build-in native EDID the screen will show the display’s resolution, if no EDID the
screen have the follow resolution.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 7
Color Quality: Select the screen color quality (available only in extended mode).
Screen Rotation: Rotate the screen on the additional monitor by 90, 180 or 270 degrees.
Extend to: Reposition the extended screen to the top, bottom, left or right of the primary display.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 8
Extend: Set the DisplayLink Manager to Extended mode.
Set as Main Monitor: Set the monitor to be the main monitor.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 9
Notebook Monitor off: Set the PC/notebook’s monitor off.
Mirror: Set the DisplayLink Manager to Mirror mode. You can see the same desktop image on the additional
monitor.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 10

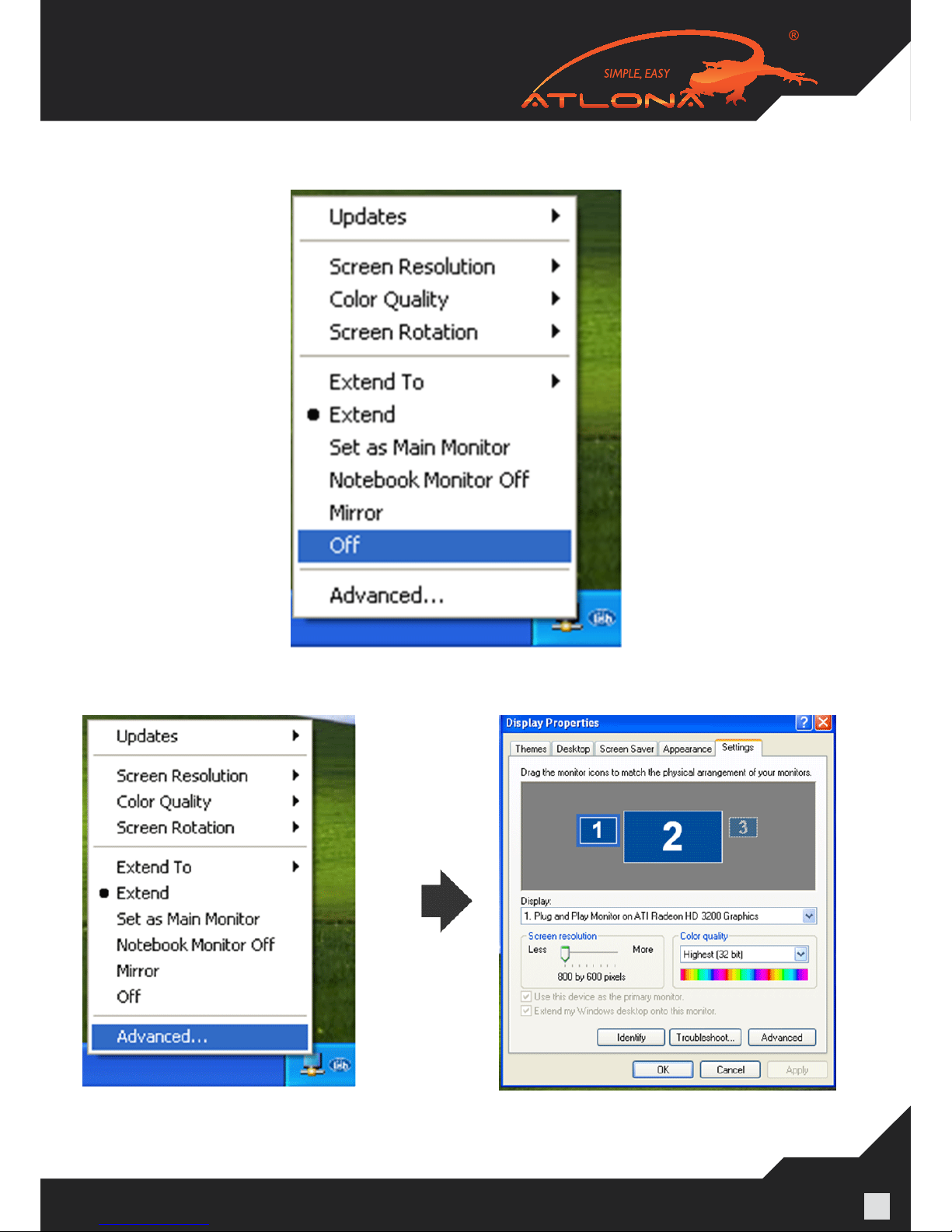

Off: Disable the HDPiX2 Manager on the system.
Advanced: Directly access the Display Properties. You can also adjust the resolution, color quality, position
and refresh rate via the Display Properties.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 11

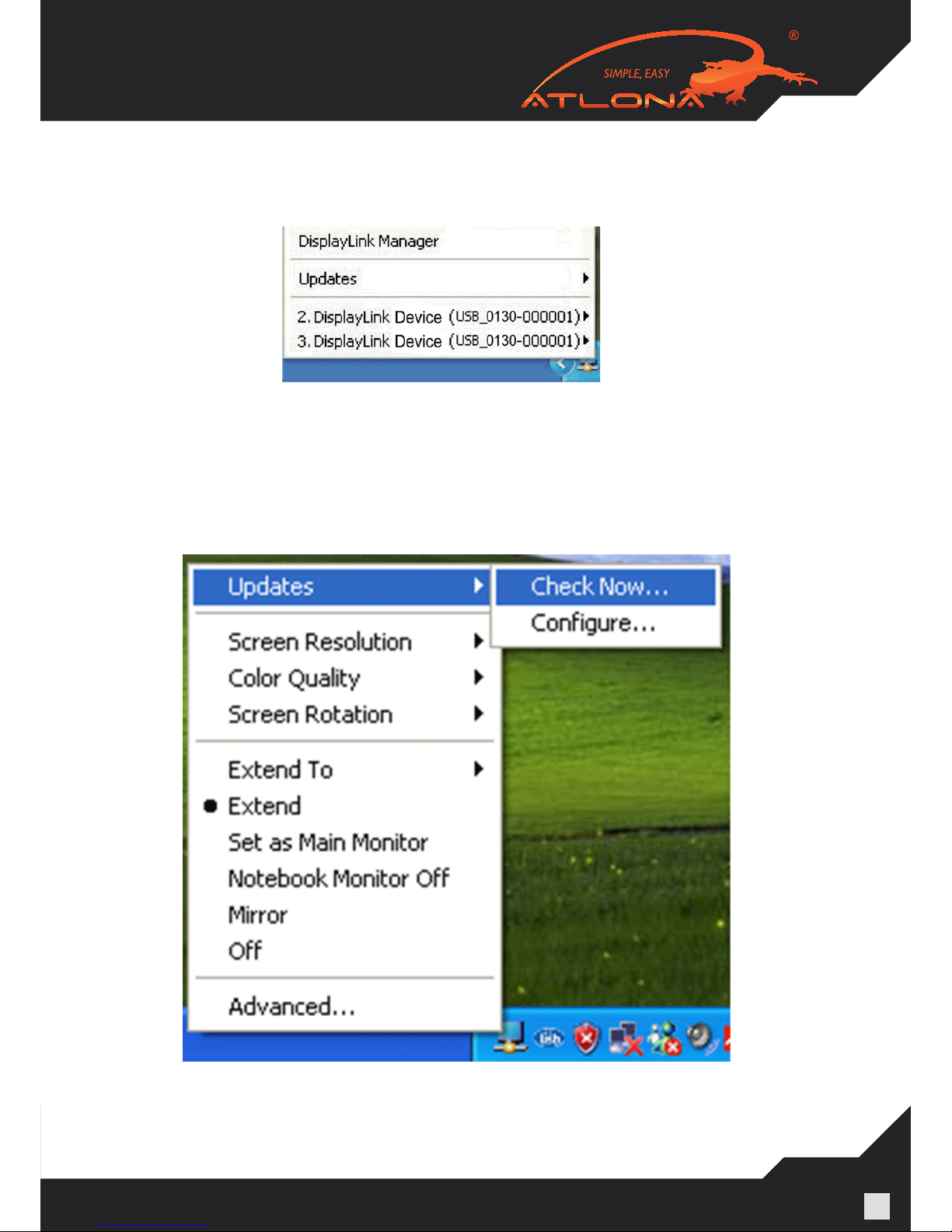

8.2. Using Multiple HDPiX2 units
You don’t need need to install driver again as long as you has completed above process of driver installation in
advance. It will automatically dene the ID.
NOTE: When connecting more than one HDPiX2 to a computer, a system with higher CPU performance is
recommend.
8.3. Software Update (THIS STEP IS RECOMMENDED AS IT SOLVES A LOT OF ISSUES)
Click the Updates → Check Now…, and it will check and download the latest  immediately..
NOTE: Conrm that your computer is already connected to the network.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 12

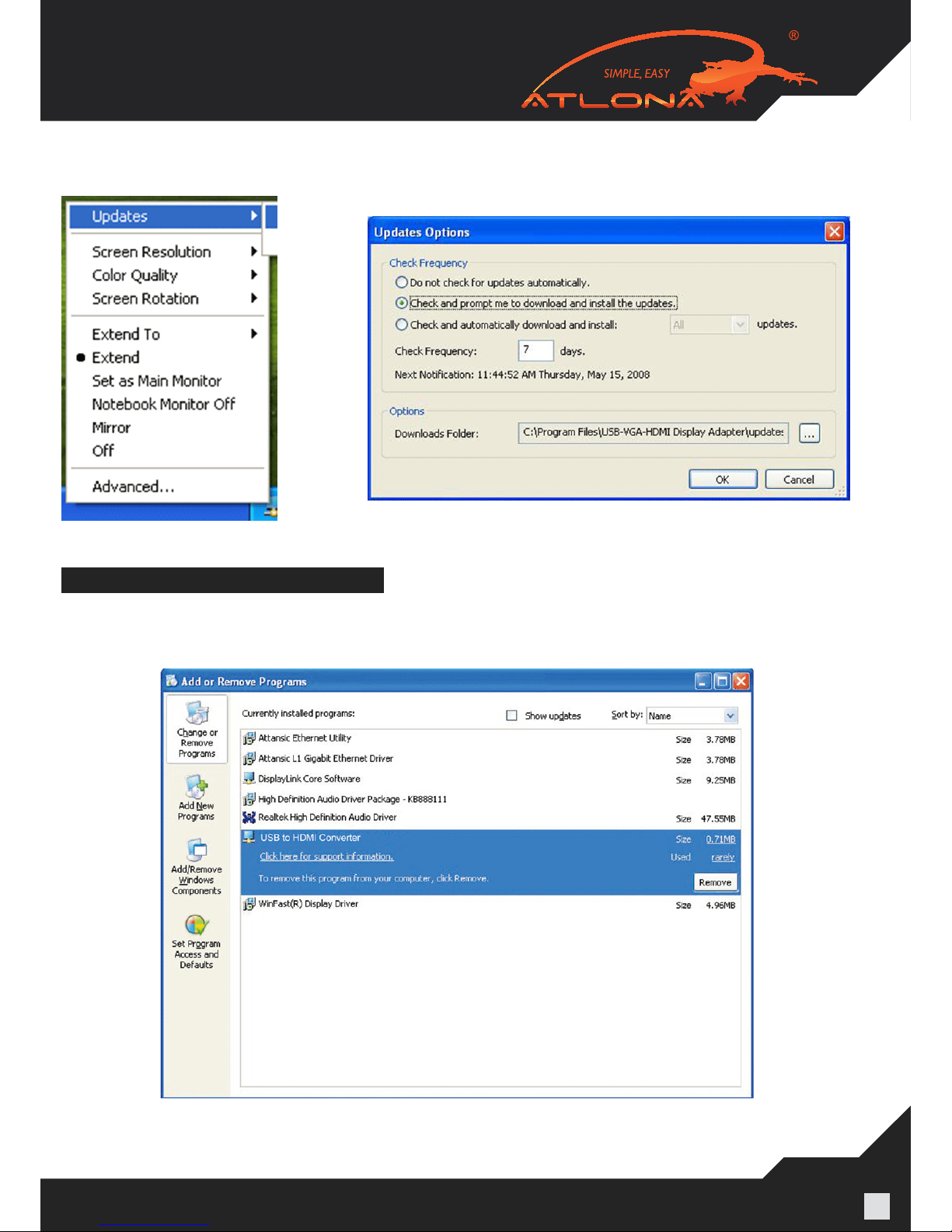

Automatic Update: Click the Updates → Congure… , the Updates Options window will appear as shown
below. You can set the update method and frequency in the windows.
Follow the steps below to uninstall the driver of the Multi View.
Step 1: Open the Control Panel: Start → Control Panel → Add or Remove Programs.
Step 2: Select USB to HDMI DisplayLink Adapter and click Remove.
UNINSTALL THE DEVICE DRIVER

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 13

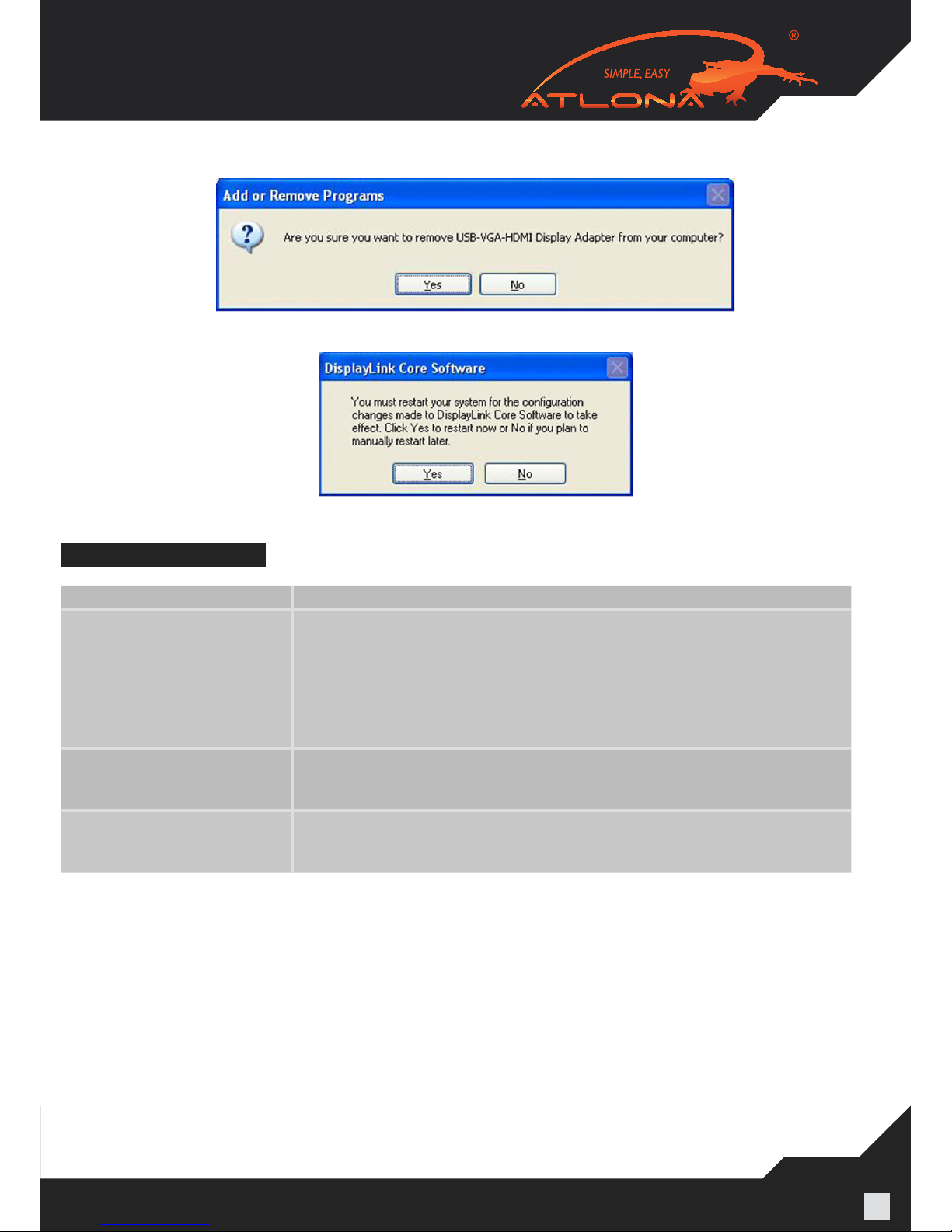

Step 3: Click Yes to conrm the removal.
Step 4: Click Yes to restart your computer.
TROUBLESHOOTING
Situation Check Point
The device driver has been
installed, but the DisplayLink
Manager is not working
1. Make sure you restart your computer after the driver installation.
2. Check all the connectors are plugged in correctly.
3. Make sure the USB port that you are using is USB 2.0.
4. Check the additional monitor is connected correctly and the power is on.
5. Make sure the operating system, the Display- Link Manager is compatible
with.
6. Try a different computer.
DVD player not working when
move it over to the extended
display
Try to open the program in the additional display rst before playing the
DVD.
The mouse not move pass the
right side of the screen as it
should on extended desktop
Check the display settings and make sure that your display number 2 is on
the right side of display number 1.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 14

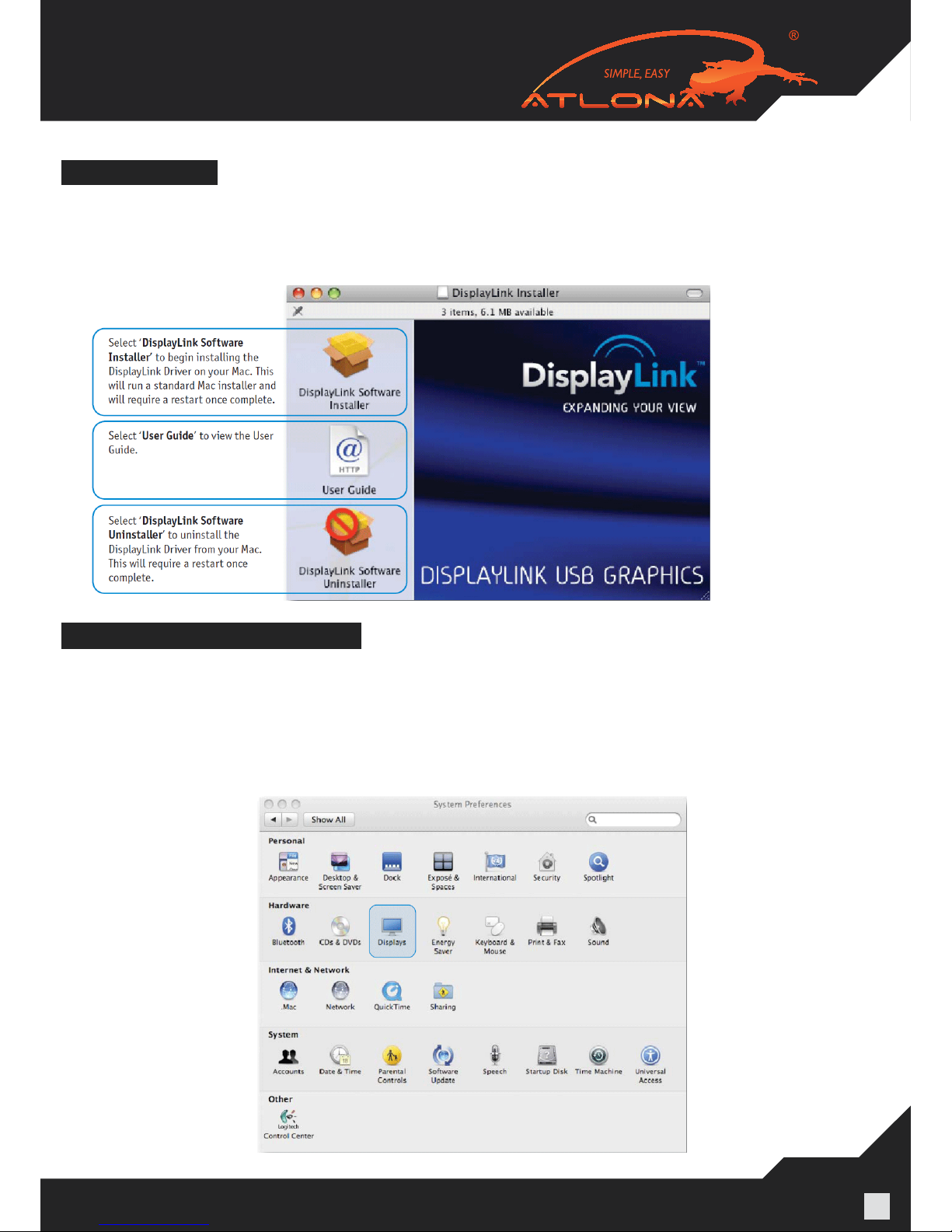

SETUP GUIDE
MANAGING MULTIPLE DISPLAYS
The latest version of this software can be obtained from: www.displaylink.com/mac
Installing/Uninstalling the DisplayLink Driver
To run the DisplayLink Installer, double-click the DisplayLink Installer image: this will mount the DisplayLink
installer.
When attaching a display that the software has not seen before, the display will default to being extended to
the right of the main display.
To congure the settings for each of your USB attached displays, select ‘Displays’ from the ‘System Prefer-
ences’ menu. This will open a ‘Display Preferences’ window on each of your attached displays allowing you to
congure each display as required.
It is possible to use the ‘Gather Windows’ button to bring all the ‘Display Preferences’ windows onto the main
display.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 15
12.1. Setting the Display Resolutions
To change the display’s resolution, select an available resolution from the Display Preferences window of the
display you wish to change:
Display Preferences:
Resolution Options
Display Preferences:
Rotation Options
The resolutions available depend on both the DisplayLink enabled product and the capabilities of the connect-
ed display.
12.2. Rotating a Display
If you wish to rotate your display, you can congure the orientation using the ‘Rotate’ drop down. Select the ap-
propriate angle of rotation to match your display’s set up:
Each time the user rotates, any settings made to the mode, resolution, frequency or depth are re-
membered the next time the user switches back to that angle of rotation.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 16
12.3. Setting the Position of Displays
If your computer is connected to more than two displays, you can specify that some are mirrored displays and
others show the extended desktop.
A mirrored display shows the same content as the main display whereas an extended display will be an exten-
sion to your existing desktop.
You can arrange your displays so that they match the physical layout of your displays by selecting the ‘Ar-
rangement’ pane within Display Preferences. This ensures that you can easily navigate between all connected
displays.
12.3.1. Display Positions
To move the position of a display, click and hold the display you wish to move then drag it to the desired posi-
tion. The display will be highlighted with a red border whilst you are moving the display to its new position.
12.3.2. Setting the Display to Mirror mode
When in Mirror mode, additional displays will display what is being shown on the primary display. Checking the
“Mirror Display” on the ‘Arrangement’ pane enables this feature.
Display Preferences:
Displays set to Mirror
Display Preferences:
Moving Display Positions

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 17
12.3.3. Setting the Display to Extend
To extend connected displays, make sure that the “Mirror Display” on the ‘Arrangement’ pane is unchecked.
Display Preferences:
Display set to Extend
Display Preferences:
Moving Menu Bar
12.3.4. Using both extended and mirrored displays
To work with both extended and mirrored displays, turn off mirroring then in the Arrangement pane press and
hold ‘cmd’ and ‘alt’ and drag and drop the display you wish to mirror over the primary display.
Repeat this with each display you wish to mirror, those untouched will remain extending.
12.3.5. Changing the main display
You can change which is the main display by moving the Menu Bar between displays. Changing the main dis-
play affects where new windows appear and the position of the Dock.
The ‘Menu Bar’ can be moved so that it is shown on an alternative display. Clicking the white menu bar and
dragging it to the desired display will perform this action.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 18
12.4. Conguring Displays from the Menu Bar
If you have checked the “Show displays in menu bar” in Display Preferences then you can congure displays
by clicking the display icon in the menu bar. This will show a menu similar to the following:

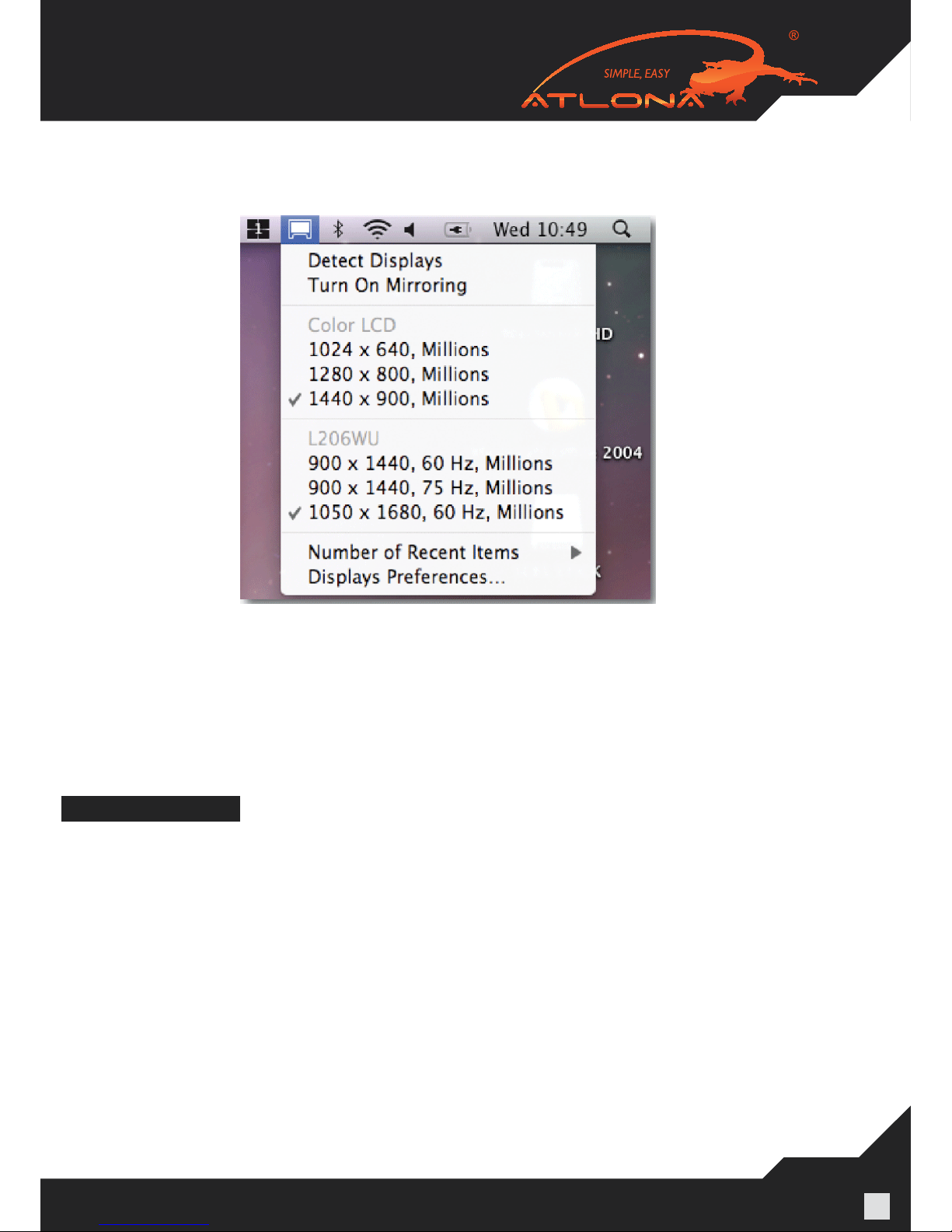

Displays Menu Bar
This menu allows you to perform the following actions:
• Detect all displays connected to the Mac.
• Turn display mirroring on/off
• Set the resolution of both the primary display, and the additional display(s), by selecting one of the
recently used resolutions.
• Congure how many ‘recent resolutions’ should be shown in this menu.
• Open ‘Display Preferences’.
KNOWN ISSUES
This release does not support OpenGL acceleration (3D hardware acceleration) so therefore applications and
features that require OpenGL, Quartz Extreme, Quartz Composer and other framework based on OpenGL will
not be fully supported.
Examples of such features are Keynote Presentations, iPhoto Slideshows and iMovie.
The most up to date information about known issues and FAQs can be found at:
www.displaylink.com/mac

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 19
SAFETY INFORMATION
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture.
If the wall plug does not t into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug.
Doing so will void the warranty and safety
features.
This equipment should be installed near
the socket outlet and the device should
be easily accessible in case it requires
disconnection.
Precautions
FCC Regulations state that any
unauthorized changes or modications to
this equipment not expressly approved by
the manufacturer could void the
user’s authority to operate this
equipment.
Operate this product using only the
included external power supply. Use of
other power supplies could impair
performance, damage the product or cause
res.
In the event of an electrostatic discharge,
this device may automatically turn off. If this
occurs, unplug the device, and plug it back
in.
Protect and route power cords so they will
not be stepped on or pinched by anything
placed on or against them. Be especially
careful of plug-ins, or cord exit points from
this product.
Avoid excessive humidity, sudden
temperature changes or temperature
extremes.
Keep this product away from wet locations
such as bathtubs, sinks, laundries, wet
basements and swimming pools.
Use only accessories recommended by
ATLONA to avoid re, shock or other
hazards.
Unplug the product before cleaning. Use
a damp cloth for cleaning. Do not use
cleaning uid or aerosols, which could
enter the unit and cause damage, re or
electrical shock. Some substances may
also mar the nish of the product.
Never open or remove unit panels or make
any adjustments not described in this
manual. Attempting to do so could expose
you to dangerous electrical shock or other
hazards. It may also cause damage to your
AT-HDPiX2. Opening the product will void
the warranty.
Do not attempt to service the unit. Instead
disconnect it and contact your Authorized
ATLONA reseller or contact ATLONA
directly.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 20
1. LIMITED WARRANTY
Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in accordance with the ac-
companying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be free from
defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law
imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdic-
tions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to Customer.
2. CUSTOMER REMEDIES
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’
option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this
Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty
is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Product will be war-
ranted for the remainder of the original warranty period or 3 year, whichever is longer.
3. NO OTHER WARRANTIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLIERS
DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IM-
PLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO
THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES CUSTOMER SPE-
CIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JURISDICTION.
4. NO LIABILITY FOR DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLOGIES OR
ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITATION, SPECIAL, IN-
CIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING
OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA TECHNOLOGIES HAS BEEN AD-
VISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA TECHNOLOGIES’ AND ITS SUPPLIERS’
ENTIRE LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT SHALL BE LIMITED TO THE AMOUNT ACTU-
ALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT
APPLY TO YOU.
