Representing the latest advancement in Night Vision optics, the ATN
PS40 gives your daytime scope Night Vision capability in a matter of
seconds.
The ATN PS40 mounts in front of a daytime scope to enable nighttime
operation. No shift of impact, no need to rezero nor change of eye
relief occurs. The ATN PS40 uses the latest in image intensifier tube
technology for outstanding resolution and performance.
Precision optical alignment is essential for a front sight system to work
properly. This is why each ATN PS40 is individually tested and aligned
on an optical scale by our engineers to provide perfect alignment.
The ATN PS40 is one of the most compact and lightweight NV systems
in its class, at only 840 grams.
Easily changes daytime scope to Night Vision
Mounts in front of daytime scope, no re-zeroing required
Multi-coated all-glass optics
Fast catadioptic front lens system
Equipped with remote control
Powered by a single alkaline AA or 123A lithium battery.
Battery life check system.
Large 40 mm eyepiece/output window
Included Quick Release Mount
Optional Scope Mounting System for coupling to the objective of
the day scope (47...58,7 mm diameter)
Automatic Brightness Control
Bright Light Cut-off System
Resistance to severe conditions
1 ATN PS-40 NV Front Sight
2 Objective Lens Cap
3 Light Suppressor
4 Output Lens Cap
5 Operating Manual
6 Battery CR123A, Lithium
7 Remote Control
8 Shipping /Storage Case
9 Quick Release Mount
10 Platform Ring
11 Infrared Illuminator IR450
Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control jurisdiction of
either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.
PS-40 INSTALLED ON MIL-STD-1913
RAIL FORWARD OF DAYSCOPE
PS-40 INSTALLED ON DAYSCOPE
OBJECTIVE LENS
PS-40 INSTALLED ON
B.A.M. system
BASIC KIT INCLUDES
1
2
3
4
5
6
78
910
11
PS40-3P (MG)
Manual Gain Control

1341 San Mateo Ave,
South San Francisco, CA 94080.
Tel: [phone],
fax: [phone]
www.atncorp.com
e-mail: [email protected], [email protected]

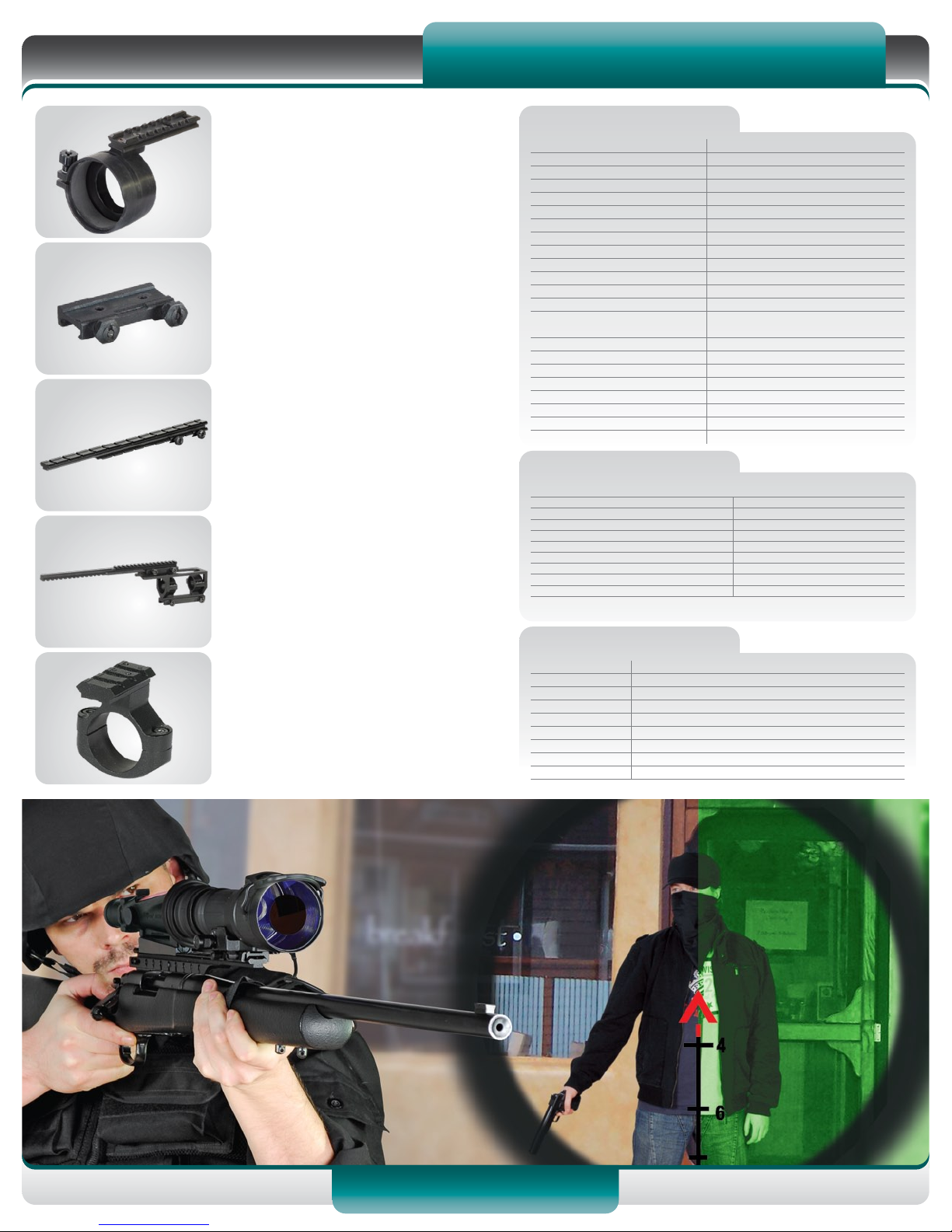

SCOPE MOUNTING SYSTEM
Optional scope mounting systems
are designed to install the PS-40 on
riflescope/sporting scope objective lens.
7/8” WEAVER MOUNT
Optional Weaver mount can be used to
install the PS-40 on a MILSTD-1913 rail
if mounting rail on the rifle has narrow
groves (4 mm).
LONG RAIL ADAPTER
Optional long rail adapter can be used if
the firearm has a short scope mounting
rail which prevents the installation of the
PS-40 forward of dayscope.
B.A.M. SYSTEM
Optional B.A.M. system (Boresight
Attachment Mount) is used to install the
PS-40 and dayscope on the rifles having
short mounting MIL-STD-1913 rail.
PLATFORM RING WITH PICATINNY
RAIL
Long range IR Illuminator can be
mounted onto a daytime scope using
optional Platform Ring.
DAY/NIGHT SYSTEM
COWSPSAM Adapter for A.R.M.S. Mounts
ACDNPS40MWVR Weaver Mount
Scope Mounting System #1
Scope Mounting System #2
ACWSRTRA Platform Ring
ACWSLRADPT Long Rail Adapter
ACDNPS40BM01 Boresight Attachment Mount (B.A.M.)
ACDNPS40LSR Day Light Suppressor
ACDNPS40EFK Extender Focus Knob
OPTIONAL ACCESSORY
PS40-3P (MG)
HIGH QUALITY 3P GEN IMAGE INTENSIFIER TUBE
DESCRIPTION Pinnacle™
GENERATION 3
PHOTOCATHODE TYPE Thin-Filmed/Auto-Gated
RESOLUTION, lp/mm * 64 - 72
SIGNAL-TO-NOISE RATIO* 25-30
FIGURE OF MERIT 1800 typical
PHOTOCATHODE SENSITIVITY 2000-2800
MTTF - MEAN TIME BEFORE FAILURE, hours 10,000
EXPORT N/A for export
* Specifications are provided for informational purposes only. Actual values may vary
** Pinnacle is a registered trademark of ITT Night Vision
TUBE SPECIFICATIONS
Magnification 1x
Lens System F1.44, 80mm
Proshield Lens Coating Yes
FOV 12°
Exit Pupil 40 mm
Range of Focus 10 m to infinity
Controls Direct
Remote Control Yes
Automatic Brightness Control Yes
Bright Light Cut-off Yes
Infrared Illuminator Detachable IR450 (optional)
IR Indicator Yes
Low Battery Indicator Yes
Power Supply 1 x 1.5V AA type battery or
1 x 3V CR123A type battery
Battery Life 50 hours (3V) / 25 hours (1.5V )
Environmental Rating Waterproof
MIL-STD-810 Yes
Operating Temperature -20 to +50 °C
Storage Temperature -50 to +50 °C
Dimensions 177x85x83 mm / 7x3.4x3.3”
Weight 0.84 kg / 1.85 lbs
Warranty 2 years
SPECIFICATIONS
