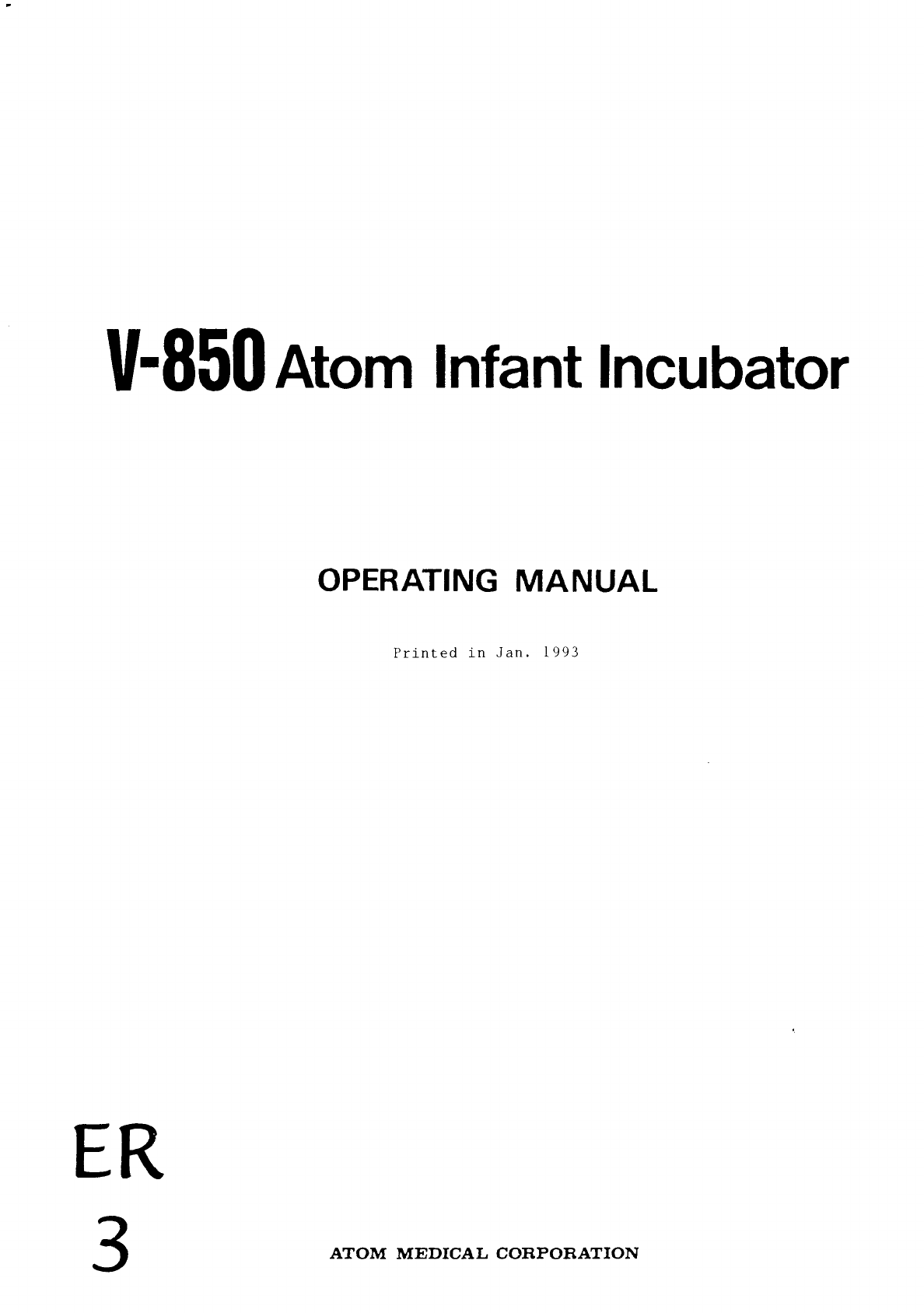

V-850 Atom Infant Incubator
OPERATING MANUAL
ER
ATOM MEDICAL CORPORATION

It is highly recommednded that you read this Manual carefully
and familiarize yourself with this Incubator thoroughly by
applying power to the empty unit and operating its various
features including temperature control, humidity control,
oxygen supply, etc. before placing the unit in actual service,
so that you may use it with confidence.
This Manual is intended for use with four different types of
incubators; V-850 SC, V-850 MC, V-850W MC. Skip unnecessary
sections unrelated to your model.
CONTENTS
Specifications
1-1 V-850 inceubatO エ 0 0 IT ヨゴ エゴ TO つて て に て に て に て て に て し に トト トト トト て て ・・・・・ 1
1-2 V-850W double-wall incubator .。...............。 5
[2] Nomenclature and Functions
2-1 Manual control type (MC) .................... 6
2-2 Servo control type (SC) PE 10

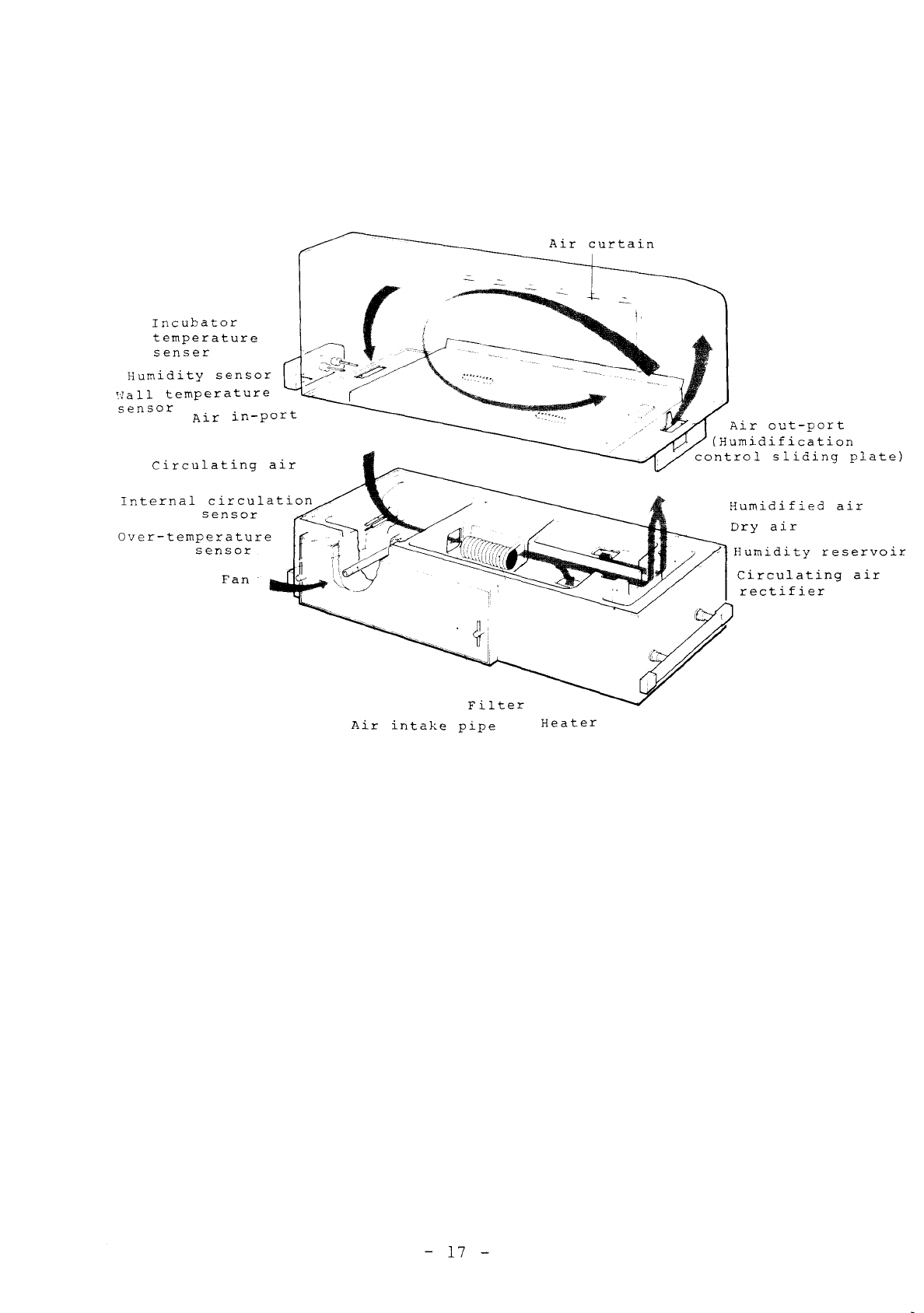

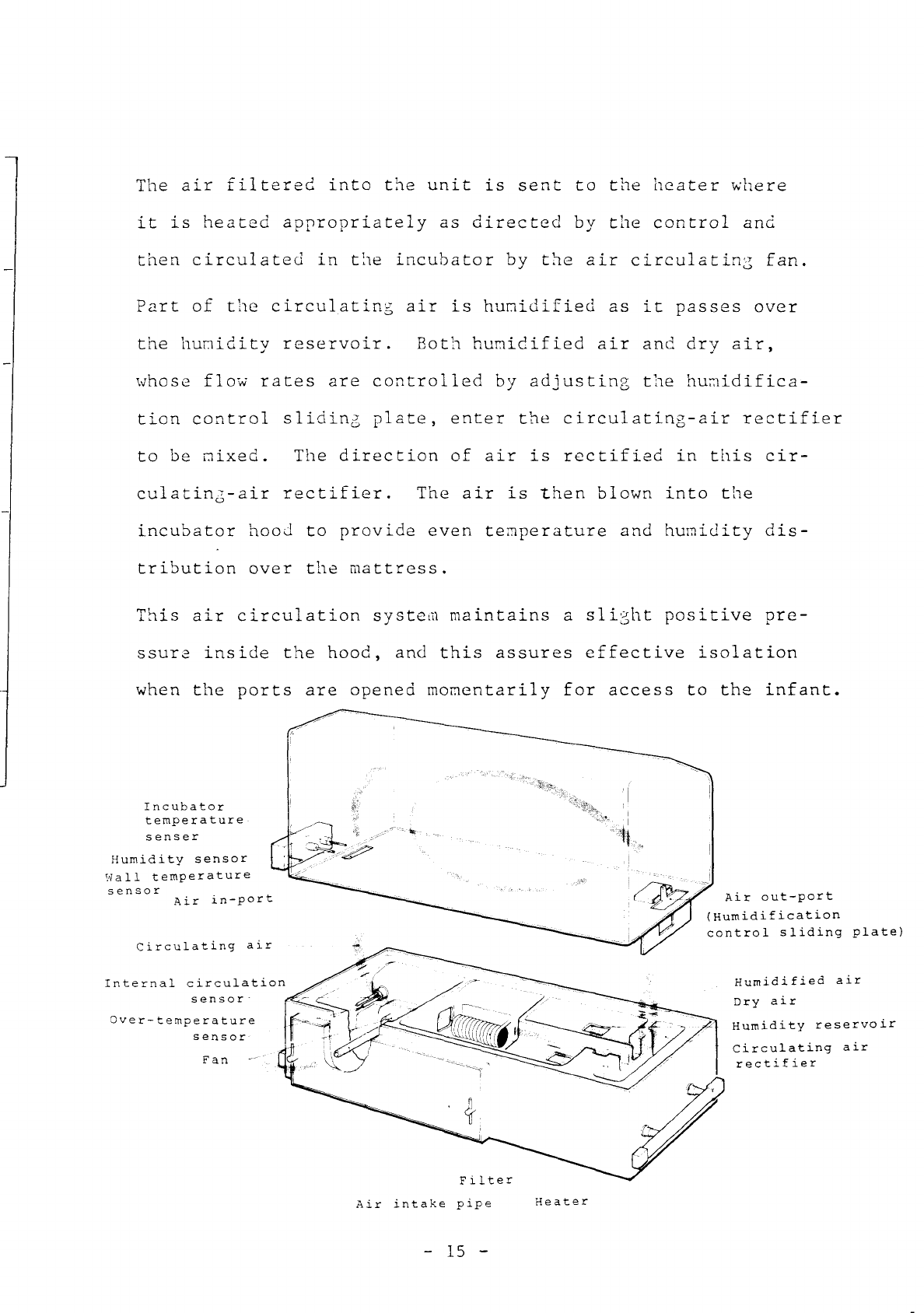

2-3 Air circulation system of V-850 incubator ..... 14
2-4 Double-wall effect and air circulation system
OF V-850W incubator ........................s 16
[3] Incubator Installation .,..............,............ 18
四 Operating Instructions
4-1 Operation of manual control unit ............. 20
4-2 Operation of servo control unit .............. 27
15] Humidity Control に に に に に に に に に に に に に に トト トト て トト ーーー て ーーーーー・ 38

D
CN
ll
[I
LI
EL

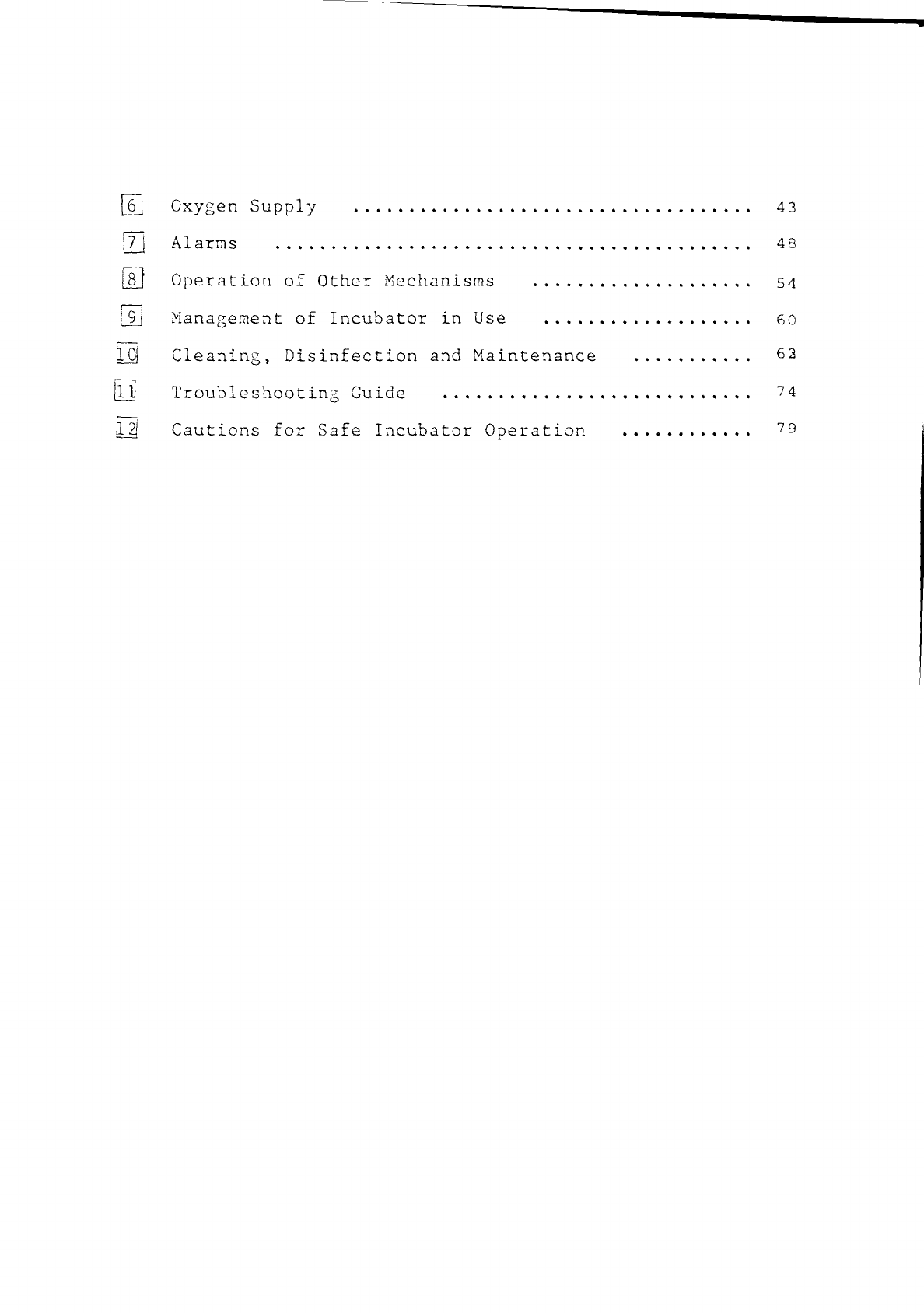

Oxygen Supply Cerro vo.
Alarms Games
Operation of Other Mechanisms ..
Management of Incubator in Use ・
Cleaning, Disinfection and Maintenance
Troubleshooting Guide
Cautions for Safe Incubator Operation
II
.
43
48
54
60
62
74
79

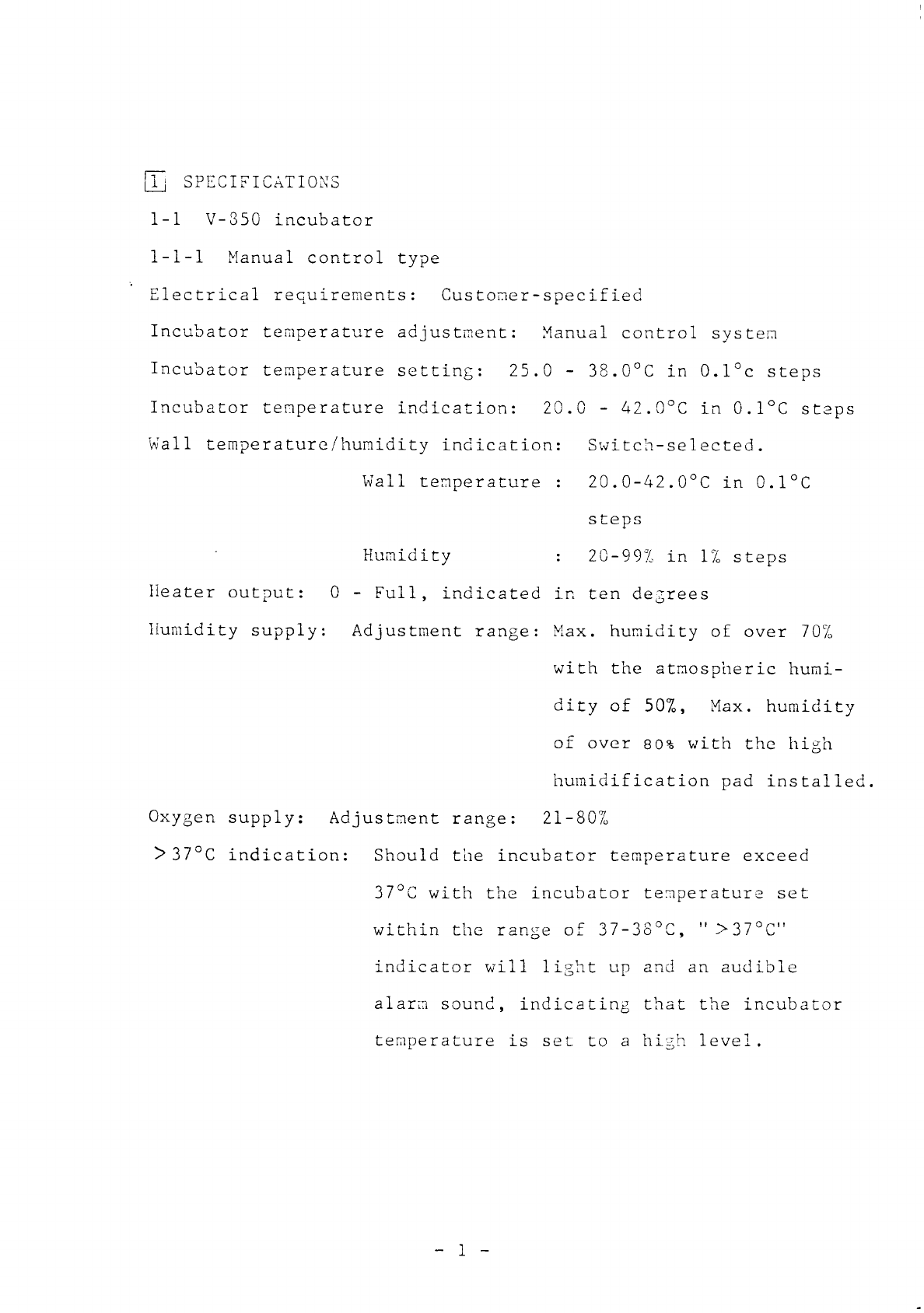

(ij; SPECIFICATIONS
1-1 V-850 incubator
1-1-1 Manual control type
Electrical requirements: Custoner-specified
Incubator temperature adjustment: Manual control systen
Incubator temperature setting: 25.0 38.0°C in 0.1°c steps
Incubator temperature indication: 20.0 - 42.0°C in 0.1°C steps
Wall temperature/humidity indication:
Wall temperature
Switch-selected.
20.0-42.0°C in 0.1°C
steps
Humidity 20-99% in 1% steps
Heater output: 0 - Full, indicated in ten desrees
Humidity supply: Adjustment range: Max. humidity of over 70%
with the atmospheric humi-
dity of 50%, Max. humidity
of over 80% with the high
humidification pad installed.
Oxygen supply: Adjustment range: 21-80%
> 37°C indication: Should the incubator temperature exceed
37°C with the incubator temperature set
within the range of 37-38°C, '>37°C"
indicator will light up and an audible
alarm sound, indicating that the incubator
temperature is set to a high level.

Alarms: Audible and visible alarms for over-temperature,
internal circulation, set temperature, internal
sensor and power failure. Some displayed values
also flash.
Alarm cisable: The audible alarm for set temperature is
disabled for fifteen minutes when the switch
is pressed.
Menory function: Should power supply be interrupted due to
power failure or other causes, the set vallue
for temperature and items to be displayed
will be retained in memory, so that it
will be unnecessary to reset when power
returns.
Accessories: Cap (rubber stopper) .......... soso 그
I.D. card ュー sese 29
High humidification pad ............... 3
Humidity sensor wetter ......,......... 10
Filler (for filling water reservoir) ... 1
Air intake adjustment ring for 60Hz ... 1
(Needed only in 60Hz areas)
Dust cover ..... 6 eee nom... 1
Spares: F-4 filter element ............. 1
Access port cover ..... ュー

Ш Air intake adjustemnt ring for 60Hz
Use of the unit in a 60Hz area
will increase the air intake 一 一 一 一
amount by some 20%. Therefore,
if the incubator is to be used
in such an area, remove, prior
to using the incubator, the
filter cover from the rear of
the unit and attach the air
intake adjustment ring for
60llz to the rubber seal for the
air intake pipe fitted in the
filter case.
1-1-2 Servo control type
Electrical requirements: Customer-specified
Skin temeprature adjustment: Servo control system
(MC also available)
Skin temperature setting: 34.0-38.09C in 0.1°C steps
Skin temperature indication: 30.0-42.0ºC in 0.1ºC steps
Incubator temperature setting: 25.0-38.0°C in 0.1°C steps
Incubator temperature indication: 20.0-42.0°C in 0.1°C steps
Wall temperature/humidity indication: Switch-selected.
Wall temeprature: 20.0-42.0°C in 0.1°C steps
Humidity : 20-99% in 1% steps

Heater output: O-Full, indicated in ten degrees
Humidity supply: Adjustment range: Max. humidity of over 70%
with the atmospheric humi-
dity of 50%,
Max. humidity of over 80%
with the high hunidifica-
tion pad installed.

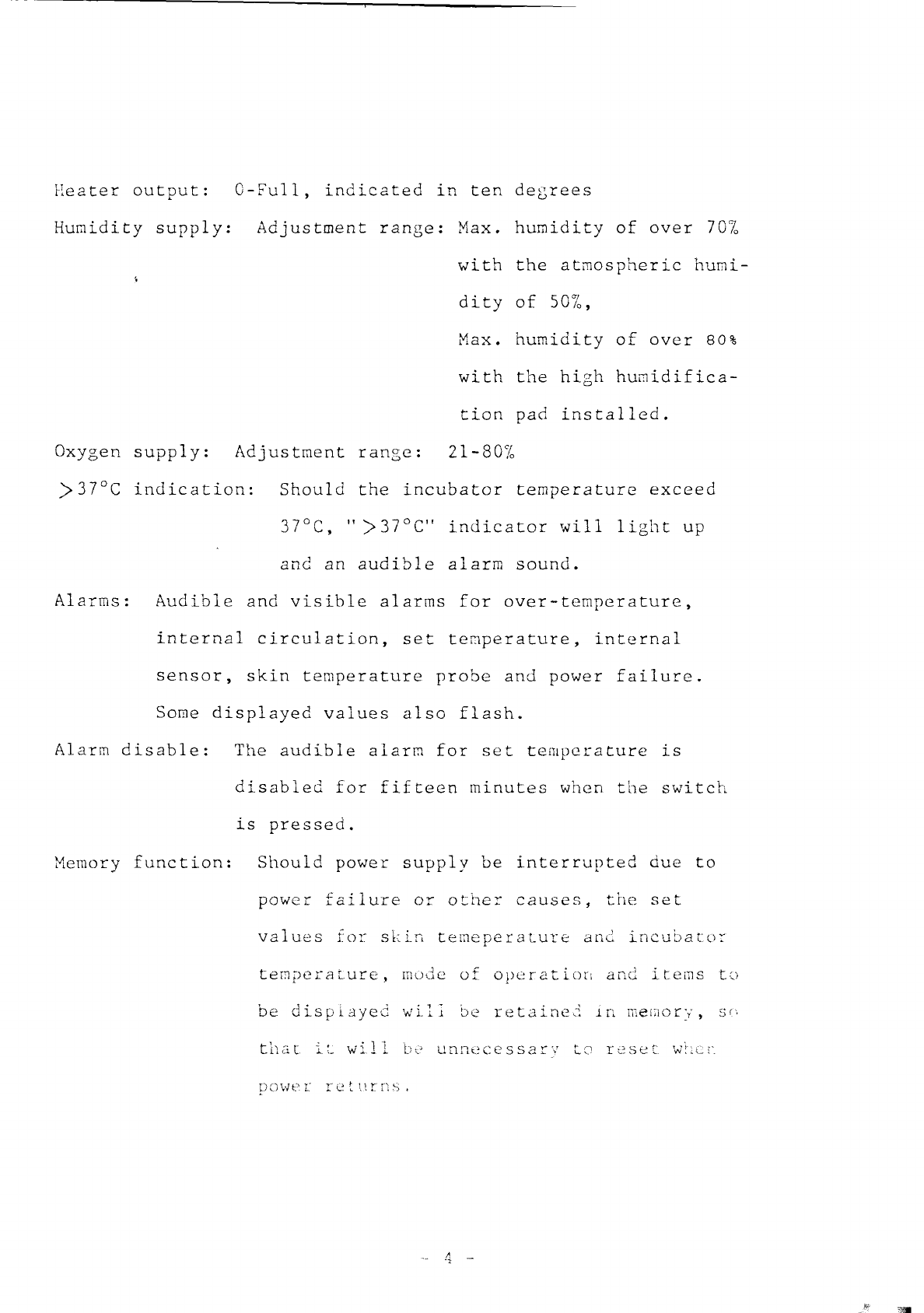

Oxygen supply: Adjustment range: 21-80%
>37°C indication: Should the incubator temperature exceed
37°C, “>37°C" indicator will light up
and an audible alarm sound.
Alarms: Audible and visible alarms for over-temperature,
internal circulation, set temperature, internal
sensor, skin temperature probe and power failure.
Some displayed values also flash.
Alarm disable: The audible alarm for set temperature is
disabled for fifteen minutes when the switch
is pressed.
Memory function: Should power supply be interrupted due to
power failure or other causes, the set
values for skin temeperature and incubator
temperature, mode of operation and items to
be dispiayec wili be retained in memory, so
that it will be unnecessary to reset wher
power returns.

Accessories:
Spares:
1-
9
<
V-850W
Hood:
Humidity
Es ess te
(a
ee
Cap (rubber stopper)
I.D. card
+
+
High humidification pad
Humidity sensor wetter
Filler (for filling water reservoir)
Air intake adjustment ring for 60Hz
Dust cover
F-4 filter element
Access port cover
double-wall incubator
Double-wall
Air curtain mechanism
Four snap-open access ports
Skin temperature probe (case)
..............
voces. ns 0 0 0 4 0 0 4 6 4
4 ο ο ο ο ο σος,
con... ....
eses İ
こつ
versene 3
0
.
(semi-iris)
supply: Adjustment range: Max. humidity of over 65%
with the atmospheric humi-
dity of 50%, Max. humidity
of over 75% with the high
humidification pad installed.
F-4 filter element .......... |
Access port cover ....,,...,.. 2
Access port cover (for semi-iris port! ..... 4
yr specifications identical site those for V-8505€
v -850MČ r al

NOMENCLATURE
AND
FUNCTIONS
"
2-1.
Manual
control
type

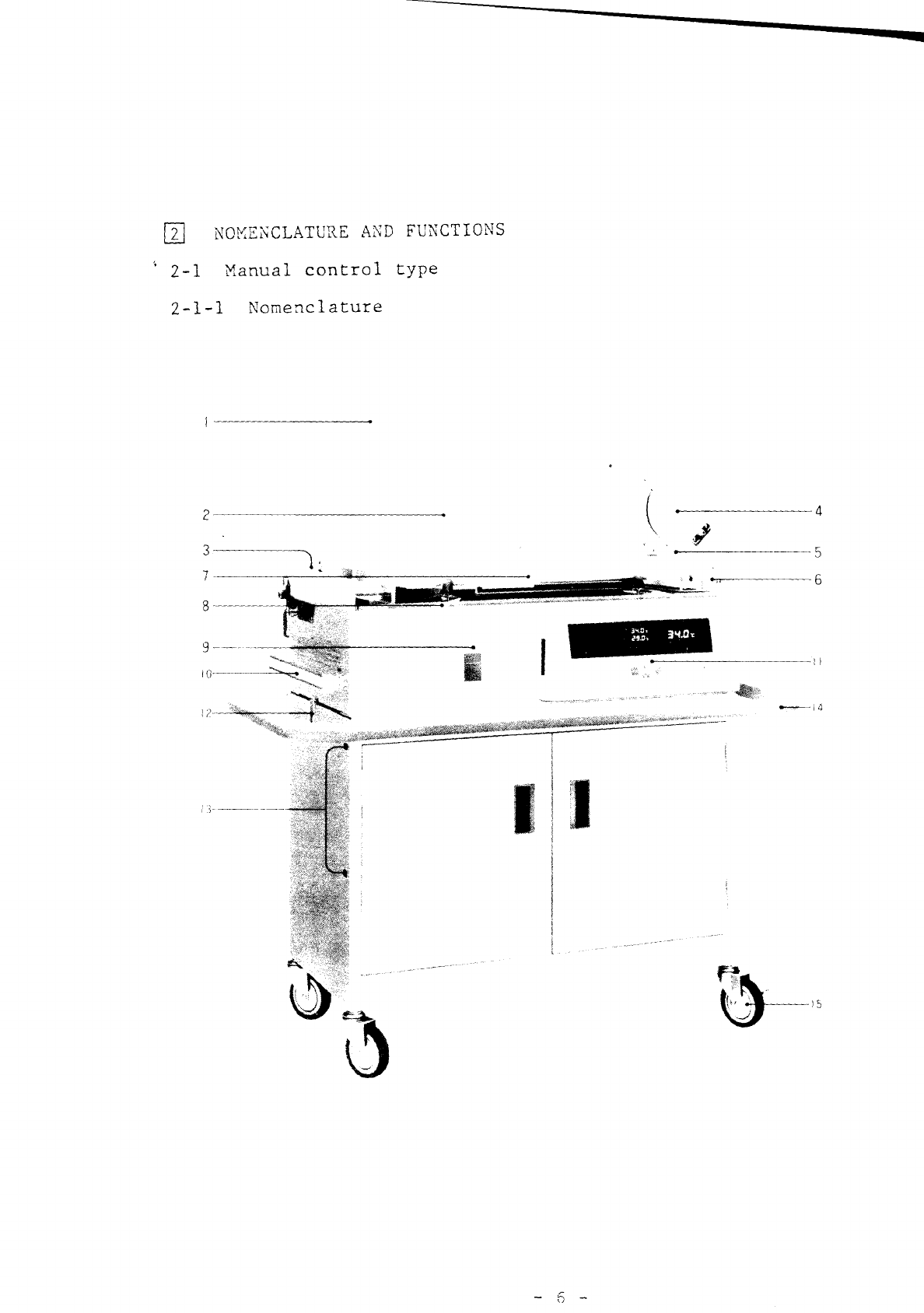

2-1-1 Nomenclature
ο...

@ Hood section
(1) I.D. card holder
Access port (Iris)
Humidity control knob
Snap-open auxiliary access port
Sensor block
GO
Tube inlet
O Base section
Mattress platform
Mattress platform tilting arm
Humidity reservoir cover
M.F. rail (right and left)
10000
Power unit
O Cabinet section
Incubator-Cabinet Stand connecting hook
I.V. pole mounting holes (right and left)
Guard rail (optional)
©
© ©
©
Caster
p The guard rail shown above is optional.
2-1-2 Power unit
The microprocessor in the Manual Control Type ATOM Incubator
minimizes the stress on the infant from environmental tempera-
ture variation by preventing overshoot and controlling the
internal temperature around the infant within *1/4°C of the
prescribed level.

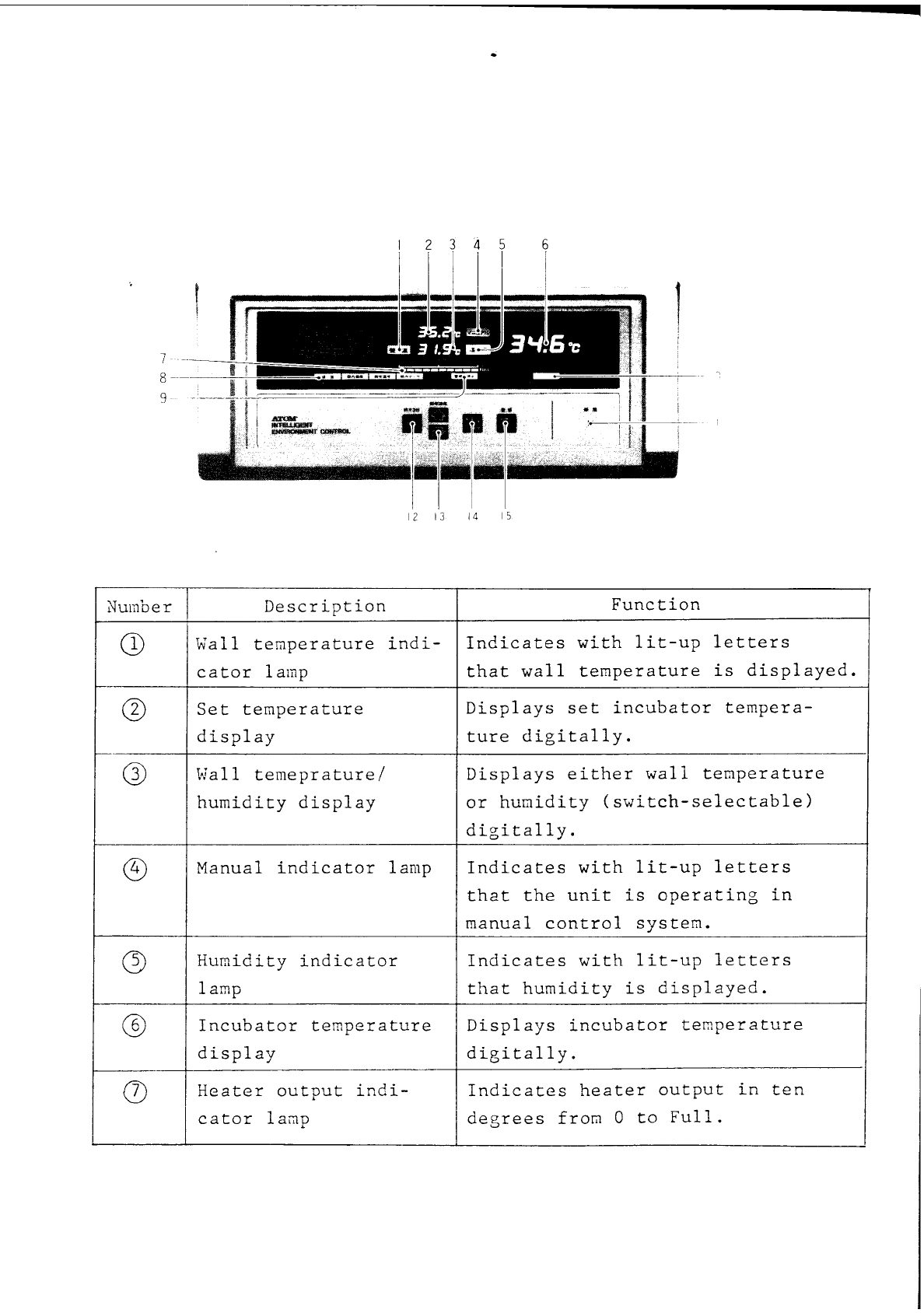

Number
Description
Function
©
Wall temperature indi-
cator lamp
Indicates with lit-up letters
that wall temperature is displayed.
(2)
Set temperature
display
Displays set incubator tempera-
ture digitally.
Wall temeprature/
humidity display
Displays either wall temperature
or humidity (switch-selectable)
digitally.
Manual indicator lamp
Indicates with lit-up letters
that the unit is operating in
manual control systen.
Humidity indicator
lamp
Indicates with lit-up letters
that humidity is displayed.
Incubator temperature
display
Displays incubator temperature
digitally.
Heater output indi-
cator lamp
Indicates heater output in ten
degrees from 0 to Full.

Alarm indicator lamps
Flashes respectively for over-
temperature, internal circu-
lation, set temperature or
internal sensor alarm.
Alarm disable indi-
cator lamp
Lights up when an audible alarm
for set temperature is disabled.
>37°C indicator lamp
Lights up should the incubator
temperature exceed 37°C.
Power failure indi-
cator lamp
Lights up should power supply
be interrupted due to power
failure, a disconnected power
plug or other causes.

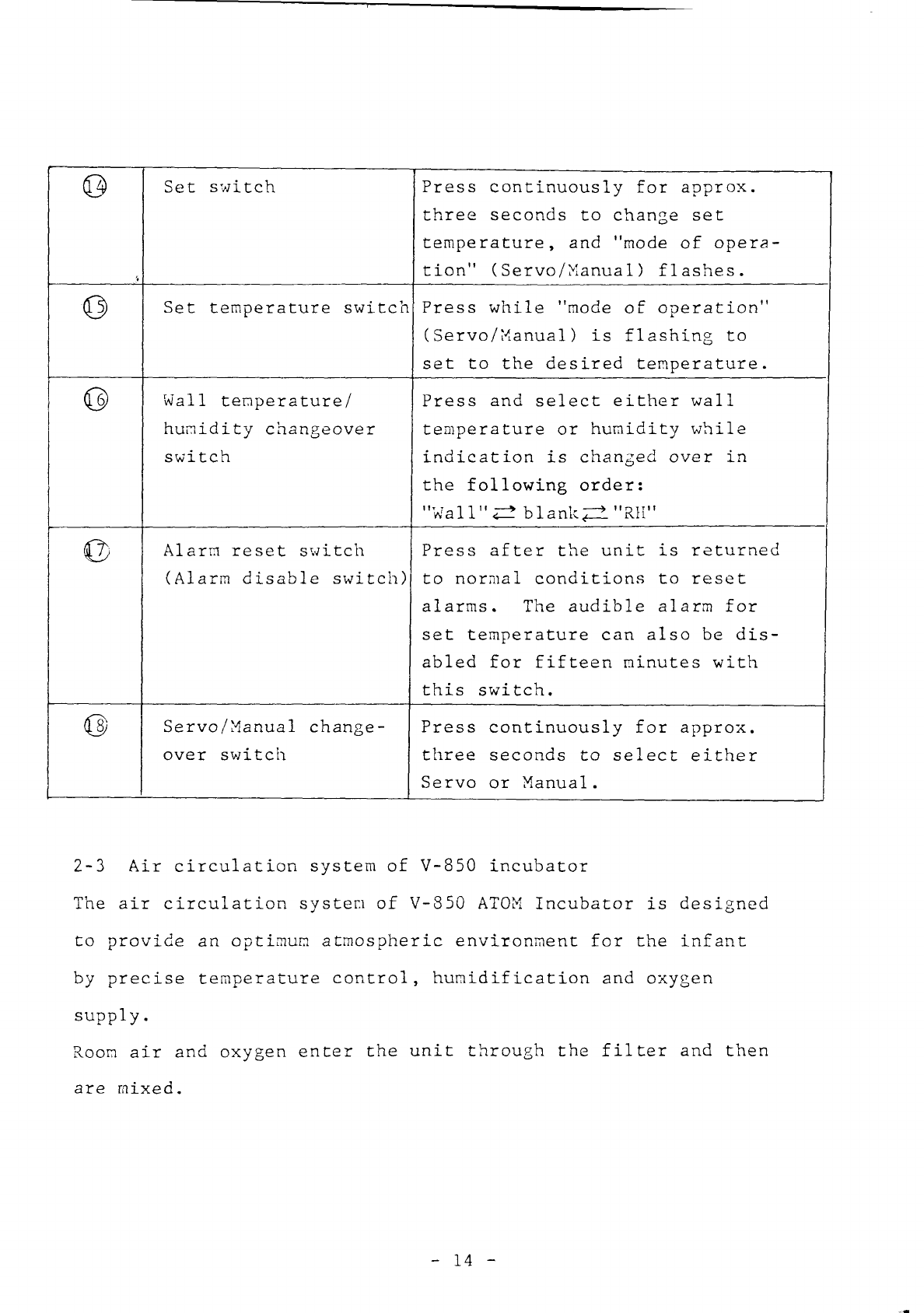

-Set switch
Press continuously for approx.
three seconds to change set
temperature, and "Manual"
flashes.
Set temperature switch
Press while "Manual" is flashing
to set to the desired temperature.
Wall temperature/
humidity changeover
switch
Press and select either wall
temperature or humidity while
indication is changed over in
the following order:
"WALL" 2 blank 2 "RH".
Alarm reset switch
(Alarm disable switch)
Press after the unit is returned
to normal conditions to reset
alarms. The audible alarm for
set temperature can also be
disabled for fifteen minutes
with this switch.

2-2 Servo control type
2-2-1 Nomenclature

@ Hood section
(1) I.D. card holder
Access port (Iris)
Snap-open access port
Humidity control knob
Front door
Front door latch (right and left)
Sensor block
Tube inlet
60000
O Base section
(9) Mattress platform
(0) Mattress platform tilting arm
02 Humidity reservoir cover
02 M.F. rail (right and left)
43 Power unit
V-850WSC
O Cabinet section
Incubator-Cabinet Stand connectiny hook
9 I.V. pole mounting holes (right and left)
(6) Guard rail (optional)
43 Caster
» The guard rail shown above is optional.
© Hood section
Double-wall hood
dI Snap-open access port (semi-iris)

2-2-2 Power unit
This system detects minute variations in skin temperature with a
precision temperature probe attached to the infant's abdomen
and supplies an incubator temperature needed to keep skin tem-
perature at a preset level. It also maintains an optimum
environmental temperature by calculating an accurate balance
between the infant's skin temperature and the incubator tem-
perature so that low incubator temperature due to an attack of
fever and other causes may be prevented.
Number Description Function

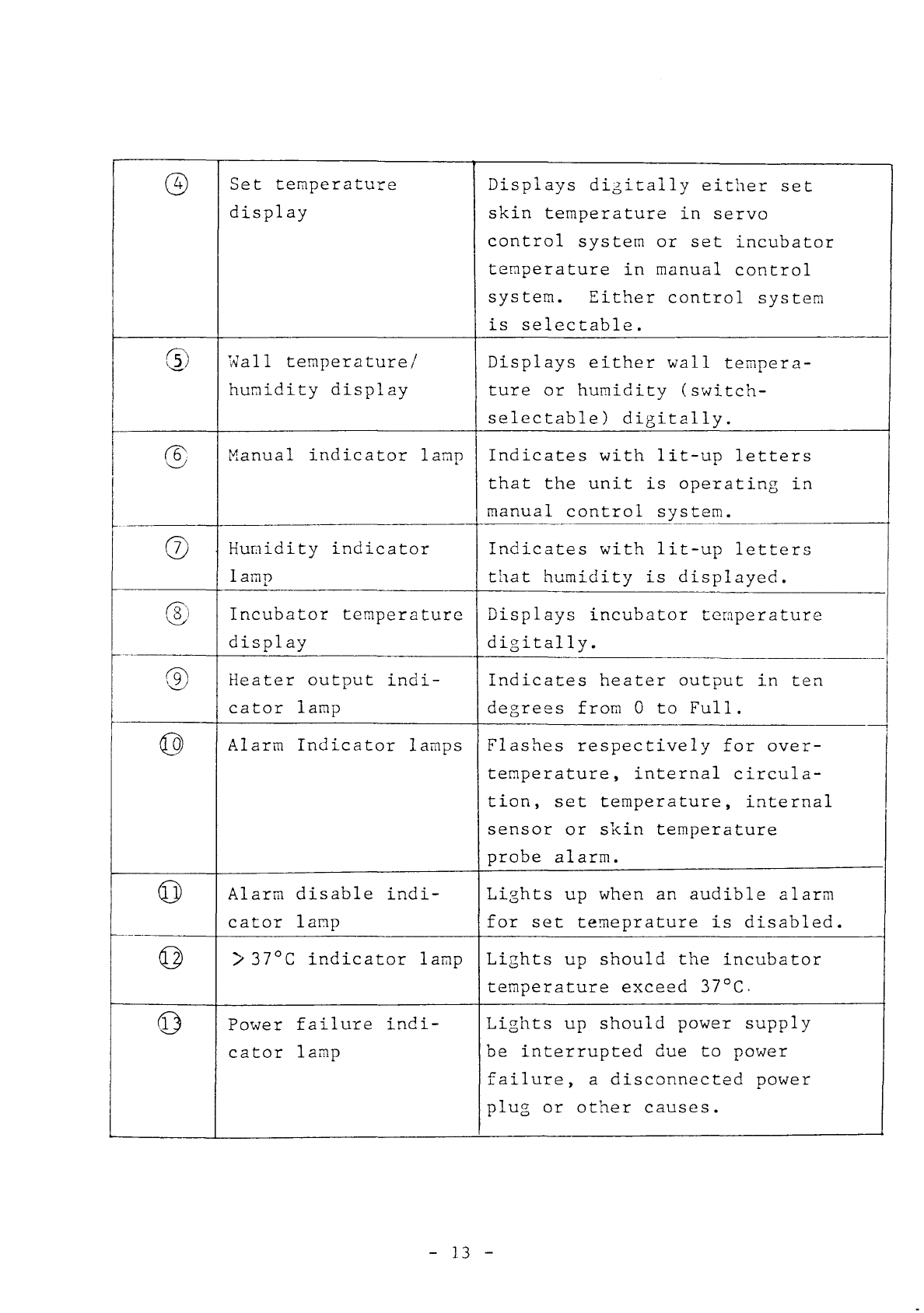

(1) Skin temperature Displays skin temperature
display digitally.
ο Wall temperature Indicates with lit-up letters
indicator lamp that wall temperature is displayed.
(3) Servo indicator lamp Indicates with lit-up letters
that the unit is operating in
servo control system. |

Set temperature
display
Displays digitally either set
skin temperature in servo
control system or set incubator
temperature in manual control
system. Either control system
is selectable.
©
Wall temperature/
humidity display
Displays either wall tempera-
ture or humidity (switch-
selectable) digitally.
(©)
Manual indicator lamp Indicates with lit-up letters
that the unit is operating in
manual control system.
©
Humidity indicator
lamp
Indicates with lit-up letters
that humidity is displayed.
©)
Incubator temperature
display
Displays incubator temperature
digitally.
©)
9 Heater output indi-
cator lamp
Indicates heater output in ten
degrees from 0 to Full.
©
Alarm Indicator lamps
Flashes respectively for over-
temperature, internal circula-
tion, set temperature, internal
sensor or skin temperature
probe alarm.
©
Alarm disable indi-
cator lamp
Lights up when an audible alarm
for set temeprature is disabled.
> 37°C indicator lamp
Lights up should the incubator
temperature exceed 37°C.
©
Power failure indi-
cator lamp
Lights up should power supply
be interrupted due to power
failure, a disconnected power
plug or other causes.

(3 Set switch
Press continuously for approx.
three seconds to change set
temperature, and "mode of opera-
tion" (Servo/Manual) flashes.
(9 Set temperature switch| Press while "mode of operation"
(Servo/Manual) is flashing to
set to the desired temperature.
(9 Wall tenperature/ Press and select either wall
hunidity changeover temperature or humidity while
switch indication is changed over in
the following order:
"Wall"? blank 22 "RH"
(2 Alarm reset switch Press after the unit is returned
(Alarm disable switch)
to normal conditions to reset
alarms. The audible alarm for
set temperature can also be dis-
abled for fifteen minutes with
this switch.
(8 Servo/Manual change-
over switch
Press continuously for approx.
three seconds to select either
Servo or Manual.
2-3 Air circulation system of
V-850 incubator
The air circulation system of V-850 ATOM Incubator is designed
to provide an optimum atmospheric environment for the infant
by precise temperature control,
supply.
humidification and oxygen
Room air and oxygen enter the unit through the filter and then
are mixed.

The air filtered into tne unit is sent to the heater where
it is heated appropriately as directed by the control and
then circulated in the incubator by the air circulating fan.
Part of the circulating air is humidified as it passes over
the humidity reservoir. Both humidified air and dry air,
whose flow rates are controlled by adjusting the hunidifica-
tion control sliding plate, enter the circulating-air rectifier
to be mixed. The direction of air is rectified in this cir-
culating-air rectifier. The air is then blown into the
incubator hood to provide even temperature and humidity dis-
tribution over the mattress.
This air circulation system maintains a slizht positive pre-
ssure inside the hood, and this assures effective isolation
4 when the ports are opened momentarily for access to the infant.
Incubator
temperature
senser
Humidity sensor
Wall temperature
sensor
Air out-port
(Humidification
control sliding plate)
Air in-port
Circulating air
Internal
circulation
Humidified
air
sensor: Dry air
Over-temperature
sensor
Humidity
reservoir
Circulating air
Fan 一 rectifier
Filter
Air
intake
pipe
Heater
- 15 -

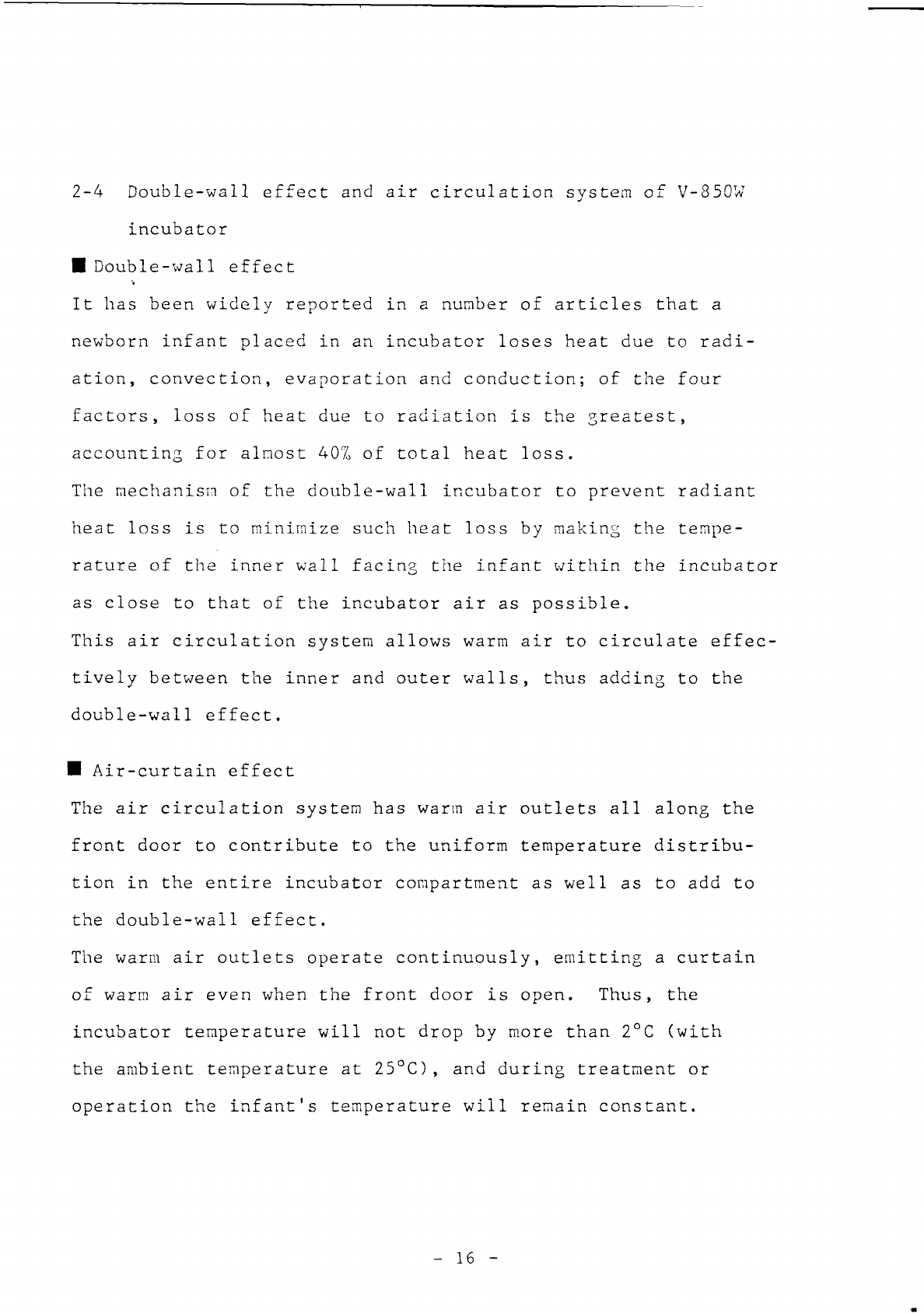

2-4 Double-wall effect and air circulation system of V-850W
incubator
M Double-wall effect
It has been widely reported in a number of articles that a
newborn infant placed in an incubator loses heat due to radi-
ation, convection, evaporation and conduction; of the four
factors, loss of heat due to radiation is the greatest,
accounting for almost 40% of total heat loss.
The mechanism of the double-wall incubator to prevent radiant
heat loss is to minimize such heat loss by making the tempe-
rature of the inner wall facing the infant within the incubator
as close to that of the incubator air as possible.
This air circulation system allows warm air to circulate effec-
tively between the inner and outer walls, thus adding to the
double-wall effect.
E Air-curtain effect
The air circulation system has warm air outlets all along the
front door to contribute to the uniform temperature distribu-
tion in the entire incubator compartment as well as to add to
the double-wall effect.
The warm air outlets operate continuously, emitting a curtain
of warm air even when the front door is open. Thus, the
incubator temperature will not drop by more than 2°C (with
the ambient temperature at 25°C), and during treatment or
operation the infant's temperature will remain constant.

Air curtain
Incubator
temperature
senser
Humidity sensor
Wall temperature
sensor
Air in-port
Circulating air
Internal circulation
s グン =
ensor o EE
Over-temperature um 1
sensor 7 “O
|
Fan- İk q
Lİ <.
Filter
Air intake pipe Heater
Air out-port
(Humidification
control sliding plate)
Humidified air
Dry air
Humidity reservoir
Circulating air
rectifier
