ATS GDS-25 User manual

Installation, Operation and
Maintenance Manual
CAUTION: Read and Follow all safety rules and
operating instructions before first use of product.
MODEL:
GDS-25
Ultraviolet Disinfection Systems
Dealer Info:

GDS Series ©2016
2

GDS Series ©2016 3
Installation Instructions:
General Safety Instructions .............................................................................. 4
Function / Description ...................................................................................... 5
Installation ........................................................................................................ 6
Installation Diagram .......................................................................................... 7
Electronic Controls & Startup Procedures ....................................................... 8
Sample Screen Shots: ................................................................................................... 9
Sanitation Procedure: ................................................................................................... 10 - 11
Maintenance: ..................................................................................................................... 12
Unit Parts Breakdown: ................................................................................................... 13
Circuit Board Layout: ...................................................................................................... 14

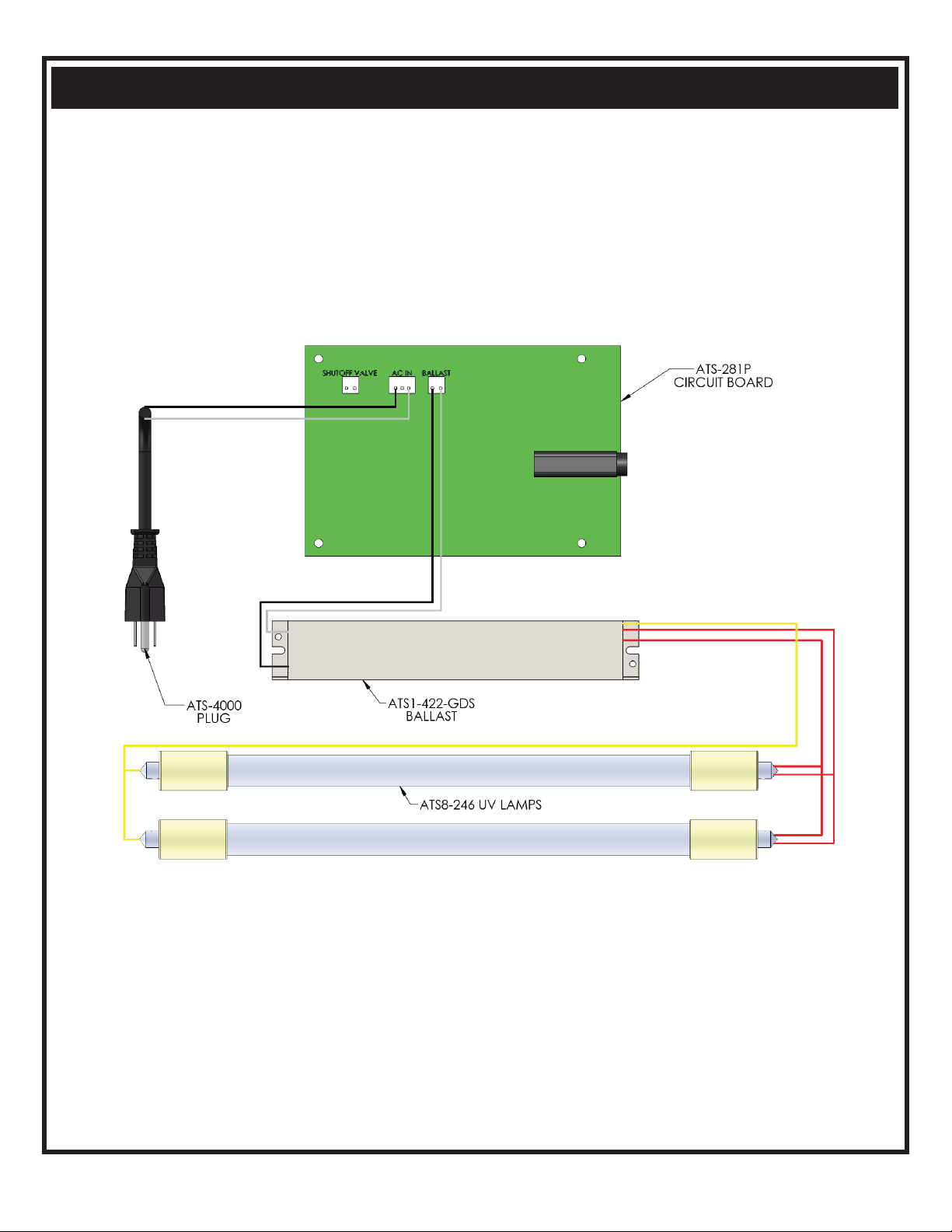

Wiring Diagram: ................................................................................................................ 15
Troubleshooting: .............................................................................................................. 16
Sterile Water Sample Precedures: ........................................................................... 17
Specications: ................................................................................................................... 18
Notes: .................................................................................................................................... 19

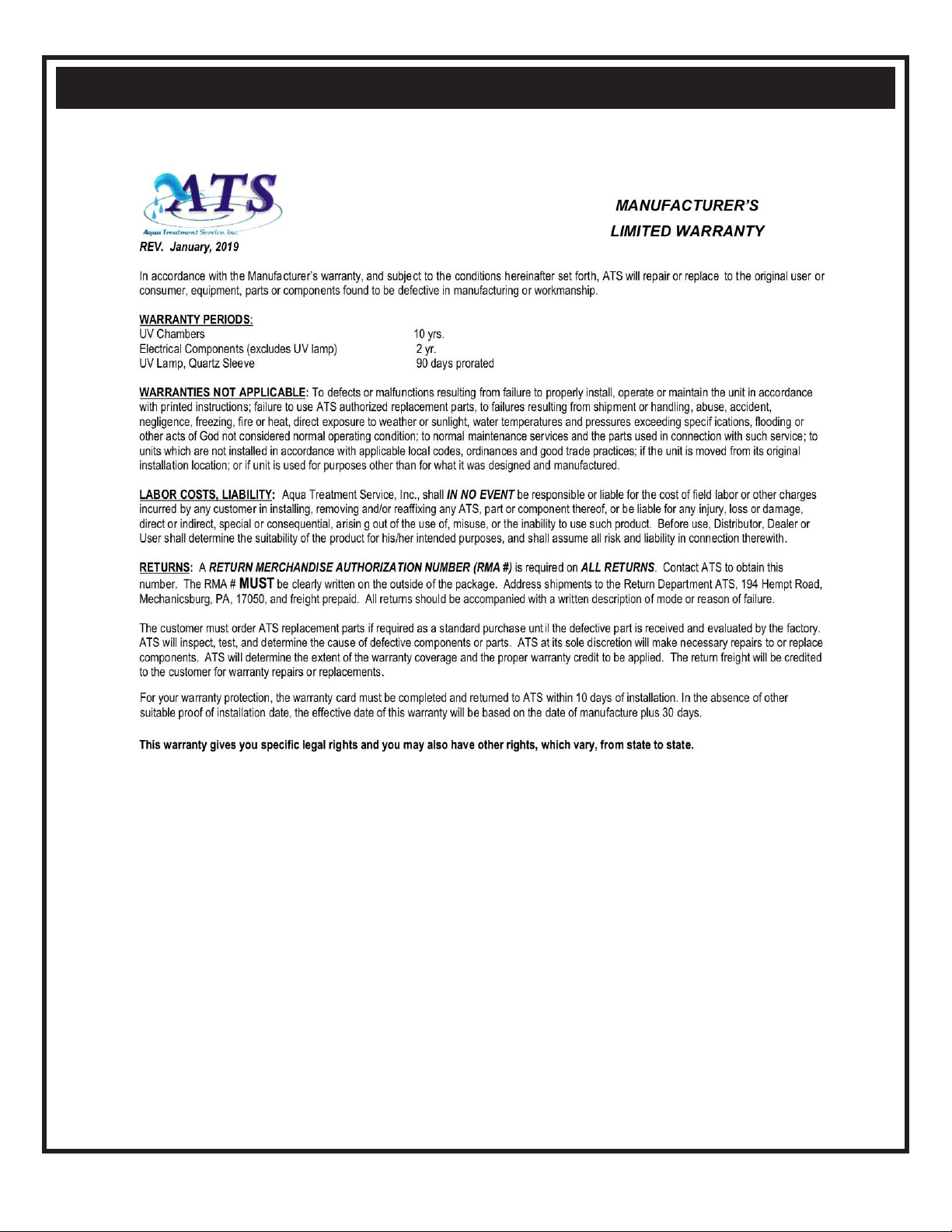

Warranty: ............................................................................................................................. 20
Table of Contents
GDS ©2019 • www.aquat.com

GDS Series ©2016
4
WARNING - to guard against injury, basic safety
precautions should be observed, including the
following:
1. READ AND FOLLOW ALL SAFETY
INSTRUCTIONS.
2. DANGER - To avoid possible electric shock, special
care should be taken since water is present near electrical
equipment. Unless a situation is encountered that is
explicitly addressed by the provided maintenance and
troubleshooting sections, do not attempt repairs yourself,
refer to an authorized service facility.
3. Carefully examine the disinfection system after
installation. It should not be plugged in if there is water on
parts not intended to be wet.
4. Do not operate the disinfection system if it has a
damaged power cord or plug, if it is malfunctioning or if it
is dropped or damaged in any manner.
5. Always shut off water flow and unplug the disinfection
system before performing cleaning or maintenance
activities. Never pull on the power cord to remove it from
an outlet. Grab the plug and pull to disconnect.
6. Do not use this disinfection system for anything other
than the intended use (potable water applications.) The use
of attachments not approved, recommended or sold by the
manufacturer / distributor may cause an unsafe condition.
7. Intended for indoor use. Do not install this disinfection
system where it will be exposed to the weather. Do not
store this disinfection system where it will be exposed
to temperatures below freezing unless all the water has
been drained from it and the water supply has been
disconnected.
8. Read and observe all the important notices and warnings
on the water disinfection system.
9. If an extension cord is necessary, a cord with a proper
rating should be used. A cord rated for less Amperes or
Watts than the disinfection system is rated for may cause
over heating. Care should be taken to arrange the cord so
that it will not be tripped over or accidentally pulled from
the outlet.
1. SAVE THESE INSTRUCTIONS.
2. WARNING: The ultraviolet light given off by this unit
can cause serious burns to unprotected eyes and skin.
Never look directly at a lit U.V. lamp. When performing
any work on the U.V. Disinfection System, always unplug
the unit first. Never operate the U.V. system while the
lamp is outside of the U.V. chamber.
3. WARNING: The U.V. lamp inside of the disinfection
system is rated at an effective life of approximately 9,000
hours. To ensure continuous water treatment, replace the
U.V. lamp annually with the appropriate Aqua Treatment
Services U.V. lamp. Failure to comply may present a re
hazard.
General Safety Instructions
GDS ©2019 • www.aquat.com

GDS Series ©2016 5
Function
Description
The function of this ultraviolet disinfection unit is to provide in excess of 99.9% reduction of all water borne pathogenic
(disease causing) bacteria.
Model ATS series have a number code designation correspondent to the maximum GPM
(gallons per minute) flow rate of the unit. I.E,- GDS-25 has a maximum flow capacity of 25 GPM.
Applications: GDS Units are designed to destroy micro-organisms in water supplies. The Ultraviolet lamp peak
radiation of 254 nanometer wavelength (nm) destroys or inactivates the D.N.A. (deoxyribonucleic acid) which absorbs the
Ultraviolet radiation, preventing cellular reproduction GDS units meet minimum dosages of 30,000 microwatt second
per square centimeter.
MAXIMUM CONCENTRATION LEVELS BEFORE ULTRAVIOLET:
Turbidity.................................5 NTU Hardness..........................................7 gpg
Color.......................................None Iron...................................................0.3 ppm
Manganese........................0.05 ppm pH....................................................6.5 - 9.5ppm
NOTE: Pre-ltration equipment may be required if these parameters cannot be maintained. Flow rate must not exceed
rated capacity of the unit.
The GDS series has a unique design with an ultraviolet germicidal lamp housed within a single quartz sleeve surrounded
by a stainless steel pressure chamber. The chamber is fabricated out of 304 Stainless Steel.
These units come with an ultraviolet lamp designed with a single pin at each end of lamp.
The quartz sleeve is intended to be placed through the disinfection chamber and will slightly protrude through the
threaded nipples. The ultraviolet lamp is placed within this quartz sleeve. The U.V. light shines through this specially
designed hard quartz sleeve for maximum disinfection efciency to meet the requirements for bacteria reduction in
potable water.
The inlet can either be located on the top or bottom of the chamber. The outlet can also be located on either the top or
bottom dependent on installation. A sight port is provided for safe and easy view of operation. A bracket is secured to
the end plate and can be mounted vertically or horzontally. A vertical installation is recommended, but not mandatory.
GDS ©2019 • www.aquat.com

GDS Series ©2016
6
Installation
GENERAL CONSIDERATIONS FOR ALL
DISINFECTION UNITS:
1. When installing the equipment, it is necessary that the
unit be isolated from vibration, heavy equipment, and
poorly connected piping.
2. Incoming water temperature to the unit should not
exceed 35° minimum to 110° maximum degrees Fahrenheit.
3. The operating pressure should not exceed 100 psi.
4. Before putting the unit into final operation follow
sanitation procedures as outlined in this manual for proper
disinfection. Sanitizing all discharge piping and fittings
with household bleach from disinfection unit to point of
use removes existing contaminants and gives the unit a
“clean start.” Be sure to rinse with U.V. treated water.
5. It is recommended to use UV resistant materials when
initially installing unit. The UV light can cause PVC or
other plastic materials to degrade. Becoming brittle, this
can compromise the pipe or fitting structural integrity.
GENERAL PRECAUTIONS TO BE FOLLOWED
AT ALL TIMES:
1. Always disconnect electrical power to any U.V. unit
before servicing.
2. Under no circumstances should personnel look at a U.V.
lamp in operation (EXCEPT through an external sight Port
lens located on the outside of the unit).
3. U.V. disinfection units must always be properly grounded.
The GDS series are always placed after the pressure tank
and any other type of treatment devices (i.e. softeners,
lters).
These units are normally installed in a vertical position in
an enclosed area with good ventilation. Allow clearance of
at least the unit’s length at one end for quartz sleeve and
lamp replacement. Four (4) anchor bolt holes are
provided for proper wall support. Use anchors with
screws for sufficient support (not included).
If your piping system is subject to impulse pressure resulting
in a “water hammer” condition, a surge tank or other means
must be provided to remove this condition; otherwise, this
extreme shock pressure condition may rupture or fracture
the quartz sleeve.
Make all plumbing connections to allow for ease of service.
Be sure to follow all local plumbing codes and U.V.
restriction requirements where specied by local authorities.
STEP BY STEP INSTALLATION:
1. Turn off the water before cutting into the water line.
2. Assess the installation (i.e. type of pipe, size of lines,
etc.) and obtain necessary plumbing ttings for installation.
Inlets and outlets on GDS-25 units are 1.5” FNPT. Use
Teon tape on all threaded connections and avoid over
tightening.
3. Make sure to allow enough room to install, replace,
and clean the quartz sleeve and lamp. Installing a water
shut-off valve before and after the unit is recommended
to make servicing easy.
4. After mounting, install quartz sleeves, o-rings, and lamps
per instructions. Turn on the water slowly, check for leaks,
and repair as needed prior to full service operation.
5. After the unit is full of water, plug it into a grounded
110V outlet. Observe operation through the safety sight
port. The lamp will show a bright blue glow. If any
problems are noted, consult trouble shooting guide.
GDS ©2019 • www.aquat.com

GDS Series ©2016 7
Installation Diagram
GDS ©2019 • www.aquat.com

GDS Series ©2016
8
Electronic Controls & Startup Procedures
before the lamp has to be replaced.
• DAY LED (Orange)- Number of days remaining before
the lamp has to be replaced.
• ALARM LED (Red)- Indicates a problem with the U.V.
Lamp (lamp may be out or beyond its rated life). Blinking
decimal point indicates a properly functioning unit.
Negative number indicates the lamp is beyond its rated
life.
• LO- Indicates the lamp is out and must be replaced.
Beeping Alarm- Indicates problem or lamp life
will expire soon. Continuous Alarm- Lamp has expired or
is off
• SILENCE ALARM- Press the reset button. There are a
limited number of snoozes allowed.
• NEW LAMP RESET- Press and hold RESET button
after 8 seconds “re” will appear, continue
holding until 12 appears on the display.
OPERATING INSTRUCTIONS
Your U.V. System is equipped to provide a continuous
monitoring system of the U.V. lamp operational status. This
is also equipped with an internal and external fused surge
protection system. This solid state electronic circuit board
provides the latest in U.V. lamp monitoring technology.
U.V. LAMP CONTROL START UP PROCEDURE
1. Make sure the U.V. lamp is inserted per instructions
into the quartz sleeve and U.V. chamber. Then plug the
U.V. lamp into the end lamp connectors.
2. Plug the unit into a 110volt wall plug outlet.
3. Upon start up the U.V. lamp Detector and Timer
circuit board will perform a self diagnostic test.
• Quick Beep
• Software version is displayed (Fig. 1)
• Watts:(Fig 2)
25gpm = approx 70
• The number 12 is displayed representing 12 months
remaining
• Green LED on, blinking decimal point to the right =
System Check OK, U.V. System is operational. (Fig. 3)
RESET LAMP
Set the 1 Year Lamp Timer – WITH NEW U.V. LAMP
Make sure the control box is plugged into the wall outlet
and the U.V. lamp is on. Press and hold the reset button.
Hold the reset button down for approximately 8 seconds
until you see “re”, continue holding until you see the
number 12 and hear it beep. At this point release the
button. The 1 year lamp timer has just been reset. (Fig 4)
ALARM CONDITIONS
U.V. lamp Detector and Timer circuit board Lamp
Operation and Alarm features:
• MONTH LED (Green)- Number of months remaining
GDS ©2019 • www.aquat.com

GDS Series ©2016 9

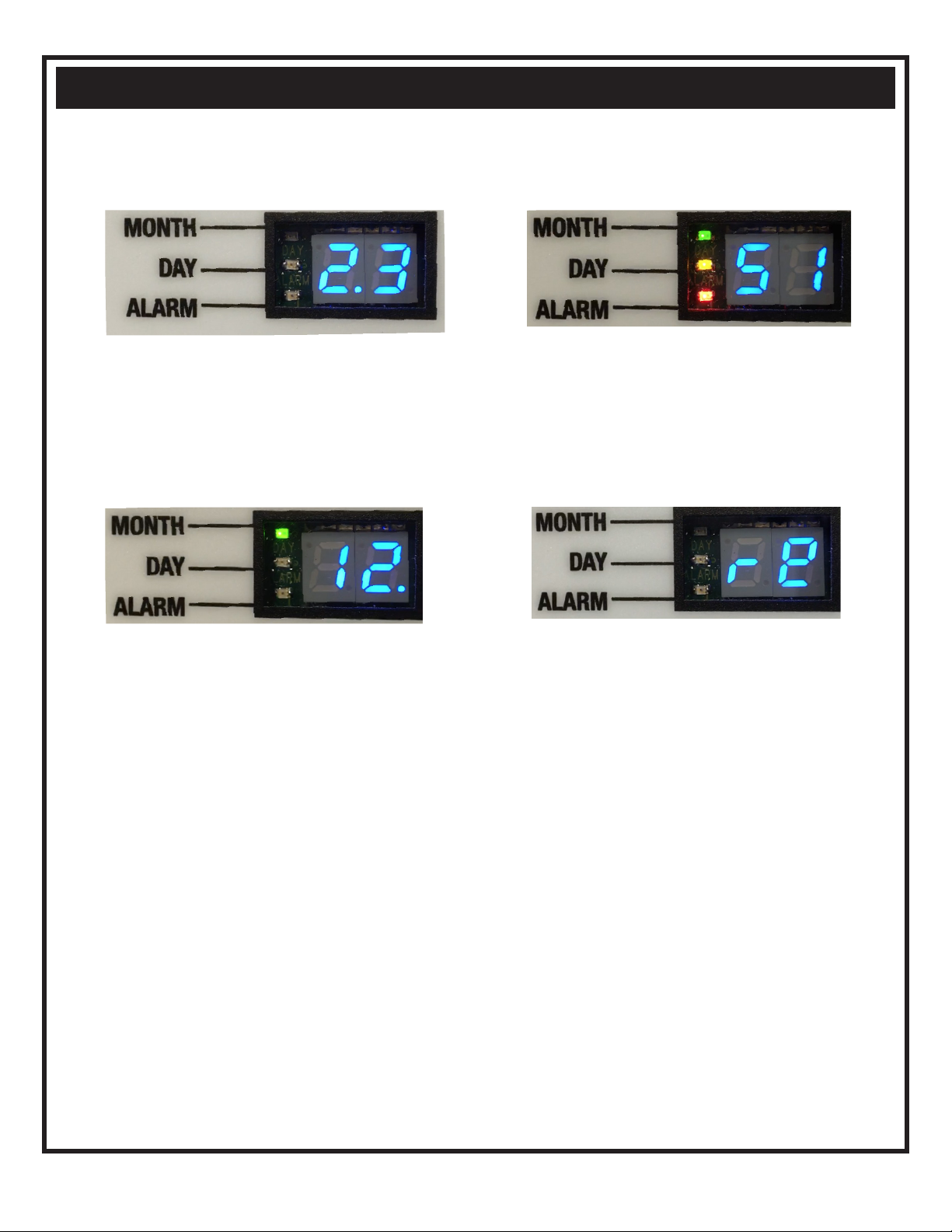

Sample Screen Shots
Fig. 1 Fig. 2
Fig. 3
Fig. 4
GDS ©2019 • www.aquat.com

GDS Series ©2016
10
Sanitation Procedure
continue to run pump if water doesn’t ow.
B.The high level of chlorine required to sanitize
a water system is corrosive to most metals and
chlorine solution must not be allowed to remain in water
system more than 36 hours before being completely ushed
from system.
8. After system has been completely ushed, perform a
bacteriological analysis on the water following all applicable
procedures.
NOTE: Always follow the sanitizing procedure required by
applicable state or local laws.
EPA Registered: Well sanitizer pellets are EPA Registered
for sanitizing potable water. EPA Registration No. 50510-1
LARGE DIAMETER WELLS:
Dug or bored wells should be disinfected in the same way
as a drilled one. Lower the water level as much as possible,
remove the sand, silt and debris, and then treat with the
chlorine solution. Mix thoroughly by circulating the water
back into the well and use the hose to rinse the interior lining
of the well. Do not try to disinfect an unprotected, unlined
well because new seepage or surface contamination will flow
into the water nearly as fast as you can disinfect it. Disinfect
the pipeline distribution system as indicated for drilled wells.
SPRINGS AND CISTERNS:
Mix about ½ cup of household bleach in 5 gallons of water and
use this to scrub the walls of the spring box or holding tank.
With a constant ow of fresh water from the spring, there is
probably no way of detaining the chlorine solution in the
reservoir for more than a few minutes. However, the
chlorinated water should ow through the pipeline to
disinfect the distribution system. Cisterns can be disinfected
in the same way but a source of clean water will be needed to
ush the dirty waste out of the system.
For additional information about how to protect wells and
springs and keep them from becoming contaminated, call or
visit your local Cooperative Extension ofce, or your nearest
certied water treatment specialist.
**TABLE 1 Quantity of solution mixed - 5.25% available
chlorine (laundry bleach) for disinfecting
wells, or 52,500 P.P.M..
WQA recommends 50mg/l or ppm chlorine concentration.
Formula: C2 X V2 / C1 = V1
C1= Household Bleach (52,500 P.P.M.)
V1= Chlorine Amount Needed
C2= 50 mg/L V2= 80 gallons holding time
I.E. 50-ml/g X 80 gal= 4000/52,500= .08 gallons of chlorine (5.25%)
.08 gal chlorine (5.35%) X 128 (oz/gal) = 10.24 oz (5.25%)
Dug Wells - 3 to 4 feet diameter - 4 cups per foot of water
Drilled Wells - 3 to 8 inch diameter - 1 cup per foot of water
HOW TO DISINFECT A WATER SYSTEM:
Every new well, or existing water supply system that
has been disrupted for service or repair, should be
disinfected before it is returned to use. Water in the
well and storage tank should be treated with a strong
chlorine solution to destroy disease organisms. All pipelines
and xtures in the distribution system should be rinsed
and ushed with chlorinated water. Upon installation of
a U.V. disinfection unit or yearly bulb replacement service,
disinfection with chlorine to initially ush the system is
recommended to assure line sanitation prior to U.V. start up.
The source of chlorine can be ordinary household liquid
laundry bleach (about 5.25% available chlorine). The
quantity required depends on the volume of water to be
treated. The United States Environment Protection Agency
(EPA) indicated that about 100 parts of chlorine, by weight,
mixed in a million parts of water will destroy essentially all
water-borne disease organisms. Table 1 shows the quantity
of liquid bleach required to disinfect wells of various
diameters and depths.
DISINFECTION PROCEDURE:
1. Remove the cap or seal from the casing and measure
the depth of the water in the well, then refer to Table 2to
determine how many chlorine pellets should be used. In
some instances removing the seal to measure the water can
be a difficult task, and it is easier to estimate well and water
depth from well log or other records.
2. Remove well cap and determine if there is an unobstructed
path from the top of the well to the water level. If it is not
possible to remove the well cap, remove vent or sanitation
access plug.
3. Drop one pellet into the well and listen to hear if it hits the
water. If the pellet hits the water, drop one-half the number
of pellets determined to be needed into the well. These will
sink to the bottom and sanitize the lower part of the well.
4. Mix the remaining pellets in a few gallons of water in a
CLEAN plastic container and pour the solution into the well.
5. In order to mix the chlorine thoroughly throughout the
entire water system, it is necessary to recirculate the water in
the well. This can be accomplished by connection a hose to
an out side faucet that is located after the pressure tank. Use
hose to run water back down the well (this also rinses upper
portion of well). After about 15 minutes of recirculation the
water, a strong chlorine odor should be apparent. Turn off
hose.
6. Bypass water softener and filters and open each water
outlet in the water system until chlorine is present in water.
This procedure assures that all the water in the system is
chlorinated.
7. Allow the chlorinated water to stand in the system for
at least one (1) hour, and preferable overnight. After this,
open an outside faucet system until water runs chlorine free.
Repeat flush operation on each faucet in system.
NOTE:
A. Chlorine may break loose iron deposits, slime and organic
material. This material will make the water discolored. The
material broken loose may plug pump screens. Do not
GDS ©2019 • www.aquat.com

GDS Series ©2016 11
Sanitation Procedure
** TOO MUCH CHLORINE IS BETTER THAN
TOO LITTLE:
In situations where it is inconvenient to determine depth
of water or diameter of a drilled well, a minimum of 1/2
gallon of household bleach may be used for wells up to
8 inches in diameter with estimated to be less than 80
feet deep; 1 gallon should be used for similar size wells
with water deeper than 80 feet. In case of a well yielding
more than 50 gallons per minute, special procedures are
required. Seek the advice of a certied water treatment
specialist.
Wait a day or two before you have another sample tested.
Do not take a sample for testing if the odor of chlorine is
still present in water.
REMEMBER - To make your water supply safe:
• Locate your well properly.
• Protect it from surface contamination.
• Test water periodically for coliform bacteria. (Home-
yearly, Farm-2X yearly)
• Chlorinate, or lter and disinfect the water if necessary.
Plumbing Line Sanitation Only:
When installing an ultraviolet disinfection system, a
prelter with sump may serve as a source to sanitize the
water lines only. For whole system disinfection follow
procedure as outlined above.
Source: The Pennsylvania State University College of
Agriculture Cooperative Extension.
TABLE 2
NOTE:
Pellets Weight = 1.14 gram each, 25 pellets/oz., 400 pellets/lb.
1 cup of pellets = 1/2 lb., or 200 pellets, or 8 oz.
To produce a 400 P.P.M. chlorine concentration, to sanitize
a water system, use one-half (1/2) pound chlorination
pellets for each 100 gallons of water in the system (1/2
lb/100 gal= 8 oz/100 gal= 200 pellets/ 100 gal= 1 cup
pellets/100 gal). Table 2shows how many pellets too use
per 100 feet of water in various diameter wells.
2
3
4
5
6
8
10
12
24
36
0 - 1.5
0 - 3.0
0 - 6.0
0 - 8.0
0 - 12.0
1 - 5.0
2 - 0
3 - 0
12 - 0
26 - 0
1/4
2/5
3/4
1
1-1/2
2-1/2
4
6
24
---
40
80
140
200
300
500
800
----
----
----
Well Diameter Inches Weight of Pellets lbs. - oz. Cups of Pellets Number of Pellets
GDS ©2019 • www.aquat.com
How to Sanitize a Water System Using Well Sanitizer Pellets
TABLE 2:

GDS Series ©2016
12
Maintenance
to prevent breakage. Make certain that all nger prints are
wiped clean before reinstalling (see installation of the quartz
sleeve). Replace o-ring [ATS8-544(1)] every time a quartz
sleeve is cleaned or replaced. We reccommend replacing the
quartz sleeve once a year.
U.V. LAMPS:
INSTALLATION OF THE ULTRAVIOLET LAMPS:
**DO NOT PUT POWER ON AT THIS TIME!**
CAUTION: Never operate or look directly at U.V.
lamp outside the disinfection chamber.
Make sure unit is unplugged when installing or servicing an
ultraviolet lamp. Remove any paper tabs on the U.V. lamp
and avoid allowing ngerprints and other debris to deposit.
Carefully place the lamp inside the quartz sleeve leaving
enough space to connect the socket connector to the lamp
pins. Then gently slide the brass dust cap over the end nut,
securing the lamp and protecting it from dust.
ULTRAVIOLET LAMP MAINTENANCE
REQUIREMENTS:
The U.V. lamp is rated for 9,000 hours of continuous use.
After this period of time, the U.V. lamp has undergone a
photochemical change. While the lamp will not normally
be burned out, the lamp quartz may no longer emit the
254-nm shortwave U.V. to effectively kill bacteria. Failure
to replace the U.V. lamps every 9,000 hours may cause
bacteriological breakthrough. Should the use of the
disinfection unit be intermittent, in no case should the
U.V. lamp be used for more than 24 months regardless of
the number of hours of operation due to normal shelf life
degradation of the U.V. bulb. Changing the quartz sleeve
should be done at the same time U.V. lamp replacement is
scheduled.
It is recommended that your water supply be tested
periodically (yearly) through your local health department or
approved certied laboratory.
ELECTRICAL:
The GDS series are furnished with 6’ line cord that will plug
into a 110V outlet. Electrical receptacles must be properly
grounded for safe operation. Improper grounding will void
any warranty.
When possible use a separate breaker to minimize voltage
uctuations and avoid accidental shut off. After unit is
installed and water is turned on, plug the unit into 110V wall
receptacle. View lamp operation through safety sight port
lens.
NOTE: Avoid exposing your eyes to U.V. light.
QUARTZ SLEEVE:
Installation of the Quartz Sleeve:
Always handle quartz sleeves carefully to prevent breaking
or chipping. The quartz sleeves are to be clean and free of
ngerprints before installing.
After unplugging the unit, remove the brass dust cap and
electrical connection at each end. Then remove each brass
end nut. Install the quartz sleeve through the stainless steel
threaded nipples with 0.5” sticking out on each end. Use a
small amount of plumber’s grease and install the o-ring
around the quartz sleeve. Avoid riding the o-ring on any
threaded part of the nipple. Hand-tighten each brass end nut
to form a compression seal around the quartz sleeve. Avoid
overtightening the nut, which may cause a fracture on the end
of the quartz sleeve. Under normal operation conditions,
hand-tightening will provide a 100 psi seal. Do not use any
devices to tighten end nut.
After you have tightened each brass end nut and all other
plumbing connections, open the outlet valve. Slowly open
the inlet valve and ush out all remaining air. Then close the
outlet valve and slowly open the inlet valve fully. Check the
unit for leaks. If you nd a leak at a brass end-nut, tighten the
brass end-nut further. If the leak continues, drain the unit and
inspect the quartz o-ring and quartz sleeve for proper seal.
Once you complete checking the unit, reassemble o-ring and
tighten brass end-nut. Repressurize the unit and check again.
REQUIREMENTS FOR CLEANING THE QUARTZ
SLEEVE:
As water passes through the U.V., minerals, debris and other
matter in the water may deposit onto the quartz sleeve. After
sufcient lm has formed on the quartz sleeve, the ability of
the ultraviolet germicidal rays to pass though the quartz sleeve
and into the water may be impaired. Therefore, it is necessary
to determine a cleaning schedule for the quartz sleeve. The
frequency will depend on the specic type of water conditions.
If the water has been processed through deionization, reverse
osmosis, or is distilled, cleaning may be required only once per
year. If untreated water is used, the cleaning frequency will
vary. A minimum of once yearly is standard recommendation
for cleaning and lamp replacement. Contact your local dealer
for scheduling this service. Your specic situation will vary the
frequency time according to the water quality of the home or
facility application.
QUARTZ SLEEVE CLEANING PROCEDURES:
To clean the quartz sleeve, turn off the water ow to the
disinfection unit, turn power off, and at a separate faucet or
valve relieve the water pressure from the UV. Then disconnect
the electrical service to the lamp pins. Carefully remove the
U.V. lamp. Loosen each end nut with o-ring and remove the
quartz sleeve. The quartz sleeve may then be washed with a
mild soap and hot water solution and rinsed clean with hot
water. Should this be insufcient to clean the quartz sleeve,
a mild acid may be used (i.e. vinegar). Be certain to follow
all recommended safety and handling procedures on the acid
container. It is important to handle the quartz sleeve with care
GDS ©2019 • www.aquat.com

GDS Series ©2016 13
Parts Breakdown - GDS-25
GDS ©2019 • www.aquat.com

GDS Series ©2016
14
Circuit Board Layout
GDS ©2019 • www.aquat.com

GDS Series ©2016 15
Wiring Diagram
GDS ©2019 • www.aquat.com

GDS Series ©2016
16
Troubleshooting
PROBLEM CAUSE CORRECTION
U.V. lamp will not light Install a voltage regulatorCheck input voltage if below
or above 120 volts
Electrical cord disconnected
or outlet defective
Defective U.V. lamp
Defective lamp ballast
Loose open-circuit wire
Check, replace
Replace Lamp
Check output voltage
Replace ballast
Trace out and repair
Leak at quartz nipple Defective or cracked o-ring Replace o-ring
O-Ring not seated properly Replace o-ring
Cracked Quartz Sleeve Replace Quartz Sleeve
GDS ©2019 • www.aquat.com

GDS Series ©2016 17
Sterile Water Sample Procedures
GDS ©2019 • www.aquat.com
SUGGESTED PROCEDURE FOR OBTAINING
STERILE WATER SAMPLES:
Prior to taking the water sample, be sure to have on hand an
adequate supply of sterile bottles (as shown in Fig 1). These
sterile bottles should be obtained from a reputable laboratory
and should have been autoclaved and contained within a
plastic outer wrapping.
1. Prior to taking the sample, it is imperative that the sample
valve, faucets, etc. be opened at full force for a complete three
and a half minutes.
2. After the valve has been left fully opened for three and
one half minutes, reduce the flow to a reasonable stream of
water. Flow to drain an additional three minutes.
3. Open the sterile bottle or sterile container being used.
Holding the cap in a down position, the operator should then
hold his breath while taking the sample so as to avoid oral
contamination of the sample. The operator must not allow his
finger to touch the inside of the cap or the neck of the bottle.
4. After the sample has been taken, the cap should be tightly
placed on the sample container.
5. The sample container should be placed in a plastic wrapping,
kept cool, and should be taken to the laboratory for testing as
soon as possible following the above procedure.
We recommend duplicate samples be taken at each test station
during each specic test so as to avoid loss of sample through
laboratory error and to insure reasonable validity through
comparison.
Check with your local laboratory to assure proper sampling
and submittal procedure.
Fig 1

GDS Series ©2016
18
GDS-25 Specifications
GDS ©2019 • www.aquat.com

GDS Series ©2016 19
Notes
GDS ©2019 • www.aquat.com

GDS Series ©2016
20
Warranty
GDS ©2019 • www.aquat.com
