Auber Instruments WST-1510H Administrator Guide

Copyright © 2021 Auber Instruments Inc. All rights reserved.
No part of this manual shall be copied, reproduced, or transmitted in any way without the prior, written consent of Auber Instruments.
Auber Instruments retains the exclusive rights to all information included in this document.
Operation Instruction Manual
Programmable PID Temperature Controller
WST-1510H / AW-WST1510H-W
Version 1.3 (Nov, 2021)
Auber Instruments
5755 North Point Parkway, Suite 99
Alpharetta, GA 30022
www.auberins.com
Introduction
Thank you for purchasing the Auber WS series temperature controller. We sincerely
appreciate your choice and trust that our product will meet your quality and value
expectations. At this moment, you may be anxious to operate your own electric smoke
controller, but a few minutes of your time reading through this manual will only serve to
enhance your purchase experience. In particular, we urge you to read through the
safety warnings below. Although this plug-and-play controller is rather simple to
operate, the process involves high temperature and high wattage appliances, and your
safety is our number one priority.
SAFETY WARNINGS
•This controller is designed only to be used with devices that have limited power
and thermal cut off protection, such as thermostats or thermal fuses in case of
controller failure.
•Do not place anything on the top of controller surface, which is used to vent
excess heat during its operation.
•The maximum electric current this controller can handle is 15 Amperes. For 120
Volts AC in US and Canada, this limits the heater power to 1800 Watts.
•Always place the sensor in the controlled subject when the controller is on. Before
turning on the controller, please make sure the sensor is placed inside the
container. Leaving the sensor outside of the solution will form an open loop
operation. If the sensor is left outside, the controller will assume the temperature
is low even if the controlled subject is already very hot. The controller will provide
full power to the heater. It will not only overheat the controller, but also damage
your appliance, and possibly even cause a fire.

2/33
•This controller is designed to manage the devices recommended by Auber
Instruments only. Using it to control a not recommended device can be dangerous
and potentially cause fire. Auber Instruments is not liable for damages caused by
misuse of the controller. If you are not sure the controller can be used, please
contact Auber Instruments before use.
•If an abnormal display or noise is observed, turn the controller off, unplug the
power cord, and contact the manufacturer before using it again.
•Clean the controller only when it is cool and unplugged.
•Do not allow children to operate the controller.
Specifications
Number of storable recipes 6
Number of steps in each recipe 6
Input voltage US 120V, European 220V, 50/60 Hz
Output voltage The same as the input.
Maximum Current 15A for 120V AC, 12A for 220V AC, 3A for the smoke
generator output.
Controller Mode PID, PI, PD or P.
Output switching device Built-in optically isolated solid-state relay with zero
voltage crossing switching.
Sensor type PT1000 RTD sensor
Timer range 6 steps with 23h59m for each step.
Temperature resolution 1°C or 1°F.
Temperature display unit Celsius or Fahrenheit.
Temperature display range -40 - 400°C, or -40 - 750°F.
Mini. Control Temperature 5°C (9°F) above ambient with smoker generator off, 22
°C (40°F) above ambient with smoker generator on.
Max. Control Temperature 300°C (570°F), limited by sensor cable.
Wireless Standards 2.4Ghz, IEEE 802.11 b/g/n
Security Protocols WPA/WPA2/WPA2-Enterprise
Temperature accuracy +/-1°C
Smoker generator control output maximum current
3A at 120V
Dimension 6 x 3 x 8.3 inch (155 x 80 x 210 mm) W x H x D.
Weight 3.2 lb (1.4 kg).
Warranty Limited One (1) Year Warranty
Note: This controller has a US input plug and an output socket that meet the NEMA 5-15 standard. For international
orders, users will need to order a separate converter to convert the connection from local electronics store. For
countries that use 220-240 VAC power lines, the maximum control power of this smoker is 2600 Watts.

3/33
Operating Instructions
1. Description of the controller
1
2
34568
7

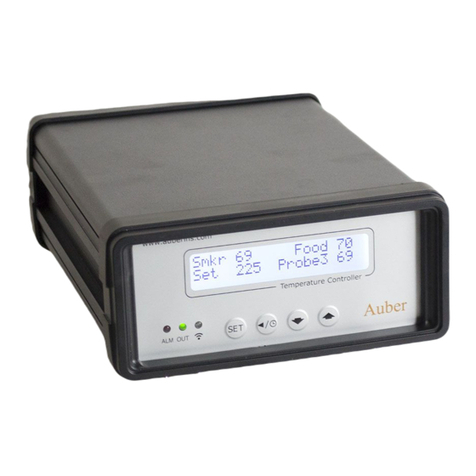

Figure 1. Front Panel.
1) LCD display window – During normal display mode, the screen will display
temperature readings from all probes and set temperature of the smoke cabinet.
When either the high or low limit alarm is triggered, this display will show alarm
notification. In time checking mode, the screen will display time/step information. In
cooking profile or parameter setting modes, the display shows the step/parameter
name and its value. For details, please check section 3.
2) Alarm status/smoke generator indicator (Red)– This indicator has two
functions. When blinking, the temperature alarm is triggered. The LCD display will
simultaneously flash the alarm notification at same time. When this indicator is
solid ON, the smoke generator control output is activated.
3) Output status indicator (Green)- This LED indicates the output status that should
be synchronized with heater. When this indicator is ON, the heater is powered.
When it is OFF, the heater’s power is off. When it is flashing, it means the heater is
on and off intermittently to reduce the power output. It is synchronized with the
power light on the cooking device.
4) Wi-Fi status indicator, blue (For WIFI model only) – This indicates the Wi-Fi
connection status of the controller. Solid ON: the controller is connected to the

4/33
internet. Fast flashing: Wi-Fi module is ready for configuration. Slow flashing: Wi-Fi
module is initializing its connection to the router. Off: no Wi-Fi connection.
5) SET Key – Press momentarily to enter the cooking profile settings. Press and hold
about 2 seconds to enter parameter settings. This key can also be used to confirm
the change of setting.
6) Time/Back Key – Pressing this key in normal operation mode will display time
checking mode. Pressing this key in the parameter setting mode will return back to
the upper-level menu, or exit.
7) Down Key – Decrease value, scroll down the menu, or mute the buzzer.
8) Up Key – Increase value, scroll up the menu, or mute the buzzer.
Figure 2. Back Panel.
Up to three temperature probes can be used with this controller, and they need to be
plugged in P1, P2 and P3 sockets on the right of the back panel. P1 socket is for the
cabinet temperature probe (Probe 1); P2 socket is for the food internal probe (Probe 2);
P3 socket is for the 3rd temperature probe (Probe 3).
2. Connecting this controller to your smoker
Install the sensor.
(Note: If you ordered wall mount sensor instead of free hanging sensor, please see the
separate instruction for wall mount sensor installation.)
The smoke controller is provided with 2 complimentary probes by default. The one with
the short tip is for measuring the cabinet temperature (Probe 1). It needs to be plugged
to the top sensor jack at the back of the controller. The long probe with a bend at the end

5/33
is for the meat internal temperature measurement (Probe 2). It needs to be plugged to
the bottom sensor jack at the back of the controller. The tips of the probes are dropped
into the damper hole. Place a piece of tape on the top of the smoker tower to hold them
in place. The tip of Probe 1 should be placed close to the food but high enough so that it
does not touch the food. (See Figure 3). The tip of Probe 2 should be inserted into the
meat.
Figure 3. Sensor position. Left, the sensor should be placed close to the food but high enough so that it
does not touch the food. Right, hold the sensor in place by a piece of tape.
The following wiring examples are based on Bradley smokers. For other brand smokers,
if your smoker comes with an analog heat level dial, you can directly hook up the power
cord of your smoker to the heater output outlet on the back of this controller. Then
change the heat level to the max. For details, please see figure 5 below. If your smoker
comes with a digital control panel which will be reset automatically if there is no power,
you need to make a modification in your smoker to bypass its internal digital control
panel, then hook up the internal heating element directly to the back of the controller. For
questions, please contact Auber customer support.
For the “Original” and stainless steel Bradley smoker, the temperature heat control
switch on the smoker tower should be set to the Hi position (most right).
There are several ways to connect the controller and Bradley Smoker.

6/33
Smoke
Generator
Smoker
Tower
Cable B
Cable A
Figure 3.1 Power Cable wiring for Original Bradley Smoker
Cable A: Power cable for Smoker Tower, C14 plug
Cable B: Power cable for smoke generator, NEMA5-15P plug
1) Connection for Bradley Original Smoker, with control of the smoker generator.
a) When powering your controller, you should use the power cord that came with the
Bradley Smoker.
b) Connecting the controller to the smoker generator: You should use the power cord that
originally was used to connect the smoker generator and smoker tower.
Figure 4. Connection between the controller and Bradley Original Smoke generator.

7/33
c) Connect the controller output to the Bradley Smoker Tower with the power cord that
came with the Auber controller.
Auber
Controller
Smoke
Generator Smoker Tower
Probe 1:
Cabinet Temp
Probe 2:
Internal Temp
Cable A
Cable B
To Power Outlet
Figure 5. Diagram
Figure 6. Back view

8/33
Figure 7. Connection between the controller and smoker
2) Connection for Bradley Digital Smoker.
For the Bradley Digital Smoker, both the controller and smoker generator should be
connected directly to the wall outlet. In addition, the controller output must be connected
with the smoke tower.
Auber
Controller
Smoke
Generator Smoker Tower
Probe 1:
Cabinet Temp
Probe 2:
Internal Temp
Cable C
Cable B
To Power Outlet To Power Outlet
Figure 8. Connection for Bradley Digital Smoker
Cable C is extra 18 AWG power cord, same as Cable B

9/33
3) WIFI Setup (for WiFi model only)
Please download latest AuberWIFI app from iOS Appstore or Android Google Play, and
process the setup through the app. For support, please see the Help Center on
auberins.com and find for “App with WiFi Setup”.
To reset the WIFI function on the controller, press and hold both the SET key and the
timer key (left two keys) at same time for about 3s. The WIFI indicator then will blink fast
(4 Hz). It indicates this controller is waiting for new setup now. After the controller is setup
to your phone successfully, the WIFI indicator will be solid ON.
3. Display modes
00000000000000000000
00000000000000000000
Smkr 137 Food 122
Set 250 Probe3 270
Normal Display
SET Press
Momentarily
00000000000000000000
00000000000000000000
>Step 1 SmkrTemp 250
1- End i ng by Fd Temp
00000000000000000000
00000000000000000000
> 1 -Fd Temp 195
Step 2 SmkrTemp 200
|
Press
Momentarily 00000000000000000000
00000000000000000000
Step 1 Runt ime 0 : 02
Ends at 195
00000000000000000000
00000000000000000000
Tota l Runt ime 0 : 03
Power Out put 100%
o
00000000000000000000
00000000000000000000
> Cont ro l Sett i ng
System Con f i g
SET
Cooking Profile
SET Press
Momentarily
SET Press
Momentarily
SET Press
Momentarily
SET
Time Checking
SET Press
Momentarily
Parameter Settings
Figure 9. Switching between different display modes
Four display modes are available: 1) Normal display 2) Time Checking 3) Cooking Profile
and 4) Parameter setting.
When you turn on the controller, it will show the initializing display for several seconds. it
will display controller’s name and firmware version during this period. Then it will show
the normal mode display.
00000000000000000000
00000000000000000000
WSD-H -Wi F i
v1 . 00
Figure 10. Initializing display. Top line is for model number. Bottom line is for firmware version.

10/33
3.1 Normal display mode
00000000000000000000
00000000000000000000
Smkr 137 Food 122
Set 250 Probe3 270
Cabinet Temp. Food Probe Temp.
Cabinet
Set Temp. Probe3 Temp.
Figure 11-1. Information displayed in normal display mode (Default)
00000000000000000000
00000000000000000000
Smkr 137 Food 122
Set 250 OUT 25
Cabinet Temp. Food Probe Temp.
Cabinet
Set Temp. PowerOutput
Percentage
Figure 11-2. Information displayed in normal display mode
(when probe 3 is disabled in the setting, note 16 in section 7.2)
3.2 Time checking mode
To check current running status (status check mode), press the timer key momentarily.
Press time key again to display more information or to return back to normal display
mode. Three display possibilities:
00000000000000000000
00000000000000000000
Tota l Runt ime 0 : 03
Power Out put 100%
Press
Momentarily
|
Press
Momentarily
00000000000000000000
00000000000000000000
Smkr 137 Food 122
Set 250 Probe3 270
|
Press
Momentarily
|
00000000000000000000
00000000000000000000
Step 1 Runt i me 0 : 02
Remai n i ng T ime 0 : 05
Figure 12. Time checking mode when current step is ended by time (multi-step mode).
Display #1 (if current step is ended by time): In normal mode, press timer key
momentarily to display the elapsed time for current step (top) and remaining time for
current step (bottom). Press timer key again to display the total running time after you
recently powered up the controller (top), and current power output percentage. Press
timer key again to return to normal display mode.

11/33
00000000000000000000
00000000000000000000
Step 1 Runt ime 0 : 02
Ends at 195
00000000000000000000
00000000000000000000
Tota l Runt ime 0 : 03
Power Out put 100%
o
Press
Momentarily
|
Press
Momentarily
00000000000000000000
00000000000000000000
Smkr 137 Food 122
Set 250 Probe3 270
|
Press
Momentarily
|
Figure 13. Time checking mode when current step is ended by food temperature (multi-step mode).
Display #2 (if current step is ended by food temperature): In normal mode, press the
timer key momentarily to display the elapsed time for current step (top) and food probe
ending temperature (bottom). Press the timer key again to display the total running time
after you recently powered up the controller (top) and current power output percentage.
Press timer key again to return to normal display mode.
|
Press
Momentarily
00000000000000000000
00000000000000000000
Smkr 137 Food 122
Set 250 Probe3 270 00000000000000000000
00000000000000000000
Total Runt ime 0 : 03
Power Out put 100%
Figure 14. Time checking mode when single step mode.
Display #3 (if single step mode): Press the timer key to display the total running time
after you recently powered up the controller (top), and current power output percentage.
Press the timer key again to return to normal display mode.
3.3 Cooking profile programming mode
00000000000000000000
00000000000000000000
Smkr 137 Food 122
Set 250 Probe3 270
SET
Press
Momentarily 00000000000000000000
00000000000000000000
>Step 1 SmkrTemp 250
1- Endi ng by Fd Temp
00000000000000000000
00000000000000000000
> 1 -Fd Temp 195
Step 2 SmkrTemp 200
SET Press
Momentarily
SET
Press
Momentarily
Figure 15. Access the menu of cooking profile mode using SET key.
Press the SET key momentarily to enter cooking profile mode. For details, please check
section 4.1.

12/33
3.4 Parameter setting mode
00000000000000000000
00000000000000000000
Smkr 137 Food 122
Set 250 Probe3 270 00000000000000000000
00000000000000000000
> Cont ro l Sett i ng
System Con f i g
SET
Press & Hold
Figure 16. Access the menu of parameter setting mode using SET key.
Press and hold the SET key for about 2s to enter parameter setting mode. For details,
please check section 5.
4. Operation
All cooking profile settings and control parameters can both be accessed from the device
and AuberWIFI app (for WIFI model only).
4.1 Set the Cooking Profile
The controller’s cooking profile can be either set to multi-step mode (default) or
single-step mode. In the multi-step mode, up to 6 steps can be programmed. Each step
has its own set temperature for cabinet probe (Probe 1) and its step-ending criterion. A
cooking step can either end by timer or by food internal temperature (Probe 2). In the
single-step mode, the controller will try to maintain the cabinet temperature at the set
value of Step 1 (“Step 1 SmkrTemp”) as long as the controller is on. To switch between
single-step mode and multi-step mode, please check section 4.1.3.
4.1.1 Multi-Step Mode
A total of 6 steps can be programmed on this controller. Each program step comprises a
target temperature of cabinet (shown as “SmkrTemp: XXX”) and an ending criterion
setting “X-Ending”, where “X” is the step number. For example, “1-Ending” means the
ending criterion of Step 1. The “ending criterion” is a new concept to people who never
used Auber’s controllers. It determines how a cooking step is considered finished. Two
options are available: time and food internal temperature (Probe 2). If you want Step X to
end after a pre-set time period, set “X-Ending” by “Time”; if you want Step X to end
when food internal temperature reaches a pre-set value, set “X-Ending” to “Fd Temp”.
After you set “X-Ending” to “Time”, you will need to set “X-Time”. Here, “X-Time” is
defined as the time duration (in hh:mm format) of the current step. The timer will start
counting even if the cabinet temperature has not yet reached the target cabinet
temperature. So, please make sure that the step time is long enough. If the step time is
too short, the controller may continue to the next step no matter what the actually cabinet
temperature is. If you set “X-Ending” to “X-Fd Temp”, you will need to set “X-Fd Temp”
to the desired food temperature (Probe 2), but only one setting is relevant to the current

13/33
cooking step depending on the X-Ending setting (either X-Time or X-Fd Temp).
Timer or Target Food Temp.
1-T i me 10 : 00
1 -Fd Temp 195
Ending Criterion
1- End i ng by T ime
1- End i ng by Fd Temp
Step 1 SmkrTemp 250
Step Number and
Target Cabinet Temp.
Figure 17. For each cooking step, set the target cabinet temperature, ending criterion, and timer or target
food temperature.
If “X-Ending” of a certain step is set to “Fd Temp” while the food probe (Probe 2) is not
plugged in, this step will never end. Cabinet probe (Probe 1) should always be plugged in,
otherwise the controller will stop sending power to the heater as protection. When all of
the “X-Ending” are set to time, the controller can operate with only the cabinet probe
(Probe 1) plugged in.
Note: Users can also use the AuberWIFI app to view and change both time and food
temperature of each step (for WIFI model only).
Cooking Profile Example
Table 1. example program
Step
Number
Cabinet Temp.
(SmkrTemp)
X-Ending
(Ending)
Time/
Fd Temp
1
120
Time
2:00
2
190
Fd Temp
160
3
130
Time
20:00
4
0
Time
0:0
5
0
Time
0:0
6
0
Time
0:0
The example program for the controller is listed in Table 1. This program will control the
temperature of the cabinet at 120°F for 2 hours. Then, change the temperature to 190°F.
It will stay at 190°F until internal temperature of the meat reaches 160°F. The controller
will soon drop the temperature to 130°F and hold there for 20 hours, waiting you to pick
the food. If you change set temperature in step 3 (Step 3 SmkrTemp) to 0 and time for
step 3 to 0, the controller will shut off the heater and stop the program when the food
internal temperature reaches 160°F. There will be a beeping sound until the buzzer is
muted or the power input has been reset.

14/33
A flow chart of how to enter the cooking profile is shown in Figure 18. To start, program
the cooking profile. Press the SET key shortly to enter the Cooking Profile Programming
mode. The top line in the display shows the step number “Step: 1” and the current target
of cabinet temperature “SmkrTemp 250”. To enter or edit the profile:
1) Use ▲ or ▼ key to move the cursor “>” to the parameter you want to edit.
2) Press SET key, the value to be edited should start blinking.
3) Use ▲ or ▼ arrow key to edit the value.
4) Then press SET key again to save the change. That parameter will stop blinking.
5) Use ▲ or ▼ key to go another parameter, repeat the previous operations till you
have finished entering all the cooking steps.
Note: New settings will NOT be saved if the SET key is not pressed to confirm the
change. After programming the necessary steps for cooking, you can finish programming
by pressing the Time/Back key to exit the menu. Or, you can use ▲ or ▼ key to go to
“Back” and press SET key to exit. The display can also return to the normal display mode
if no key is pressed in about 15 seconds.
00000000000000000000
00000000000000000000
>Step 1 SmkrTemp 250
1- End i ng by Fd Temp
00000000000000000000
00000000000000000000
> 1- End i ng by Fd Temp
1 -Fd Temp 195
00000000000000000000
00000000000000000000
> Back
Step 1 SmkrTemp 250
00000000000000000000
00000000000000000000
> 1-T i me 10 : 00
Step 2 SmkrTemp 250
00000000000000000000
00000000000000000000
Smkr 137 Food 122
Set 250 Probe3 270
Step 1 SmkrTemp 250 Step 1 SmkrTemp 120
1- End i ng by Fd Temp 1- End i ng by Time
1-T i me 10 : 00 1-T i me 2 : 00
00000000000000000000
00000000000000000000
>Step 2 SmkrTemp 250
2- End i ng by Fd Temp
00000000000000000000
00000000000000000000
>2-End i ng by Fd Temp
2-Fd Temp 195
00000000000000000000
00000000000000000000
>2-Fd Temp 195
Step 3 SmkrTemp 250
Step 2 SmkrTemp 250 Step 2 SmkrTemp 190
2- Endi ng by Fd Temp 2- Endi ng by Fd Temp
2-Fd Temp 195 2-Fd Temp 160
SET 

SET
SET
SET
SET
SET
SET











/

/

/

/

/

/
SET
SET
SET
SET
SET
SET

15/33
Figure 18. How to enter a cooking profile.
The example program in table 1 is used in this flow chart as a demo.
4.1.2 Single-Step Mode
In single-step mode, you can only access and change the target cabinet temperature of
Step 1 from the device. The controller will try to maintain the smoker temperature at the
set temperature (Smkr Temp) of Step 1 continuously as long as the controller is powered
on. If this controller is powered off and turned back on again, it will resume operating in
this mode. You can still view and change settings in other steps in Cooking Profile on the
AuberWIFI app (for WIFI model only), but they don’t apply to this mode.
To change the set temperature in single-step mode, press the SET key once; it will show
“Step: 1” and the current target cabinet temperature in the top line. A curser “>” will be
shown on the left indicating which line will be selected. Press the SET key once. The
current set temperature should start blinking. Use ▲ and ▼ keys to change the set
temperature. When finished, press the SET again to confirm the change. That number
will stop blinking. Press the Timer/Back key to exit the menu. Or use ▲ or ▼ key to
scroll to “Back” and then press SET key to exit. The display will return to the normal
display mode if no key is pressed in 15 seconds.
00000000000000000000
00000000000000000000
>Step 1 SmkrTemp 250
Back
00000000000000000000
00000000000000000000
Smkr 137 Food 122
Set 250 Probe3 270
00000000000000000000
00000000000000000000
>Step 1 SmkrTemp 250
Back
00000000000000000000
00000000000000000000
Step 1 SmkrTemp 250
> Back
SET Press
SET Press
Use or keys to adjust
set pit temp. Press SET key
to confirm.
Press
SET



Figure 19. How to change the set temperature in single-step mode.
4.1.3 Program Status & Control (for firmware version 1.7.4 or newer)
Users can check or change current program running status by this parameter. It can be
used to stop/start the program, or jump to a different step. This parameter is under the
Cooking Profile menu as stated in section 4.1. Parameter name showing on the
controller’s display is Prog Status. Available options for this parameter are: Stop, Start,
Step 1 ~ 6, Back.
When pressing the SET button momentarily to enter Cooking Profile menu, it will display

16/33
Prog Status on the left top and the current step number or stopped status on the right
top. Press the SET button again, then user can change its options to start/stop the
program or jump steps. Press the SET button again to confirm the change. See option
definition and flow chart below.
Option definition:
Stop: Stop the current cooking program.
Start: Start the cooking program from Step 1.
Step 1 ~ 6: Jump to specific step. For example, if user selects Step 3, controller will skip
Step 1 & 2, and run rest steps starting at Step 3. If the controller program is stopped,
selecting those options will also exit stopped mode. Step 1 ~ 6 options are available for
multi-step mode only. For single-step mode, only Step 1 is available.
Back: Go back to upper level. Parameter is unchanged.
00000000000000000000
00000000000000000000
>Step 1 SmkrTemp 250
1- End i ng by Fd Temp
00000000000000000000
00000000000000000000
> Back
Step 1 SmkrTemp 250
00000000000000000000
00000000000000000000
Smkr 137 Food 122
Set 250 Probe3 670
Step 1 SmkrTemp 250 Step 1 SmkrTemp 120
SET 

SET

/SET
00000000000000000000
00000000000000000000
>Prog S tatus Stop
Step 1 SmkrTemp 250 Prog S tatus Stop Prog S tatus Start
SET 


/SET
Figure 18A. Flow chart of how to use Program Status & Control function.
4.1.4 Switch between single-step mode and multi-step mode
To switch between single-step mode and multi-step mode, go to Parameter Setting mode
by holding the SET key, and then go to “System Config” menu, find parameter
“Program Mode”, then change it to “ON” (for multi-step mode) or “OFF” (for single-step
mode). By default, the controller is set to multi-step mode “ON”. Please see the flow
chart in Figure 20 for how to access this parameter from the controller.

17/33
00000000000000000000
00000000000000000000
> System Con f i g
Back
00000000000000000000
00000000000000000000
>Program Mode ON
Output Hi L im i t 100 Program Mode ON Program Mode OFF
SET 

SET

/SET
00000000000000000000
00000000000000000000
>Back
Program Mode ON
SET
Multi-step Mode Single-step Mode
00000000000000000000
00000000000000000000
Smkr 137 Food 122
Set 250 Probe3 270
SET
Press & Hold
Figure 20. How to switch between programmable mode and single-step mode
5. Controller parameter setup.
To access the parameters, press and hold the SET key for about 2 seconds. Parameters
are divided into two groups: “Control Config” and “System Config”.
7.1 Control Configurations
Parameters related control configurations during the smoking process are listed under
“Control Config” menu. Error! Reference source not found. This shows the list of
these parameters, their range and initial set value when left the factory. The flow
chart in Figure 21 shows the operations of accessing and adjusting the parameters in
“Control Config”.
00000000000000000000
00000000000000000000
> Cont ro l Sett i ng
System Con f i g
00000000000000000000
00000000000000000000
>Smkr Hi A l arm 350
Smkr Lo A l arm 50
00000000000000000000
00000000000000000000
> Smkr Hi A l arm 50
Food Hi A l arm 350
Smkr Hi A l arm 350 Smkr Hi A l arm 250
Smkr Hi A l arm 50 Smkr Hi A l arm 50
SET 

SET
SET 


/

/
SET
SET
00000000000000000000
00000000000000000000
>Back
Smkr Hi A l arm 350
SET
Figure 21. Access the parameters in Control Config menu.

18/33
Table 2. Parameters in Control Config menu.
Name
Description
Range
Initial
Note
Smkr Hi Alarm
Cabinet Probe High Alarm
(Probe 1)
0 - 750
350
1
Smkr Lo Alarm
Cabinet Probe Low Alarm
(Probe 1)
0 - 750
50
2
Food Hi Alarm
Food Probe High Alarm
(Probe 2)
0 - 650
350
3
Probe3 Hi Alarm
Probe 3 High Alarm
0 - 650
300
4
Relay Action
Smoke Generator
Relay Setting
0 - 63
0
5
P (Proportional)
Proportional Constant
1 - 999
7
6
I (Integral)
Integral Time
0 - 9999
600
7
D (Derivative)
Derivative Time
0 - 999
150
8
T (Cycle Time)
Control Cycle Time
2 - 200
2
9
Auto-tune
Auto-tune
ON, OFF
OFF
10
Save Recipe
Save Recipe Settings
Back, B1, B2, C1, C2, F1, F2
Back
11
Recall Recipe
Recall Recipe Settings
Back, B1, B2, C1, C2, F1, F2
Back
11
Back
Back to Upper Level Menu
Note 1. Smkr Hi Alarm: This is the high temperature alarm for cabinet temperature
(Probe 1). When the cabinet probe reading is higher than Smkr Hi Alarm, the buzzer on
the controller will go off, and the LCD display will flash between the normal display and
the alarm display showing in Figure 22. The alarm has 1 degree hysteresis. The user
can mute the buzzer by pressing either the Up or Down key. Temperature must move
out of the hysteresis zone to activate the alarm again. For example, if Smkr Hi Alarm is
set to 290°F, the buzzer will go off when Probe 1 reads higher than 291°F, and the
buzzer will stop when Probe 1 reads lower than 289°F. To disable Smkr Hi Alarm alarm,
you can set it to a large number, such as 750°F.
00000000000000000000
00000000000000000000
Smkr Hi gh A l arm
Press v to Cance l
Figure 22. The LCD display when Smkr Hi Alarm is triggered.
Note 2. Smkr Lo Alarm: This is the low temperature alarm for cabinet temperature
probe (Probe 1). When the cabinet probe reading is lower than Smkr Lo Alarm, the
buzzer on the controller will go off, and the LCD display will flash between the normal
display and the alarm display showing in Figure 23. The alarm has 1 degree
hysteresis. The user can mute the buzzer by pressing either the Up or Down key.
Temperature must move out of the hysteresis zone to activate the alarm again. For

19/33
example, if Smkr Lo Alarm is set to 180°F. The buzzer will go off when the cabinet
temperature drops to 179°F; it will stop when temperature rise above 181°F. The
Smkr Lo Alarm is suppressed when the controller is just powered up. It will be
activated when the cabinet temperature has reached the target cabinet temperature.
To disable the Smkr Lo Alarm, you can set it to a small number, such as 0°F
(default).
00000000000000000000
00000000000000000000
Smkr Low A l arm
Press v to Cance l
Figure 23. The LCD display when Smkr Lo Alarm is triggered.
Note 3. Food Hi Alarm: This is the high temperature alarm for the food internal probe
(Probe 2). When the food probe reading is higher than Food Hi Alarm, the buzzer on
the controller will go off, and the LCD display will flash between the normal display and
the alarm display showing in Figure 24. The alarm has 1 degree hysteresis. The user
can mute the buzzer by pressing either the Up or Down key. For example, if Food Hi
Alarm is set to 130°F, the buzzer will go off when Probe 2 reads 131°F, and the buzzer
will stop when Probe 2 reads 129°F or lower. To disable Food Hi Alarm, you can set it
to a large number, such as 650°F.
When smoking multiple pieces of meat of different sizes, put the probe in the thinnest
piece first. Set the Food Hi Alarm to the temperature when meat is ready. It will let you
know when it is done. Then, you can move the probe to the second thinnest pieces and
so on. To use this feature, you can set the ending criterion to time. If you prefer to set
the ending criterion to food temperature, then the Food Temp should be set to higher
than Food Hi Alarm.
00000000000000000000
00000000000000000000
Food H i gh A l arm
Press v to Cance l
Figure 24. The LCD display when Food Hi Alarm is triggered.
Note 4. Probe3 Hi Alarm: This is the high temperature alarm for probe 3. When food
probe 3 reading is higher than Probe3 Hi Alarm, the buzzer on the controller will go off,
and the LCD display will flash between the normal display and the alarm display
showing in Figure 25. The alarm has 1 degree hysteresis. The user can mute the buzzer
by pressing either the Up or Down key. For example, if Probe3 Hi Alarm is set to 130°F,
the buzzer will go off when Probe 3 reads 131°F, and the buzzer will stop when Probe 3
reads 129°F or lower. To disable Probe3 Hi Alarm, you can set it to a large number,
such as 650°F.

20/33
00000000000000000000
00000000000000000000
Probe3 H i gh A l arm
Press v to Cance l
Figure 25. The LCD display when Probe3 Hi Alarm is triggered.
Note 5. Relay Action (for Multi-Step Mode Only*): This is the smoke generator output
setting. This parameter determines which steps to initiate on the smoke generator output.
Its configuration range is from 0 to 63, determined by the following formula:
Relay Action = A * 1 + B * 2 + C * 4 + D * 8 + E * 16 + F * 32;
If A = 0, smoke generator output is OFF at Step 1.
If A = 1, smoke generator output is ON at Step 1.
If B = 0, smoke generator output is OFF at Step 2
If B = 1, smoke generator output is ON at Step 2.
If C = 0, smoke generator output is OFF at Step 3.
If C = 1, smoke generator output is ON at Step 3.
If D = 0, smoke generator output is OFF at Step 4.
If D = 1, smoke generator output is ON at Step 4.
If E = 0, smoke generator output is OFF at Step 5.
If E = 1, smoke generator output is ON at Step 5.
If F = 0, smoke generator output is OFF at Step 6.
If F = 1, smoke generator output is ON at Step 6.
Example:
To turn on the smoke generator output on step 2 and step 3 only, this parameter needs to
be set to 6. (0 * 1 + 1 * 2 + 1 * 4 + 0 * 8 + 0 * 16 + 0 * 32 = 6.)
To turn on smoke generator output on step 1 only, set this parameter to 1.
*: This parameter is only available for multi-step mode (Program Mode = ON). For single
step mode (Program Mode = OFF), smoke generator output is disabled. Relay Action
parameter can still be adjusted but not in use. To use the smoke generator in single step
mode, users need an extra power cord to power and control the smoke generator
separately from this controller.
Note 6. P: Proportional Constant. The unit is 1 degree. This parameter controls the
output of the controller based on the difference between the measured and set
temperature. The larger the P value, the weaker the action (lower gain). If P = 7, the
proportional band is 7 degrees. When the sensor temperature is 7 degrees below the
proportional band (10 degrees below the setting), the controller will have 100% output.
