Audi Q5 2008 Operating instructions

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
Repair Manual
Audi Q5 2008 ➤
Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD
Engine ID CAE
B
CPM
A
CPM
B
CTU
C
CTU
D
CPN
B
Edition 04.2017
Service
Service Department. Technical Information

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
List of Workshop Manual Repair Groups
Repair Group
00 - General, Technical Data
32 - Torque Converter
37 - Controls, Housing
38 - Gears, Control
39 - Final Drive, Differential
Technical information should always be available to the foremen and mechanics, because their
careful and constant adherence to the instructions is essential to ensure vehicle road-worthiness and
safety. In addition, the normal basic safety precautions for working on motor vehicles must, as a
matter of course, be observed.
Service
All rights reserved.
No reproduction without prior agreement from publisher.
Copyright © 2019 Audi AG, Ingolstadt D3E802C4570

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
Contents
00 - General, Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1 Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Transmission Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.1 Vehicle Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.2 Start/Stop System Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.3 Road Test with Testing Equipment Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.4 Subframe Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.5 Towing Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Repair Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.1 Clean Working Conditions, Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.2 General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.3 General Repair Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.4 Contact Corrosion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.1 Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.2 Oil Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5 Overview - Powertrain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.1 Overview - Powertrain AWD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
32 - Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

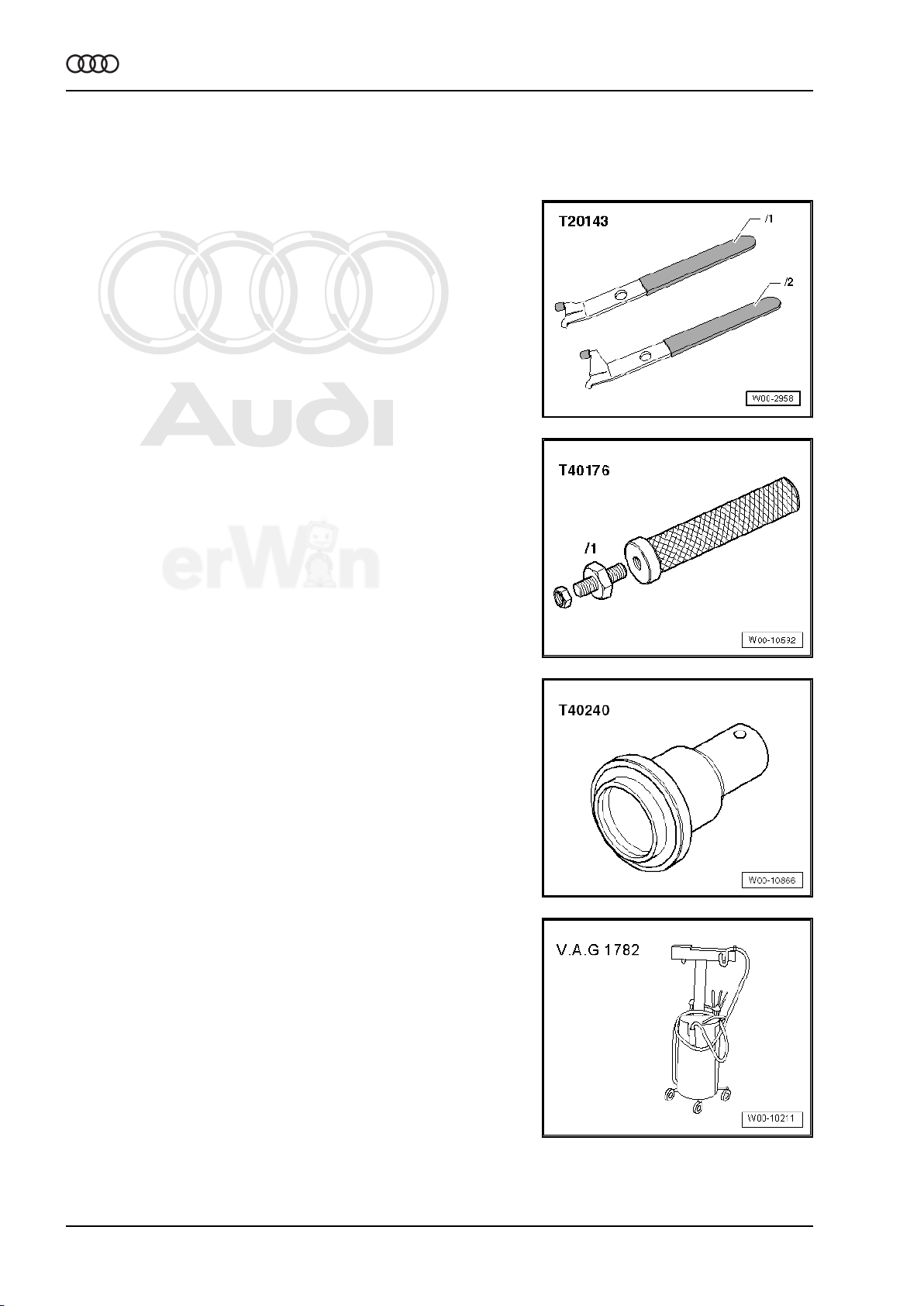

2 Special Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
37 - Controls, Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1 Selector Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.1 Overview - Selector Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.2 Overview - Selector Lever Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1.3 Overview - Selector Lever Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1.4 Gearshift Mechanism, Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
1.5 Emergency Release from P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
1.6 Selector Mechanism, Removing and Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
1.7 Selector Mechanism, Disassembling and Assembling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
1.8 Selector Lever Handle, Removing and Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
1.9 Selector Lever Transmission Range Position Display Unit Y26 , Removing and Installing
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
1.10 Selector Lever Cable, Removing and Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
1.11 Selector Lever Cable, Checking and Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
1.12 Selector Lever Cable, Bringing into Basic Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
1.13 Selector Shaft Seal, Replace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
2 Transmission, Removing and Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
2.1 Transmission, Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
2.2 Transmission, Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
2.3 Transmission Tightening Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
3 Subframe Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
3.1 Overview - Subframe Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
3.2 Tunnel Crossmember, Removing and Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
3.3 Transmission Support with Transmission Mount, Removing and Installing . . . . . . . . . . . . 106
3.4 Transmission Mount, Removing and Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
4 Transmission, Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
5 Securing on Engine and Transmission Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
Contents i

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
6 Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
6.1 Overview - Transmission Drain and Inspection Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
6.2 ATF Level, Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
6.3 ATF, Draining and Filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
7 ATF Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
7.1 Overview - ATF Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
7.2 ATF Cooler, Removing and Installing, Vehicles with 3.0L TDI Biturbo Engine . . . . . . . . . . 122
7.3 ATF Filter, Removing and Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
7.4 Automatic Transmission Fluid Lines, Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
7.5 ATF Pipes, Removing and Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
8 Special Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
38 - Gears, Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
1 ATF System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
1.1 Transmission Fluid Pan, Removing and Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
2 Mechatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
3 Special Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
39 - Final Drive, Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
1 Final Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
1.1 Overview - Final Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
1.2 Front Final Drive Cover O-ring, Removing and Installing . . . . . . . . . . . . . . . . . . . . . . . . . . 148
2 Gear Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
2.1 Overview - Drain and Inspection Plugs for Gear Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
2.2 Separate or Combined Oil Systems, Differentiation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
2.3 Gear Oil, Checking Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
2.4 Gear Oil, Draining and Filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
3 Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
3.1 Left Seal, Replace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
3.2 Right Seal, Replace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
4 Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
4.1 Left Flange Shaft, Removing and Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
4.2 Right Flange Shaft, Removing and Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
5 Self-Locking Center Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
5.1 Center Differential, Removing and Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
6 Transfer Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
7 Transmission Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
7.1 Overview - Component Location Transmission Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
8 Special Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
9 Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
ii Contents

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
00 – General, Technical Data
1 Identification
(Edition 04.2017)
⇒ “1.1 Transmission Identification”, page 1

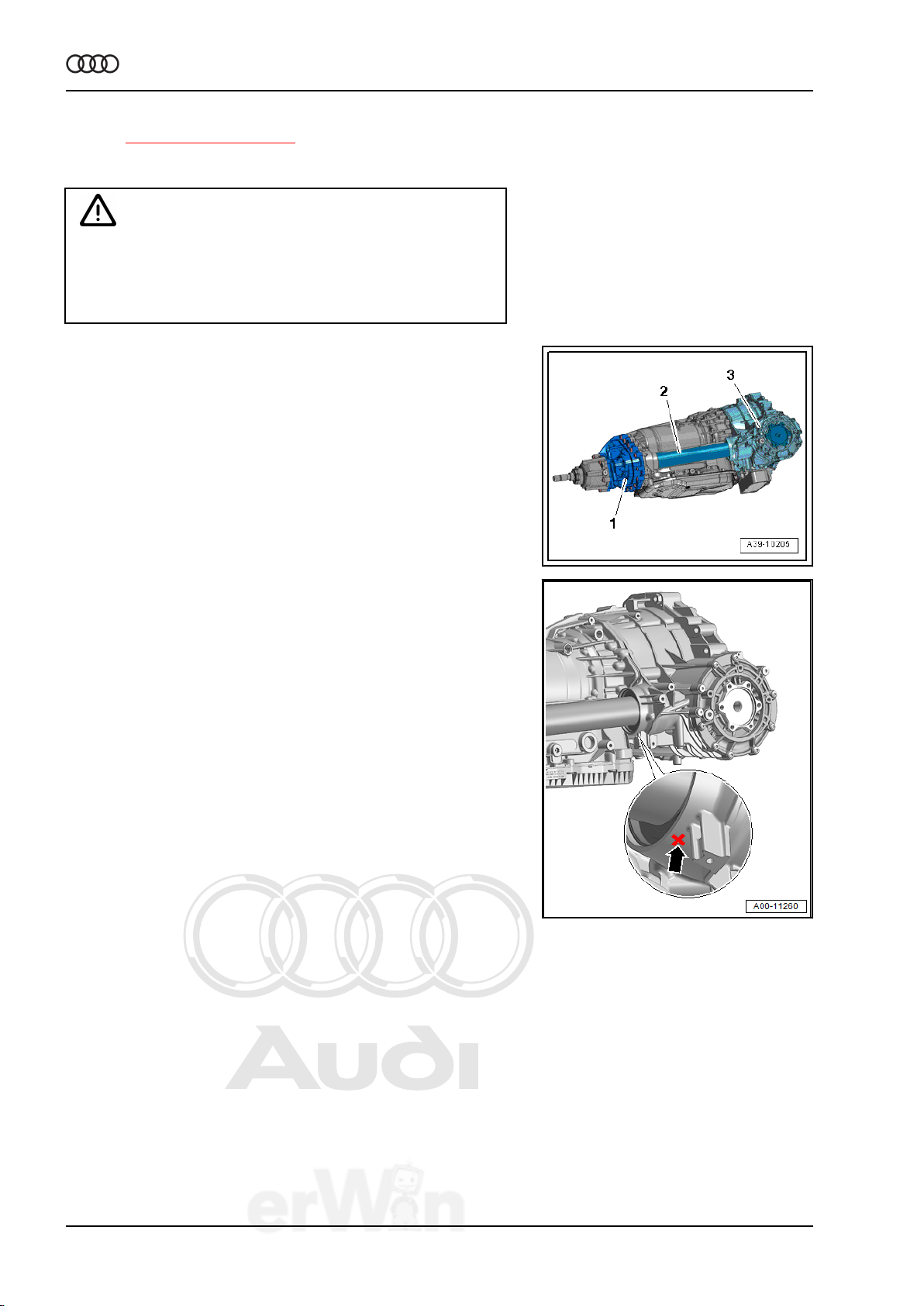

1.1 Transmission Identification

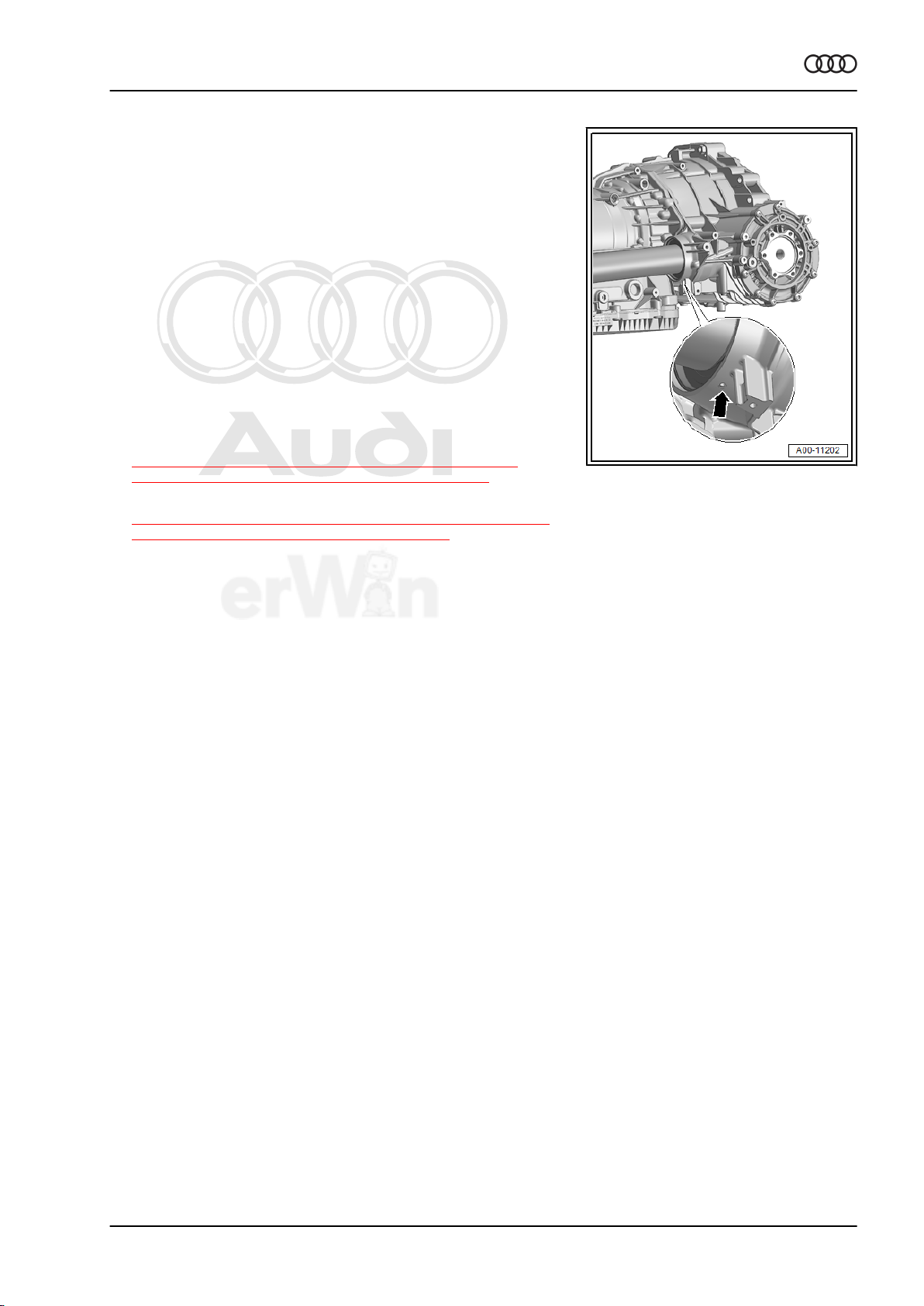

Code Letters, Location on Transmission
♦ Transmission code letters are located on the lower type label
on the transmission. Type label location -arrow-.
Transmission Code and Transmission Serial Number
Example:
1 - Transmission serial number
2 - Parts list number
3 - Manufacturer transmission identification: 8HP-55
4 - Example of a transmission code: MXV
Note
The transmission code letters are also included on the vehicle
data labels.
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
1. Identification 1

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
2 Safety Precautions
⇒ “2.1 Vehicle Safety Precautions”, page 2
⇒ “2.2 Start/Stop System Safety Precautions”, page 3
⇒ “2.3 Road Test with Testing Equipment Safety Precautions”,
page 3
⇒ “2.4 Subframe Safety Precautions”, page 3
⇒ “2.5 Towing Notes”, page 4
2.1 Vehicle Safety Precautions
Observe the Following to Avoid Personal Injury and Vehicle Dam‐
age
WARNING
There is a risk of injury and accident from accidentally engag‐
ing a gear when the engine is running.
♦ Before performing any work with the engine running, shift
the transmission into “P” and press the parking brake but‐
ton to lock the electro-mechanical parking brake.
Danger of poisonous exhaust gas when the engine is running.
♦ When engine is running, an exhaust extraction system
must always be connected to exhaust system.
Risk of injury through fan turning on automatically.
♦ Risk of injury through fan turning on automatically.
To Prevent Personal Injury and Damage to Electrical and Elec‐
tronic Components, Observe the Following:
♦ Connect and disconnect test equipment only when the ignition
is off.
Caution
Risk of damaging electronic components when disconnecting
the battery.
♦ Complete the steps for disconnecting the battery.
♦ Always turn off the ignition before disconnecting the bat‐
tery.
– Disconnect the battery. Refer to ⇒ Electrical Equipment; Rep.
Gr. 27 ; Battery; Battery, Disconnecting and Connecting .
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
2 Rep. Gr.00 - General, Technical Data

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
2.2 Start/Stop System Safety Precautions
Pay Attention to the Following when Working on Vehicles with a
Stop/Start System:
WARNING
Danger of injury through automatic motor starting with vehicles
with the Start/Stop System.
♦ For vehicles with an activated Start/Stop System (recog‐
nizable from a notification in the instrument cluster), the
motor can be started automatically if needed.
♦ Thus, make sure that the Start/Stop System is disabled
when working on the vehicle (turn off ignition, if needed,
turn the ignition back on).
2.3 Road Test with Testing Equipment
Safety Precautions
If Testing Equipment Must be Used During A Road Test, Observe
the Following:
WARNING
Distraction and testing equipment that is not secured properly
can cause accidents.
The passenger airbag could pose a risk if it deploys in a colli‐
sion.
• Operating testing equipment while driving is a distraction.
• There is an increased risk of injury due to unsecured test‐
ing equipment.
♦ Always secure testing equipment on the rear seat using a
strap and have a second person in the rear seat operate
it.
2.4 Subframe Safety Precautions
Note the Following when Working on the Subframe
Caution
The suspension components could be damaged.
♦ Do not rest the vehicle on its wheels if the subframe
mount, the steering gear or the subframe crossbrace are
not installed correctly.
♦ Do not support the vehicle on the subframe or the sub‐
frame crossbrace, for example, by a floor jack or similar
device.
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
2. Safety Precautions 3

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
2.5 Towing Notes
Caution
Danger of causing damage to the transmission.
♦ Move the selector lever into “N” whenever towing the ve‐
hicle.
♦ The vehicle may not be towed further than 50 km (31
miles) and not faster than 50 km/h (31 mph).
Note
The engine cannot be tow started, for example, if the battery is
too weak or if the starter is not working.
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
4 Rep. Gr.00 - General, Technical Data

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
3 Repair Information
⇒ “3.1 Clean Working Conditions, Guidelines”, page 5
⇒ “3.2 General Information”, page 5
⇒ “3.3 General Repair Information”, page 6
⇒ “3.4 Contact Corrosion”, page 8
3.1 Clean Working Conditions, Guidelines
♦ Always clean the connection locations and the area around
them before loosening.
♦ Clean the transmission and transmission components using
Cleaning Solution - D 009 401 04- .
♦ Use lint-free cloths when cleaning, for example, the “WYPALL
X70/WORKHORSE” cloth made by Kimberly-Clark Professio‐
nal.
♦ Seal all open lines and connections immediately with clean
plugs or caps from the -VAS6122- .
♦ Place removed parts on a clean surface and cover them. Use
foil or lint-free clothes.
♦ Cover or close unpacked components if repairs cannot be
performed immediately.
♦ Only install clean components: Install replacement parts im‐
mediately after removing them from their packaging.
♦ Protect the disconnected connectors from dirt and moisture
and only connect when they are dry.
3.2 General Information
Transmission
♦ The 8-speed automatic transmission 0BK AWD is equipped
with 8 hydraulically activated forward gears. When the torque
converter lock-up clutch is closed, these forward gears be‐
come manually driven gears through bypassing the torque
converter slip.
♦ A special feature of the 0BK transmission is the position of the
front final drive (front axle differential with flange shafts) in front
of the torque converter. An even distribution of the weight be‐
tween the front and rear axles is attained.
Torque Converter
The torque converter is equipped with a slip-controlled torque
converter lock-up clutch. Due to the new design of this transmis‐
sion, the torque converter is located behind the front final drive.
Mechatronic
The Mechatronic combines the following components as a com‐
plete synchronized unit:
♦ Transmission Control Module - J217- , hydraulic control
♦ The sensors and actuators
The Mechatronic unit is installed in the transmission in the area
of the ATF pan.
Transmission Control Module - J217-
The control module is a part of the Mechatronic unit in the trans‐
mission.
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
3. Repair Information 5

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
Determining the driving situation and driving resistance depend‐
ent shift point occurs automatically.
Advantages:
♦ Usage-based shifting
♦ Maximum engine output is always available
♦ Individual adaptation of shift points in all driving situations
♦ Gear shift points are infinitely variable
On Board Diagnostics (OBD)
Use “Guided Fault Finding” to determine the exact cause of dam‐
age before servicing the automatic transmission.
Use the Vehicle Diagnostic Tester to perform “Guided Fault Find‐
ing”
Shift Point Changes on Inclines and Declines
When driving on inclines or declines, gears are automatically se‐
lected using additional shift characteristic maps. The selection is
based on accelerator pedal position and vehicle speed.
♦ The gear change map for extreme uphill stretches is matched
to engine output
♦ The gear change map for extreme downhill stretches is match‐
ed to the braking effect of the engine.
♦ By selecting a gear directly using tiptronic, the driver can use
the engine braking effect with a specific gear engaged, for ex‐
ample when driving downhill with a trailer.
3.3 General Repair Information
The maximum possible care and cleanliness and proper tools are
essential to ensure satisfactory and successful transmission re‐
pairs. The usual basic safety precautions also, naturally apply
when carrying out vehicle repairs.
A number of generally valid instructions governing the various re‐
pair procedures - which used to be repeated several times
throughout the Manual - are summarized here and apply to this
Manual.
Guided Fault Finding, On Board Diagnostics (OBD) and Test In‐
struments
♦ Before servicing the transmission, determine as best as pos‐
sible the cause of the fault using the Vehicle Diagnostic Tester
in the mode Guided Fault Finding , Vehicle Self-Diag-
nosis and Test Instruments .
Oil, Environment and Disposal Regulations
♦ Handle ATF, axle oil and other fluids with care.
♦ Dispose of the drained fluids properly.
♦ Follow the legal environmental and disposal regulations.
♦ Follow the information provided on oil packaging.
Special Tools and Equipment
For a complete list of special tools used. Refer to Special Tools
and Workshop Equipment.
Transmission
♦ Follow the rules for clean working conditions when working on
the transmission. Refer to
⇒ “3.1 Clean Working Conditions, Guidelines”, page 5 .
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
6 Rep. Gr.00 - General, Technical Data

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
♦ Do not run the engine or tow the vehicle when the center dif‐
ferential housing is removed or when there is no ATF.
♦ Check the following fluid levels after installation and, if neces‐
sary, fill: ATF in transmission (Refer to
⇒ “6.2 ATF Level, Checking”, page 110 ), and gear oil in
transmission (Refer to ⇒ “2 Gear Oil”, page 150 ). Oil Capacity
(Refer to ⇒ “4.1 Capacities”, page 9 ) and specification.
Refer to Parts Catalog.
O-rings, Shaft Seals, Seals
♦ O-rings, shaft seals and seals must be replaced.
♦ After removing gaskets, examine contact surface on housing/
shaft for burr resulting from removal or for other signs of dam‐
age.
♦ Thoroughly clean housing joint surfaces before assembling.
♦ To install, thinly coat shaft seals along outer circumference
and on sealing lip with ATF.
♦ Coat O-rings with ATF before inserting to prevent crushing
rings during installation.
♦ Only use approved ATF in the ATF area. Other types of lubri‐
cation cause faults to occur in the transmission hydraulics.
♦ The open side on the shaft seals faces the fluid to be sealed
off.
♦ Press in new shaft seal, so that the sealing lip does not run on
the same point as the sealing lip of the old shaft seal (use
insertion depth tolerances).
♦ Check the following fluid levels after installation and, if neces‐
sary, fill: ATF in transmission (Refer to
⇒ “6.2 ATF Level, Checking”, page 110 ), or gear oil in trans‐
mission (Refer to ⇒ “2 Gear Oil”, page 150 ). Oil Capacity
(Refer to ⇒ “4.1 Capacities”, page 9 ) and specification.
Refer to Parts Catalog.
Bolts and Nuts
♦ Loosen the bolts opposite the tightening sequence.
♦ Nuts and bolts which secure covers and housings should be
tightened in steps according to the specified tightening se‐
quence and method.
♦ Nuts and bolts which secure covers and housings should be
loosened and tightened crosswise in stages if no tightening
sequence is specified.
♦ Replace the self-locking nuts and bolts.
♦ Clean the threads on bolts that were installed with locking
compound. After doing that, install the bolts with Locking Com‐
pound - AMV 185 101 A1- .
♦ Threaded holes, in which self-locking bolts or bolts with locking
compound were installed, must be cleaned (for example with
a thread tap). Otherwise, there is a risk that the bolts may
shear off when installing again.
♦ The tightening specifications stated apply to non-oiled nuts
and bolts.
Fasteners
♦ Do not overstretch the circlips.
♦ Replace damaged or stretched circlips.
♦ The circlips must fit completely inside the groove.
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
3. Repair Information 7

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
Bearings
♦ Install needle bearings with lettered side (thicker metal) racing
the fitting tool.
♦ Insert bearing with axle oil or ATF, depending on installation
location.
♦ Do not interchange the outer or inner races for the same size
bearings.
♦ Always replace the tapered roller bearings on one shaft to‐
gether and use new bearings from a single manufacturer.
Adjusting Shims
♦ Measure the shims at several locations with a micrometer.
Tolerance variations make it possible to find the exact shim
thickness required.
♦ Check for burrs and damage. Only install flawless shims.
3.4 Contact Corrosion
Contact corrosion can occur if non-approved fasteners (bolts,
nuts, washers, etc.) are used.
For this reason, only fasteners with a special surface coating may
be installed.
In addition, rubber or plastic parts and adhesive are made of ma‐
terials that do not conduct electricity.
If you are not sure about the suitability of parts, then use new
parts. Refer to the Parts Catalog.
Note
♦ Original replacement parts are recommended because they
have been tested.
♦ It is recommended to use Audi accessories.
♦ Damage resulting from contact corrosion is not covered by the
warranty.
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
8 Rep. Gr.00 - General, Technical Data

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
4 Technical Data
⇒ “4.1 Capacities”, page 9
4.1 Capacities
ATF Area in the Transmission
Capacities Automatic Transmission 0BK
Original filling by the manufacturer Refer to ⇒ Fluid Capacity Tables; Rep. Gr. 03
Filling after draining in Service Refer to ⇒ Fluid Capacity Tables; Rep. Gr. 03
Change ♦ No change
♦ Permanent fill; only change after repairs such as when removing
the ATF pan
Lubricant For the correct ATF for automatic transmission 0BK.
Refer to the Parts Catalog
Caution
There is a risk that the transmission could malfunction or fail.
♦ Use only the ATF made for the 0BK automatic transmis‐
sion, which is available as a replacement part. Refer to the
Parts Catalog.
Refer to ⇒ “6 Automatic Transmission Fluid”, page 110
Front Final Drive When the Oil System Is Separated;
Capacities Automatic Transmission 0BK
Initial filling Refer to ⇒ Fluid Capacity Tables; Rep. Gr. 03
Filling after draining in Service Refer to ⇒ Fluid Capacity Tables; Rep. Gr. 03
Change ♦ No change
♦ Permanent fill; change only after repairs such as removing the
front final drive cover
Lubricant For the correct ATF for automatic transmission 0BK. Refer to the
Parts Catalog.
Refer to ⇒ “2 Gear Oil”, page 150
Transfer Case with the Oil System Separated;
Capacities Automatic Transmission 0BK
Initial filling Refer to ⇒ Fluid Capacity Tables; Rep. Gr. 03
Filling after draining in Service Refer to ⇒ Fluid Capacity Tables; Rep. Gr. 03
Change ♦ No change
♦ Permanent fill; change only after repairs such as removing the
center differential housing
Lubricant For the correct ATF for automatic transmission 0BK. Refer to the
Parts Catalog.
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
4. Technical Data 9

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
Refer to ⇒ “2 Gear Oil”, page 150
4.2 Oil Distribution
Caution
Incorrect gear oil level increases the risk of damaging the
transmission
♦ The various testing and adjustment specifications must
always be followed.
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
10 Rep. Gr.00 - General, Technical Data

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
♦ There are two different versions regarding the lubrication of
the final drive and the self-locking center differential.
♦ For transmissions with a shared oil system, the oil chambers
in the front final drive -3- and in the transfer case -1- are joined
via the protective pipe -2-.
♦ The side shaft runs in gear oil in the protective pipe -2-.
♦ Transmissions with a single oil system do not have an oil over‐
flow hole -arrow-.
♦ A transmission with separate oil system can be identified by
the oil overflow hole -arrow-.
♦ On transmissions with separated oil system the protective pipe
is free of oil, the transmission as well as the front final drive
are sealed with a gasket to the side shaft.
♦ Always pay attention to the different control and filling specifi‐
cations.
♦ Refer to
⇒ “2.4.1 Gear Oil, Draining and Filling, Front Final Drive,
Transmission with Separated Oil System”, page 158
♦ Refer to
⇒ “2.4.2 Gear Oil, Draining and Filling, Transfer Case, Trans‐
mission with Separated Oil System”, page 161
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
4. Technical Data 11

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
5 Overview - Powertrain
⇒ “5.1 Overview - Powertrain AWD”, page 12
5.1 Overview - Powertrain AWD
1 - Rear Final Drive
2 - Driveshaft
3 - Automatic Transmission
0BK AWD
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
12 Rep. Gr.00 - General, Technical Data

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
32 – Torque Converter
1 Torque Converter
For All Procedures on the Torque Converter, Refer To ⇒ Serv‐
icing - 8-Speed Automatic Transmission; Rep. Gr. 32 ; Torque
Converter .
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
1. Torque Converter 13

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
2 Special Tools
Special tools and workshop equipment required
♦ Pulling Hook - T20143/2-
♦ Puller - Clutch Module - T40176-
♦ Seal Installer - Input Shaft - T40240-
♦ Used Oil Collection and Extraction Unit - VAG1782-
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
14 Rep. Gr.32 - Torque Converter

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
37 – Controls, Housing
1 Selector Mechanism
⇒ “1.1 Overview - Selector Mechanism”, page 15
⇒ “1.2 Overview - Selector Lever Handle”, page 18
⇒ “1.3 Overview - Selector Lever Cable”, page 20
⇒ “1.4 Gearshift Mechanism, Checking”, page 21
⇒ “1.5 Emergency Release from P”, page 24
⇒ “1.6 Selector Mechanism, Removing and Installing”,
page 25
⇒ “1.7 Selector Mechanism, Disassembling and Assembling”,
page 30
⇒ “1.8 Selector Lever Handle, Removing and Installing”,
page 34
⇒ “1.9 Selector Lever Transmission Range Position Display Unit
Y26 , Removing and Installing”, page 43
⇒ “1.10 Selector Lever Cable, Removing and Installing”,
page 43
⇒ “1.11 Selector Lever Cable, Checking and Adjusting”,
page 47
⇒ “1.12 Selector Lever Cable, Bringing into Basic Setting”,
page 48
⇒ “1.13 Selector Shaft Seal, Replace”, page 52
1.1 Overview - Selector Mechanism
WARNING
There is a risk of injury and accident from accidentally engag‐
ing a gear when the engine is running.
♦ Before work is done with the engine running, move the
selector lever into “P” and press the parking brake button
to engage the electromechanical parking brake.
Before disassembling the selector mechanism, perform check.
Refer to ⇒ “1.4 Gearshift Mechanism, Checking”, page 21 .
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
1. Selector Mechanism 15

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
1 - Selector Lever Handle
❑ Different versions. For
the correct allocation.
Refer to the Parts Cata‐
log.
❑ Overview. Refer to
⇒ “1.2 Overview - Selec‐
tor Lever Handle”,
page 18
2 - Trim Ring
❑ Overview. Refer to
⇒ “1.2 Overview - Selec‐
tor Lever Handle”,
page 18
3 - Selector Lever Boot
❑ Overview. Refer to
⇒ “1.2 Overview - Selec‐
tor Lever Handle”,
page 18
4 - Clamp
❑ Overview. Refer to
⇒ “1.2 Overview - Selec‐
tor Lever Handle”,
page 18
5 - Selector Lever Transmis‐
sion Range Position Display
Unit - Y26-
❑ Removing and instal‐
ling. Refer to
⇒ “1.9 Selector Lever
Transmission Range
Position Display Unit
Y26 , Removing and In‐
stalling”, page 43
6 - Nut
❑ 10 Nm
❑ Securing the shift mechanism to the body
❑ Quantity: 4
7 - Seal
8 - Selector Lever Sensor System Control Module - J587-
❑ Removing and installing. Refer to
⇒ “1.7.2 Selector Lever Sensor System Control Module J587 , Removing and Installing”, page 32
9 - Selector Mechanism Function Unit
❑ Can only be replaced as a unit
❑ Removing and installing. Refer to ⇒ “1.6 Selector Mechanism, Removing and Installing”, page 25
10 - Shift Lock Solenoid - N110-
❑ Removing and installing. Refer to
⇒ “1.7.1 Shift Lock Solenoid N110 , Removing and Installing”, page 30
11 - Transmission Park Selector Switch - F305-
❑ Consists of two reed contacts on the circuit board on the Shift Lock Solenoid - N110- .
❑ Can only be replaced together with the Shift Lock Solenoid - N110- . Refer to
⇒ “1.7.1 Shift Lock Solenoid N110 , Removing and Installing”, page 30 .
12 - Noise Insulation
❑ Not on all vehicles; for the correct allocation. Refer to the Parts Catalog.
Audi Q5 2008 ➤ , Audi Q5 China 2010 ➤
8-Speed Automatic Transmission 0BK AWD - Edition 04.2017
16 Rep. Gr.37 - Controls, Housing
