Audiovox FLO TV User manual

Installation Manual

- 2 -
Warning and Safety Information
FCC Information
This device complies with FCC Rules Part 15 Operation and is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference that may be received, including interference that may
cause undesired operation.
NOTE:
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.
Important Notice
It is unlawful in most states for a person to drive a motor vehicle which is equipped with a television
viewer or screen that is located in the motor vehicle at any point forward of the back of the driver’s
seat, or that is visible, directly or indirectly, to the driver while operating the vehicle. In the interest of
safety, this device should never be installed or operated where its video content will be visible, directly
or indirectly, by the operator of the motor vehicle.

- 3 -
Copyrights and Trademarks
© 2009 Audiovox Corporation. All rights reserved.
FLO, FLO TV and the FLO TV logo are trademarks of QUALCOMM Incorporated.
QUALCOMM is a registered trademark of QUALCOMM Incorporated in the United States and may be
registered in other countries.
AUDIOVOX is a registered trademark of Audiovox Corporation.
ADVENT is a registered trademark of Audiovox Corporation.
Technical Information
The
FLO TV service operates on UHF channel 55 (720 MHz) and is multicast from terrestrial towers.
Coverage will vary and reception is dependent upon the FLO TV module in your vehicle being within
range of the towers. Coverage area can be viewed on the FLO TV web site (www.flotv.com).
The FLO (Forward Link Only) TV service is transmitted over the FLO TV network and received by the FLO
TV module in your vehicle. Along with the television program material, data is transmitted for the
program guide and is updated on a regular basis. If you are out of the coverage area the program
guide will be updated when the vehicle returns to the coverage area.

- 4 -
Safety Precautions
Installation of the FLO TV product requires careful planning and preparation. Be extremely careful of
the airbags in vehicles and not to have any FLO TV component or wire harness interfere with them.
Keep wiring away from any air bag wiring (usually identified by yellow connectors and yellow wire
jackets). Damage to air bag wiring can result in personal injury to vehicle occupants.
When connecting power and ground in a vehicle, insure that the ACC wire is fused at the point where it
is connected to the vehicle ACC wiring. Failure to do so can result in damage to the vehicle if a short
circuit develops between the vehicle connection point and the FLO TV product.
Do not install any FLO TV component (e.g. wired remote control) where it may obstruct the driver’s
view through the windshield, or any of the vehicle’s indicator displays.

- 5 -
FLO TV Kit Contents
The following items are included with your purchase of the FLO TV kit.
FLO TV Module FLO TV Antenna
Wired Remote Control with Antenna Wireless RF Remote Control

- 6 -
Main Wire Harness RCA Male to Male Harness
NOTE:
The FLO TV kit also includes an antenna tail, antenna tape pad, owner’s manual, this
installation manual, and a hardware kit that includes four wire ties.
B

- 7 -
Connectors and Controls
The illustration below details the FLO TV Module connectors for quick reference.

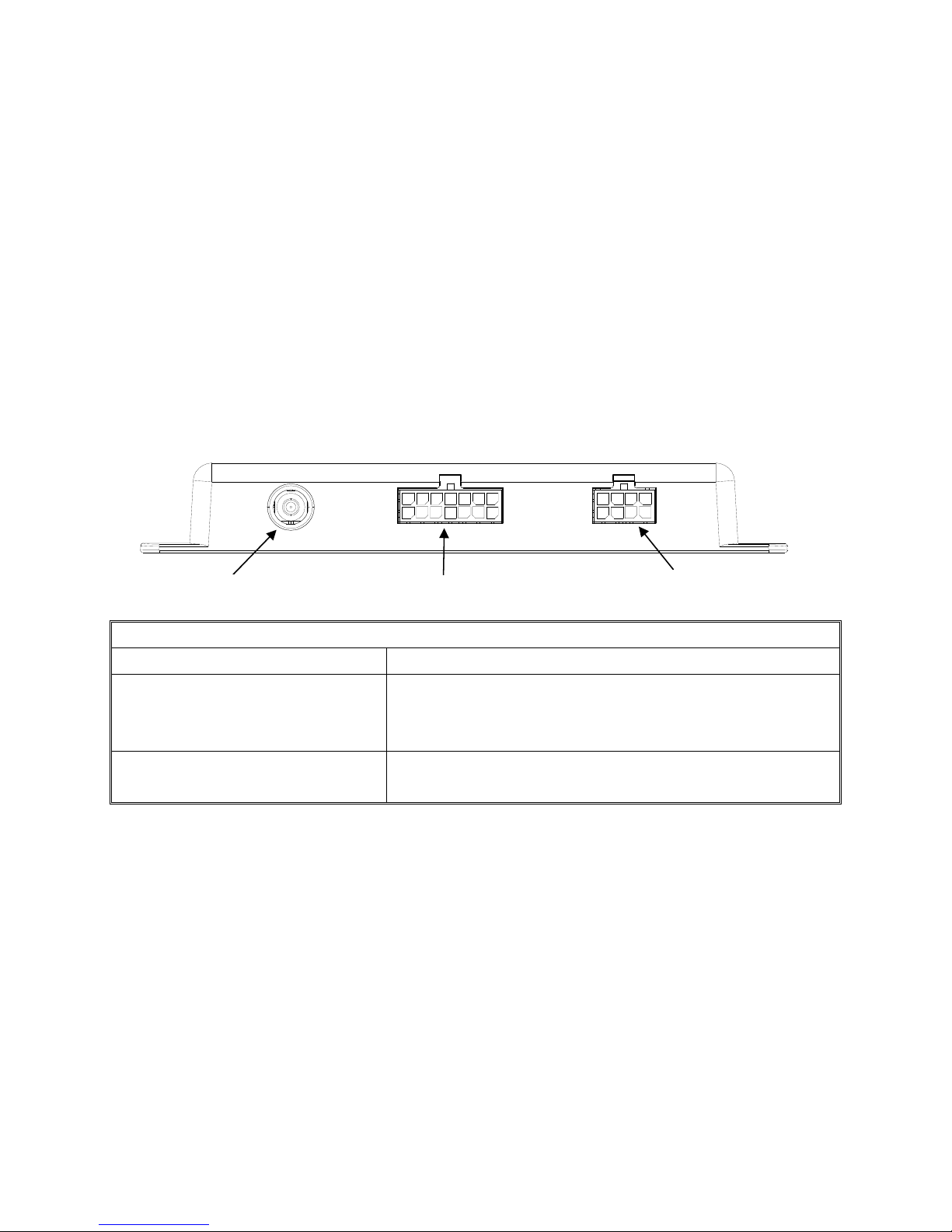

FLO TV Module Connectors
FLO TV Antenna Connector Antenna connection for the FLO TV antenna
Main Wire Harness Connector 14 Pin connector which provides input power to the
FLO TV Module along with Audio and Video Input and
Output.
Wired Remote Control
Connector
8 Pin connector for the connection of the Wired
Remote Control.
FLO TV Antenna
Connector Wired Remote Control
Connector
Main Wire Harness Connector

- 8 -
Vehicle Preparation
1. Read the manuals to become familiar with the electrical requirements and connections of the
FLO TV kit.
2. Prepare the vehicle by removing any interior trim necessary to gain access to the vehicle’s
wiring as well as areas where the interconnecting wire harnesses will be located.
3. Locate an accessory power source (+12VDC present when the ignition key is in the accessory or
run positions. 0VDC should be present when the ignition key is in the OFF position), and a good
ground location. Generally, these wires can be located at the ignition switch or fuse box.
NOTE:
Ensure that the fuse on the wire harness remains intact during the installation and is
connected directly to the accessory power source. Removal of the fuse may result in
vehicle wiring damage.
4. Run the wire harnesses throughout the vehicle as required. (Examples of suggested wiring
configurations are detailed on the following pages.)
5. Be sure that all wiring is protected from sharp edges and is routed in such a manner that it will
not be pinched when fully installed.
6. Be sure to leave enough slack in the wiring at each component to allow for sufficient working
room.

- 9 -
B
Wiring Diagrams
An overview of the FLO TV kit wiring diagram for connection to a Factory Vehicle Entertainment System
(VES) is shown in Figure 1 below.

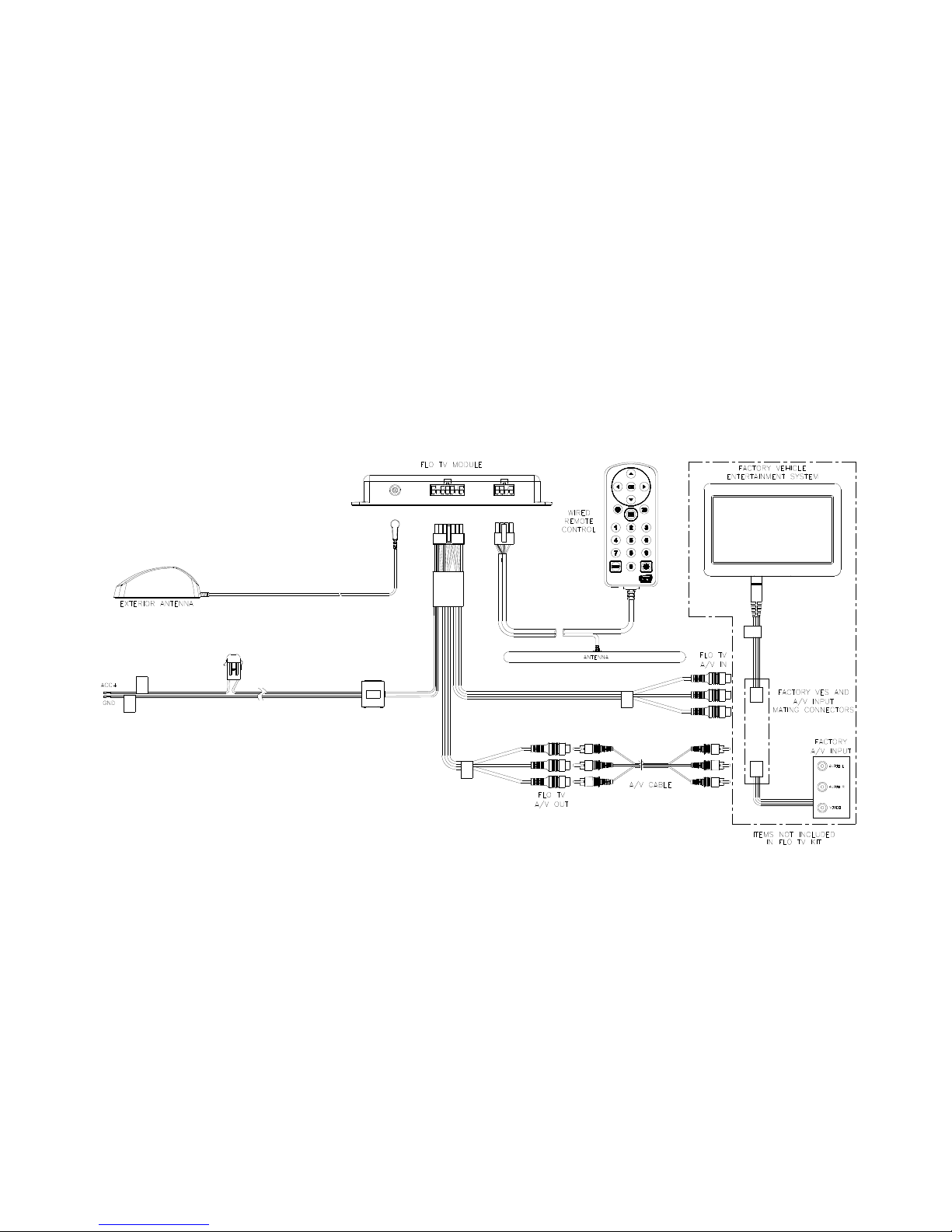

Figure 1 – FLO TV Wiring Diagram with Factory VES & A/V Input

- 10 -
B
To connect the FLO TV kit to a Factory Vehicle Entertainment System (VES), via the connectors
between the Factory VES and A/V input, follow the diagram shown in Figure 2. This installation is
possible if mating connectors between the Factory VES and Factory A/V input are available.
Figure 2 – FLO TV Wiring Diagram with Mating Connector Input

- 11 -
B
An overview of the FLO TV kit wiring diagram for connection to an aftermarket Vehicle Entertainment
System (VES) is shown in Figure 3 below.
Figure 3 – FLO TV Wiring Diagram with Aftermarket VES

- 12 -
FLO TV Module Installation
Choose a mounting location for the FLO TV Module which is convenient, such as under a seat, under or
behind the dashboard, or in the trunk, etc. The location should be one where the FLO TV Module will
not get damaged or kicked and where the wiring can be easily hidden. The FLO TV Module should not
be located where it will be in direct sunshine. The FLO TV Module has four mounting holes for
securing the FLO TV Module to the vehicle by use of the included wire ties or by other means. If screws
are used to mount the FLO TV Module, do not over tighten as the plastic case may be damaged.
FLO TV Antenna Installation
The FLO TV Antenna incorporates a magnet, which is designed to hold the antenna in place on the
exterior of the vehicle, and allows for a semi-permanent antenna installation. The FLO TV kit also
includes a double sided adhesive tape pad, which is recommended to be affixed to the bottom of the
FLO TV Antenna for a permanent antenna installation.

- 13 -
Mounting the FLO TV Antenna on the Vehicle
Mounting options for the FLO TV Antenna will vary depending upon the vehicle. These instructions are
meant to be a guide. The following steps detail the recommended permanent installation of the FLO TV
Antenna utilizing the antenna magnet and double sided adhesive tape pad.
1. The antenna needs to be mounted on the exterior of the vehicle’s roof for optimal performance.
2. Select an appropriate mounting position for the FLO TV antenna. The antenna should be
mounted where no obstructions will block the antenna from receiving the FLO TV signal. The
antenna requires an unobstructed area of 4 inches by 4 inches. Roof racks, roof cargo
containers, another antenna, etc., may obstruct the antenna and cause undesired system
operations. If the vehicle has a potential obstruction, mount the FLO TV Antenna at least 4
inches away from the potential obstruction (but no closer than 4 inches from the roof edge).
(See Figure 4, FLO TV Antenna Placement)

- 14 -

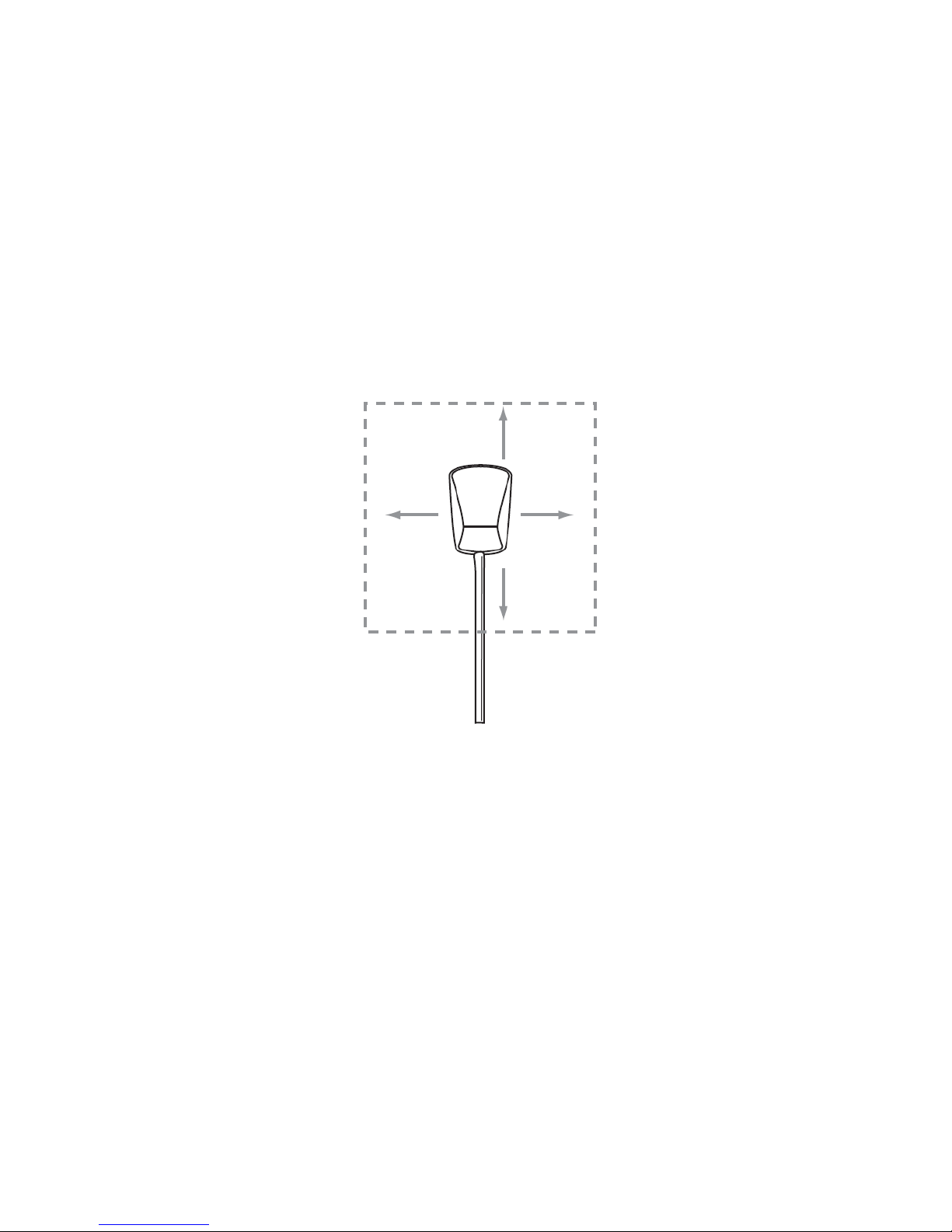

Figure 4 – FLO TV Antenna Placement
4”
4
”
4
”
4
”

- 15 -
3. Remove the plastic liner from one side of the adhesive backing on the tape pad.
4. Use the four circular cutouts, on the tape pad, for alignment to the four rubber feet on the
bottom of the FLO TV Antenna. Ensure that the tape pad is completely adhered to the bottom of
the FLO TV Antenna.
5. Starting at the strain relief on the FLO TV Antenna, attach the antenna tail to the FLO TV
Antenna. Press the antenna cable into the wire track in the antenna tail. (See Figure 5, FLO TV
Antenna Tail Installation)

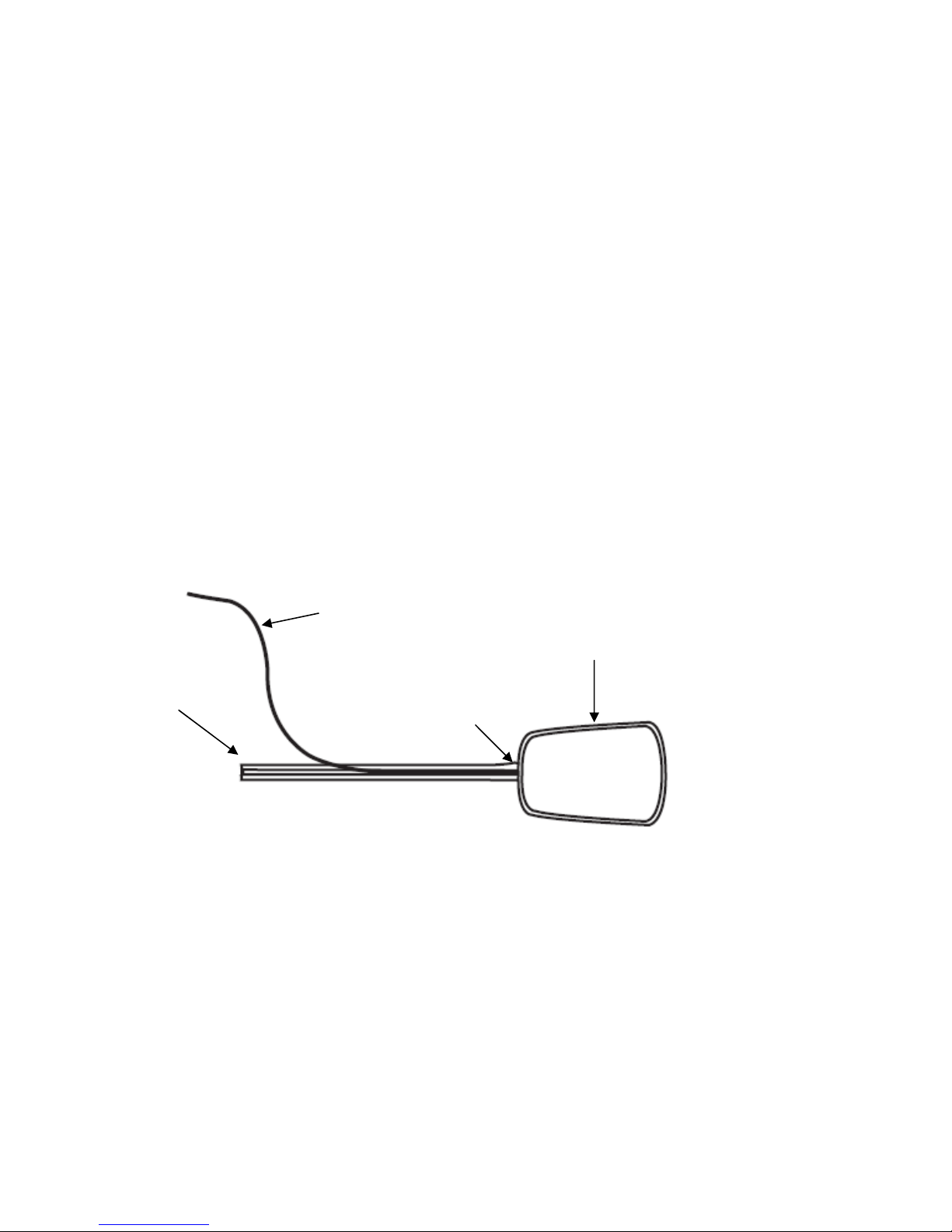

Figure 5 – FLO TV Antenna Tail Installation
Antenna Tail
Antenna Cable
Strain Relief
FLO TV Antenna
(Bottom View Shown)

- 16 -
6. Clean the surface area of the vehicle where the FLO TV Antenna and antenna tail will be
installed. Ensure that the vehicle surface is clean and clear of any dirt or debris.
7. Remove the plastic liner from the adhesive backing on the bottom of the FLO TV Antenna.
Remove the two plastic liners from the adhesive backings on the antenna tail.
8. Place the FLO TV Antenna and antenna tail on the vehicle roof. The double sided tape and
magnet will secure the antenna and antenna tail in the desired location. (See Figure 6, FLO TV
Antenna Final Installation)
Figure 6 – FLO TV Antenna Final Installation
9. Verify that the installation location of the FLO TV Antenna and antenna tail are correct. Firmly
press the FLO TV Antenna and antenna tail down for approximately one minute to ensure
complete tape adhesion. Allow a 72 hour period for the adhesive tape to cure completely, avoid
car washes during this period.

- 17 -
Routing the Antenna Cable
When the antenna has been mounted on the vehicle, the antenna harness can be routed to the FLO TV
Module.
1. Route the antenna cable from the antenna mounting position to the interior of the vehicle,
working the cable under the rear window molding. (See Figure 7, Routing the Antenna Cable)
2. At the lowest point of the rear window, route the cable into the trunk, taking advantage of the
existing cable conduits. Route the antenna harness from the trunk to the passenger
compartment and then to the FLO TV Module Antenna connector.
3. In SUV’s, Minivans, etc., route the cable into the vehicle under the rubber molding of the hatch
door or rear tailgate, and then under the interior trim.
4. Avoid exposing the cable in the driver and passenger areas where it could become entangled in
feet or other objects.
5. Plug the antenna cable plug into the FLO TV Antenna connector on the FLO TV Module. The
antenna plug will snap onto the connector when it is fully seated on the antenna connector.
NOTE:
The exact routing of the antenna cable may vary depending upon where the FLO TV Module will
be installed. Avoid interfering with side curtain airbag locations on the front and back pillars
and above doors.

- 18 -

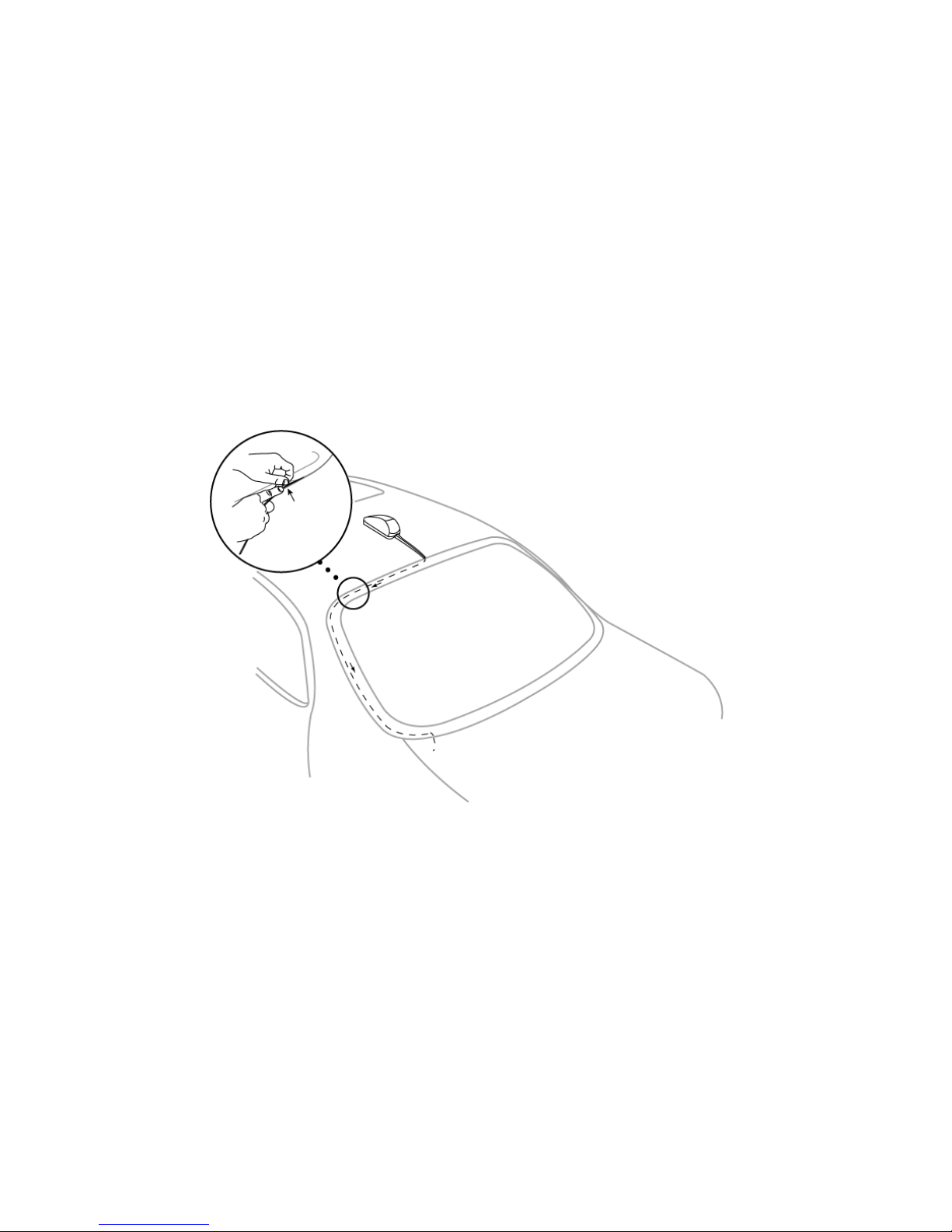

Figure 7 – Routing the Antenna Cable

- 19 -
Wired Remote Control Installation
The wired remote control should be installed in the front seating area of the vehicle, where it can be
easily accessed, but not positioned where it could distract the driver or obstruct the driver’s view. It
should also not be located where the wired remote control or its harness could interfere with the
operation of the airbags in the vehicle. It is recommended that the wired remote control is installed in
the vehicle’s center console or glove box and the attached antenna installed on the windshield, two
inches below the top edge of the glass. The antenna should not obstruct the driver’s view (see figure
8)
The wired remote control is intended for use in the event that the wireless remote control is lost or if
the batteries are dead. The wired remote can also be used to change channels from the front
passenger compartment for front seat listening of FLO TV content.
1. With the desired installation location of the wired remote control chosen, route the wire harness
to the FLO TV Module installation location.
2. Route the antenna to the windshield, following the A pillar and tucking the wire into the
headliner. Locate the antenna 2 inches below the top of the windshield (see figure 8), remove
the adhesive backing and press the antenna to the windshield.
3. Connect the 8 pin connector on the remote control to the 8 pin connector on the FLO TV
Module.

- 20 -
Figure 8 – Remote antenna placement
2.0 “
Antenna
