Audiovox UniStreamONE User manual

UniStreamONE
Universal Bluetooth
Integration Kit
Installation Guide/User Manual

2
iPhone is a trademark of of Apple Inc., registered in the U.S. and other countries.
Bluetooth® is a trade mark of Bluetooth Special Interest Group (SIG) Inc.
Android is a trademark of Google Inc.
Other trademarks and trade names are those of their respective owners.

3
Table of Contents
Warning and Safety!........................................................................................................ 4
Congratulations On Your Purchase!................................................................................ 5
Product Registration........................................................................................................ 5
UniStreamONE Kit Contents........................................................................................... 6
Frequency Conguration Settings................................................................................... 6
Installation ....................................................................................................................... 8
BCS1M Bluetooth Module Controls and Indicators....................................................... 10
Radio Illustration ........................................................................................................... 11
Pairing Your Phone ....................................................................................................... 12
Operation ...................................................................................................................... 13
Troubleshooting............................................................................................................. 20
Firmware Update........................................................................................................... 21
Compliance Information ................................................................................................ 22

4
Warning and Safety!
Please read these instructions carefully before proceeding. Failure to follow instructions may result in improper
operation or injury. Neither Audiovox Electronics Corporation nor Apple Inc., its regional ofces, distributors or
resellers take any responsibility for any damage or injury as a result of using the integration kit.
• Do not open, disassemble or alter the interface in any way.
• Do not insert anything into the casing.
• Do not cut or try to alter cables in any way and always use the correct connections.
• Only operate unit when the vehicle is stationary or ask passengers to operate it for you.
• Do not allow the Apple iPhone to distract you from driving.
• Exercise good judgement and keep your eyes on the road at all times.
• Do not expose unit to extreme temperatures, humidity or shock.
• Keep the unit and iPhone away from uids.
• Keep away from children! - Interface components may contain small parts, that may be broken or
disassembled and components may become loose from vibration and heat. Small components and
packaging materials may be a choking hazard when handled by children.

5
Congratulations On Your Purchase!
Thank you for purchasing this integration kit. Please review this booklet before operating the unit. The
UniStreamONE was designed and manufactured to seamlessly integrate with your vehicle’s factory audio system.
Product Registration
We recommend registering your Audiovox product so you can receive news about important rmware updates
and have unlimited access to our online support system.
To register your Audiovox product, please complete the following steps:
1. Visit http://www.audiovoxoei.com .
2. Look up and save the serial number of the product.
3. Complete the product registration form.
4. Submit the form.
5. Save the registration sheet in a safe place for future reference.
If you are unable to complete the registration via internet, please call Audiovox at 1-800-645-4994.
Prior to installation, make sure the Interface Module’s rmware is up to date to ensure compatibility
with the latest features and enhancements. Please refer to page 21 to update rmware.

6
Interface Module
Power Cable BCS1M Bluetooth
Module
Clip and 2-sided Mount
UniStreamONE Kit Contents
Frequency Conguration Settings
ON/OFF Switch Positions
Interface
Module
Frequency Selector Switch
ON
12
OFF
FM (MHz) DIP Switch 1 DIP Switch 2
88.7
93.3
97.5
107.7
OFF
ON
ON
OFF
OFF
OFF
ON
ON
NOTE - Congure the switches to an unused frequency
in your area, then tune your radio to that frequency.

7
Attention installer! Please read the following!
Audiovox strongly recommends that the Interface Module be installed in an easily accessible place!
DO NOT PLACE IT BEHIND THE RADIO AND DO NOT HIDE IT UNDER THE CARPET!
Whether the Interface Module is professionally or self installed, put the Interface Module where you can get to it
easily in the future. (Have the installer show you where the Interface Module is located.)
Installing the Interface Module behind the radio will make it difcult to:
• Add possible future upgrades, change software, add new features, improve operation
• Access the DIP switches located on the module.
• Remove the module in case of failure.
MAKE SURE THAT THE INTERFACE MODULE IS INSTALLED IN AN ACCESSIBLE PLACE!

8
Installation
1. Verify compatibility. Certain radios require antenna
adapter(s) that are not included in the kit.
2. Disconnect the battery.
3. Remove the radio from the car.
4. Set the DIP Switches for the Frequency Selector
Switch to the desired setting. See page 6.
ON
12
OFF
5. Install the Universal cable. Plug the factory radio
antenna into the receptacle on the Interface
Module.
6. Test for 12V constant, 12V switched, and ground
sources. Splice into the sources with leads from
the power cable.
7. Route the Interface Module to the glove box or
another accessible location.

9
8. Connect the BCS1M Bluetooth Module.
9. Mount the BCS1M Bluetooth Module in a suitable
location as per the illustration. Use the included
2-sided tape or the clip. Make sure the built-in
microphone is directly facing the driver.
Optimal Sticky Mount
Acceptable Sticky Mount
Clip Mount
Avoid
10. Connect the battery and test.*
11. Complete the installation by re-installing the radio.
12. Save the frequency to a preferred preset on the
radio if desired.
*CAUTION: Do NOT connect any mini-DIN and iPod cable used on
other Audiovox products to the mini-din port. Failure to follow this will
cause permanent damage to the unit/iPod!

10
BCS1M Bluetooth Module Controls and Indicators
1
3
2
4
1. Light Ring
Unlit - unit is off.
Red - unit is disconnected.
Blue - unit is connected.
Alternating red and blue - unit is in pairing mode.
2. Multi-Function Button
3. Built-In Microphone
4. Off / On / (Bluetooth) Switch
Slide down to OFF to turn the unit off.
Slide up to ON to turn the unit on.
Slide up to to initiate pairing mode.

11

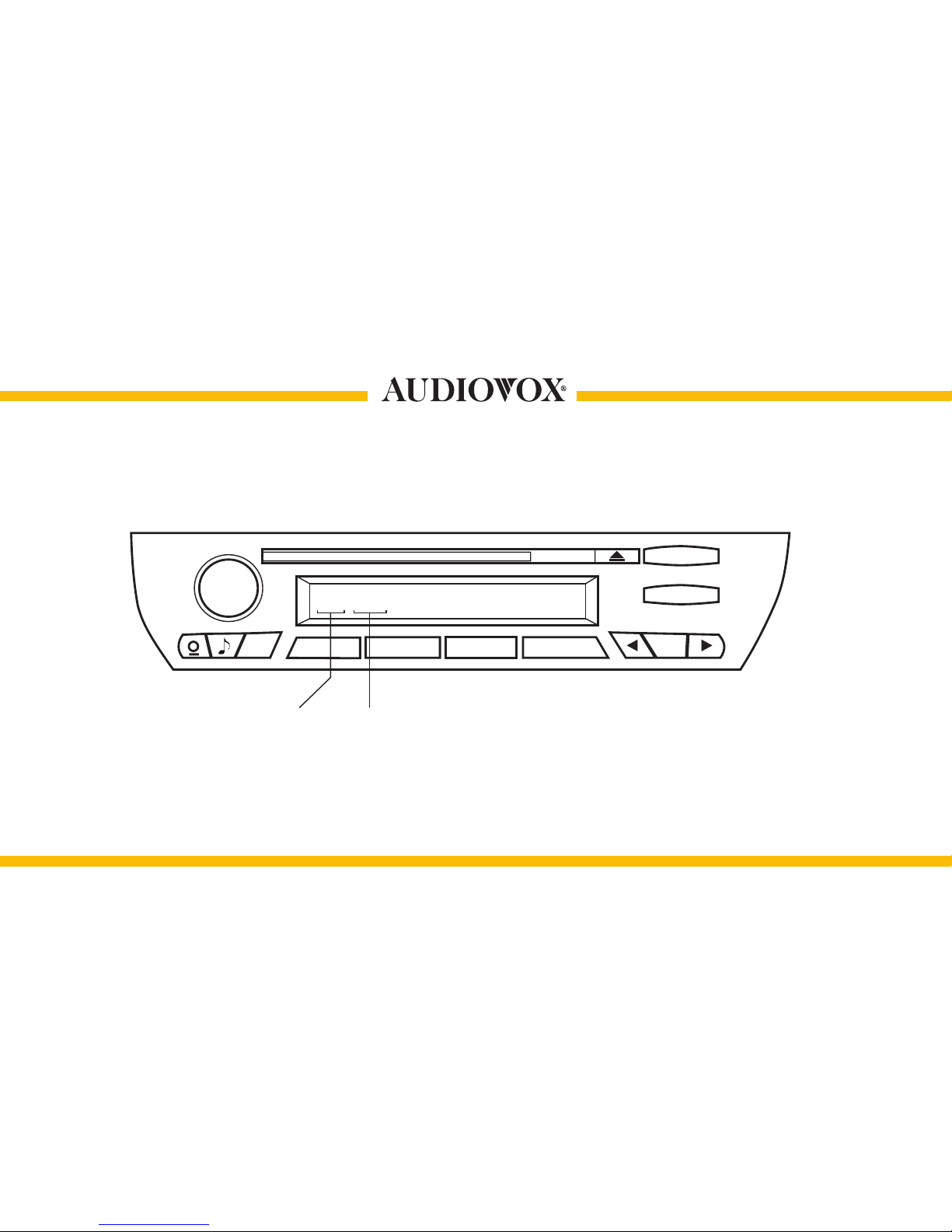

Radio Illustration
123456--
AM FM
m
+
FM 88.7 * BCS1M RDS
Radio
Source
Radio tuned
to frequency
as selected
on page 6.
This image is for illustration purposes only. Please review your vehicle radio’s documentation.

12
Pairing Your Phone
Your mobile phone can initiate a search for the BCS1M Bluetooth Module.
Note: The following procedures are generic. Procedures for pairing mobile phones may vary. Please refer to the
manual that came with your mobile phone.
1. Turn the BCS1M Bluetooth Module on and slide the button slider up to the (Bluetooth) position. The light
bar will ash red and blue alternatively.
2. Access the mobile phone’s Bluetooth function and turn the function on.
3. Set the mobile phone’s Bluetooth discovery mode to on.
4. Use the mobile phone’s add new device feature. “Bluetooth car kit” will appear on your mobile phone’s
device list.
5. A prompt to pair should appear on your mobile phone. Accept the request to initiate the process.
6. Some mobile phones require a PIN to connect. If asked, enter “0000”.
7. A message stating that pairing is successful should appear on your mobile phone. A prompt asking you to
connect should also appear. Accept the request to initiate the connection.
8. Once connected, the light bar will turn a solid blue.

13
Operation
Activating Voice Assistant (Siri / Google Voice Dialer)
To activate the Voice Assistant feature of the mobile phone (if available), press and hold the multi-function
button for 2–3 seconds and then release it. Compatible Apple iPhone 4s or later models will trigger a Siri
session. Google Voice Dialer may be available on select Android phones. The feature must be enabled on the
phone.
Managing Phone Calls
To make a call:
• Place calls as you normally do on your phone. The call audio will be heard through your car stereo.
To make a call using voice-dialing:
• If your phone supports voice-dialing, press and hold the multi-function button for 2–3 seconds, and then
release the multi-function button. You should hear your phone prompt you for a command.
To answer a call:
• When an incoming call is detected, the light ring will blink blue.
• Tap the multi-function button to answer the call. The light ring will return to solid blue.

14
Managing Multiple Calls/Call-Waiting
To answer a second incoming call:
• Tap the multi-function button to answer the second call and end the rst.
• Double-tap the multi-function button to answer the second call and put the rst call on hold.
• Tap the multi-function button three times to reject the call.
To switch between two calls:
• Double-tap the multi-function button.
To end the call on hold:
• Tap the multi-function button three times.
To end the second call:
• Double-tap the multi-function button.
• Tap the multi-function button to end the current call.

15
Music Controls
To play music:
• Tap the multi-function button. Your phone will play whatever music was last playing.
You may need to start the music application on the mobile device the rst time.
• To change the music selection, use the controls on the phone.
Note: Some phones may require you to tap the button to put the phone into music mode.
To pause/resume the music:
• Tap the multi-function button. The music will pause.
• If the music is already paused, tap the multi-function button to play it.
• If a call comes in while listening to music, the music will automatically pause.
To skip songs:
• To skip to the next song, double-tap the multi-function button.
• If this doesn’t work at rst, try adjusting your double-tapping speed (either slower or faster).
• This may not work for all phones.

16
Online Audio Streaming Services
If you use audio-streaming services or apps such as Pandora® or iheartradio®, you may be able to use the
BCS1M Bluetooth Module to enjoy streaming audio through your car stereo. However, not all phones or audio-
streaming services support this feature.
If the sound comes out of your phone instead of the car speakers:
1. Check to make sure the phone is connected to the BCS1M Bluetooth Module.
2. Check the service or app setting to make sure the Bluetooth option is enabled and the sound output is set to
Bluetooth.

17
Disconnecting or Transferring Audio Back to Your Phone
If you are on a call and need to get out of your car, you can transfer the audio back to your phone.
1. Turn the BCS1M Bluetooth Module off or select a different source from the mobile phone.
2. Continue your conversation on your phone.
Note: If you are listening to music, depending on the phone, the music will pause or continue playing with the
sound coming out of your phone.

18
BCS1M Multi-Function Button
Phone Model Answer
Call
End Call Pause/play
Music
Skip Songs
Forward
Voice Dialing Siri Voice
iPhone 4s
through
iPhone 6
Tap Tap Tap Double-tap Press/hold for 2-3 seconds and
then release
Yes
iPhone 3GS
and iPhone 4
Tap Tap Tap Double-tap Press/hold for 2-3 seconds and
then release
Instinct Tap Tap Tap Double-tap Press/hold for 2-3 seconds and
then release
Nexus One Tap Press &
hold
Tap Double-tap Not available
DROID (Hero) Tap Press &
hold
Tap
Some models
may not
support this
feature.
Some models
may not support
this feature.
Press/hold more than 1 second

19
Phone Model Answer
Call
End Call Pause/play
Music
Skip Songs
Forward
Voice Dialing Siri Voice
Galaxy S Tap Tap Tap
Some models
may not
support this
feature.
Not available Not available

20
Troubleshooting
You can quickly solve most problems with your BCS1M Bluetooth Module by following the advice in this section.
Problem Solution
The audio is not
coming out of the
stereo speakers.
• Make sure both the car stereo and BCS1M Bluetooth Module are powered on.
• Make sure your radio is tuned to the FM frequency set by the DIP switches. See
page 6.
• Make sure the stereo volume is set to a comfortable listening level.
• Make sure that your Bluetooth-enabled device is connected via Bluetooth to the
BCS1M Bluetooth Module.
Trouble with pairing. • Make sure your phone’s Bluetooth is turned on and set to search mode.
• If you previously paired to a BCS1M Bluetooth Module, clear the previous pairing
from your phone’s device list.
