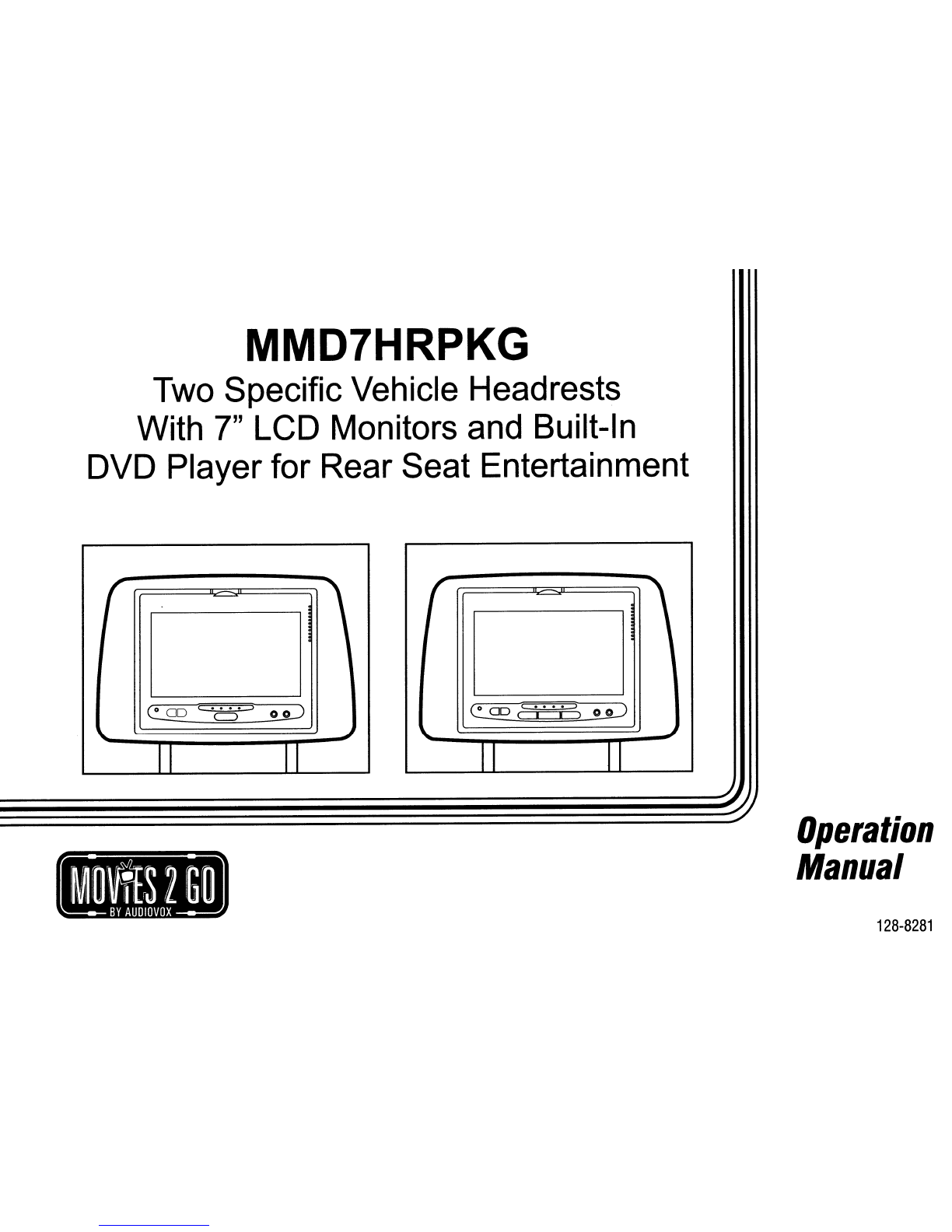

MMD7HRPKG
Two Specific Vehicle Headrests
With
7" LCD Monitors and Built-In
DVD Player for Rear Seat Entertainment
(,
e= 00 c "0" ::>
o o:=J
\... ~
II II
(
~ 00 c... .:::=>
o o:=J
( I I )
\... ..J
II II
..
Operation
Manual
128-8281

IMPORTANT
Installation of headrest products require careful planning and preparation. Be extremely careful of seats that have airbags
built into them. Keep wiring away from any air bag wiring (usually identified by yellow connectors and yellow wire jackets).
Damage to air bag wiring can result in personal injury to vehicle occupants. If you have any questions regarding wire
routing or installation in a vehicle, please contact Audiovox Technical Support at 1-800-225-6074.
When connecting power and ground in a mobile video installation, insure that the ACC wire is fused at the point where it is
connected to the vehicle ACC wiring. Failure to do so can result in damage to the vehicle if a short circuit develops
between the vehicle connection point and the mobile video product.
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video
monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video
monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these
features will only function when the vehicle is in "park" or when the vehicle's parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear
or when the parking is not applied must be installed to the rear of the driver's seat where it will not be visible, directly or
indirectly, to the operator of the motor vehicle.
Licensed under one or more of the following patents:
Patent NOS. 7245,274 and 6,899,365

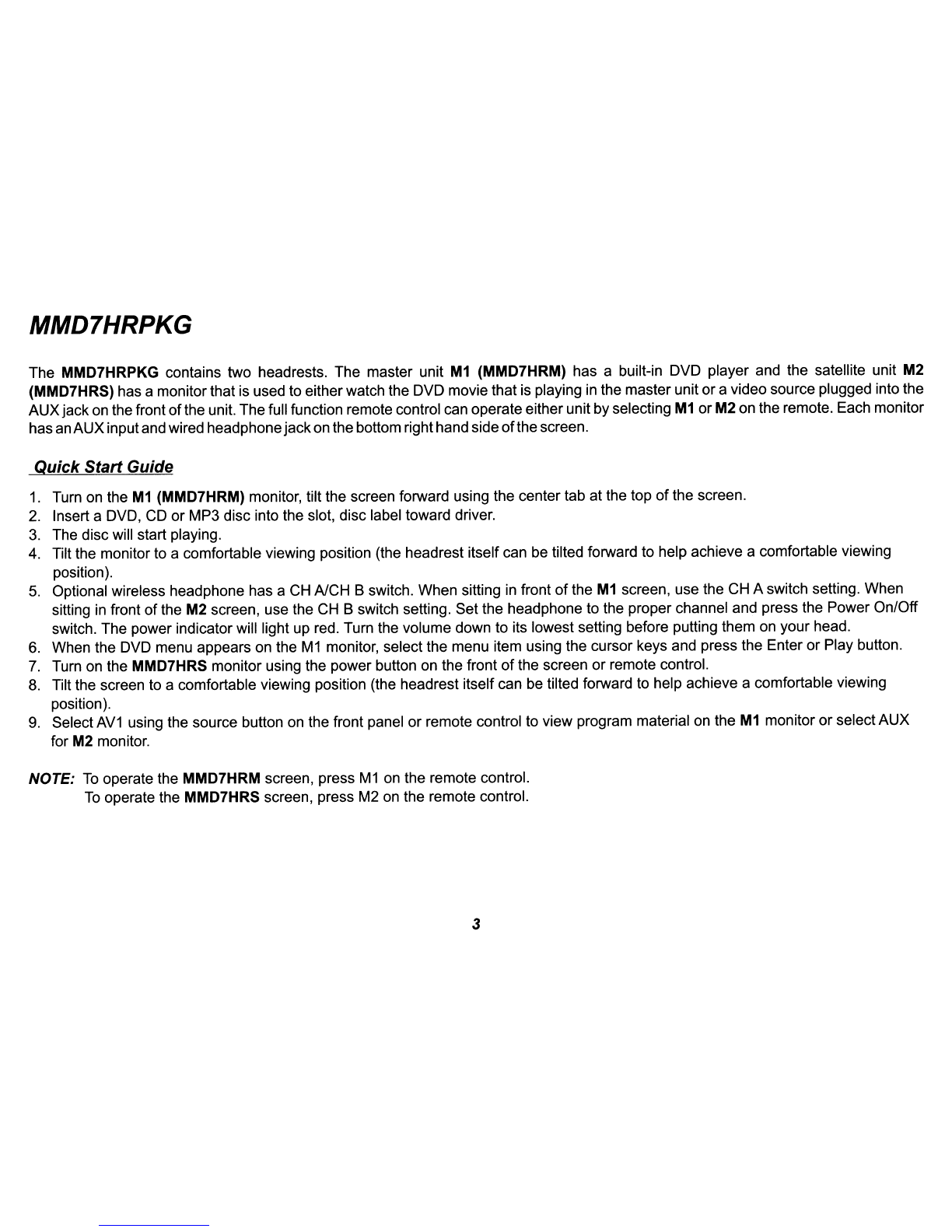

MMD7HRPKG
The MMD7HRPKG contains two headrests. The master unit M1 (MMD7HRM) has abuilt-in DVD player and the satellite unit M2
(MMD7HRS) has amonitorthat is used to eitherwatch the DVD movie that is playing in the master unit oravideo source plugged into the
AUXjackon the front of the unit. The full function remote control can operate either unit by selecting M1 or M2 on the remote. Each monitor
has an AUX inputand wired headphonejackon the bottom righthand side of the screen.
~uick Start Guide
1. Turn on the M1 (MMD7HRM) monitor, tilt the screen forward using the center tab at the top of the screen.
2. Insert aDVD, CD or MP3 disc into the slot, disc label toward driver.
3. The disc will start playing.
4. Tilt the monitor to acomfortable viewing position (the headrest itself can be tilted forward to help achieve acomfortable viewing
position).
5. Optional wireless headphone has aCH A/CH Bswitch. When sitting in front of the M1 screen, use the CH Aswitch setting. When
sitting in front of the M2 screen, use the CH Bswitch setting. Set the headphone to the proper channel and press the Power On/Off
switch. The power indicator will light up red. Turn the volume down to its lowest setting before putting them on your head.
6. When the DVD menu appears on the M1 monitor, select the menu item using the cursor keys and press the Enter or Play button.
7. Turn on the MMD7HRS monitor using the power button on the front of the screen or remote control.
8. Tilt the screen to acomfortable viewing position (the headrest itself can be tilted forward to help achieve acomfortable viewing
position).
9. Select AV1 using the source button on the front panel or remote control to view program material on the M1 monitor or select AUX
for M2 monitor.
NOTE: To operate the MMD7HRM screen, press M1 on the remote control.
To operate the MMD7HRS screen, press M2 on the remote control.
3

CONTROLS AND INDICATORS DIAGRAM
MMD7HRM
I~
==-
ot:
M1
J
Control Function Descriptions for MMD7HRM and
MMD7HRS Monitor
c
q> ... "
~
MMD7HRM/MMD7HRS Panel Control
1. DVD disc insertion slot
2. EJECT Button -Press this button to eject the disc.
3.
Power Indicator LED
4. POWER Button -Press to turn the unit ON/OFF.
5. SCREEN MODE Button- Press this button to select between 9
Wide(16:9), Normal(4:3) aspect ratio or screen off(display OFF).
6. PLAY Button -Press this button to start playback.
7. SOURCE Button- Press this button to select between DVD and
AUX. 34 5 6 7810
11
-_ .. _----~. -_._"""="""~
.... ... "'_._c_ ......... z, ...... ___ .....
8. STOP Button- Press this button to stop playback.
9. IR Transmitter LEOS MMD7HRS
(0
01
M2
10. Wired Headphone Jack c
11. AUX Input Jack (use with supplied AV adaptor)
~
NOTE: 1, 2, 6&8 function for MMD7HRM only.
9
4
3 4 5 710 11

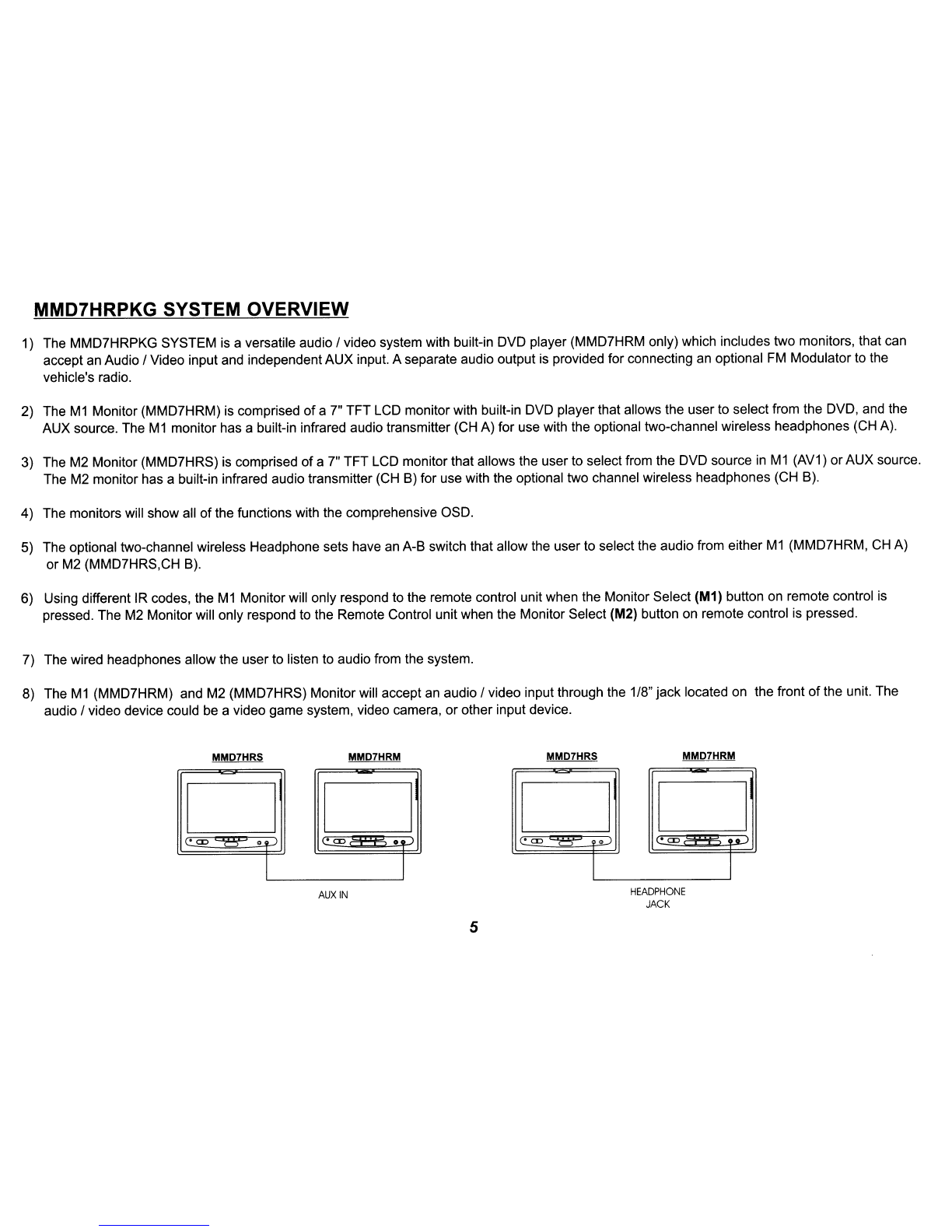

MMD7HRPKG SYSTEM OVERVIEW
1) The MMD7HRPKG SYSTEM is aversatile audio /video system with built-in DVD player (MMD7HRM only) which includes two monitors, that can
accept an Audio /Video input and independentAUX input. Aseparate audio output
is provided for connecting an optional FM Modulator to the
vehicle's radio.
2) The
M1 Monitor (MMD7HRM) is comprised of a7" TFT LCD monitor with built-in DVD player that allows the user to select from the DVD, and the
AUX source. The
M1 monitor has abuilt-in infrared audio transmitter (CH A) for use with the optional two-channel wireless headphones (CH A).
3) The M2 Monitor (MMD7HRS)
is comprised of a7" TFT LCD monitor that allows the user to select from the DVD source in M1 (AV1) orAUX source.
The
M2 monitor has abuilt-in infrared audio transmitter (CH B) for use with the optional two channel wireless headphones (CH B).
4) The monitors will show all
of the functions with the comprehensive OSD.
5) The optional two-channel wireless Headphone sets have an A-B switch that allow the user to select the audio from either
M1 (MMD7HRM, CH A)
or M2 (MMD7HRS,CH
B).
6) Using different IR codes, the M1 Monitor will only respond to the remote control unit when the Monitor Select (M1) button on remote control is
pressed. The M2 Monitor will only respond to the Remote Control unit when the Monitor Select (M2) button on remote control is pressed.
7) The wired headphones allow the user to listen to audio from the system.
8) The
M1 (MMD7HRM) and M2 (MMD7HRS) Monitor will accept an audio /video input through the 1/8" jack located on the front of the unit. The
audio /video device could
be avideo game system, video camera, or other input device.
MMD7HRS MMD7HRM MMD7HRS MMD7HRM
CJ CJ
r..... CD"""""" 0 )
r..... CD
o )
AUXIN
5
CJ CJ
<:CD ~ OJ r....·CD~ 'v
HEADPHONE
JACK

9) Pivot the screen until acomfortable viewing angle reached. The internal lock limits the screen to amaximum adjustment of 30 degrees from closed
position, the headrest itself can
be tilted forward to help achieve acomfortable viewing position.
Inner Ring
Closed Position
10) Insert disc
-Disc Label
Insert disc
/
MMD7HRPKG: MMD7HRM Monitor only.
Internal Lock
6
11) Eject disc
Eject disc
MMD7HRPKG: MMD7HRM Monitor only.

REMOTECONTROLOPERATION
-+--1-+-- 14
L.....----I-+-- 13
27
1
26
25
2
3
24
23
4
22
5
21
6
20
7
19
8
18
9
17
10
16
11
15
12
CR2025
Initial Use
When purchased the remote control has abattery installed with
aPull Tab to prevent battery discharge. Remove the Pull Tab
before attempting to use the remote.
Battery Replacement
1. Remove the battery holder.
2. Insert the battery into the battery holder and insert the
battery holder into the remote. Be sure to observe the correct
polarity.
3. Align the battery holder with the remote control and push
until the holder clicks.
7

*
REMOTE CONTROL FUNCTION DESCRIPTIONS
Function/control is available on the unit and remote control.
** Function/control is not available on this model.
NOTE: To control the individual units (MMD7HRM Monitor /MMD7HRS Monitor) press either M1 or M2 before pressing any other
button.
For example, to turn MMD7HRM Monitor ON, press
M1 and then the power button.
1. POWER Button* -Press this button to turn MMD7HRM or MMD7HRS Monitor on /off.
2. MUTE Button -Press this button to mute the audio. Pressing the button again restores the audio to the previously set level.
3. ENTER Button -Used to implement aselected setting.
4. CURSOR (.A. ....... ~) Button -Use these buttons to navigate the menu selections on the screen.
5. PREY (~) Button -Press to return to the previous chapter or track.
6. SCAN BACKWARD (~) Button -Press to search in abackward direction. Press repeatedly to change the search speed from 2,
4,8 and 20 times the normal speed.
7. PLAY (~) Button* -Press to activate the play mode while adisc is loaded in the disc compartment.
8. SETUP Button -Press to display the Setup Menu which allows the user to change the DVD player options such as TV DISPLAY,
OSD LANGUAGE, PARENTAL CONTROL etc.
Refer to the settings and Adjustments section for more information.
9. REPEAT Button -Allows the user to repeat aselected Title, Chapter or Track of aDVD, CD or MP3.
8

10. ZOOM Button -Press this button to enlarge the picture when playing aDVD disc.
Press ZOOM
button DVD player perform
Once Enlarge the picture 1times of the original size
Twice Enlarge the picture 2times
of the original size
3times Enlarge the picture 3times
of the original size
4times Picture
is returned to original size
11. IRT ON/OFF Button** -Press this button to turn the selected unit IR Transmitter ON/OFF.
12. NUMBER
Buttons -Allows the user to enter the numbers 0to 9for selection of CD tracks, DVD chapters, and password setting.
13.
FM ON/OFF Button** -Turns FM Modulator power ON/OFF.
14. CHANNEL SELECT
Button** -Selects the FM modulator Frequency
(Frequency 1:88.3MHz, Frequency 2:88.7MHz, Frequency 3:89.1 MHz, Frequency 4:89.5MHz, Frequency 5:89.9MHz).
15. DISC MENU
Button -Allows the user to access the DVD (DVD MODE) main menu.
00:00:14
Chapter ./.
~Jitie __ "'-",_=-!
Chapter _
DVDVIDEO
Title 1/17
Audio 111 IT] 5.1 Ch
Subtitle Off
Angle 111
16. DISPLAY Button -Press to display the current disc information while the disc is playing. Press the cursor (.......... ~) buttons to
highlight the desired option. For title and chapter selection use the number buttons to enter the desired title or chapter number for
angle, audio, and subtitle. Press the ENTER button repeatedly
to change the item.
Title
Chapter
Angle
Audio
Subtitle
17. SUBTITLE
Button -Press to display and select the subtitle language in DVD mode. Each time you press the button, the subtitle
language changes.
NOTE: The type &number of language for subtitles vary from disc to disc.
9

18. AUDIO Button -Press to display and select the AUDIO language in DVD mode. Each time you press the button, the language
changes.
NOTE: The languages for audio vary from disc to disc.
19. SCAN FORWARD (~) Button -Press to search in aforward direction. Press repeatedly to change the search speed from 2, 4, 8
and 20 times the normal speed.
20. STOP (.) Button* -Press to stop playback.
21. PAUSE (II) Button -Allows the userto pausethe playback. Pressthe Play button to resume normal playback.
22. NEXT (»I) Button -Press to skip to the next chapter or track.
23. PIX Button (PICTURE SELECT) -Each time this button is pressed, the on screen picture adjustment displays the "adjustment bar"
for BRIGHTNESS, CONTRAST, COLOR or TINT* (*For NTSC only). Once the desired adjustment bar is displayed, use the VOL (+)
IVOL (-) button to adjust the setting. The display will automatically turn off if no adjustments are made within 6seconds, or if any
other button is pressed.
24. VOL (-) I(+) Button -Use this button to decrease or increase the volume level of the wired headphone jack. It is also used to do
picture adjustments in picture select mode.
25. Monitor Select (M1) -Change the remote control code to enable the control of MMD7HRM Monitor.
26. Monitor Select (M2) -Change the remote control code to enable the control of MMD7HRS Monitor.
27. SOURCE Button* -Press this button to select the available sources. MMD7HRM monitor, sources are DVD &AUX.
MMD7HRS Monitor, sources are AV1 (DVD from MMD7HRM monitor) &AUX.
10

SETTINGS AND ADJUSTMENTS (M1 ONLY)
The Setup Menu contains features and options that let you customize your DVD player. For example, you can set alanguage for the on-
screen display or prevent DVD playback for children.
Using the Setup Menu
1. Pressthe SETUPbutton on the remote. TheSetupMenu appearsonthe screen as shown perdiagram.
2. In order set the desired option, move the highlight into the setup area using the cursor button ~.
3. After entering the setup area, highlight the desired option using the cursor button .A or T.
4. Press ~ to move the highlight to the different options for the selected item. Press .A or Tto select the desired options, and then press
ENTER to confirm the selection.
5. Repeat steps 3-4 to continue setting the options that reside on the same Setup Page.
6. To change to another Setup page, press ~ until the highlight moves back to the icon on the top part of the Setup Menu.
Then, repeat steps
2-5.
Exiting the Setup Menu
Press the SETUP button again only.
11

LANGUAGE SETUP
Language for On-Screen Display
OSD MENU: The OSD MENU setup allows you to select the language for the on-screen display.
The user can either select English, French, Spanish, German or Italian for the OSD language.
SUBTITLE SETUP
Select "SUBTITLE" using .. Tbutton, then press ~ button to enter the Submenu. Select the subtitle you
desire using
.. Tbutton, then press "ENTER" to confirm the setting. Press ~ button to return.
Note: The subtitle selection is only available for discs that are recorded in the above listed languages. If the selected,
language is not available, the playerwill play and display on the screen the original language contained in the disc.
AUDIO SETUP
Select "AUDIO" using .. Tbutton, then press ~ button to enter the Submenu. Select the audio you
desire using
.. Tbutton, then press "ENTER" to confirm the setting. Press ~ button to return.
Note: The audio selection is only available for discs that are recorded in the above listed languages. If the selected,
language is not available, the player will
play and display on the screen the original language contained in the disc.
VIDEO SETUP
TV Display
The TV DISPLAY setup allows you to adjust screen setting (aspect ratio).
4:3 This displays the wide picture with black bands
on the upper and lower portions of the screen.
16:9 This displays awide picture with black bands
on the upper and lower portion of the screen.
The bandwidth will vary, depending on the aspect ratio
of the disc.
12
French
Spanish
German
Italian
English
French
Spanish
German
Italian
Japane.e
Chln .. e

TV Type
The TV TYPE setup allows you to select the system to fit to the color system of the TV to be connected.
NTSC -Select this type for NTSC TV
PAL -Select this type for PAL TV
Multi -Select this type for multi-system
TV
RATING SETUP
Rating
This item allows you to limit the content of movie playback from Gto Adult. The lower the value, the more strict the control.
G
PG
PG-13
R
NC-17
Adult
The rating level can only be changed when the displayed lock is open. For first time use, key in the
default password (3308) and press Enter.
To set anew password, key in anew four-digit password and
press enter.
Note: The DefaultPasswordis 3308. This password is alwayseffectiveevenafteryouhaveselected your ownpassword and changed it. To avoid the possibility
of othersusing the default password to set the parentallevel and change the password, you can recordthis defaultpasswordin anotherarea and delete it from
thismanual. Somediscs can belimited dependingon the age
of userswhile some discscannot.
Mise SETUP
Select "MISC" using .. Tbutton, then press ~ button to enter the Misc menu. Select the subtitle you
desire using
.. Tbutton, then press "ENTER" to confirm the setting. Press .... button to return.
13

Load Factory
Load Factory allows you to reset all options to factory settings.
*This function will not affect the Rating control settings.
Screen Saver
ON -Screen saver will appear
OFF -Screen saver will not appear
Note: The DVD playerwill enable the Screen Savermode if the unit is inactive for approximately 3minutes.
Playing DVDs
1. Press the DISPLAY button on the remote control to display the status banner. The banner includes title, chapter, angle, audio, subtitle,
title selection &chapter selection.
2. Title Selection
Press numeric (0-9) buttons to initiate achange of title selection. Then press ENTER to implement the selection.
3. Chapter selection
Press numeric (0-9) buttons to initiate achange of chapter selection. Then press ENTER to implement the selection.
As you toggle through the options, the repeat option changes at that time. The track, for example, repeats once that track has ended. The
selected repeat option loops repeatedly until you turn it off.
14

Playing MP3 Discs
MP3 is aformat for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality,
while taking up much less space. CD-R discs that have been encoded
in MP3 format can be played on your DVD player. The DVD player
plays the songs
in the order they were burned on to the disc.
When playback
is started the elapsed time of the track that is playing will be displayed.
Selecting Folders and Songs
When adevice containing MP3 files is loaded in the player, the navigation menu appears automatically.
1. Press. or ... to move the highlight to the desired folder (if present) on the left side of the menu and
press OK. The songs
in the folder will be displayed on the screen.
2. Press. or ... to move the highlight to the desired track containing the song and press OK to begin
track playback.
00:00:01
03/13 0ITRACK02.MP3
Skipping Songs
Use the Next (~~) button on the remote control to move to the next song. Use the Previous (~~) button to move to the previous song.
Selecting aPlay Mode
Filter (For MP3 &JPEG only)
Filter Mode enables
or disables the display of files contained on the media based on their file extension.
The Filter function applies to the following formats:
Audio -Audio data format (MP3, WMA)
Photo -Photo data format (JPEG)
Video -Video data format (MPEG
I, ][)
15

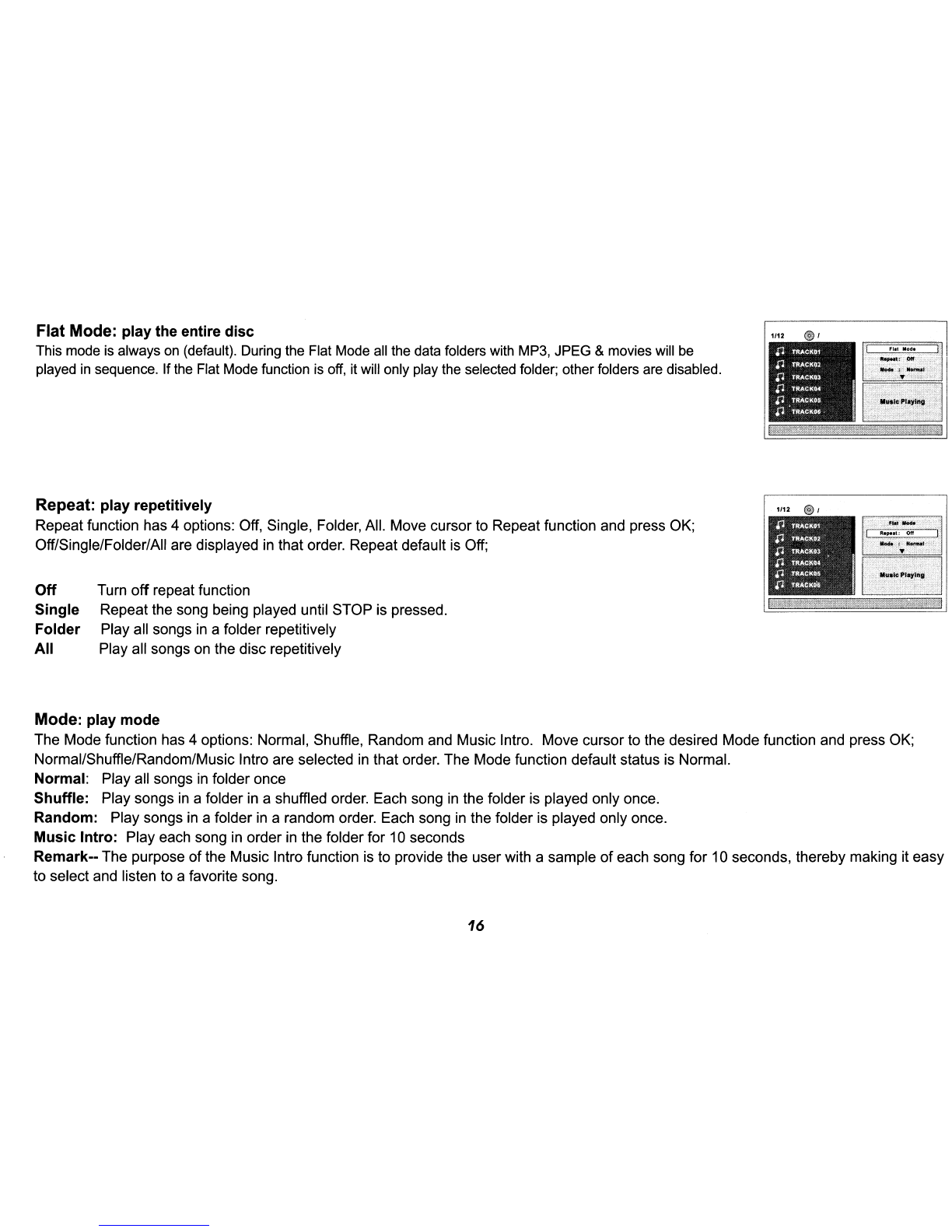

Flat Mode: play the entire disc
This mode is always on (default). During the Flat Mode all the data folders with MP3, JPEG &movies will be
played in sequence. Ifthe Flat Mode function is off, it will only play the selected folder; other folders are disabled.
Repeat: play repetitively
Repeat function has 4options: Off, Single, Folder, All. Move cursor to Repeat function and press OK;
Off/Single/Folder/AII are displayed
in that order. Repeat default is Off;
Off
Single
Folder
All
Turn off repeat function
Repeat the song being played until STOP is pressed.
Play all songs
in afolder repetitively
Play all songs on the disc repetitively
Mode: play mode
The Mode function has 4options: Normal, Shuffle, Random and Music Intro. Move cursor to the desired Mode function and press OK;
Normal/Shuffie/Random/Music Intro are selected
in that order. The Mode function default status is Normal.
Normal: Play all songs in folder once
Shuffle: Play songs in afolder in ashuffled order. Each song in the folder is played only once.
Random: Play songs in afolder in arandom order. Each song in the folder is played only once.
Music Intra: Play each song in order in the folder for 10 seconds
Remark-- The purpose of the Music Intro function is to provide the user with asample of each song for 10 seconds, thereby making it easy
to select and listen to afavorite song.
16

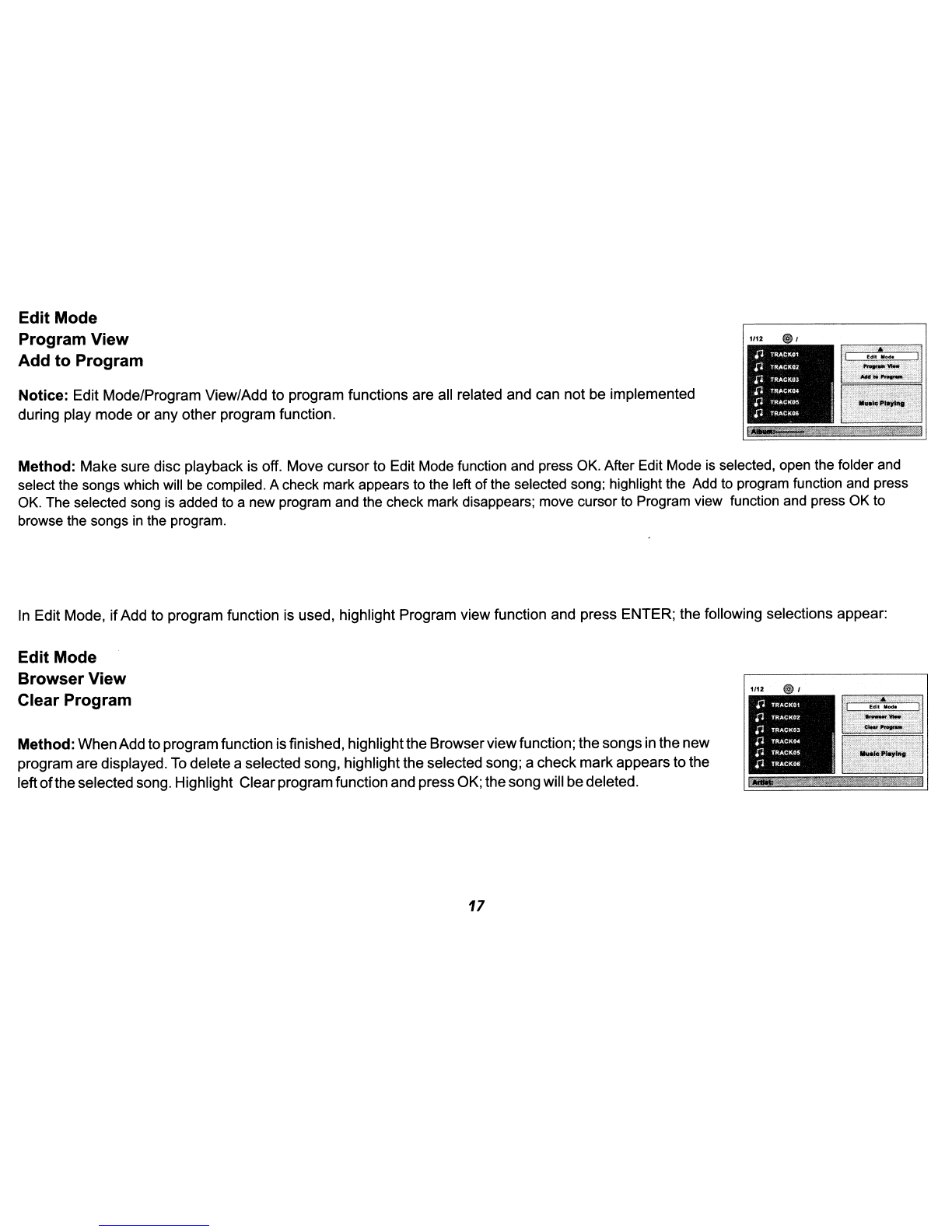

Edit Mode
Program View
Add to Program
Notice: Edit Mode/Program View/Add to program functions are all related and can not be implemented
during play mode
or any other program function.
Method: Make sure disc playback is off. Move cursor to Edit Mode function and press OK. After Edit Mode is selected, open the folder and
select the songs which will
be compiled. Acheck mark appears to the left ofthe selected song; highlight the Add to program function and press
OK. The selected song
is added to anew program and the check mark disappears; move cursor to Program view function and press OK to
browse the songs
in the program.
In Edit Mode,
if Add to program function is used, highlight Program view function and press ENTER; the following selections appear:
Edit Mode
Browser View
Clear Program
Method: WhenAdd toprogramfunction isfinished, highlightthe Browserviewfunction; the songs in the new
program are displayed.
To delete aselected song, highlightthe selected song; acheck mark appears to the
left
ofthe selected song. Highlight Clearprogramfunction and pressOK; thesong will be deleted.
17

DVD Basics
To get the optimum use out of the DVD section, make sure you read this section completely.
Regional Coding
Both the DVD player and DVDs are coded by region. These regional codes must match in order for the disc to play. Ifthe codes don't
match, the disc won't play. This unit's code is region
1. Other regional codes cannot be played in this unit. The unit will display
"WRONG REGION".
Types of Discs your DVD will play
-DVD* disc -DVD discs which contain video.
-Audio discs -Audio CDs contain musical or sound content only.
-MP3 discs - A disc that contains audio files (for example, aCD-R with downloaded MP3 files).
*This system is capable
of playing most recordable DVD formats. However, due to the variety of disc manufacturers and software,
playback cannot be guaranteed.
Loading and Playing Discs
Before you load adisc, make sure that it is compatible with the player. Insert the disc with the label facing the driver.
Note: the following Discs CANNOT be used with this player:
-MiniDisc
-Laserdisc
-CD-1, CD-ROM, DVD-ROM, SuperAudio CD (SACD), DVD Audio, JPEG (KODAK)
To load and·Play a Disc
Press the Power button to turn the unit ON. Select DVD mode and insert the disc (Label towards driver) into the disc compartment.
18

Audio IVideo Inputs and Outputs
Audio Output
The Audio output will provide the Audio signal from the MMD7HRM unit. This output can be connected to your carAudio input or a
wired
FM Modulator (Audiovox FMM1 DDA)
Source Feature
MMD7HRM Sources: DVD &AUX
DVD -Select DVD to view the internal DVD player.
AUX -SelectAUX to view the source that is connected to the AUX input*
on the front of the unit.
MMD7HRS Sources:
AV1 &AUX
AV1 -Select AV1 to view the DVD player from the MMD7HRM monitor.
AUX -Select AUX to view the source that is connected to the AUX input* on the front
of the unit.
*The AUX input requires the use
of AV adapter cable (1/8-to-RCA) supplied by Audiovox.
19

TROUBLESHOOTING
PROBLEM SOLUTION
IR sensor inoperative •Verify that the batteries
in the remote are fresh.
•Verify that the remote sensor eye
is not obstructed.
•Verify that Master Monitor or Satellite Monitor has been selected correctly.
Disc won't play •Check the type
of disc you put into disc tray. This DVD only plays DVDs, audio CDs
and MP3s.
•Both the unit and the disc are coded by region. If the regional codes don't match,
the disc can't be played.
Play starts, but then stops immediately •The disc is dirty. Clean
it.
•Condensation has formed. Allow player to dry out.
No sound or distorted sound •Make sure your DVD is connected properly. Make sure all cables are securely
inserted into the appropriate jacks.
•Disc loaded backwards, turn disc around so that the disc label is facing towards
the driver.
OSD Displays "Incorrect Disc Format" •Disc loaded backwards, turn disc around so that the disc label
is facing towards
the driver.
20
