Audiovox Mobile Video 128-8810 User manual

OPERATION
MANUAL
128-8810
VOD108FR
10.2" OVERHEAD LCD
MONITOR WITH
DVD PLAYER
ON OFF AUTO

Important Notice
Installation of overhead products requires careful planning and preparation. Be extremely careful when working on a vehicle with side
curtain air bags. Do not route wires near any portion of the side curtain air bag assemblies. This includes any anchor points in A, B, C or
D pillars of the vehicle. Routing wires in these areas or running wires by the side curtain air bags can prevent the side curtain air bag from
fully deploying which can result in personal injury to vehicle occupants. If you have any questions regarding wire routing in a vehicle,
please contact Audiovox Technical Support at 1-800-225-6074.
When connecting power and ground in a mobile video installation ensure that the ACC wire is fused at the point where it is connected to
the vehicle ACC wiring. Failure to do so can result in damage to the vehicle if a short circuit develops between the vehicle connection
point and the mobile video product.
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used
for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television
reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is
in “park” or when the vehicle's parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the
parking brake is not applied must be installed to the rear of the driver's seat where it will not be visible, directly or indirectly, to the operator
of the motor vehicle.
Warnings
•
•
•
•
•
•
•
•
Do not use any solvents or cleaning materials when cleaning the video monitor.
Do not use any abrasive cleaners, they may scratch the screen.
Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.
Lock the LCD screen in the fully closed position when not in use.
Before putting on headphones always adjust the volume setting to the lowest position.
Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights, if left on, can drain
the vehicle's battery.
Do not put pressure on the screen.
Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.
Licensed under one or more of the following patents,
Patent NOS. 5,775,762 , 5,927,784 and 6,678,892
I

II
FEATURES
Congratulations
Safety Precaution
Congratulations on your purchase of the AUDIOVOX
VOD108FR DVD Player with Drop-Down Video / Monitor.
The VOD108FR has been designed to give you and your
family many years of video entertainment in the mobile
environment. Please read the directions that follow to
familiarize yourself with the product to ensure that you obtain
the best results from your equipment.
Installation options vary, see the individual
owner's manuals for each component in your system to
obtain a full understanding of each component's operation.
For safety reasons, when changing video media it is
recommended that the vehicle is not in motion, and that you
do not allow children to unfasten seat-belts to change video
media or make any adjustments to the system. System
adjustments can be accomplished using the remote control,
while seat-belts remain fastened. Enjoy your AUDIOVOX
entertainment system but remember the safety of all
passengers remains the number one priority.
Please note:
• 10.2” TFT (Thin Film Transistor) Active Matrix LCD (Liquid
Crystal Display) Monitor.
• DVD Player.
• OSD (On Screen Display) for Control of Picture Quality and
Functions.
•
•
• Dome Lights with Built-in Three Way Switch.
•
•
•
•
•
•
•
•ys s
• FLO TV Ready
Built-in
Four Audio/Video Source Inputs (DVD/USB, AV1/FLO TV, AUX
and GAME).
Built-in 16 Channel Wireless FM Modulator.
Last Position Memory for DVD.
Pla DVD, CD and MP3 Disc .
.
Single Channel Infrared Transmitter for IR Wireless
Headphones.
1 AV Output via RCA Pigtail.
Screen Mode Selection (4:3, 16:9).
Wireless Game Controller.
Full Function Remote Control.
Backlit Controls.

1
CONTROLS AND INDICATORS DIAGRAM (FRONT VIEW)
1. STOP ( ) / CHANNEL UP (CH+) control
a.) STOP ( )
b.) CHANNEL UP (CH+)
2. EJECT ( ) Control
3. Source Select
4. PLAY ( ) / CHANNEL DOWN (CH-) Control
a.) PLAY ( )
b.) CHANNEL DOWN (CH-)
n
n
- STOP once : Stops playback ressing
the PLAY button will resume playback from where
movie was stopped.
- STOP twice : ressing the PLAY
button will resume playback from the beginning of the
DVD.
Increases FLO TV channel number
This control is used for ejecting discs from the disc
compartment. (
). After
the Disc is removed the unit will turn Off in 15-20 seconds.
Use to select one of the four sources:
This control is used to start playback of a disc.
Increases FLO TV channel number

u
u
Note: Disc can be ejected with the unit turned
Off. Vehicle ignition must be in Run or ACC position
DVD/USB, AV1/FLO TV,
AUX and GAME
Press the button
Press the
Note:
Note:
This control function control is available when the
overhead unit is used with an optional plug in FLO TV
Harness and FLO TV Module.
This control function control is available when the
overhead unit is used with an optional plug in FLO TV
Harness and FLO TV Module.
.P
the
button P
124356
8
9
10
7
11
12
13
ON OFF AUTO

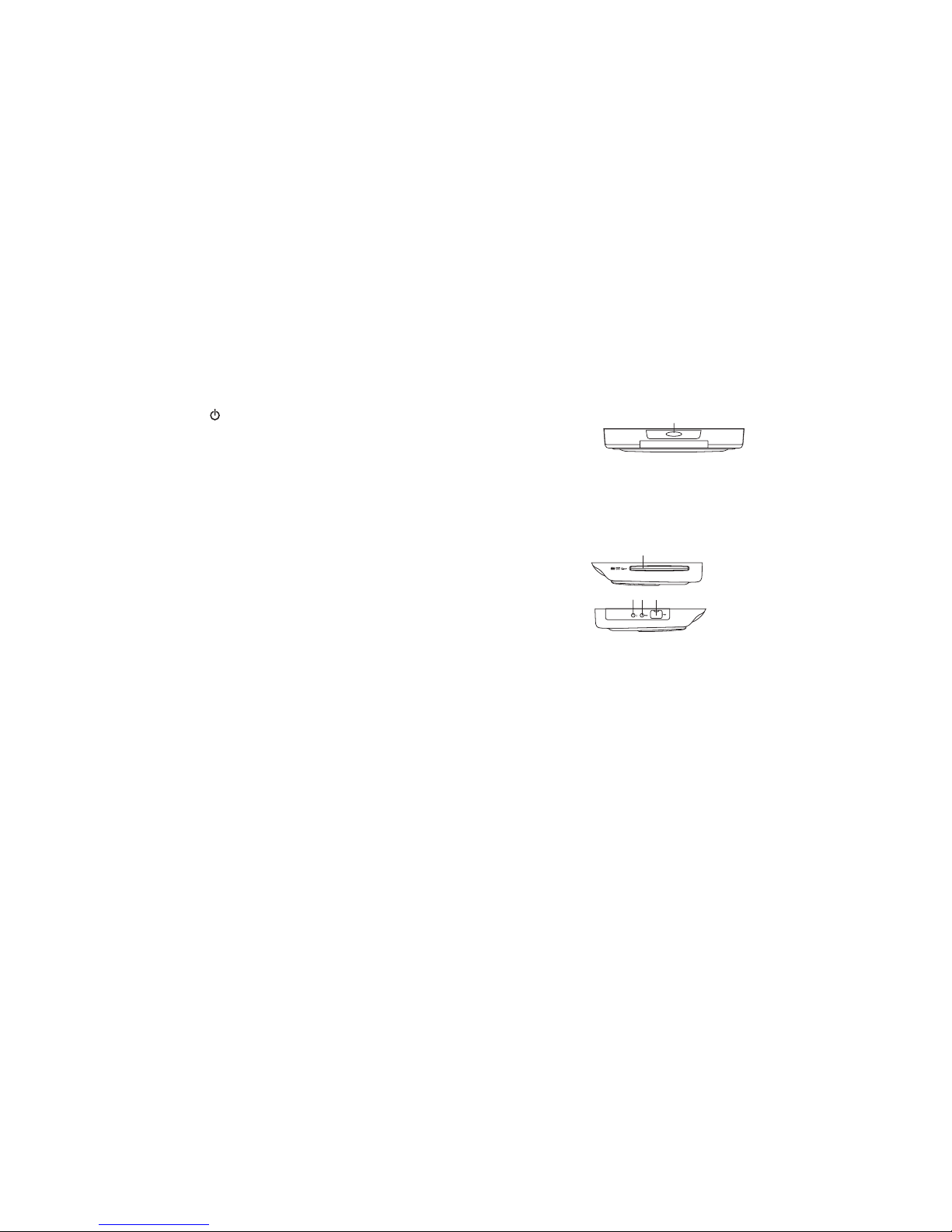

CONTROL FUNCTION DESCRIPTION
BACK( VIEW) 1
1. REAR IR SENSOR
Transmits audio to wireless headphones, allows the remote
control to operate the ADV38FR and to control other
Accessories in the system.
CONTROL FUNCTION DESCRIPTION
(SIDE VIEW)
1. DVD Disc Insertion Slot
2. HEADPHONE JACK
3. AUX IN
4. USB INPUT
For loading and removing discs. Unit will turn ON and load
disc when disc is inserted. Insert disc with label side facing
up.
Allows the use of wired headphone with a 1/8” (3.5mm) plug
for listening to the audio output
The Jack is used for audio and video input.
FOR USB MEMORY DEVICE
Allows for the connection of an USB or memory device..
Note: Disc slot will be lit when unit is turned OFF for easy
loading at night.
23 4
1
2
5. POWER ( ) Control
6. FLO TV Indicator
7. Dome Lights
8. Infrared Transmitter and Sensor
9. Three Position Dome Light Switch
ON
OFF
AUTO
10. Ventilation Openings
11. LCD Cut Off Switch
12. LCD Panel
13. Screen Release
Used to turn the system on/off.
The mode LED will change from white to purple when the FLO
TV is connected.
Provide additional interior illumination.
Transmits audio to wireless headphones, allows the remote
control to operate the ADV38FR and to control other accessories
in the system.
- Turns on the dome lights.
- The dome lights will not turn on in this position.
- Automatically switches on the dome lights in
Conjunction with the vehicle's interior illumination.
Used to turn off the LCD monitor when in the closed position.
.
Press to release the screen.

TURNING THE UNIT ON OR OFF
1. Pushing in the Screen Release button will unlock the LCD screen and it will drop down slightly. Pivot the screen downward until a
comfortable viewing angle is reached. The hinge friction will hold the screen in position while the system is in use.
2. Pressing the power button* on the unit or the remote control will turn the system on and off. When in use the internal backlighting will
illuminate the controls.
3. After the unit has been turned on and is displaying a picture, adjust the viewing angle, by pivoting the screen to optimize the picture quality.
4. Remember to turn the unit off and pivot the LCD to the locked position when not in use.
*Note: Unit will turn On automatically when
a Disc is inserted
3
ON OFF AUTO
Remote Sensor
Infrared Transmitter
Power
ON/OFF
Button
Screen Release
Rear IR Sensor

OVERHEAD DOME LIGHTS
REAR IR SENSOR
WIRELESS HEADPHONES
WIRED HEADPHONES (OPTIONAL)
The Dome Lights integrated into the unit are controlled by a three position slide switch. Sliding the switch to the ON position will turn
the lights ON. The OFF position will prevent the lights from turning ON with the vehicle's interior lighting and the auto position will allow the
lights to turn ON and OFF with the vehicle's interior lighting. Refer to the Installation Guide for wire connections. Do not leave the vehicle
unattended with the dome light switch in the ON position, as this could result in a discharged battery.
The VOD108FR incorporates two infrared remote sensors to relay signals to the unit when the remote control is pointed at the remote
sensor.
ACCESSORIES
The VOD108FR includes a built-in infrared transmitter for use with the supplied wireless headphones. The headphone volume is adjusted
using the controls on each headset. Any number of wireless headphones may be used but they must be used within a line of sight from the
transmitter, as infrared transmissions, like visible light travel only in a straight line. See the documentation accompanying your wireless
headphones.
There is one 1/8” headphone jack on the unit that can be used with any standard wired stereo headphones with a 1/8” plug. This jack is
controlled by the volume up/down buttons on the remote control.
4

SOURCE FEATURE
Once the
AV1
FLO TV
AUX
GAME
The AV1 input may be connected to a external video source, video game system, or other audio / video devices. To access the
audio/video inputs, turn the unit on and press the S (source) button on the VOD108FR or the Source button on the remote control
until "AV1" is displayed on the screen. Turn the video source component on with its power button or remote control and it is now
ready to play the audio and video signals from the source connected .
The is designed to function with FLO TV.
p
The AUX input may be connected to an external video source, video game system, or other audio/video devices. To access the audio / video
inputs, turn the unit on and press the S (source) button on the ADV38FR or the Source button on the remote control until "AUX" is displayed on
the screen.
The VOD108FR can be used with many currently available portable media players that have RCA output cables. Plug the RCA outputs of
the portable media player into the RCA connectors on the A/V adapter cable supplied with your VOD108FR and plug the 3.5mm plug on the
other end of the adapter into the into theAUX IN jack on the side of the VOD108FR.
Your portable media player may need a special adapter from the manufacturer to be able to play video on the ADV38FR. Check the owner’s
manual supplied with your portable media player to see if one is available.
Press the units S (source) button until the screen displays GAMES.
The GAME selection is controlled by wireless game controller.
Note:
Note:
AV1 sources are available only if pre-installed during your video product installation.
VOD108FR
Harness and FLO TV Module Harness and FLO TV Module are connected
This function control is available when the overhead unit is used with an optional
plug in FLO TV FLO TV.ress the source button until
the screen displays FLO TV. For specific instructions refer to Appendix A ,FLO TV.
5

The Game Controller transmits to the VOD108FR with two
infrared
transmitters located on the front of the Game Controller.
The Game Controller must be pointed toward the unit for
correct operation.
Press the source button on the remote control or the unit until
USING THE WIRELESS GAME CONTROLLER
1. Install two AAA batteries in the Game Controller. Observe the
correct polarity.
2. Use the ON/OFF selector switch to turn on the Game
Controller. A list of ten games will be displayed.
3. Use the A button (page up) or B button (page down) to display
the three pages of games (1-10, 11-20, 21-30). Then use the
direction buttons to move the arrow to the desired game. Press
Start to select the game.
4. Press Start to begin the game. Press Start again at any time to
pause the game.
5. Press RESET to return to the game list.
6. Use the ON/OFF selector switch to turn off the Game
Controller after use.

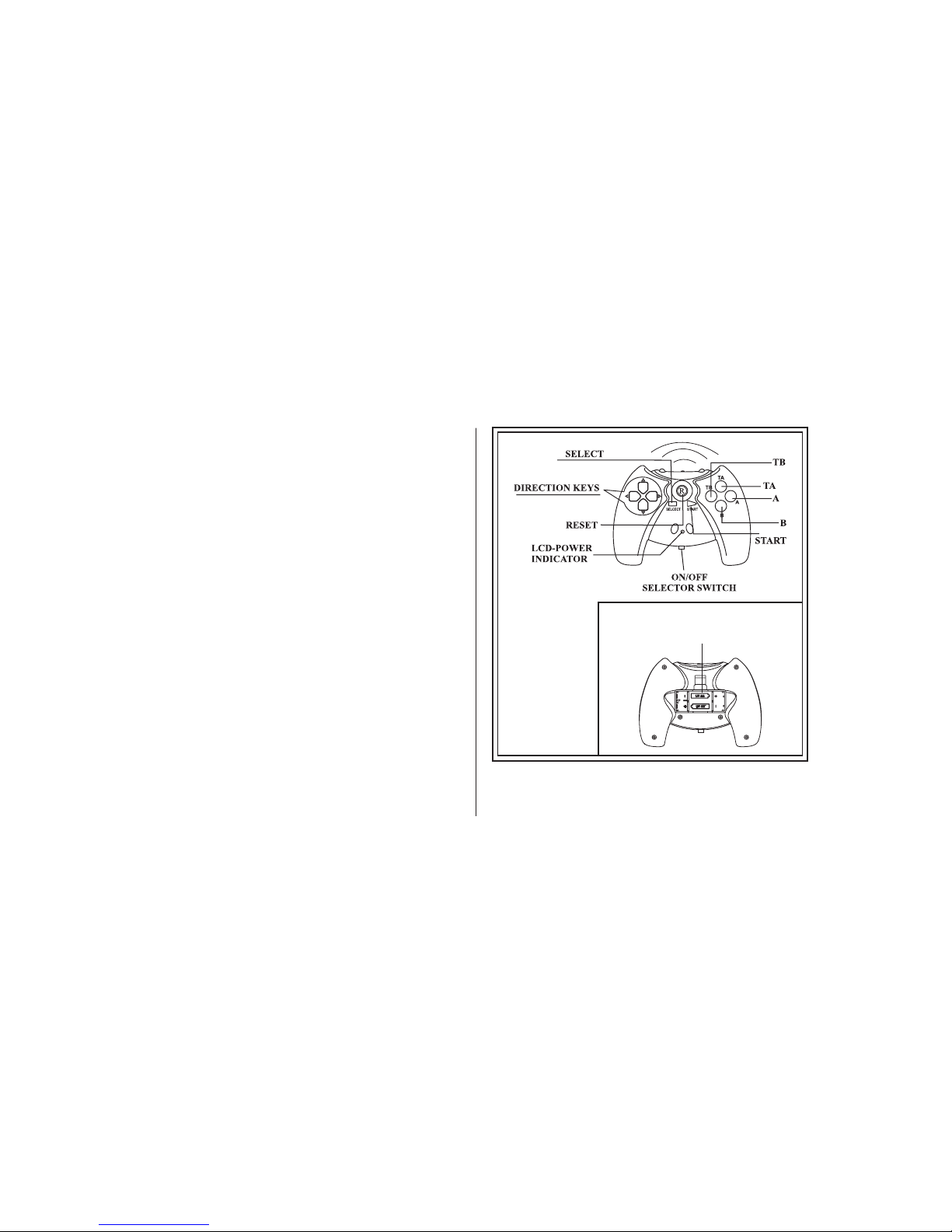

GAME CONTROLLER FUNCTIONAL DESCRIPTION
Bottom Side of Game Controller
Battery case
6

Battery Installation
Before attempting to operate your Remote Control, install the
batteries as described below.
1) Turn the Remote Control face down. Using your finger, slide
the battery cover off in the direction of the arrow.
2)
3) Align the cover tabs with the remote control and slide the
cover until it locks.
The remote control will operate the VOD108FR It is not a universal
remote control and will not control equipment from other
Install Two “AAA” batteries. Make sure that proper polarity
(+ or -) is observed.
manufacturers.
7
MAIN FUNCTION OPERATION
REMOTE CONTROL OPERATION
POWER
SOURCE
VOLUME
FMM
ON/OFF
FMM
SELECT
IRT
ON/OFF
DISPLAY RETURN MUTE PIX
MONITOR SELECT
M1
12
5
8
4
7
0
3
6
9
FLO
M2
DVD
OK
MENU
REPEAT
SETUP
ZOOMAUDIO
SUBTITLE A-B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
36
EJECT
DVD
SOURCE
SYSTEM
MENU
MODE
35

8
*
**
***
1. POWER Button*
2. MONITOR SELECT Button
M1 Button –
M2 Button** –
3. FLO TV Button ***
4. DVD Mode Select Button
5. SOURCE Button*
6. FMM ON/OFF Button
7. FMM SELECT Button*
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9
H10 CH11 CH12 CH13 CH14 CH15 CH16
Function control is available on the unit and the Remote Control.
Function not available in this model.
FLO TV function only available when optional FLO TV module is installed.
Press this button to turn the unit ON and OFF.
Sets the remote control code to allow control of the unit set to M1 mode.
Sets the remote control code to allow control of the unit set to M2 mode.
Press this button when playing DVDs. Switches certain function keys on the remote control for DVD functions.
Each time the button is pressed, the unit will select various sources in the following sequence:( ).
Turns the FM Modulator on/off.
Select the wireless FM Modulator Frequency:
( 88.1MHz, 88.3MHz, 88.5MHz, 88.7MHz, 88.9MHz, 89.1MHz, 89.3MHz, 89.5MHz,
89.7MHz, C 89.9MHz, 90.1MHz, 90.3MHz, 90.5MHz, 90.7MHz, 90.9MHz, 91.1MHz).
Note: Refer to Appendix A FLO TV for FLO TV operating instructions..
DVD/USB, AV1/FLO TV, AUX and GAME
Press this button to access the FLO TV mode. Also switches the function keys on the remote control to correspond to FLO TV functions.

9
8. IRT ON/OFF Button
9. DISPLAY Button
10. RETURN Button
11. SYSTEM MENU Button
12. BACK Button ***
13. CURSOR Button ( ) ***
14. OK Button (ENTER)*
Turns the Infrared Transmitter ON or OFF for IR Wireless Headphones.
Press to display the current disc information while the disc is playing. Press the cursor ( ) buttons to select the Title or Chapter. For
Title/Chapter selection use the numeric buttons to enter the desired Title Chapter selection.
Press for the disc root menu. Pressthe button again to resume to disc playback.
Allow the user to access the system menu. Press cursor ( ) buttons to select desired screen mode, FMM frequency, OSD language and
source default during power up.
When in FLO TV mode takes the user back one screen when in the Menu, Show Information, Show Description, or Guide. Path ends at full
screen TV.
Use these buttons to access menu selections on the screen in DVD mode. Use these buttons for channel changing (up/down),
navigating menus and selecting items in FLO TV mode.
Used to implement a selected setting or menu option.
pq
pq
pqtu

10
15. MENU / SETTINGS Button
a.) MENU Button
b.) SETTINGS Button ( ) ***
16. REPEAT Button
17. AUDIO Button
18. SUBTITLE Button
19. STOP Button ( )*
20. PREVIOUS Button ( )
21. SCAN BACKWARD Button ( )
Pressing the MENU button in DVD mode will cause the DVD root menu to be displayed. When using the USB device, pressing the MENU button
will cause the root menu to be displayed. Pressing the MENU button while listening to MP3 files has no effect as the operation is prohibited.
Allows the user to repeat a selected title, chapter, or track.
Press to display and selectAudio language in DVD mode. Each time you press the button, the language changes.
Press to display and select the subtitle language in DVD mode. Each time you press the button, the subtitle language changes.
Press the STOP button once to stop playback. (Playback will resume from the point it is stopped).
Press the STOP button twice to stop playback. (Playback will resume from the beginning of the disc).
Press to return to the previous chapter or track.
Press to search in a backward direction. Press repeatedly to change the search speed from 2, 4, 8, 16 times the normal speed.
Note:
Note:
Note:
Pressing the FLO TV button will access the FLO TV mode and disable the DVD and USB functions. To return to Dvd control functions
press the DVD button..
When in FLO TV mode the Settings button allows user to toggle the FLO TV settings menu on/off.
The available languages vary from disc to disc.
The type and number of languages for subtitle vary from disc to disc.
<
9
7

22. PAUSE Button ( )
23. PLAY Button*
24. SCAN FORWARD Button ( )
25. NEXT Button ( )
26. A-B Button
27. ZOOM Button
II
Press to pause playback. Pressing the PAUSE button again or pressing the PLAY Button will resume normal playback.
Press to activate the play mode while a disc is loaded in the disc compartment.
Press to search in a forward direction. Press repeatedly to change the search Speed from 2, 4, 8, 16 times the normal speed.
Press to skip to the next chapter or track.
Allow user to repeat disc playback from point A to point B.
Once Repeat A- Mark the beginning of the section to repeat (Set point A)
Twice Repeat A-B Mark the end of the section to repeat (Set point B)
3 Times AB Off Cancel the A-B repeat function
Press this button to enlarge the picture when playing a DVD disc.
Once Enlarge the picture 2 times of the original size
Twice Enlarge the picture 3 times of the original size
3 times Enlarge the picture 4 times of the original size
4 times Picture is returned to original size
8
:
Press A-B button On-Screen Display DVD Player
Press ZOOM button DVD player perform
11

28. MODE** / SETUP Button
a.) MODE Button **
b.) SETUP Button
29. INFORMATION Button ***
30. CHANNEL GUIDE Button ***
31. MUTE Button
32. PIX Button (Picture Select)Button
33. VOLUME DOWN (-) or UP (+) Button
When in FLO TV mode pressing the MODE button toggles between FLO TV and an auxiliary A/V source attached to the FLO TV
module. (
When in DVD mode pressing the SETUP button will display the Setup Menu which allows the user to change the DVD player options such
as OSD Language, Video, Rating etc. Refer to the settings and adjustment section for more information.
()
Pressing this button displays the Channel Info bar and the Program Description. When in FLO TV mode pressing the button opens the
Channel Info bar. The second button press while Channel Info bar is displayed will provide program information. To return to the FLO
TV program press the button again.
()
When in FLO TV mode pressing this button allows the user to turn the Channel Guide on and off. The Channel Guide opens with the
current channel and show title highlighted.
Press this button to mute the audio for wireless FMM, IR headphones and wired headphones.
Pressing the button again restores the sound to the previously set level.
Each time this button is pressed, the on screen picture adjustment displays the “adjustment bar” for BRIGHTNESS, CONTRAST, COLOR,
TINT or RESET. Once the desired adjustment bar is displayed, use the VOLUME (+) / VOLUME (-) button to adjust the setting. The display will
automatically turn off if no adjustments are made within 6 seconds.
Press to decrease or increase the volume of the wired headphones. Press to decrease or increase the level of the picture settings.
The settings are available after the picture select button is pressed.
NOTE: your system may not have an auxiliary source).
12

34. NUMBER Buttons
***
35. DVD Source Button
36. EJECT ( )*
When DVD mode these buttons allow the user to enter numbers 0 to 9 for selection of selection of CD tracks, DVD chapters and password.
When FLO TV mode these buttons allow the user to select favorite channels and for PIN entry for parental controls.
This button is only active when remote control is in DVD mode. Each time the button is pressed one of the sources (DVD or USB) will
be selected. If the USB is not plugged in, the unit it will remain on DVD Source. Plug in a USB memory device and press to change
source from DVD to USB.
This button is used to eject the disc.

13

MENU ADJUSTMENT
The System Menu Contains features and options that let you customize your system to change the screen mode display, OSD language
and source default.
1) Press the SYSTEM MENU button on the remote, the main page of the system menu will appear on screen.
2) Use the cursor buttons or to select the desired item in the main page and press the ENTER button to select.
3) The sub menu will appear on screen.
4) Use the cursor buttons or to select an item in the sub menu and then press the ENTER button to select.
5) Press the System Menu button to exit System Menu.
When watching program, the picture quality can be adjusted to suit individual preferences.
1) Each time this button is pressed, the on screen picture adjustment displays the “adjustment bar ” for
or
2) Once the desired adjustment bar is displayed, use the Volume (+) / Volume (-) button to adjust the setting. The display will automatically
turn off if no adjustments are made within 6 seconds, or is any other button is pressed.
3) Press the button four times to select RESET, then press either Volume (-) or the Volume (+) button on the remote or the main unit.
All of the picture settings ( and ) will return to the factory setting.
pq
pq
q
Note: System Menu can be controlled via Remote Control only. (Items selected in the menu will have a green background)
PICTURE CONTROL SELECT
BRIGHTNESS, CONTRAST,
COLOR, TINT RESET.
BRIGHTNESS, CONTRAST, COLOR TINT
14
BRIGHTNESS
CONTRAST
COLOR
TINT
RESET
SYSTEM MENU
SCREEN MODE
OSD LANGUAGE
SOURCE DEFAULT DVD
PICTURE CONTROL
FMM
PICTURE CONTROL

FMM SELECT
OSD LANGUAGE
FMM ON/OFF options - Turns the FM Modulator on or off.
FMM SELECT option - Selects the wireless FM Modulator Frequency (CH1 88.1MHz, CH2 88.3MHz, CH3 88.5MHz, CH4 88.7MHz, CH5
88.9MHz, CH6 89.1MHz, CH7 89.3MHz, CH8 89.5MHz, CH9 89.7MHz, CH10 89.9MHz, CH11 90.1MHz, CH12
90.3MHz, CH13 90.5MHz, CH14 90.7MHz, Ch15 90.9MHz, CH16 91.1MHz)
This allows the user to select the language for the on-screen display.
The user can either select English, Spanish, French, German for the OSD language.
15
OSD LANGUAGE
ENGLISH
SPANISH
FRENCH
GERMAN
SYSTEM MENU
OSD LANGUAGE
SOURCE DEFAULT DVD
SCREEN MODE
PICTURE CONTROL
FMM
FMM ON
FMM OFF
FMM SELECT
SYSTEM MENU
OSD LANGUAGE
SOURCE DEFAULT DVD
SCREEN MODE
PICTURE CONTROL
FMM
FMM

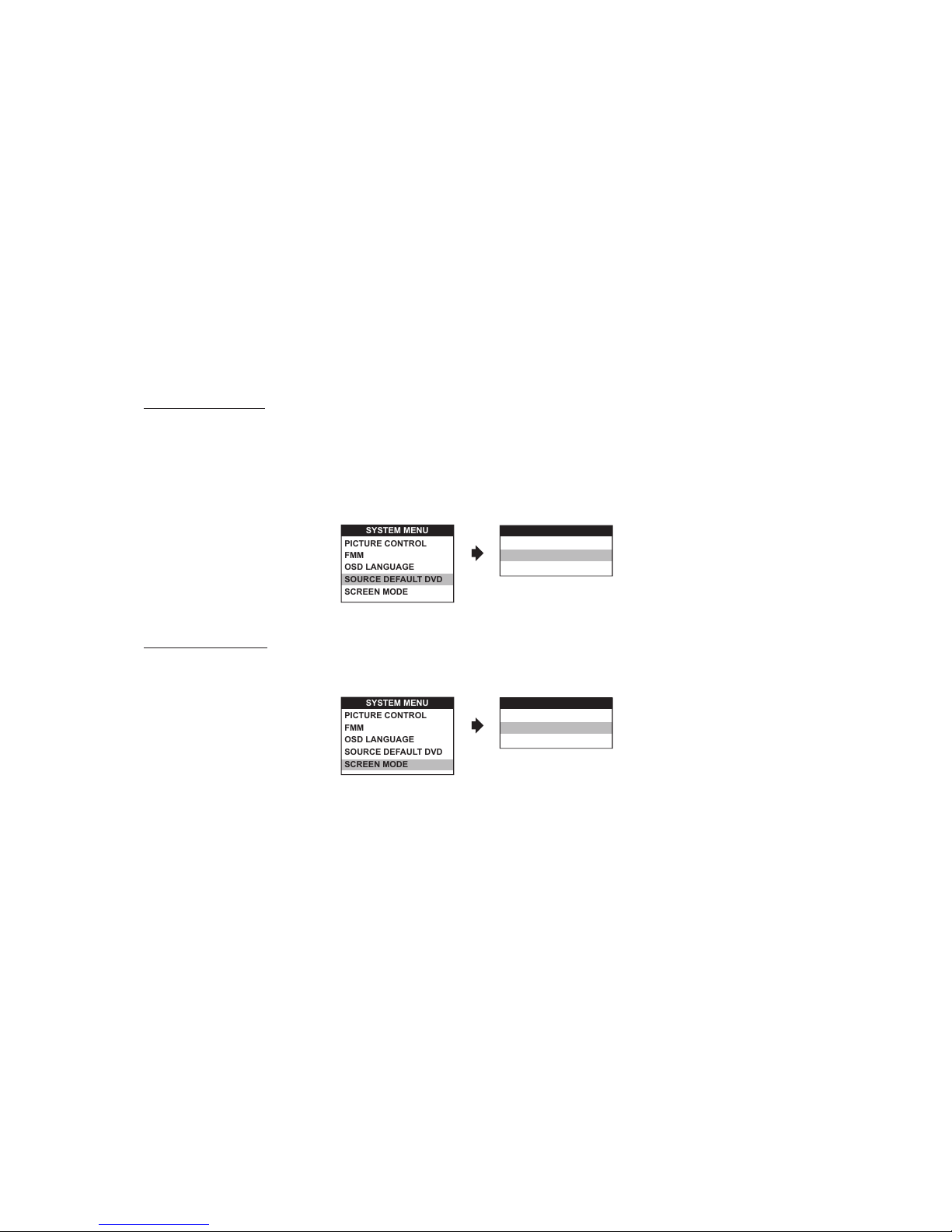

SOURCE DEFAULT DVD
SCREEN MODE SELECT
This allows the user to set the system default source to DVD (via System Menu).
If selected default source is set to DVD every time the unit’s power is cycled with the source set to something other then DVD, the unit will
power up and automatically switch the source over to DVD.
Unit will be set to Last Memory on as the default mode of operation.
• Selection of Source default can only be made from within the system menu.
This allows the user to change the screen format (aspect ratio 4:3, 16:9).
To select the screen aspect ratio format, highlight SCREEN MODE and press the ENTER button to access the submenu. Then press the
Up or down cursor buttons ( or ) to select from 4:3 or 16:9. Press ENTER button to confirm the setting.
Note:
•
•
pq
SOURCE DEFAULT DVD
ON
OFF
SYSTEM MENU
OSD LANGUAGE
SOURCE DEFAULT DVD
SCREEN MODE
PICTURE CONTROL
FMM
SYSTEM MENU
OSD LANGUAGE
SOURCE DEFAULT DVD
SCREEN MODE
PICTURE CONTROL
FMM
4:3
16:9
16
SCREEN MODE
