Audiovox VBP5000 User manual

VBP5000
VIDEO IN A BAG SYSTEM WITH
5.6" LCD MONITOR VCP & DVD PLAYER

A. INTRODUCTION
Thank you for selecting the VBP5000 “Video in a Bag” System.
The system's main features include a 5.6" Liquid Crystal Dis-
play (LCD) Monitor Video Cassette Payer (VCP) and a DVD
Player. The VBP5000 utilizes state of the art electronics and is
designed for use in Vehicles, Hotels, the Office and Home. The
“Video in a Bag” System is constructed to provide years of reli-
able, trouble-free service. The system is compact so that you
can take it with you anywhere and is designed for quick and easy
installation. The LCD monitor is detachable and can be utilized
and stored separately from the main unit. Two additional moni-
tors can be purchased and added to the system setup* allowing
you to utilize three monitors at once (two external and one at-
tached). The connection of the additional monitor is plug and
play.
*NOTE: The AC Adaptor will only support Two Monitors.
Please read the entire instruction manual supplied with this prod-
uct prior to operation. The documentation will assist you in in-
stalling the system properly to obtain the best equipment perfor-
mance. All documentation should be stored for later use.
SAFETY PRECAUTION
For safety reasons, when changing video media, it is recommended
that the vehicle is not in motion, and that you do not allow children to
unfasten seat-belts to change video media or make any adjust-
ments to the system. Enjoy your entertainment system but always
remember-safety of all passengers remains the number one prior-
ity.

IMPORTANT NOTICE
It is unlawful in most jurisdictions for a person to drive a motor
vehicle which is equipped with a television viewer or screen that is
located in the motor vehicle at any point forward of the back of the
driver’s seat, or that is visible, directly or indirectly, to the driver
while operating the vehicle. In the interest of safety, this system
should never be installed where it will be visible, directly or indi-
rectly, by the operator of the motor vehicle.

B. CAUTIONS AND WARNINGS
The Monitor is best kept in the fully closed position when it is at-
tached to the VCP/DVD Player and not in use. Before putting on
headphones always adjust the volume setting to the lowest posi-
tion. Do not apply pressure to the screen. Caution children to
avoid touching or scratching the screen, as it may become dirty or
damaged.
1. PLACEMENT
To prevent fire or electric shock, do not expose this appliance to
rain or moisture. Do not place the set on an unstable cart, stand,
bracket or table to prevent it from falling. Keep the unit away from
strong magnets, heat sources, direct sunlight, excessive dust.
If the unit is brought directly from a cold to a warm location, mois-
ture may condense inside the unit. When you move it from a cold
to a warm location, wait for about one hour before operating the
unit, or remove the disc and leave the unit turned on until the mois-
ture evaporates.
2. INSTALLATION
Ensure that the LCD Monitor, VCP, DVD Player, Bag and Pouch
are installed in accordance with the instructions and illustrations
provided in this manual. When the main unit is in the bag, ensure
the inside Velcro Strap of the bag is fastened to prevent the unit
from falling out of the bag (Refer to Figure 1). The “S” hooks and
all straps must be fastened correctly to secure the system in the
vehicle in the event of an accident. Operate the “Video in a Bag”
System with the bag open to ensure proper ventilation of the
VBP5000 system (Monitor/VCP/DVD Player). The system is in-
tended to be mounted for rear seat viewing only. Do not use the
system in the front seat while operating your vehicle.
1

3. POWER
This system MUST be powered from the type of switched (Acces-
sory) power indicated on the marking label (i.e. not directly from
the car battery). Power should be applied to the unit when the
ignition key is in the Run and/or Accessory positions. To prevent
battery discharge, disconnect the “Video in a Bag” System jack
from the cigarette lighter socket when the unit is not in use. Use
only the supplied power cable matching this set to avoid electric
hazards. Always disconnect the power source first and then the
jack from the system.
4. OBJECT AND LIQUID
Do not push objects of any kind into the system through openings;
do not spill or spray liquid of any kind on or in the system (this may
result in a fire or electric shock). Do not place anything heavy on
the unit. To ensure proper ventilation and proper operation, never
cover or block the slots and openings with a cloth or other material.
5. DISASSEMBLE
Do not attempt to disassemble the cabinet. There is a risk of elec-
tric shock and/or exposure to Laser Radiation. Contact qualified
service personnel if your system is in need of repair.
6. CLEANING UNIT
When cleaning, make sure the system is unplugged from the power
source. Do not use any solvents or cleaning materials (liquid, abra-
sive or aerosol) when cleaning the Video Monitor doing so may
scratch the screen. Use only a lightly dampened lint free cloth to
wipe the screen if it is dirty.
7. DISC
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction.
Do not stick paper, tape or glue on the disc. Do not expose the disc
2

to direct sunlight or heat sources such as hot air ducts. Do not
touch the surface of disc. Handle the disc by its edge. Clean the
disc by wiping the disc from the center out with a cleaning cloth.
Remove the disc from the unit and store it in its case after playing.
Some playback operations of discs may be intentionally fixed by
software producers. Since this unit plays discs according to the
disc contents the software producers designed, some playback
features may not be available. Also refer to the instructions sup-
plied with the discs.
8. VIDEO CASSETTE
Do not force a cassette into the compartment when the power
cord is unplugged. An inverted cassette cannot be inserted. After
playing a videocassette, remove it from the player. Store video-
cassettes in the sleeves or cases.
9. CLEANING VIDEO HEAD
To prevent video head clogging, use only good quality VHS tapes
and discard worn tapes. If the heads become dirty over a period of
time during normal operation of the VCP, the picture will be snowy
and the auto-tracking will not adjust the picture correctly. We rec-
ommend using cleaning cartridges sparingly to restore normal pic-
ture.
3

C. CONTENTS
1. 1 x Detachable Monitor & VCP & DVD Player Combo
2. 1 x DIN Cable
3. 1 x AC to DC Adapter
4. 1 x Cigarette Lighter Adapter
5. 1 x Remote Control with 2 AAA Batteries
6. 1 x Pouch
7. 1 x Mounting Bag with 4 Straps
8. 1 x Storage Bag
9. 1 x Instruction Manual
D. INDOOR PLACEMENT (IN AHOTEL, OFFICE, HOME, ETC)
To remove the VBP5000 from the protective mounting/storage
bag, place the open end of the unit face down on a flat surface.
Unfasten the Velcro Strap and pull it through the loop. Detach all
cables and slide the bag upward and off of the unit. Refer to
Figure 1.
Figure 1
Figure 2
4
a b cef
d
Velcro Strap Bracket for Mounting Bag
VBP5000 Bottom View

Refer to the Figure 2. There are different ways to place the main unit,
monitor or combo on a table or other level surface. You can detach*
the monitor from the main unit by depressing the button below the
screen with one hand and removing the monitor with the other hand.
You can insert the monitor into the slot on the main unit with the screen
facing either front or back. Adjust the screen for the desired viewing
angle. The placement can be done with or without the unit inside its
mounting bag and pouch.
*NOTE: During the Removal and Reinstallation of the Video Moni-
tor, rotate the monitor and the monitor’s hinged base so that they
are aligned in a straight line. The Video Monitor is inserted into the
slot on the main unit at a 45°.
Figure 3
E. IN-CAR INSTALLATION
NOTE: When used in a vehicle, always keep the VBP5000 fastened
in the mounting bag.
1. BETWEEN TWO SEATS
Figure 4
5
45°
Hinged
Base

6
a. Refer to Figure 4. Take one of the supplied straps from the
storage bag, and connect the latch to the upper side metal ring
on the left side of the mounting bag. Attach the "S" hook to the
same ring after looping the strap around the headrest of the
driver's seat. Repeat this process for the right side (Passenger
Seat).
b. Take another strap and connect the latch to lower metal ring on
the left side of the bag. Attach the "S" hook to the same ring after
looping the strap around the driver's seat rail. Repeat this pro-
cess for the right side. In some vehicles, it may be necessary to
attach the "S" connector to the rail directly, as it may not be long
enough to reach back to the ring.
c. Adjust the straps tightly so that the mounting bag is secured.
d. Swing the monitor upwards and adjust the screen for the de-
sired viewing angle.
Figure 5
e. Refer to Figure 5. The monitor can be detached from the sys-
tem by depressing the button below the screen with one hand
and removing the monitor with the other (Refer to Figure 3). Slide
the monitor into the monitor pouch, feed the bottom flap of the
pouch into the long slot of the monitor, and attach the Velcro
*Optional
Second
Video
Monitor
Part #VBDV56

7
strap to fasten the monitor in the pouch. Then loop the strap of
the pouch around the headrest, and pull the loose end of the
strap while holding the buckle until the pouch is tightly secured.
f. If a second video monitor (optional) is used, remove the addi-
tional monitor and pouch from the storage bag, making sure to
feed the bottom piece of the pouch into the long slot of the moni-
tor and attach the Velcro strap to fasten the monitor in the pouch.
Then loop the strap of the pouch around the headrest and pull
the end of the strap while holding the buckle until the pouch is
tightly secured.

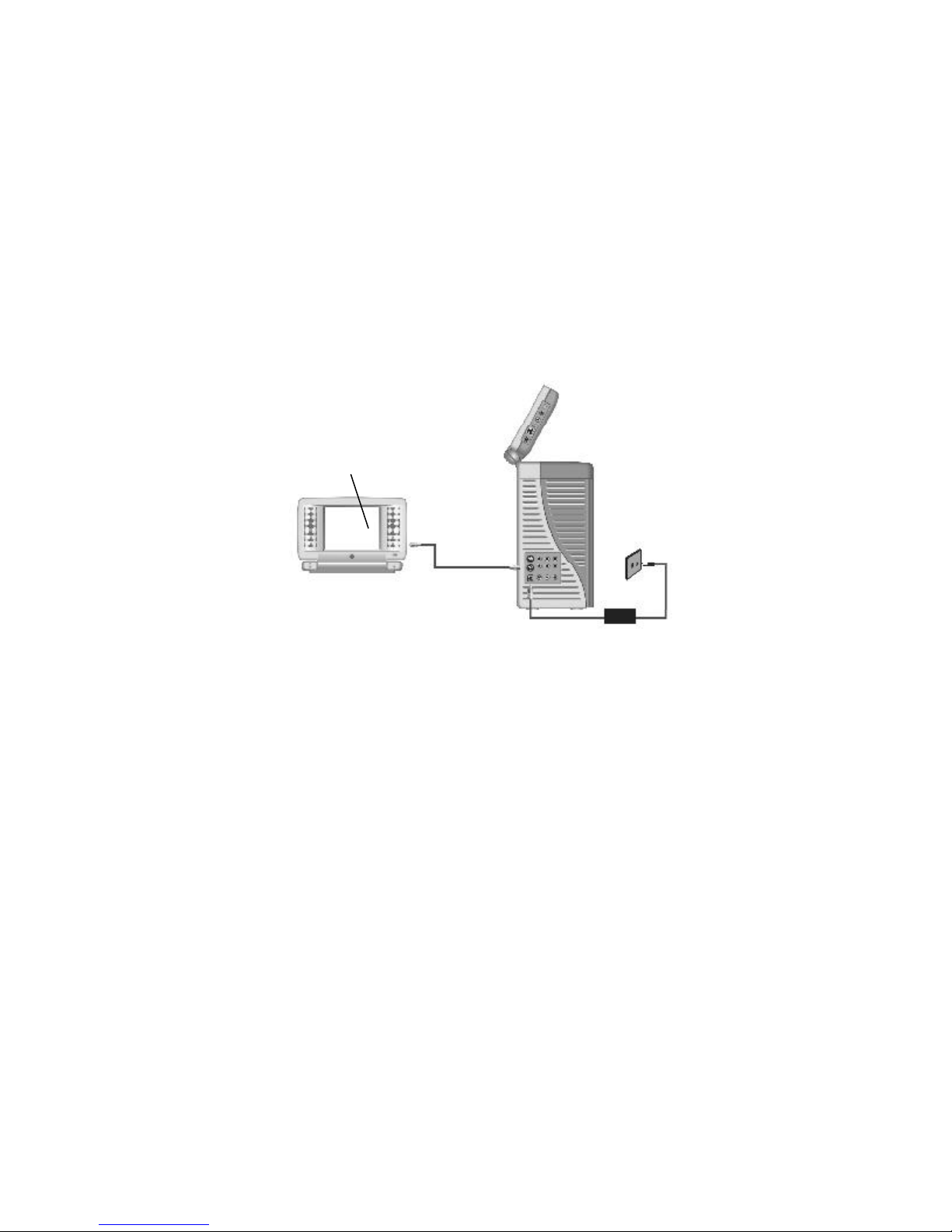

g. Insert one end of the DIN cable into the MONITOR PORT on
the side of the detached monitor, and insert the other end into
the MONITOR PORT on the side of the main unit.

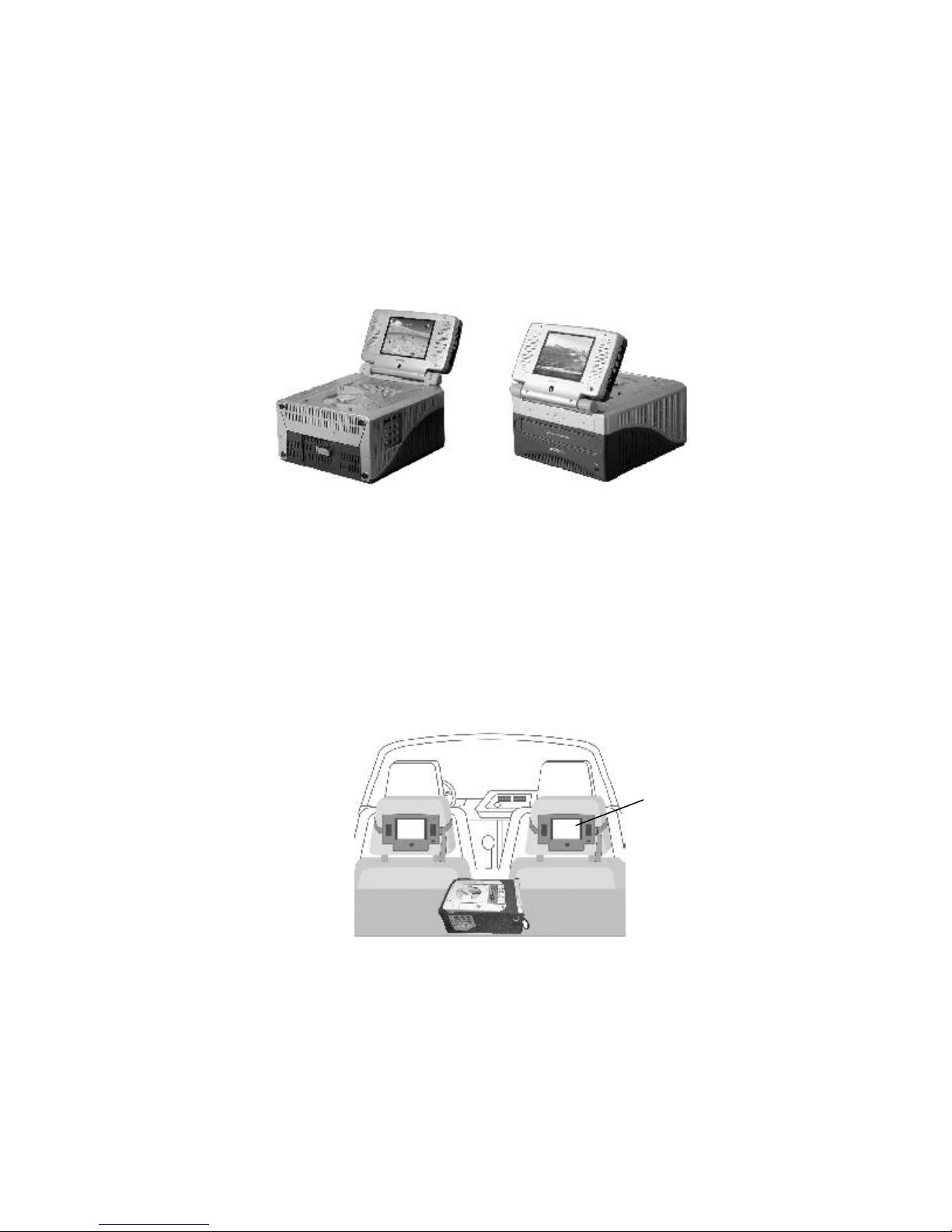

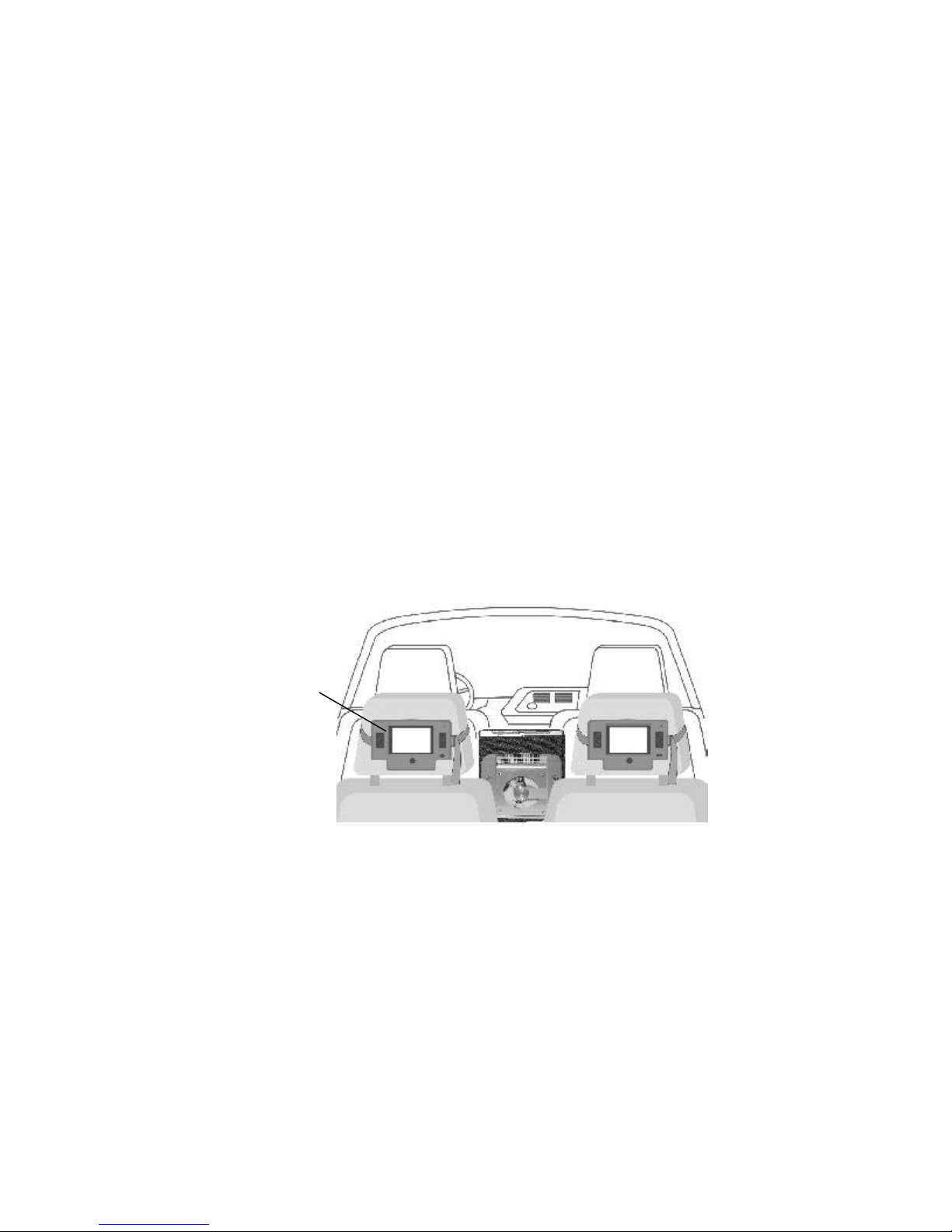

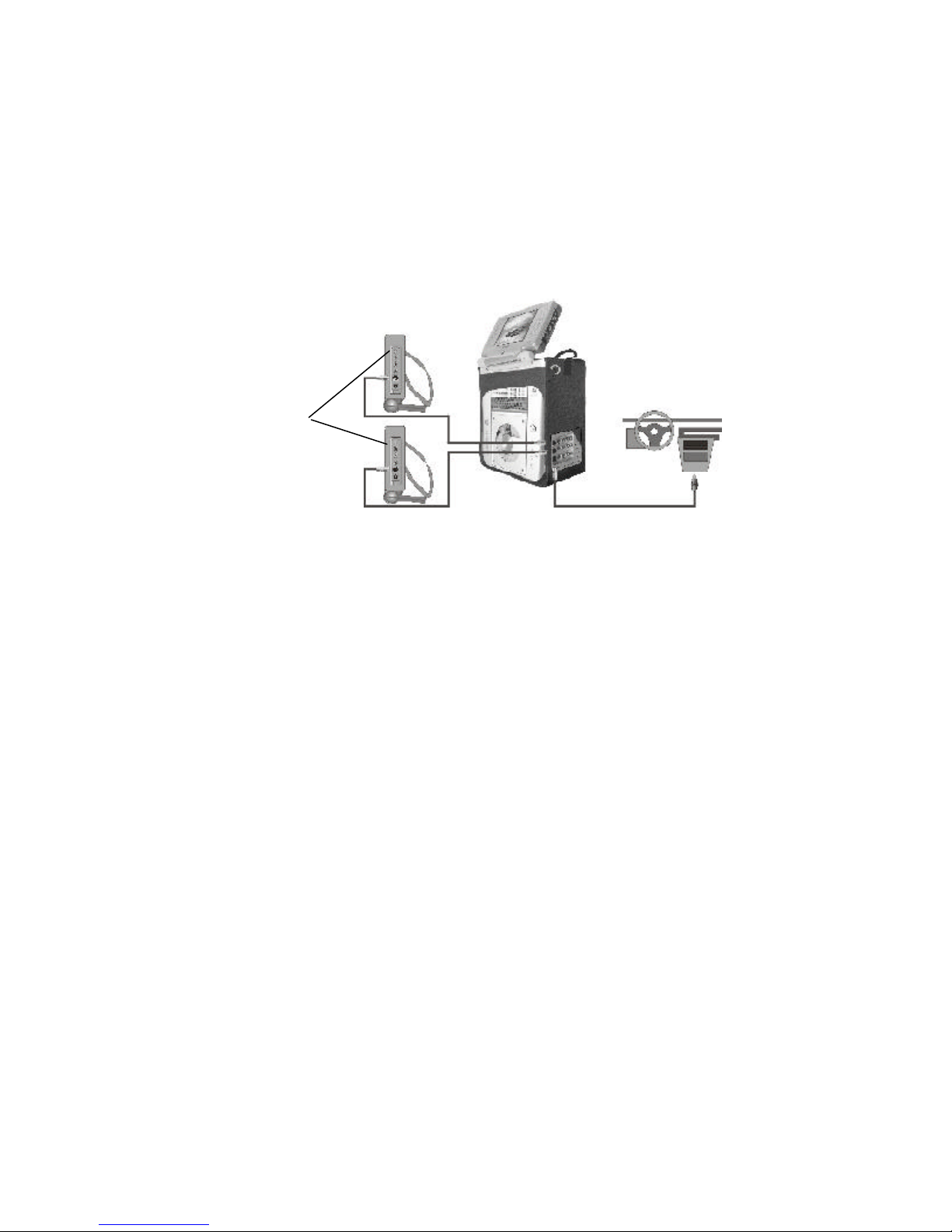

h. Refer to Figure 6. You can contact an AUDIOVOX retailer for
additional monitor(S) Part #VBDV56, and insert it into the slot of the
main unit, or fasten it in the pouch onto the headrest, or just hold it
in your hand and connect it to the main unit with the DIN cable.
*Optional
Second
Video
Monitor
Part #VBDV56
Figure 6

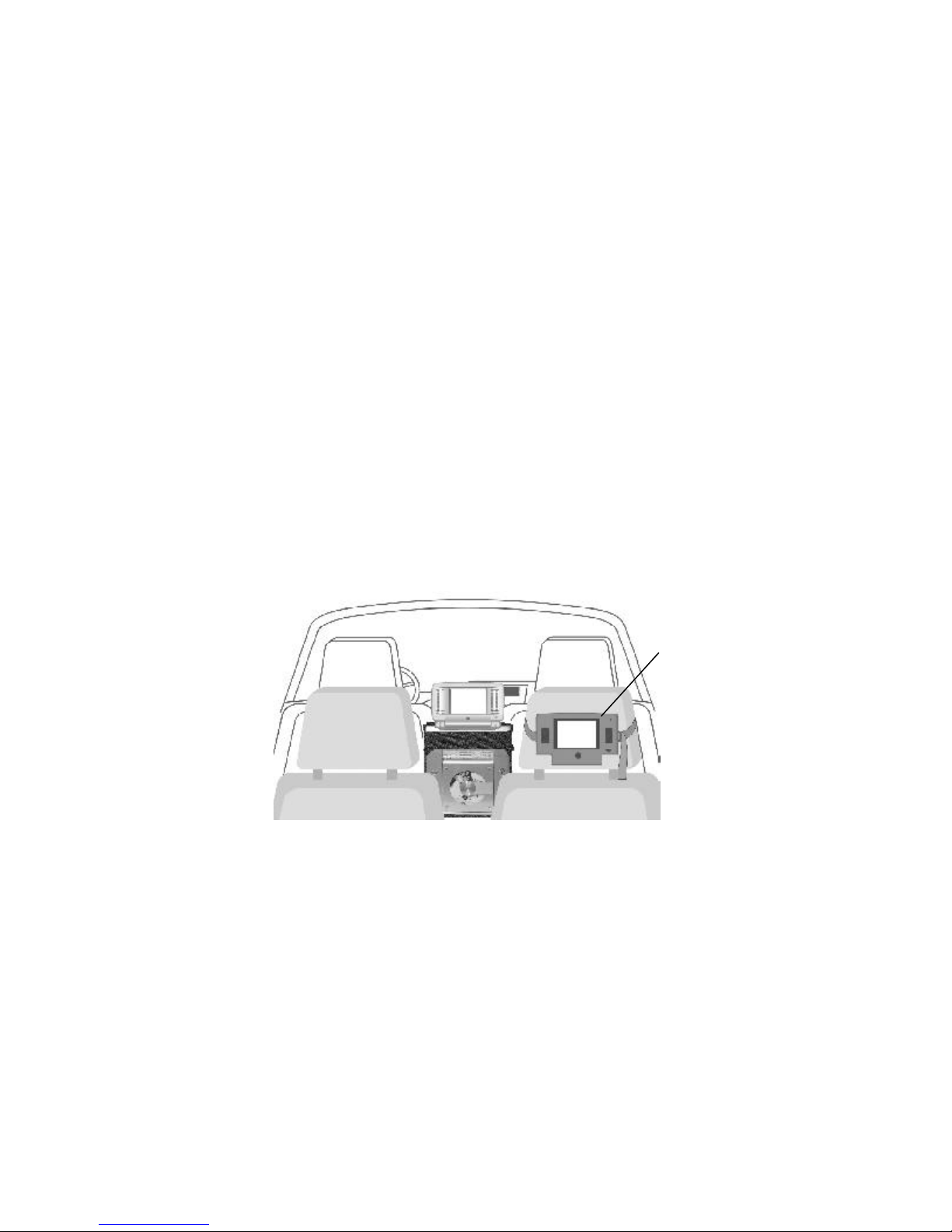

2. ON THE SEAT BACK (Refer to Figure 8)
a. Hang the bag onto the seat back by looping the shoulder strap
of the bag around the headrest of the seat.
b. Take one of the supplied straps from the storage bag, and con-
nect the latch to the lower metal ring on the left side of the
mounting bag. Attach the "S" hook to the same ring after loop-
ing the strap around the seat rail. Repeat this process for the
right side. In some vehicles, it may be necessary to attach the
"S" connector to the rail directly, as it may not be long enough
to reach back to the ring.
c. Adjust the straps tightly so that the mounting bag is secured.
d. Swing the monitor upwards and adjust the screen for the
desired viewing angle.
8
Figure 7

3. On the Back Seat
a. The Monitor can be inserted into the slot with the screen facing
either front (refer to Figure 8a) or rear (refer to Figure 8b). Care-
fully place the system with the DVD facing up on the back seat.
Guide the vehicles safety belt through the short strap sewn on
the bottom of the mounting bag. Then secure and adjust the
safety belt so that the unit is not free to move around. Finally
uncover the attached monitor and adjust the screen for a de-
sired viewing angle.
9
Figure 8
a b
Figure 9
*Optional
Second
Video
Monitor
Part #VBDV56

b. Refer to Figure 9. The monitor can be detached from the sys-
tem by depressing the button below the screen with one hand
and removing the monitor with the other (Refer to Figure 3). Slide
the monitor into the monitor pouch, feed the bottom piece of the
pouch into the long slot of the monitor, and attach the Velcro
strap to fasten the monitor in the pouch. Then loop the strap of
the pouch around the headrest, and pull the end of the strap
while holding the buckle until the pouch is tightly secured.
c. If a second video monitor (optional) is used, remove the
additional monitor and pouch from the storage bag, making
sure to feed the bottom piece of the pouch into the long slot of
the monitor and attach the Velcro strap to fasten the monitor in
the pouch. Then loop the strap of the pouch around the head-
rest and pull the end of the strap while holding the buckle until
the pouch is tightly secured.
d. Insert one end of the DIN cable into the MONITOR PORT on the
side of the detached monitor, and insert the other end into the
MONITOR PORT on the side of the main unit. Repeat this pro-
cess if an optional second monitor is used (2nd DIN cable is
supplied with the optional monitor). Contact an Audiovox’s re-
tailer for an additional monitor, and insert it into the slot of the
main unit, or fasten it in the pouch onto the headrest, or just hold
it in your hand and connect it to the main unit with the DIN cable.
10

F. POWER SUPPLY

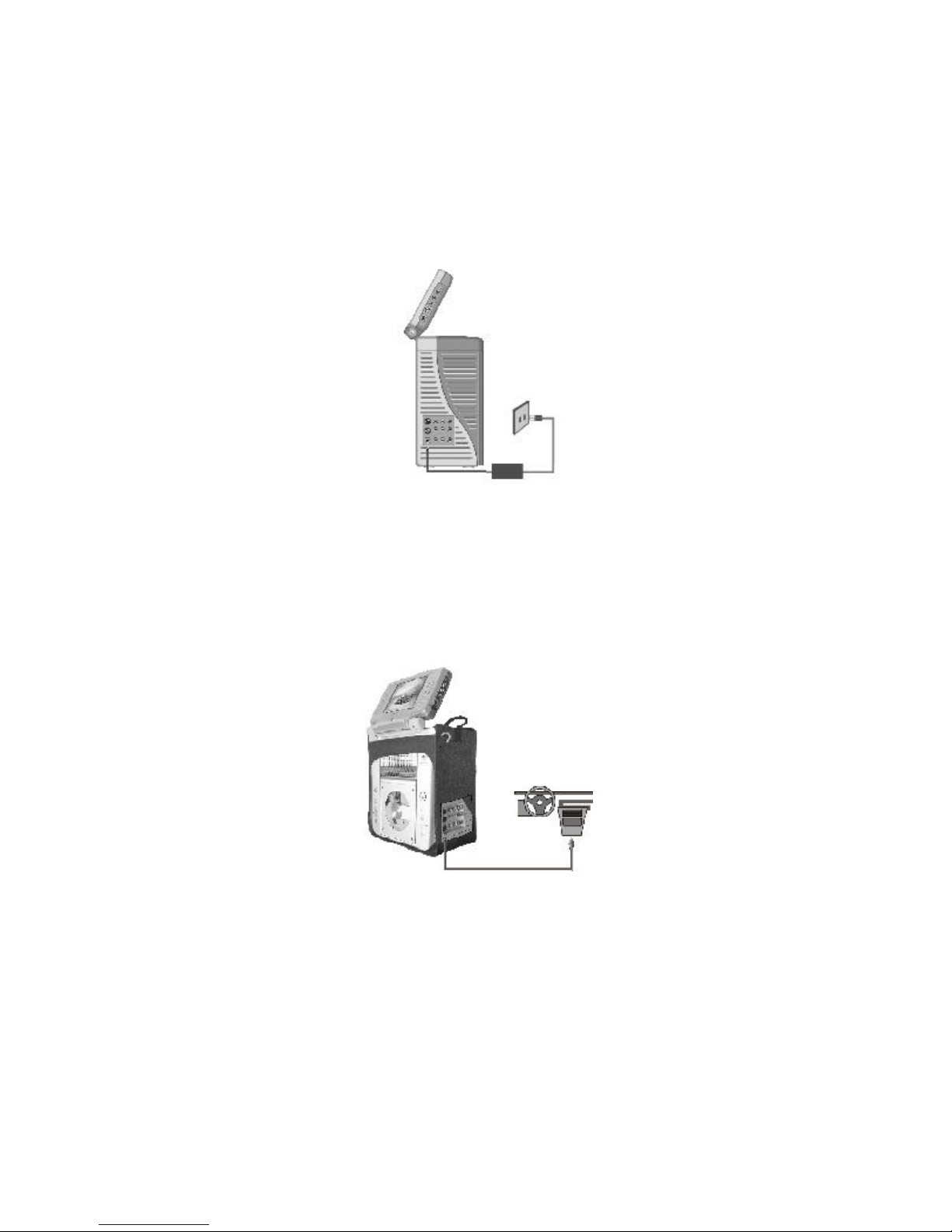

1. Powering the system indoors (Refer to Figure 10)
Figure 10
Take the AC to DC adapter from the storage bag. Plug one end of
the AC to DC adapter into the DC 12V jack on the side of the main
unit, then plug the other end into the 110V AC power receptacle.
2. POWERING THE SYSTEM IN THE VEHICLE (Refer to Figure
11)
Figure 11
Take the cigarette lighter adapter from the storage bag. Plug one
end into the DC 12V jack on the side of the main unit, then plug the
other end into the cigarette lighter socket*.
*NOTE: Always disconnect the VBP5000 when not in use.
11

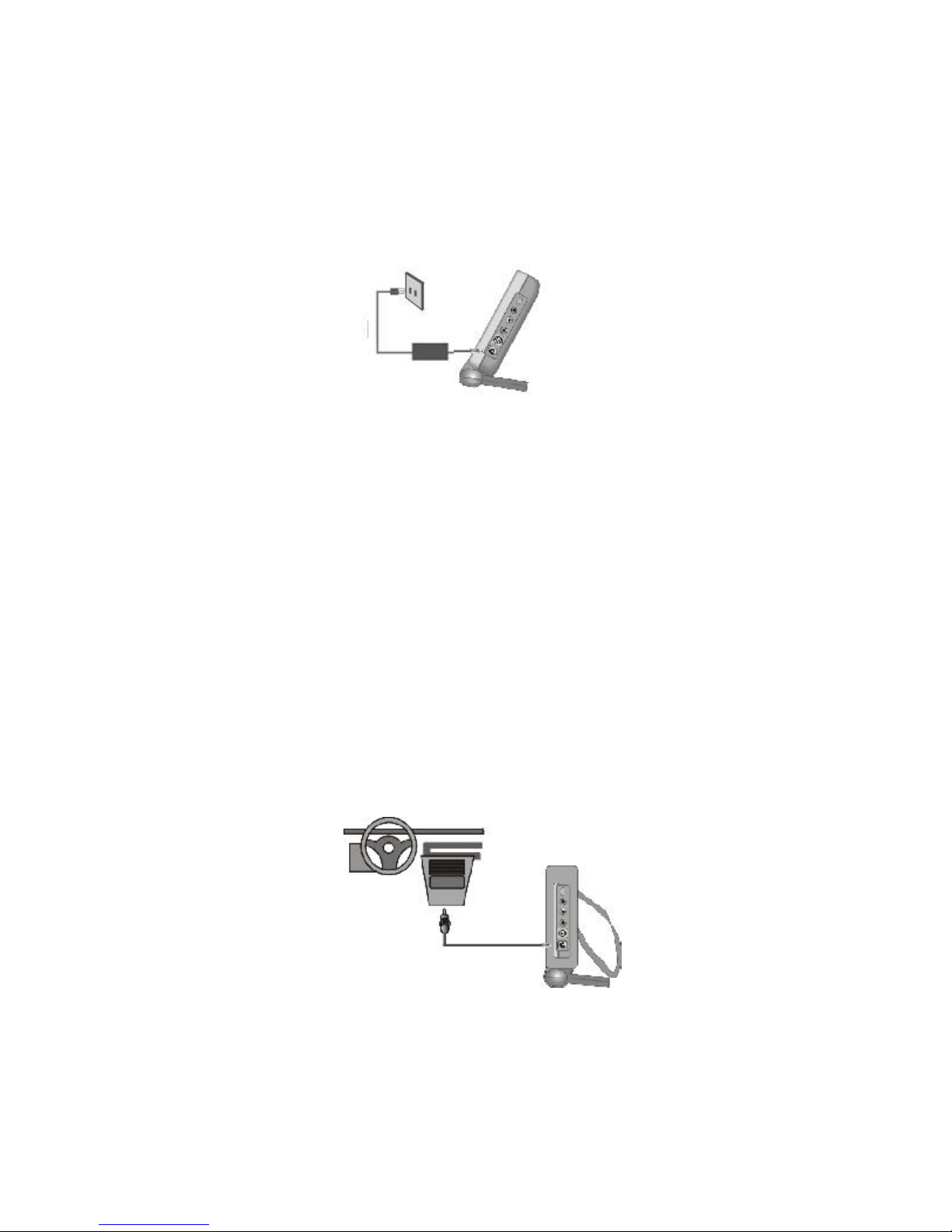

3. POWERING THE DETACHED MONITOR INDOORS (Refer to
Figure 12)
Figure 12
The monitor can be detached from the system by depressing the
button below the screen with one hand and removing the video
monitor*with the other hand.
*NOTE: During the Removal and Reinstallation of the Video Moni-
tor, rotate the monitor and the monitor’s hinged base so that they
are aligned in a straight line. The Video Monitor is inserted into the
slot on the main unit at a 45° (refer to Figure 3 ).
Take the AC to DC adapter from the storage, plug one end into the
DC 12V jack on the side of the monitor, then plug the other end into
the 110V AC power receptacle.
4. POWERING THE DETACHED MONITOR IN THE VEHICLE (Re-
fer to Figure 13)
Figure 13
12

*Optional Second
Video Monitor
Part #VBDV56
Take the cigarette lighter adapter from the storage bag, plug one
end into the DC 12V jack on the side of the monitor, then plug the
other end into the cigarette lighter socket.
NOTE: When the monitor is combined with the main unit DC 12V
power will be supplied from the main unit to the monitor, so there is
no need for another power source to be connected to the DC 12V
jack on the side of the monitor.
Figure 14
5. POWERING THE SYSTEM WITH MULTIPLE MONITORS
(Refer to Figure 14)
1) When the monitor is detached from the main unit, you can con-
nect the PORT on the side of the monitor to either MONITOR 1
port or MONITOR 2 port on the side of the main unit with the sup-
plied DIN cable. When the monitor is connected to the main unit
with the DIN cable, DC 12V power, Audio/Video and IR signals will
all be supplied through the DIN cable to the connected monitor. So
there is no need for another power source to be connected to the
DC 12V jack on the right side of the detached monitor. In this situ-
ation, the AC to DC adapter can drive only two monitors either com-
bined with the main unit or connected to the main unit with the DIN
cable.
13

2) Refer to Figure 15. In the vehicle, the cigarette lighter adapter
can drive up to 3 monitors combined with the main unit and con-
nected to the main unit with the DIN cable.
Figure 15
14
*Optional
Video
Monitors

G. CONTROLS, INDICATORS, AND CONNECTORS

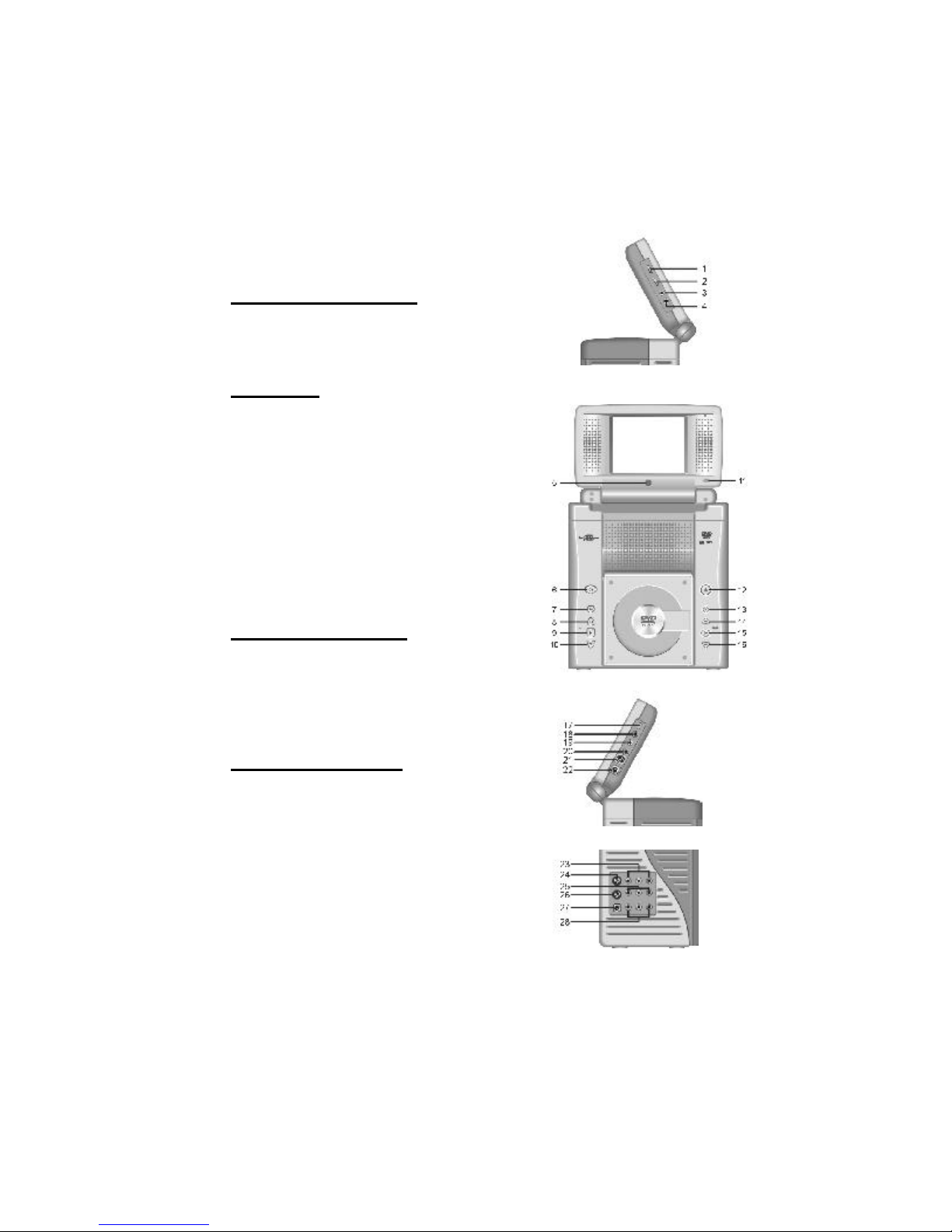

1. UNIT VIEW (Refer to Figure 16)
MONITOR RIGHT SIDE
1) Brightness UP/DOWN Thumbwheel
2) Volume UP/DOWN Thumbwheel
3) Headphone Input # 2
4) Headphone Input # 1
MAIN UNIT
5) REMOTE CONTROL SENSOR
6) MAIN POWER
7) VCP STOP/EJECT Button
8) VCP REWIND Button
9) VCP PLAYButton
10) VCP FAST FORWARD Button
11) DVD/AV and VCP SELECT Switch
12) DVD OPEN Button
13) DVD STOP Button
14) DVD PREVIOUS Button
15) DVD PLAYButton
16) DVD NEXT Button
MONITOR LEFT SIDE
17) POWER ON/OFF BUTTON (Monitor)
18) RIGHT AUDIO IN (Monitor)
19) LEFT AUDIO IN (Monitor)
20) VIDEO IN (Monitor)
21) MONITOR JACK (Input)
22) DC 12V INPUT (Monitor)
MAIN UNIT BOTTOM
23) DVD/AV OUTPUT
24) MONITOR PORT #1 (Output)
25) VCP A/V OUTPUT
26) MONITOR PORT #2 (Output)
27) DC 12V INPUT
28) A/V INPUT
15
Figure 16
Right Side
Bottom Right
Left Side
Front

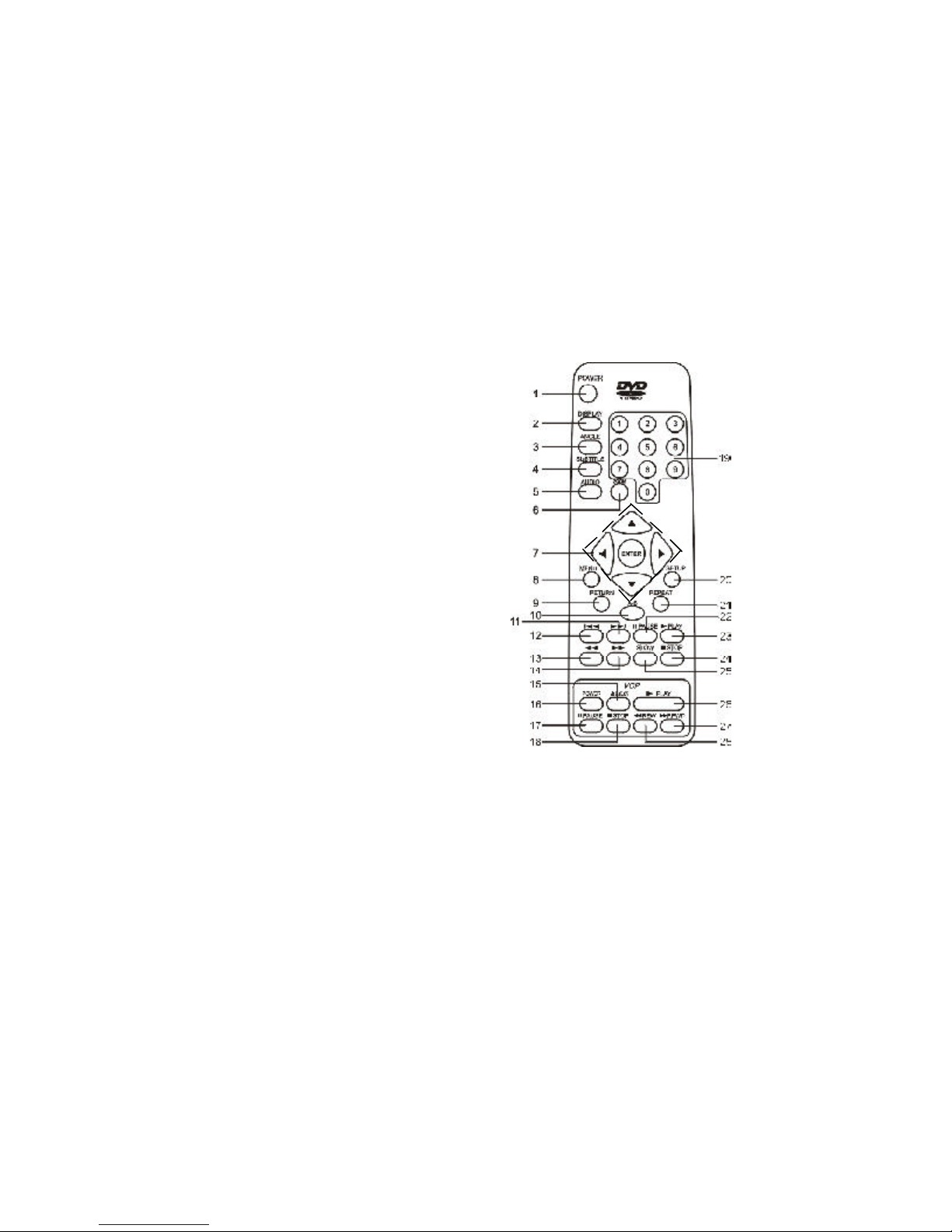

2. REMOTE CONTROL VIEW (Refer to Figure 17)
1) POWER Button
2) DISPLAYButton
3) DVD ANGLE Button
4) DVD SUBTITLE Button
5) DVD AUDIO Button
6) DVD ZOOM Button
7) DVD UP/DOWN/LEFT/RIGHT/
ENTER Buttons
8) DVD MENU Button
9) DVD Return Button
10) DVD A-B Button
11) DVD NEXT Button
12) DVD PREVIOUS Button
13) DVD REVERSE Button
14) DVD FORWARD Button
15) VCP EJECT Button *
16) VCP POWER Button
17) VCP PAUSE Button
18) VCP STOP Button
19) DVD NUMBER Button
20) DVD SETUP Button
21) DVD REPEATButton
22) DVD PAUSE Button
23) DVD PLAYButton
24) DVD STOP Button
25) DVD SLOW Button
26) VCP PLAYButton
27) VCP FAST FORWARD Button
28) VCP REWIND Button
*NOTE: To Eject a tape with the Remote Control, you must
press the Stop button first.
16
Figure 17

17
H. PLAYING ADVD
After connecting power to the unit, momentarily press the ‘Power’
button on the Main Unit, then press the ‘Power’ button on the side of
the Monitor. Press the ‘OPEN’ button on the Main unit to open the
DVD Player, insert a disc and close the DVD Player. The system will
start playing automatically. If the ‘POWER’ button is pressed ‘ON’
when there is already a disc in the unit, the system will automatically
start playback of the disc.
1. BASIC DVD OPERATION
Turns the Main Unit ON and OFF
Selects either DVD, AUX or VCP Playback
Opens the DVD Cover
Starts Playback
Plays DVD at 1/2, 1/4, or 1/8 Times the Normal Play-
back Speed
Still Picture
(1 time) Stops Playback and will resume at the
Present Playback Point when the PLAY button is
pressed again
(2 times) Stops Playback and returns to the beginning
Advances to the Next Chapter, Track or Scene during
playback
Goes back to the preceding chapter, track or
scene during play back
Scans Forward at 2, 4, 6, or 8 times Normal Speed
Scan Backward at 2, 4, 6, or 8 times Normal Speed
Used for Menu Navigation
Execute an Item or Setting
Select an Item or Setting
Return to the previous selection
Display the Root Menu of the disc
Repeat Playback of a Title or Chapter
Repeat a specific portion from point A to point B
of the disc
Display information (Title, Chapter, Track, Time, etc.)
Change the Angles on the scene (if available)
Selects the Subtitle Language and turns it ON/OFF
Select the Audio Language
Enlarge an Image to 1.5, 2, or 4 times the original
Display the Setup Menu to select and set items and
exit the setup menu
POWER.................
DVD/AUX/VCP...
OPEN....................
PLAY.....................
SLOW...................
PAUSE..................
STOP....................
NEXT.....................
PREVIOUS........
FORWARD.........
REVERSE..........
UP/DOWN/
LEFT/RIGHT......
ENTER..............
NUMBERS.........
RETURN............
MENU.....................
REPEAT.............
A-B....................
DISPLAY............
ANGLE....................
SUBTITLE..........
AUDIO...............
ZOOM......................
SETUP.....................
