Audiovox Movies2Go AVXMTGHR1D User manual

AVXMTGHR1D
7” LCD MONITOR
WITH BUILT-IN DVD PLAYER
FOR REAR SEAT ENTERTAINMENT
128-8944B
OPERATION MANUAL / INSTALLATION GUIDE
PUSH

Important Notice
Installation of headrest products require careful planning and preparation. Be extremely careful
of seats that have airbags built into them. Keep wiring away from any air bag wiring (usually
identified by yellow connectors and yellow wire jackets). Damage to air bag wiring can result in
personal injury to vehicle occupants. If you have any questions regarding wire routing or
installation in a vehicle, please contact Audiovox Technical Support at 1-800-225-6074.
When connecting power and ground in a mobile video installation, insure that the ACC wire is
fused at the point where it is connected to the vehicle ACC wiring. Failure to do so can result in
damage to the vehicle if a short circuit develops between the vehicle connection point and the
mobile video product.
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if
the LCD panel or video monitor is used for vehicle information, system control, rear or side
observation or navigation. If the LCD panel or video monitor is used for television reception,
video or DVD play, the LCD panel or video monitor must be installed so that these features will
only function when the vehicle is in “park” or when the vehicle’s parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that operates
when the vehicle is in gear or when the parking is not applied must be installed to the rear of the
driver’s seat where it will not be visible, directly or
indirectly, to be operator of the motor vehicle.
Licensed under one or more of the following patents:
Patent NOS. 7,245,274 , 6,899,365 and 6,678,892

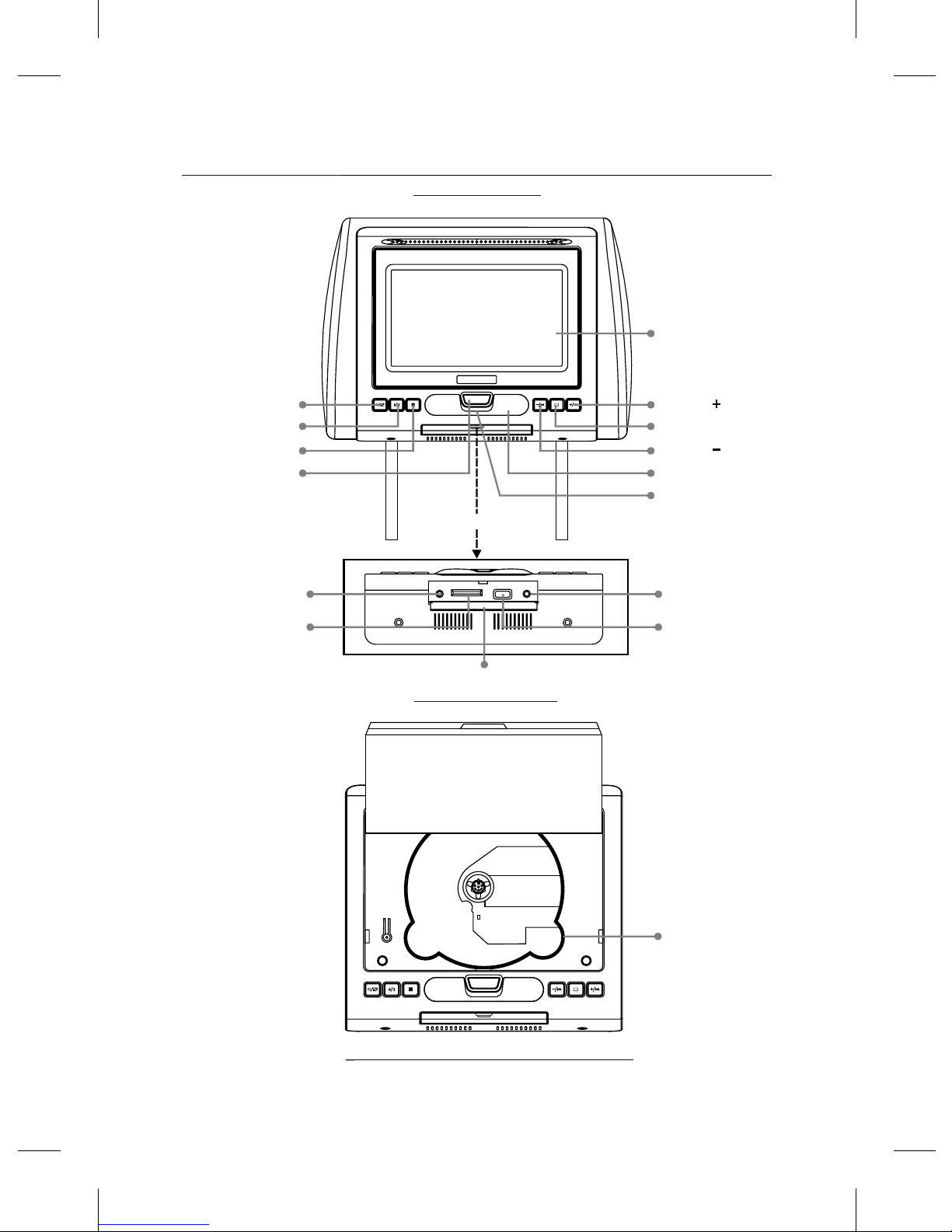

FEATURES
• 7” Digital Thin Film Transistor (TFT) Active Matrix Liquid Crystal Display (LCD) Monitor
• Built-in DVD Player
• Last position memory for DVD player
• Three Audio / Video Source inputs (DVD, AV and AUX)
• USB 2.0 port / SD Card Reader input
• Screen mode selection (4:3, 16:9)
• On Screen Display (OSD) for control of picture quality and functions
• Full function remote control
• Plays DVD, CD and MP3 discs
• IR headphone (optional)
SPECIFICATIONS
Specifications subject to change without notice.
Resolution
Pixels
Operation Temperature
Storage Temperature
Backlit life
Video Display System
Headphone Audio Output
Video Output
Power Source
Dimension (L x W x H)
480x234
336,960
32 ~113º F (0 ~ 45º C)
-4 ~ 149º F (-20 ~ 65º C)
20,000 Hours
NTSC / PAL / AUTO
0.03W @ 32 ohms
1.0Vp-p @ 75 ohms
12 VDC
147mm x 275mm x 200mm
Type TFT Active Matrix LCD
AVXMTGHR1D 3
5.7in x 10.8in x 7.8in

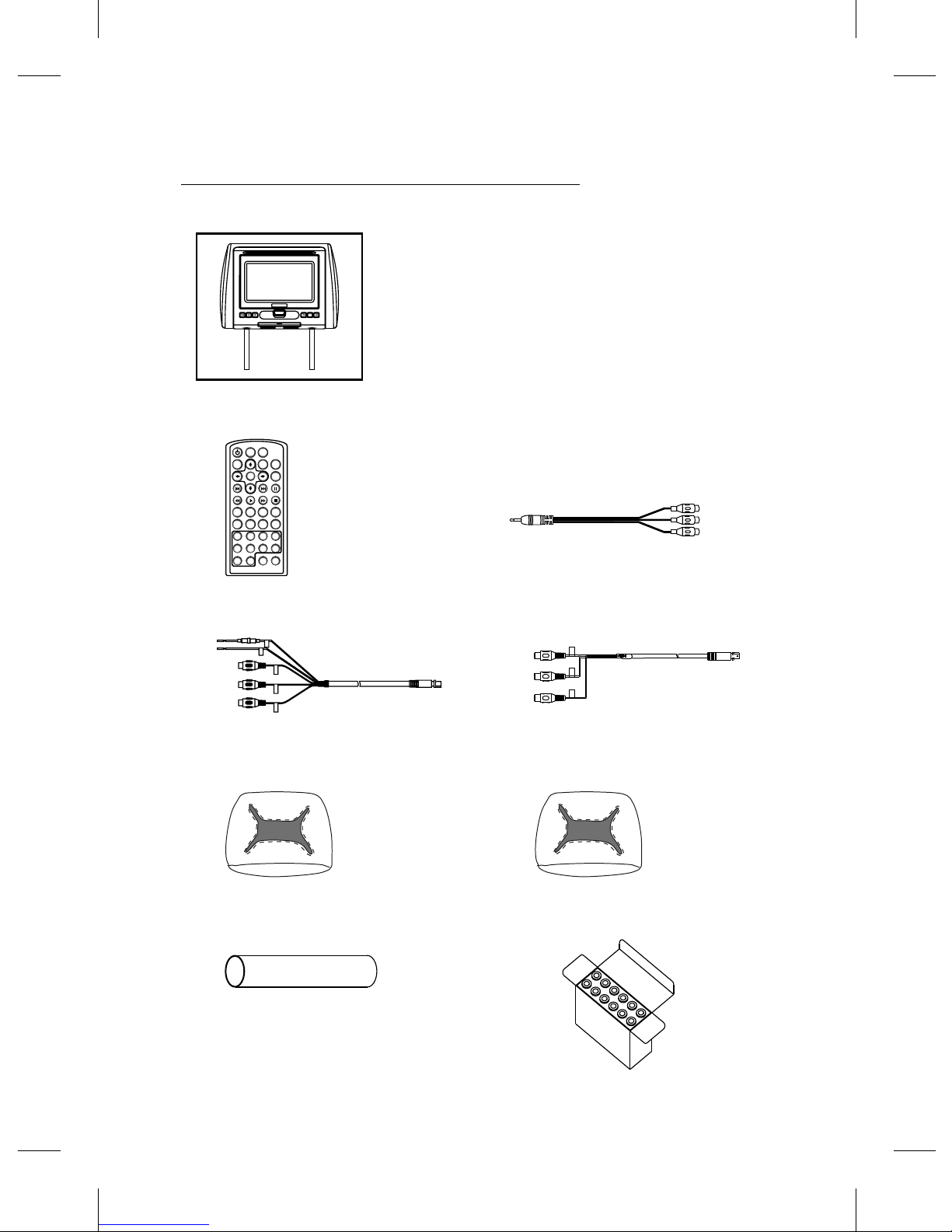

MATERIAL TO USE IN THIS PACKAGE:

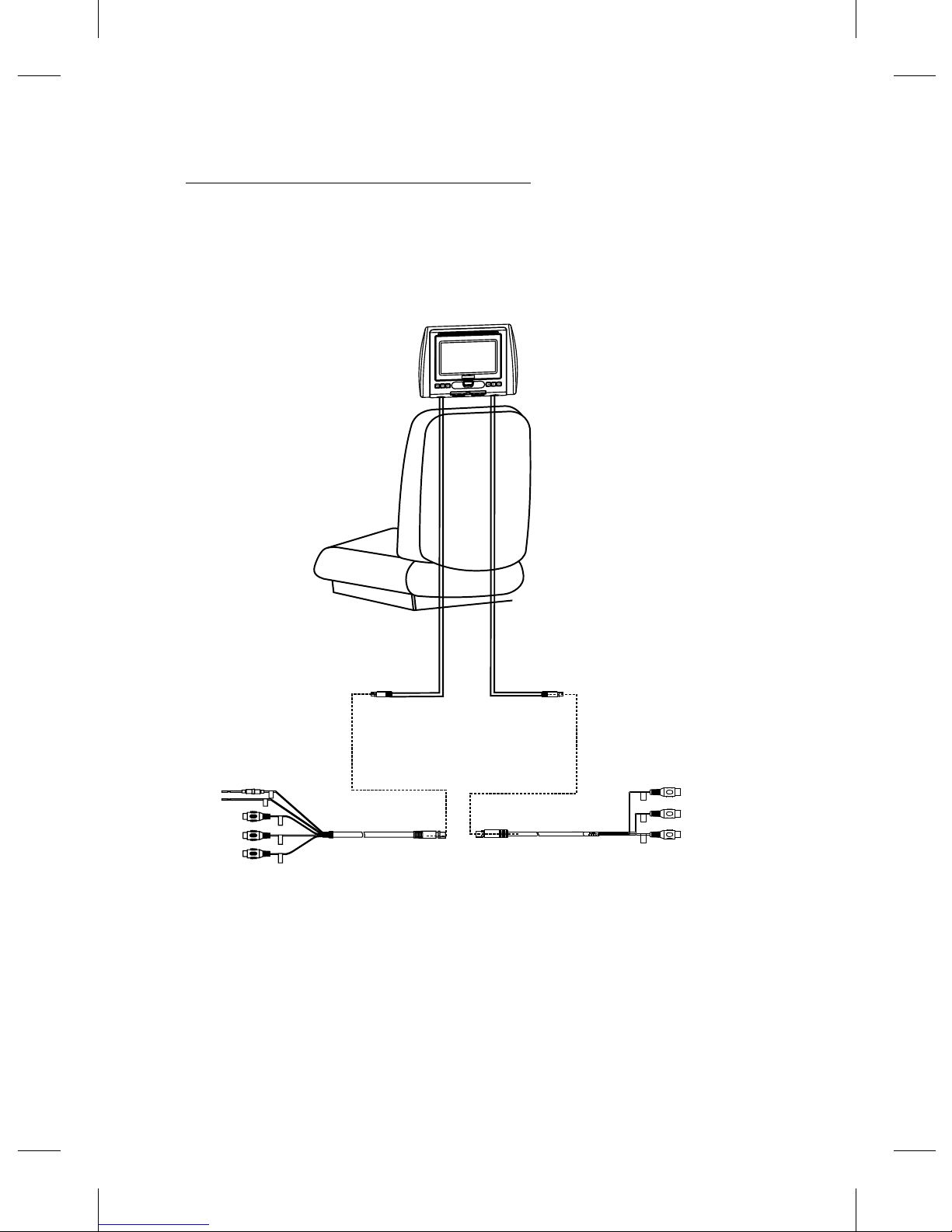

NOTE: Headrest cables are included with the headrest DVD player and the headrest monitor.
1) AVXMTGHR1D System Monitor with DVD Player (AVXMTGHR1D) (1pc)
NOTE: The AVXMTGHR1D monitor has been designed to
be interchangeable from one headrest to the other. The
headrests will still have the Green and Red Din cables on
them and should be connected to their respective
connectors. The headrest cover from the manufacturer is
covered with shale colored vinyl.
1) Remote Control
(P/N 136-5150) - (1pc)
3) AV IN / Power Cable, 8 Pin Din to 3 RCA (Red)
(P/N 112-4149)-(1pc)
5) Black Vinyl Headrest Cover
(P/N 126-1377)-(1pc)
4) AV OUT Cable, 8 Pin Din to 3 RCA (Green)
(P/N 112-4160)-(1pc)
2) AV Adapter Cable
(P/N )-(1pc)112B3227
6) Pewter Vinyl Headrest Cover
(P/N 126-1378)-(1pc)
7) Shrink Tubing, Black
(P/N 138-1495 )-(2pcs)
8)
(P/N )-(1box)
Support Tube Adaptor Box
170-0161
POWER SO URCE
VOLUME
-+
MUTE
ENTER
PIX
PREV NEXT PAUSE
STOPFFPL AYFR
AUDIOSUBTIT LEREPEATSETUP
ZOOM
DVD SOURC E
DISC ME NU DISPLAY
1 2 3 4
5 6 7 8
9 0
FMM ON/O FF CHANNEL SELECT
SYSTEM MENU
AVXMTGHR1D 4
PUSH

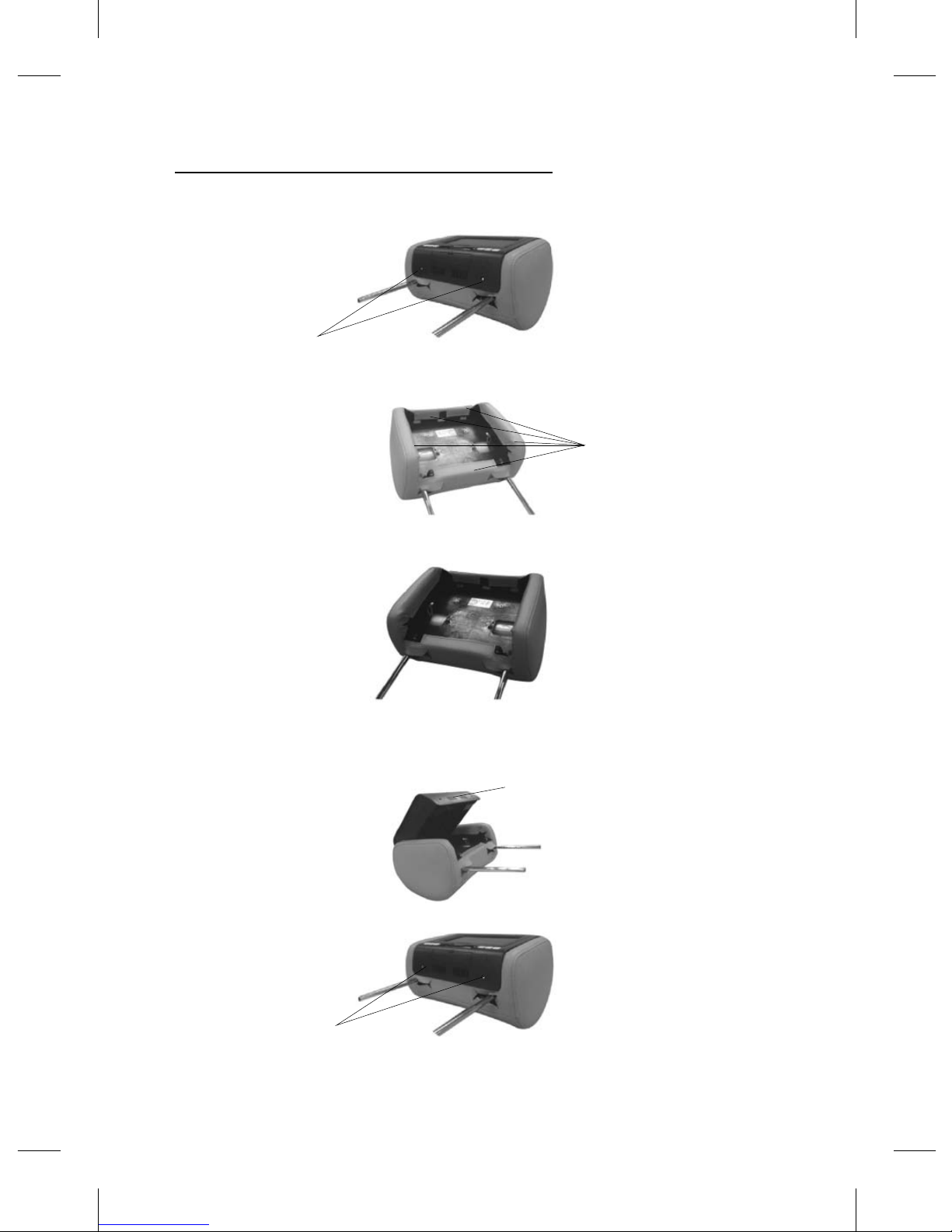

HEADREST COVER REPLACEMENT:
1. Using a Philips screwdriver, unscrew the two Philips screws and lift the bottom edge
of the monitor upward.
2. Remove the velcro tabs securing the headrest cover.
3. Replace the headrest cover with the desired color and secure the headrest cover by
re-attaching the velcro tabs.
4.Place the monitor cable into the space on the right side of the headrest and lower the
monitor into position to align the two Philips screws with the screw holes in the headrest.
Close the screen and press the PUSH button to secure the screen.
5.Tighten screws
AVXMTGHR1D 5
NOTE: If desired, replace the headrest cover before installing the headrest in the vehicle.
Unscrew Philips Screws
Remove Velcro Tabs
Push
Tighten Philips Screws
