Audiovox LCM1502TV User manual

LCM1502TV
Owner’s Manual
Audiovox Specialized Applications, LLC
www.asaelectronics.com
US PATENT # D467, 234

-1-
Important Notice
It is unlawful in most jurisdictions for a person to drive a
motor vehicle which is equipped with a television viewer
or screen that is located in the motor vehicle at any point
forward of the back of the driver’s seat, or that is visible,
directly or indirectly, to the driver while operating the
vehicle. In the interest of safety, the LCM1502TV should
never be installed where it will be visible, directly or
indirectly, by the operator of the motor vehicle.
Please note that the state of Rhode Island forbids the
Installation of such a device in a motor vehicle.
Television Reception
This entertainment system is designed primarily for
viewing pre-recorded movies or playing video games.
Television reception in a moving vehicle will be limited
and in some areas will not be possible due to weak and
variable signal strength. Television viewing in a
stationary vehicle will result in an improvement, but may
still be marginal due to strength. The quality of the
picture will not be consistent with home TV reception.
Reception may be affected by the weather and distance
from the TV station.
A
weak signal may cause the
picture to roll, be snowy, or cause some color loss.

-2-
Congratulations on your purchase of the Flexvision
LCM1502TV drop down TV/Video Monitor. The
LCM1502TV has been designed to give you and your
family many years of video entertainment in the mobile
environment. Please read the directions that follow to
familiarize yourself with the product and to ensure that
you obtain the best results from your equipment.
NOTE: Installation options vary. See the individual
Owner’s Manuals for each component in your system to
obtain a full understanding of each component’s
operation.
SAFETY PRECAUTION
For safety reasons, when changing Video Media it is
recommended that the vehicle is not in motion, and that
you do not allow children to unfasten seat belts to
change Video Media or make adjustments to the
system. System adjustments can be accomplished
using the Remote Control while seat belts remain
fastened. Enjoy your Flexvision entertainment system
but remember safety of all passengers remains the
number one priority.
FEATURES
•15” TFT (Thin Film Transistor) Active Matrix LCD
(Liquid Crystal Display) Monitor
•OSD (On Screen Display) For Control Of Picture
Quality And Functions
•Full Function Remote Control
•3 A/V inputs with TV Tuner as a fourth source
•IR repeater for control of Flexvision DVD/VCP
through a source component harness.
•Direct single cable connection to Flexvision DVD/
VCP products
•Variable Audio output for wired headphone or
external speaker connections
•Back-Lit Controls For Low Light Operation
•49MHz RF Transmitter
•Dual Dome Lights
•A/V outputs for connection to a second monitor

FRONT PANEL FEATURE
Figure 1
-3-
1. POWER
2. VOLUME Up and Down
3. TV/AV
4. SENSOR EYE
5. THREE POSITION DOME LIGHT
SWITCH
6. SCREEN RELEASE
7. MENU
8. CHANNEL Up and Down
9. ENTER
10. DOME LIGHT

-4-
FRONT PANEL FEATURES – See Figure 1
1. Power Button – (Bright red when system is ON,
dim when system is OFF).
2. Volume Up/Down – Controls volume to
external Speakers if connected. Also, used to
adjust the picture control setting when
“contrast”, “bright”, “sharpness”, “color” or “tint”
is displayed on the screen.
3. TV/AV –
A
ny video equipment connected to the
A
UDIO/VIDEO inputs can be used with the TV
by pressing this button. Each time the button is
pressed the Audio/Video source will change in
the following sequence TV, AV1, AV2 and AUX.
4. Sensor Eye – Allows the remote control to
operate the LCM1502TV’s OSD system (On
Screen Display), volume to Wired Headphone
Jacks (and optional external speakers), and for
control of Video Media Player connected
through a source component harness.
5. Three Position Dome Light Switch
•Auto – Automatically switched on the dome lights
in conjunction with the vehicle’s interior
illumination.
•Off – The Dome lights will not turn on in this
position.
•On – Turns on the Dome lights.
6. Screen release – Slides in the direction of the arrow
to release the drop down screen.
NOTE : For safety, hand hold the screen before you
slides the screen release to drop down screen.
7. Menu Button – Gives you access to the OSD Main
Menu.
8. Channel Up/Down – Changes the TV channel.
9. ENTER Button – Use this button to end the choice
on the menu.
10. Dome Lights – Provide additional illumination.

REMOTE CONTROL OPERATION
-5-

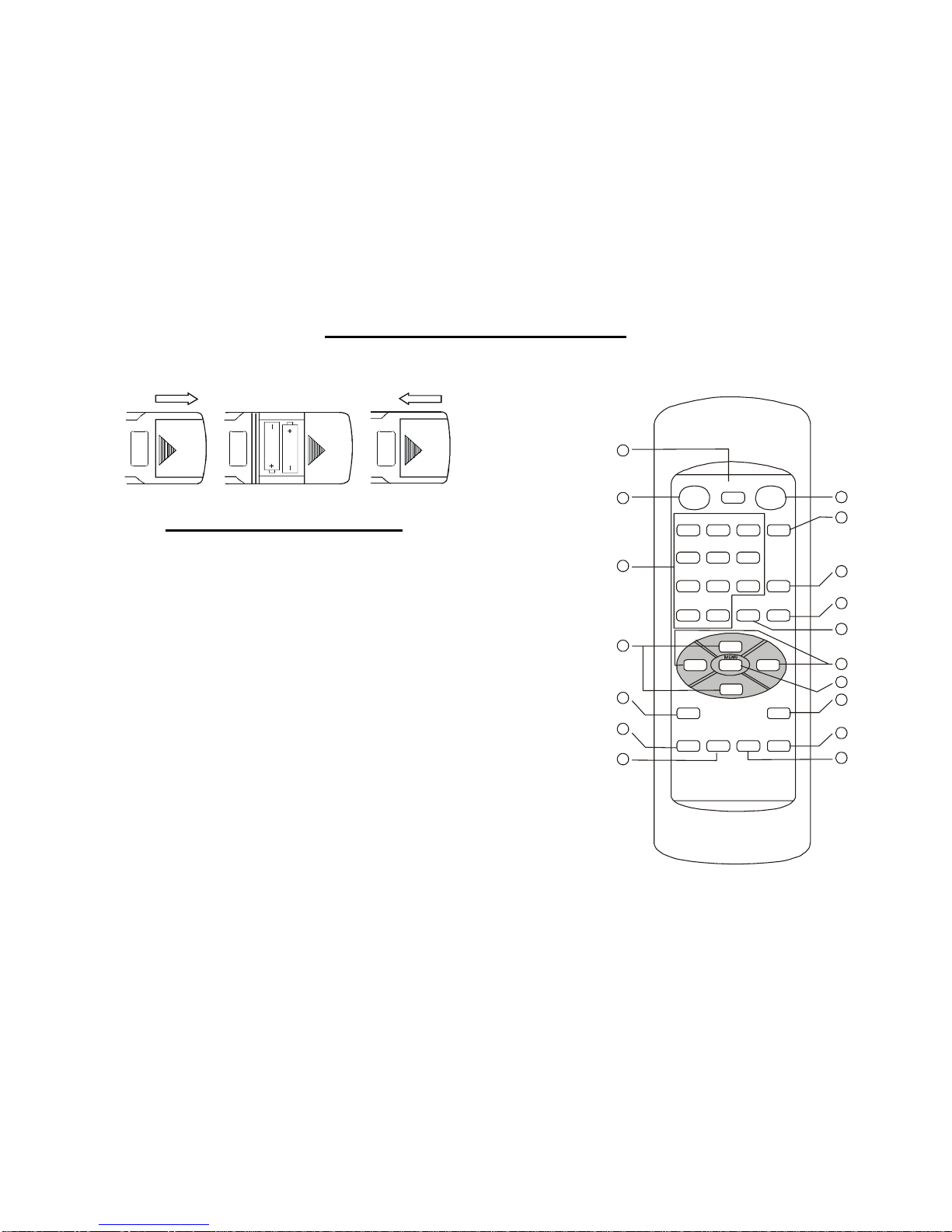

BATTERY INSTALLATION
Before attempting to operate the Remote Control,
install the batteries as described below.
1) Turn the Remote Control face down. Press
down on the ridged area of the battery cover, and
slide it off.
2) Install Two “AAA” batteries as shown. Make sure
that proper polarity (+ or -) is observed.
3) Slide the cover back until it clicks into position.
The Remote Control will operate the LCM1502TV,
Flexvision Televisions and Video Media Players. It
is not a universal remote control and will not control
equipment from other manufacturers.
If a universal Remote Control is used with the
LCM1502TV, choose the remote control encoding
scheme for Flexvision Televisions when
programming the remote.
1
456
7
01-
8
TV POWER TV/ VI DEO MUTE
PI C TURE
SELECT EN TER
PLAY
REW F. FWD REPLAY STOP
VCP POWER
VOL . +
VOL. –
CH σ
CH τ
ERASE/
ADD
AUTO
PROG RAM
9
23
8
4
5
9
10
11
14
16
12
13
15 17
7
1
6
2
3

-6-
REMOTE CONTROL OPERATION
1. TV Controls:
1. TV POWER
Press this button to turn on the set.
Press the button again to turn the set off.
2. Direct Access (0-9,1--) Number Buttons
Use these buttons to select a channel. The channel number chosen will be displayed on the screen for
about four seconds. To select channels 0-99, press two number buttons. For example, to select
channel 8, press 0,8. To select channels above 100, press the 1—button, then the number buttons for
the last two digits of the channel. For example, to select channel 115, press 1--, 1, 5.
3. CHANNEL Up and Down
Use these buttons to select pre-programmed channels or two select channels up or down. (also used
to select desired function on the menu).
4. VOLUME Up and Down
Use these buttons to raise or lower the volume level of the Wired Headphones or External Speakers if
installed. They are also used to make adjustments in the picture select mode.
NOTE: These buttons will not affect the volume of wireless headphones or a wired RF modulator.
When using these devices the volume must be adjusted with the headphone volume control or with
your radio’s volume control.
5. MENU Button
Press the MENU button. The MENU display appears. Use the Channel up and down buttons to select
desired function, then press ENTER button to end the choice.

-7-
6. TV/VIDEO Button
Press this button to access the AUDIO/VIDEO input jacks, on the front and rear of the TV. As the

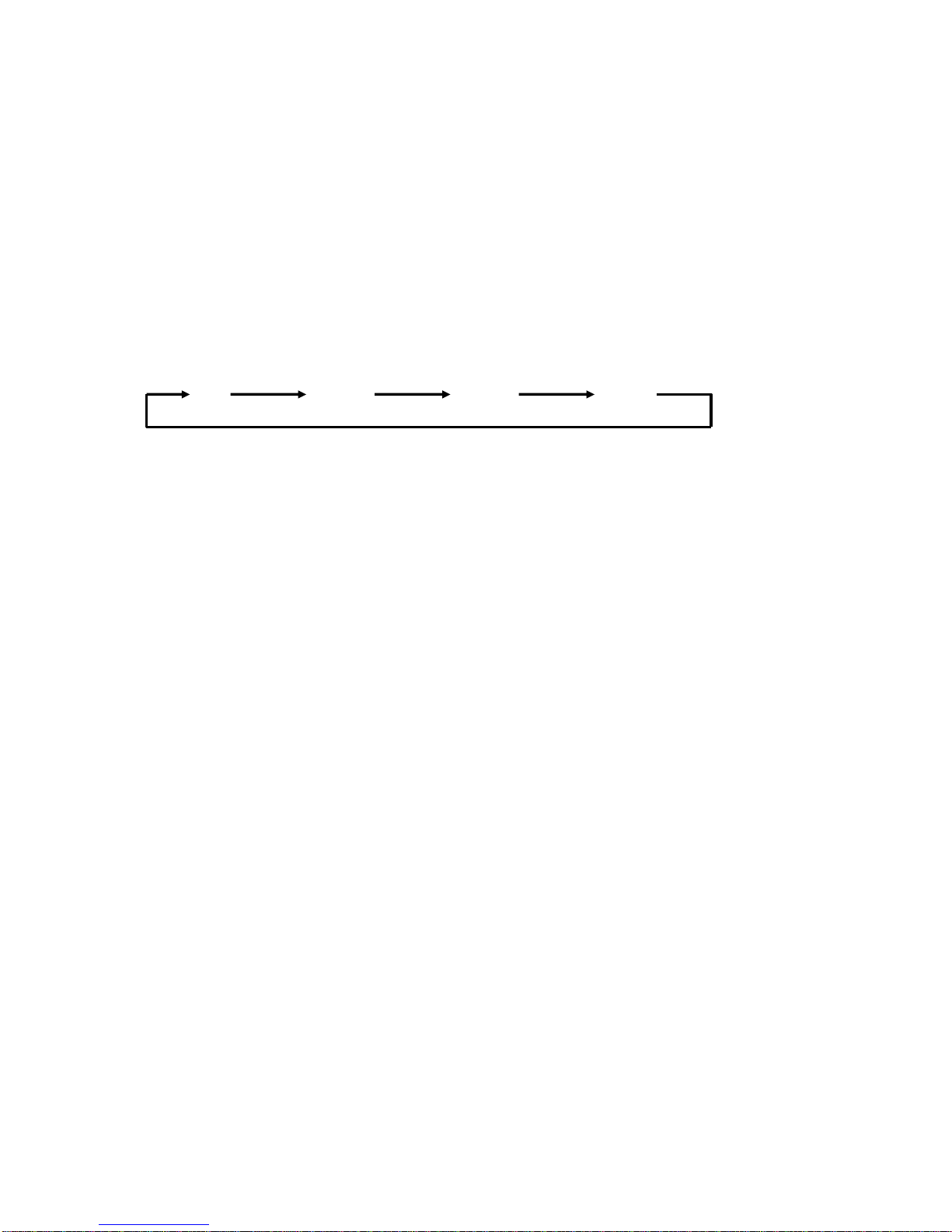

button is pressed, the on screen display will cycle as follows:
TV AV1 AV2 AUX
7. MUTE Button
Press this button to turn the TV sound off. Press again to restore sound to the previously set level.
MUTE may also be released by pressing the VOLUME +/–.
8. ERASE/ADD Button
When tuned to a channel press this button to store or erase the channel from memory. The stored
channel numbers are display in GREEN on the screen and the no stored channel numbers are in
RED.

-8-
9. AUTO PROGRAM Button
Select the regular channel broadcast TV or CABLE TV for AUTO PROGRAM. All the channel
numbers for TV or CABLE TV will be scanned. The broadcasting signals will be detected and
automatically stored.
10. ENTER Button
Use this button to end the choice on the menu.
11. PICTURE SELECT Button
Each time this button is pressed the on-screen picture adjustment display cycles through
“adjustment screens” as follows:
BRIGHTNESS CONTRAST COLOR SHARPNESS TINT

-9-
2. VCR Controls:
12. VCP POWER Button
This button is used to turn the unit on and off.
13. ”REW” REWIND Button
If this button is pushed while the tape is stopped, the tape will rewind. If this button is pushed while
the tape is playing, the VCP will go into rewind search mode. For more information on search feature
of the VCP, consult VCP owner’s manual.
14. PLAY Button
Press this button to activate play mode while a tape is loaded into the VCP. This button may also be
used to dis-engage search and pause modes. For more information, consult the VCP owner’s
manual.
15. ”F.FWD” FAST FORWARD Button
If this button is pushed while the tape is stopped, tape will fast forward. If this button is pushed while
the tape is playing, the VCP will go into fast forward search mode. For more information on search
feature of the VCP, consult the VCP owner’s manual.
16. STOP Button
Press this button to stop the video tape.
17. REPLAY Button
Press this button will rewind the video tape and immediately begin playback when the video tape is
fully rewind.

-10-
ADJUSTING THE PICTURE
When watching TVprograms, the quality of the picture can be adjusted to suit your taste.

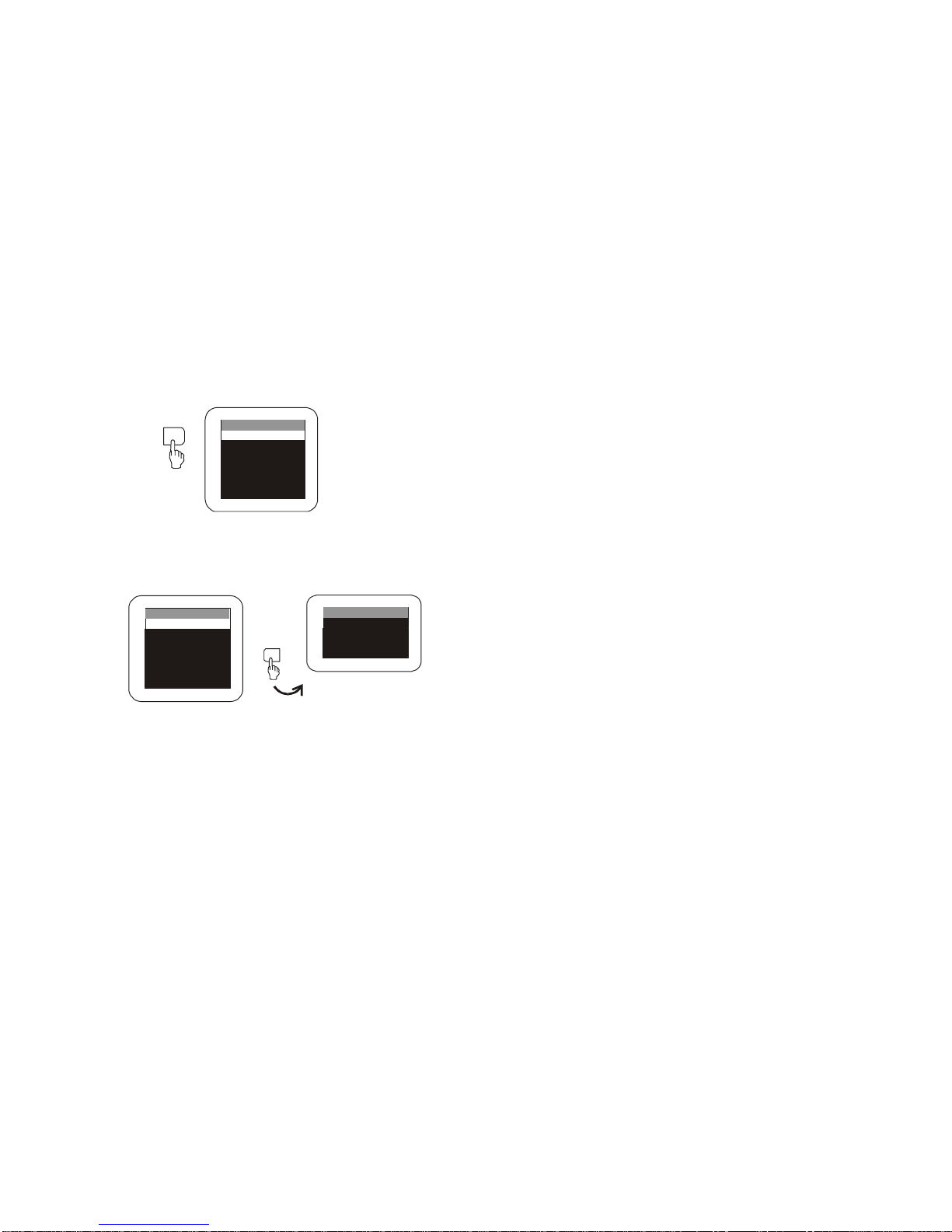

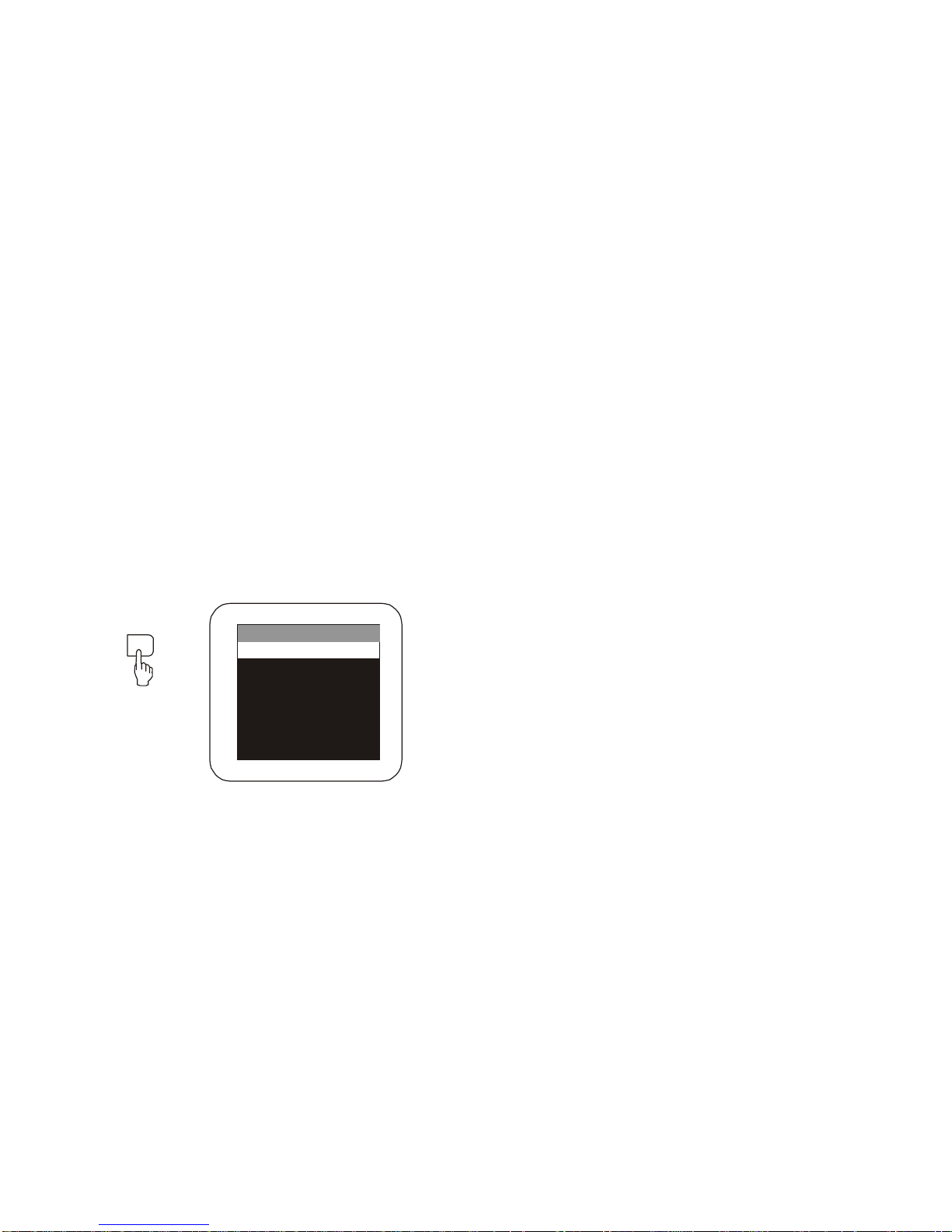

1. Press MENU. The main menu appears.
2. Press SELECT VIDEO. The video source appears.
Press this button to access the AUDIO/VIDEO input jacks.
MENU
MAIN MENU
SELECT VIDEO
CLOSED CAPTION
SET PICTURE
AUTO-PROGRAM
ANTENNA INPUT
V-C HIP PROTECT
SET PASSWORD
VIDEO SOURCE
TV
AV1
AV2
AUX
MAIN MENU
SELECT VIDEO
CLOSED CAPTION
SET PICTURE
AUTO-PROGRAM
ANTENNA INPUT
V-CHIP PROTECT
SET PASSWORD
ENTER

-11-

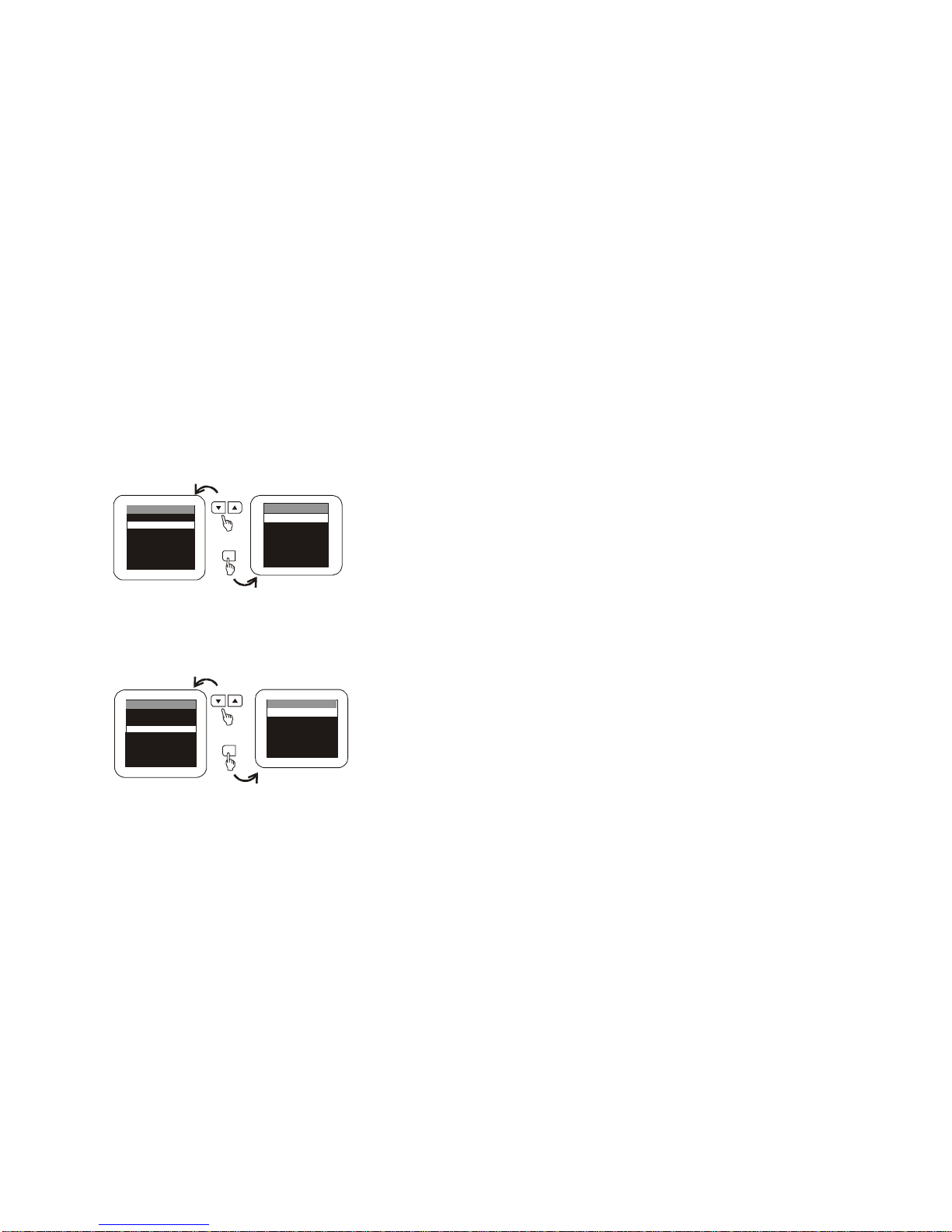

3. Select CLOSED CAPTION and then press ENTER.
4. Press either CHANNEL up or down to select the function.
Make sure the highlight bar is SET PICTURE and then press ENTER.
Closed captioning lets you display the audio portion of a program as text on the TV screen. This is
useful to the hearing impaired or anyone who wants to watch a program without the sound.
There are two types of closed captioning available: C1 (Caption 1) and C2 (Caption 2). C1 display the
full translation of the primary language in your area. C2 may be used as a source for secondary
languages, simplified English, or other translations transmitted in your area.
Closed captioning is not available on all channels or at all times. Only specific programs are encoded
with closed captioning information.
CHANNEL
ENTER
CAPTION
CAPTION 1
CAPTION 2
OFF
MAIN MENU
CLOSED CAPTION
SELECT VIDEO
SET PICTURE
AUTO-PROGRAM
ANTENNA INPUT
V-CHIP PROTECT
SET PASSWORD
CHANNEL
ENTER
MAIN MENU
SET PICTURE
SELECT VIDEO
CLOSED CAPTION
AUTO-PROGRAM
ANTENNA INPUT
V-CHIP PROTECT
SET PASSWORD
CONTRAST
BRIGHTNESS
SHARPNESS
TINT
RESET
COLOR

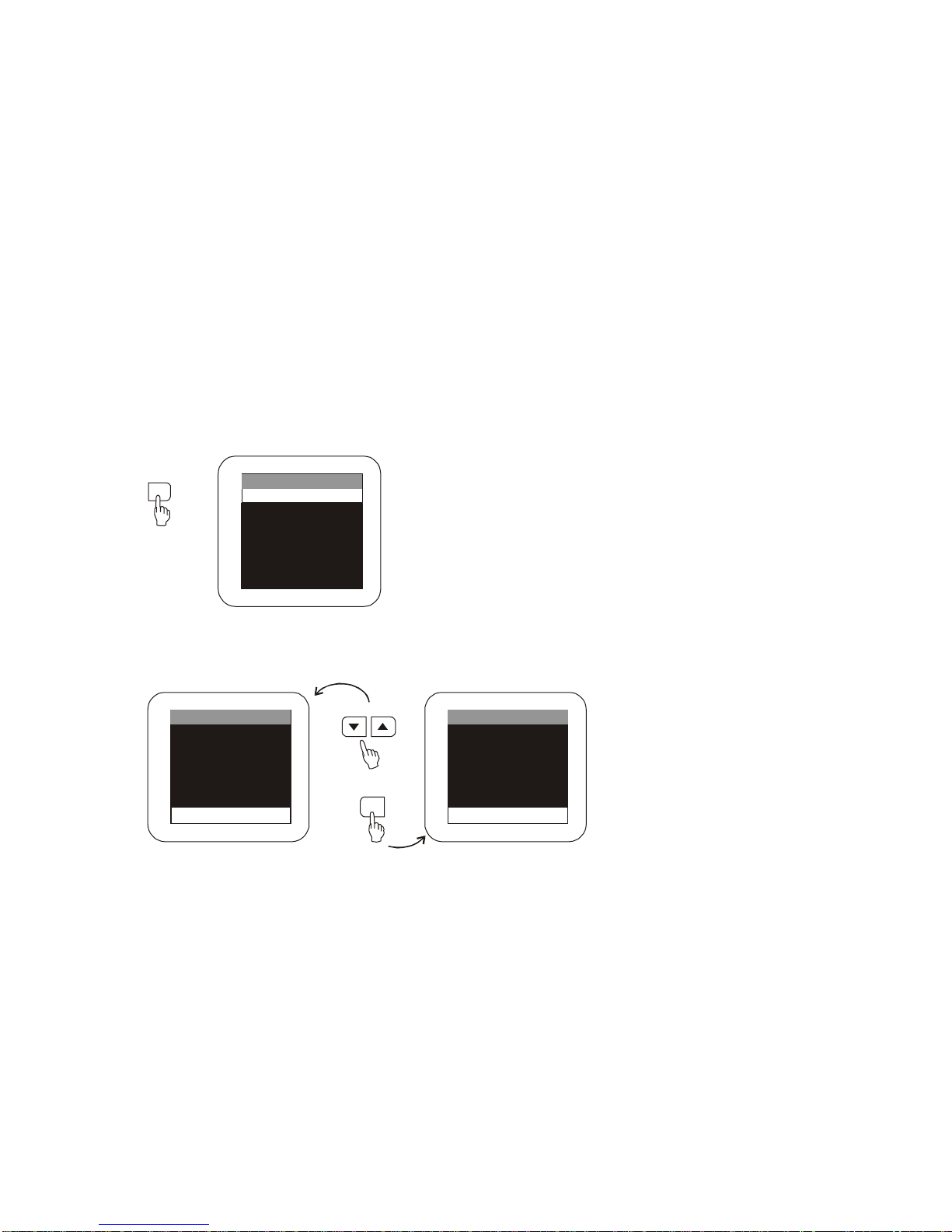

6. Select the item to adjust. For example:
To adjust brightness, press CHANNEL up or down buttons to select BRIGHTNESS and press
ENTER.
6. Adjust the level:
Press VOLUME
-12-
CHANNEL
32 BRIGHTNESS
ENTER
CONTRAST
SHARPNESS
TINT
RESET
–
+
BRIGHTNESS
COLOR
VOLUME
50 BRIGHTNESS
–+
+
–

7. To adjust other items, repeat all above.
Notes:
The menu or display disappears from the screen if you do not press + or – within a few seconds.
Whenever a menu or display disappears from the screen, the + and – buttons on the front of the TV
become the volume adjustment buttons.
If you want to adjust the picture only. You can use the remote control, simply press the PICTURE
SELECT.
Description of adjustment items
Item Adjustment
Press VOLUME Down Press VOLUME Up
CONTRAST Decrease picture contrast
for soft color Increase picture contrast for vivid color
BRIGHTNESS Darken the picture Brighten the picture
SHARPNESS Decrease picture sharpness Increase picture sharpness
TINT Decrease Tint Increase Tint
COLOR Decrease color intensity Increase color intensity
To restore the factory settings
Select the item of picture while the main menu is displayed. Then select the item of RESET. All the
picture functions (CONTRAST,BRIGHTNESS, SHARPNESS,TINT, COLOR) will go back to the factory
settings.
-13-

-14-
8. Press either CHANNEL up or down to select the function.
Make sure the highlight bar is AUTO PROGRAM and then press ENTER.
9. Press either CHANNEL up or down select the function.
Make sure the highlight bar is ANTENNA INPUT and then press ENTER.
CHANNEL
ENTER
MAIN MENU
AUTO-PROGRAM
SELECT VIDEO
CLOSED CAPTION
SET PICTURE
ANTENNA INPUT
V-CHIP PROTECT
SET PASSWORD
PROGRAM
ERASE CHANNEL
AUTO PROGRAM
ADD CHANNEL
CHANNEL
ENTER
MAIN MENU
ANTENNA INPUT
SELECT VIDEO
CLOSED CAPTION
SET PICTURE
AUTO-PROGRAM
V-CHIP PROTECT
SET PASSWORD
ANTENNA
AIR
STD

CABLE TV (CATV) OPERATION
In addition to normal broadcast reception of VHF and UHF channels, if you are a cable TV subscriber,
your new TV is capable of receiving many unscrambled cable channels without the use of a converter
box.
When set to broadcast TV it receives channels 2~69. When set to one of the CATV mode (STD) it
receives channels 1 ~ 125 (see chart on the following).
CABLE TV TUNING PROCEDURE
1. Connect the CATV cable directly to the TV antenna terminal. Your local cable system operator’s
converter box should not be required unless certain premium channels are scrambled.
2. Select the appropriate CATV setting with the TV/CATV button on the remote control.
-15-

3. You can now select CATV programs by using the CHANNEL up and down buttons or the number
buttons on the remote control. The chart below lists the total channel and cable count.
Channels Off Air Cable
Low VHF (Channel 01) - 1
VHF (Channels 2 ~ 13) * 12* 12*
UHF (Channels 14 ~ 69) * 56 -
Low Midband A-5 ~ A-1 (Channels 95 ~ 99) - 5
Midband (Channels 14 ~ 22 or A ~ I) - 9
Superband ( Channels 23 ~ 36 or J ~ W) - 14
Ultraband (37 ~ 94 and 100 ~ 125 or w+29 ~ w+48) - 84
Total* 68 125
-16-

PARENTAL CONTROL SETTINGS
This item helps parents set the standard for the programs their children are going to watch.
1. With the TV on, press the MENU button until special menu will appear.
2. Use the Channel up and down buttons to select the V-Chip Control item.
3. Use the VOL Up buttons to enter into V-Chip Control Settings.
4. After using the number buttons (0-9) to enter your password, the V-Chip Control menu will be
displayed. If this is the first time you are using your V-Chip Control menu, your default password is
1111.
5. Select the V-Chip Control feature. Use the VOL Up buttons to toggle on or off.
6. Use the Channel Up and down buttons to select the V-Chip Control settings you wish to adjust.
Descriptions of the V-Chip Control settings are on the next page.
7. Use the VOL Up buttons to adjust the V-Chip Control setting selected.
8. Use the MENU button to return to the menu on the next level up.
-17-

SETTING THE V-CHIP
An age limitation can be set to forbid children to see and hear violent scenes or pictures for adults, etc.
The TV/VCR responds to “TV RATING” and “MOVIE RATING”. To use the V-CHIP function, you must
register a password.
1. Press MENU. This main menu appears.
2. Press either CHANNEL up or down buttons to select the function.
Make sure the highlight bar is SET PASSWORD and then press ENTER.
-18-
MENU
MAIN MENU
SELECT VIDEO
CLOSED CAPTION
SET PICTURE
AUTO-PROGRAM
ANTENNA INPUT
V
-CHIP PROTECT
SET PASSWORD
MAIN MENU
SET PASSWORD
SELECT VIDEO
CLOSED CAPTION
SET PICTURE
AUTO-PROGRAM
ANTENNA INPUT
V-CHIP PROTECT
OLD PASSWORD
OLD PASSWORD
SELECT VIDEO
CLOSED CAPTION
SET PICTURE
AUTO-PROGRAM
ANTENNA INPUT
V-CHIP PROTECT
CHANNEL
ENTER

3. Enter the OLD password (4 digits) using the Direct channel selection buttons (0-9).
4. Enter the NEW password (4 digits) using the Direct channel selection buttons (0-9).
NOTES: The initial PASSWORD is 1111
If you forget the password, you cannot set the V-CHIP.
To avoid forgetting the password, write it down and Keep in a Safe place.
TO SET THE V-CHIP
1. Press MENU. The main menu appears.
-19-
MENU
MAIN MENU
SELECT VIDEO
CLOSED CAPTION
SET PICTURE
AUTO-PROGRAM
ANTENNA INPUT
V
-CHIP PROTECT
SET PASSWORD
